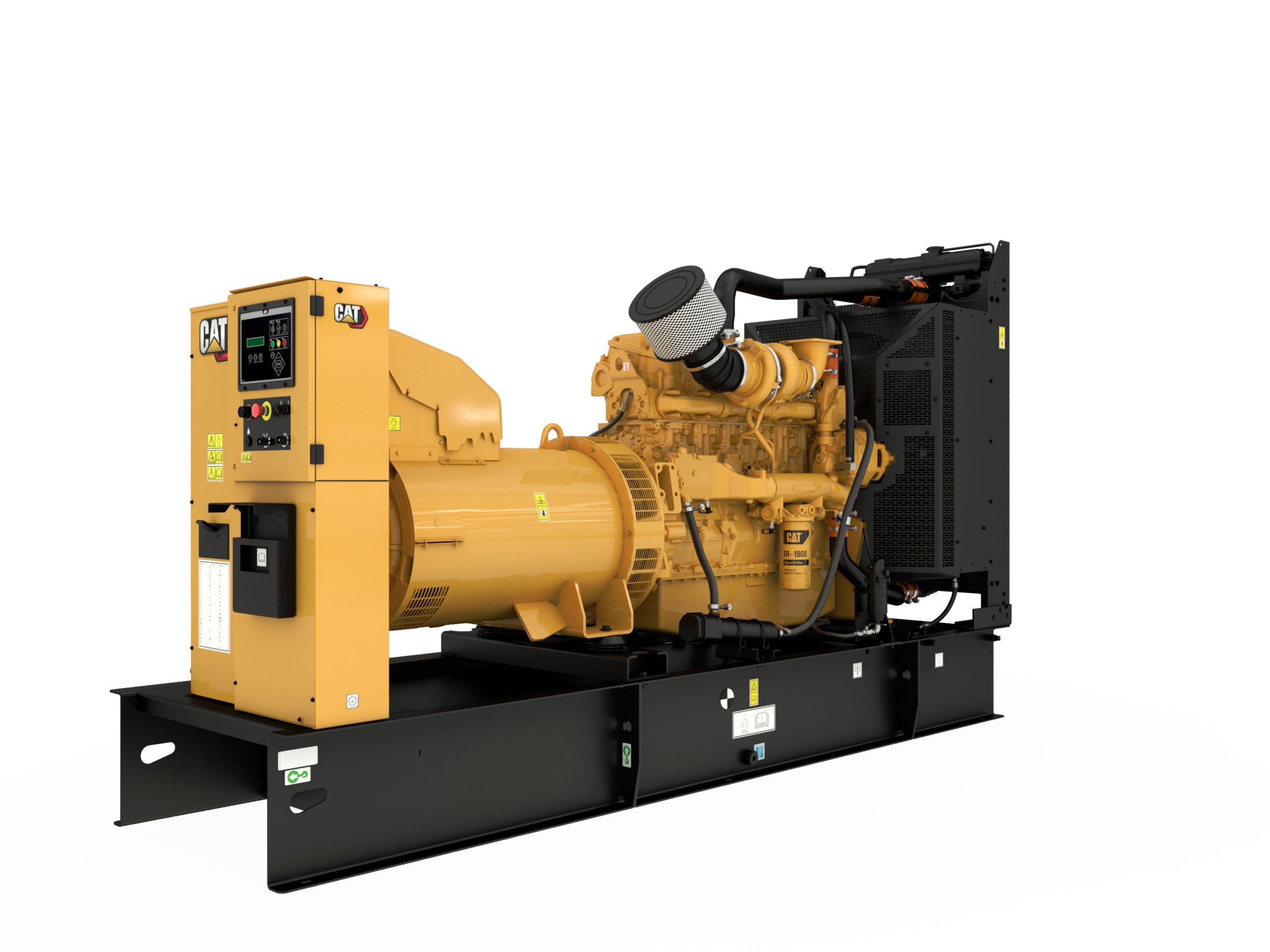

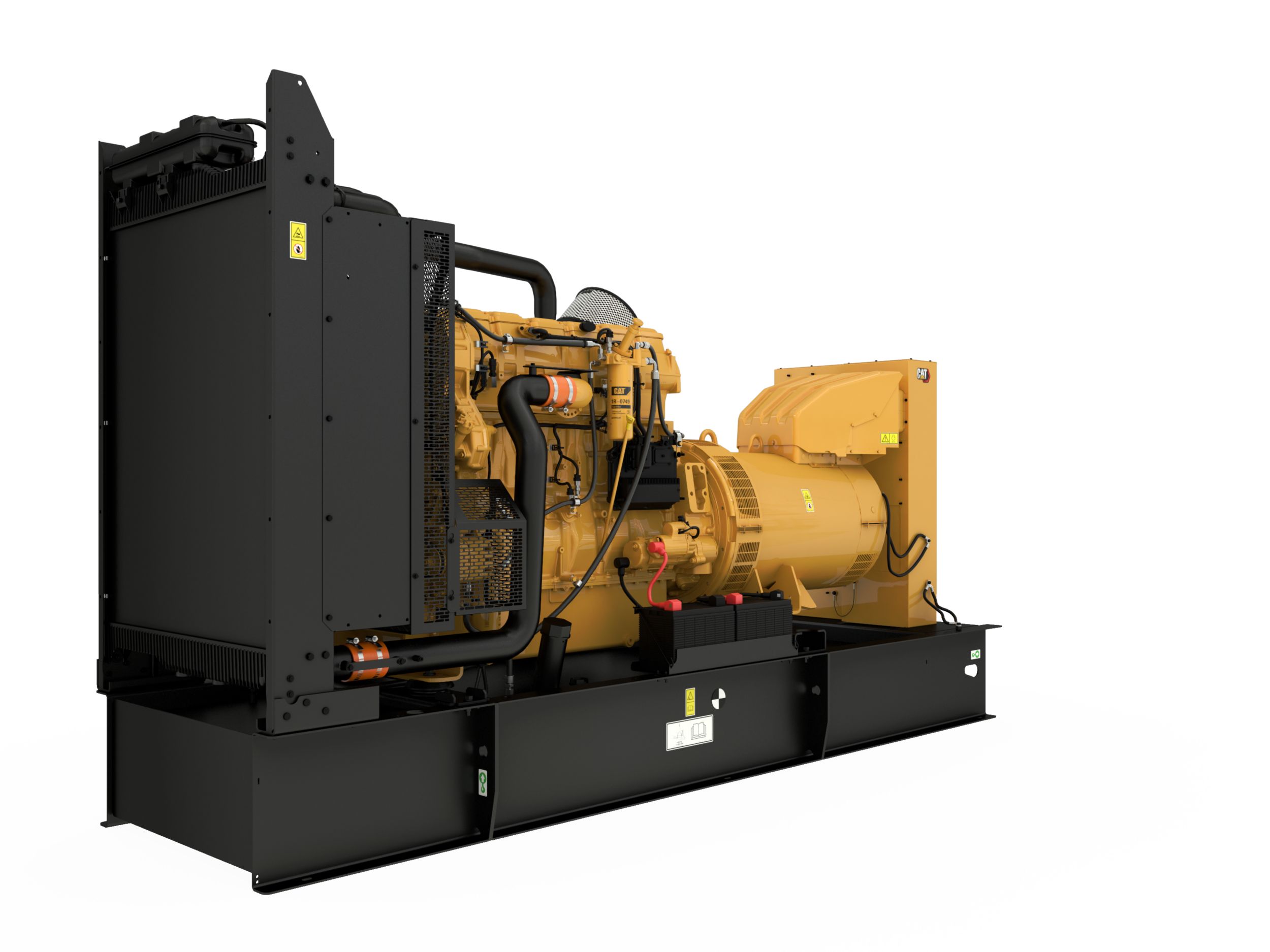

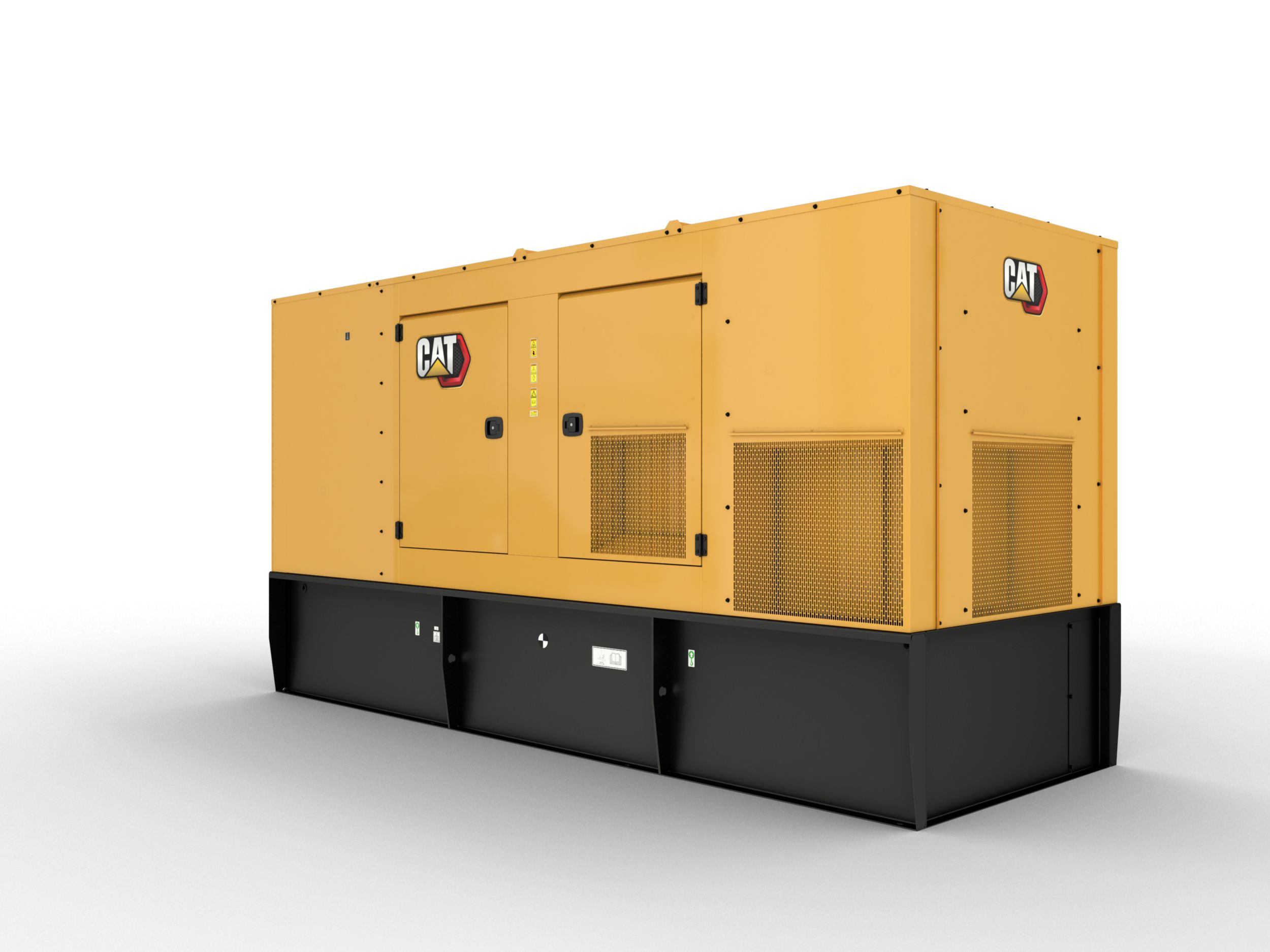

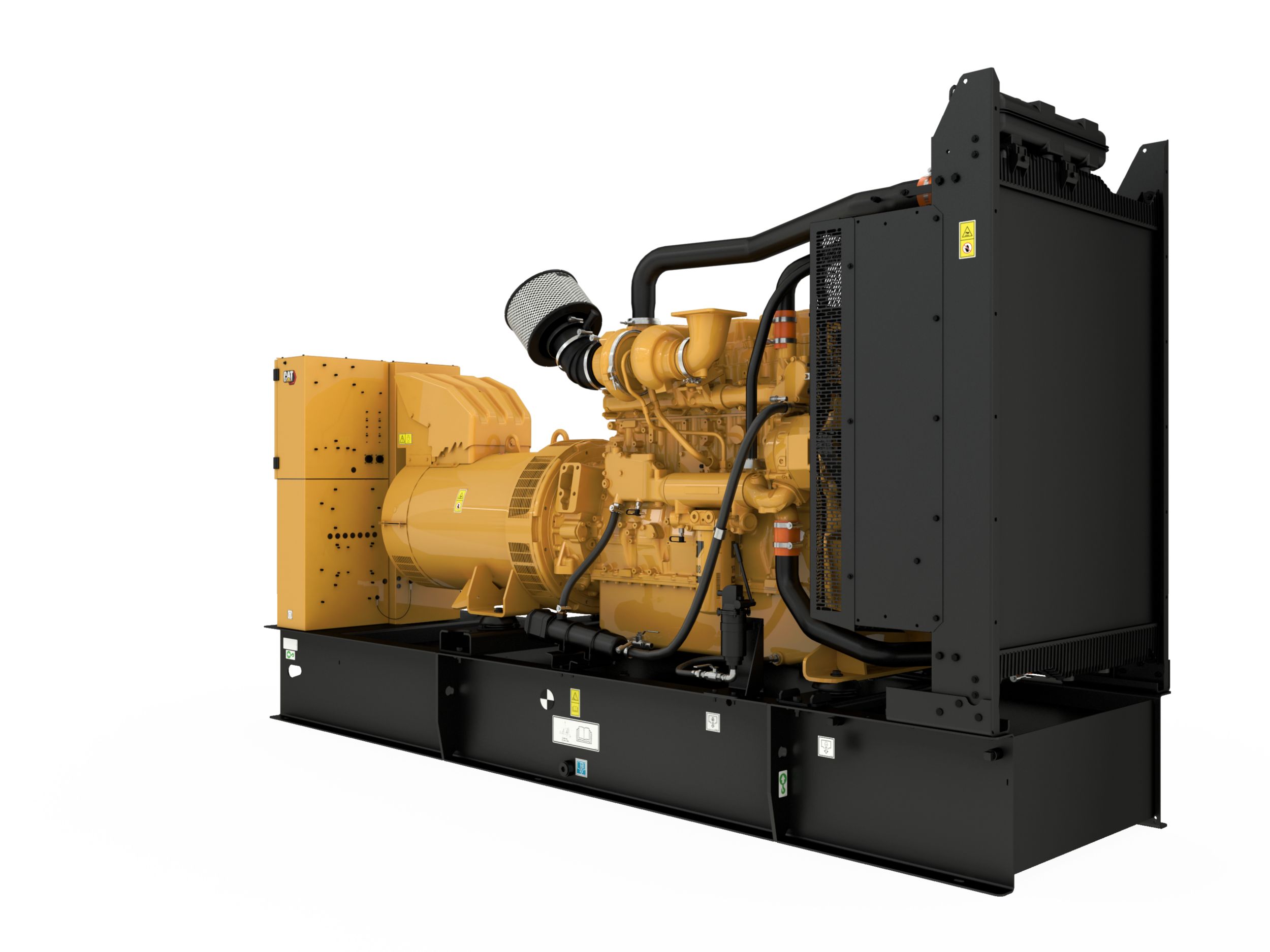

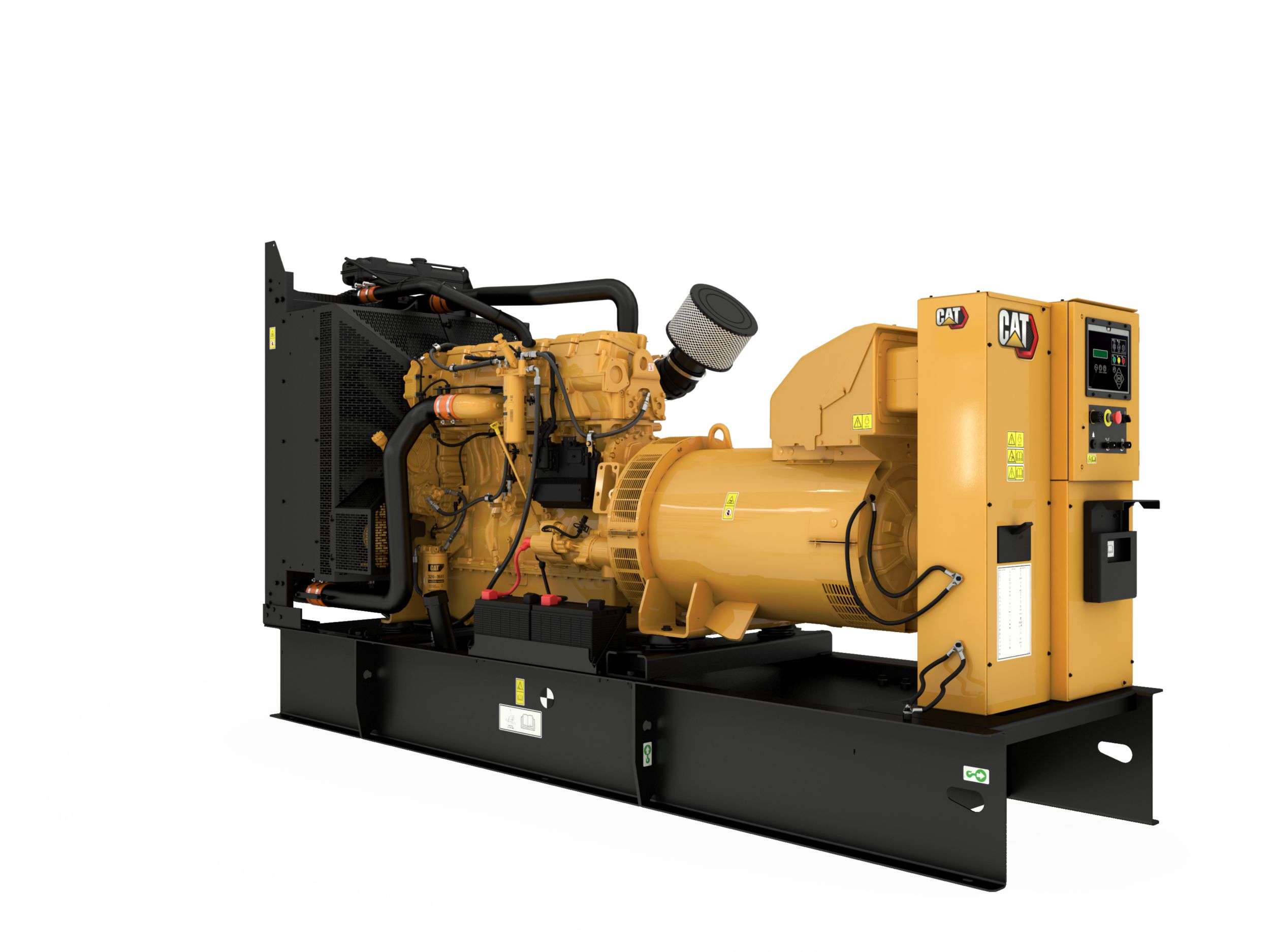

C15 (50 Hz)
C15 Generator Set
The C15 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 365 to 550 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards Emissions / Fuel Strategy.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Certification
Virtual Tours
Documents & Brochures
- Electric Power Ratings Guide
- DE500E0, 50 Hz 550 kVA, EU III Certified Emissions Compliant Spec Sheet
- DE500E0, 50 Hz 500 kVA, Non Certified Emissions Spec Sheet
- C15 50 Hz 360 ekW, Low BSFC Emissions Compliant Spec Sheet
- C15 50 Hz 400 ekW, Low BSFC Emissions Compliant Spec Sheet
- C15 50 Hz 440 ekW, Low BSFC Emissions Compliant Spec Sheet
- 500 - 550 kVA 50/60 Hz Spec Sheet
Standard Equipment
Air System
- Turbocharger
- Aftercooler core
- Air cleaner - Non canister disposable paper filter
Air Inlet
- Air cleaner
Control Panel
- GCCP 1.3
Cooling
- Package mounted radiator
Cooling System
- Caterpillar extended life coolant
- Radiator and cooling fan with guard
- Fan drive, battery charging alternator drive
- Coolant drain line with valve
Exhaust
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Fuel
- Primary fuel filter with integral water separator
- Secondary fuel filters
- Fuel priming pump
Fuel System
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter
- Fuel priming pump
- Flexible fuel lines
- Fuel cooler
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Power Termination
- Busbar
Generator and Attachments
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Optional LC Frame generator - IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
- Integrated voltage regulator (IVR)
- Power center, IP22
Mounting
- Rubber vibration isolators
Governing System
- Cat electronic governor (ADEM A4).
Lube System
- Oil cooler
- Oil drain valves
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
Starting/Charging
- 24 Volt battery with rack and cables
General
- Engine and alternator pre paint, Caterpillar yellow
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 550 kVA |
| Generator Set Specifications - Minimum Rating | 365 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Tier 2 or Tier 3 |
| Generator Set Specifications - Voltage | 208 to 600 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 137.2 mm ( 5.4 in ) |
| Engine Specifications - Stroke | 171.4 mm ( 6.75 in ) |
| Engine Specifications - Displacement | 15.2 l ( 927.56 in³ ) |
| Engine Specifications - Compression Ratio | 16.1:1 |
| Engine Specifications - Aspiration | Air to Air Aftercooled |
| Engine Specifications - Fuel System | MEUI |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Maximum | 3830 mm ( 150.8 in ) |
| Generator Set Dimensions - Width - Maximum | 1481 mm ( 58.3 in ) |
| Generator Set Dimensions - Height - Maximum | 2193 mm ( 86.3 in ) |
-
