C13 (50 Hz) China Non Road
C13 (50 Hz) China Non Road

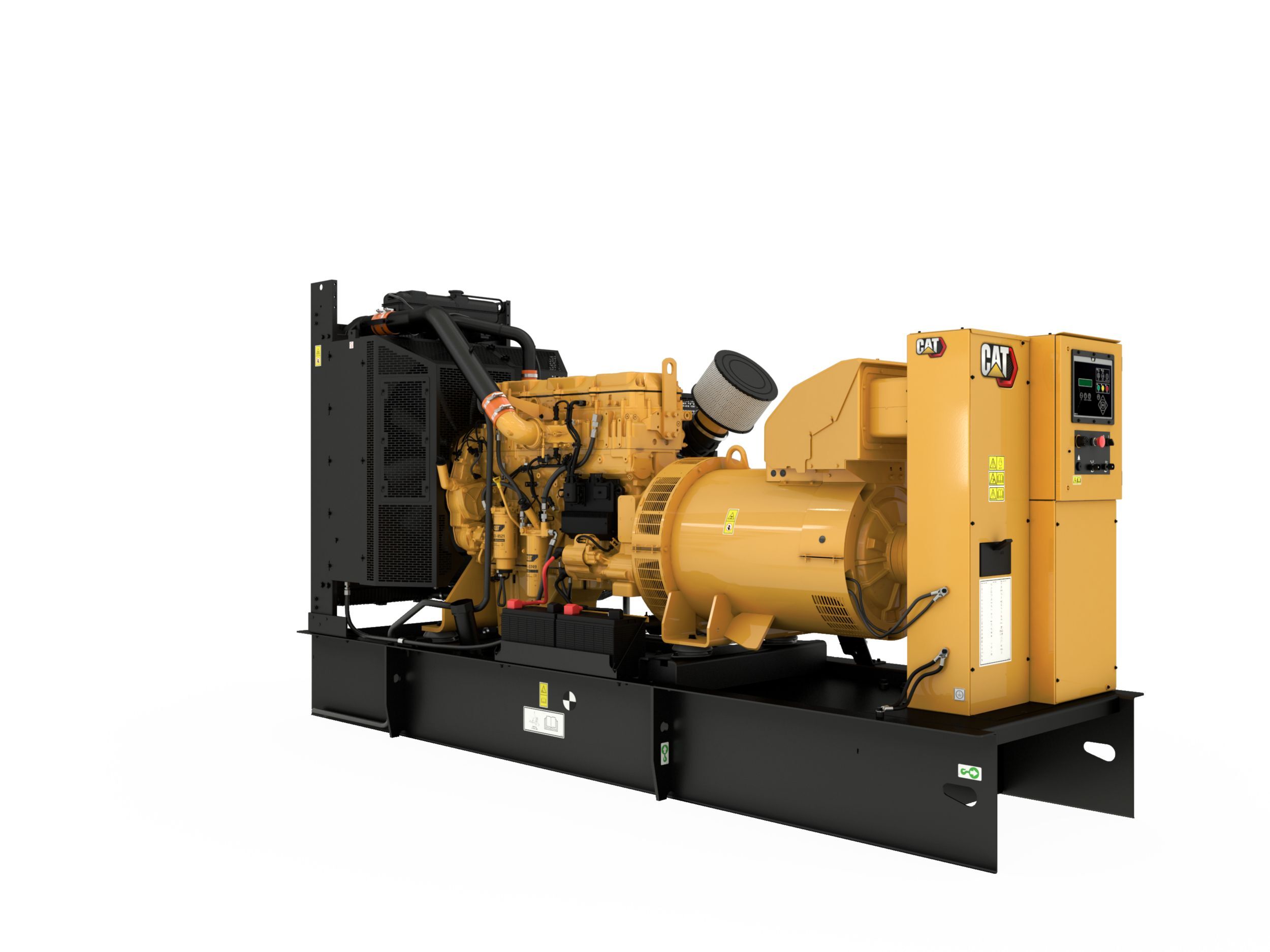

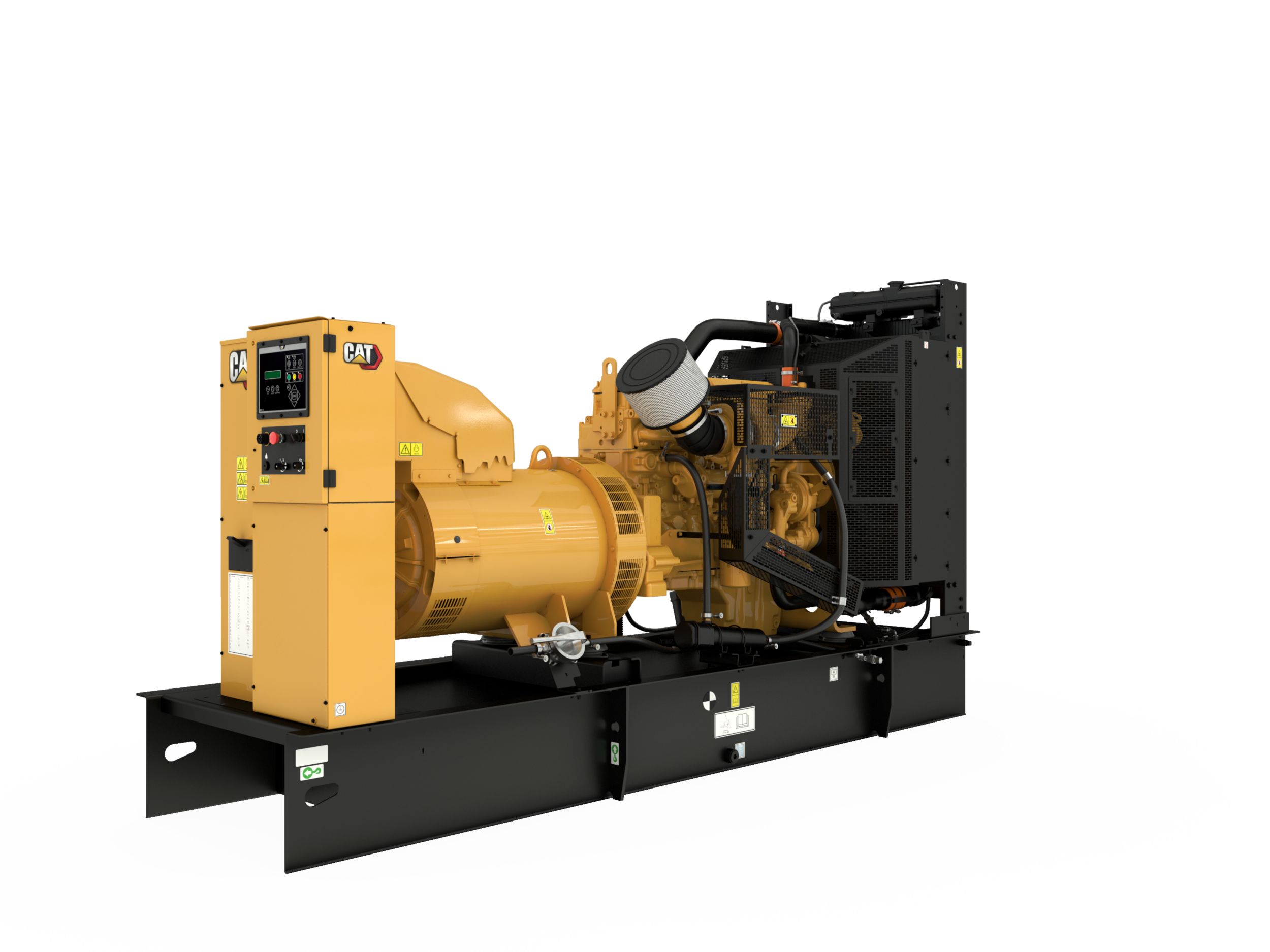

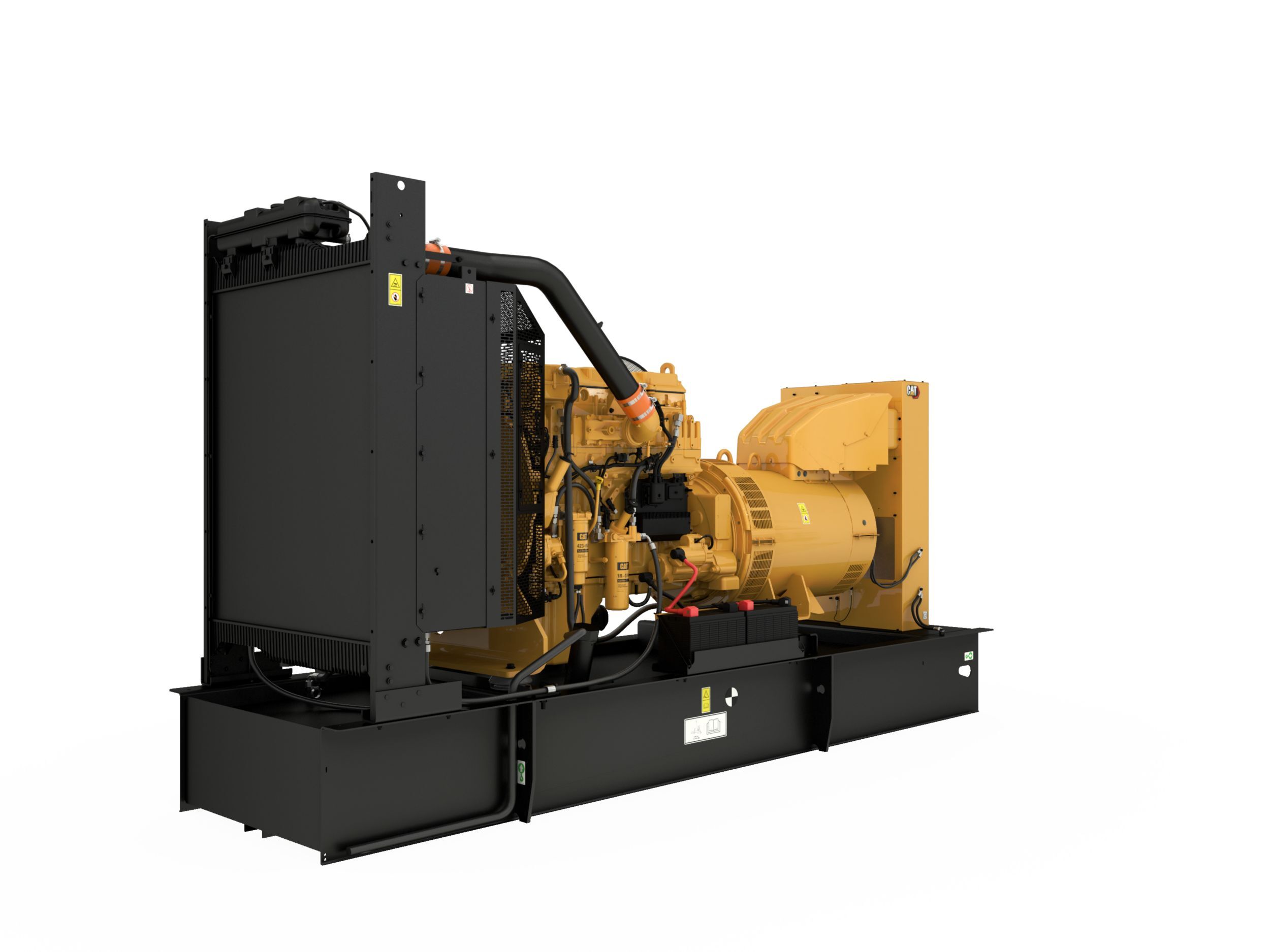

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 350 to 450 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption, EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable paper filter
- Turbocharger
- Aftercooler core
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guard
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Primary fuel filter w/integral water separator and secondary filter
- Flexible fuel lines
- Fuel priming pump
- Engine fuel transfer pump
- Fuel coolers with single wall integral 8-hour fuel tank
Generator and Attachments
- Integrated voltage regulator (IVR)
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- A Frame generator - IP21 Protection
- Power center, IP22
- Optional LC Frame generator - IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain valves
Packaged Generator Set
- Service indicator
- Disposable air filter
- Coolant level sight gauge
- Low coolant level sensor
- Coolant drain line with valve
- Radiator package mounted
Mounting System
- Captive linear vibration isolators between base and
engine-generator includes lifting provisions and termination
points for coolant and lube oil drain lines.
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 450 kVA |
| Generator Set Specifications - Minimum Rating | 350 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel, R96/EUIIIa |
| Generator Set Specifications - Voltage | 380 to 415 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 130 mm ( 5.12 in ) |
| Engine Specifications - Stroke | 157 mm ( 6.18 in ) |
| Engine Specifications - Displacement | 12.5 l ( 762.8 in³ ) |
| Engine Specifications - Compression Ratio | 16.3:1 |
| Engine Specifications - Aspiration | Air to Air Aftercooled |
| Engine Specifications - Fuel System | MEUI |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Maximum | 4743 mm ( 186.7 in ) |
| Generator Set Dimensions - Width - Maximum | 2014 mm ( 79.3 in ) |
| Generator Set Dimensions - Height - Maximum | 2133 mm ( 84 in ) |
-
Enclosures

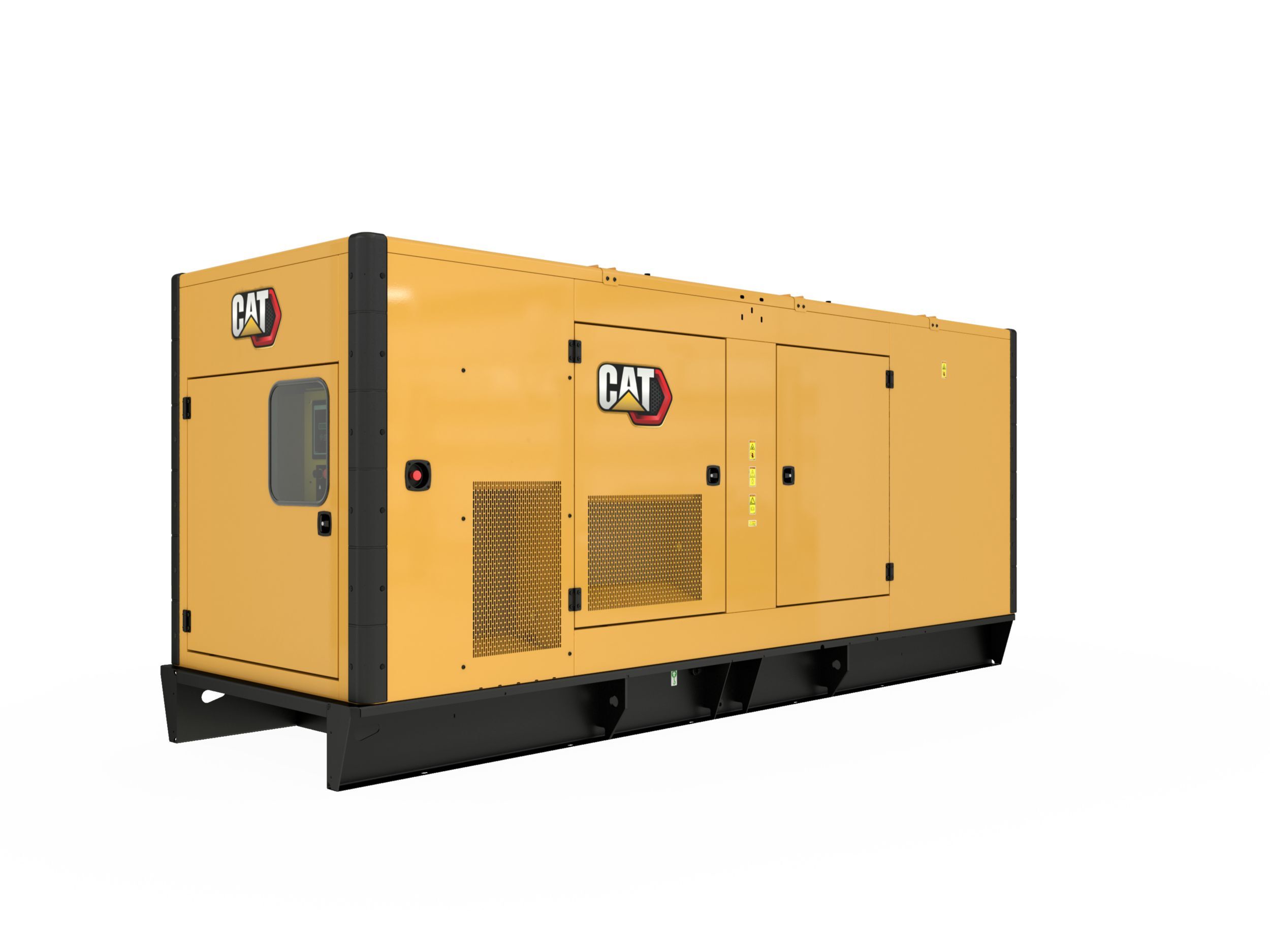

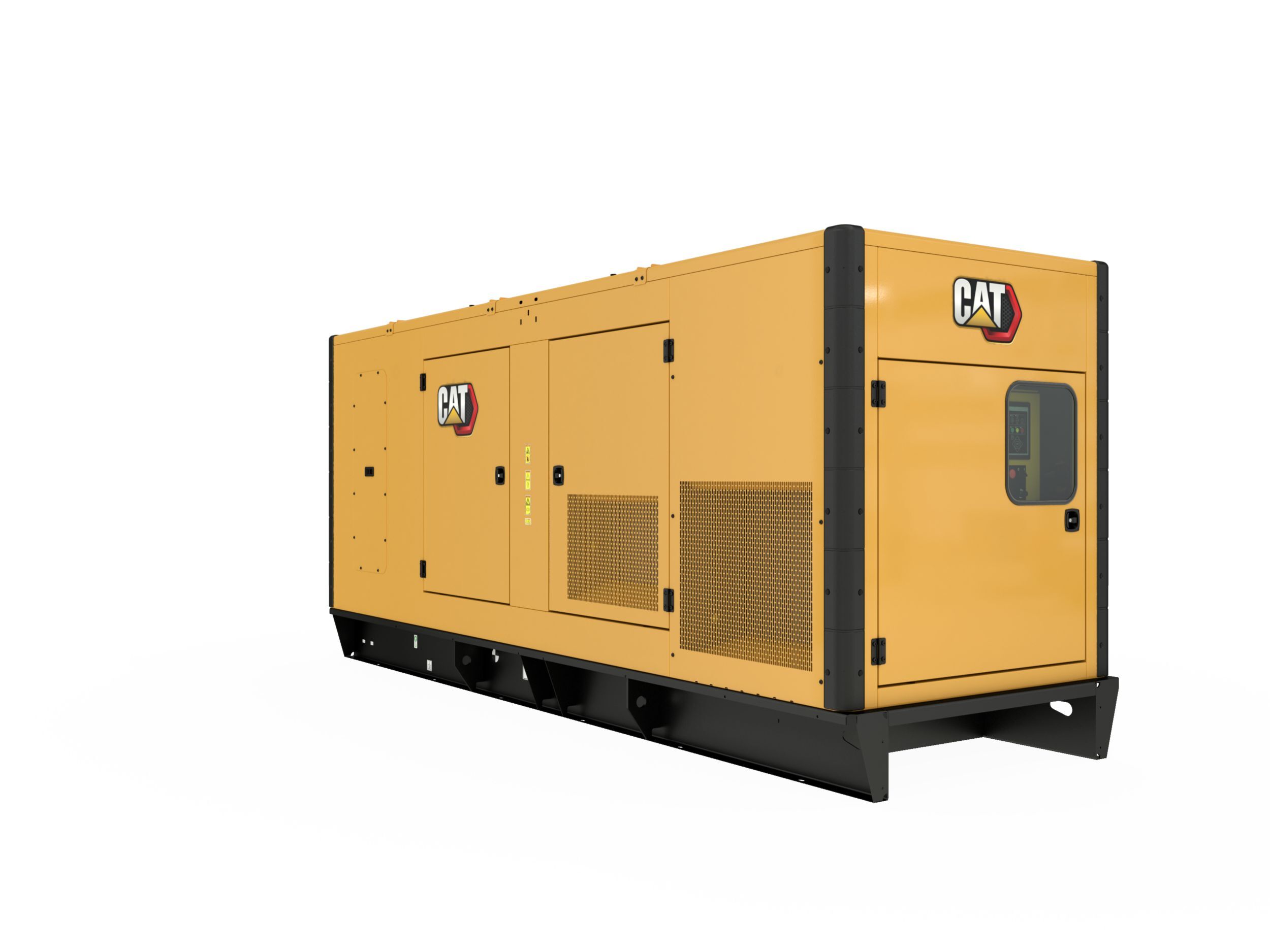

C13 Sound Attenuated Enclosure 50 and 60 Hz
