C18 (50 Hz)

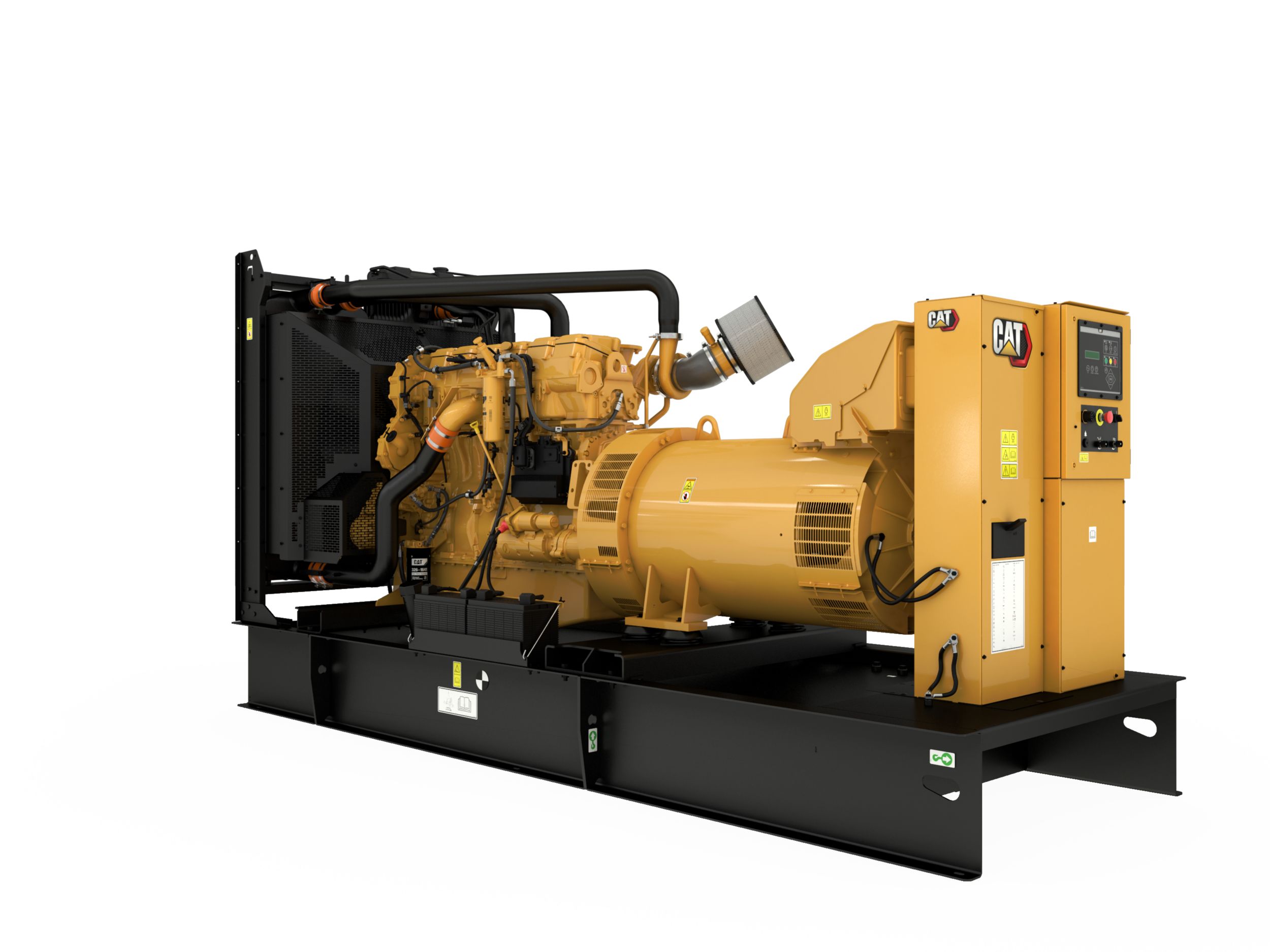

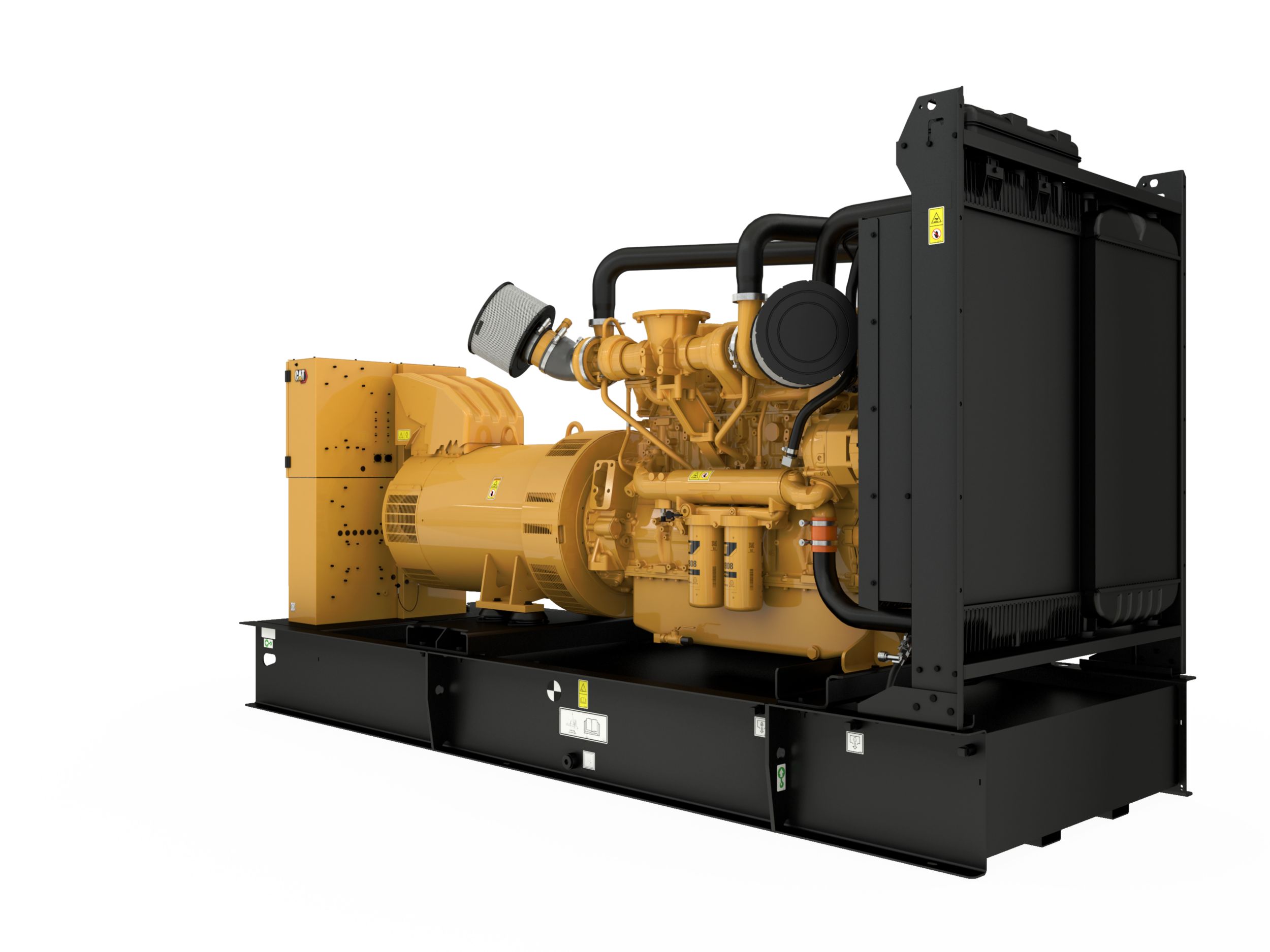

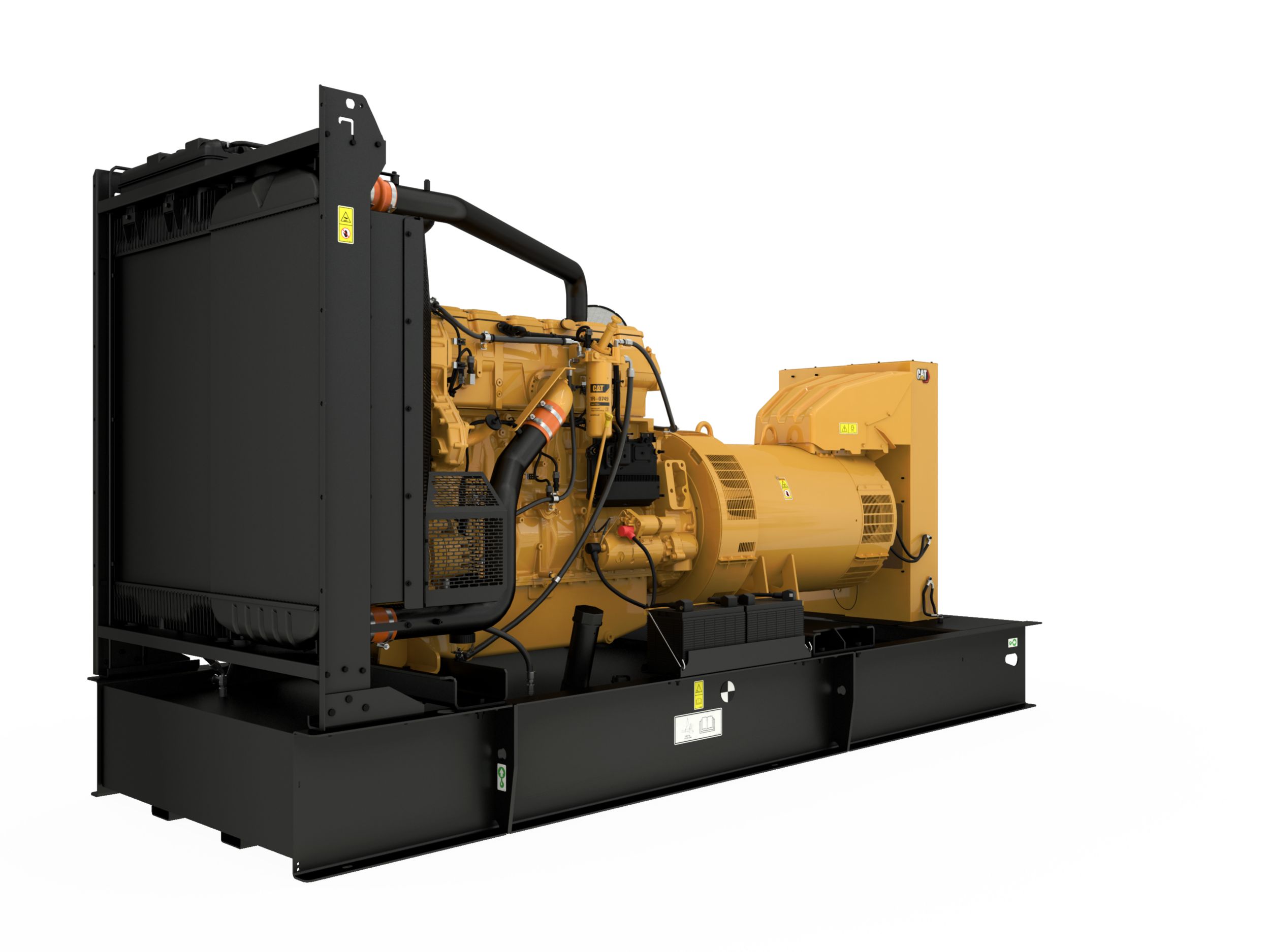

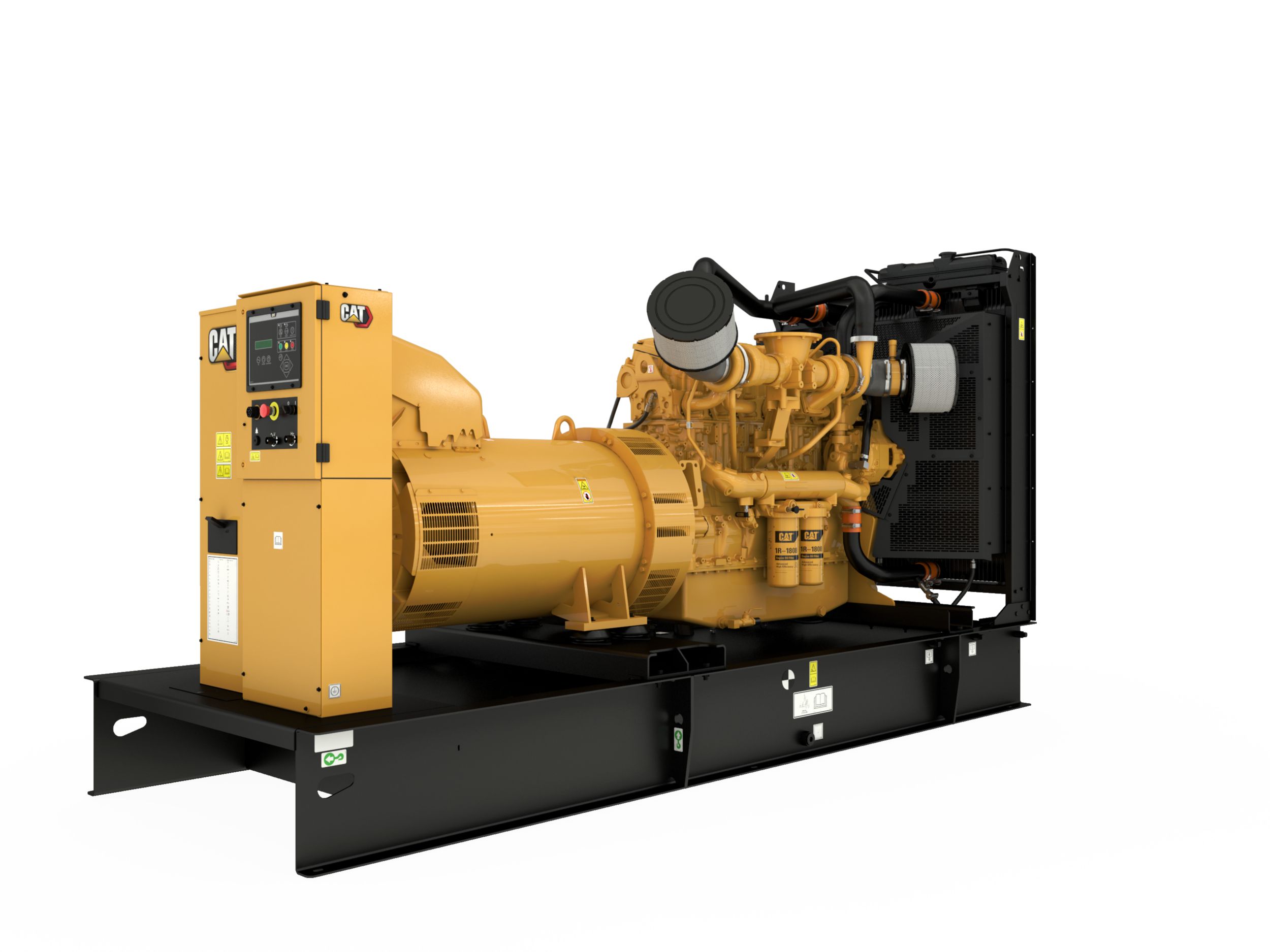

C18 Generator Set
The C18 diesel generator sets have been developed for your standby and prime applications. Producing reliable power from 706 to 850 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements. The engines are configured for Low Fuel Consumption.
Design Criteria
The generator set meets NFPA 110 loading requirement and meets ISO 8528-5 transient response.
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
GCCP 1.3 Control Panel
The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.
Single-Source Supplier
Fully prototype tested with certified torsional vibration analysis available
Worldwide Product Support
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S�ۢO�ۢS��� program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
Seismic Certification
- Seismic Certification available.
- Anchoring details are site specific, and are dependent on many factors such as generator set size, weight, and concrete strength.
- IBC Certification requires that the anchoring system used is reviewed and approved by a Professional Engineer
- Seismic Certification per Applicable Building Codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007, CBC 2010
- Pre-approved by OSHPD and carries an OSP-0321-10 for use in healthcare projects in California
UL2200 Listed; CSA 22.2; Certification of Compliance – IBC Seismic; Dual IBC & HCAI
Documents & Brochures
Standard Equipment
Air Inlet System
- Single element air cleaner
- Turbocharger
- Aftercooler core
- Light duty air cleaner
Control System
- GCCP 1.3
Cooling
- Coolant drain line with valve
- Radiator and cooling fan with guard
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stainless steel exhaust flex gaskets, raincap and SAE exhaust
flange for customer use - shipped loose
Fuel System
- Standard 8 hour open set integral fuel tank
Generator and Attachments
- LC frame generator - IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Segregated low voltage (AC/DC) wiring panel
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Integrated voltage regulator (IVR)
- Power center, IP22
- Integrated voltage regulator (IVR)
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil drain lines with valves
Mounting System
- Captive linear vibration isolators between base and engine-generator.
Starting/Charging
- 24 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 850 kVA |
| Generator Set Specifications - Minimum Rating | 706 kVA |
| Generator Set Specifications - Emissions/Fuel Strategy | Low Fuel |
| Generator Set Specifications - Voltage | 380 to 415 Volts |
| Generator Set Specifications - Frequency | 50 Hz |
| Generator Set Specifications - Speed | 1500 |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | C18 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Engine Specifications - Bore | 145 mm ( 5.71 in ) |
| Engine Specifications - Stroke | 183 mm ( 7.2 in ) |
| Engine Specifications - Displacement | 18.1 l ( 1106.4 in³ ) |
| Engine Specifications - Compression Ratio | 14.5:1 |
| Engine Specifications - Aspiration | Air to Air Aftercooled |
| Engine Specifications - Fuel System | Electronic unit injection |
| Engine Specifications - Governor Type | Adem™A4 |
| Generator Set Dimensions - Length - Maximum | 4135 mm ( 162.4 in ) |
| Generator Set Dimensions - Width - Maximum | 1989 mm ( 78.3 in ) |
| Generator Set Dimensions - Height - Maximum | 1906 mm ( 75 in ) |
-
Enclosures

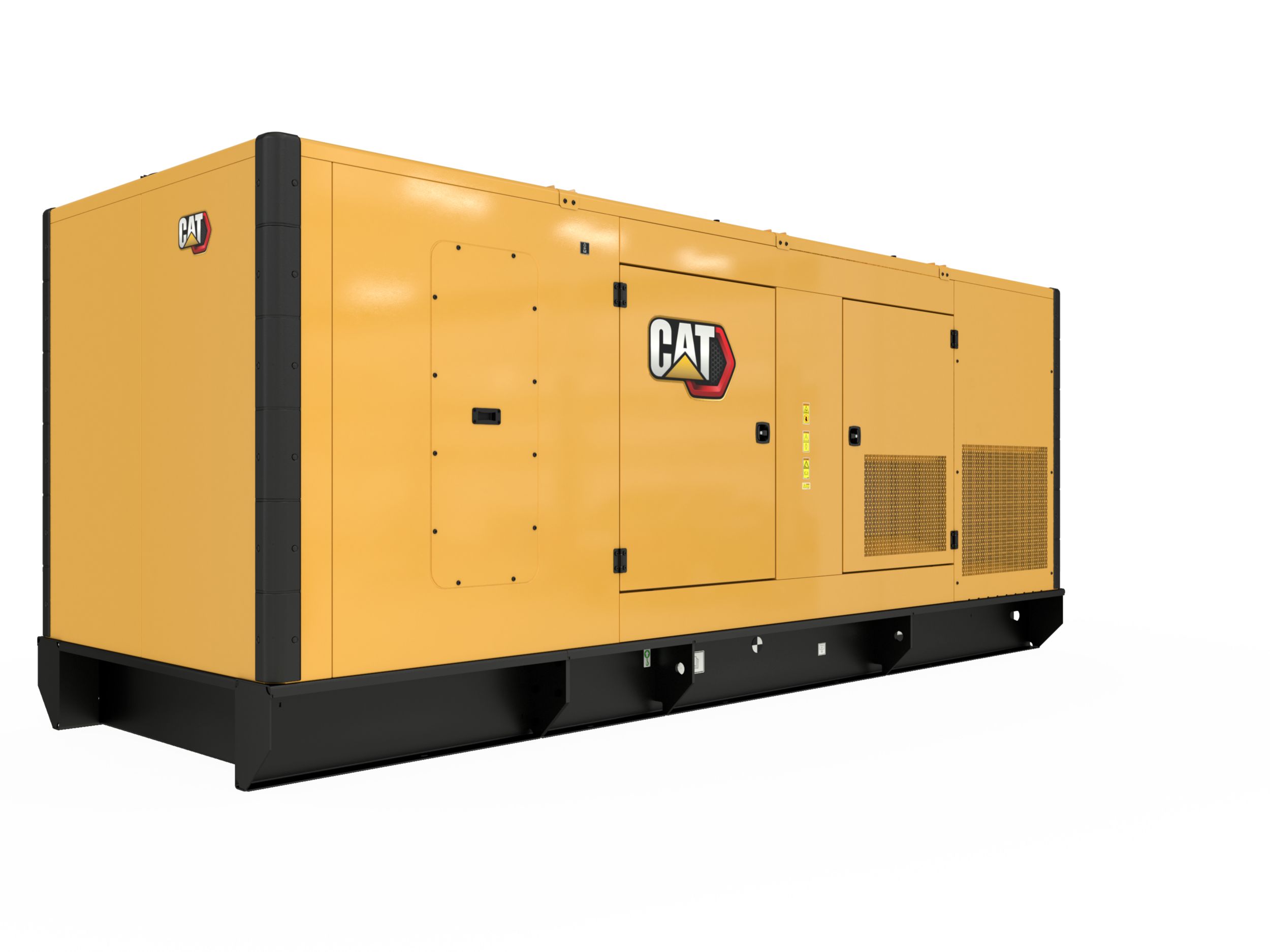

C18 High Ambient Acoustic Enclosure
View Details -
Enclosures

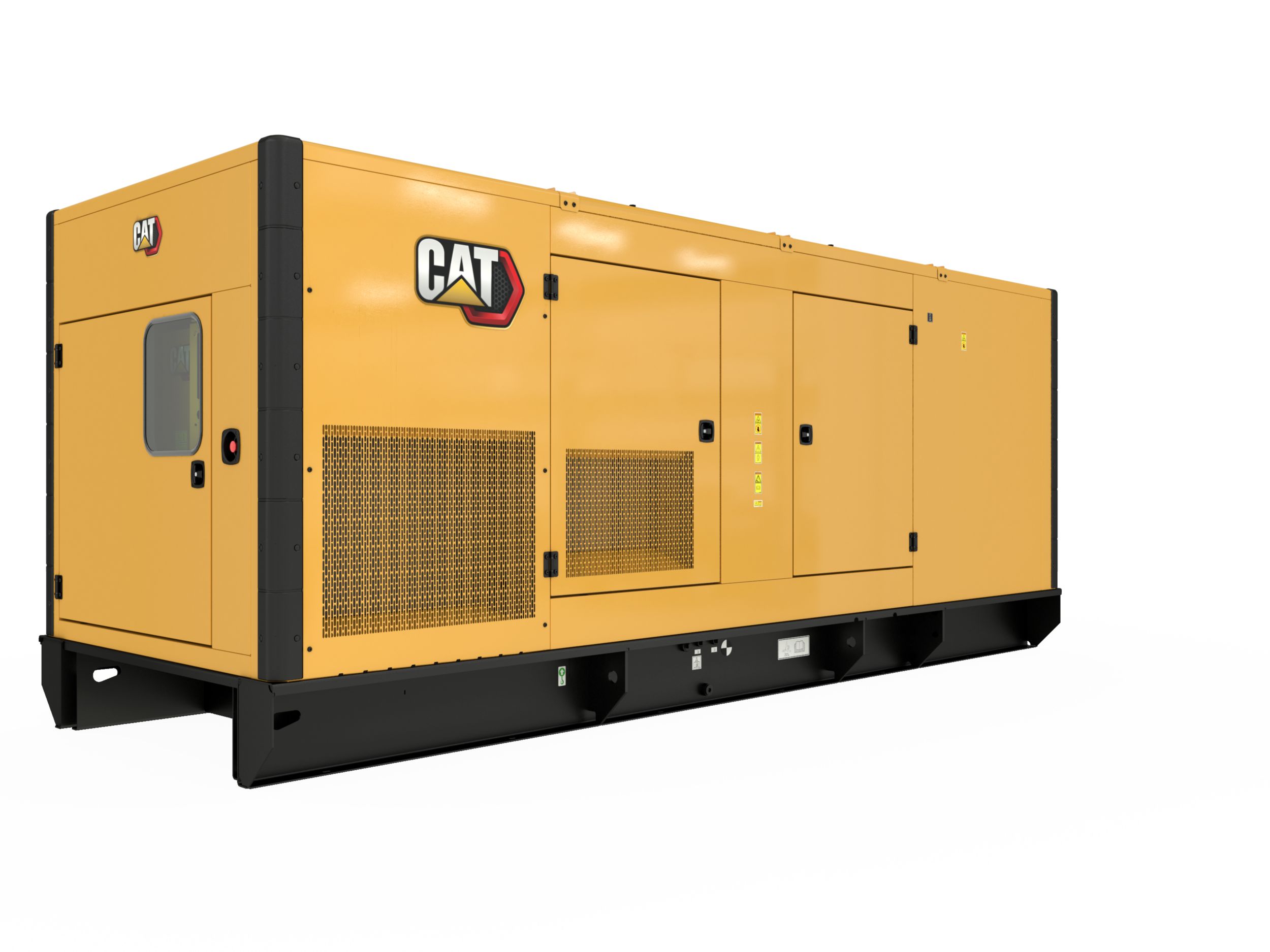

C18 Sound Attenuated Enclosure 50 and 60 Hz
