C7.1 China NR4

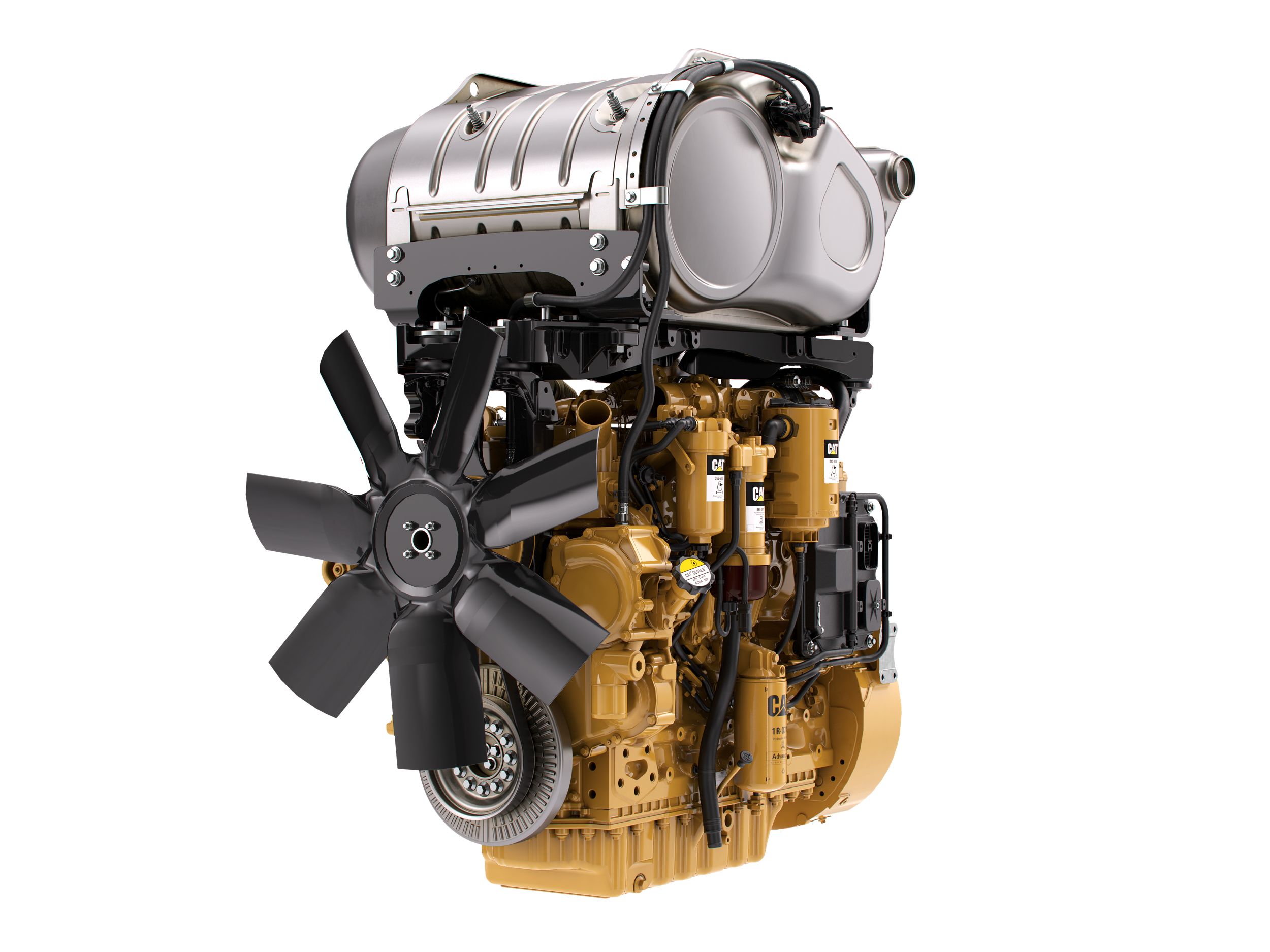

Cat® C7.1 Diesel Engine
The Cat® C7.1 industrial diesel engine is offered in ratings from 130-205 kW (174-275 hp) and meets China Nonroad Stage IV emission standards. The C7.1 is designed to meet the needs of many industries and applications, including bore/drill rigs, chippers/grinders, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.
Installation
Boasting one of Caterpillar's most modular engine designs to date, the Cat C7.1 also features an engine-mounted aftertreatment that saves OEMs valuable time and space when installing into a wide variety of machines—especially industrial and construction applications. OEMs also enjoy a 20% length, 5% height and 40% weight reduction when downsizing from 9-liter platforms.
Advanced Features
The Cat C7.1 uses passive regeneration technology, so operators can continue to perform their toughest tasks, in the most severe environments, without having to wait on the engine.
Ideal Applications
Industrial, agricultural and construction applications such as: Pumps • Compressors • Chippers • Grinders • Asphalt paving equipment • Hydraulic power units • Bore rigs • Drill rigs • Tractors
Total Cost of Ownership
The benefits to downsizing are many, including an 18% decrease in overall fuel consumption when downsizing from a 6-cylinder engine. With an added 3-4% decrease in overall DEF consumption and EGR integration, the cost savings don't take long to add up.
Cat Dealer Product Support
Scheduled maintenance, five-year warranty, superior dealer service and a comprehensive global dealer support network—it’s all standard with the Cat C7.1.
Safety
Validated with thousands of hours of field testing, the Cat C7.1 is built to meet Caterpillar's strict safety standards and customers' most demanding work sites throughout the world.
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Lube System
- Wide choice of sumps for different applications
General
- Paint: Caterpillar yellow, with optional colors available on request
Aftertreatment/ Clean Emissions Control Equipment
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Selective Catalytic Reduction (SCR)
- 3" flex pipe connection with straight, 45°, and 90° options for flexibility
Additional Information
| تقدير القدرة - القدرة القصوى | 205 كيلووات ( 275 HP ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 1257 Nm @ 1400 rpm ( 927 رطل-قدم عند 1400 دورة/دقيقة ) |
| تقدير القدرة - السرعة المقدرة | 2200 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 130 كيلووات ( 174 HP ) |
| معايير الانبعاثات - الانبعاثات | المعايير الصينية لمحركات البيئات الوعرة من المرحلة IV |
| عام - تكوين المحرك | 6 أسطوانات في خط مستقيم |
| عام - التجويف | 105 مم ( 4.13 بوصة ) |
| عام - الشوط | 135 مم ( 5.3 بوصة ) |
| عام - الإزاحة | 7 l ( 427.7 بوصة³ ) |
| عام - نسبة الانضغاط | 16.5:1 |
| عام - السحب | مزوَّد بشاحن توربيني ومبرد لاحق (TA) أو مزوَّد بشاحن توربيني تسلسلي ومبرد لاحق (TTA) |
| عام - نظام الاحتراق | حقن مباشر |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | حفاز أكسدة الديزل (DOC) + فلتر جسيمات الديزل (DPF) + نظام التقليل الحفزي الانتقائي (SCR) |
| أبعاد المحرك - بالتقريب - الطول | 870 مم ( 34.3 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 798 مم ( 31.4 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 911 مم ( 35.9 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 845 كجم ( 1863 رطل ) |
| أبعاد نظام المعالجة اللاحقة - الطول | 733 مم ( 29 بوصة ) |
| أبعاد نظام المعالجة اللاحقة - العرض | 769 مم ( 30.3 بوصة ) |
| أبعاد نظام المعالجة اللاحقة - الارتفاع | 455 مم ( 18.1 بوصة ) |
| أبعاد نظام المعالجة اللاحقة* - القُطر | 338 مم ( 13.3 بوصة ) |
| أبعاد نظام المعالجة اللاحقة - الوزن | 107 كجم ( 236 رطل ) |
