C9 275-330 kVA ACERT
C9 275-330 kVA ACERT
C18 High Ambient Acoustic Enclosure
Robust/Highly Corrosion Resistant Construction
- Factory installed on integral fuel tank base
- Environmentally friendly, polyester powder
- 1.6 mm (0.063 in) galvanized steel
- All around overhanging base to protect enclosure
- High-grade engineering thermoplastic corner
- Compression door latches giving solid door seal
- Zinc plated or black coated stainless steel
- Internally mounted residential exhaust silencing system
baked paint
posts for protection
fasteners
Excellent Access
- Large cable entry area for installation ease
- Accommodates rear mounted breaker and
- Double doors on both sides
- Vertically hinged doors with solid bar door
- Lube oil and coolant drains pipes to exterior
- Radiator fill cover
control panel
stays to hold doors open at 135° rotation
of enclosure and terminated drain valves
Security And Safety
- Lockable access doors which give full access to control panel and breaker
- Cooling fan and battery charging alternator fully guarded
- Fuel fill, oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop button
- Designed for spreader-bar lifting to ensure safety
- Control panel viewing window
- Stub-up area is rodent proof
Options
- Cat® yellow or white paint
- Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)
Documents & Brochures
Additional information
| الأوزان والأبعاد - الارتفاع | 2289 mm |
|---|---|
| الأوزان والأبعاد - الوزن | 5952 kg |
| الأوزان والأبعاد - الطول | 5320 mm |
| الأوزان والأبعاد - العرض | 1920 mm |
| Offering Type |
-
Diesel Generator Sets

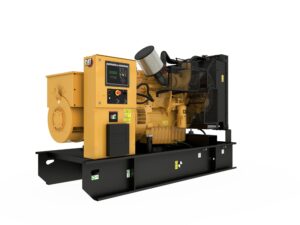

C9 (50 Hz)
View Details -
Diesel Generator Sets

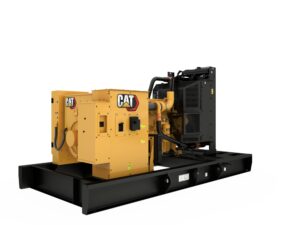

C9 (60 Hz)
