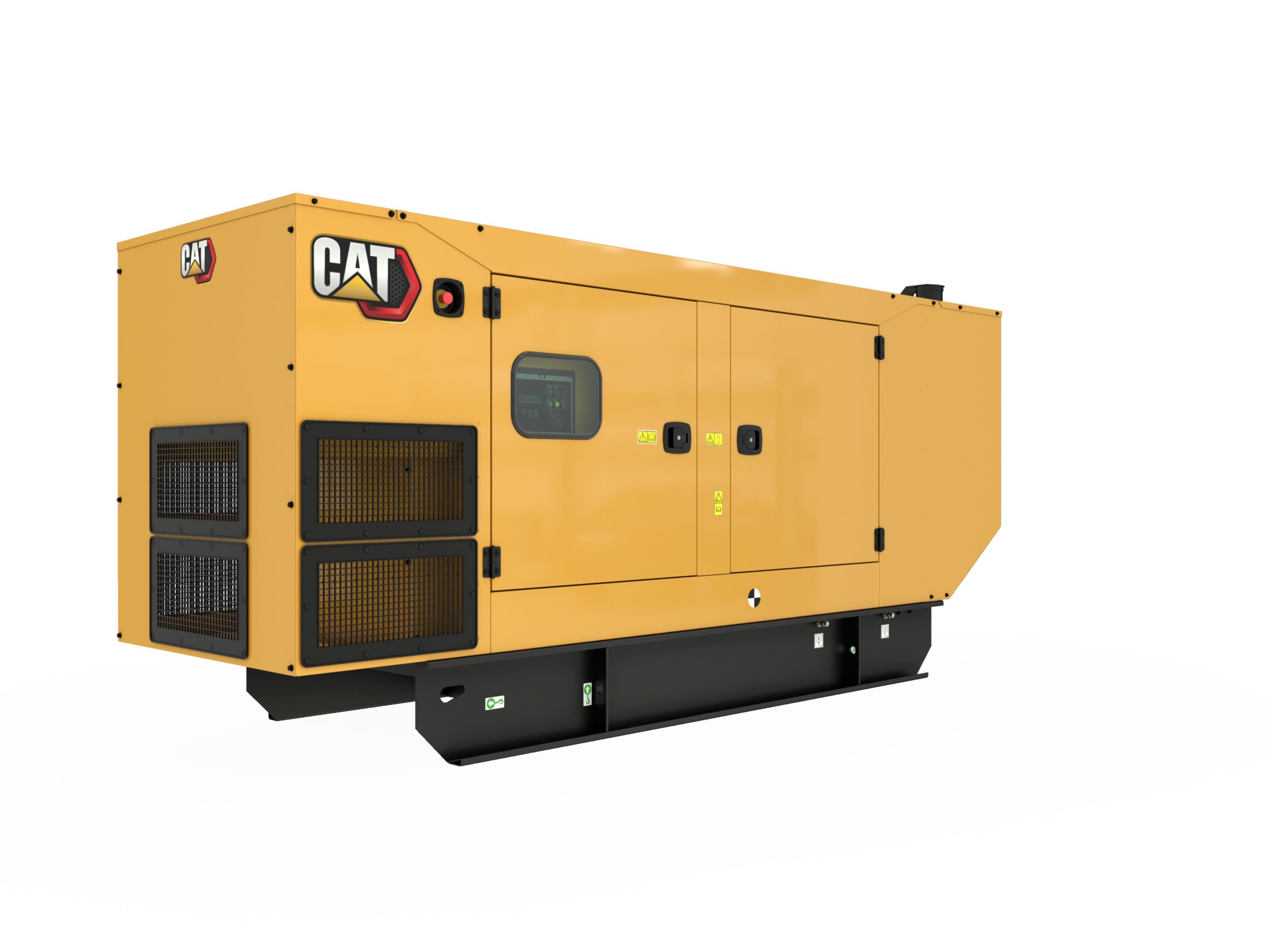

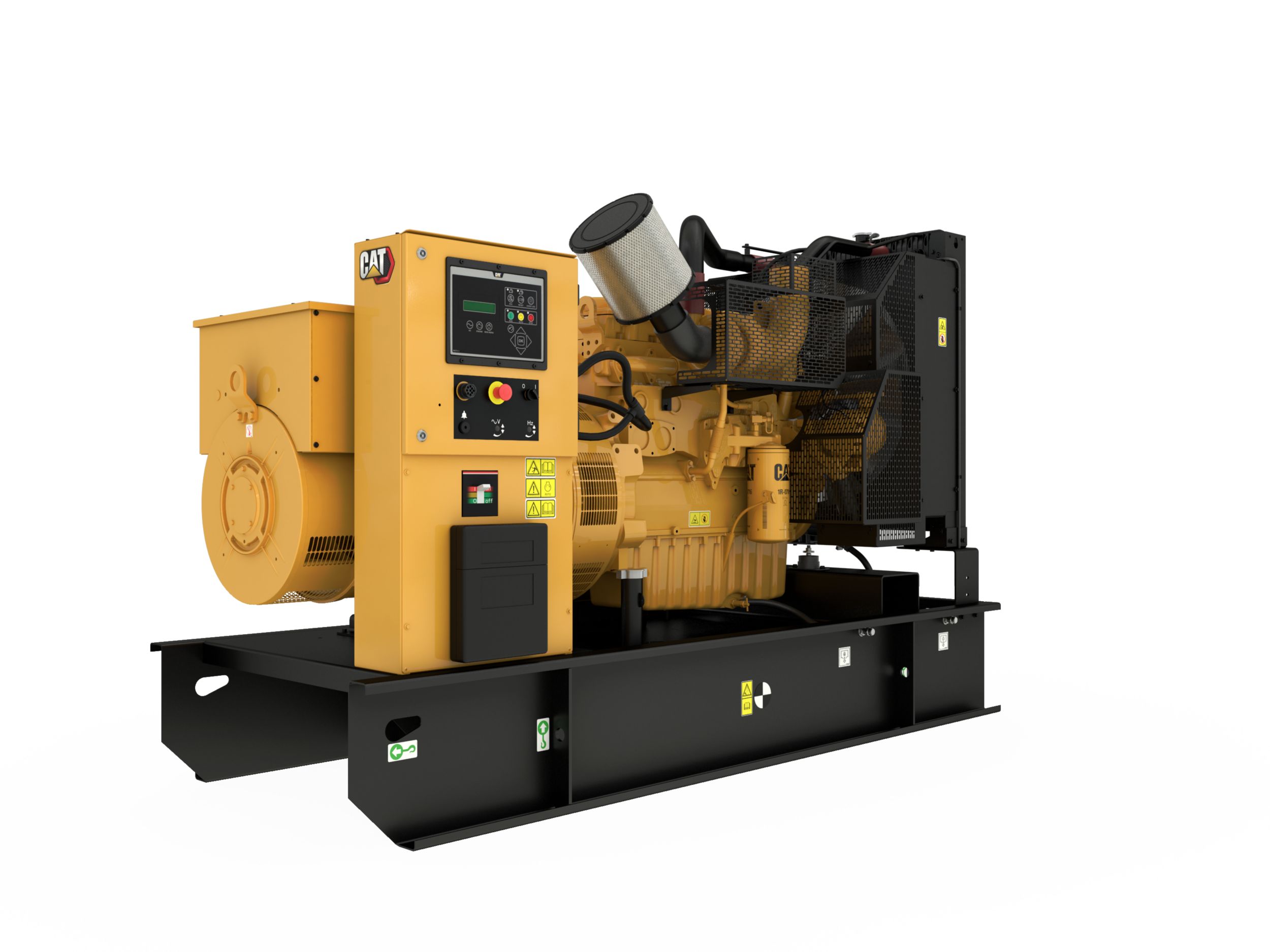

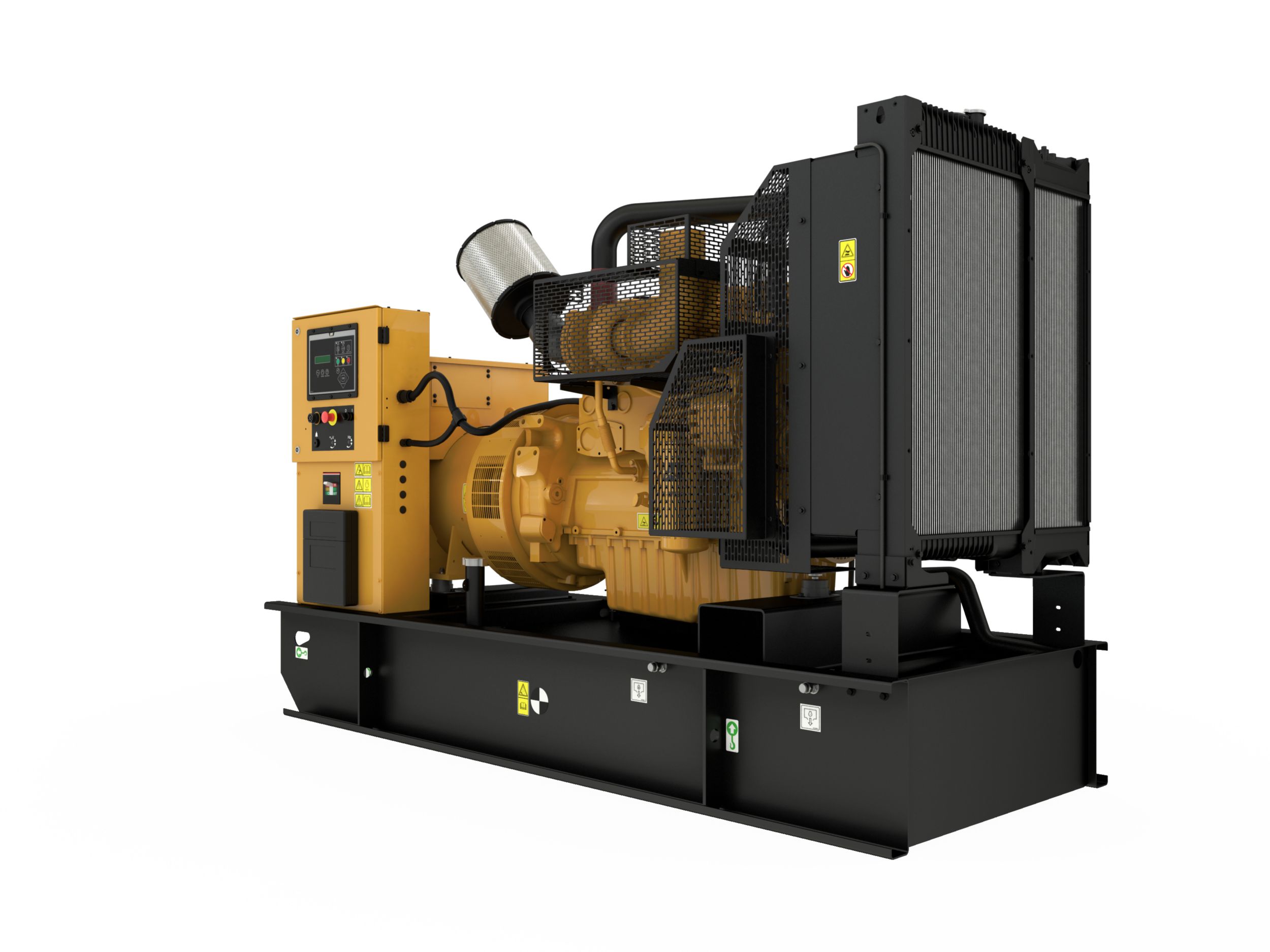

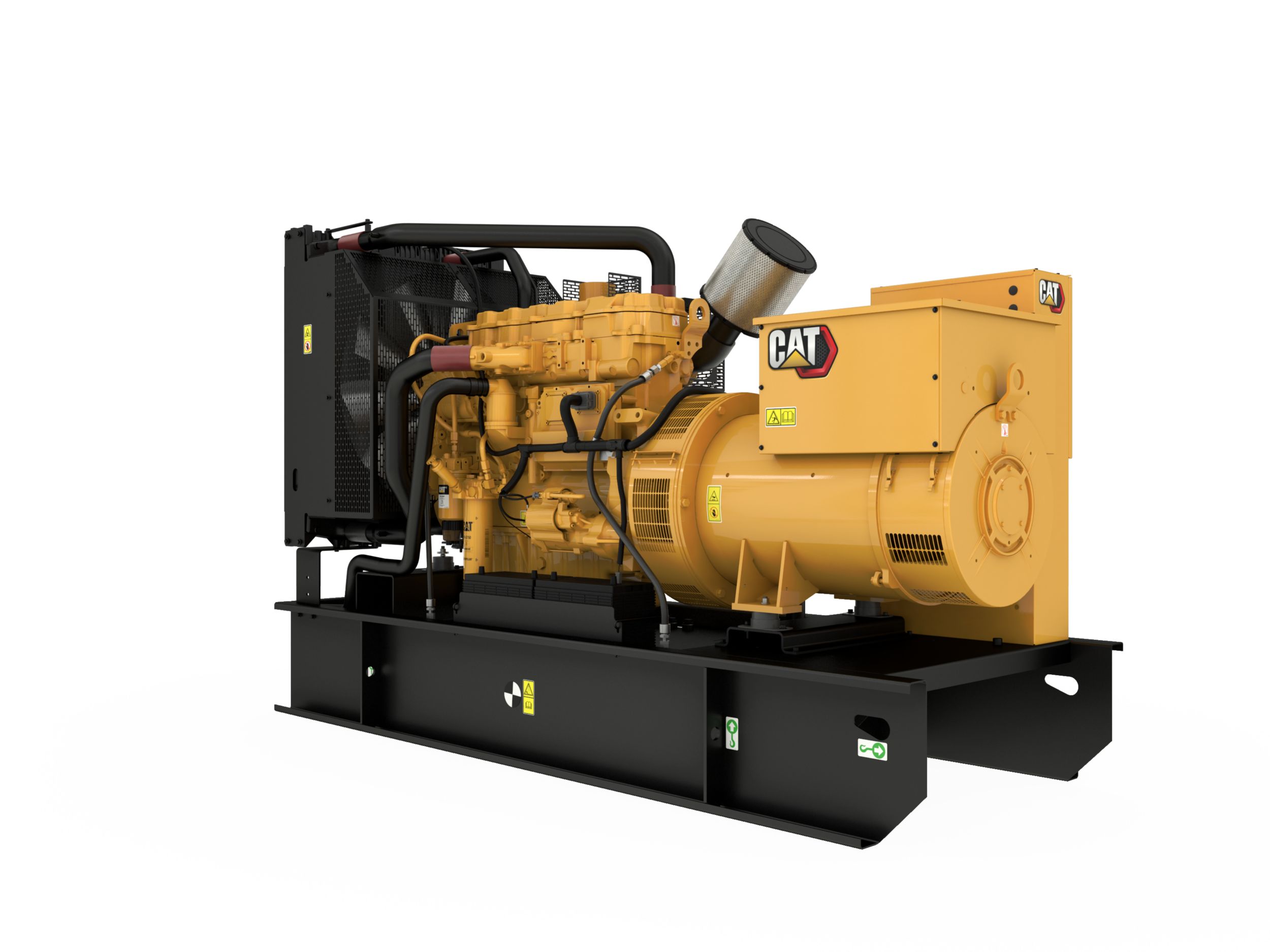

C9 (50 Hz)

Cat Generator Set Package

• Cat generator set packages have been fully prototype tested
• Accepts 100% block load in one step and meets NFPA 110 loading requirements
• Conform to ISO 8528-5 steady state and transient response requirements

R-Frame Alternator

• Superior motor starting capability minimizes need for oversizing alternator
• Designed to match performance and output characteristics of Cat diesel engines
• Robust Class H insulation

Cat Diesel Engine

• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

GCCP1.3 Control Panel

• User-friendly interface and navigation
• Scalable system to meet a wide range of installation requirement
• Expansion modules and site-specific programming for specific customer requirements

Cooling System

• Designed to operate in standard ambient temperatures up to 55°C (131°F)
• Contact your Cat Dealer for specific ambient and altitude capabilities

Generator Features

• Matched to the performance and output characteristics of Cat engines
• Industry leading mechanical and electrical design
• Industry leading motor starting capabilities
• High Efficiency

Certifications

The generator set meets transient response and block loading steps as per ISO 8528-5.

One Safe Source

• Components used in the generator set are selected based on seamless design integration to provide the optimum performance
• The generator set is fully assembled at a Caterpillar facility following our quality guidelines
• Each generator set package is tested before leaving the Caterpillar facility
• Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Worldwide Product Support

• Cat dealers have over 1,800 dealer branch stores operating in 200 countries
• Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
