C9.3B China NR4

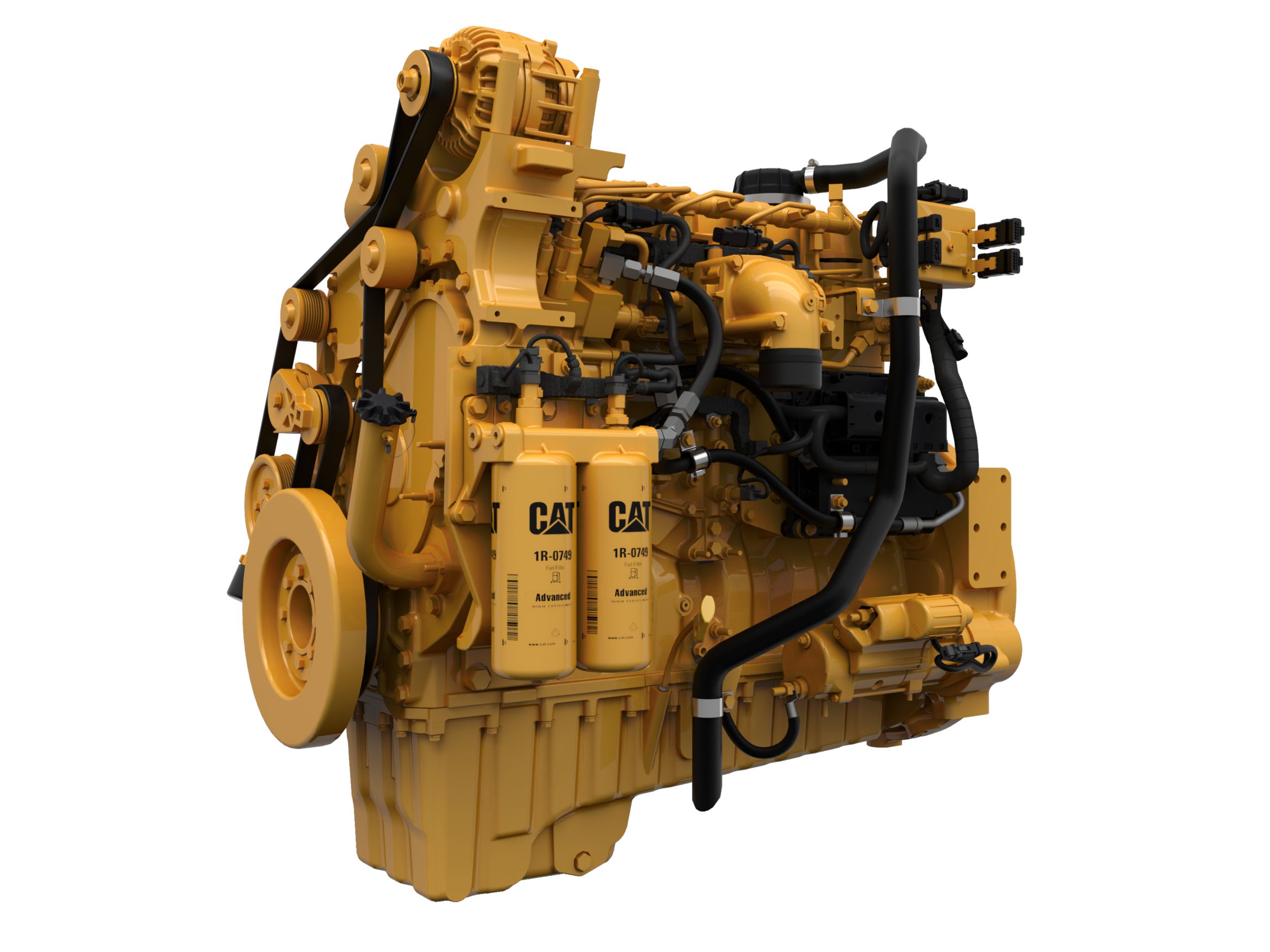

Cat® C9.3B Diesel Engine

The Cat® C9.3B Industrial Diesel Engine is offered in
ratings ranging from 250-340 bkW (335-456 bhp)
@ 1800-2200 rpm. These ratings meet U.S. EPA
Tier 4 Final, EU Stage V, Japan 2014, and Korea Tier 4
Final* or China Nonroad Stage IV emission standards.
The C9.3B engines are ideal choices to power

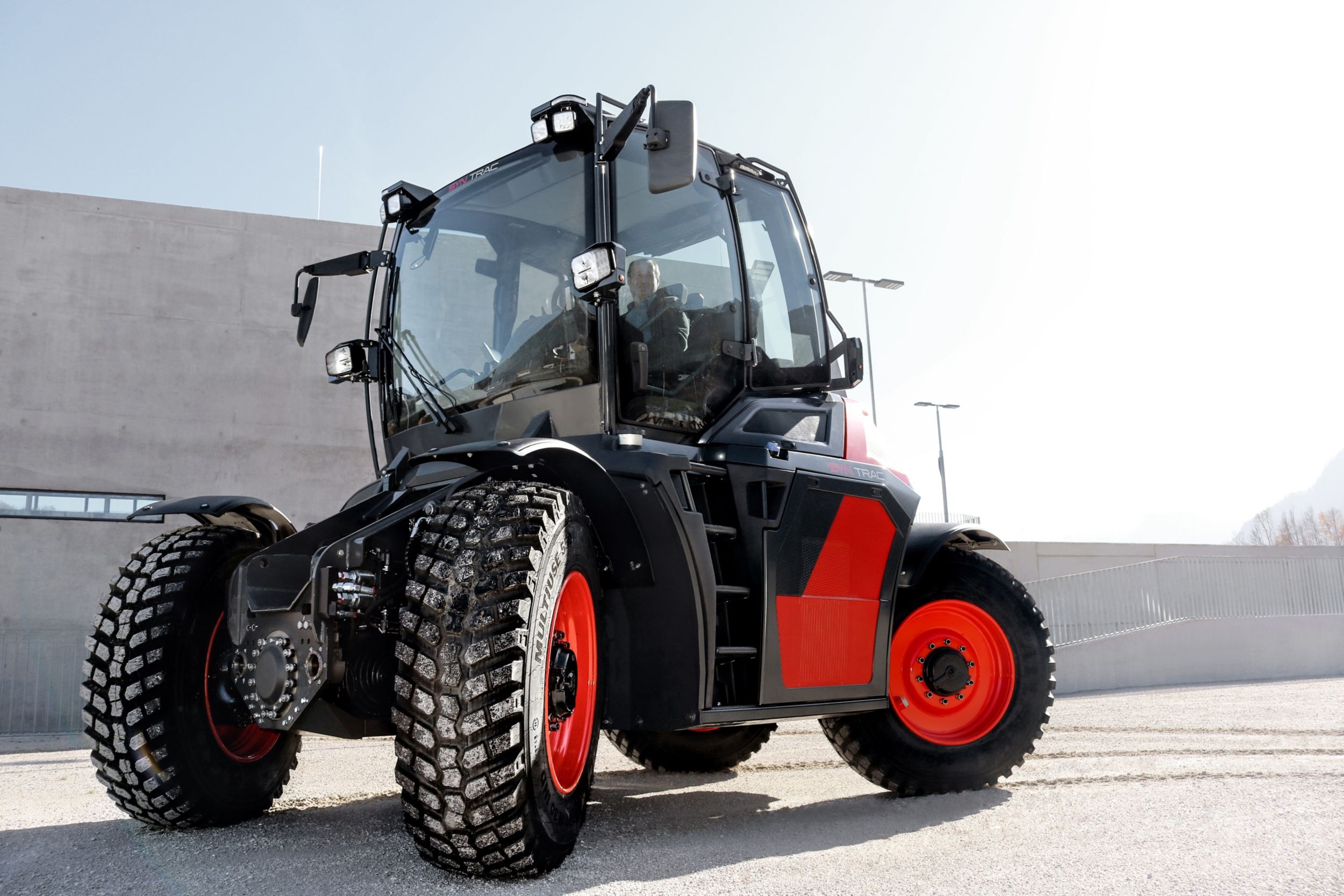

applications in agriculture, aircraft ground support,
construction, forestry, general industrial, material
handling, and mining.

Installation

With a full list of configurable options and an engine-mounted aftertreatment, the Cat C9.3B is an easy-to-install option that offers the power of larger engine platforms in a smaller engine package.

Advanced Features

Inlet throttle valve technology manages heat and in-cylinder dosing to create seamless DPF regeneration and a high-pressure common rail fuel system elimates the need for coolers, creating a simpler and lighter engine that's 18% more powerful than its predecessor engine—so operators get work done no matter when, no matter what.

Ideal Applications

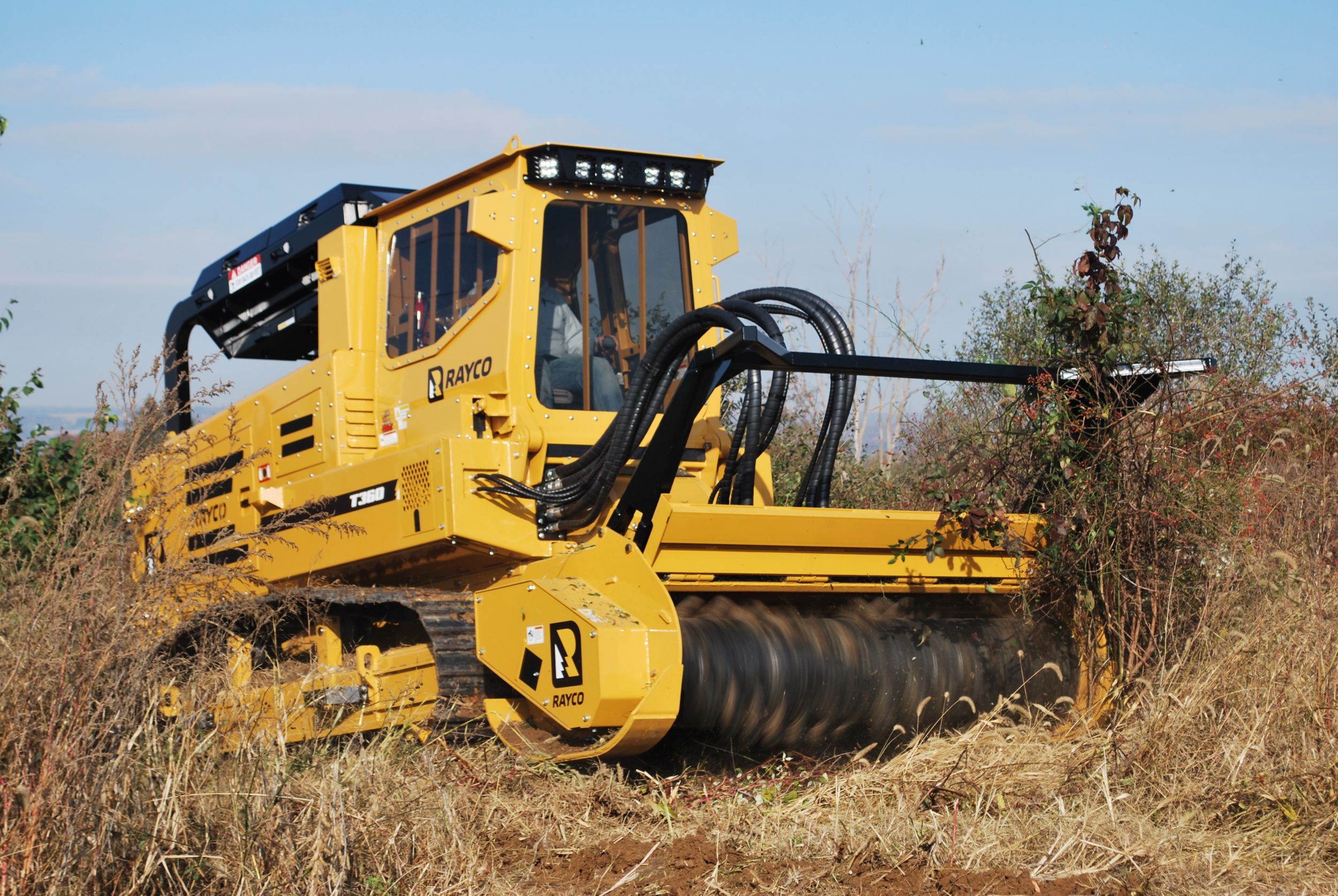

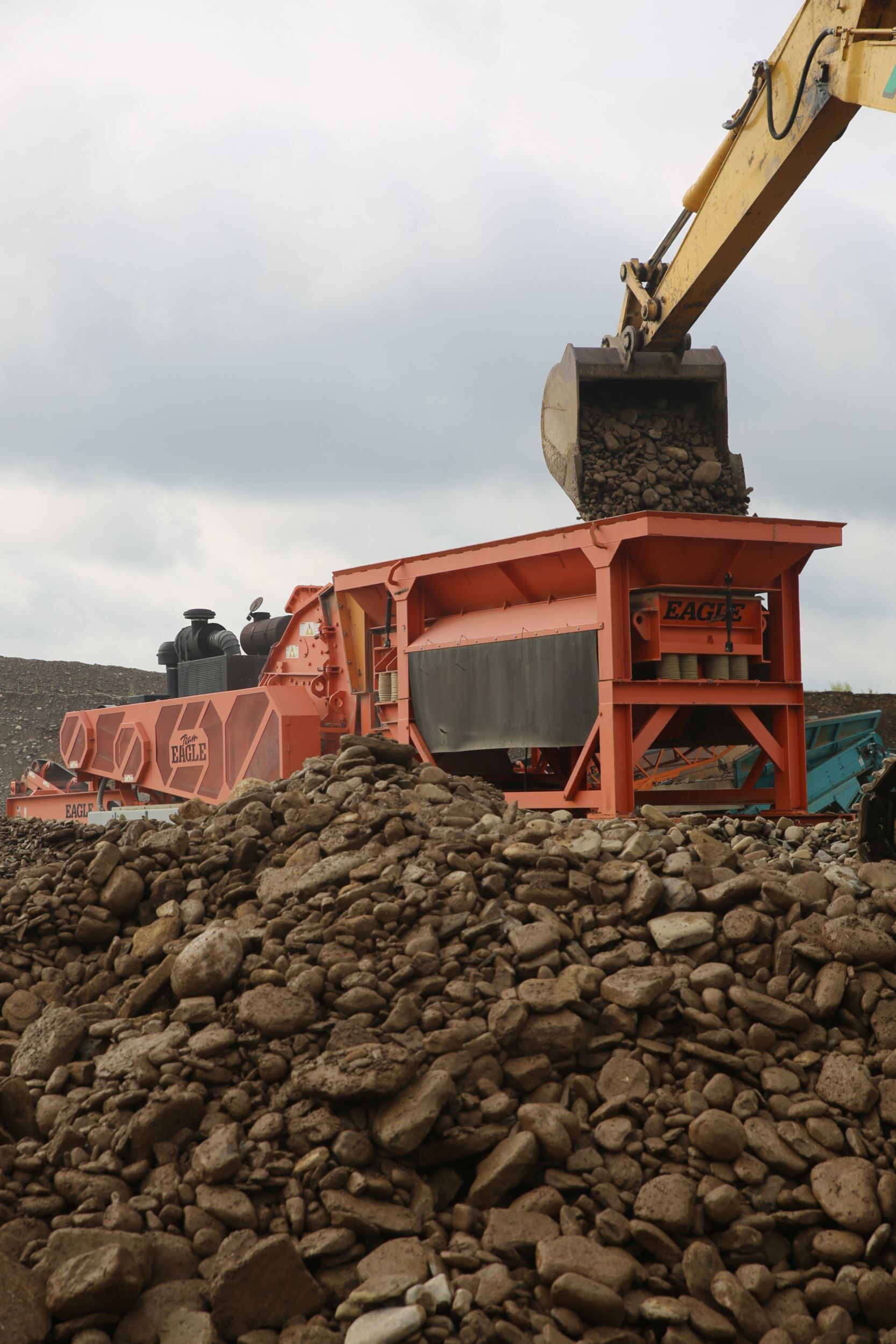

Industrial, agricultural and construction applications such as: Pumps • Compressors • Chippers • Grinders • Asphalt paving equipment • Hydraulic power units • Bore rigs • Drill rigs • Tractors

Total Cost of Ownership

Between 500-hour oil service and 5000-hour DPF ash intervals and Caterpillar-patented design technology that enables the removal of EGRs, the need for parts and service keeps lifetime engine ownership costs down and ROI up. And because the Cat C9.3B uses the latest injector technology, owners can benefit from an overall fuel consumption reduction of up to 8% when compared to its predecessor engine.

Cat Dealer Product Support

Expert assistance is never far away with the Cat C9.3B. With an included warranty and product support through the expansive global Cat dealer network, worldwide service and maintenance is all part of the package. See your Cat dealer for details.

Safety

The Cat C9.3B is a finely tuned machine, running quieter and more efficiently than previous engines making it safer for job site operators who can stay focused on the task at hand.

Standard Equipment

Air Inlet System
  • Turbocharged
  • Air-to-Air Aftercooled
  • Mid-mount turbocharged system with front and rear exhaust configurations
Control System
  • Electronic control system
  • Over-foam wiring harness
  • Automatic altitude compensation
  • Power compensated for fuel temperature
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated Electronic Control Unit (ECU)
  • Remote fan control
Cooling System
  • Vertical or RH thermostat outlet
  • Centrifugal water pump
  • Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
  • Available SAE 1 power take-off with optional SAE A, SAE B, SAE C power take-off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Proposed Stage V)
Fuel System
  • Electronic high pressure common rail
  • Primary fuel filter
  • Secondary and tertiary fuel filters
  • Fuel transfer pump
  • Electronic fuel priming
Lube System
  • Open crankcase ventilation system
  • Oil cooler
  • Oil filler
  • Lube oil filter
  • Oil dipstick
  • Gear driven oil pump
  • Choice of front, rear or center sumps
  • Open crankcase ventilation system with fumes disposal (optional OCV filter system)
Power Take Off (PTO)
  • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
General
  • Paint: Caterpillar yellow, with optional colors available at request
  • Vibration damper
  • Lifting eyes
Aftertreatment
  • Clean Emissions Module (CEM) consisting of Diesel Particulate Filter (DPF), Diesel Oxidation Catalyst (DOC) and high-efficiency Selective Catalytic Reduction (SCR)
Tier 4 Final, Proposed Stage V Aftertreatment
  • Pump Electronic Control Unit (PETU)
  • Available in 12V or 24V systems

Additional information

Offering Type

Power Rating - Maximum Power

340 kW ( 456 HP )

Power Rating - Maximum Torque

2088 Nm @ 1400 rpm ( 1540 lb-ft @ 1400 rpm )

Power Rating - Rated Speed

1800-2200 rpm

Power Rating - Minimum Power

250 kW ( 335 HP )

Emission Standards - Emissions

China Nonroad Stage IV

General - Engine Configuration

In-Line 6

General - Bore

115 mm ( 4.5 in )

General - Stroke

149 mm ( 5.9 in )

General - Displacement

9.3 l ( 567.5 in³ )

General - Compression Ratio

17.0:1

General - Aspiration

Turbocharged-Aftercooled (TA)

General - Combustion System

Direct Injection

General - Rotation from Flywheel End

Counterclockwise

General - Aftertreatment

DOC+DPF+SCR

Engine Dimensions - Approximate - Length

1125 mm ( 44.3 in )

Engine Dimensions - Approximate - Width

791 mm ( 31.1 in )

Engine Dimensions - Approximate - Height

1068 mm ( 42 in )

Engine Dimensions - Approximate - Weight - Net Dry - Basic Operating Engine Without Optional Attachments

865 kg ( 1907 lb )

Aftertreatment Dimensions - Length

925 mm ( 36.4 in )

Aftertreatment Dimensions - Width

694 mm ( 27.3 in )

Aftertreatment Dimensions - Height

432 mm ( 17 in )

Aftertreatment Dimensions - Weight

96 kg ( 211 lb )
