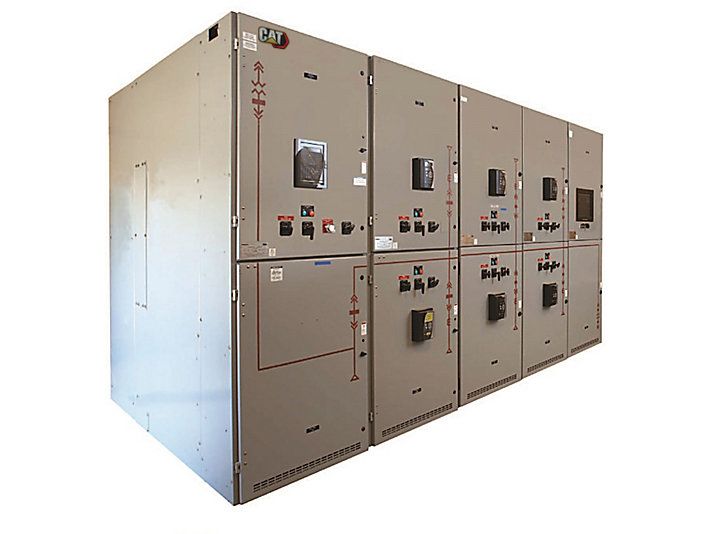

Cat Customizable Switchgear and Controls

Custom Switchgear and controls are design to provide a power generation, automation and distribution system specific to electrical needs.

High Speed Supervisory Network
Automatic Start/Stop
Automatic “Dead Bus” Coordination
Automatic Power Factor Control when in Parallel with Utility Power
Programmable Load Shed / Load Add Functions
Networked Engine Communications
Generator & Utility Protection
Engine Tuning
Mode Selection
Selectable Auto/ Manual Control
Password Protection for Protective Settings and Setup
Load/No Load Test
Touch Screen (HMI) Display
NFPA 99/110 Compliant Alarm
Annunciation with Audible Horn
Engine Control mimic Screen with gauges for RPM, DC Battery Voltage, Oil Pressure, Engine Coolant temperature, Engine Hours, Number of starts

Additional information

Offering Type	New
Technical Summary - Configuration	Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc
Technical Summary - Modes of Operation	All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs
Technical Summary - Application	LV and MV ( 208V – 38 kV) 50 / 60 Hz
Generator Protective Devices - ANSI Protective Devices	Per customer specification
Utility Protective Devices - ANSI Protective Devices	Per customer specification
Environmental Parameters - Certifications	Per customer specification
Environmental Parameters - Control Panel Enclosure	Per customer specification
Environmental Parameters - Operating Temperature	Per customer specification
Environmental Parameters - Storage Temperature	Per customer specification
Environmental Parameters - Low Voltage Standards	Per customer specification
Environmental Parameters - Medium Voltage Standards	Per customer specification
