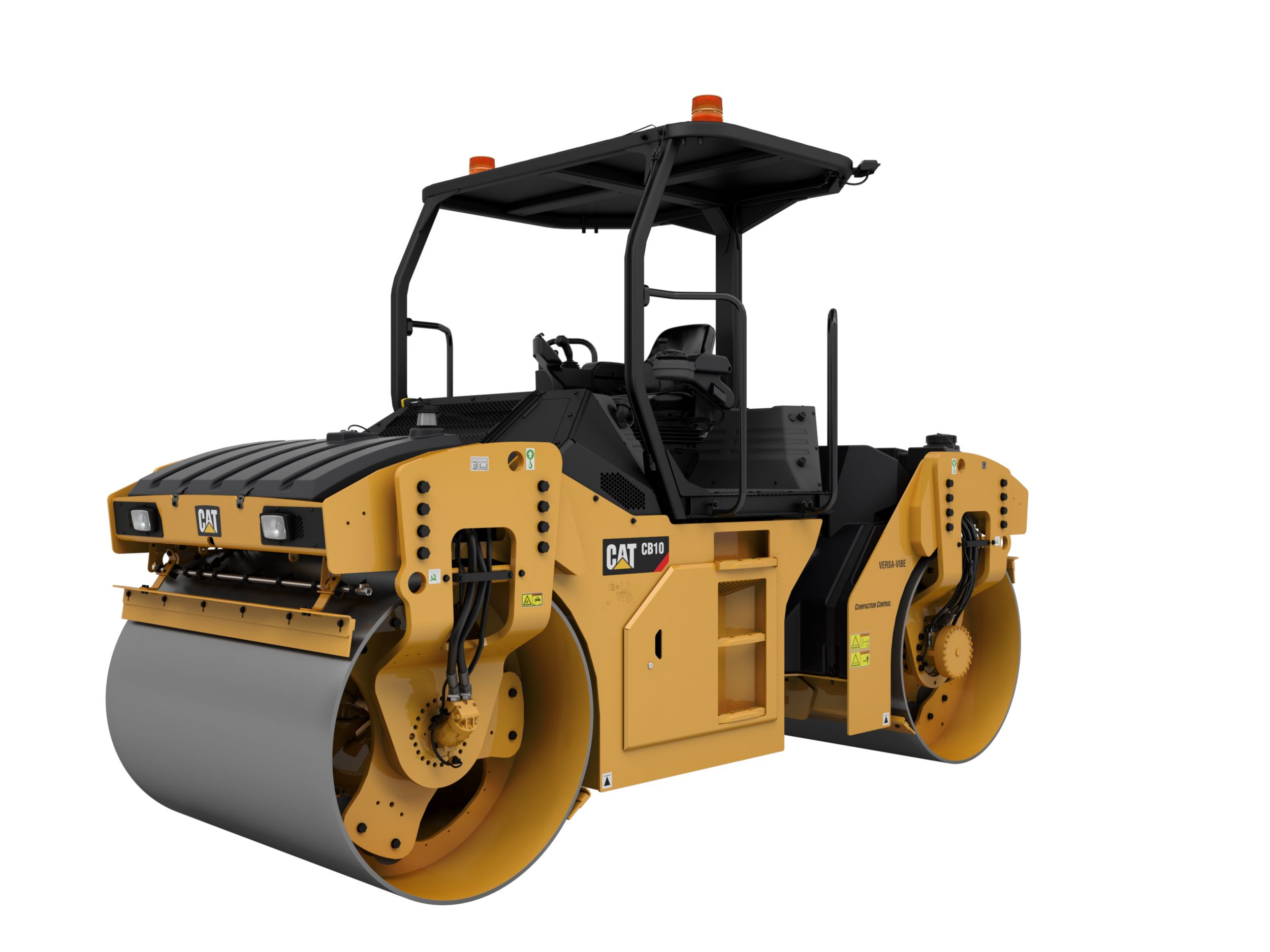

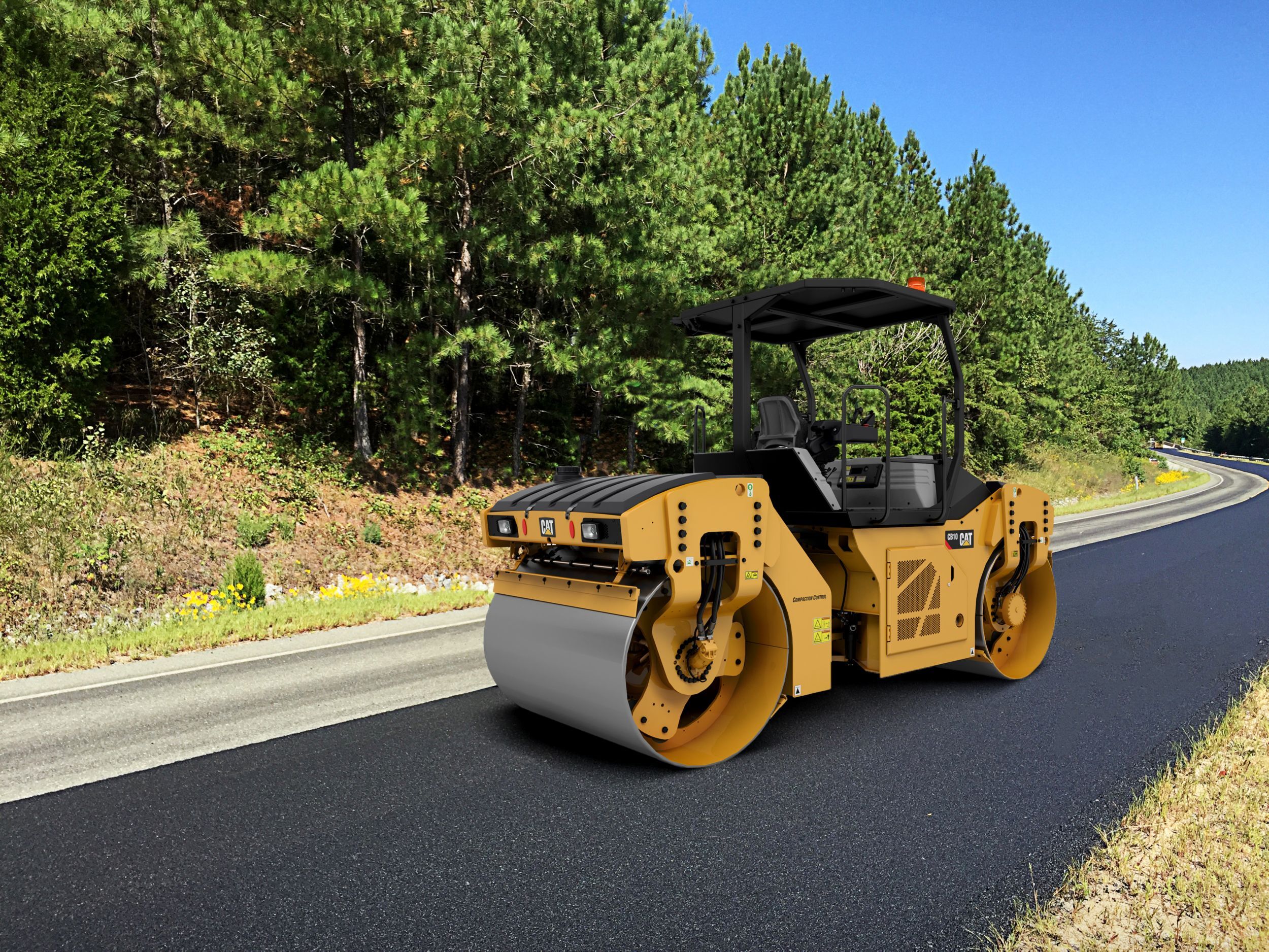

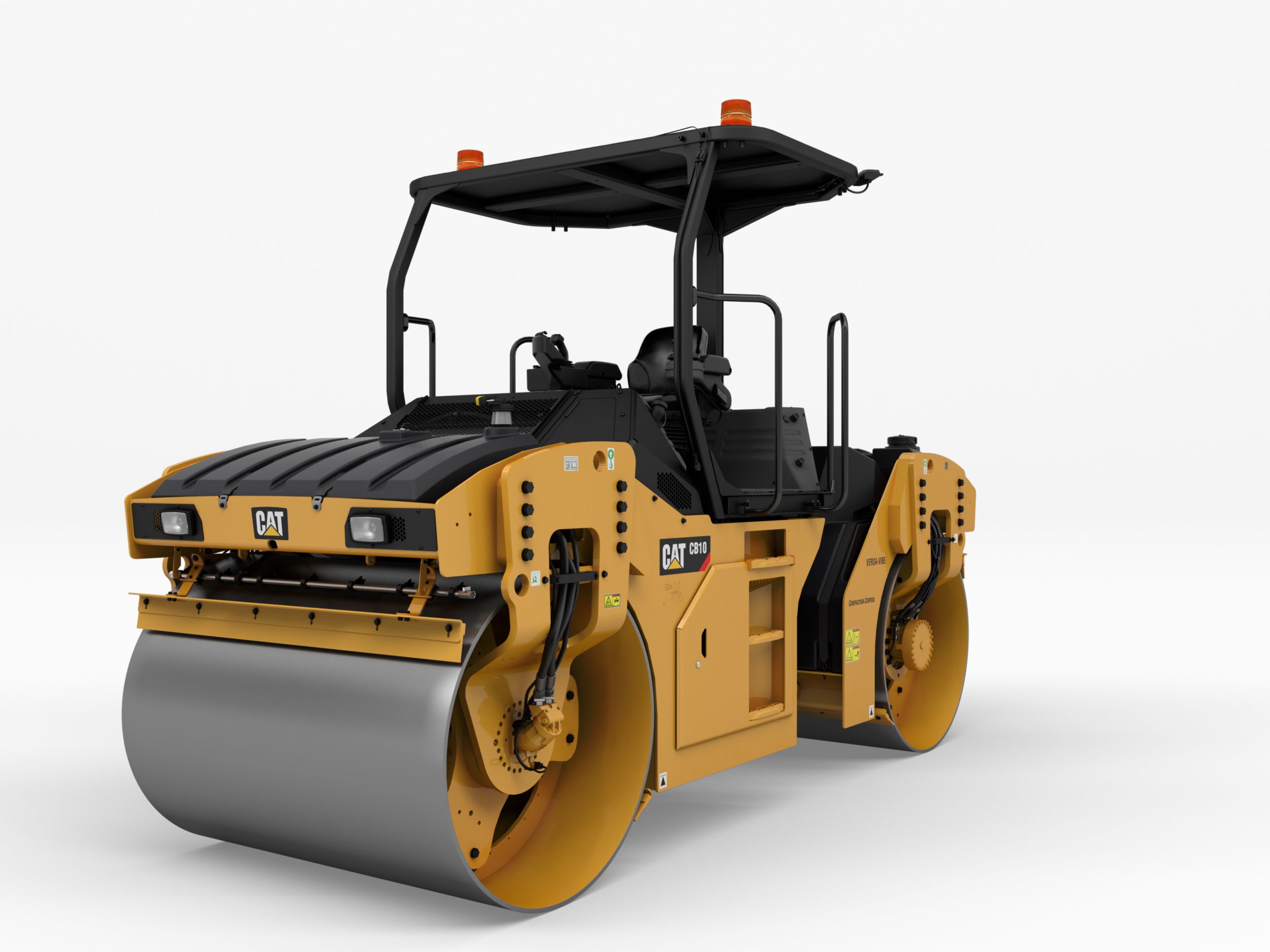

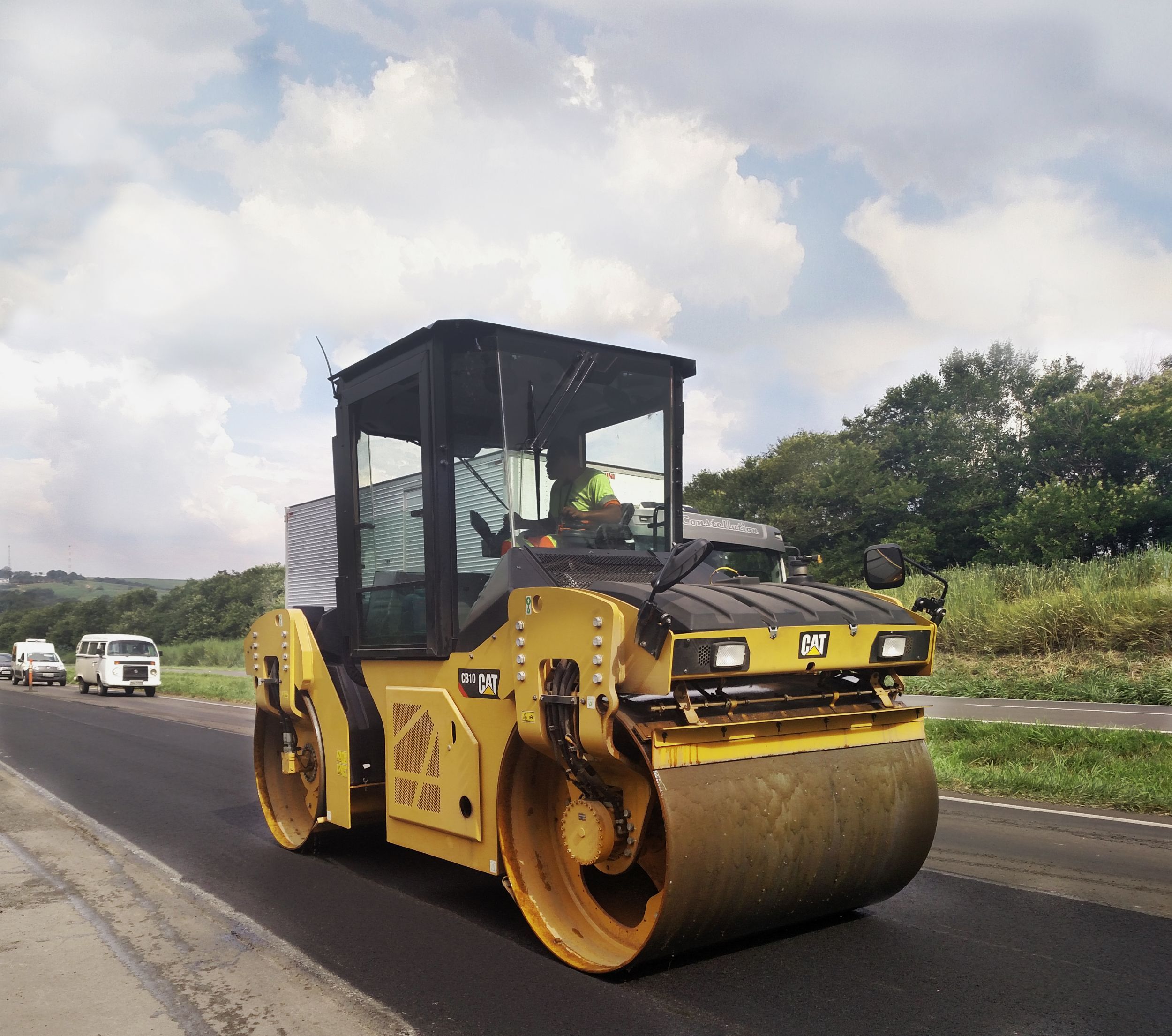

CB10 Tandem Vibratory Roller

The Cat® CB10 Solid Drum is a 10 ton roller with 1700 mm (67″) tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials. It features exceptional visibility and control, smooth operating powertrain, and versatile vibratory systems including Oscillation Technology.

Exceptional Visibility and Control

Vibratory System Versatility

Cat Compaction Control

Smooth Operating Powertrain

Standard Equipment

ENGINE
  • One-touch low idle with automatic engine speed control

Additional information

Offering Type

,

Weights - Standard Operating Weight with Cab

9710 kg ( 21407 lb )

Weights - Maximum Operating Weight with Cab

10510 kg ( 23171 lb )

Weights - Maximum Operating Weight with ROPS

10235 kg ( 22564 lb )

Weights - Standard Operating Weight with ROPS

9500 kg ( 20945 lb )

Operating Specifications - Standard Compaction Width

1700.0 mm ( 67.0 in )

Operating Specifications - Travel Speed - Maximum

12.0 km/h ( 7.5 mile/h )

Operating Specifications - Static Linear Load

28.5 kg/cm ( 160 lb/in )

Operating Specifications - Maximum Compaction Width

1940.0 mm ( 73.0 in )

Engine - Gross Power

97 kW ( 131.8 HP )

Engine Model

Cat C4.4 with ACERT Technology

Dimensions - Overall Length

4565.0 mm ( 177.0 in )

Dimensions - Wheel Base

3300.0 mm ( 130.0 in )

Dimensions - Height - With ROPS/FOPS

2982.0 mm ( 117.0 in )

Dimensions - Overall Width

1872.0 mm ( 73.0 in )

Dimensions - Drum Diameter

1198.0 mm ( 47.0 in )

Vibratory System - Drum Width

1700.0 mm ( 67 in )

Vibratory System - Vibration Selection

Independent per drum, front only, rear only, both

Vibratory System - Centrifugal Force per Drum - Minimum

27.1 kN ( 6092 lb )

Vibratory System - Centrifugal Force per Drum - Maximum

128.9 kN ( 28977 lb )

Vibratory System - Nominal Amplitude - High

0.84 mm ( 0.033 in )

Vibratory System - Nominal Amplitude - Low

0.18 mm ( 0.007 in )

Service Refill Capacities - Fuel Tank Capacity

208.0 l ( 55.0 gal (US) )

Service Refill Capacities - Water Spray Tank Capacity

837 l ( 221 gal (US) )

Weights - Operating Weight

9500 kg ( 20945 lb )
