CB34B

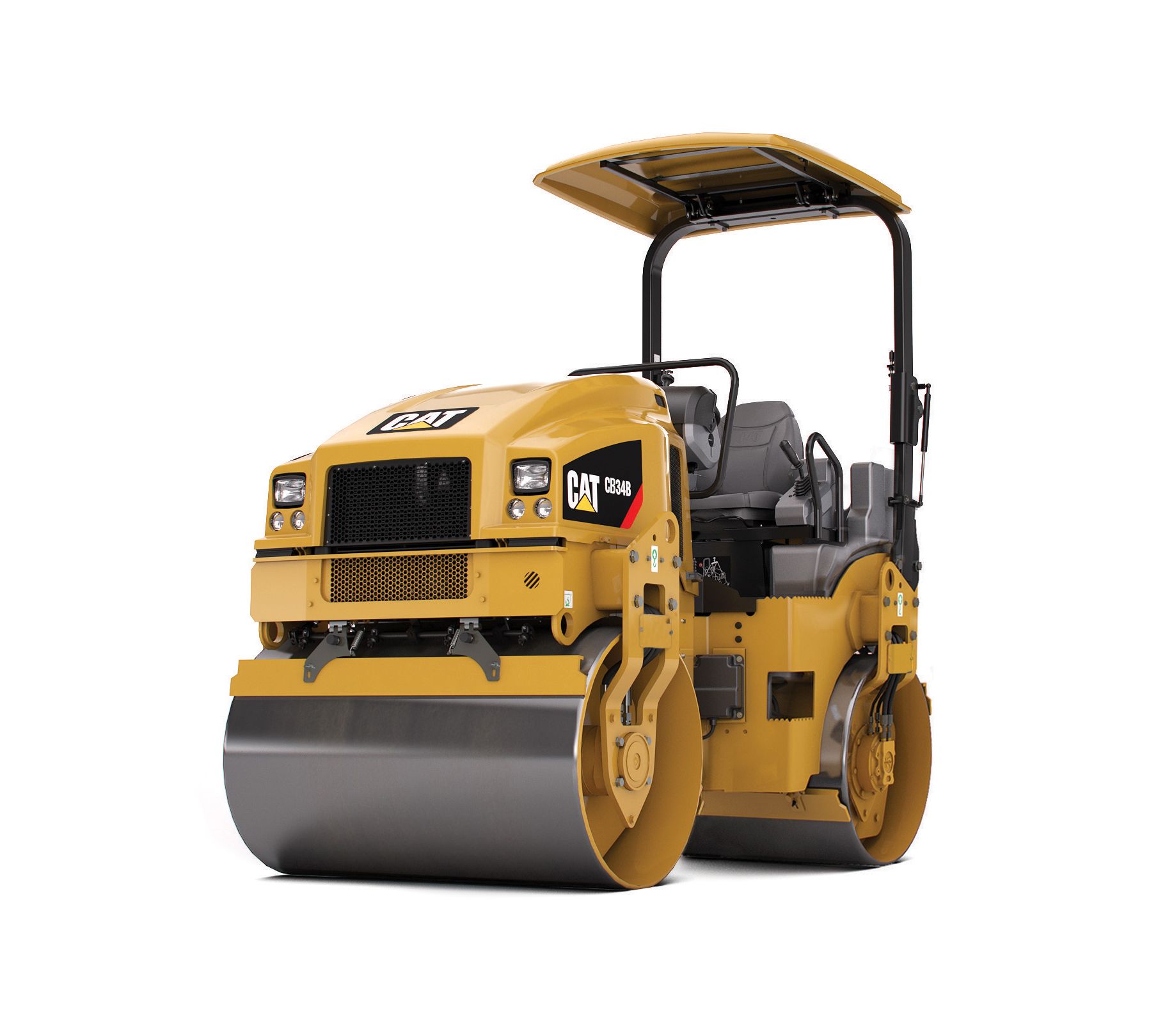

CB34B Utility Compactor
The CB34B is a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. The CB34B provides greater production capabilities with its 1300 mm (51 in) wide drums. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions or other similar sized jobs.
Simple Operation
Efficient Compaction Performance
Best_In_Class Water Spray System
Optimized Power
Designed For Rental
Videos
Additional information
| Offering Type | |
|---|---|
| Weights - Operating Weight | 3700.0 kg ( 8157.0 lb ) |
| Weights - Maximum Weight at Front Drum | 1803.0 kg ( 3974.0 lb ) |
| Weights - Maximum Weight at Rear Drum | 1896.0 kg ( 4180.0 lb ) |
| Operating Specifications - Standard Compaction Width | 1300.0 mm ( 51.0 in ) |
| Operating Specifications - Curb Clearance | 520.0 mm ( 20.0 in ) |
| Operating Specifications - Turning Radius - Inside Drum Edge | 2932.0 mm ( 9.7 ft ) |
| Operating Specifications - Ground Clearance | 285.0 mm ( 11.0 in ) |
| Operating Specifications - Travel Speed - Maximum | 13.0 km/h ( 8.0 mile/h ) |
| Operating Specifications - Static Linear Load | 14.2 kg/cm ( 80.0 lb/in ) |
| Engine - Gross Power | 36.6 kW ( 49.1 HP ) |
| Engine Model | C2.2 |
| Dimensions - Overall Length | 2859.0 mm ( 113.0 in ) |
| Dimensions - Wheel Base | 2050.0 mm ( 81.0 in ) |
| Dimensions - Overall Width | 1400.0 mm ( 55.0 in ) |
| Dimensions - Maximum Machine Height | 2765.0 mm ( 109.0 in ) |
| Dimensions - Drum Diameter | 800.0 mm ( 32.0 in ) |
| Dimensions - Drum Width | 1300.0 mm ( 51.0 in ) |
| Vibratory System - Centrifugal Force per Drum - Minimum | 24.1 kN ( 5418.0 lb ) |
| Vibratory System - Nominal Amplitude - High | 0.5 mm ( 0.02 in ) |
| Vibratory System - Centrifugal Force per Drum - Maximum | 31.6 kN ( 7104.0 lb ) |
| Vibratory System - Frequency | 55/48 Hz (3,300/2800 vpm) |
| Service Refill Capacities - Fuel Tank Capacity | 90.7 l ( 24.0 gal (US) ) |
| Service Refill Capacities - Water Spray Tank Capacity | 308.0 l ( 81.0 gal (US) ) |
