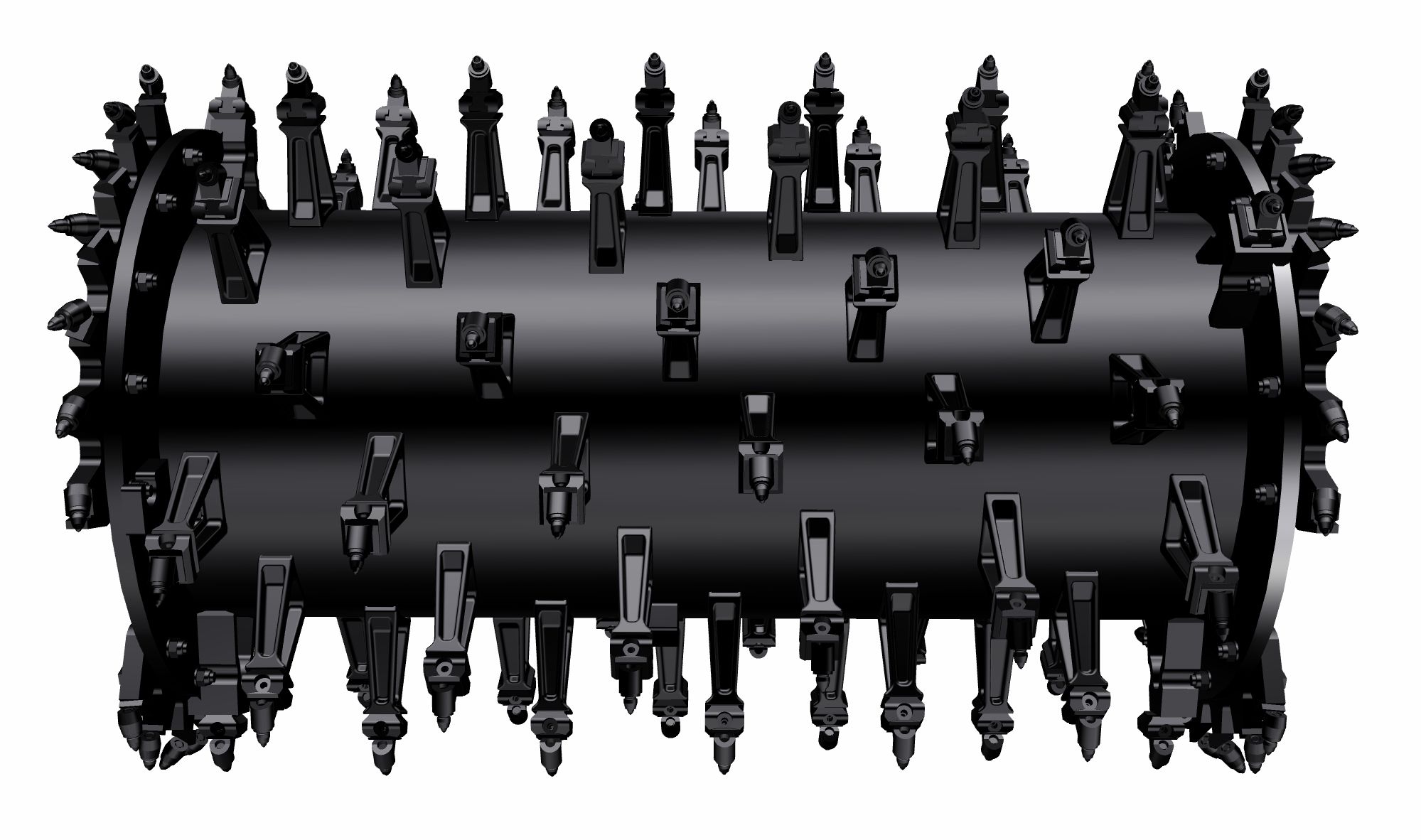

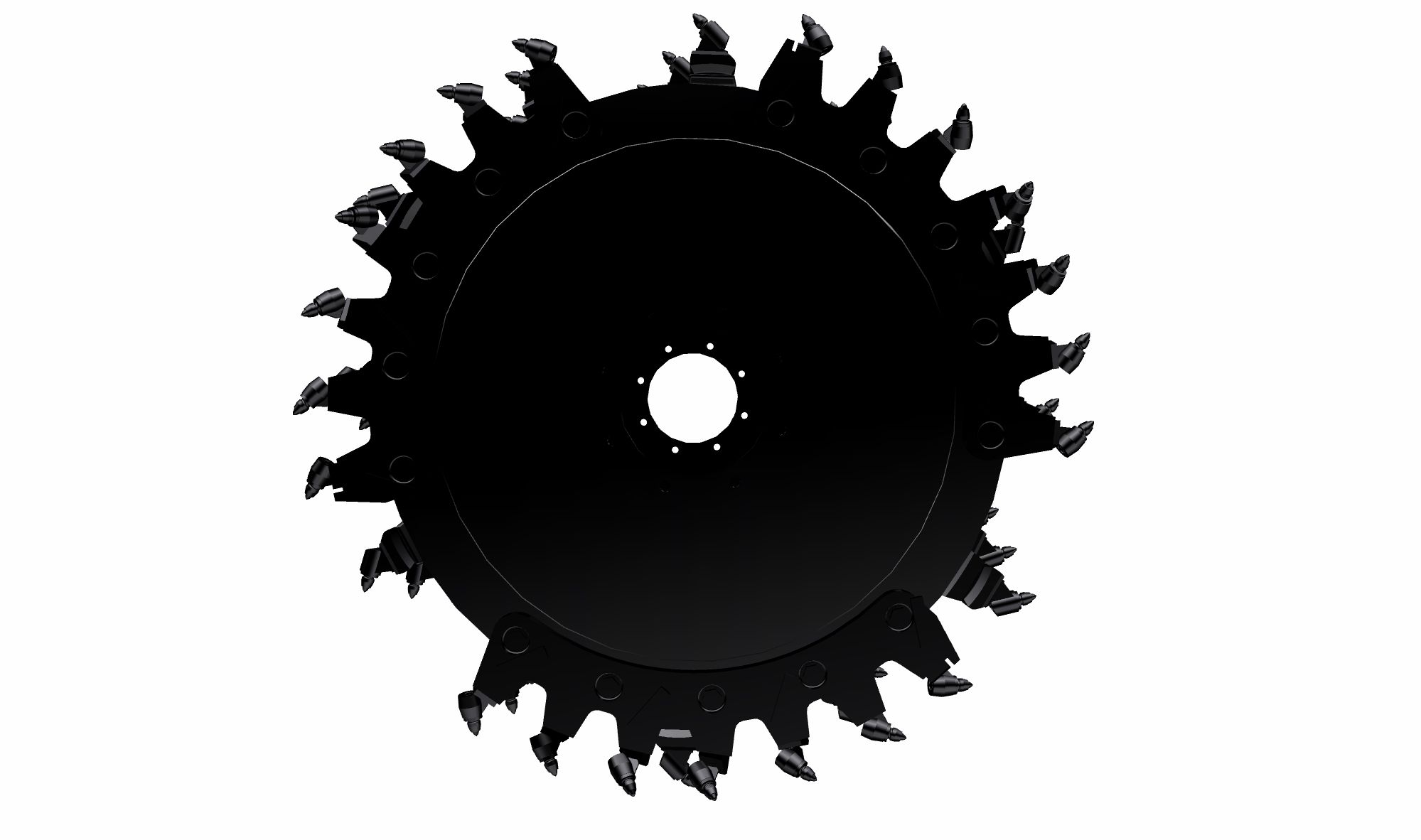

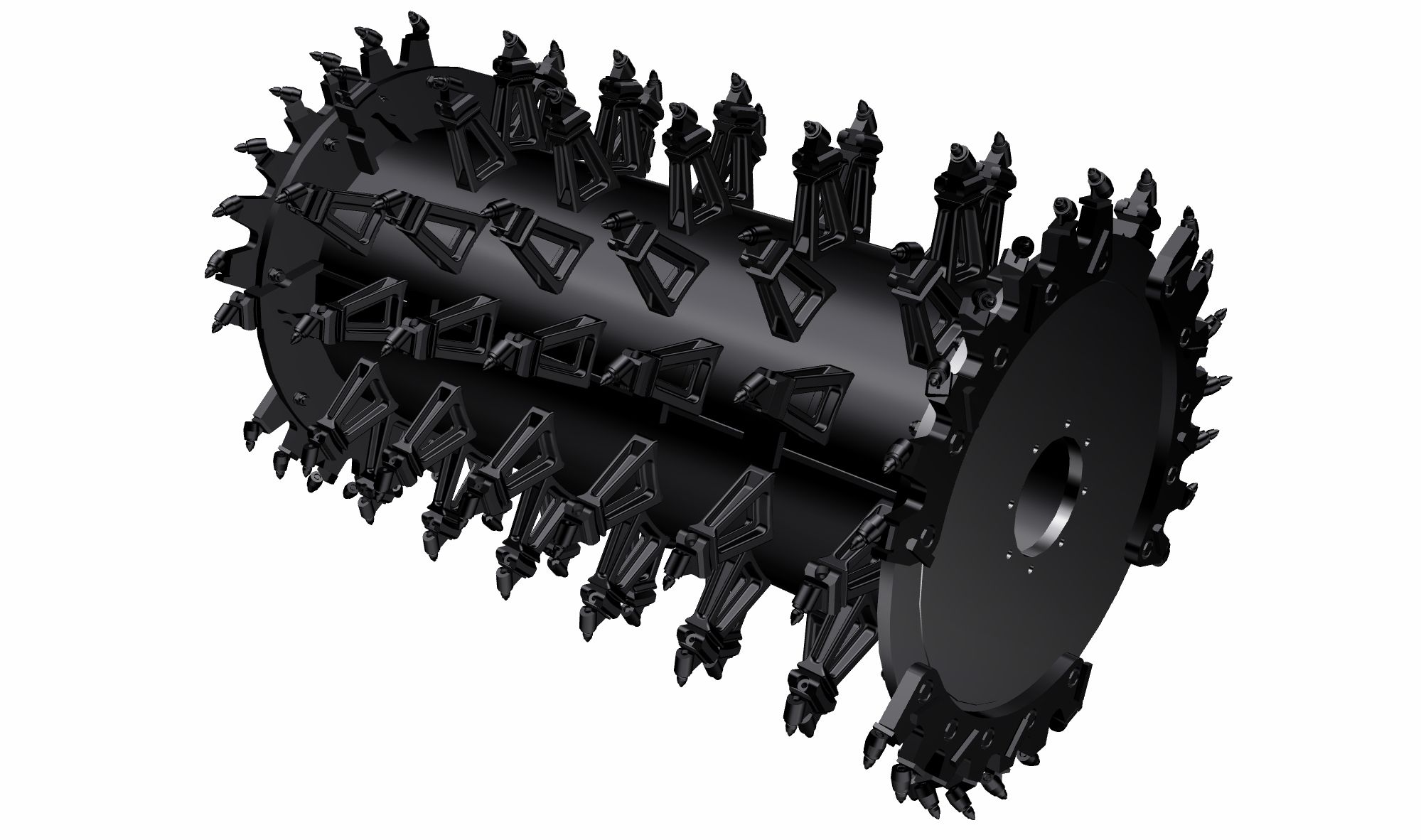

Combination Reclaimer Drum (2.4 m)
Combination Reclaimer Drum (2.4 m)
The Combination reclaimer drum is designed for 508 mm (20 in) deep-cut soil mixing for stabilizing and light reclamation.
Low Power Draw
- The Combination rotor design utilizes a smaller number of bits, which contributes to lower costs associated with bit replacement.
- Fewer bits mean lower costs for replacement bit purchases, as well as less downtime and labor to replace them.
- This rotor design results in high production—especially in deep cuts—because less power is required to drive a rotor with fewer bits compared to a rotor with significantly more.
Deep Cut
- The Combination rotor is designed for deep-cut soil mixing 508 mm (20 in) where pulverization and gradation is of lesser importance and higher working speeds are more important.
- It performs well in cohesive soils.
Documents & Brochures
Additional information
| عرض التفريز | 2438 مم ( 96 بوصة ) |
|---|---|
| مسافة تباعد الأداة | 32 مم ( 1.26 بوصة ) |
| قطر الأسطوانة عند الأطراف | 1625 مم ( 64 بوصة ) |
| عمق التفريز (الحد الأقصى) | 508 مم ( 20 بوصة ) |
| عدد اللقم | 114 |
| رقم قطعة مجموعة دوار مع سائل التبريد والأدوات (تركيب في المصنع) | 272-6090 |
| رقم قطعة مجموعة دوار مع لقم (تركيب ميداني) | 272-6091 |
| Offering Type |
-

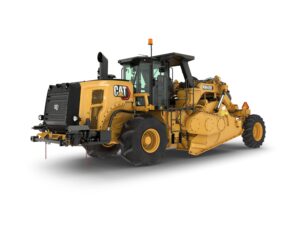

Road Reclaimer
RM400
View Details -

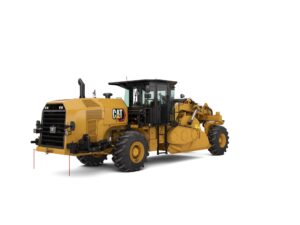

Road Reclaimer
RM500B
View Details
Related products
-
Rotors
System K 2.5 m Milling Drum (18 mm spacing)
View Details -
Rotors
Universal 18 Reclaimer Drum (2.4 m)
View Details -
Rotors

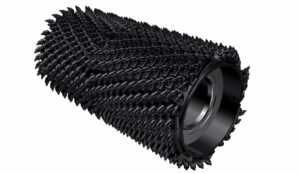

System H 2.0 m Milling Drum (6×2 mm spacing)
