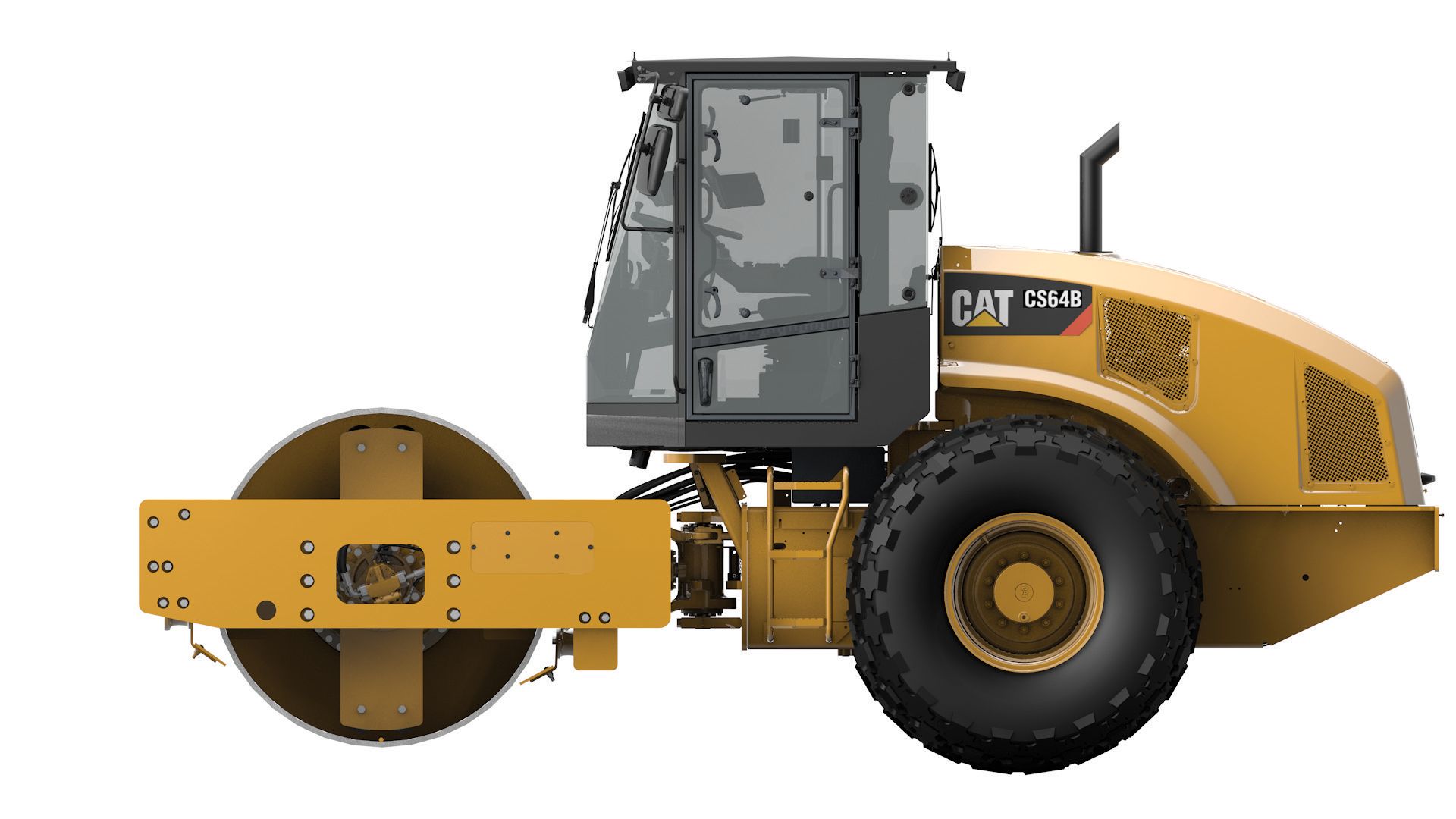

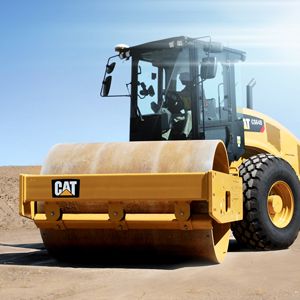

CS64B Vibratory Soil Compactor

The CS64B provides exceptional performance for granular soil compaction applications.

Enhanced Vibratory System

Reliable Power Train

Comfortable Operator's Environment

Cat Compaction Control Option

Easy to Service

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
  • Open Platform with Handrails/Guardrails,
  • Floor Mat
  • Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display
  • Adjustable Tilting Steering Column with Integrated Cup Holders
  • Seat Belt
  • 12-volt Power Outlet
  • Horn, Backup Alarm
  • Smooth Drum
  • Dual Amplitude, Single Frequency
  • Dual Pod-Style Eccentric Weight Housings
  • Auto-vibe Function
  • Front Adjustable Steel Scraper
POWERTRAIN
  • Cat C4.4 Diesel Engine
  • Air Cleaner, Dual Element
  • Eco-mode
  • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
  • Fuel Filter, Water Separator, Priming Pump, Water Indicator
  • Tilting Radiator/Hydraulic Oil Cooler
  • Dual Braking System
  • Two-speed Hydrostatic Transmission
ELECTRICAL
  • 24 volt Electrical System
  • 75 ampere Alternator
  • 750 Cold-cranking Amps Battery Capacity
OTHER
  • Product Link™
  • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
  • S•O•S Sampling Valves: Engine Oil, Hydraulic Oil and Coolant

Additional information

Offering Type

Weights - Operating Weight - With Cab

12055 kg ( 26569 lb )

Weights - Weight - Drum with Cab

7120.0 kg ( 15690.0 lb )

Operating Specifications - Compaction Width

2134.0 mm ( 84.0 in )

Operating Specifications - Travel Speed - Maximum

11.0 km/h ( 6.8 mile/h )

Operating Specifications - Ground Clearance

442.0 mm ( 17.4 in )

Operating Specifications - Static Linear Load - With Cab

33.4 kg/cm ( 186.8 lb/in )

Operating Specifications - Turning Radius - Inside Drum Edge

3.68 m ( 12.08 ft )

Engine - Gross Power

96.5 kW ( 129.4 HP )

Engine Model

Cat C4.4

Dimensions - Overall Width

2.3 m ( 7.53 ft )

Dimensions - Overall Length

5.85 m ( 19.17 ft )

Dimensions - Drum Width

2134.0 mm ( 84.0 in )

Dimensions - Drum Diameter

1534.0 mm ( 60.4 in )

Dimensions - Wheel Base

2.9 m ( 9.58 ft )

Dimensions - Height - With ROPS/FOPS or Cab

3.11 m ( 10.25 ft )

Vibratory System - Centrifugal Force - Minimum

133.0 kN ( 29900.0 lb )

Vibratory System - Nominal Amplitude - High

1.9 mm ( 0.075 in )

Vibratory System - Variable Frequency Option Range

23.3 – 30.5 Hz (1400-1830 vpm)

Vibratory System - Centrifugal Force - Maximum

234.0 kN ( 52600.0 lb )

Vibratory System - Vibratory Frequency - Standard

30.5 Hz (1830 vpm)

Vibratory System - Nominal Amplitude - Low

0.95 mm ( 0.037 in )

Tires

23.1 x 26

Service Refill Capacities - Fuel Tank Capacity

242.0 l ( 64.0 gal (US) )

Engine - Bore

105 mm ( 4.1 in )

Engine - Stroke

127 mm ( 5 in )
