CS78B

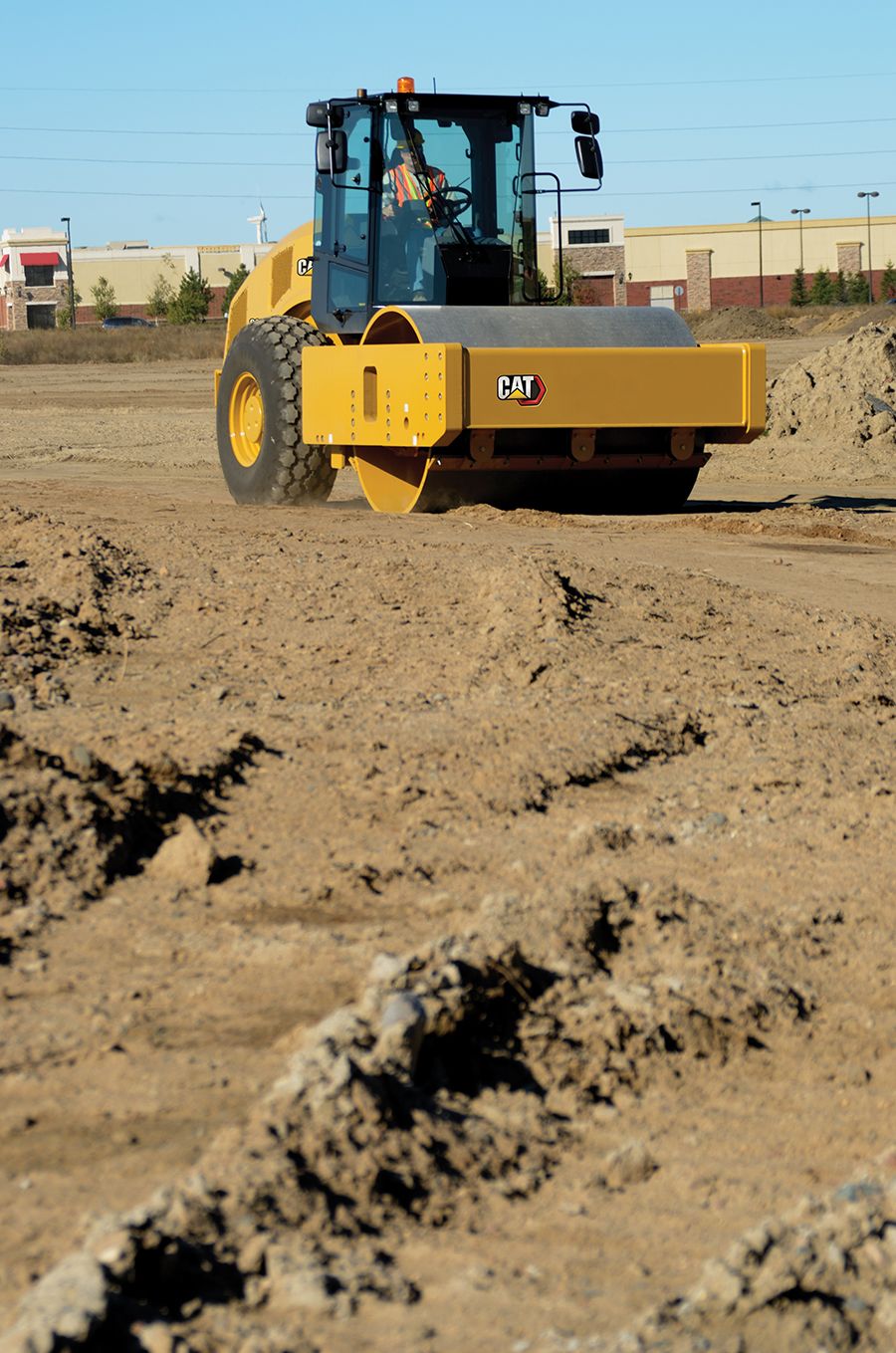

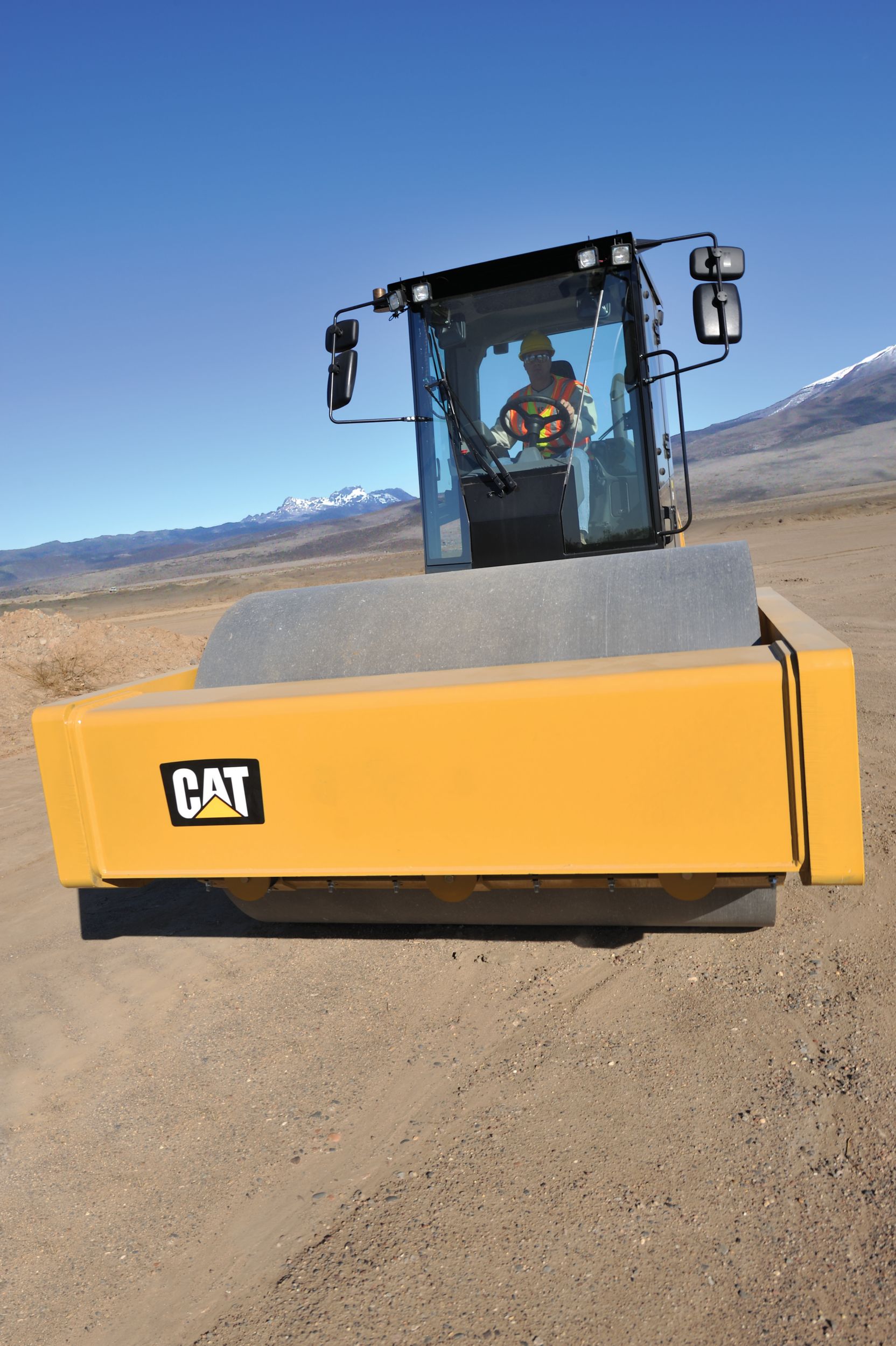

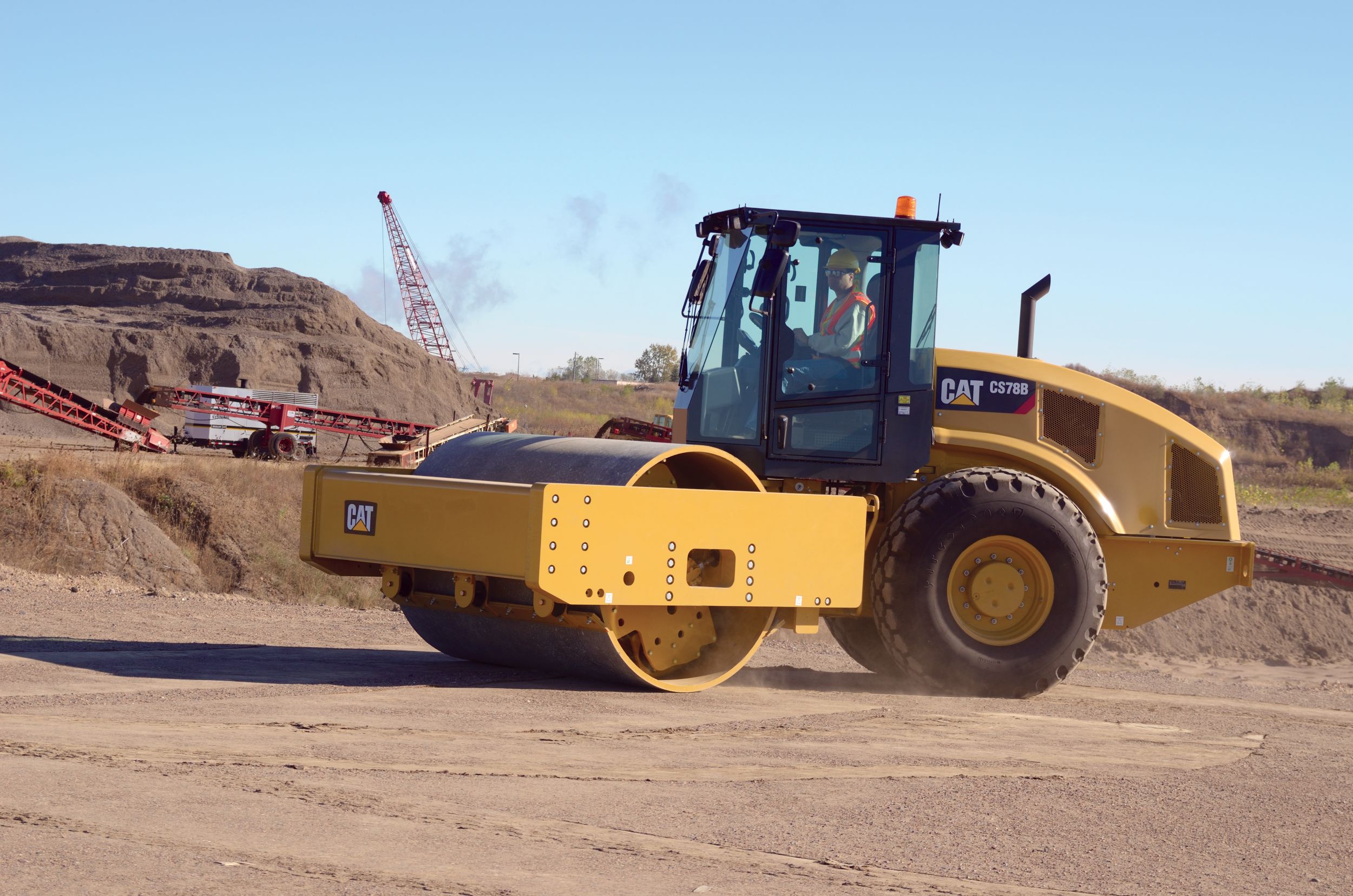

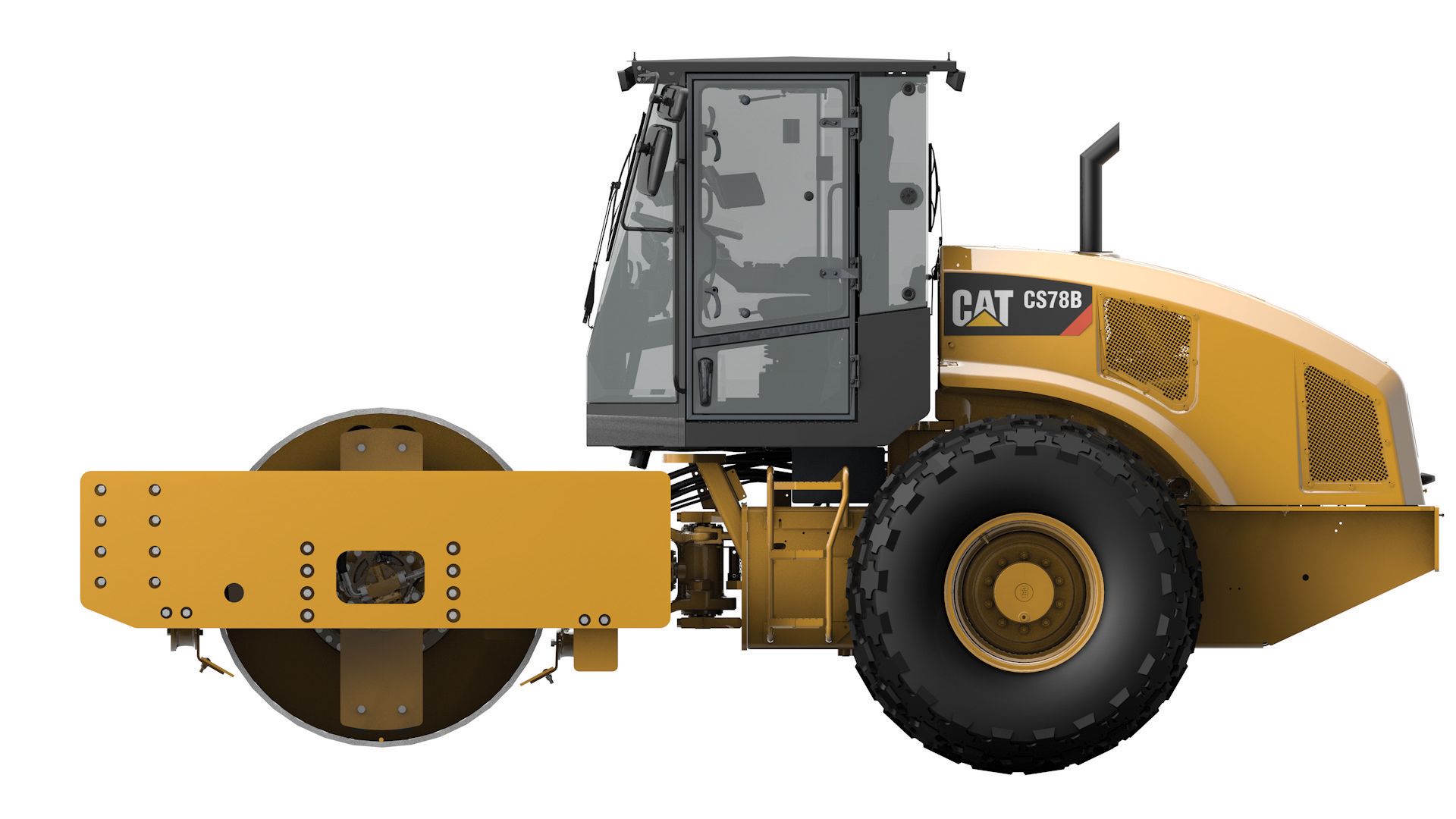

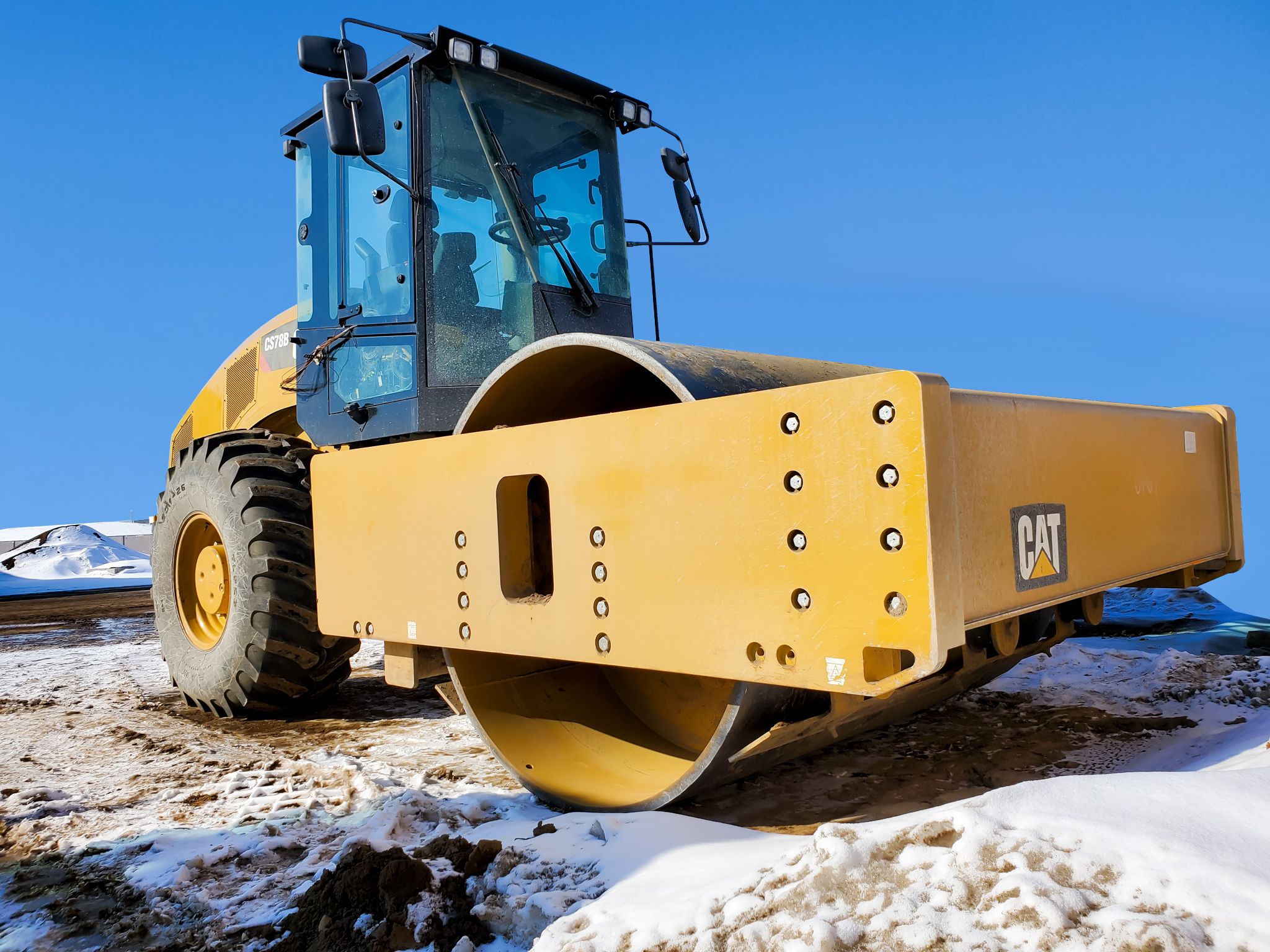

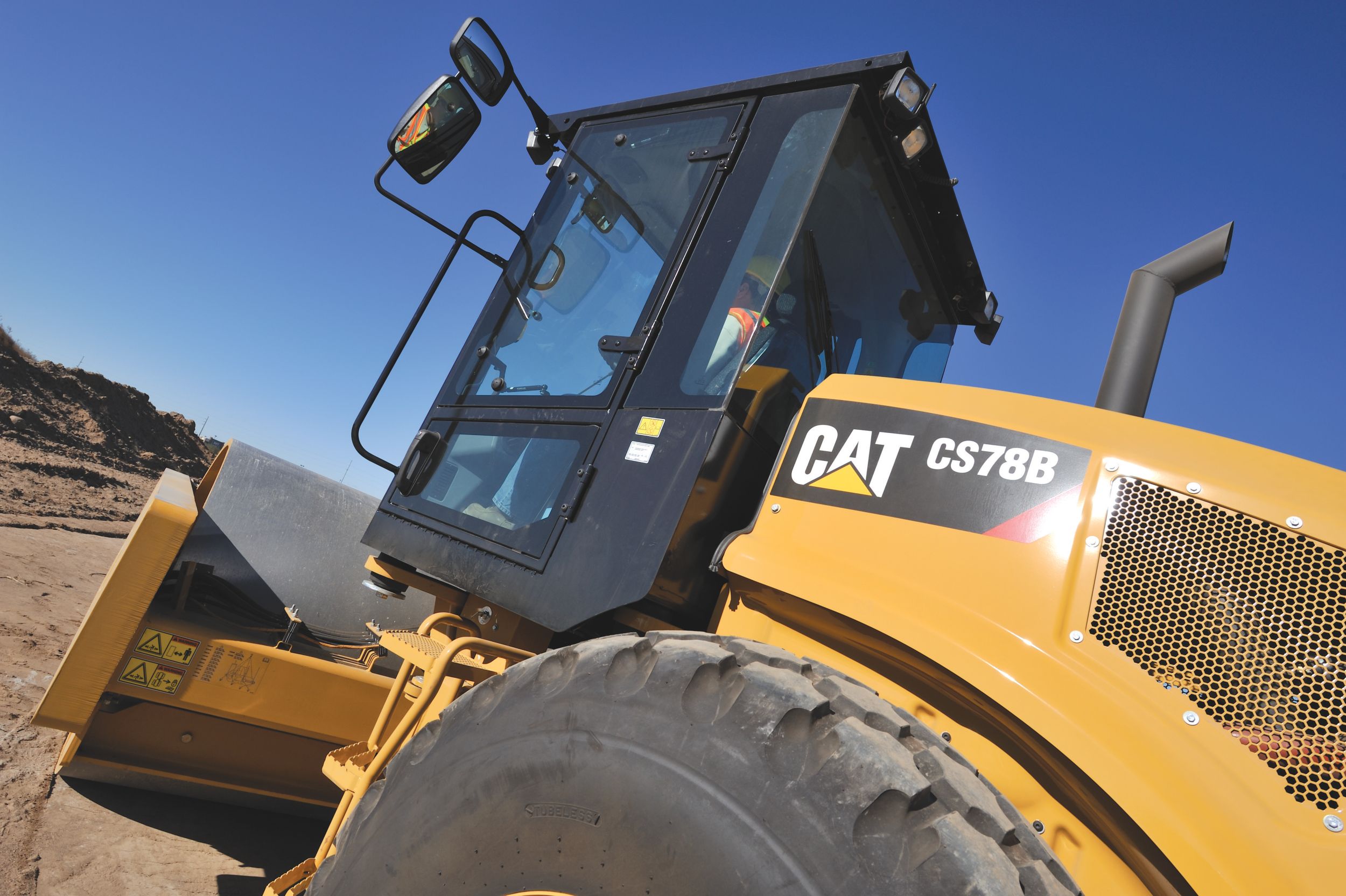

CS78B Vibratory Soil Compactor
The CS78B provides exceptional performance for granular soil compaction applications.
Enhanced Vibratory System
Reliable Power Train
Comfortable Operator's Environment
Cat Compaction Control Option
Easy to Service
Videos
Additional information
| Offering Type | |
|---|---|
| Weights - Operating Weight - With Cab | 18760 kg ( 41359 lb ) |
| Weights - Weight - Drum with Cab | 13230 kg ( 29167 lb ) |
| Operating Specifications - Compaction Width | 2134 mm ( 84 in ) |
| Operating Specifications - Ground Clearance | 437 mm ( 17.2 in ) |
| Operating Specifications - Travel Speed - Maximum | 11.4 km/h ( 7 mile/h ) |
| Operating Specifications - Static Linear Load - With Cab | 63 kg/cm ( 353 lb/in ) |
| Operating Specifications - Turning Radius - Inside Drum Edge | 3.7 m ( 12.1 ft ) |
| Engine - Gross Power | 129 kW ( 173 HP ) |
| Engine Model | Cat 7.1 |
| Dimensions - Drum Diameter | 1534 mm ( 60.4 in ) |
| Dimensions - Drum Width | 2134 mm ( 84 in ) |
| Dimensions - Height - With ROPS/FOPS or Cab | 3.1 m ( 10.3 ft ) |
| Dimensions - Wheel Base | 2.9 m ( 9.6 ft ) |
| Dimensions - Overall Width | 2.5 m ( 8.1 ft ) |
| Dimensions - Overall Length | 6.1 m ( 20.1 ft ) |
| Vibratory System - Nominal Amplitude - High | 2.1 mm ( 0.083 in ) |
| Vibratory System - Variable Frequency Option Range | 23.3 – 28 Hz (1400-1680 vpm) |
| Vibratory System - Vibratory Frequency - Standard | 28 Hz (1680 vpm) |
| Vibratory System - Nominal Amplitude - Low | 0.98 mm ( 0.039 in ) |
| Vibratory System - Centrifugal Force - Minimum | 166 kN ( 37300 lb ) |
| Vibratory System - Centrifugal Force - Maximum | 332 kN ( 74600 lb ) |
| Tires | 23.1 x 26 |
| Service Refill Capacities - Fuel Tank Capacity | 332 l ( 88 gal (US) ) |
| Engine - Stroke | 135 mm ( 5.3 in ) |
| Engine - Bore | 105 mm ( 4.1 in ) |
