CW34

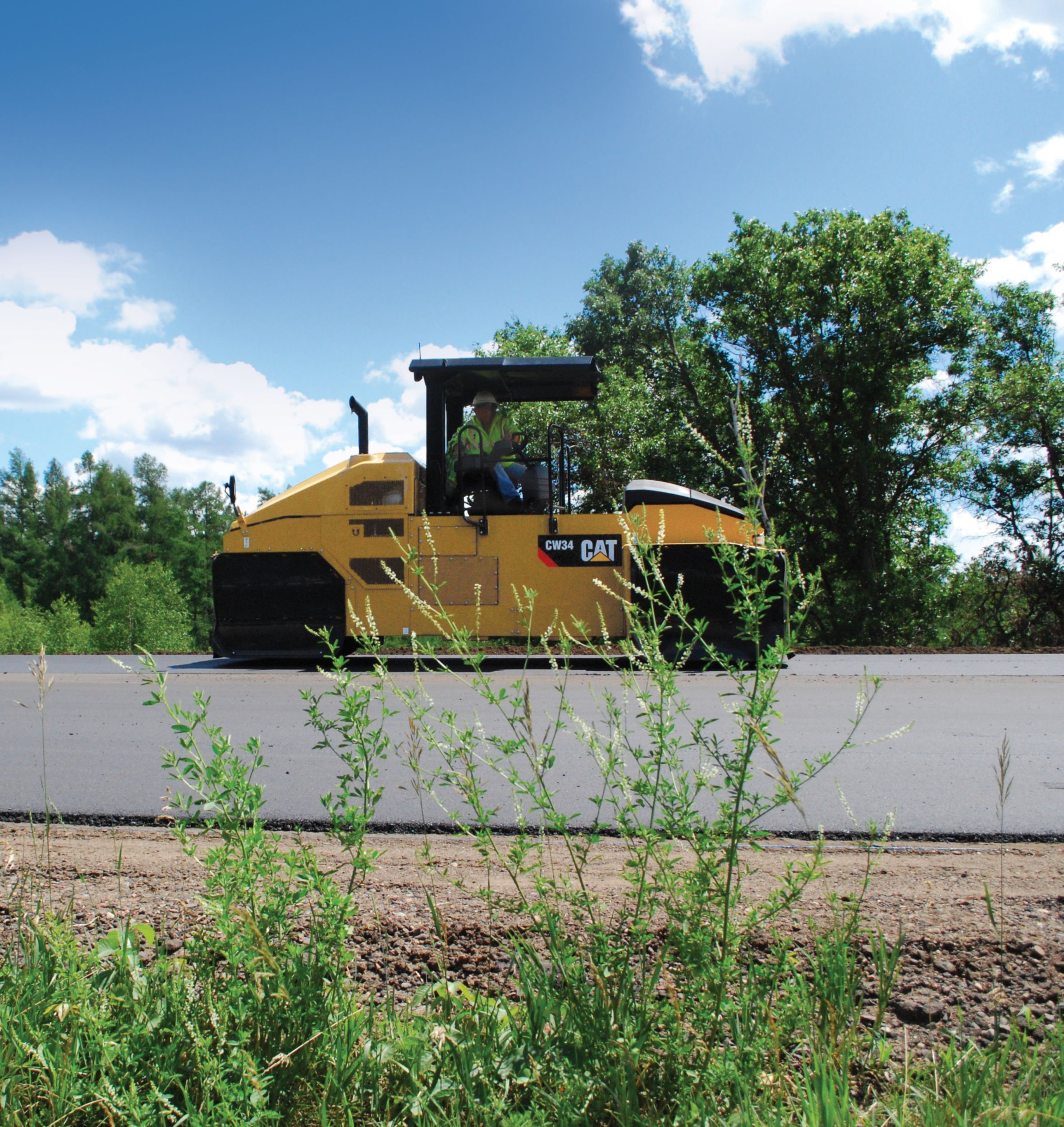

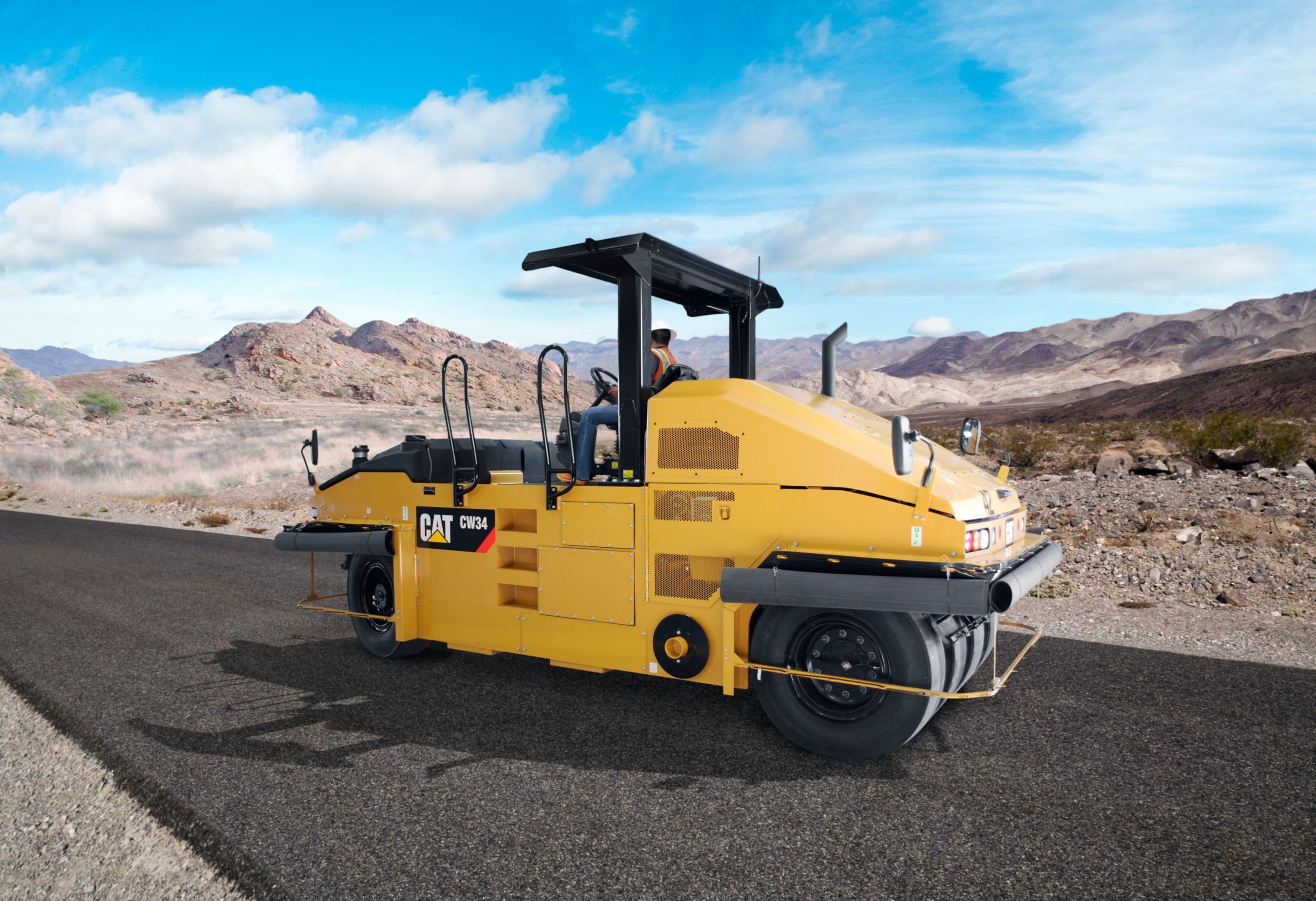

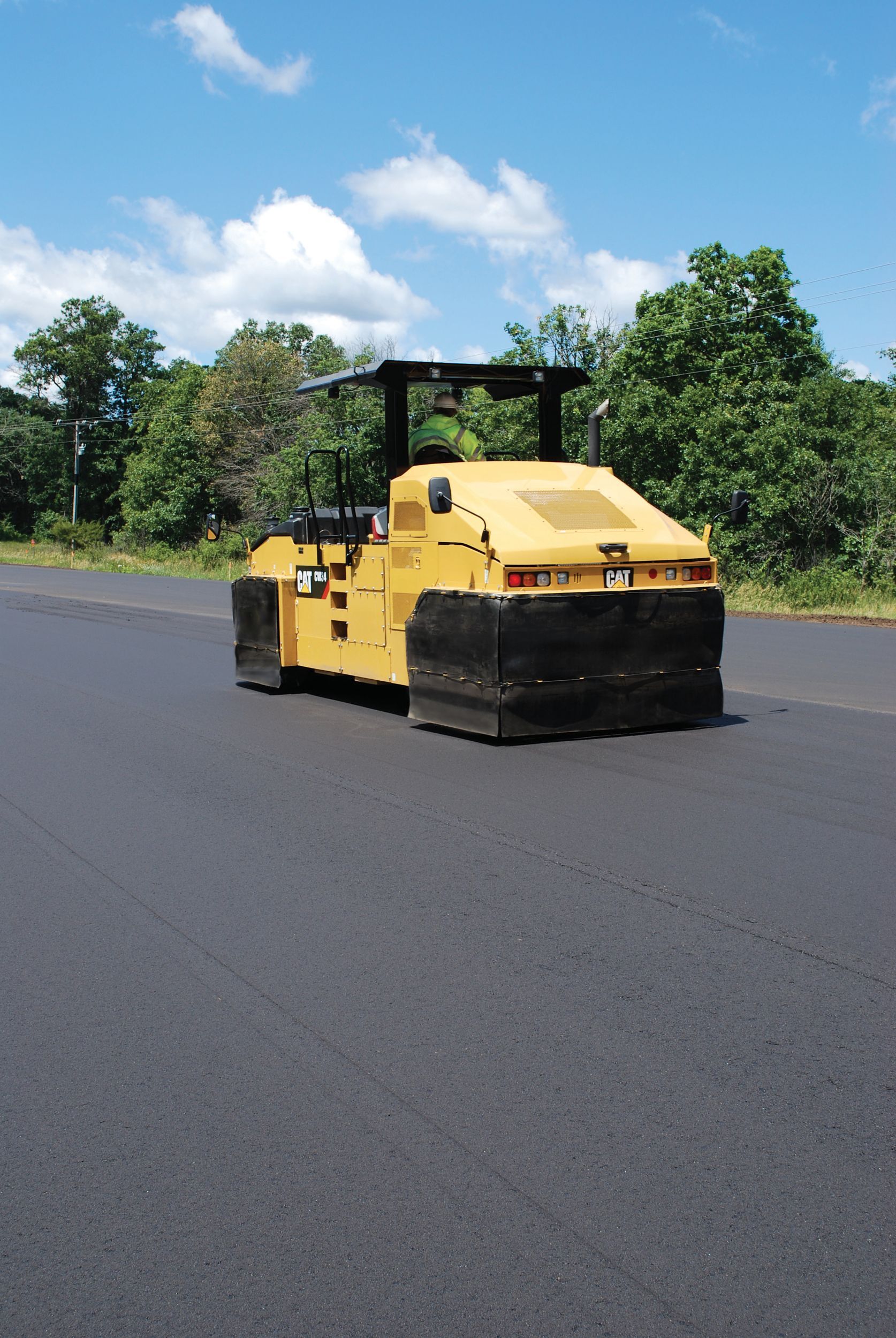

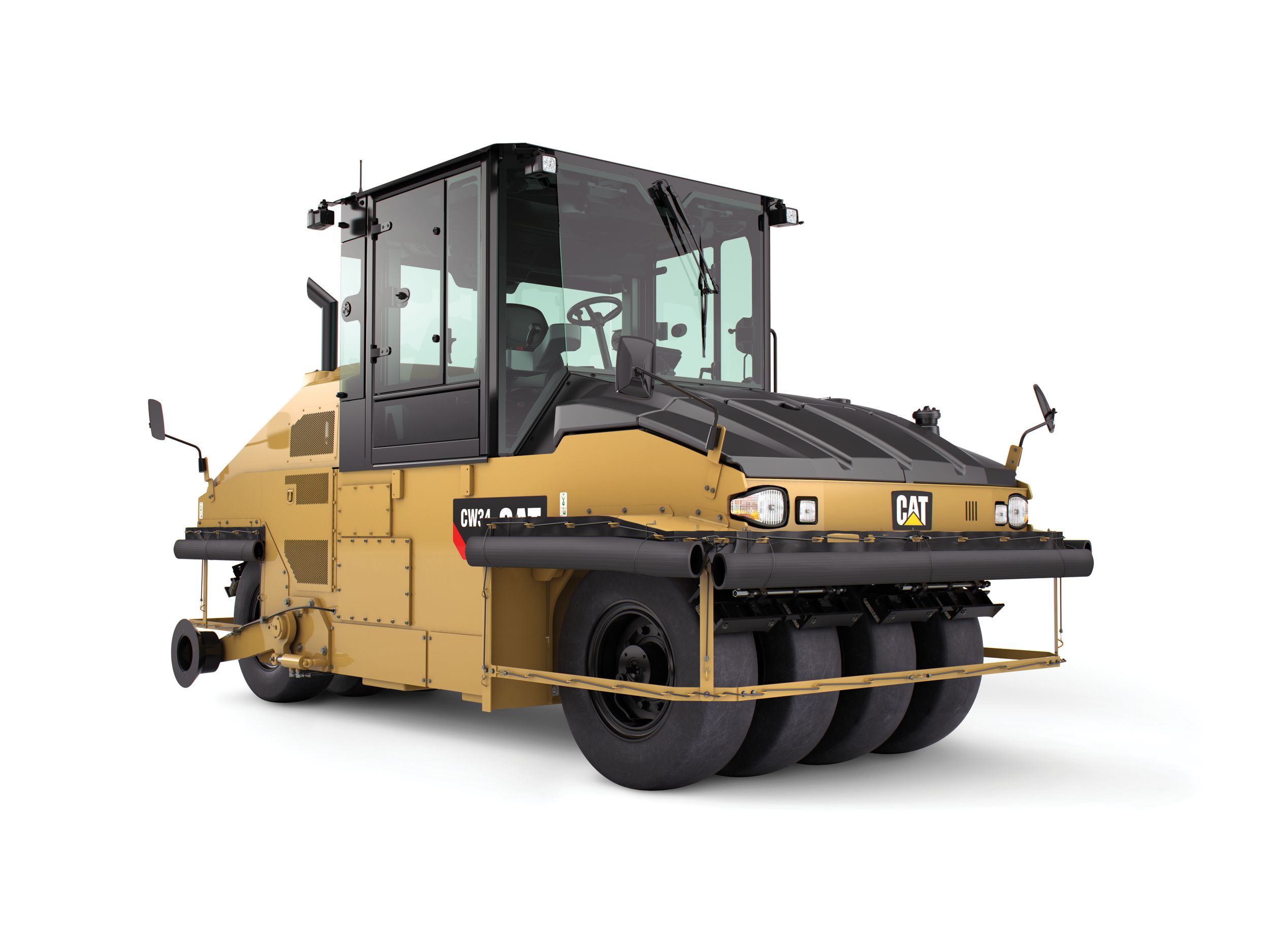

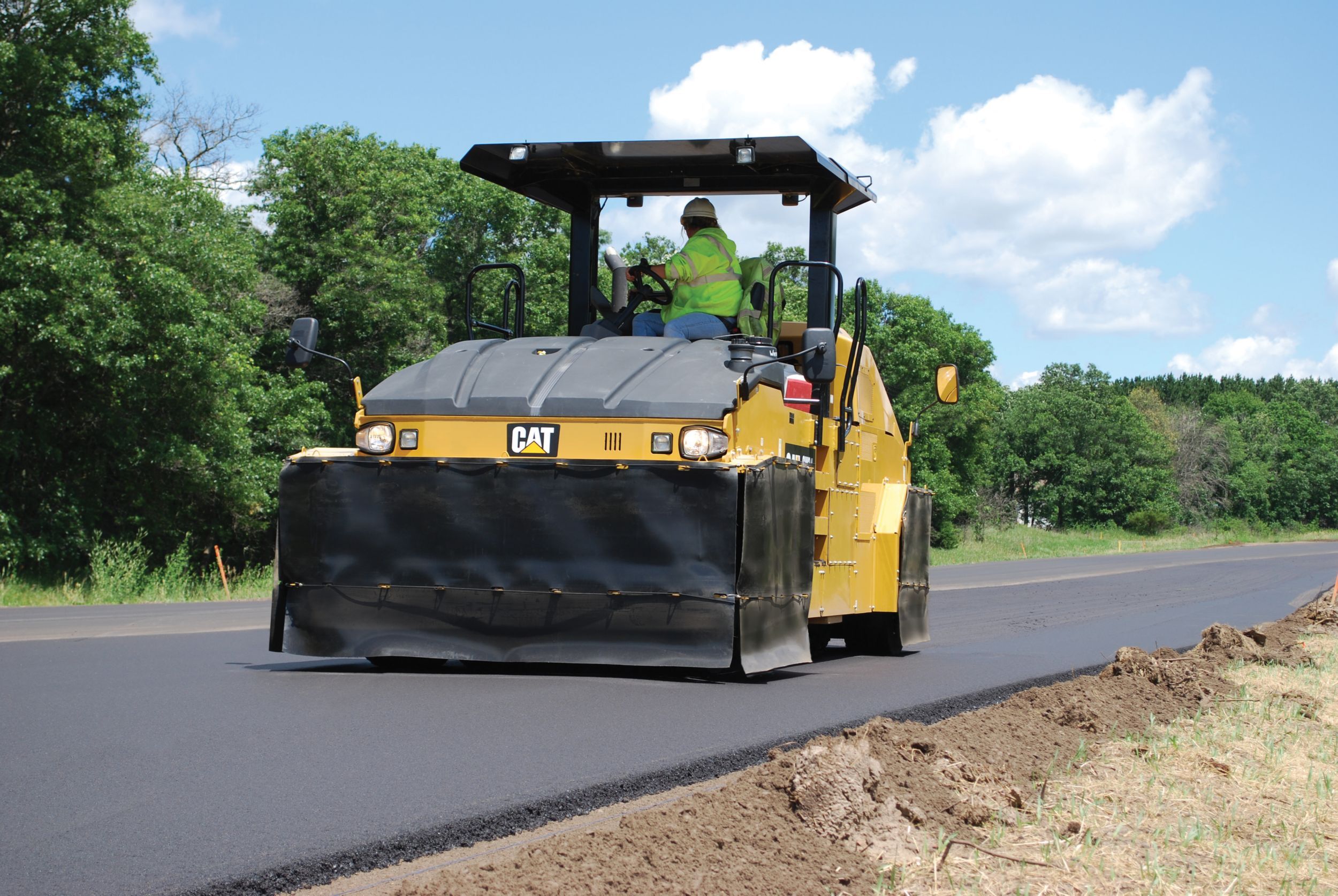

CW34 Pneumatic Roller
The CW34 is an eight wheel pneumatic roller that features a modular ballast system and flexible operating weight of 10 000 kg to 27 000 kg (22,050 lb – 59,525 lb). This machine offers excellent visibility, ECO-mode operation, even compaction, and excels on a variety of materials due to its flexible air-on-the-run capability.
Versatile Compaction Performance
Exceptional Visibility and Control
Cat® Compaction Control
Smooth Operating Powertrain
Virtual Tours
Documents & Brochures
Additional information
| Offering Type | |
|---|---|
| Weights - Operating Weight - Standard Machine Empty | 10000 kg ( 22050 lb ) |
| Operating Specifications - Number of Wheels | 8 |
| Weights - Average Weight per Wheel - No Ballast | 1250 kg ( 2756 lb ) |
| Operating Specifications - Rolling Width | 2090.0 mm ( 82.0 in ) |
| Weights - Operating Weight - Maximum Wet Sand Ballast | 16000 kg ( 35275 lb ) |
| Weights - Average Weight per Wheel - Maximum Ballast | 3380 kg ( 7451 lb ) |
| Operating Specifications - Turning Radius - Inside (2) | 6.1 m ( 15.0 ft ) |
| Operating Specifications - Turning Radius - Inside (1) | 6100 mm ( 240 in ) |
| Weights - Operating Weight - Maximum Water Ballast | 13000 kg ( 28660 lb ) |
| Weights - Average Weight per Wheel | 1620 kg ( 3571 lb ) |
| Weights - Operating Weight - No Ballast | 10000.0 kg ( 22050.0 lb ) |
| Weights - Operating Weight - Maximum Ballast | 27000 kg ( 59525 lb ) |
| Operating Specifications - Compaction Width | 2090 mm ( 82 in ) |
| Operating Specifications - Travel Speed - Maximum | 19 km/h ( 12 mile/h ) |
| Operating Specifications - Ground Clearance | 260 mm ( 10 in ) |
| Operating Specifications - Turning Radius - Outside | 8700 mm ( 342 in ) |
| Engine - Bore | 105.0 mm ( 4.13 in ) |
| Engine - Stroke | 127.0 mm ( 5.0 in ) |
| Engine - Gross Power | 96.5 kW ( 131.2 HP ) |
| Engine Model | C4.4 |
| Dimensions - Height - ROPS | 3000 mm ( 118 in ) |
| Dimensions - Overall Length | 5350 mm ( 210 in ) |
| Dimensions - Height - Steering Wheel | 2450 mm ( 96 in ) |
| Dimensions - Maximum Machine Height | 3000.0 mm ( 118.0 in ) |
| Dimensions - Overall Width | 2160 mm ( 85 in ) |
| Tires | 13/80 R20 |
| Service Refill Capacities - Fuel Tank Capacity | 270 l ( 71 gal (US) ) |
| Service Refill Capacities - Water Spray Tank Capacity | 380 l ( 100 gal (US) ) |
-
