D9 GC

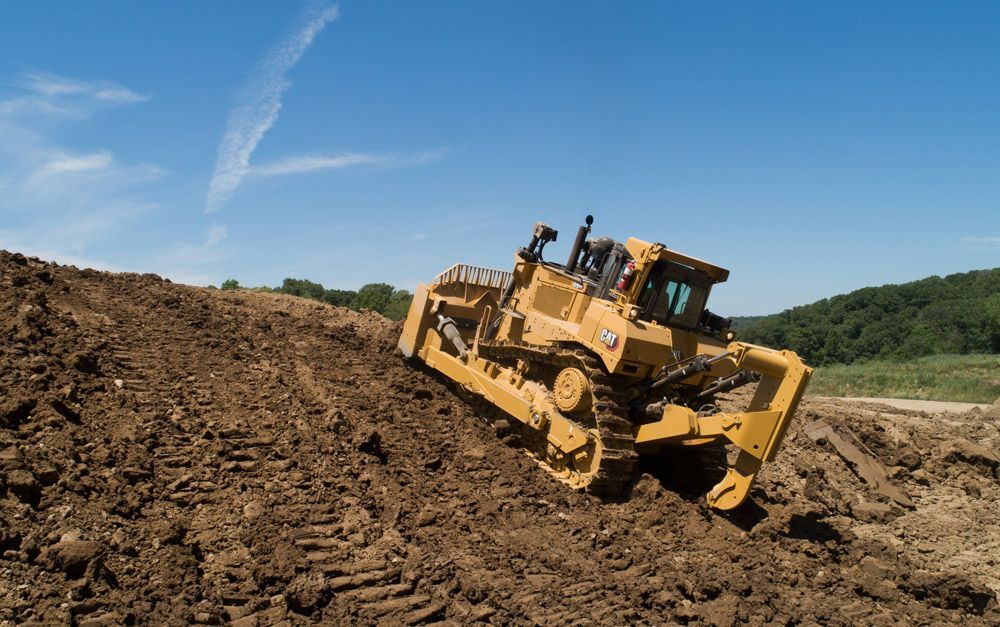

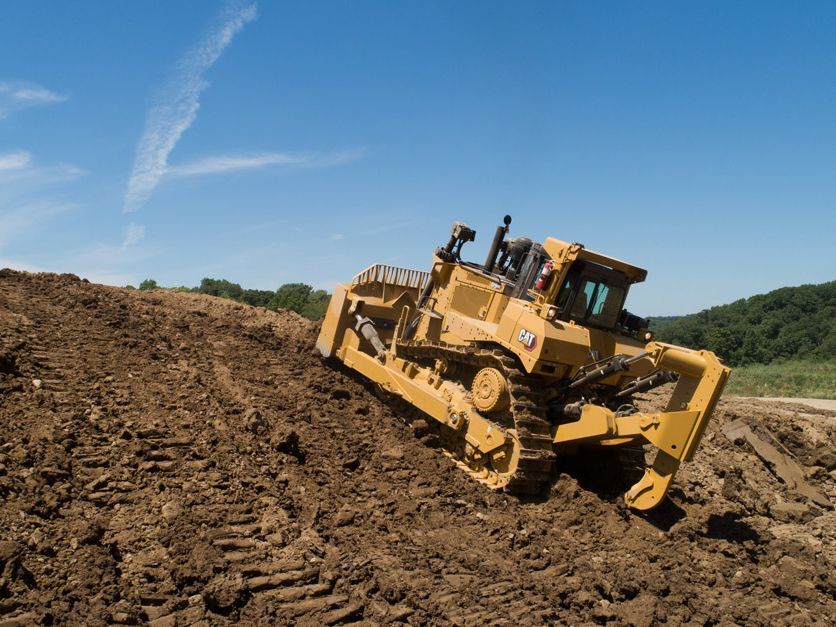

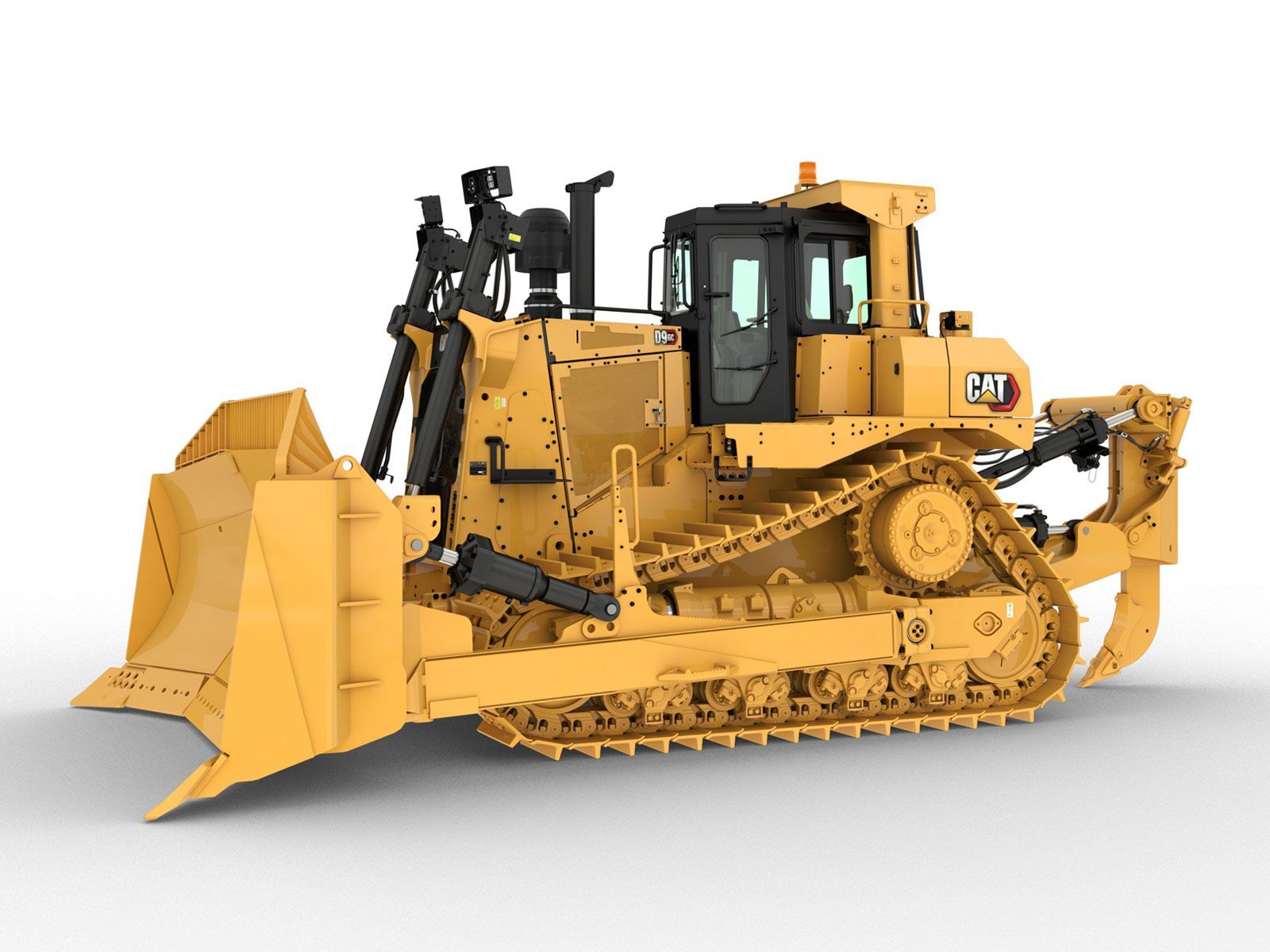

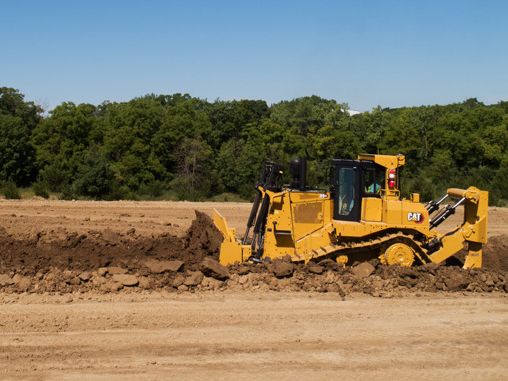

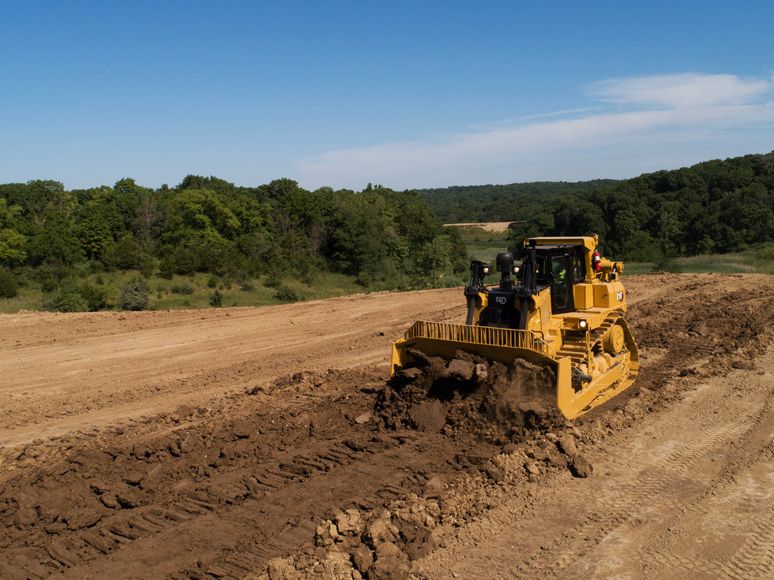

D9 GC Dozer
The productive and familiar Cat® D9 GC Dozer gives you performance and reliability in a simple, economical dozer. It’s easy to operate, simple to repair, and built with all Cat components that work together to deliver top performance and high availability. The D9 GC builds on the success of the versatile and durable D9R, which has been hard at work around the world for 25 years. The D9 GC’s major components, parts and systems will look familiar to those who have owned, operated and maintained the D9R. The D9 GC delivers unmatched reliability and long life through a proven design. A variety of application-specific configurations and attachments makes the D9 GC the ideal dozer for a variety of applications.
POWER & PRODUCTIVITY
- Cat three-speed planetary powershift transmission and well-known torque divider with free wheel stator put more power to the ground under light load and improve fuel consumption.
- The Dual Tilt option allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.
OPERATOR COMFORT
- The suspended undercarriage absorbs impact and reduces shock loads transferred to the undercarriage by up to 50% for a smoother, more comfortable ride.
- The fully adjustable Cat Comfort Series Seat has thick seat and back cushions to reduce pressure on the back and thighs while allowing unrestricted arm and leg movement.
- The D9 GC features hand levers with combined steering clutch and brake control for each track.
SAFETY
- The operator station offers an exceptional viewing area, to give the operator a clear line of sight to front and rear work areas. The low rear window lets the operator see the ripper tip, and single-pane door windows allow clear sight to each side without leaning.
- Daily power train oil check and sampling ports are easily accessed from the machine platform for convenience and added safety.
- Ground-level access, retention pins on bottom guard and removed lift cylinder grease points provide a greater level of safety for service personnel.
- The D9 GC can be equipped from the factory with optional flashing orange beacon and LED lighting for added safety.
VERSATILITY
- The D9 GC is designed to be used in a variety of applications such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation.
- Application-specific configurations and attachments are available for arctic, desert, heavy construction and steel mill applications.
- The fully suspended undercarriage provides more ground contact, leading to less slippage and more overall productivity in all applications.
- The D9 GC’s major components, parts and systems will look familiar to those who have owned, operated and maintained the D9R.
SERVICEABILITY
- The Cat 3408C engine offers longer fuel and air cleaner life, a new self-tensioner and a single UHE oil filter.
- The high-efficiency aluminum radiator with hydraulic fan reduces impact damage from debris.
- Sealed electrical connectors lock out dust and moisture for improved electrical system reliability and servicing.
- The transmission oil sump is separate from both final drive reservoirs, controlling cross contamination.
- Time-savers include spin-on fuel and engine oil filters, and fast-fuel and quick oil change attachments.
BLADES & ATTACHMENTS
- The perfect match for the D9 GC, Cat blades are aggressive in tough materials and offer superior loadability.
- Cat blades have the ability to resist torsional bending and distortion and offer increase wear resistance without sacrificing machine balance or performance.
- Blade options include universal, semi-universal, reclamation, coal and cushion.
- Rear attachments include single-shank ripper, multi-shank ripper, counterweight and winch.
- The tip and shank protector are easily installed with a 180-degree turn of a ¾-inch ratchet. This simple installation means no hammering, quicker change-outs and less downtime.
BUILT TO GO THE DISTANCE
- The heavy, strong and durable frame features high-strength steel castings and continuously rolled top and bottom frame rails. Frames provide durable support to the undercarriage, elevated final drives and other components.
- The mainframe is built to absorb high-impact shock loads and twisting forces encountered during severe dozing and ripping applications.
- Full box-section frame rails are designed to keep components rigidly aligned.
- Powertrain and main components are built to be rebuilt — for a cost-effective second life of like-new performance at a fraction-of-new price.
SUPPORT BEYOND THE IRON
- Like all Cat products, the D9 GC is supported by the global Cat dealer network — a one-of-a-kind, on-the-ground support network that delivers expert service, flexible solutions, after-sales support, fast and efficient parts fulfillment, world-class rebuild and remanufacturing capabilities, and more.
- Optional Product Link™ transmits basic health, machine location and utilization data for remote machine monitoring via the online VisionLink user interface. Cellular and satellite versions are offered to provide connectivity in remote locations.
- The Cat App helps sites manage their assets from a smartphone. Users can see fleet location and hours, get critical required maintenance alerts and even request service from their local Cat dealer.
SUSTAINABILITY
- Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
- By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions.
- Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.
Documents & Brochures
Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS, Sound-Suppressed Cab
- Decelerator and Governor Control
- Hydraulic Control Lever Restraints
- Visibility — Rearview Mirrors
- Monitoring System
- Cab Access — Blade Pusharm Steps and Grab Handle
- Air Conditioner and Heater
- Seatbelt, 76 mm (3 in) Retractable
- Seat — Cloth with Mechanical Suspension
- Window Wipers with Wash — Low, High, Intermittent
- Cab Glass — Single-Pane with Slider Window
POWER TRAIN
- Cat 3408C Engine — U.S. EPA Tier 1 Equivalent
- Clutch Brake with Combined Steering and Brake Control Levers
- Air-to-Air Aftercooler
- Air Filters — With In-Cab Service Indicator
- Radiator — High-Performance Aluminum Bar Plate
- Hydraulic Engine Cooling Fan
- Powershift Transmission — Three-Speed
- Precleaner — Strata™ Cap Dust Ejector
- Thermal Shields
- Fuel Priming Pump — Manual
- Fuel Water Separator
- Final Drives, Three-Planet Double Reduction Planetary
FLUIDS
- Coolant — Extended Life, Standard (— 37° C / — 25° F)
UNDERCARRIAGE
- Suspension-Type Undercarriage
- Track Guide
- Two-Piece Master Link
- Lifetime-Lubricated Rollers and Idlers
- Hydraulic Track Adjusters
- Equalizer Bar — Greased End Pin Bearings
HYDRAULICS
- Quick Drop
- Load-Sensing, Dozer Lift and Tilt
- Load-Sensing, Ripper Lift and Pitch
ELECTRICAL
- Alternator — 65-Amp
- Batteries — 2 x 4, 200-Amp Hour, 12V
- 12V, 15-Amp Converter
- Battery Isolation
- Backup Alarm
- Lights — Halogen — 6 Positions
SERVICE AND MAINTENANCE
- Ecology Fluid Drains — All Compartments
- Hinged Bottom Guards
- S•O•S℠ Fluid Sampling Ports
- CapSure™ Hammerless Ripper Tip and Shank Protectors
- Anchorage Points (2)
- Vandalism Protection — 8 Caplocks
GUARDS
- Bottom Guard — Full Set
Additional information
| Offering Type | |
|---|---|
| Engine Model | Cat® 3408C |
| Engine - Net Power - SAE J1349/ISO 9249 | 308 kW ( 412 HP ) |
| Engine - Bore | 137 mm ( 5.4 in³ ) |
| Engine - Stroke | 152 mm ( 6 in³ ) |
| Engine - Displacement | 18 l ( 1099 in³ ) |
| Engine Power - Gross SAE J1995* | 330 kW ( 443 HP ) |
| Engine Power - ISO 14396 | 326 kW ( 437 HP ) |
| Engine - Emissions | U.S. EPA Tier 1 Equivalent |
| Engine - Note (1) | All Engine ratings apply at 1,900 rpm. |
| Engine - Note (2) | No derating required up to 2250 m (7,381 ft) altitude. |
| FLUID CAPACITIES - Fuel Tank (Splash Fill) | 963 l ( 254 gal (US) ) |
| FLUID CAPACITIES - Fuel Tank (Fast Fill) | 939 l ( 248 gal (US) ) |
| FLUID CAPACITIES - Cooling System | 99.8 l ( 26 gal (US) ) |
| FLUID CAPACITIES - Engine Crankcase* | 48 l ( 13 gal (US) ) |
| FLUID CAPACITIES - Powertrain | 150 l ( 40 gal (US) ) |
| FLUID CAPACITIES - Final Drives (each) | 15 l ( 4 gal (US) ) |
| FLUID CAPACITIES - Roller Frames (each) | 45 l ( 12 gal (US) ) |
| FLUID CAPACITIES - Pivot Shaft Oil | 30 l ( 8 gal (US) ) |
| FLUID CAPACITIES - Hydraulic System Tank | 89 l ( 24 gal (US) ) |
| FLUID CAPACITIES - Note | *With oil filters. |
| Weights - Operating Weight | 49441 kg ( 108999 lb ) |
| Weights - Shipping Weight | 37724 kg ( 83167 lb ) |
| Weights - Note (1) | D9 Operating Weight includes hydraulic controls, blade tilt cylinder, coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes and operator. |
| Weights - Note (2) | D9 Shipping Weight includes base machine chassis with cab, pivot shaft, roller frames, track and ROPS. |
| Hydraulic Controls - Pump Type | Piston-type geared to flywheel |
| Hydraulic Controls - Pump Output - Implement | 235 l/min ( 62 gal/min ) |
| Hydraulic Controls - Fan Pump | 72 l/min ( 19 gal/min ) |
| Hydraulic Controls - Tilt Cylinder Flow - Rod End Flow | 137 l/min ( 36 gal/min ) |
| Hydraulic Controls - Tilt Cylinder Flow - Head End Flow | 167 l/min ( 44 gal/min ) |
| Hydraulic Controls - Lift Cylinder Relief Valve Setting | 26200 kPa ( 3800 l/min ) |
| Hydraulic Controls - Tilt Cylinder Relief Valve Setting | 19300 kPa ( 2799 psi ) |
| Hydraulic Controls - Ripper - Lift - Relief Valve Setting | 26200 kPa ( 3800 psi ) |
| Hydraulic Controls - Ripper - Pitch - Relief Valve Setting | 26200 kPa ( 3800 psi ) |
| Hydraulic Controls - Note (1) | Implement Pump output measured are 1,900 engine rpm and 20000 kPa (2,900 psi). |
| Hydraulic Controls - Note (2) | Fan Pump output measured at 1,900 engine rpm and 17000 kPa (2,470 psi). |
| Undercarriage - Shoe Type | Extreme Service |
| Undercarriage - Width - Shoe | 610 mm ( 24 in ) |
| Undercarriage - Shoes/Side | 43 |
| Undercarriage - Grouser Height | 84 mm ( 3.3 in ) |
| Undercarriage - Pitch | 240 mm ( 9.4 in ) |
| Undercarriage - Ground Clearance | 459 mm ( 18.1 in ) |
| Undercarriage - Track Gauge | 2250 mm ( 88.6 in ) |
| Undercarriage - Length - Track on Ground | 3470 mm ( 136.6 in ) |
| Undercarriage - Ground Contact Area | 4.23 m² ( 45.6 ft² ) |
| Undercarriage - Track Rollers/Side | 8 |
| Undercarriage - Number of Carrier Rollers | 1 per side (optional) |
| Steering and Brakes - Steering Type | Clutch/Brake |
| Steering and Brakes - Brake Type | Spring Applied Wet Disc |
| Steering and Brakes - Brake Diameter | 393.7 mm ( 15.5 in ) |
| Steering and Brakes - Brake Count | 8 |
| Steering and Brakes - Steering Clutch Type | Pressure Applied Wet Disc |
| Steering and Brakes - Steering Clutch Disc Diameter | 393.7 mm ( 15.5 in ) |
| Steering and Brakes - Steering Clutch Disc Count | 6 |
| Standards - Sound (2) | If equipped, the certification label is used to verify the environmental sound certification of the machine to the requirements of the “Technical Regulation of Noise Radiation into the Environment” for Ukraine. The value that is listed on the label indicates the guaranteed exterior sound power level (LWA) of 115 dBA at the time of manufacture for the conditions that are specified. |
| Standards - ROPS | ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008. |
| Standards - FOPS | FOPS (Falling Object Protective Structure) meets ISO 3449:2005 Level II. |
| Standards - Sound | The declared dynamic operator sound pressure level is 85 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 100% of the maximum engine cooling fan speed. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. |
| Standards - Sound (1) | Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors and windows are open for extended periods or in a noisy environment. |
| Standards - Note | Brakes meet the standard ISO 10265. |
| Transmission - 1.0 Forward | 3.9 km/h ( 2.4 mile/h ) |
| Transmission - 2.0 Forward | 6.8 km/h ( 4.2 mile/h ) |
| Transmission - 3.0 Forward | 11.9 km/h ( 7.4 mile/h ) |
| Transmission - 1.0 Reverse | 4.7 km/h ( 2.9 mile/h ) |
| Transmission - 2.0 Reverse | 8.4 km/h ( 5.2 mile/h ) |
| Transmission - 3.0 Reverse | 14.7 km/h ( 9.1 mile/h ) |
| Transmission - Type | Planetary powershift |
| Blade - Semi-Universal - Blade Capacity (SAE J1265) | 13.6 m³ ( 17.8 yd³ ) |
| Blade - Semi-Universal - Blade Width (over end bits) | 4376 mm ( 172.3 in ) |
| Blade - Semi-Universal - Blade Height | 1934 mm ( 76.1 in ) |
| Blade - Semi-Universal - Maximum Digging Depth | 606 mm ( 23.9 in ) |
| Blade - Semi-Universal - Ground Clearance at Full Lift | 1422 mm ( 56 in ) |
| Blade - Semi-Universal - Maximum Tilt | 940 mm ( 37 in ) |
| Blade - Semi-Universal - Blade Weight | 4802 kg ( 10587 lb ) |
| Blade - Semi-Universal - Total Operating Weight* (with blade and single-shank ripper) | 49441 kg ( 108999 lb ) |
| Blade - Semi-Universal - Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes, operator, the noted blade and single-shank ripper. |
| Blade - Universal - Blade Capacity (SAE J1265) | 16.6 m³ ( 21.7 yd³ ) |
| Blade - Universal - Blade Width (over end bits) | 4648 mm ( 183.0 in ) |
| Blade - Universal - Blade Height | 1934 mm ( 76.1 in ) |
| Blade - Universal - Maximum Digging Depth | 606 mm ( 23.9 in ) |
| Blade - Universal - Ground Clearance at Full Lift | 1422 mm ( 56 in ) |
| Blade - Universal - Maximum Tilt | 1014 mm ( 39.9 in ) |
| Blade - Universal - Blade Weight | 5327 kg ( 11744 lb ) |
| Blade - Universal - Total Operating Weight* (with blade and single-shank ripper) | 49966 kg ( 110156 lb ) |
| Blade - Universal - Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
| Ripper - Single Shank - Maximum penetration force * (shank vertical) | 158 kN ( 35520 lb ) |
| Ripper - Single Shank - Maximum penetration depth (standard tip) | 1231 mm ( 48.5 in ) |
| Ripper - Single Shank - Pryout Force | 332 kN ( 74637 lb ) |
| Ripper - Single Shank - Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 882 mm ( 34.7 in ) |
| Ripper - Single Shank - Number of Pockets | 1 |
| Ripper - Single Shank - Weight | 4293 kg ( 9464 lb ) |
| Ripper - Single Shank - Total Operating Weight* (with SU Blade and noted ripper) | 49441 kg ( 108999 lb ) |
| Ripper - Single Shank - Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes, operator, SU Blade and noted ripper. |
| Ripper - Single Shank, Deep Ripping - Maximum penetration force * (shank vertical) | 172 kN ( 38667 lb ) |
| Ripper - Single Shank, Deep Ripping - Maximum penetration depth (standard tip) | 1727 mm ( 68 in ) |
| Ripper - Single Shank, Deep Ripping - Pryout Force | 331 kN ( 74412 lb ) |
| Ripper - Single Shank, Deep Ripping - Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 817 mm ( 32.2 in ) |
| Ripper - Single Shank, Deep Ripping - Number of Pockets | 1 |
| Ripper - Single Shank, Deep Ripping - Weight | 4420 kg ( 9744 lb ) |
| Ripper - Single Shank, Deep Ripping - Total Operating Weight* (with SU Blade and noted ripper) | 49568 kg ( 109279 lb ) |
| Ripper - Single Shank, Deep Ripping - Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes, operator, SU Blade and noted ripper. |
| Ripper - Multi-Shank, Adjustable Parallelogram - Maximum Penetration Force - Shank Vertical | 154 kN ( 34621 lb ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Maximum Penetration - Standard Tip | 798 mm ( 31.4 in ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Pry-Out Force - Multi-Shank Ripper with One Tooth | 361 kN ( 81156 lb ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 879 mm ( 34.6 in ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Number of Pockets | 3 |
| Ripper - Multi-Shank, Adjustable Parallelogram - Weight | 4153 kg ( 9156 lb ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Total Operating Weight* - With SU-Blade and Ripper | 49301 kg ( 108690 lb ) |
| Ripper - Multi-Shank, Adjustable Parallelogram - Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes, operator, SU Blade and noted ripper. Includes (1) shank; add 347 kg (765 lb) for each additional shank. |
| Winches - Winch Model | PA 140VS |
| Winches - Weight* | 1790 kg ( 3950 lb ) |
| Winches - Oil Capacity | 15 l ( 4 gal (US) ) |
| Winches - Increased Tractor Length | 557 mm ( 21.9 in ) |
| Winches - Drum Width | 320 mm ( 12.6 in ) |
| Winches - Wire Cable Diameter - Recommended | 28 mm ( 1.13 in ) |
| Winches - Wire Cable Diameter - Optional | 32 mm ( 1.25 ft ) |
| Winches - Maximum Drum Capacity - Recommended Cable Length | 78 m ( 257 in ) |
| Winches - Maximum Drum Capacity - Optional Cable Length | 62 m ( 204 ft ) |
| Winches - Wire Cable Ferrule Size - Outside Diameter | 60 mm ( 2.4 in ) |
| Winches - Wire Cable Ferrule Size - Length | 70 mm ( 2.8 in ) |
| Winches - Note | *Weight shown is base winch only. Does not include mounting arrangement, control arrangement, oil or wire rope. With counterweight: 3700 kg (8,150 lb). |
| Winches - Note (2) | Variable speed, hydraulically driven, dual braking system, three-roller fairlead. |
| Dimensions (Approximate) - Ground Clearance* | 459 mm ( 18.1 in ) |
| Dimensions (Approximate) - Track Gauge | 2250 mm ( 88.6 in ) |
| Dimensions (Approximate) - Width - Without Trunnions - Standard Shoe | 2870 mm ( 113 in ) |
| Dimensions (Approximate) - Width - Over Trunnions | 3310 mm ( 130.3 in ) |
| Dimensions (Approximate) - Height - FOPS Cab* | 3820 mm ( 150.4 in ) |
| Dimensions (Approximate) - Height - Top of Stack* | 3876 mm ( 152.6 in ) |
| Dimensions (Approximate) - Height - ROPS/Canopy* | 4000 mm ( 157.5 in ) |
| Dimensions (Approximate) - Drawbar Height (Center of Clevis)* | 763 mm ( 30 in ) |
| Dimensions (Approximate) - Length - Track on Ground | 3470 mm ( 136.6 in ) |
| Dimensions (Approximate) - Overall Length - Basic Tractor | 4910 mm ( 193.3 in ) |
| Dimensions (Approximate) - Length - Basic Tractor - With Drawbar | 5242 mm ( 206.4 in ) |
| Dimensions (Approximate) - Length - Basic Tractor - With Winch | 5545 mm ( 218.3 in ) |
| Dimensions (Approximate) - Length - With SU-Blade** | 6601 mm ( 259.9 in ) |
| Dimensions (Approximate) - Length - With U-Blade | 6967 mm ( 274.3 in ) |
| Dimensions (Approximate) - Length - With Single-Shank Ripper | 6529 mm ( 257 in ) |
| Dimensions (Approximate) - Length - With Multi-Shank Ripper | 6538 mm ( 257.4 in ) |
| Dimensions (Approximate) - Overall Length - SU-Blade/SS Ripper | 8219 mm ( 323.6 in ) |
| Dimensions (Approximate) - Note (1) | *Includes grouser height for total dimensions on hard surfaces. |
-
Technology Kits
Cat® Detect with Smart Camera
View Details -
Technology Kits
Cat® Detect with Surround Cameras
View Details
Related products
-
Large Dozers
D9
View Details -
Large Dozers
D9 GC
View Details -
Large Dozers
D11/D11 CD
View Details -
Large Dozers
D11
View Details
