D11

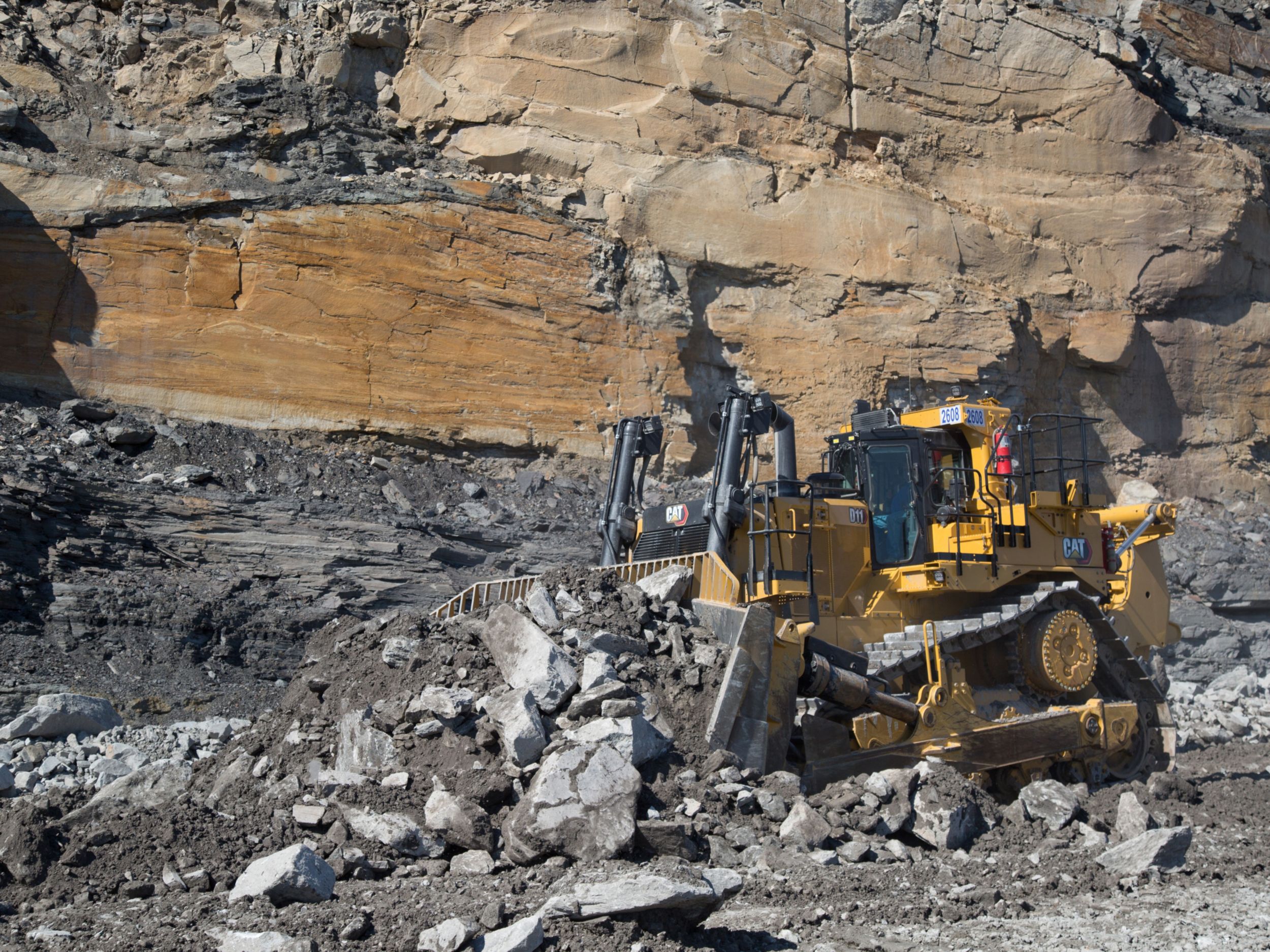

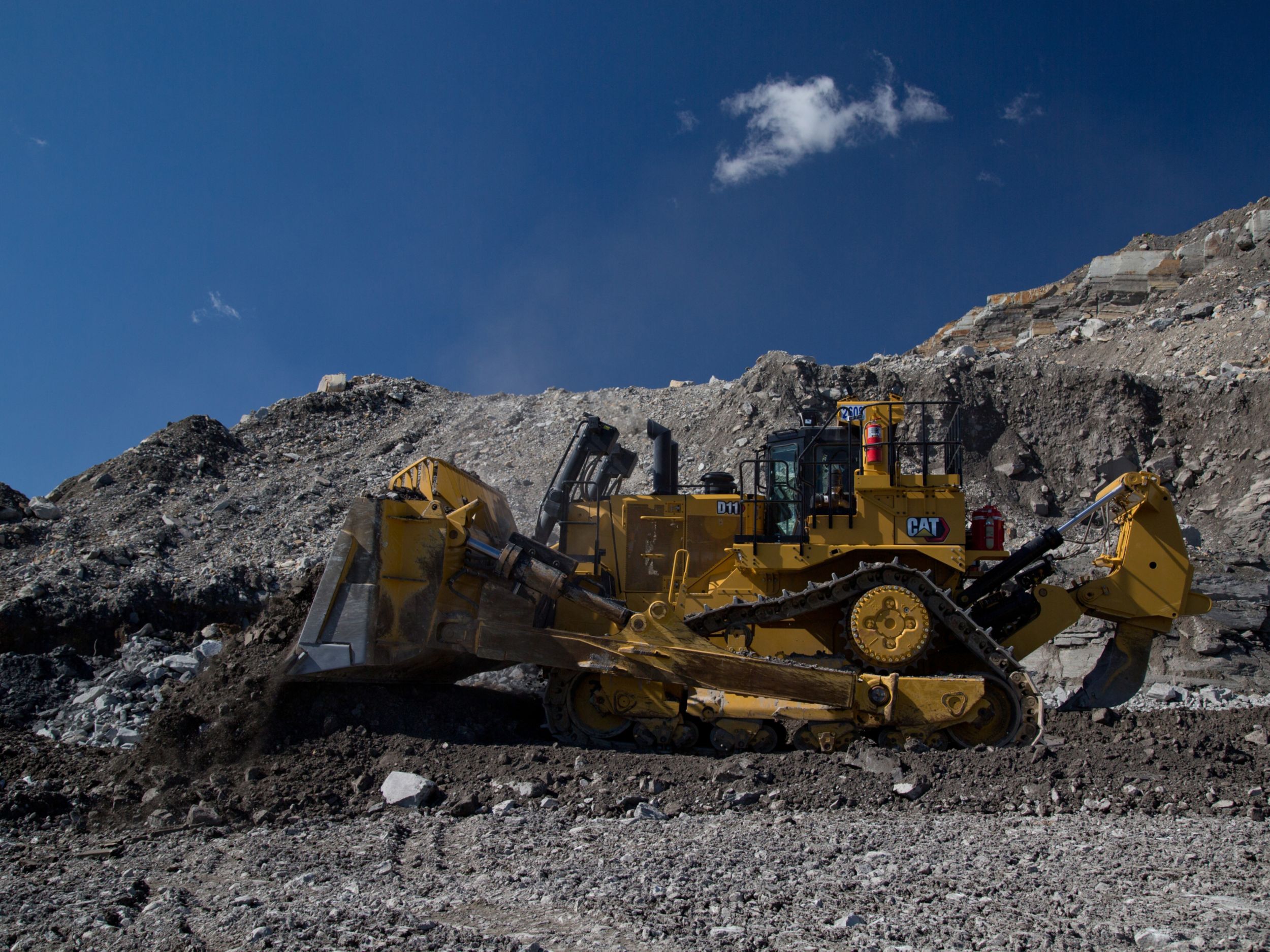

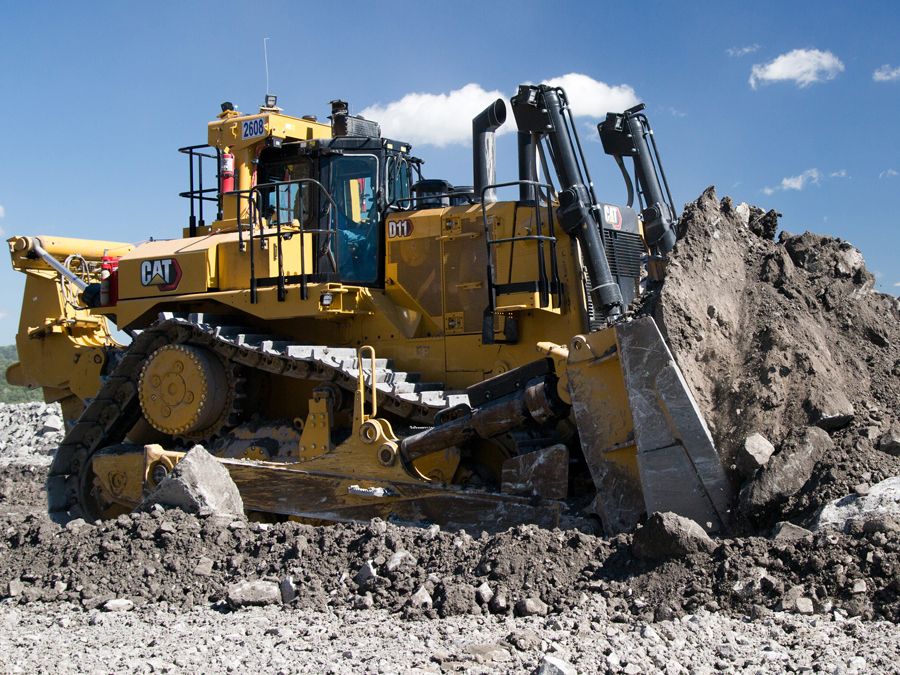

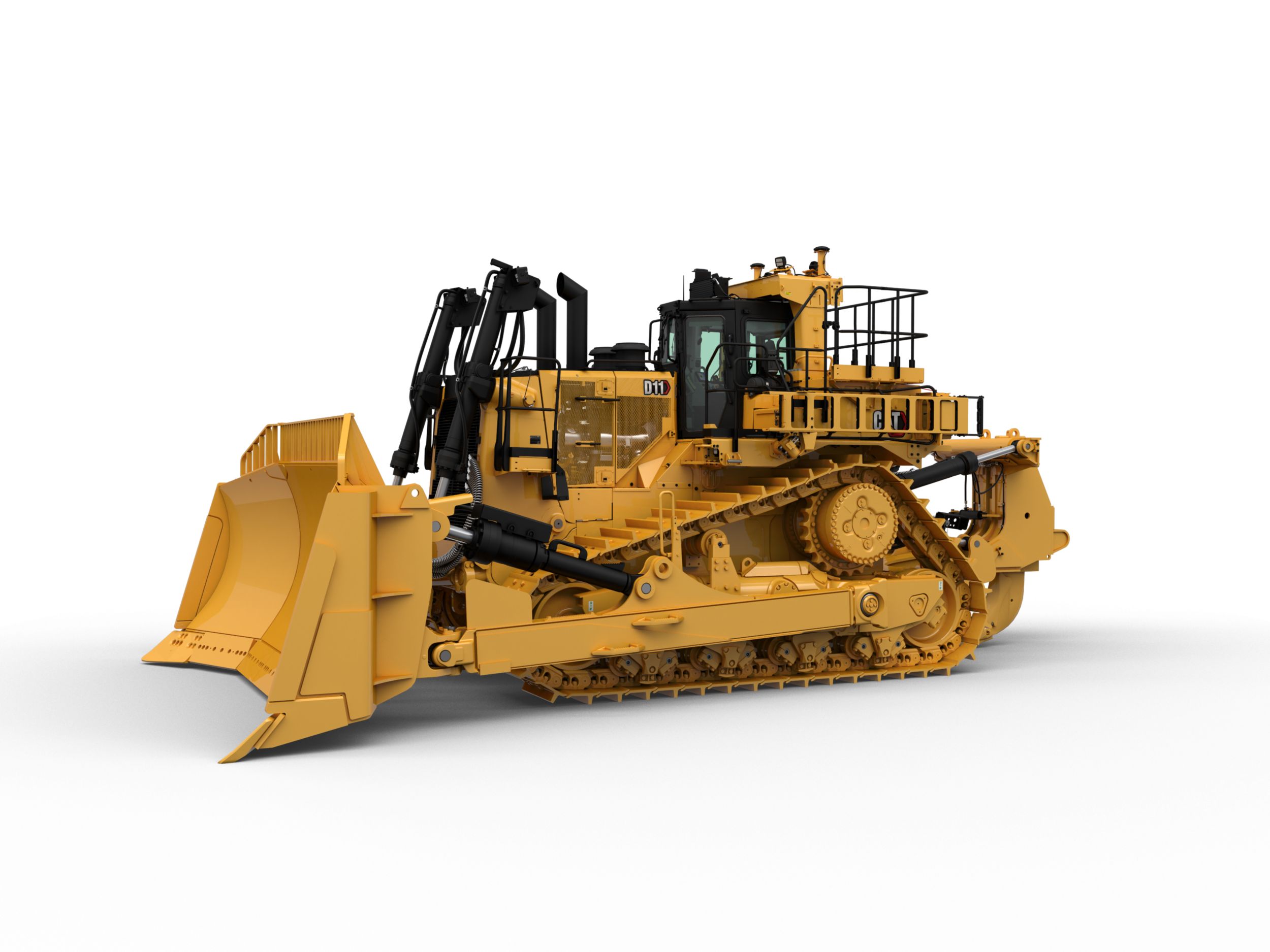

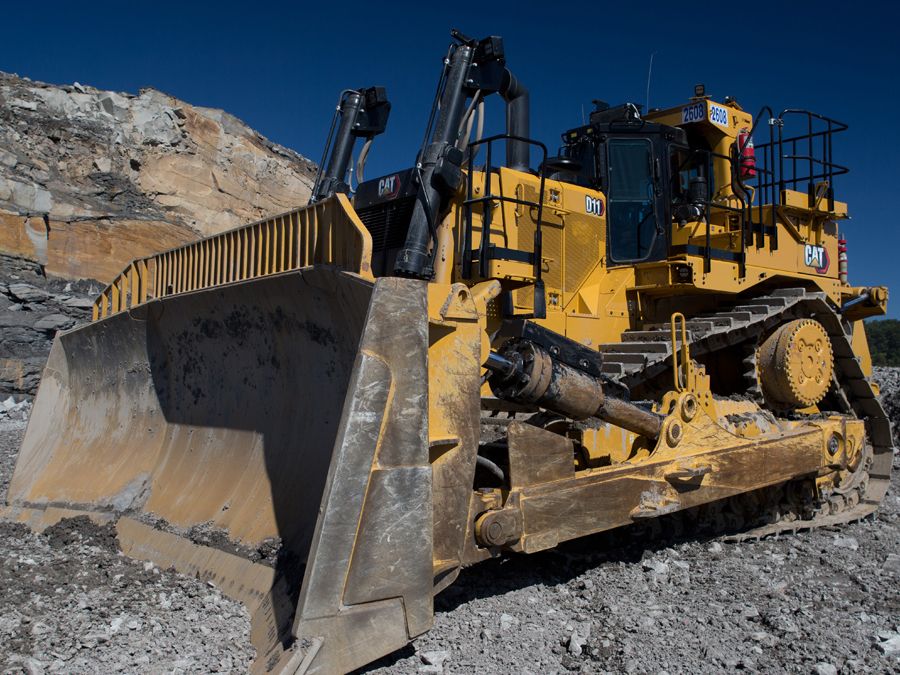

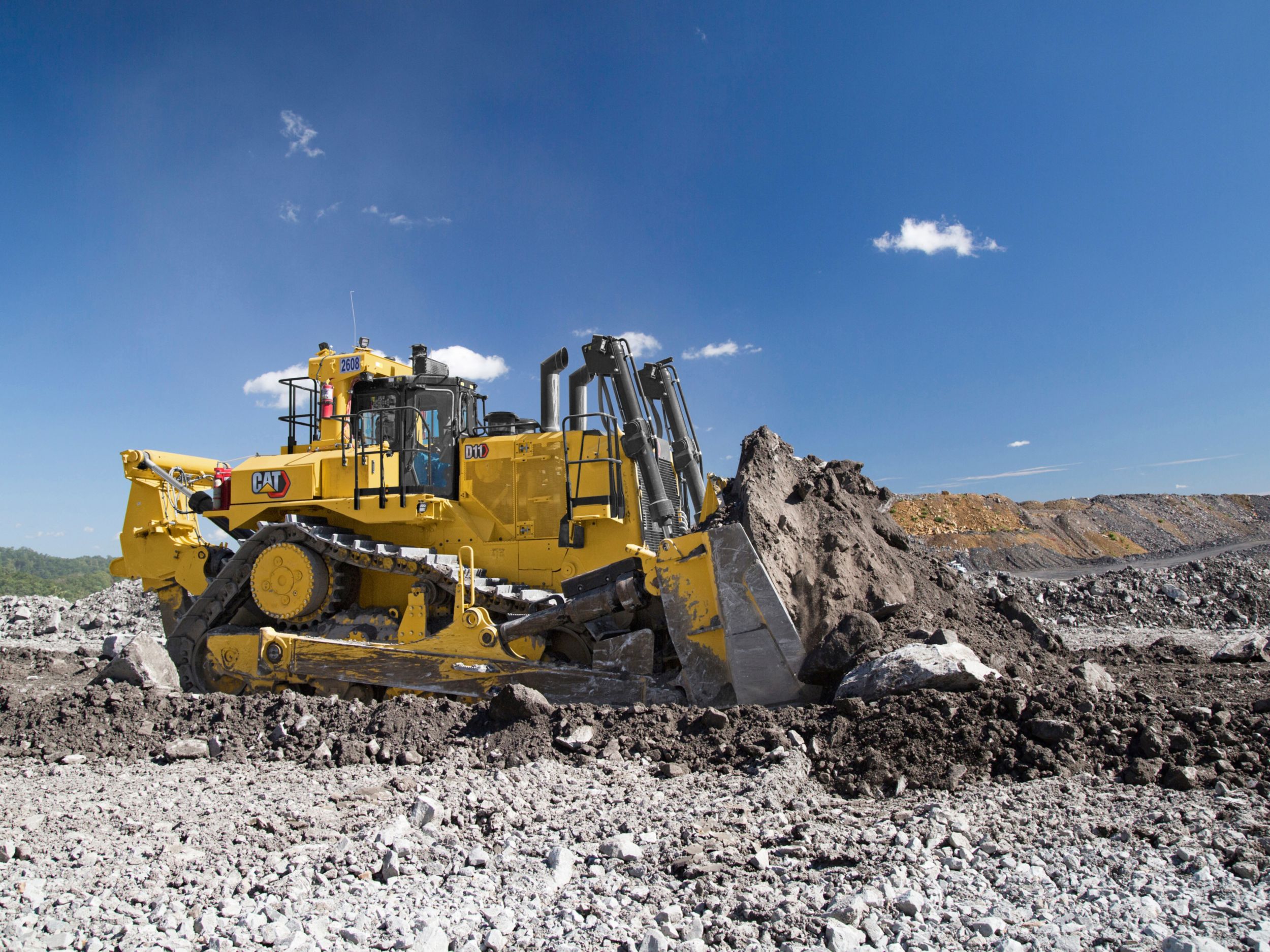

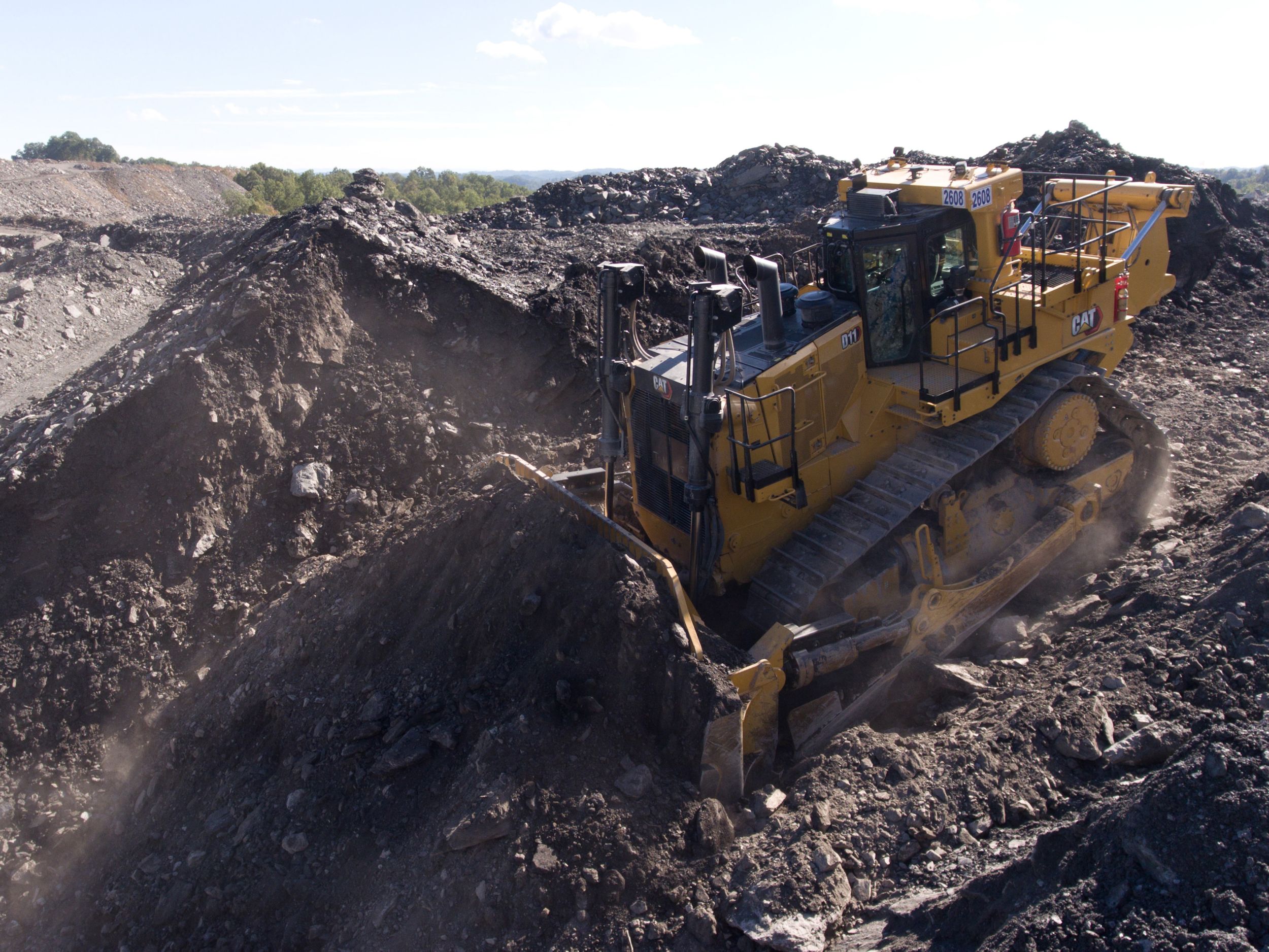

D11 Dozer

The Cat ® D11 Dozer delivers higher productivity at lower cost — for a reduction of up to 6% in overall cost per bank cubic meter compared to the previous model. Infused with performance-enhancing features, the D11 helps you improve the efficiency of your dozing operation. The torque divider with stator clutch automatically frees up the stator when torque is not required, delivering higher drivetrain efficiency for reduced fuel consumption. High-horsepower reverse speeds up non-productive traveling to reduce cycle time, while load-sensing hydraulics deliver more power to the dozer, increasing responsiveness and boosting fuel efficiency. Advanced technologies are completely integrated into the dozer, creating smart machines and more informed operators to maximize the productivity of your operation.

Category:

PERFORMANCE & EFFICIENCY

  • The torque divider with stator clutch automatically frees up the stator when torque is not required, delivering higher drivetrain efficiency for reduced fuel consumption.
  • High-horsepower reverse speeds up non-productive traveling for faster cycle times and up to 8% higher productivity.
  • The high-efficiency load-sensing hydraulic system improves hydraulic implement response and fuel efficiency.
  • The in-cab multifunction touchscreen display is the operator’s gateway to monitoring machine performance and a convenient way to modify machine parameters to tailor performance to the current task.

OPERATOR COMFORT

  • The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat, and controls that are easy to access and operate.
  • The suspended undercarriage absorbs impact and reduces the shock loads transferred to the undercarriage by up to 50% — resulting in a smoother, more comfortable ride.
  • Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.
  • The standard isolation-mounted cab reduces noise and vibration, and conveniently located air circulation vents evenly distribute airflow for maximum comfort.

SAFETY

  • The operator station offers exceptional visibility, with strategically located mirrors, clean line of sight to front and rear work areas, plus an optional 360 vision system for a bird’s-eye view.
  • The powered access ladder improves access and egress and has been updated with engine-off raise and lower capability. The cab door swing option allows left- or right-side opening.
  • Access lighting can be controlled from the cab or the ground-level electrical center. Delayed egress lighting allows exiting the machine with lighting.

TECHNOLOGY & INNOVATION

  • Automated Blade Assist (ABA) comes standard with the dual-tilt feature, automating the movement of the blade to several key preset pitch positions.
  • AutoCarry™ (optional) provides automatic blade control during the carry segment, helping to keep slip at the optimum level for best performance — increasing productivity up to 15%.
  • Automatic Ripper Control (optional) automatically adjusts the engine speed and ripper depth to minimize track slip, reducing operator fatigue and decreasing wear and tear on the machine.
  • Cat Grade with 3D provides precise positioning of the cutting edge, eliminating the need for masts and cables on the blade. The system also reduces the need for grade staking and grade checking.

CAT MINESTAR™ SOLUTIONS

  • The D11 comes out of the factory ready to integrate Cat MineStar™ technology, which takes accuracy, efficiency and safety even further.
  • MineStar Command for dozing offers multiple levels of remote control and even semiautonomous operation, helping increase operator safety and comfort—as well as the productivity of the dozer fleet.
  • MineStar Terrain’s Automatic Blade Control feature provides full automatics, full blade load and overcut protection integrated into the machine control system.
  • MineStar Terrain for grading monitors ore bodies, bench heights, cycle times and volume of material cut and filled. Inputs from the office tell operators where to dig or cut, how much material to move, when they’ve moved enough and even if they’ve moved too much.

SERVICEABILITY

  • The AutoLube system, with ground-level fill and automatic shut-off capability, reduces daily maintenance.
  • Grouped maintenance points minimize movement around the machine, and ground-level access enables easier service for fluids and key electrical controls.
  • A 30% larger oil sump capacity extends 500-hour planned maintenance intervals and single-cooling system is easier to clean.
  • Redesigned pin joints eliminate the need for line boring and simplify replacement of the bearing inserts on the blade ripper and push-arm trunnions.
  • Continuous fluid monitoring on all compartments, including direct fluid monitoring of the hydraulic tank and pivot shaft reservoir, improves service life.

BLADES & ATTACHMENTS

  • Cat blades offer superior loadability and are aggressive in tough materials. The D11 features a 29.3° interior angle between the back bottom of the blade and the ground. This clearance angle allows the blade to better penetrate and load.
  • Cat blades have the ability to resist torsional bending and distortion and offer increased wear resistance without sacrificing machine balance or performance.
  • Specialty blades include high-capacity blades for light materials, including coal blades and reclamation blades.
  • Specialty attachments include multi-shank leach pad ripper, and multi-shank coal ripper (five shank), counterweight and rear drawbar with counterweight.

BUILT TO GO THE DISTANCE

  • The D11 is built to go the distance, with a redesigned case and frame for longer life, a larger equalizer bar with improved bearing, robust track roller frame, ripper and blade pin bores with replaceable bearings and replaceable push-arm trunnion bearing inserts.
  • The robust variable piston pumps for the new load-sensing hydraulic system run cooler for longer component and seal life.
  • Powertrain and main components are built to be rebuilt for a cost-effective second life of like-new performance at a fraction-of-new price.

SUSTAINABILITY

  • The D11 is designed to use less fuel, which reduces engine emissions.
  • The Tier 4 Final engine reduces NOx and particulate matter, plus the engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
  • Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
  • By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions. In addition, retrofits and upgrades for older machines incorporate efficiency improvements and emission reductions, and keep them in production longer to conserve energy and minimize the need for raw materials.
  • Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.

Virtual Tours

Standard Equipment

OPERATOR ENVIRONMENT
  • ROPS/FOPS, Sound-Suppressed Cab
  • High-Definition Primary Touchscreen Display
  • Visibility – Rearview Mirrors
  • Air Conditioner and Heater with Automatic Climate Control
  • Seat – Cloth with Air suspension
  • Cab Glass – Single-Pane Tinted Safety
  • Cab Access – Blade Push Arm Steps and Grab Handle
CAT TECHNOLOGY PRODUCTS
  • VIMS
  • Automated Blade Assist (ABA)
  • Cat Product Link™ Elite (cellular)
CAT POWER TRAIN
  • Cat C32 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
  • High-Performance Single-Plane Cooling Module
  • Stator Clutch Torque Divider – Electronic Control
  • Powershift Transmission – Three-Speed Electronic Shift
UNDERCARRIAGE
  • Suspension Type Undercarriage
  • Sleeve Bearing Track
  • Lifetime-Lubricated Rollers and Idlers
  • Track Shoe (ES): 710 mm (28 in) Width
HYDRAULICS
  • Electronically Controlled, Load-Sensing Dozer Lift and Tilt
  • Electronically Controlled, Load-Sensing Ripper Lift and Pitch
  • Dozer Blade – Dual Tilt
  • Electronically Enabled Blade – Quick Drop
ELECTRICAL
  • 24V Electric Start, Dual Starters
  • Batteries – 4 × 4,200-Amp Hour, 12V
  • Battery Isolation
  • Lights – Halogen – 13 Positions
SERVICE AND MAINTENANCE
  • Ecology Fluid Drains – All Compartments
  • Hinged Bottom Guards
  • High-Speed Oil Change – Engine and Transmission
  • Ground-Level Fast Fuel Fill
  • Ground-Level Electrical Service Station
  • S·O·SSM Fluid Sampling Ports
  • Diagnostic Connector

Additional information

Offering Type

Engine - U.S. EPA Tier 4 Final/EU Stage V - Engine Model

Cat® C32

Engine - U.S. EPA Tier 4 Final/EU Stage V - Engine Power - Net SAE J1349/ISO 9249 - Forward

634 kW ( 850 HP )

Engine - U.S. EPA Tier 4 Final/EU Stage V - Displacement

32.1 l ( 1959 in³ )

Engine - U.S. EPA Tier 4 Final/EU Stage V - Engine Power - Net SAE J1349/ISO 9249 - Reverse

712 kW ( 955 HP )

Engine - U.S. EPA Tier 4 Final/EU Stage V - Note (1)

*Excludes all fan losses.

Engine - U.S. EPA Tier 4 Final/EU Stage V - Note (2)

Engine ratings apply at 1,800 rpm.

Engine - U.S. EPA Tier 4 Final/EU Stage V - Note (3)

Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Engine - U.S. EPA Tier 2 Equivalent - Engine Model

Cat® C32

Engine - U.S. EPA Tier 2 Equivalent - Displacement

32.1 l ( 1959 in³ )

Engine - U.S. EPA Tier 2 Equivalent - Engine Power - Net SAE J1349/ISO 9249 - Forward

634 kW ( 850 HP )

Engine - U.S. EPA Tier 2 Equivalent - Engine Power - Net SAE J1349/ISO 9249 - Reverse

714 kW ( 957 HP )

Engine - U.S. EPA Tier 2 Equivalent - Note (1)

*Excludes all fan losses.

Engine - U.S. EPA Tier 2 Equivalent - Note (2)

Engine ratings apply at 1,800 rpm.

Engine - U.S. EPA Tier 2 Equivalent - Note (3)

Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Fuel Tank Capacities - Fuel Tank - Total Volume

1895 l ( 500 gal (US) )

Fuel Tank Capacities - Fuel Tank - Usable Volume

1800 l ( 475 gal (US) )

Service Refill Capacities - Cooling System

177 l ( 46.8 gal (US) )

Service Refill Capacities - Cooling System Refill - Tier 2 Equivalent Engine

158 l ( 41.7 gal (US) )

Service Refill Capacities - Engine Crankcase

133 l ( 35.1 gal (US) )

Service Refill Capacities - Power Train

454 l ( 120 gal (US) )

Service Refill Capacities - Power Train - Refill Volume

391 l ( 103.3 gal (US) )

Service Refill Capacities - Final Drive - Each

47 l ( 12.4 gal (US) )

Service Refill Capacities - Roller Frames - Each

94 l ( 24.8 gal (US) )

Service Refill Capacities - Hydraulic Tank

160 l ( 42.2 gal (US) )

Service Refill Capacities - Hydraulic System Tank and Chassis

245 l ( 64.7 gal (US) )

Service Refill Capacities - Hydraulic System Chassis + Blade and Ripper (Standard)

445 l ( 117.6 gal (US) )

Service Refill Capacities - Hydraulic System Chassis + Blade and Ripper (Carrydozer)

540 l ( 143.4 gal (US) )

Weights - Operating Weight

104236 kg ( 229800 lb )

Weights - Operating Weight - Carrydozer

113700 kg ( 250665 lb )

Weights - Note (1)

D11 Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.

Weights - Note (2)

D11 CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, singleshank ripper, and operator.

Hydraulic Controls - Pump Type

Variable displacement piston pump

Hydraulic Controls - Combined Pump Output - Implement

670 l/min ( 177 gal/min )

Undercarriage - Shoe Type

Extreme Service

Undercarriage - Width - Shoe

710 mm ( 28 in )

Undercarriage - Width - Shoe - CD

915 mm ( 36 in )

Undercarriage - Shoes/Side

41

Undercarriage - Grouser Height

102 mm ( 4 in )

Undercarriage - Pitch

318 mm ( 12.5 in )

Undercarriage - Ground Clearance*

777 mm ( 30.6 in )

Undercarriage - Track Gauge

2896 mm ( 114 in )

Undercarriage - Length - Track on Ground

4444 mm ( 175 in )

Undercarriage - Ground Contact Area

6.3 m² ( 9781 in² )

Undercarriage - Ground Contact Area - CD

8.1 m² ( 12605 in² )

Undercarriage - Track Rollers/Side

8

Undercarriage - Number of Carrier Rollers

1 per side (optional)

Air Conditioning System - Note (1)

The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warning Potential = 1430). The system contains 2.1 kg (4.6 lb) of refrigerant which has a CO2 equivalent of 3.003 metric tonnes (3.31 tons)

Standards - ROPS

Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008

Standards - FOPS

Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II

Standards - Sound (1)

The exterior sound pressure level for the standard machine (ISO 6396:2008) is 116 dB(A) (sound suppressed).

Standards - Sound (2)

The operator equivalent sound pressure level (ISO 6396:2008) is 78 dB(A) (sound suppressed).

Transmission - 1.0 Forward

4 km/h ( 2.5 mile/h )

Transmission - 2.0 Forward

7 km/h ( 4.4 mile/h )

Transmission - 3.0 Forward

12.2 km/h ( 7.6 mile/h )

Transmission - 1.0 Reverse

4.8 km/h ( 3 mile/h )

Transmission - 2.0 Reverse

8.5 km/h ( 5.3 mile/h )

Transmission - 3.0 Reverse

14.7 km/h ( 9.1 mile/h )

Blades - Semi-Universal (SU)* Capacity

27.2 m³ ( 35.6 yd³ )

Blades - Semi-Universal (SU)* Width Over Endbits

5584 mm ( 219.8 in )

Blades - U-Blade Capacity

34.4 m³ ( 45 yd³ )

Blades - U-Blade Width

6340 mm ( 249.6 in )

Blades - Reclamation Universal - Blade capacity (SAE J1265)

42 m³ ( 55 yd³ )

Blades - Reclamation Universal - Width with blade (over end bits)

6395 mm ( 251.8 in )

Blades - Carry Dozer - Blade capacity (SAE J1265)

43.6 m³ ( 57 yd³ )

Blades - Carry Dozer - Width with blade (over end bits)

6704 mm ( 263.9 in )

Ripper - Single Shank - Maximum penetration force * (shank vertical)

294 kN ( 66000 lb )

Ripper - Single Shank - Maximum penetration depth (standard tip)

1612 mm ( 63.5 in )

Ripper - Single Shank - Pryout Force

661 kN ( 148510 lb )

Ripper - Single Shank, Deep Ripping - Maximum penetration force * (shank vertical)

294 kN ( 66110 lb )

Ripper - Single Shank, Deep Ripping - Maximum penetration depth (standard tip)

2172 mm ( 85.5 in )

Ripper - Single Shank, Deep Ripping - Pryout Force

661 kN ( 148510 lb )

Ripper - Multi-Shank, Adjustable Parallelogram - Overall Beam Width

3330 mm ( 131.1 in )

Ripper - Multi-Shank, Adjustable Parallelogram - Maximum Penetration Force - Shank Vertical

344 kN ( 77350 lb )

Ripper - Multi-Shank, Adjustable Parallelogram - Maximum Penetration - Standard Tip

1100 mm ( 43.3 in )

Ripper - Multi-Shank, Adjustable Parallelogram - Pry-Out Force - Multi-Shank Ripper with One Tooth

648 kN ( 145640 lb )

Dimensions - D11 - Ground Clearance*

798 mm ( 31.4 in )

Dimensions - D11 - Track Gauge

2896 mm ( 114 in )

Dimensions - D11 - Width at Outside of Track (710 mm Track Shoe)

3606 mm ( 142 in )

Dimensions - D11 - Height (ROPS/canopy)*

4723 mm ( 185.9 in )

Dimensions - D11 - Length of Track on Ground

4444 mm ( 175 in )

Dimensions - D11 - Length with SU-Blade** - No rear attachment

8579 mm ( 337.8 in )

Dimensions - D11 - Overall Length SU-Blade and SS Ripper**

10525 mm ( 414.4 in )

Dimensions - D11 - Note

*Includes grouser height for total dimensions on hard surfaces.

Dimensions - D11 Carrydozer - Width at Outside of Track (710 mm Track Shoe)

3806 mm ( 149.8 in )

Dimensions - D11 Carrydozer - Length with SU-Blade** - No rear attachment

8765 mm ( 345.1 in )

Dimensions - D11 Carrydozer - Overall Length SU-Blade and SS Ripper**

10712 mm ( 421.7 in )

Transmission - Drawbar Pull - 3 Forward

205.8 kN ( 46250 ft·lbf )

Transmission - Drawbar Pull - 1 Forward

659.2 kN ( 148200 ft·lbf )

Transmission - Drawbar Pull - 2 Forward

366.1 kN ( 82300 ft·lbf )
