HM418 Bite Limiter

HM418 High Flow XHP Hydraulics Bite Limiter Mulcher

High-performance cutting and mulching of vegetation and overgrowth.



Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

High Performance Mulching

Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.

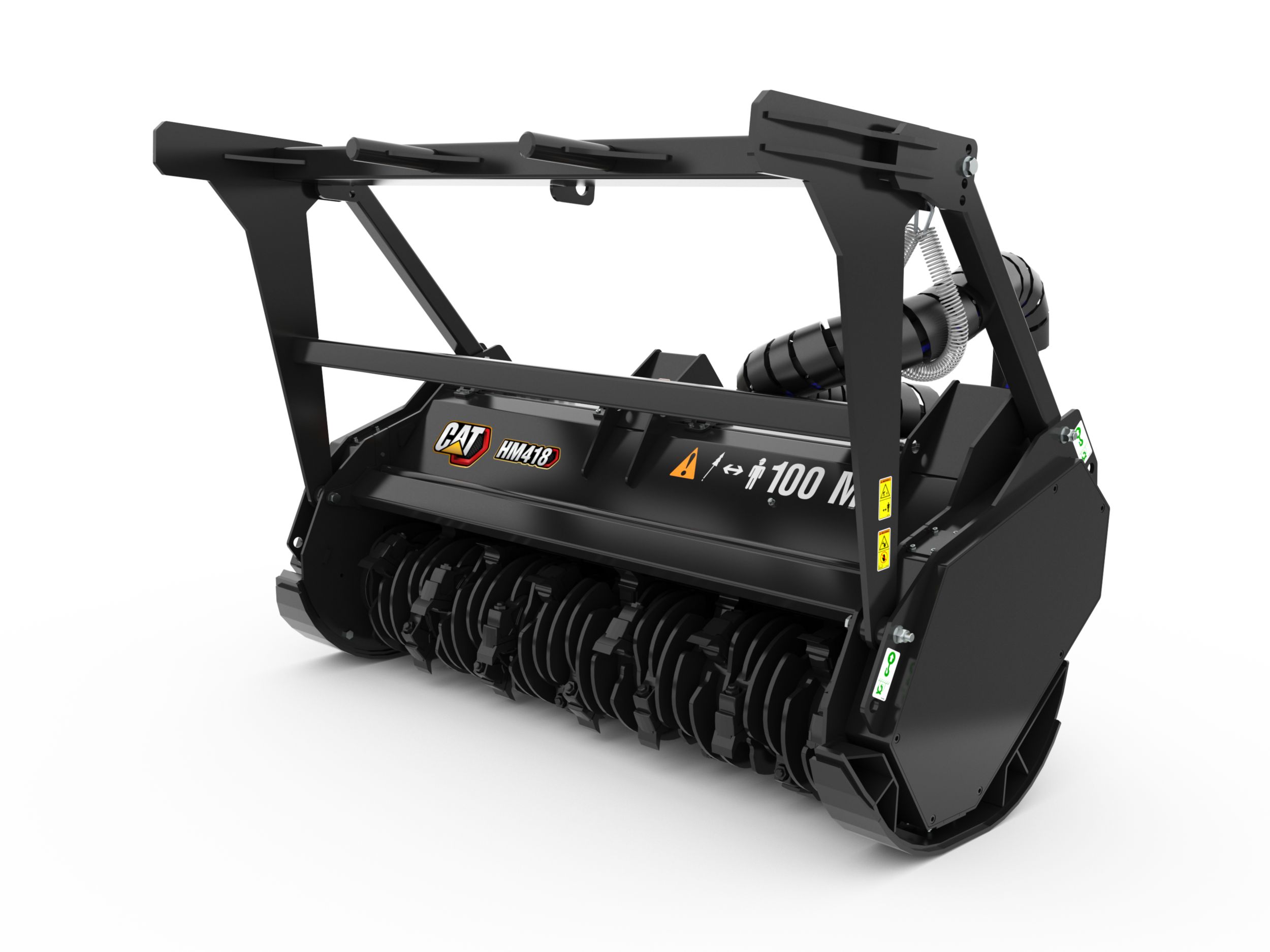

Rugged Mulching Head

Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.

Dual Speed Hydraulic Motor

Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.

Adjustable Push Frame

Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.

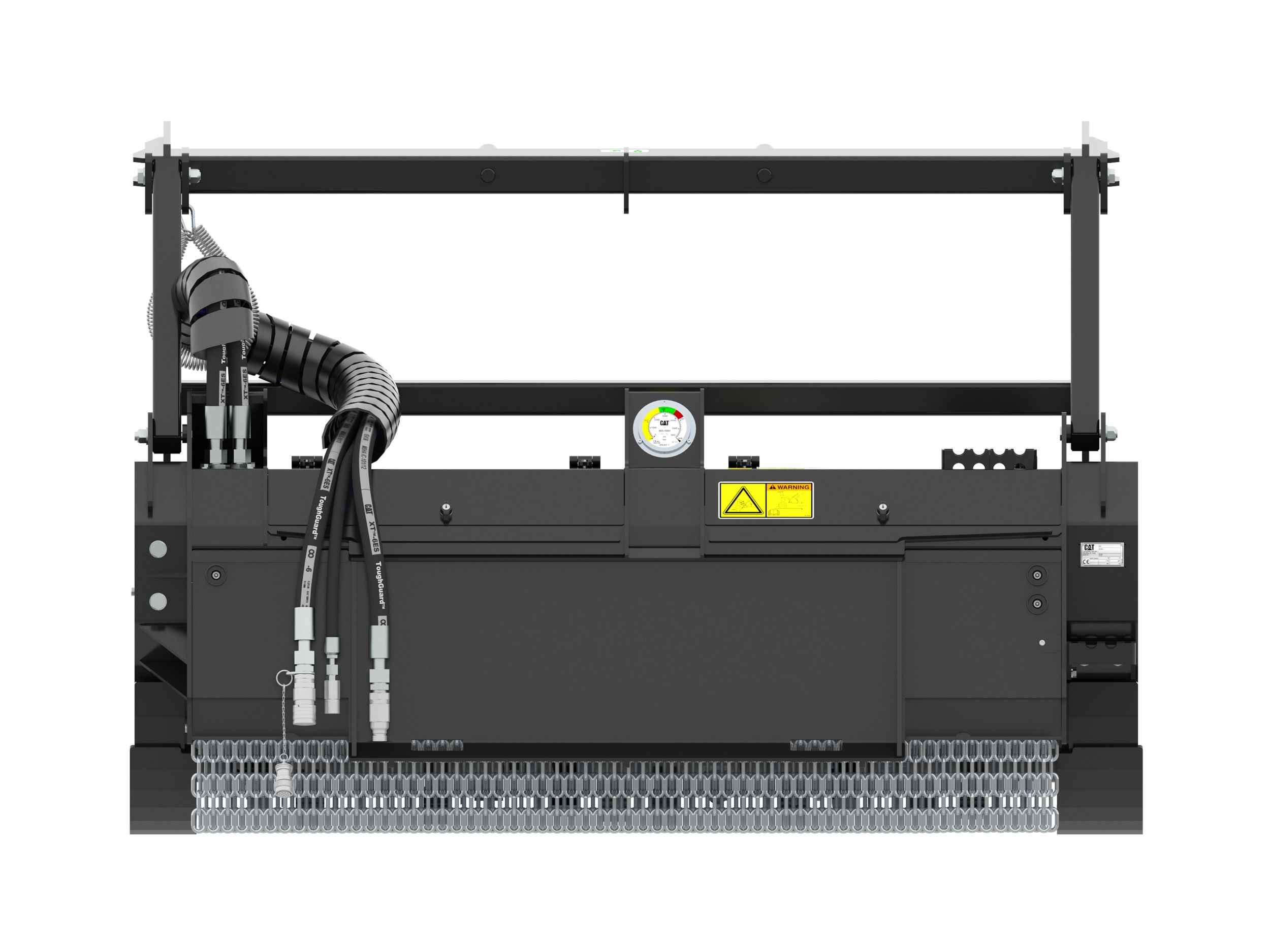

Color-Coded Pressure Gauge

Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.

Rear Chain Guard Protection

Rear chain guard protection reduces spread of material.

Serrated Steps

Serrated steps allow for safe and easy access in and out of the cab.

Lockable Service Panel

Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat® key, the service panel allows easy access to drive train components during service and inspection.

Adjustable Skid Shoes

Adjustable and replaceable skid shoes allow operator to control the ground height to accommodate different types of terrain.

Chisel Teeth Standard

Provide a consistent cut and consistent finished product.

Virtual Tours

Documents & Brochures

Additional information

Offering Type

Overall Width

2122 mm ( 83.5 in )

Working Width

1822 mm ( 71.7 in )


1354 mm ( 53.3 in )

Overall Height

1480 mm ( 58.3 in )


1504 kg ( 3315.7 lb )

Drive Method

Polychain Belt


Axial Piston Dual Speed

Required Hydraulics


Optimal Hydraulic Flow

150-155 L/min (40-41 gpm)

Optimal Hydraulic Pressure

200-278 bar (2900-4061 psi)

Drum Speed

2673-2762 rpm

Fixed Teeth per Drum


Maximum Cutting Diameter

200 mm ( 7.9 in )

Maximum Cutting Depth

26 mm ( 1 in )
