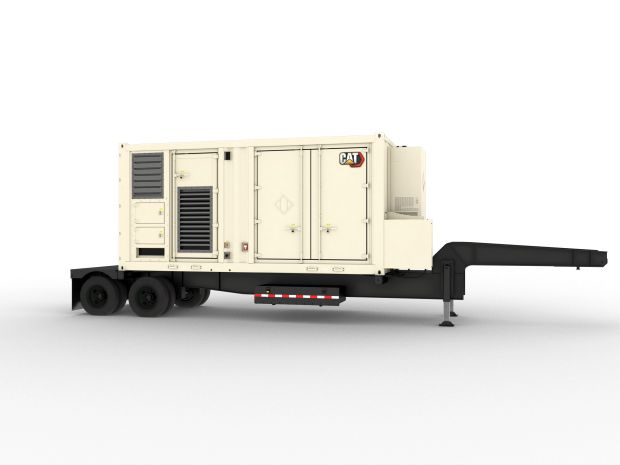

Power Grid Stabilization (PGS) Heavy Duty (HD)
Power Grid Stabilization (PGS) Heavy Duty (HD)
The Cat® PGS Module is a scalable, rapidly deployable energy storage system with a heavy-duty battery structure. The PGS integrates with solar and other renewable sources to provide short duration power when the renewable source is not available or virtual spinning reserve to optimize generator sets efficiency. This system provides transient assist and grid stabilization to the installation.
General
- Transient Ride Through & Stabilization
- Seamless mode transfer
- Islanding detection
- Static VAR compensator
- Reserve Power Capacity
- Plug-and-Play parallel ready
- Energy Storage Management
- Human-Machine Interface (HMI)
- Fire Suppression System
- Modbus TCP/IP Communications Protocols
- Ambient Temperature Capability -40°C to +50°C
Reliable, Scalable, and Mobile
The Cat PGS module is a robust, mobile energy storage platform. The module consists of a pre-engineered container that is easily installed on site. Multiple modules may operate in parallel with other power sources to provide increased power output and/or increase the energy capacity.
Renewable Integration
The modules are designed to work with an array of renewable systems, including solar and wind. Seamless integration with the Cat Microgrid Master Controller (MMC) allows for maximum renewable penetration and full asset control.
Grid Stabilization
The Cat PGS protects against many typical power problems, including power failure, voltage sags/surges, and under/over frequency conditions.
Cat® Bi-Directional Power (BDP) Inverters
The Cat BDP inverters are the core to the energy storage system. Based on technology developed for Cat electric drive machines, the Cat BDP provides exceptional reliability, durability, and features that include:
- Intelligent controls for the charging and discharging of the energy storage equipment.
- 2 per unit fault current capability
- Static VAR compensator
- Four-quadrant output power factory control
- Patented Non-Linear droop control for ultra fast response
- Seamless mode transfer
- Automatic anti-islanding
- Grid forming
- Grid following
- Autonomous mode or Remote-Control mode
- Parallel ready - multiple modules may be used in parallel to increase total output to 100+MW
Energy Storage
- Advanced lithium-ion batteries provide good energy density, high discharge/recharge efficiency, and high cycle life.
- Heavy duty battery structure provides vibration isolation during transport.
Applications
- Grid firming/grid stabilization
- Generator set transient assist
- Black Start Capability/ Rig Up Power
- Reserve Power Capacity
Documents & Brochures
Standard Equipment
Power Grid Stabilization
- Cat BDP1000 bi-directional power inverters
- Energy storage batteries
- Color HMI Touchscreen
- Fire suppression system
- HVAC system to maintain optimal interior temperatures
- Remote communications via Modbus TCP
Additional information
| Offering Type | |
|---|---|
| Technical Summary - Application | Transient Assist |
| Technical Summary - Module Type | Heavy Duty mobile Grid Stabilization |
| Technical Summary - Rated Power | 1000-1260 kW |
| System Output Power - Maximum Continuous at 1.0 PF | 1000 kW ( 1000 kW ) |
| System Output Power - 15 min Overload at 1.0 PF | 1170 kW ( 1170 kW ) |
| System Output Power - 10 min Overload at 1.0 PF | 1225 kW ( 1225 kW ) |
| System Output Power - 5 min Overload at 1.0 PF | 1260 kW ( 1260 kW ) |
| System Output Power - 1 min Overload at 1.0 PF | 1260 kW ( 1260 kW ) |
| Output Voltage THD - Output Voltage | <3% |
| Energy (Nameplate Start of Life) | 672 kW·h ( 672 kW·h ) |
| Energy (Nameplate Start of Life) - Energy Type | Li-Ion – Energy |
| Energy (Nameplate Start of Life) - Battery Chemistry | NMC |
| Inverter Model | BDP1000 |
| Inverter Model - Number of Inverters | 1 |
| Average Parasitic Load - Shore Power Connection | 480 V (60 Hz) |
| Dimensions - Container with Trailer - Length | 11.56 m ( 37.93 ft ) |
| Dimensions - Container with Trailer - Width | 2.66 m ( 8.73 ft ) |
| Dimensions - Container with Trailer - Height | 3.96 m ( 12.99 ft ) |
| Dimensions - Container without Trailer - Length | 6.74 m ( 22.13 ft ) |
| Dimensions - Container without Trailer - Width | 2.44 m ( 8 ft ) |
| Dimensions - Container without Trailer - Height | 2.89 m ( 9.5 ft ) |
