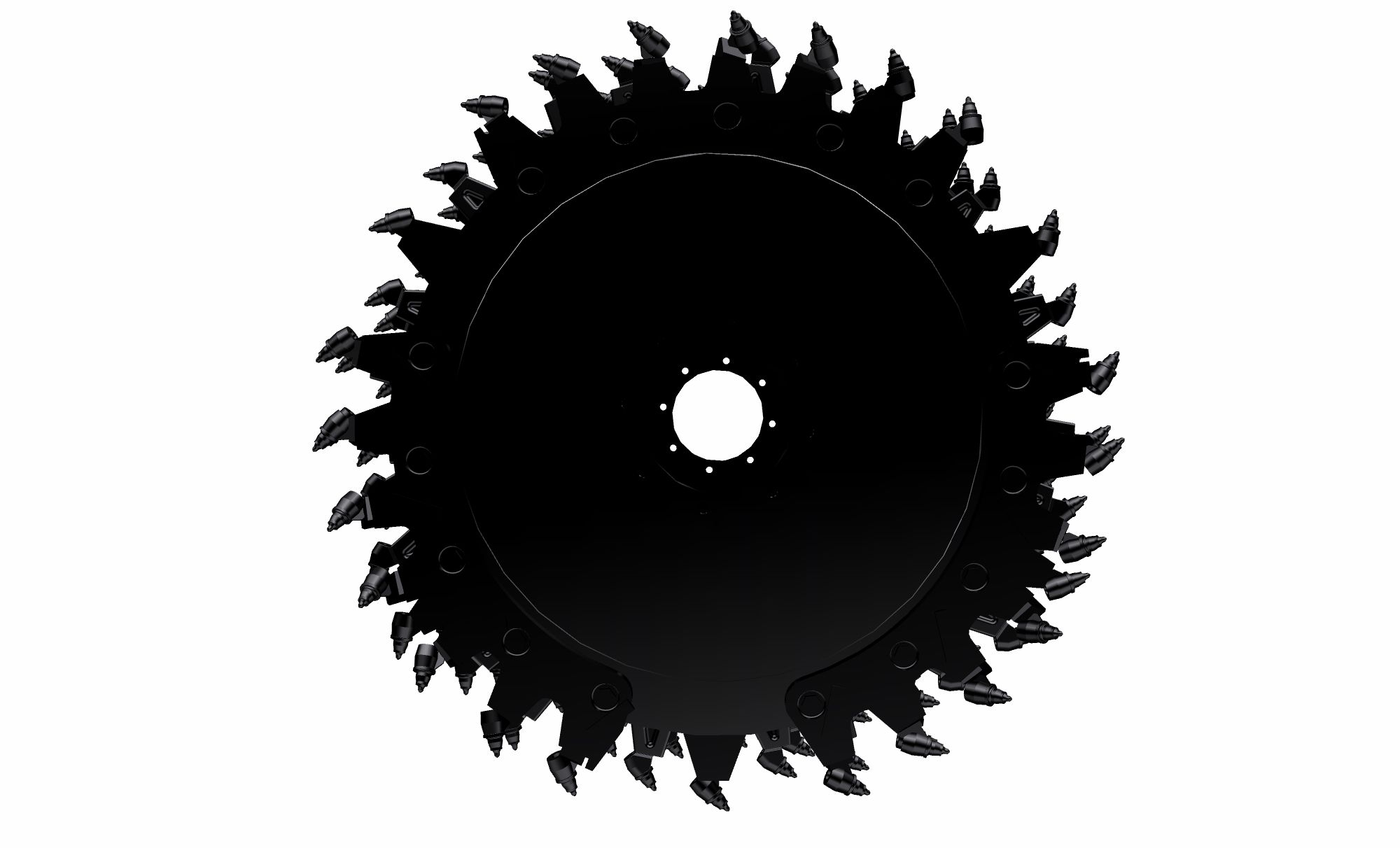

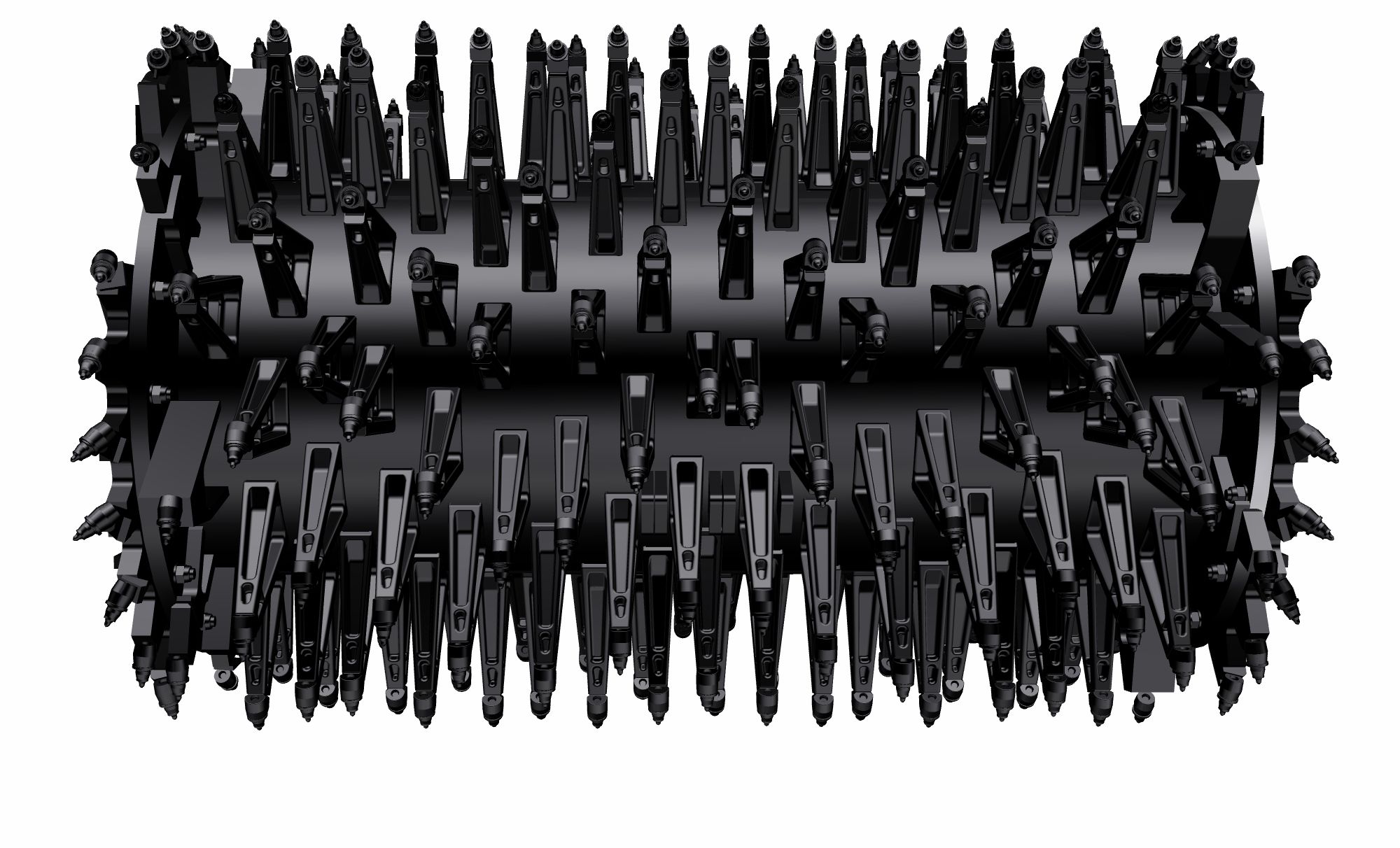

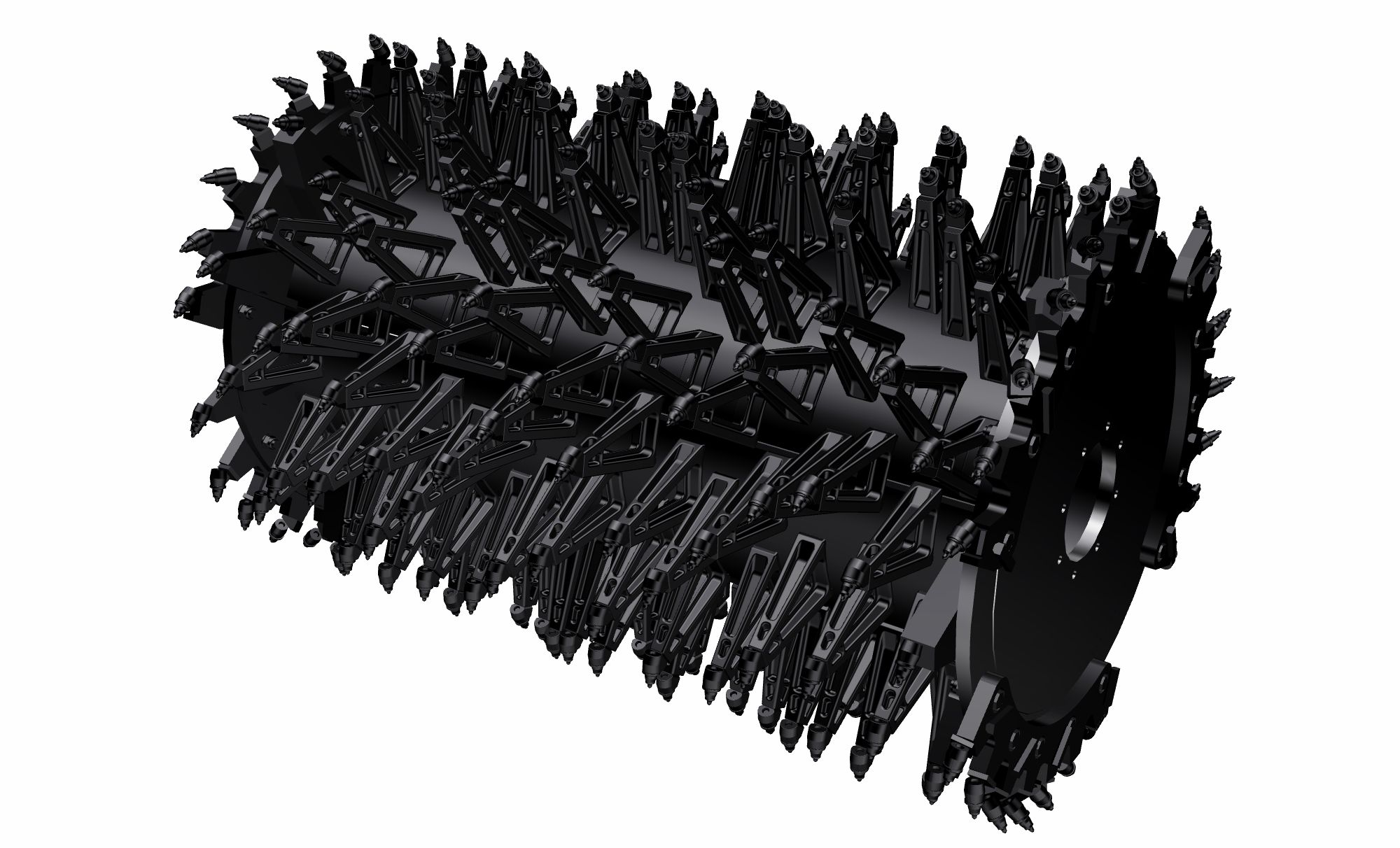

Soil Reclaimer Drum (2.4 m)
Soil Reclaimer Drum (2.4 m)
Soil reclaimer drum with 508 mm (20 in) depth of cut for stabilizing various soil types.
Excellent Material Sizing
- The Soil rotor is an ideal choice for mixing additives with semi cohesive or granular materials where soil gradation is critical.
- It can also handle light reclamation applications where the asphalt layer is thin and deteriorated.
- It delivers excellent sizing of material for reclaiming and stabilizing old roads or other surfaces.
Deep Cut
- The Soil rotor is standard equipped with cast stand-offs that include bit holders in a single casting.
- When the cast bit holders become worn or damaged, they can be removed and replaced with weld-on bit holders.
- Bit life varies depending on soil type.
- This soil reclaimer drum provides a deep 508 mm (20 in) cut.
Documents & Brochures
Additional information
| عرض التفريز | 2438 مم ( 96 بوصة ) |
|---|---|
| مسافة تباعد الأداة | 11.5 مم ( 0.45 بوصة ) |
| قطر الأسطوانة عند الأطراف | 1625 مم ( 64 بوصة ) |
| عمق التفريز (الحد الأقصى) | 508 مم ( 20 بوصة ) |
| عدد اللقم | 238 |
| رقم قطعة مجموعة دوار مع سائل التبريد والأدوات (تركيب في المصنع) | 250-3960 |
| رقم قطعة مجموعة دوار مع لقم (تركيب ميداني) | 250-3961 |
