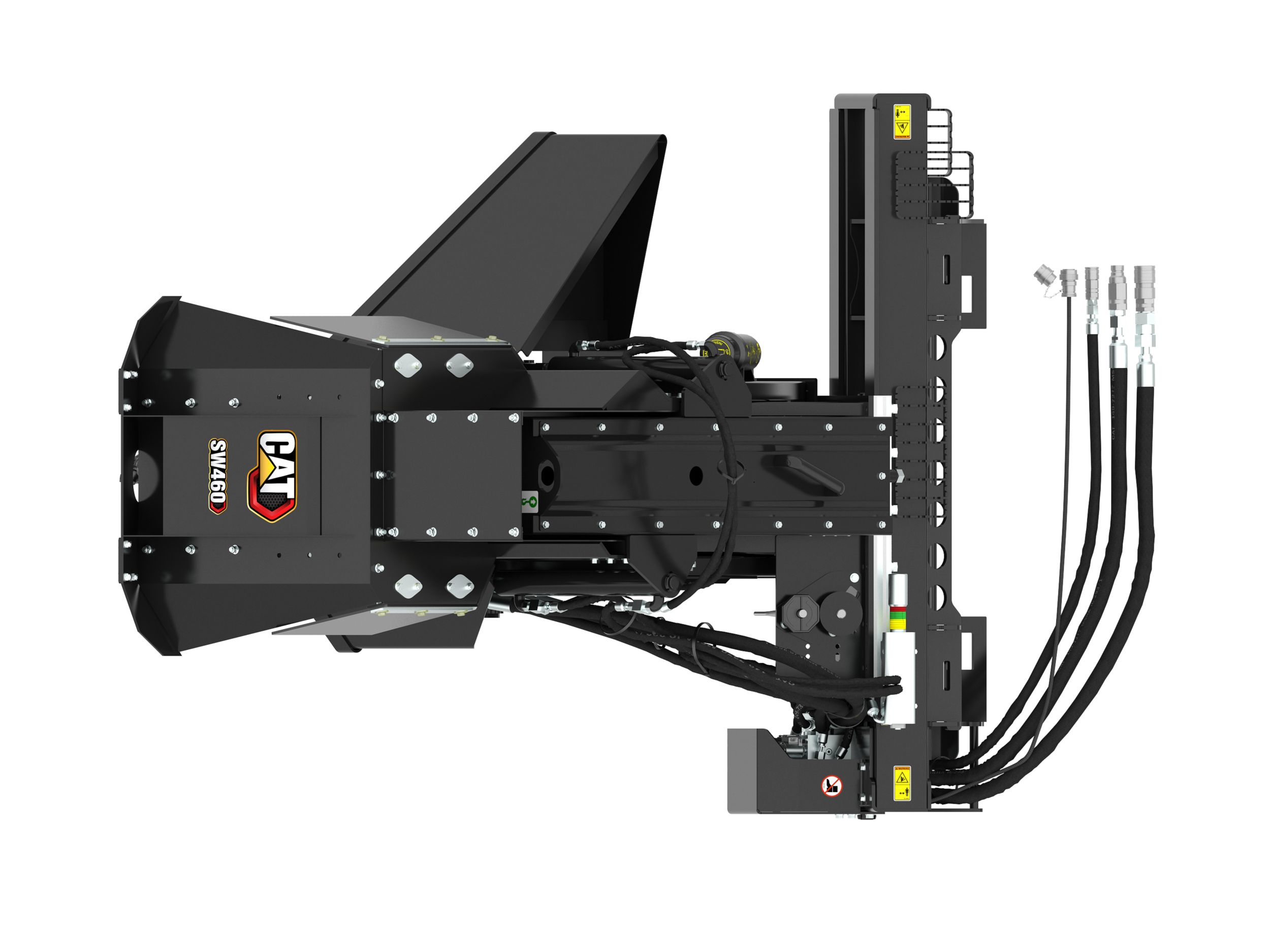

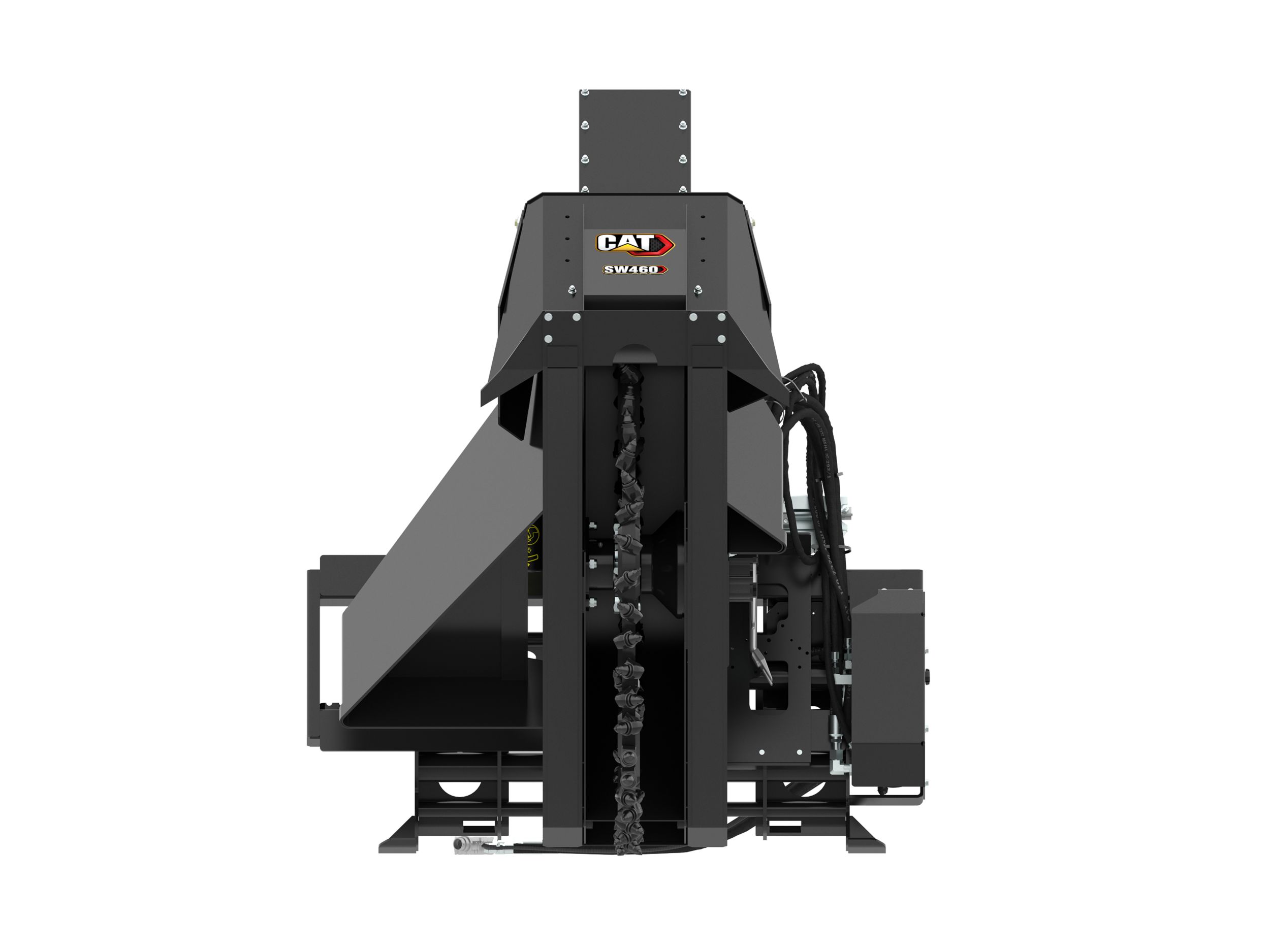

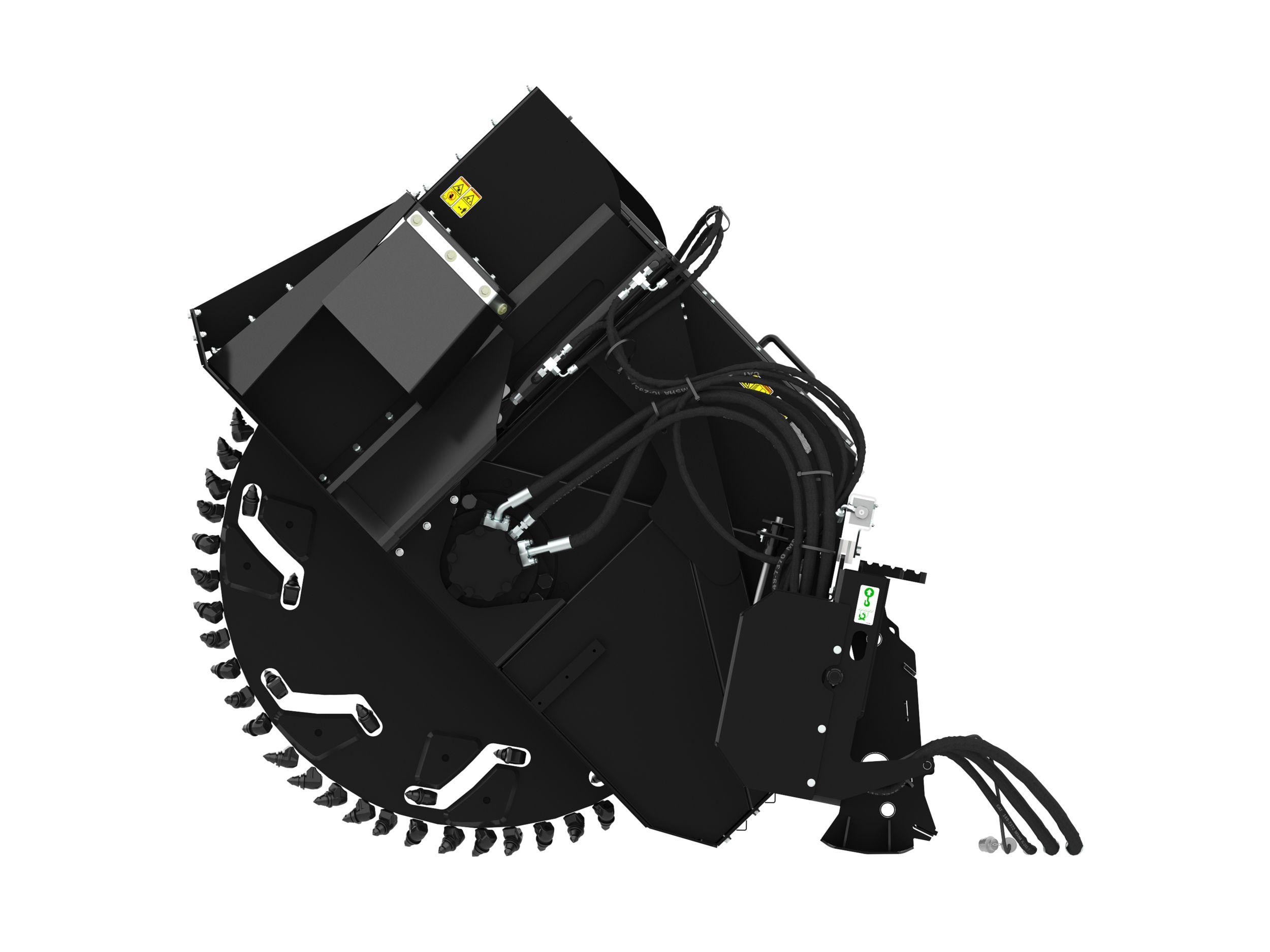

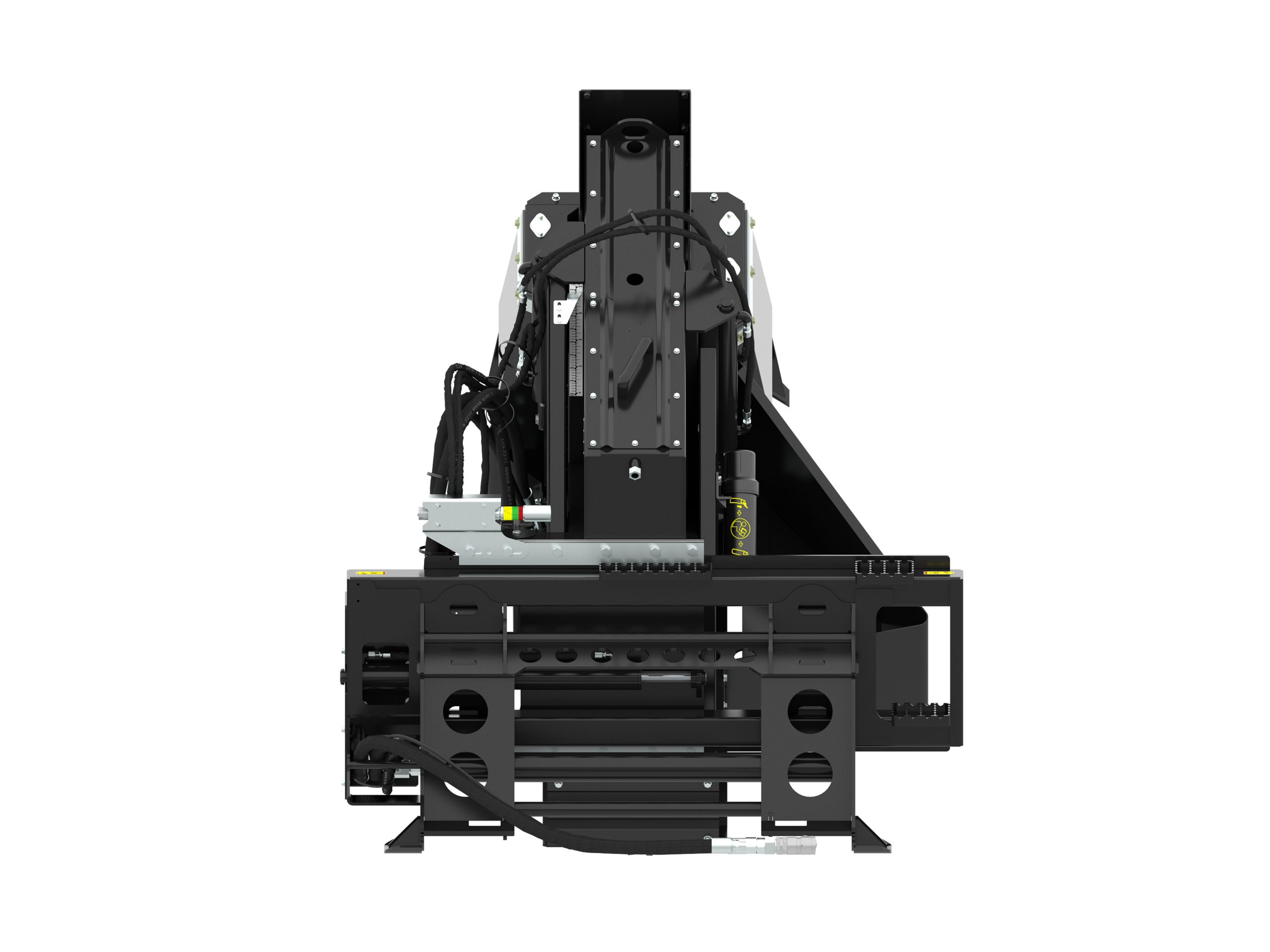

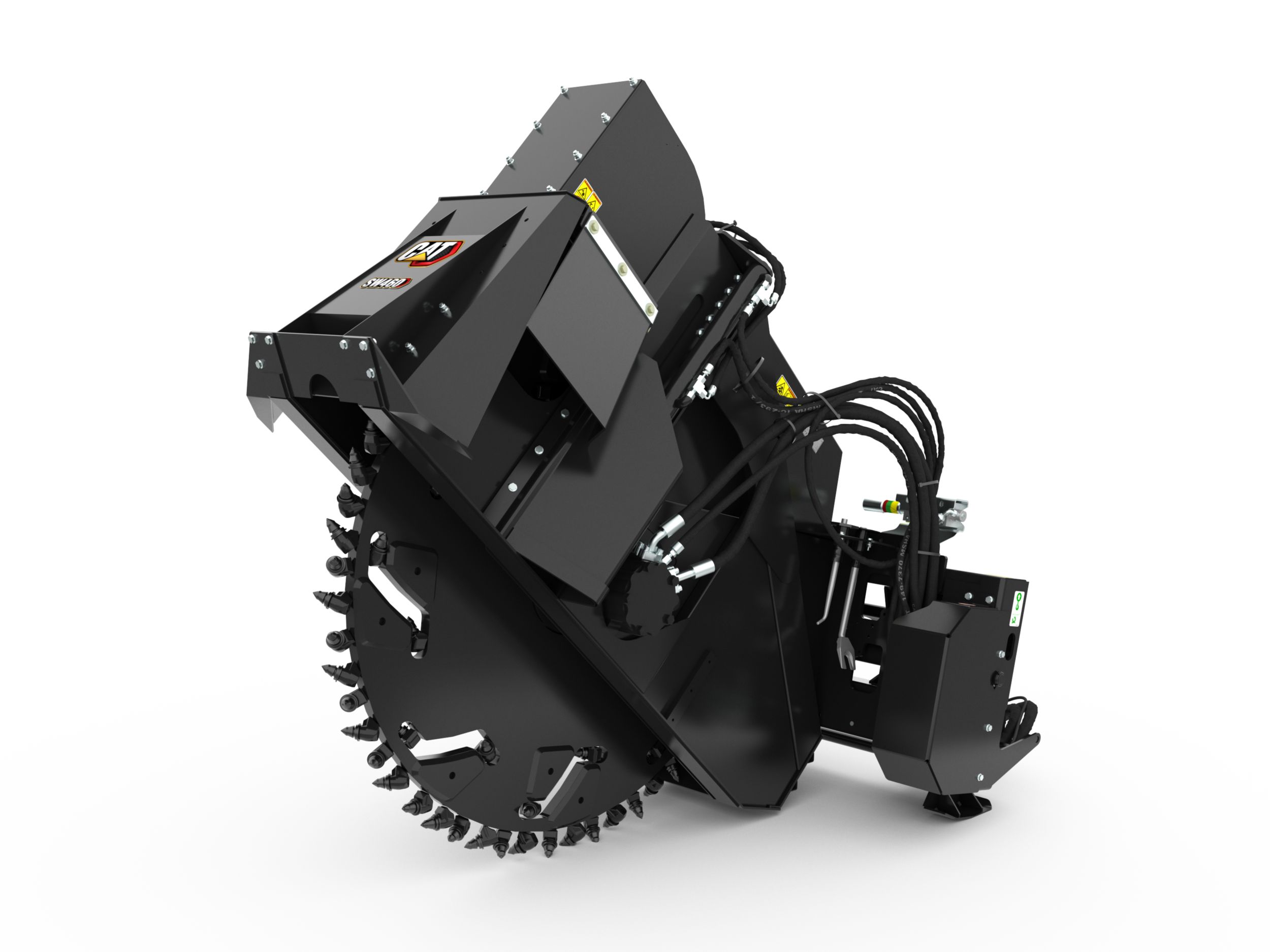

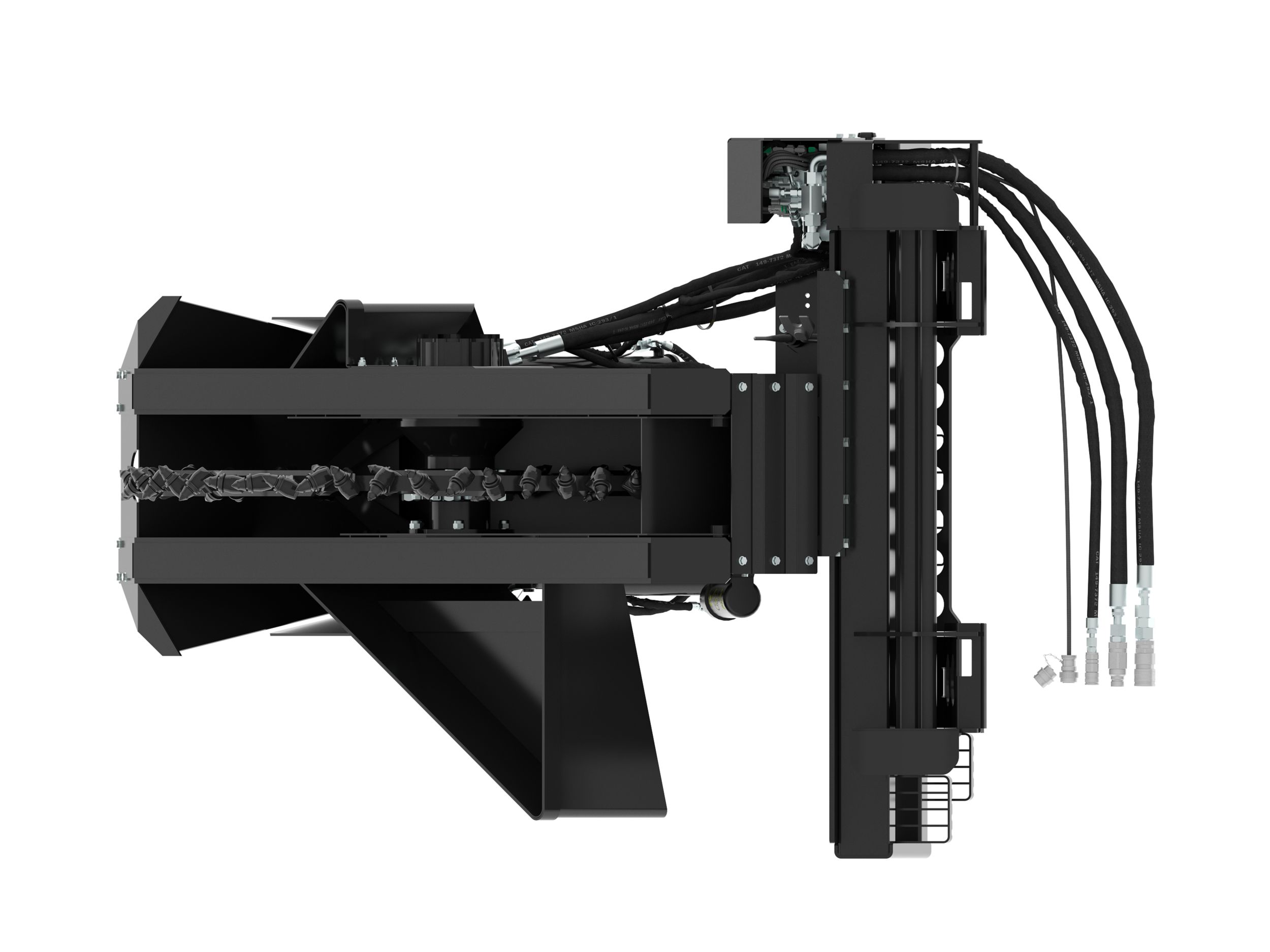

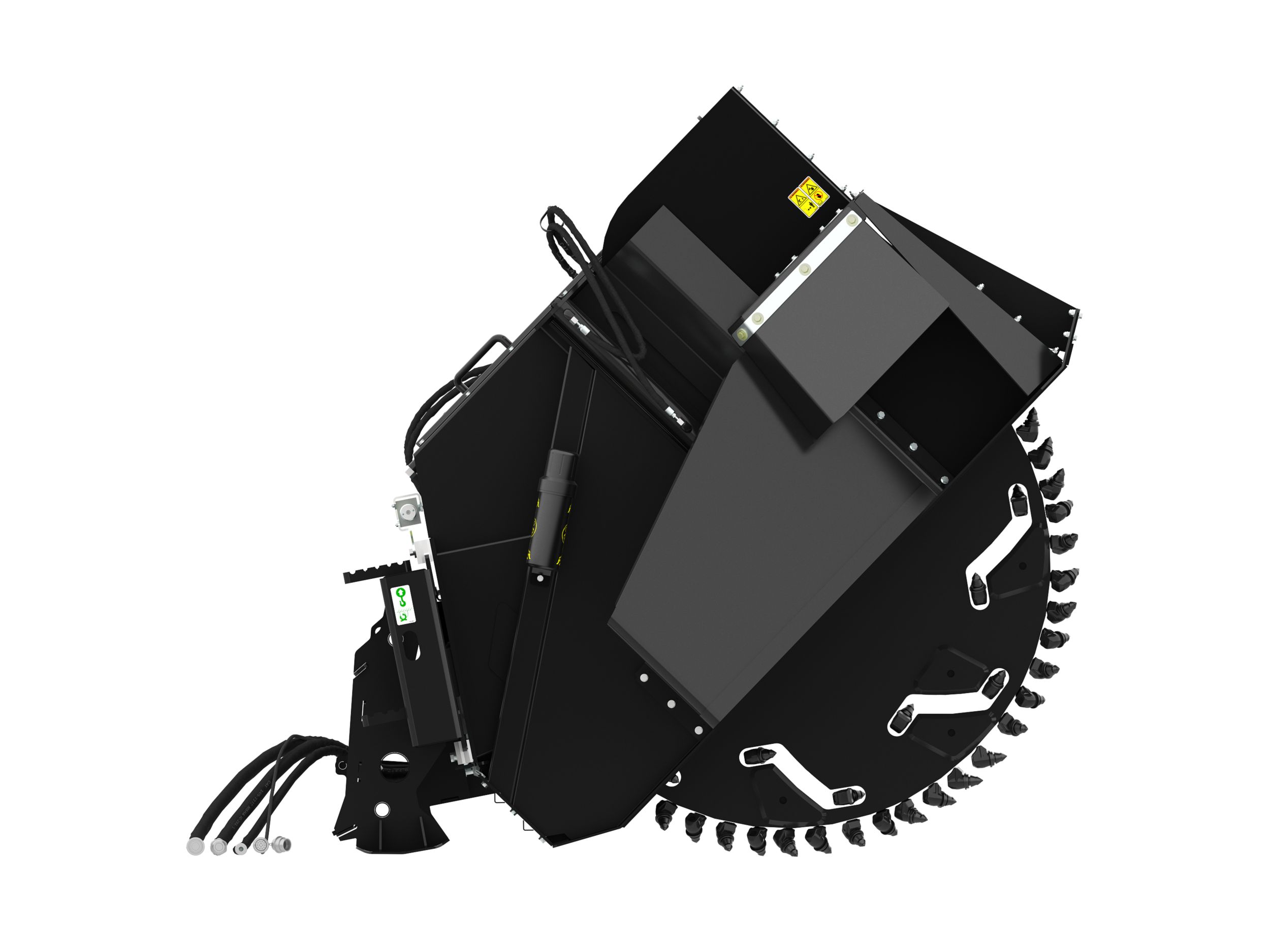

SW460, 80 mm (3 in)

SW460, 80 mm (3 in) Wheel Saw

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Category:

Direct Drive System

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

Hydraulic Side-Shift

Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.

Hydraulic Depth Control

Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.

Deflector Plates

Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.

Max Pro Pressure Gauge

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

Bits

Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.

Self Standing

Self standing frame design improves connection and parking.

OMM Container

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Included Tools

Attachment mounted tools included to provide quick and easy change out of bits when needed.

Smart Creep

Smart Creep is a dynamic drive control system that works in conjunction with the initial creep speed setting. Smart Creep senses load on the attachment being operated, and can automatically adjusts drive command to keep the attachment running at the most productive speed.

Optional Guide Bar

Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.

Water Kit Ready

Ports are strategically located to equip the saw with a water sprinkler kit along hood, which allows for significant dust reduction.

Virtual Tours

Documents & Brochures

Additional information

عمق القطع الأقصى

600 مم ( 23.6 بوصة )

عرض العجلة

80 مم ( 3.1 بوصة )

الوزن

1440 كجم ( 3174.7 رطل )

العرض الإجمالي

1655 مم ( 65.2 بوصة )

الارتفاع الإجمالي

1765 مم ( 69.5 بوصة )

الطول

2417 مم ( 95.2 بوصة )

المكونات الهيدروليكية المطلوبة

XHP / XE

التدفق الهيدروليكي المثالي

136-150 لتر/دقيقة (36-40 جالونًا في الدقيقة)

الضغط الهيدروليكي المثالي

250-280 بار (3630-4000 رطل لكل بوصة مربعة)

إزاحة الموتور

1686 سم³/دورة ( 102.9 بوصة³/دورة )

عزم دوران العجلة عند أقصى ضغط

7509 نيوتن-متر ( 5538.4 lb/ft )

سرعة العجلة عند أقصى تدفق

89 لفة في الدقيقة

سرعة اللقمة عند أقصى تدفق

430 m/min ( 1410.8 ft/min )

لقم مخروطية - لكل عجلة

70

نوع اللقمة القياسية

الخرسانة

نوع اللقم الاختيارية

كل الأغراض

سير التبديل الجانبي

550 مم ( 21.7 بوصة )

جهاز تنظيف الخنادق

لا

طريقة الدفع

التشغيل المباشر

نوع الوصلة البينية

قارنة التوصيل المزوَّدة بسيور انزلاقية
