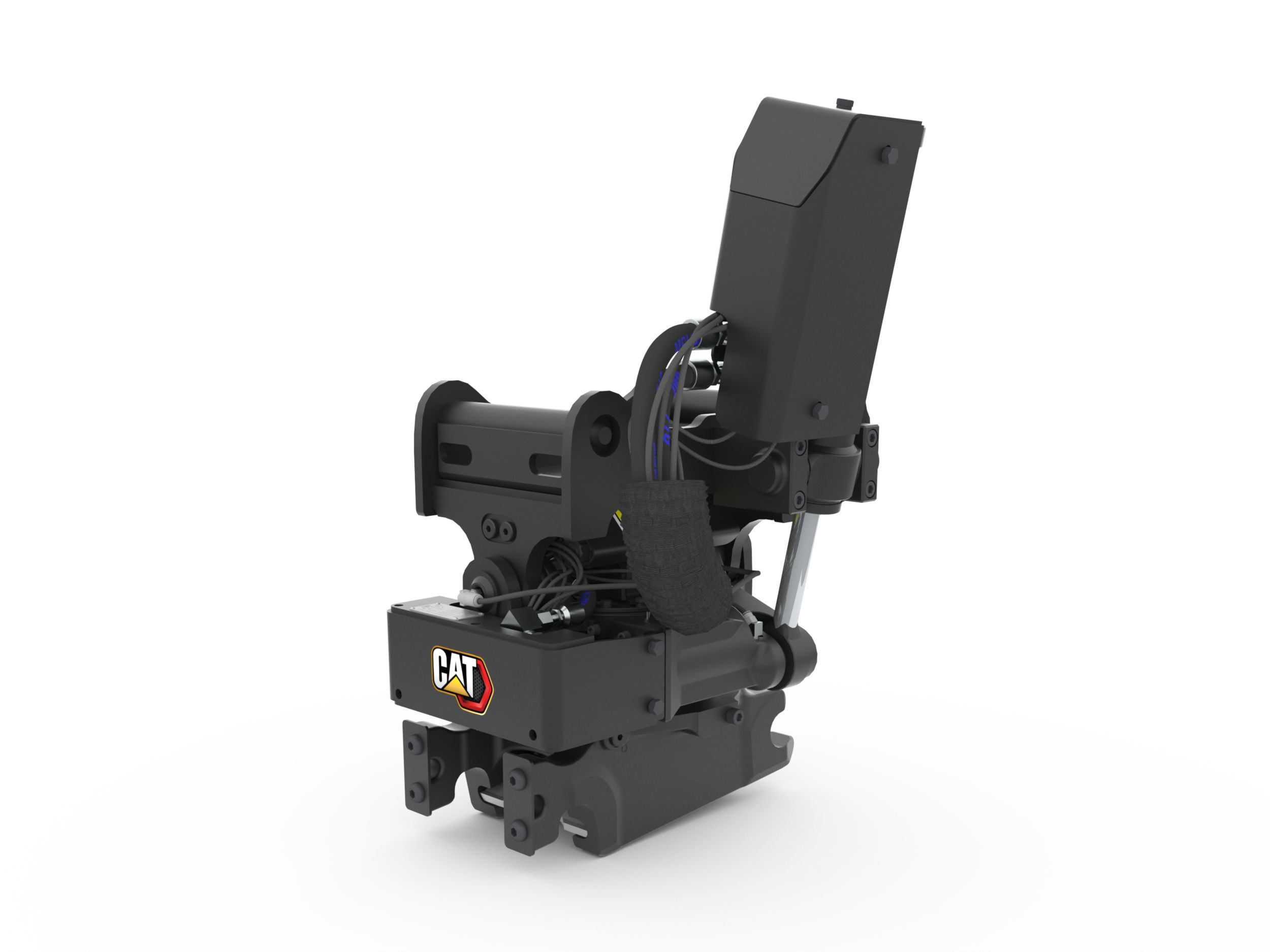

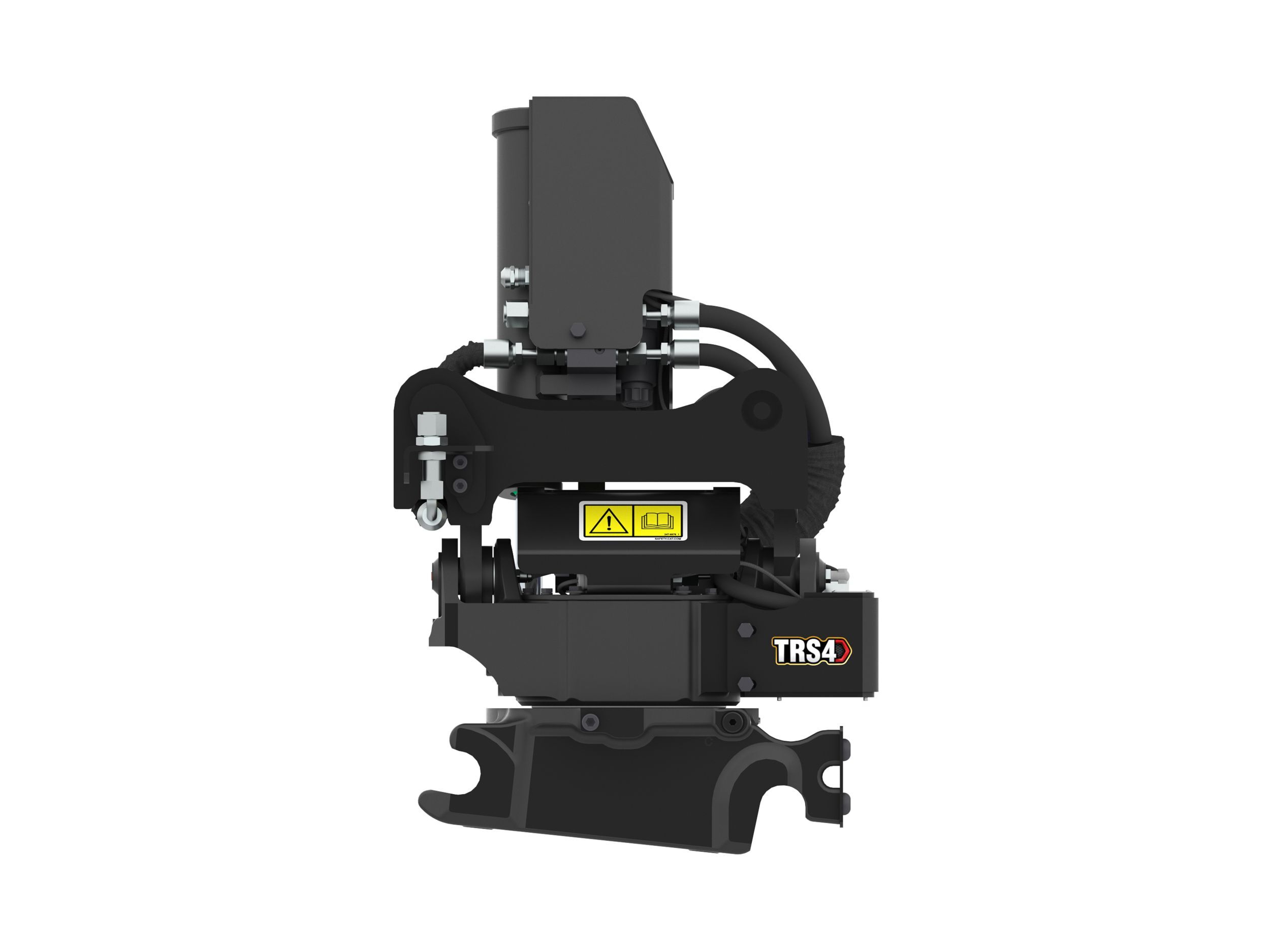

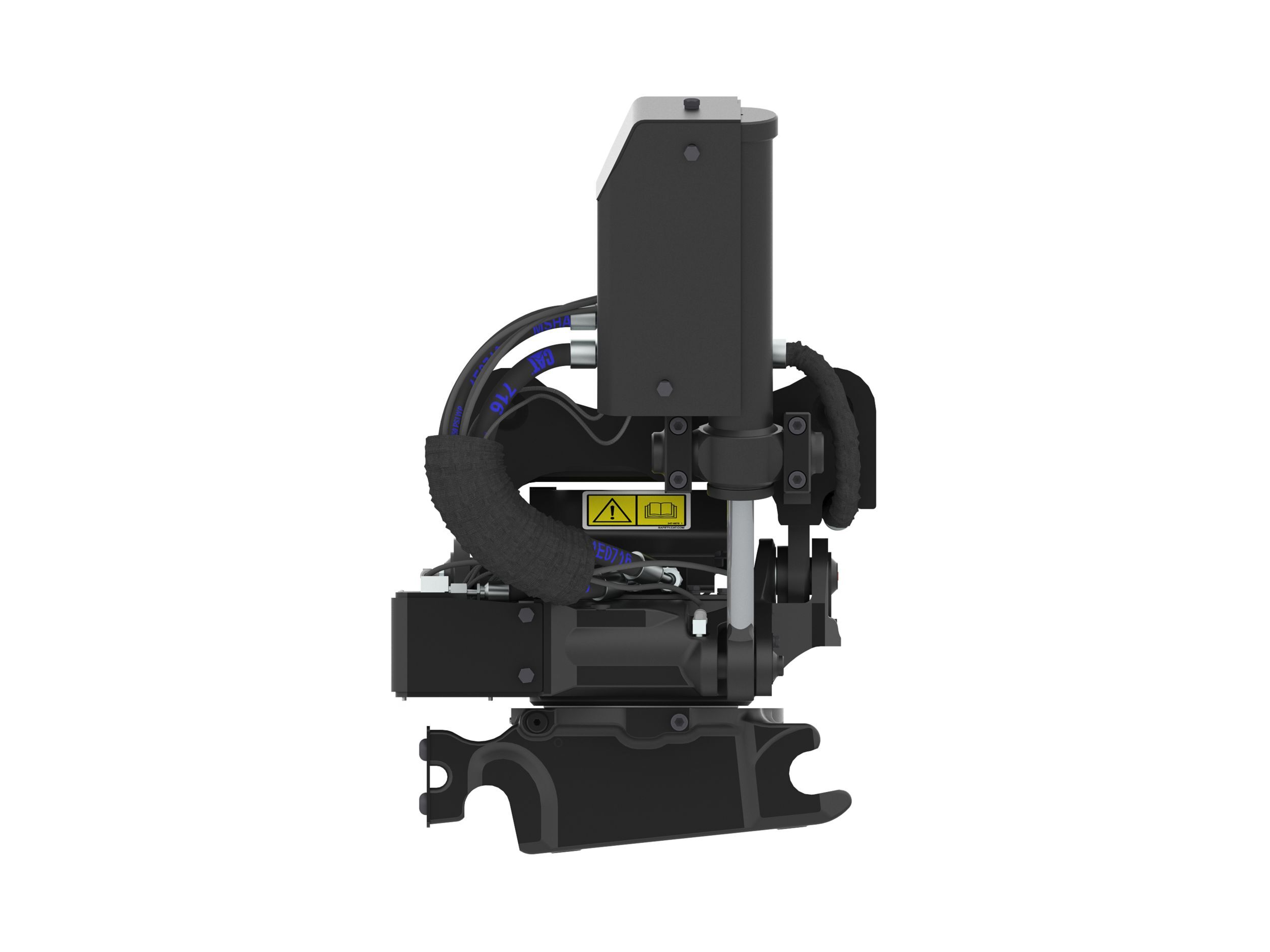

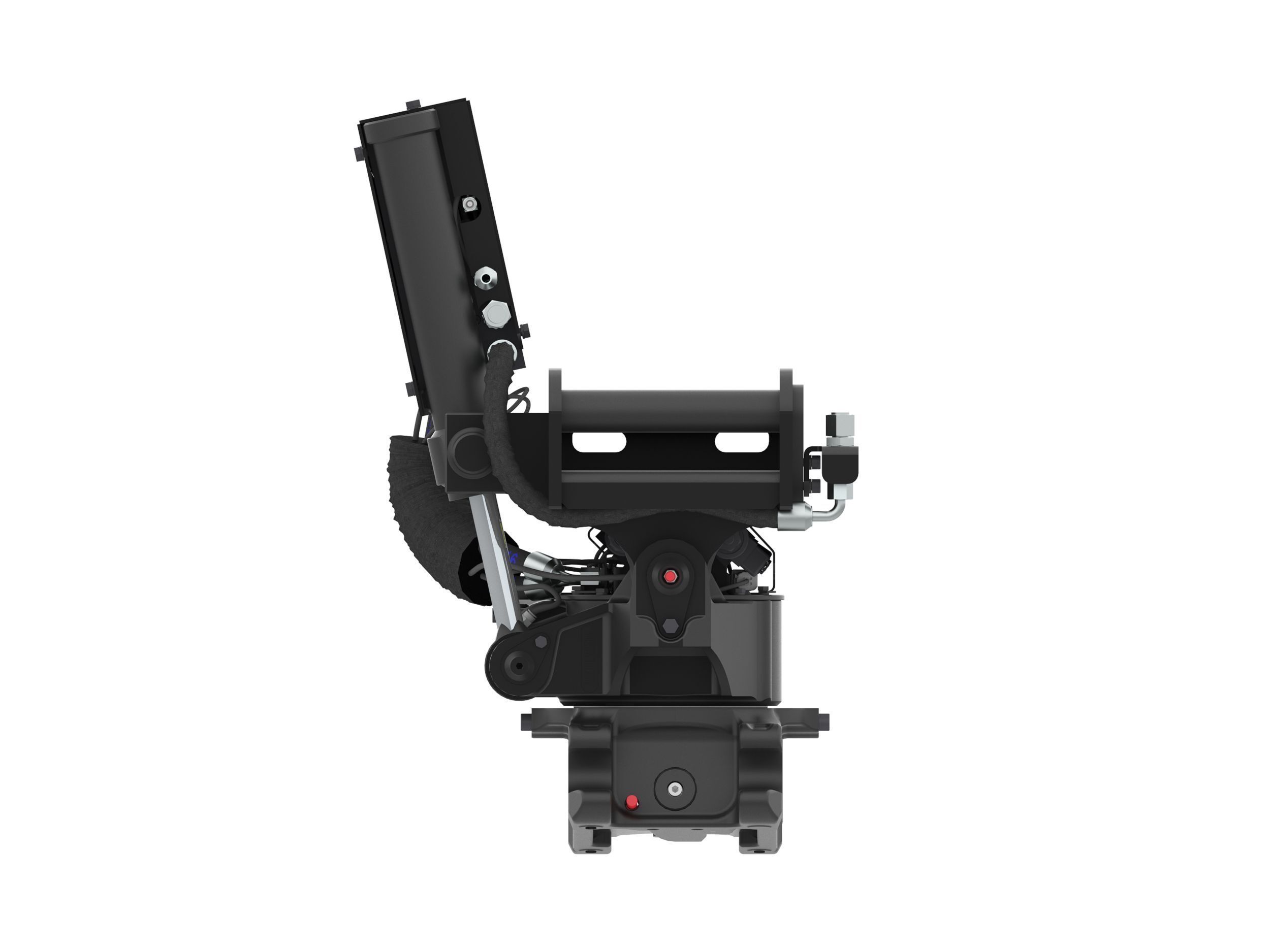

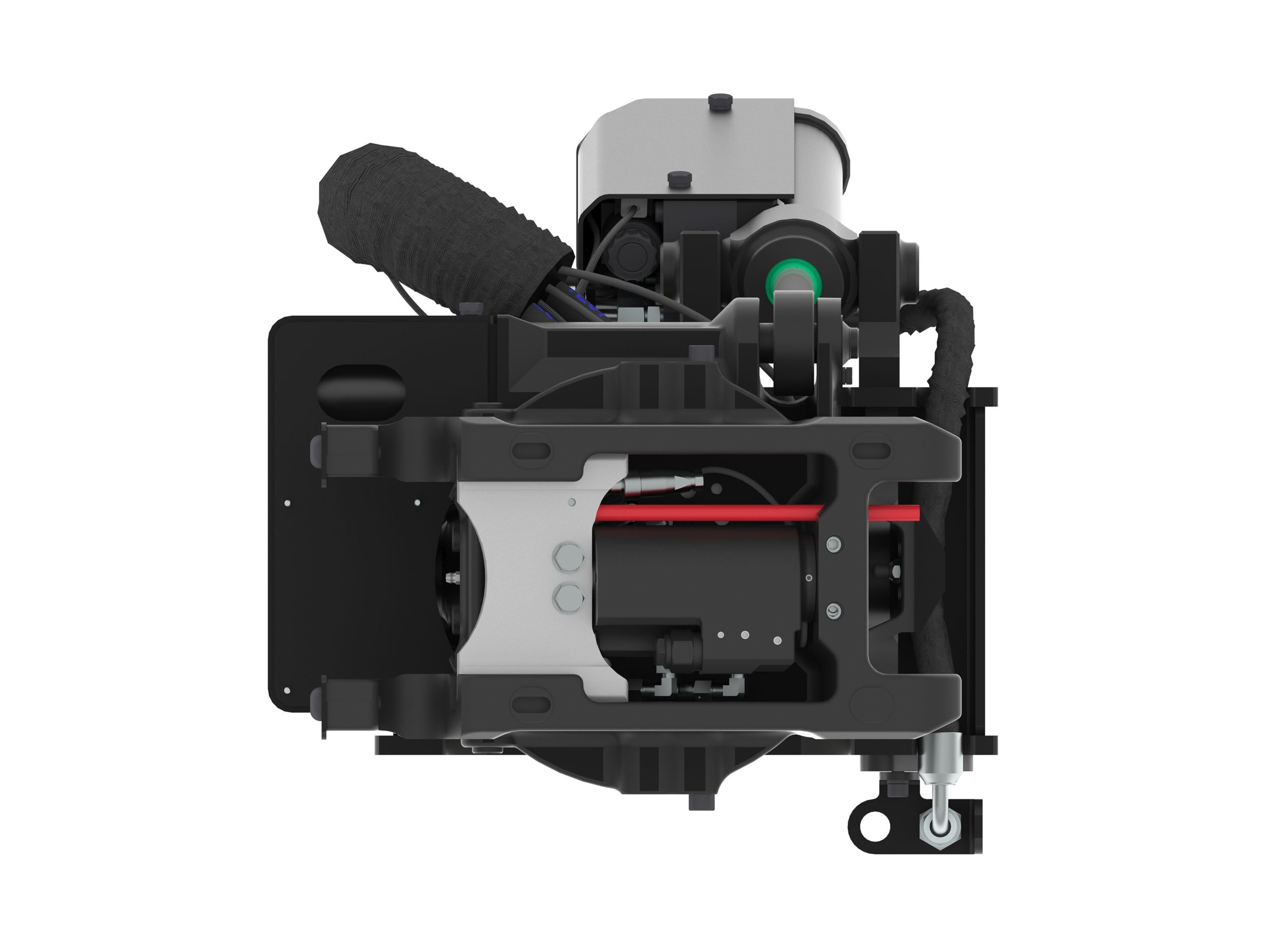

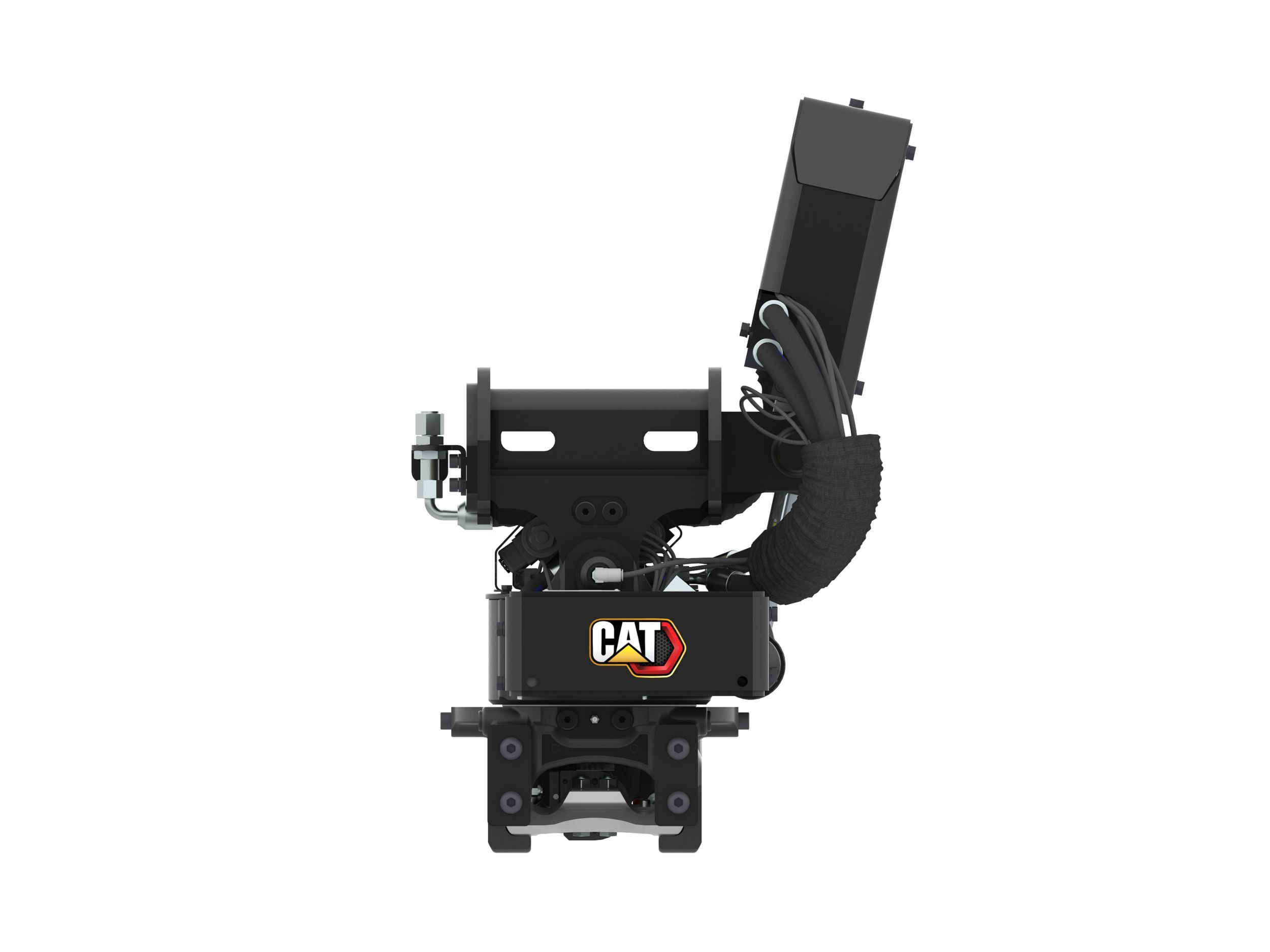

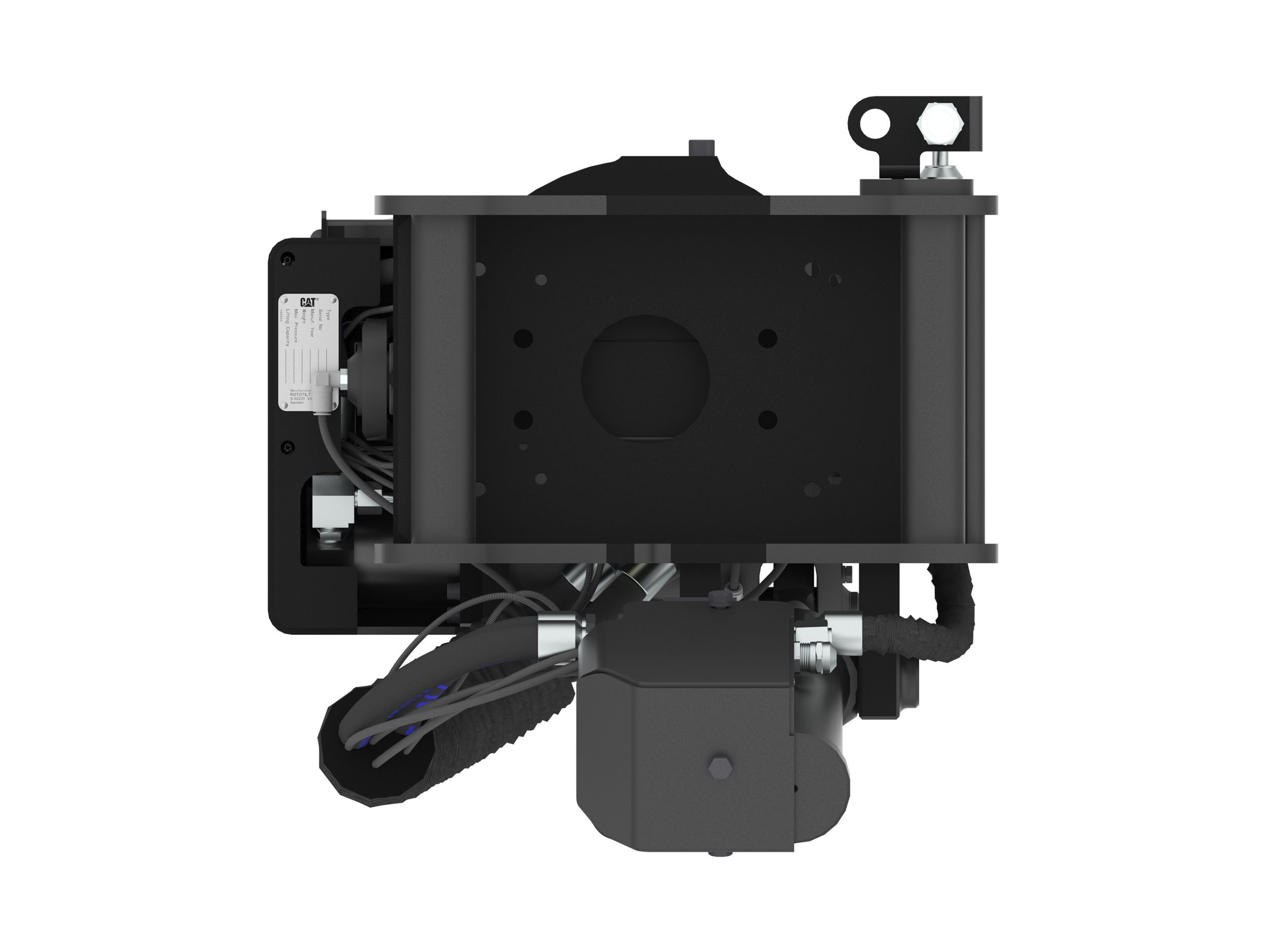

TRS4
Complete 360 Degree Rotation
Provides optimal control of your work tools to provide greater flexibility.
Integrated Central Lubrication System
A single point of entry for grease allows the entire unit to be greased quickly and easily.
Optional Grapple Module
Used to pick up objects such as pipe and debris.
Oil Filled Gearbox
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Heavy Duty Worm Gear
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Double Acting Cylinder with Load Hold Valve
Valves sustain holding pressures and prevent cylinder movement under load constraints.
Visual Verification Indicator
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Locking Control System (LCS)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Compatibility Note
Only compatible with the following Next Gen machines and serial numbers:
- 303 - S/N MY3 1 & Up
- 303.5 - S/N CE9 1 & Up
- 304 - S/N AN4 1 & Up
Virtual Tours
Documents & Brochures
Additional information
Offering Type | |
---|---|
Machine Class | 3-4 Ton Mini Excavator |
Weight | 115 kg ( 253.5 lb ) |
Interface Options: Top-Bottom | S40 / S40 |
Overall Height | 702 mm ( 27.6 in ) |
Length | 449 mm ( 17.7 in ) |
Overall Width | 404 mm ( 15.9 in ) |
Rotation Speed | 7 Seconds per 1 full rotation |
Tilt Angle Range +/- | 40° Left/Right |
Maximum Bucket Capacity | 110 l ( 3.9 ft³ ) |
Maximum Bucket Width | 1000 mm ( 39.4 in ) |
Optimal Hydraulic Flow | 17-25 L/min (4.5-6.7 gpm) |
Maximum Operating Pressure | 21000 kPa ( 3045.8 psi ) |
Required Hydraulics | 1st Auxiliary |
Tilting Torque | 5800 N·m ( 4277.9 lb/ft ) |
Turning Torque | 1700 N·m ( 1253.9 lb/ft ) |
