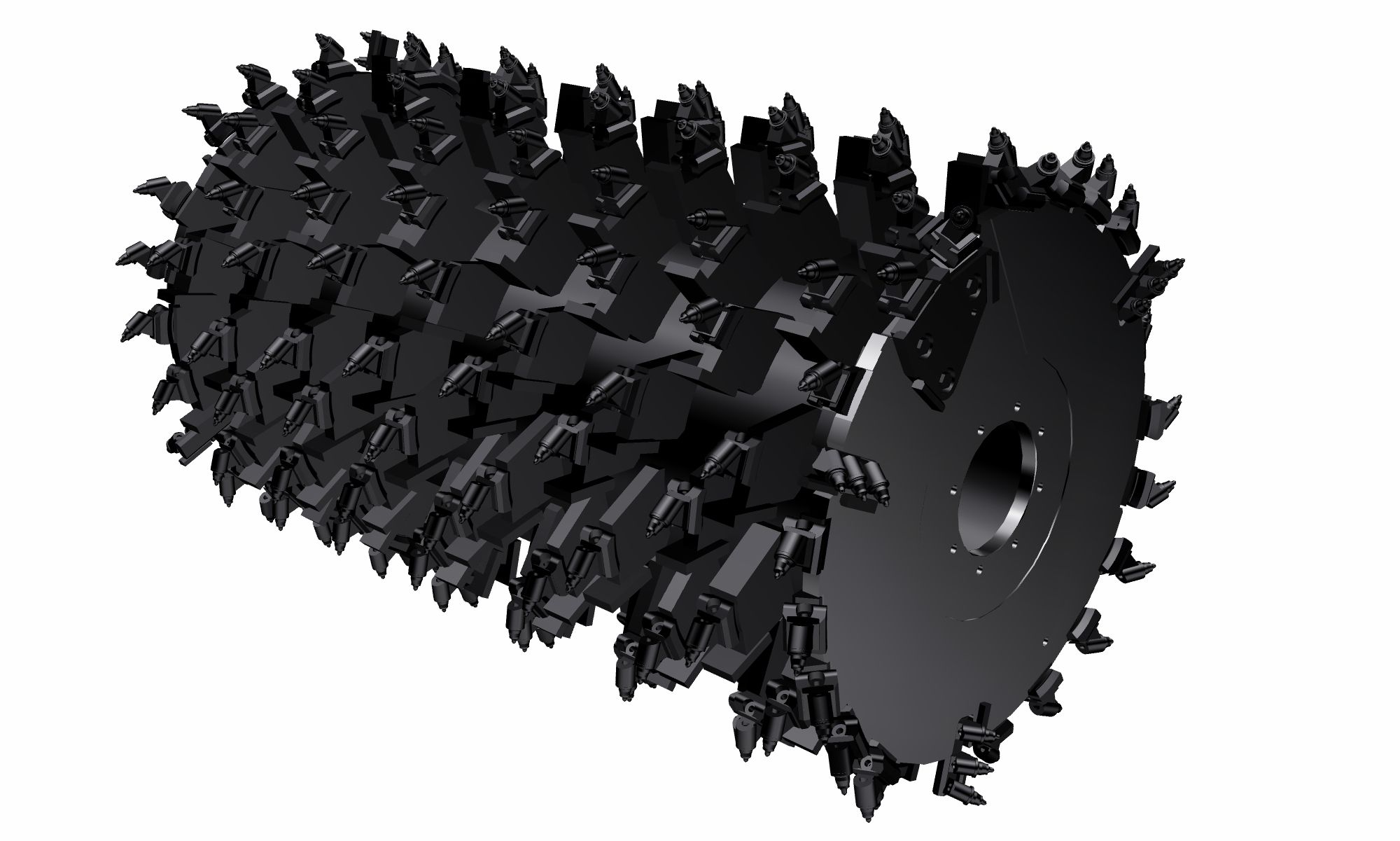

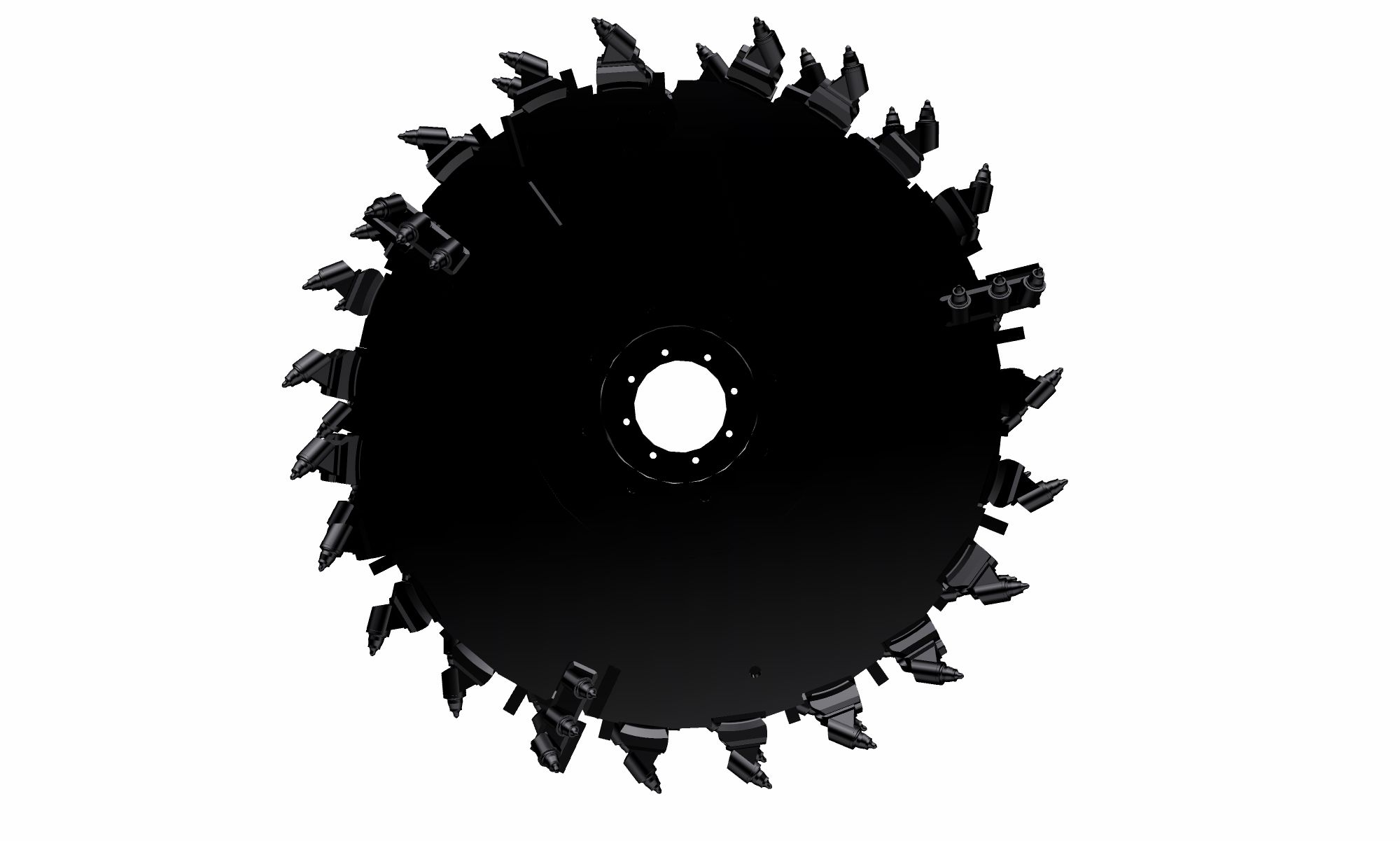

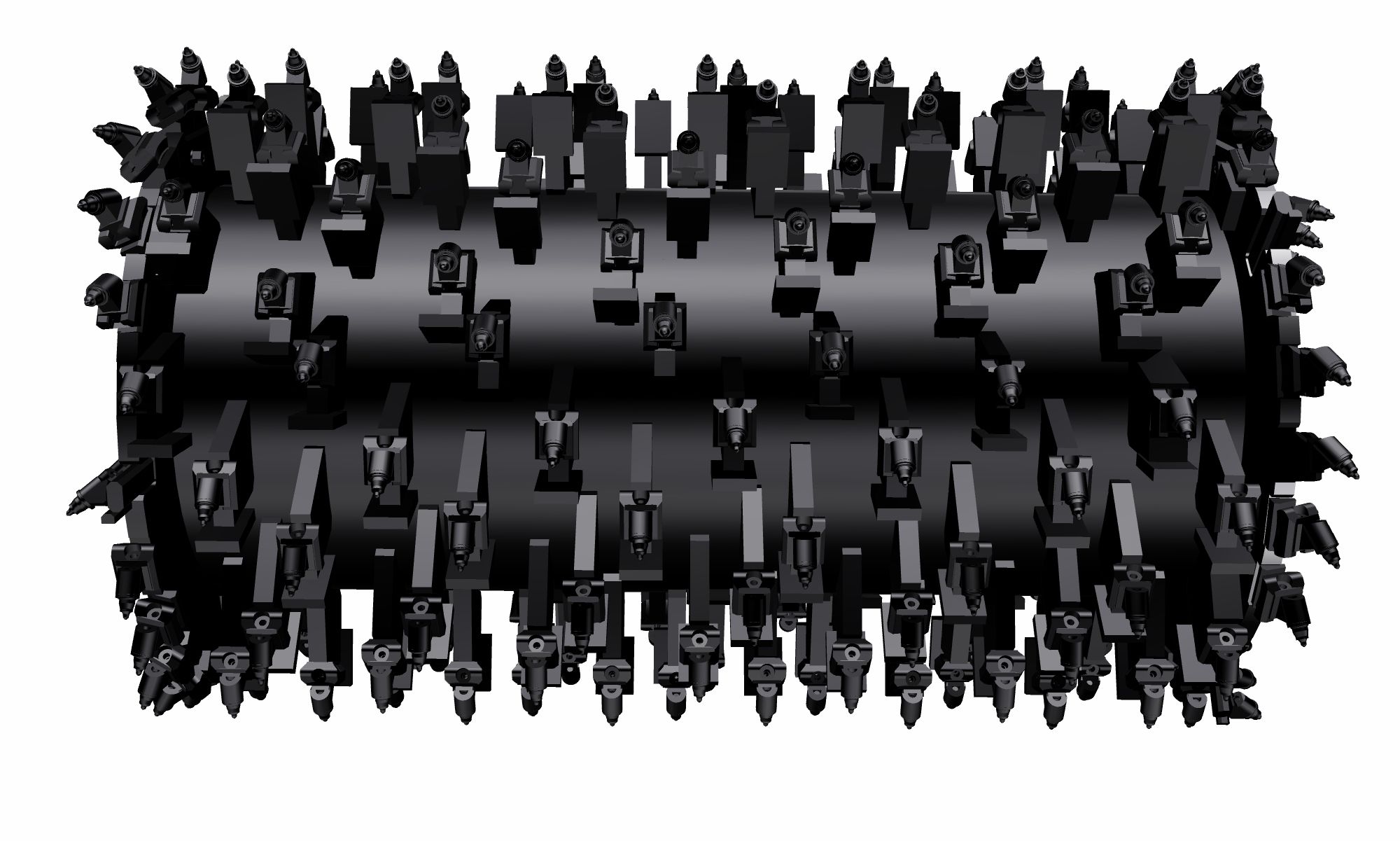

Universal 18 Reclaimer Drum (2.4 m)
Universal 18 Reclaimer Drum (2.4 m)
The Universal 18 rotor is designed to provide maximum mixing depth and the highest level of material pulverization and gradation in reclamation and stabilization applications.
Most Versatile Reclaimer Drum
- The Universal 18 rotor is designed to provide maximum mixing depth and has lower breakout force compared to the Universal 16 rotor.
- It is a versatile reclaimer drum for reclaiming and stabilizing old roads or other surfaces.
- It has a secondary application of light asphalt reclamation, where the asphalt layer is thin and deteriorated.
Excellent Asphalt Sizing
This rotor meets European 45 cm mixing depth requirements while providing the highest level of material pulverization and gradation.
Documents & Brochures
Additional information
| عرض التفريز | 2438 مم ( 96 بوصة ) |
|---|---|
| مسافة تباعد الأداة | 15 مم ( 0.6 بوصة ) |
| قطر الأسطوانة عند الأطراف | 1525 مم ( 60 بوصة ) |
| عمق التفريز (الحد الأقصى) | 457 مم ( 18 بوصة ) |
| عدد اللقم | 200 |
| رقم قطعة مجموعة دوار مع سائل التبريد والأدوات (تركيب في المصنع) | 229-3180 |
| رقم قطعة مجموعة دوار مع لقم (تركيب ميداني) | 229-3181 |
| Offering Type |
-
Road Reclaimer
RM500B
