1730 mm (68 in), Bolt-On Teeth

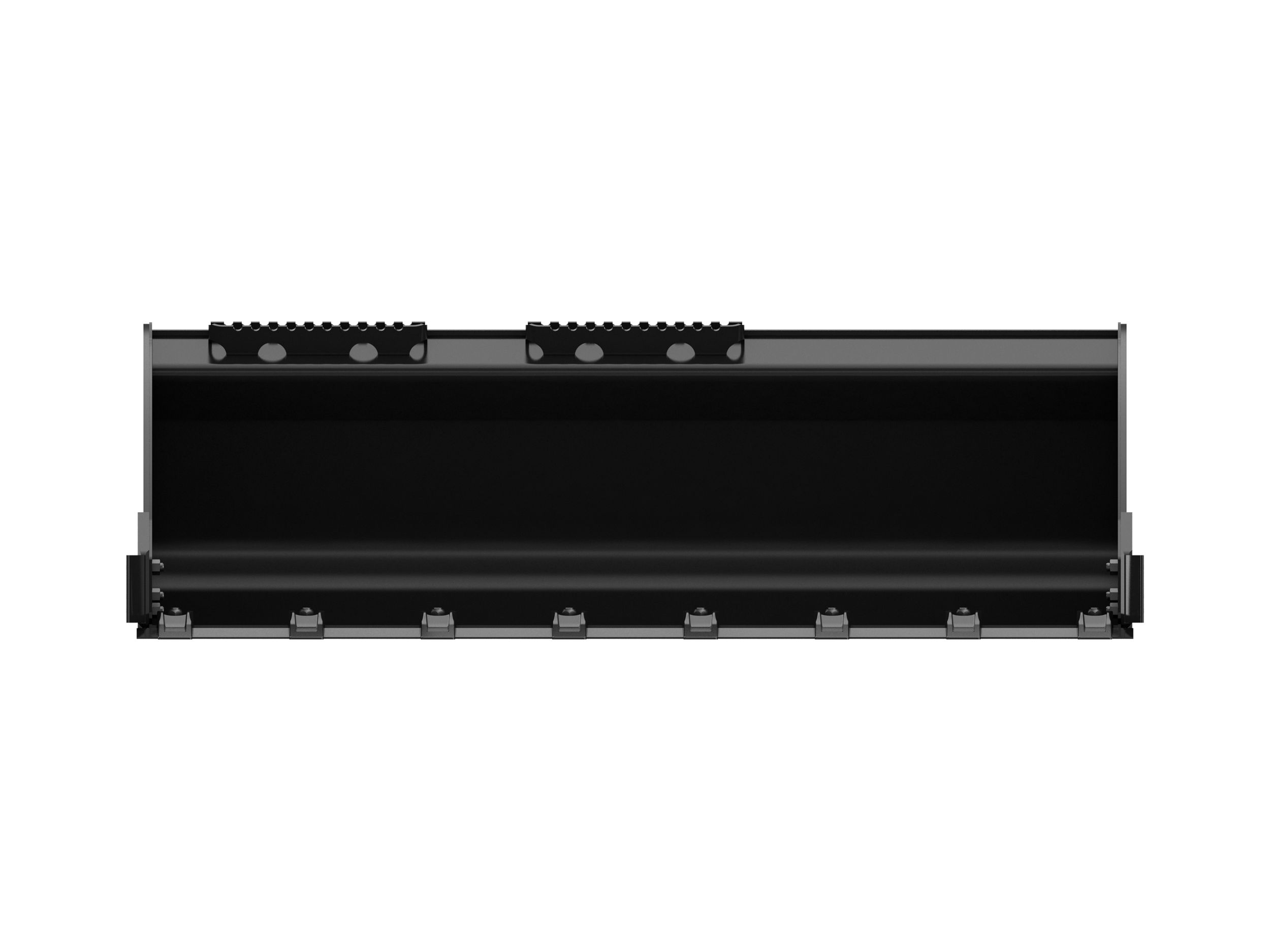

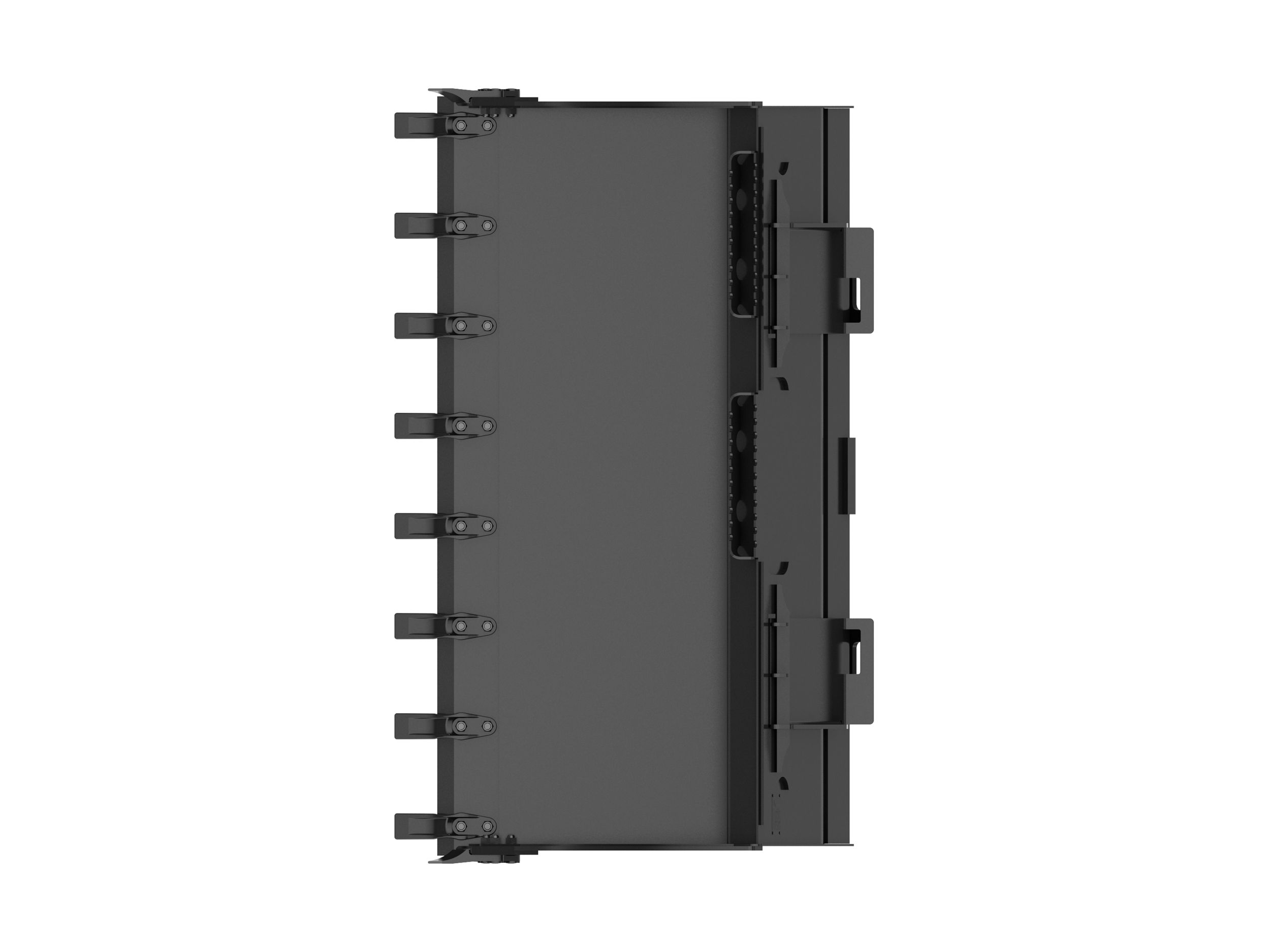

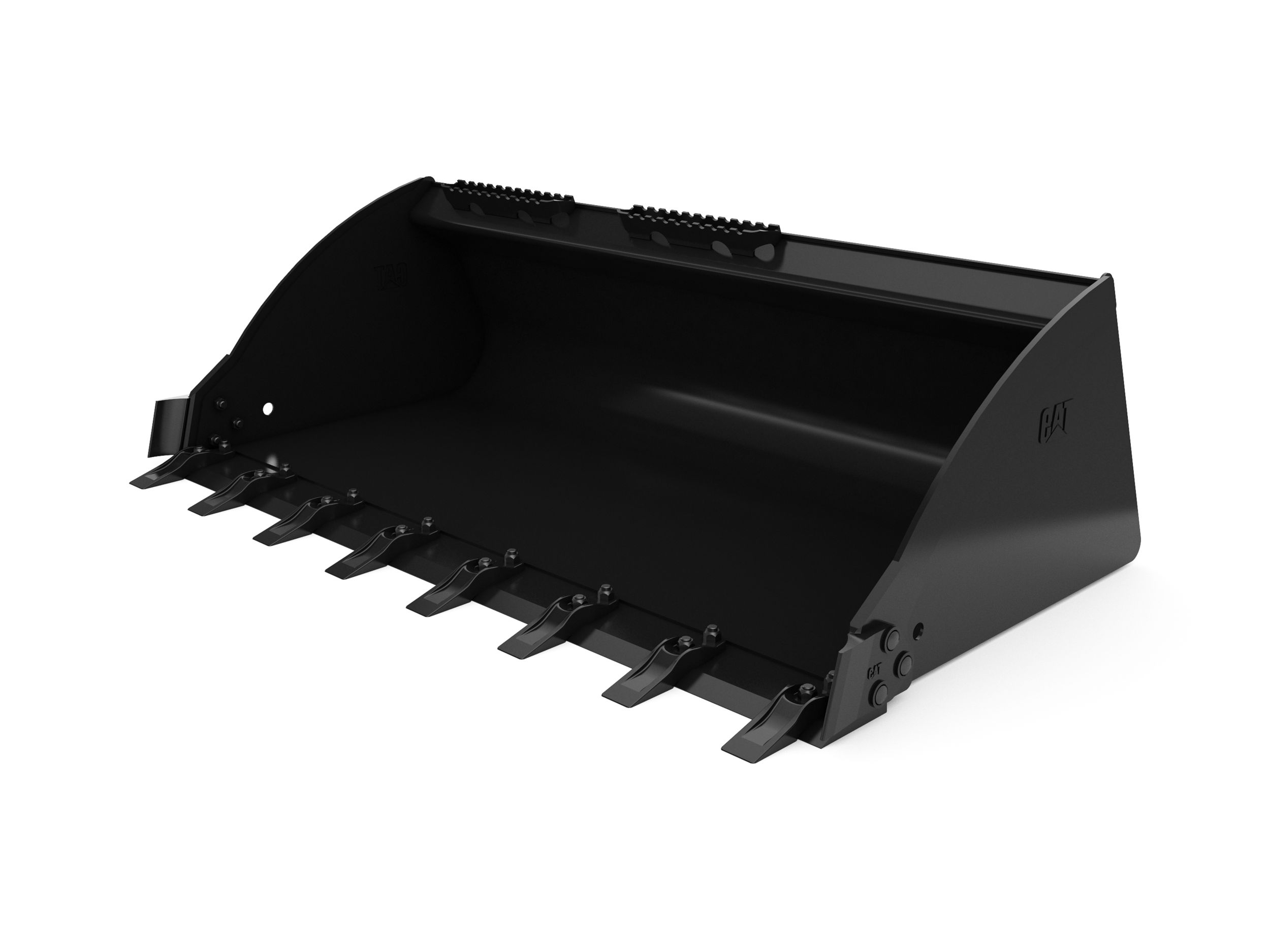

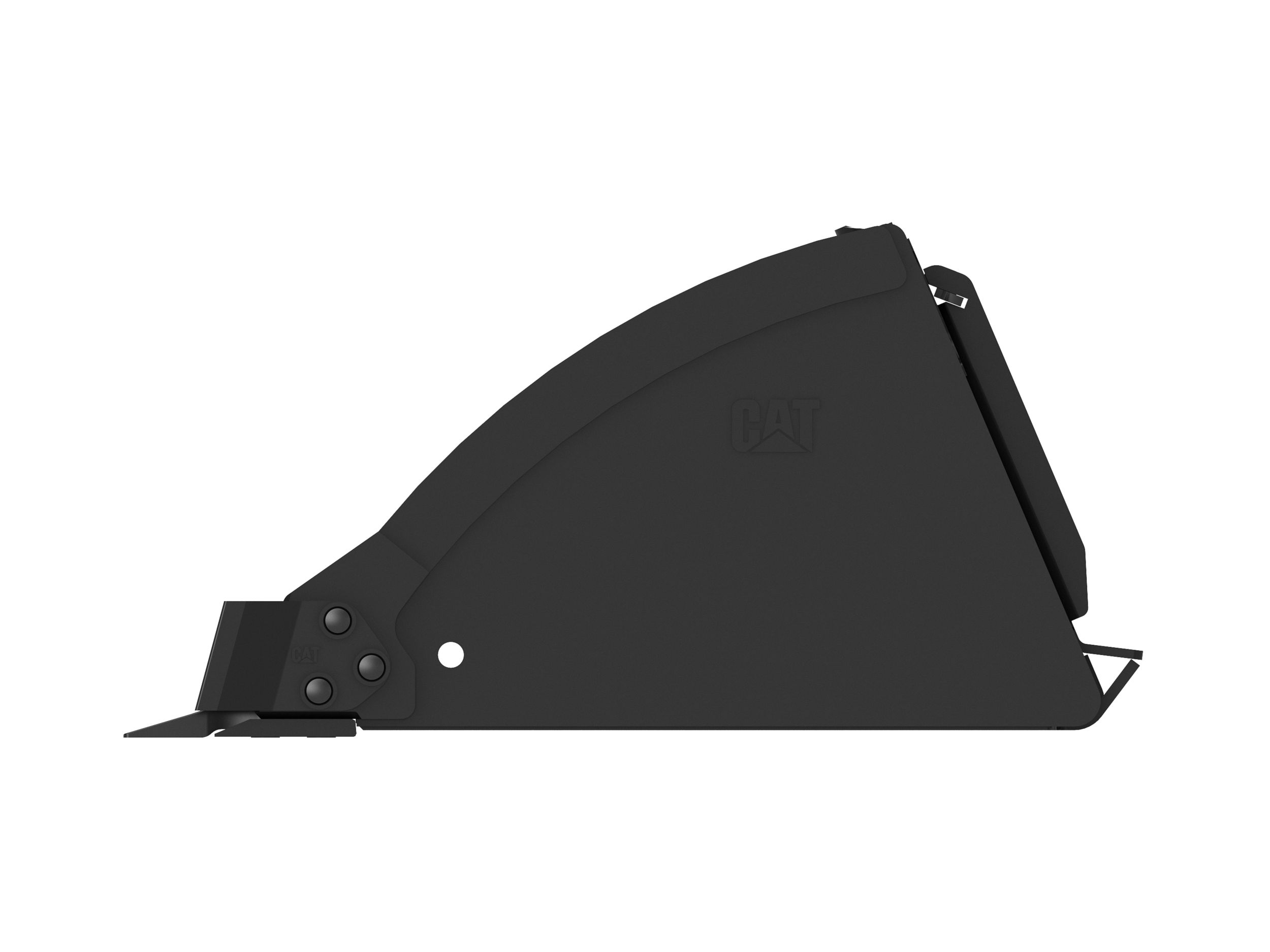

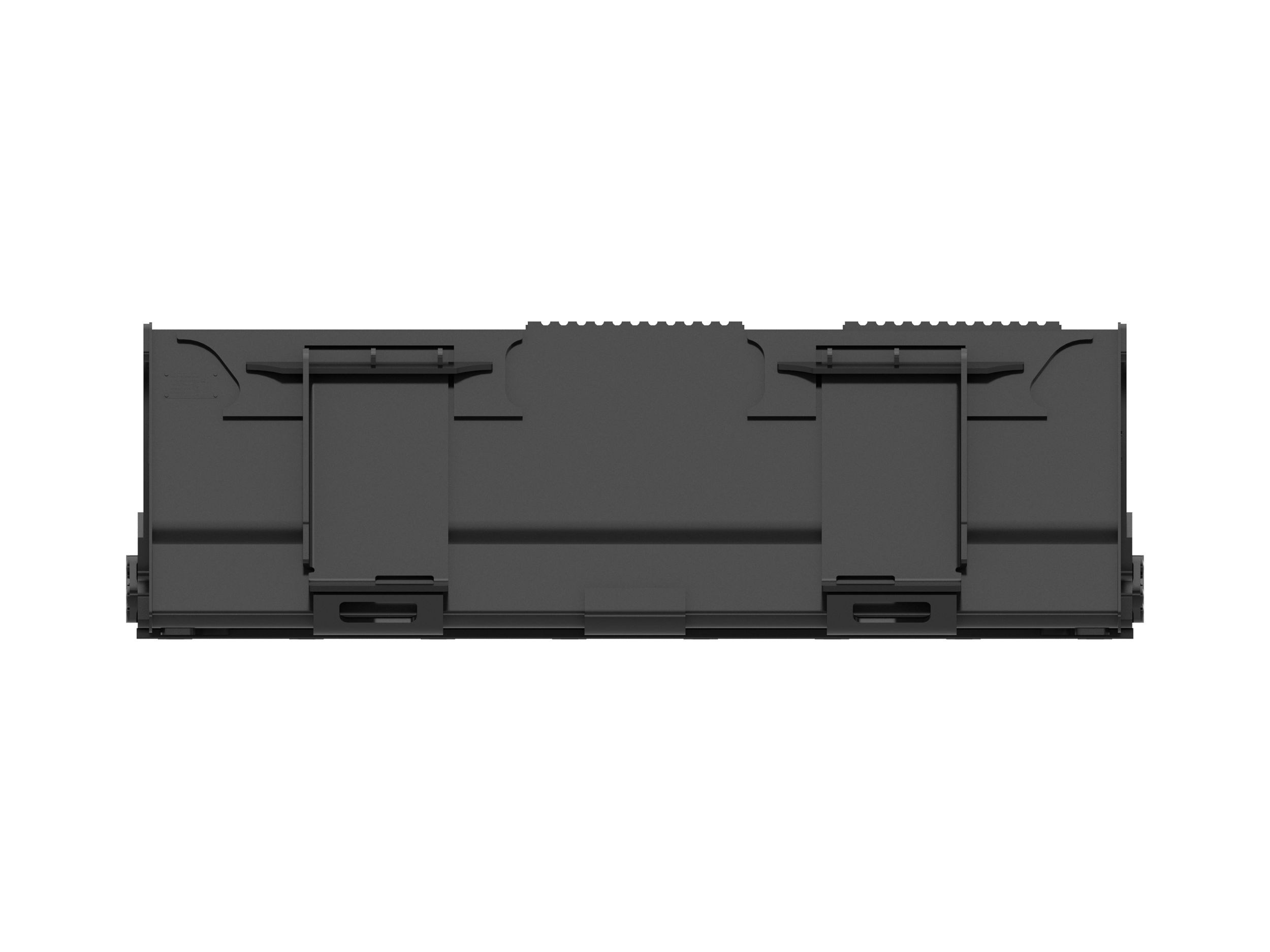

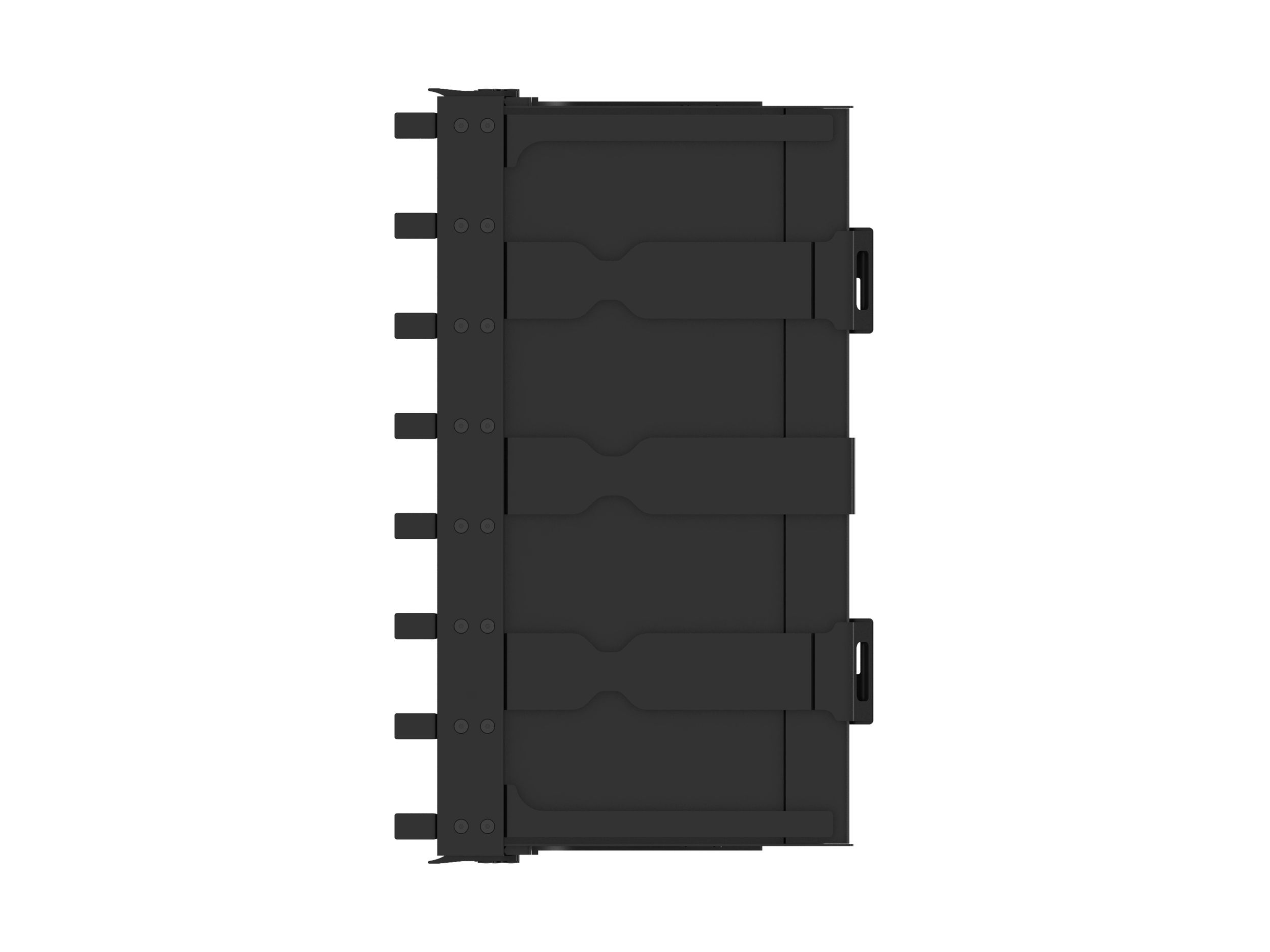

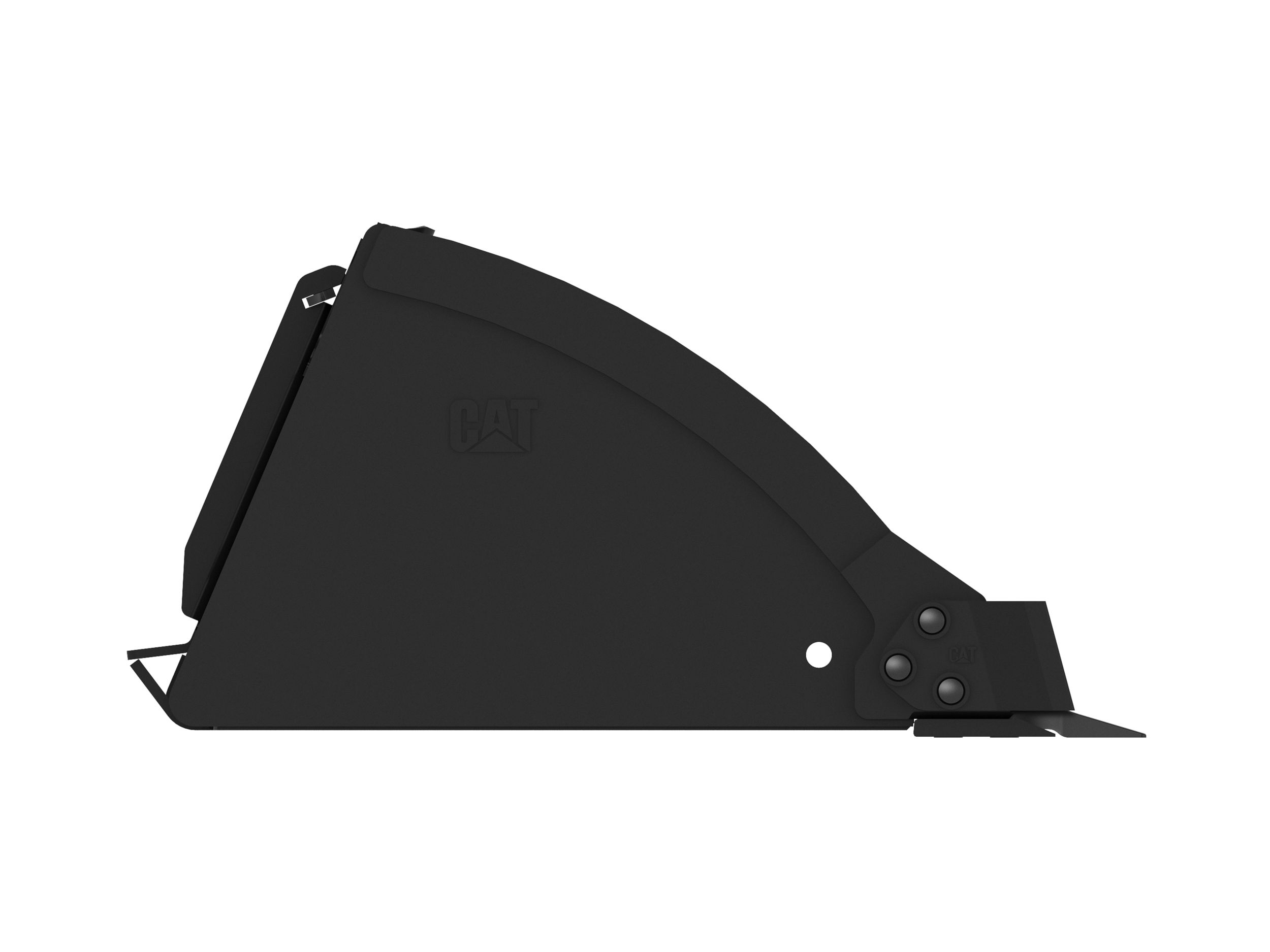

1730 mm (68 in) Industrial Performance Bucket With Bolt-On Teeth

Used to load, carry and dump in a variety of applications.

Application

Designed for loading, carrying and dumping in a variety of applications and materials. These buckets are ideal for construction and industrial applications.

Optimum Bucket Geometry

Low back height profile and long floor length result in excellent visibility to the front cutting edge and front corners, and superior loading and dumping.

Full Length Skid Bars

Full length skid bars provide additional floor rigidity and wear resistance.

Rugged Design

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Integrated Steps

Integrated steps make it easier for the operator to enter/exit the cab.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.

Additional information

العرض

1730 مم ( 68.1 بوصة )

السعة

0.52 m³ ( 0.68 yd³ )

الوزن

301 كجم ( 663.6 رطل )

الارتفاع

551 مم ( 21.7 بوصة )

الطول

1092 مم ( 43 بوصة )

سُمك حد القاعدة

19 مم ( 0.7 بوصة )

سمك الجدار الجانبي

5 مم ( 0.2 بوصة )

نوع الوصلة البينية

قارنة التوصيل المزوَّدة بسيور انزلاقية
