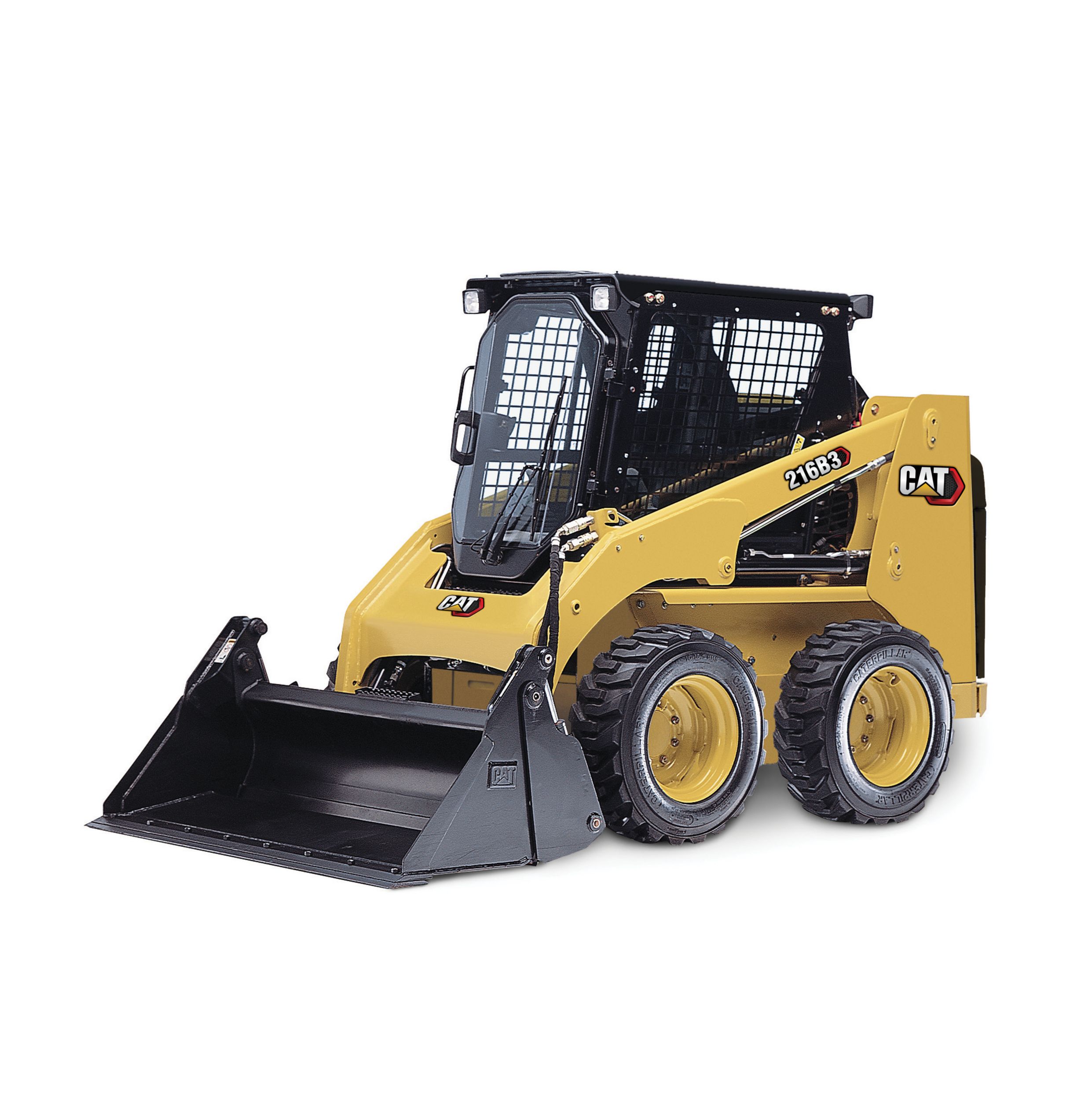

216B3 Skid Steer Loader

The Cat® 216B3 Skid Steer Loader, with its radial lift design, delivers excellent digging performance with outstanding drawbar power.

Category:

Ergonomic Operator Station

Ergonomic operator station features easy to use pilot operated joystick controls for reduced operator fatigue and increased productivity.

High Performance Power Train

High performance power train provides high engine horsepower and torque, allowing part-throttle operation for lower sound levels and fuel consumption.

Advanced Hydraulic System

Advanced hydraulic system is designed for maximum power and reliability.

Easy Maintenance

Easy routine maintenance helps reduce machine downtime for greater productivity.

Cat Work Tools

Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site.

Documents & Brochures

Standard Equipment

ELECTRICAL
  • 12 volt Electrical System
  • 65 ampere Alternator
  • Automatic Glow Plug Activation
  • Ignition Key Start/Stop Switch
  • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
OPERATOR ENVIRONMENT
  • Gauges: Fuel Level, Hour Meter
  • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged
  • Vinyl Seat
  • Pull Down Ergonomic Contoured Armrest
  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
  • ROPS Cab, Open, Tilt Up
  • FOPS, Level I
  • Top and Rear Windows
  • Interior Rearview Mirror
  • 12 volt Electric Socket
  • Horn
  • Backup Alarm
POWER TRAIN
  • Cat C2.2 Diesel Engine
  • Meets EU Stage IIIA equivalent and Bharat Stage III emission standards
  • Air Cleaner, Dual Element, Radial Seal
  • S·O·SSM Sampling Valve, Hydraulic Oil
  • Filters: Spin on, Hydraulic
  • Filters: Bayonet-type, Fuel and Water Separator
  • Tilt Up Radiator/Hydraulic Oil Cooler
  • Muffler, Standard
  • Spring Applied, Hydraulically Released Parking Brakes
  • Hydrostatic Transmission
  • Four Wheel Chain Drive
OTHER
  • Engine Enclosure, Lockable
  • Extended Life Antifreeze, –36° C (–33° F)
  • Machine Tie Down Points (4)
  • Support, Lift Arm
  • Hydraulic Oil Level Sight Gauge
  • Radiator Coolant Level Sight Gauge
  • Radiator, Expansion Bottle
  • Cat ToughGuard™ Hose
  • Auxiliary, Hydraulics, Continuous Flow
  • Heavy Duty, Flat Faced Quick Disconnects
  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
  • Electrical Outlet, Beacon
  • Belly Pan Cleanout
  • Product Link™ PL240, Cellular
MANDATORY EQUIPMENT
  • Quick Coupler, Mechanical or Hydraulic
  • Seat Belt, 50 mm (2 in) or 75 mm (3 in)
  • Comfort Packages (must select one of the following):
    – Open ROPS (C0): Static Seat
    – Open ROPS (C1): Suspension Seat, Deluxe Headliner
    – Enclosed ROPS (C3): Suspension Seat, Deluxe Headliner, Heater, Air Conditioner, Cab Door, Side Windows, Cup Holder, Cab Debris Barrier
  • Control Packages (must select one of the following):
    – Control Package 1: On/Off Auxiliary Hydraulics Basic
    – Control Package 2: Proportional Auxiliary Hydraulics Deluxe
    – Control Package 3: Proportional Auxiliary Hydraulics Deluxe, Work Tool Harness

Additional information

Offering Type

Engine - Gross Power - SAE J1995

38 kW ( 51 HP )

Engine - Displacement

2.2 l ( 134 in³ )

Engine - Stroke

100 mm ( 3.9 in )

Engine - Bore

84 mm ( 3.3 in )

Engine Model

Cat C2.2

Engine - Net Power - SAE 1349/ISO 9249

35 kW ( 47 HP )

Operating Specifications - Rated Operating Capacity

635 kg ( 1400 lb )

Weights - Operating Weight

2581 kg ( 5690 lb )

Operating Specifications - Tipping Load

1270 kg ( 2800 lb )

Operating Specifications - Breakout Force - Tilt Cylinder

1852 kg ( 4083 lb )

Weights - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Operating Specifications - Rated Operating Capacity with Optional Counterweight

680 kg ( 1500 lb )

Operating Specifications - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System - Hydraulic Flow - Standard - Hydraulic Power (Calculated)

23.2 kW ( 31.1 HP )

Hydraulic System - Hydraulic Flow - Standard - Loader Hydraulic Pressure

23000 kPa ( 3335 psi )

Hydraulic System - Hydraulic Flow - Standard - Loader Hydraulic Flow

61 l/min ( 16 gal/min )

Cab - ROPS

SAE J1040 MAY94, ISO 3471:1994

Cab - FOPS

SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I

Cab - FOPS Level II

SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II (optional)

Service Refill Capacities - Chain Box - Each Side

6 l ( 1.6 gal (US) )

Service Refill Capacities - Cooling System

10 l ( 2.6 gal (US) )

Service Refill Capacities - Engine Crankcase

10 l ( 2.6 gal (US) )

Service Refill Capacities - Fuel Tank

58 l ( 15.4 gal (US) )

Service Refill Capacities - Hydraulic System

55 l ( 14.5 gal (US) )

Service Refill Capacities - Hydraulic Tank

35 l ( 9.2 gal (US) )

Power Train - Travel Speed - Forward or Reverse

12.7 km/h ( 7.9 mile/h )

Dimensions - Wheel Base

986 mm ( 39 in )

Dimensions - Length - With Bucket on Ground

3233 mm ( 127 in )

Dimensions - Length - Without Bucket

2519 mm ( 99 in )

Dimensions - Height - Top of Cab

1950 mm ( 77 in )

Dimensions - Vehicle Width over Tires

1525 mm ( 60 in )

Dimensions - Ground Clearance

195 mm ( 8 in )

Dimensions - Departure Angle

26°

Dimensions - Maximum Dump Angle

40°

Dimensions - Bucket Pin Height - Maximum Lift

2854 mm ( 112 in )

Dimensions - Reach - Maximum Lift/Dump

505 mm ( 20 in )

Dimensions - Turn Radius from Center - Machine Rear

1502 mm ( 59 in )

Dimensions - Bucket Pin Height - Carry Position

200 mm ( 8 in )

Dimensions - Bumper Overhang - Behind Rear Axle

967 mm ( 38 in )

Dimensions - Turn Radius from Center - Bucket

1944 mm ( 77 in )

Dimensions - Turn Radius from Center - Coupler

1195 mm ( 47 in )

Dimensions - Maximum Reach with Arms Parallel to Ground

1291 mm ( 51 in )

Dimensions - Clearance at Maximum Lift and Dump

2169 mm ( 85.4 in )

Dimensions - Maximum Overall Height

3709 mm ( 146 in )

Dimensions - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, OROPS, 1524 mm (60 in) dirt bucket, Cat 10×16.5 tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions - Rack Back Angle - Maximum Height

81°
