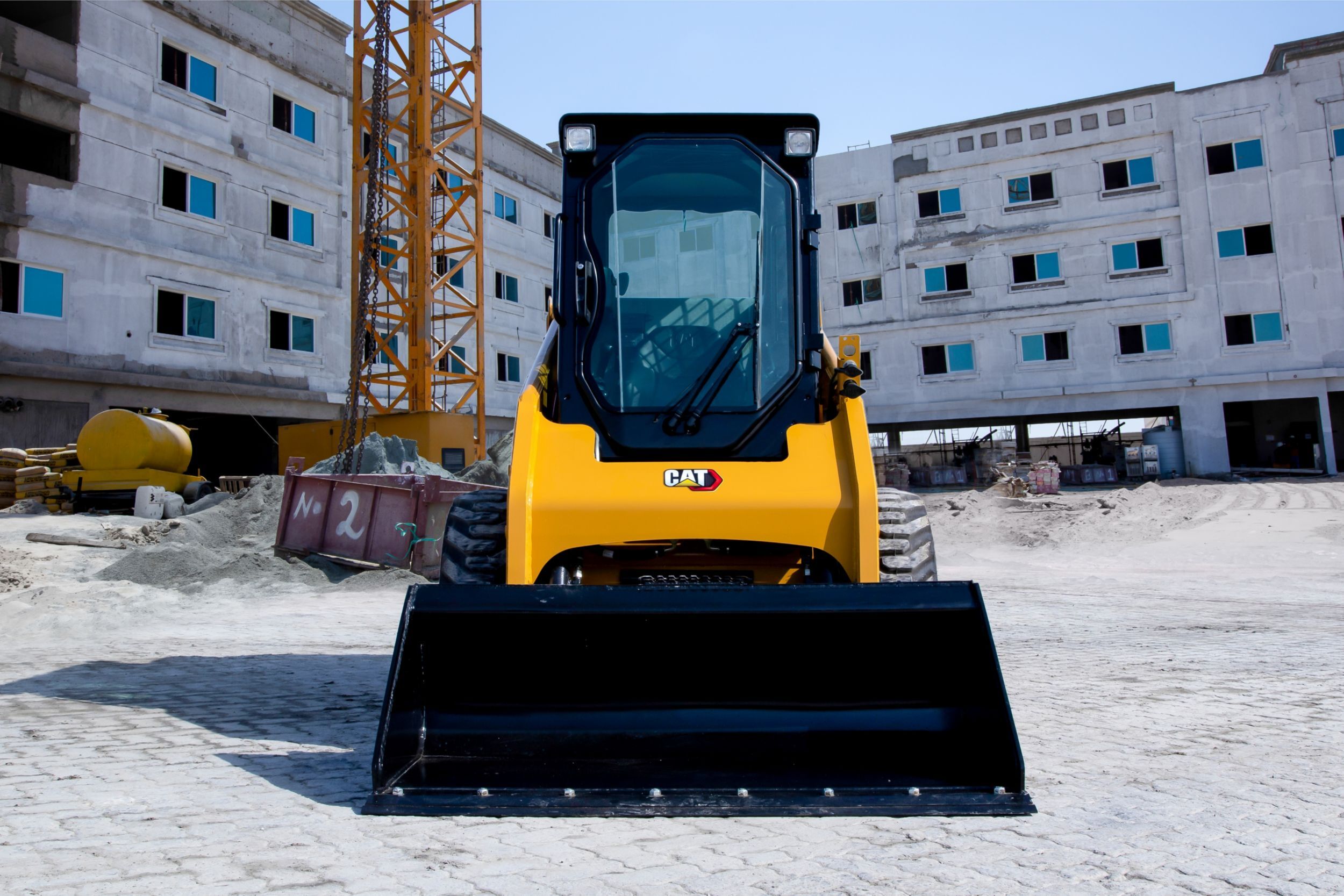

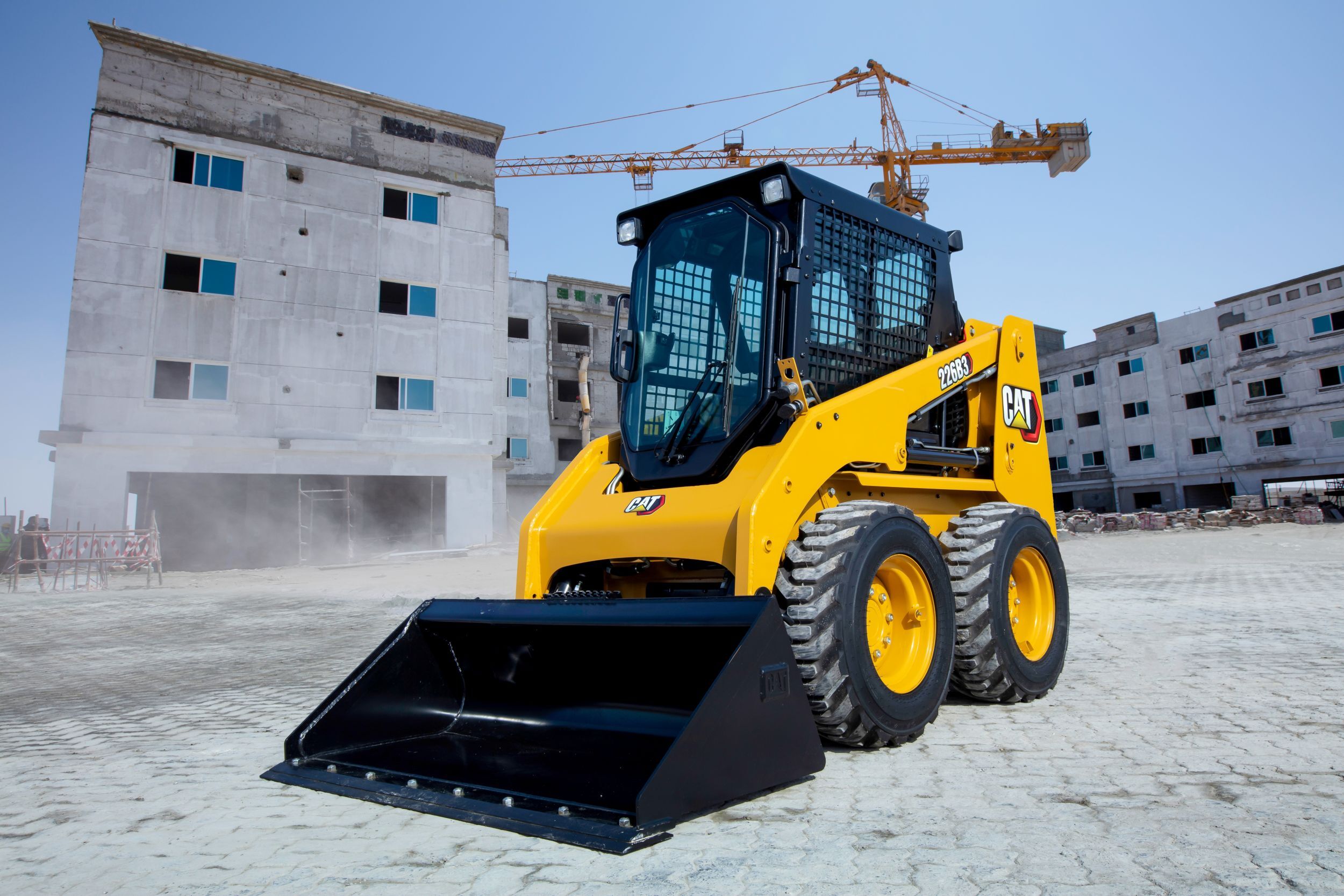

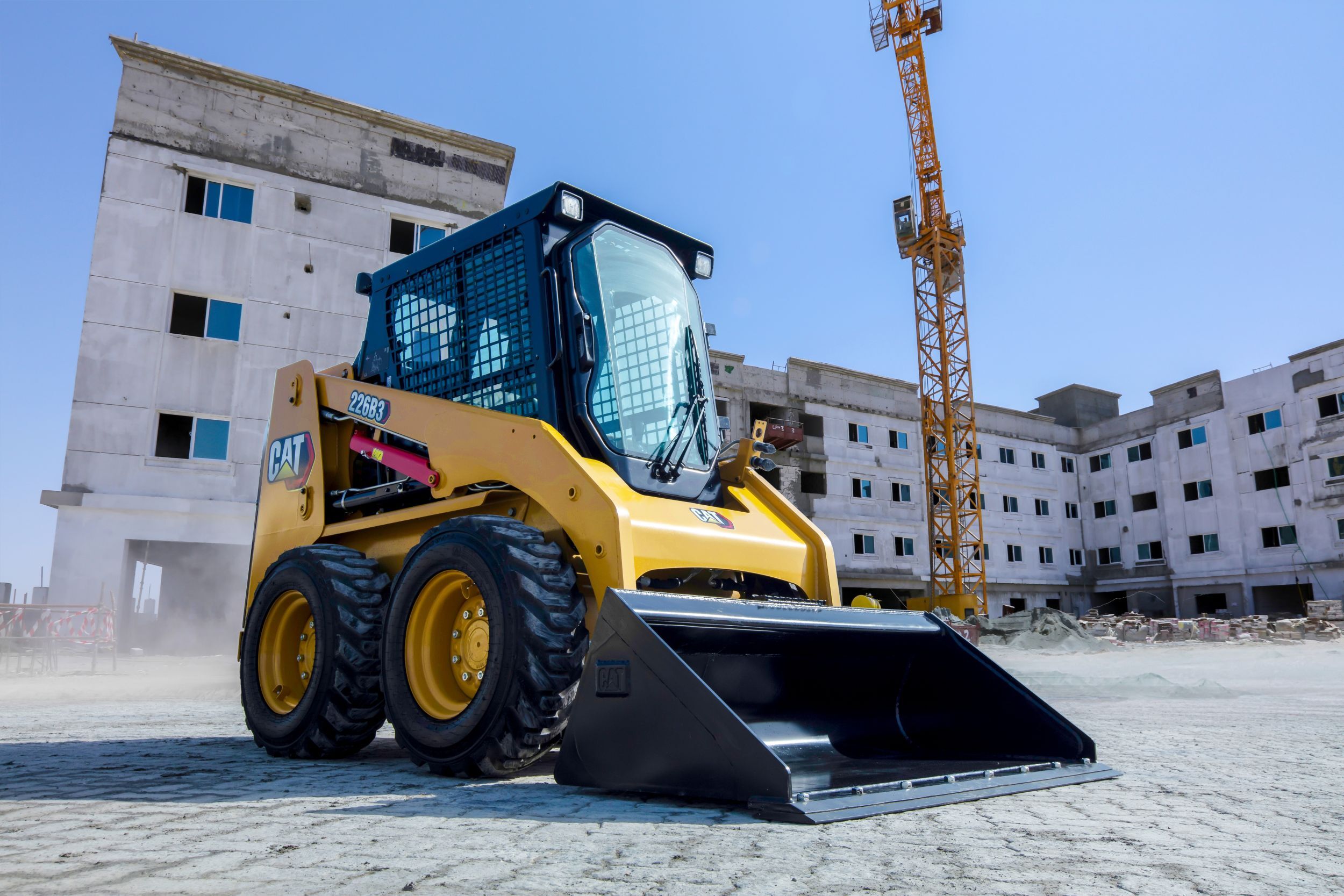

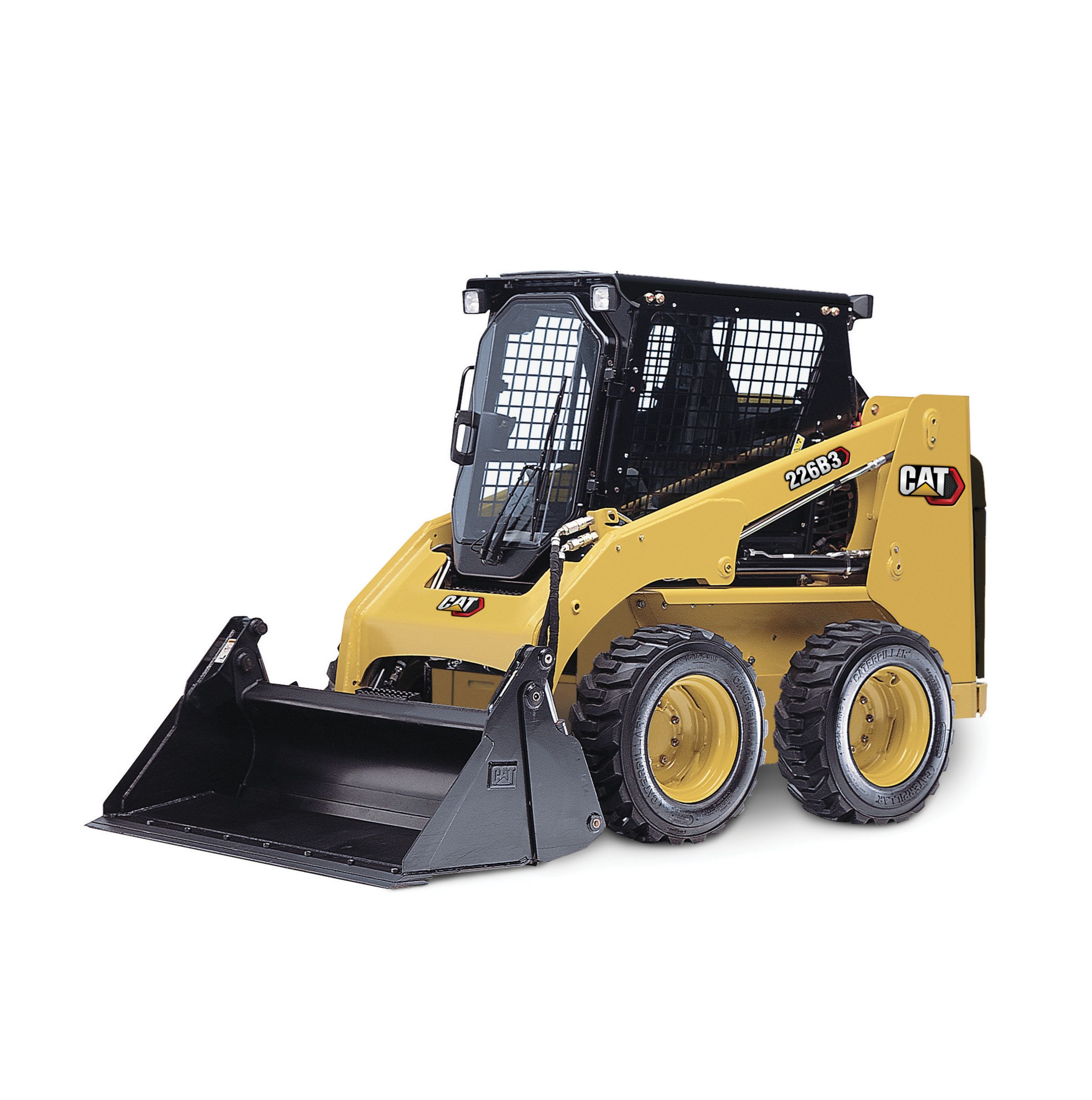

226B3 Skid Steer Loader

The Cat® Skid Steer Loader, with many work tool options, is ideal for construction, landscaping, agriculture and other applications. It delivers traditional Cat reliability and durability with excellent productivity.

Category:

High Performance Hydraulic System

Maximum power and reliability are built into the machine's hydraulic system. In addition to providing power to the wheels, this system also provides the loader lift and tilt functions, powers the auxiliary circuit to drive work tools and drives the engine cooling fan. The hydraulic pumps are driven directly off the engine for maximum hydraulic performance and reliability - no belts are used. The hydraulic system also features:

  • Standard auxiliary hydraulics to power work tools that are available through quick connect hydraulic couplings rigidly mounted to the loader arm.
  • Cat ToughGuardâ„¢ hoses for increased reliability and durability.

All Day Comfort

Comfort and ease of operation have been designed into every aspect of the operator station. The wide, spacious interior and uncluttered floor provide a comfortable work environment with excellent head, shoulder and leg room to keep productivity high and fatigue low. The adjustable seat and low effort controls keep the operator comfortable throughout the work day.

The Right Tool for the Job

Get the most out of your machine with the comprehensive line of Cat Work Tools. Designed and built for optimum performance and durability, these tools deliver high productivity in a variety of applications to maximize the versatility and flexibility of the Cat Skid Steer Loader:

  • Augers
  • Backhoes
  • Blades (angle, dozer)
  • Buckets (general purpose, high capacity, dirt, utility, light material, multi purpose, industrial grapple, utility grapple)
  • Brooms (angle, pickup, utility)
  • Brushcutters
  • Cold Planers
  • Forks (pallet, industrial grapple, utility grapple, utility)
  • Hydraulic Hammers
  • Landscape Tillers
  • Landscape Rakes
  • Material Handling Arm
  • Power Box Rakes
  • Shear
  • Snow Blowers
  • Stump Grinders
  • Trenchers
  • Vibratory Compactors
  • Wheel Saws

Standard Equipment

ELECTRICAL
  • 12 volt Electrical System
  • 85 ampere Alternator
  • Automatic Glow Plug Activation
  • Ignition Key Start/Stop Switch
  • Lights: Gauge backlighting, two rear tail lights, two adjustable front and rear halogen lights, dome light.
OPERATOR ENVIRONMENT
  • Gauges: Fuel level, hour meter
  • Operator Warning System Indicators: Air filter restriction, alternator output, armrest raised/operator out of seat, engine coolant temperature, engine oil pressure, glow plug activation, hydraulic filter restriction, hydraulic oil temperature, parking brake engaged
  • Vinyl seat
  • Pull Down Ergonomic Contoured Armrest
  • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic system disables, hydrostatic transmission disables, parking brake engages
  • ROPS Cab, Open, Tilt Up
  • FOPS, Level I
  • Top and Rear Windows
  • Floor Mat
  • Interior Rear View Mirror
  • 12 volt Electric Socket
  • Horn
  • Backup Alarm
  • Hand and Foot Throttle
POWER TRAIN
  • Cat C2.2 T Diesel Engine
  • Engine is Tier 4 Interim/Stage IIIA/Bharat Stage III Equivalent
  • Engine meets Brazil Mar-1 emission standards equivalent to Tier 4 Interim and Stage IIIA
  • Air Cleaner, Dual Element, Radial Seal
  • S·O·SSM Sampling Valve, Hydraulic Oil
  • Filters, Spin-on, Hydraulic
  • Filters, Bayonet-type, Fuel and Water Separator
  • Tilt Up Radiator/Hydraulic Oil Cooler
  • Spring Applied, Hydraulically Released Parking Brakes
  • Hydrostatic Transmission
  • Four Wheel Chain Drive
OTHER

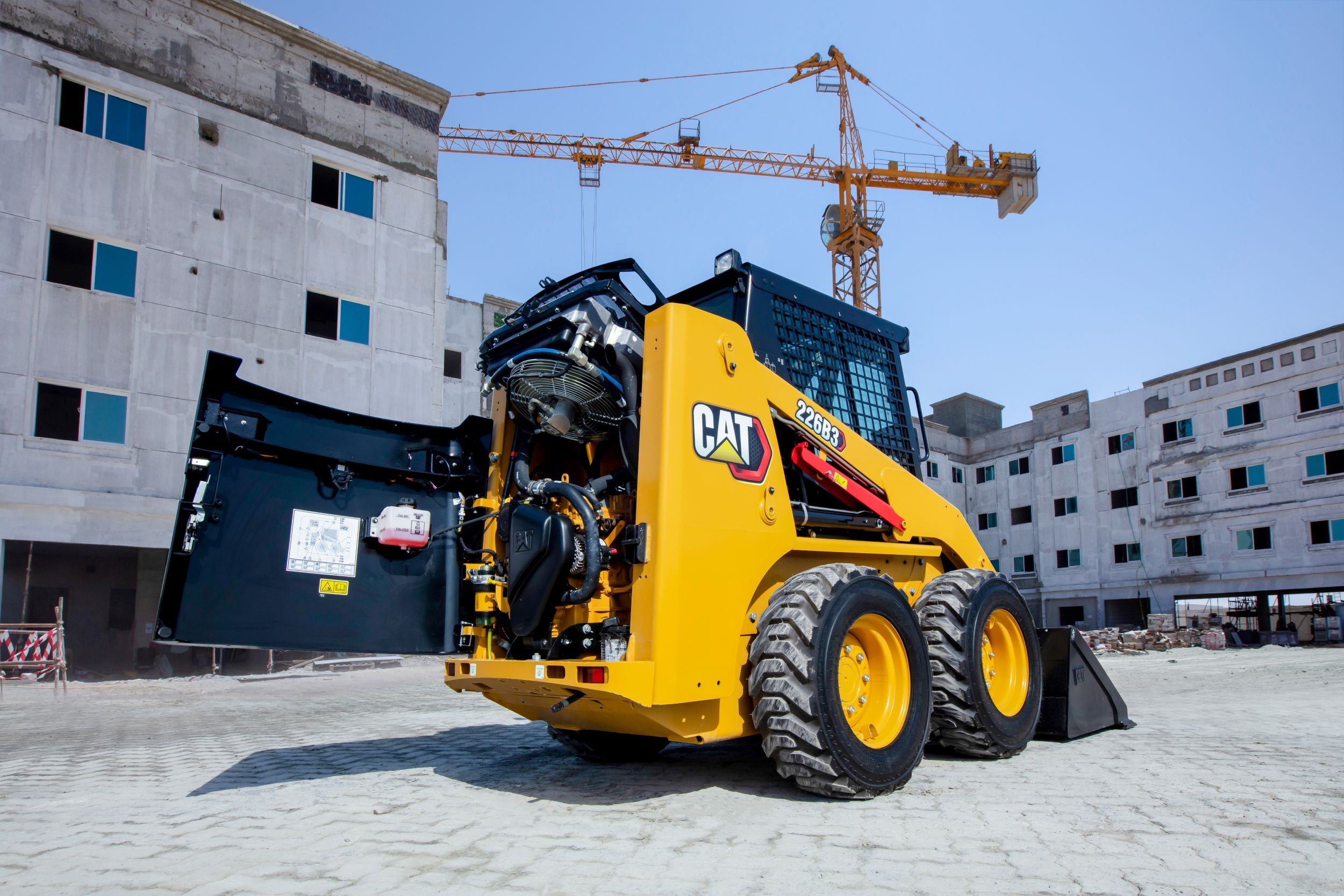

  • Engine Enclosure, Lockable
  • Extended Life Antifreeze, –36° C (–33° F)
  • Machine Tie Down Points (4)
  • Support, Lift Arm
  • Hydraulic Oil Level Sight Gauge
  • Radiator Coolant Level Sight Gauge
  • Radiator, Expansion Bottle
  • Cat ToughGuard™ Hose
  • Auxiliary, Hydraulics, Continuous Flow
  • Heavy Duty, Flat Faced Quick Disconnects
  • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
  • Electrical Outlet, Beacon
  • Belly Pan Cleanout
MANDATORY EQUIPMENT
  • Quick Coupler, Mechanical or Hydraulic
  • Seat Belt, 50 mm (2 in) or 75 mm (3 in)
  • Cooling Fan, Demand or Standard
  • Comfort Packages (must select one of the following):
    – Open ROPS (C0): Static Seat
    – Open ROPS (C1): Suspension Seat, Deluxe Headliner
    – Enclosed ROPS (C2): Features of C1 Package plus Heater, Cab Door, Side Windows, Cup Holder, Cab Debris Barrier
    – Enclosed ROPS (C3): Features of C2 Package plus Air Conditioner
  • Control Packages (must select one of the following):
    – Control Package 1: On/Off Auxiliary Hydraulics Basic
    – Control Package 2: Proportional Auxiliary Hydraulics Deluxe
    – Control Package 3: Proportional Auxiliary Hydraulics Deluxe, Work Tool Harness
    – Control Package 4: High Flow Hydraulics

Additional information

Offering Type

Engine - Gross Power

45.5 kW ( 61 HP )

Engine - Gross Power - SAE J1995

45.5 kW ( 61 HP )

Engine - Displacement

2.2 l ( 134 in³ )

Engine - Stroke

100 mm ( 3.9 in )

Engine - Bore

84 mm ( 3.3 in )

Engine Model

Cat® C2.2 T

Engine - Net Power - SAE 1349/ISO 9249

42 kW ( 56 HP )

Weights - Operating Weight

2641 kg ( 5822 lb )

Weights - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Operating Specifications - Rated Operating Capacity

680 kg ( 1500 lb )

Operating Specifications - Rated Operating Capacity with Optional Counterweight

726 kg ( 1600 lb )

Operating Specifications - Tipping Load

1360 kg ( 3000 lb )

Operating Specifications - Breakout Force - Tilt Cylinder

1852 kg ( 4083 lb )

Operating Specifications - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Hydraulic System - Hydraulic Flow - High Flow - Hydraulic Power (Calculated)

37.7 kW ( 50.6 HP )

Hydraulic System - Hydraulic Flow - High Flow - Loader Hydraulic Flow

104 l/min ( 27 gal/min )

Hydraulic System - Hydraulic Flow - High Flow - Loader Hydraulic Pressure

23000 kPa ( 3335 psi )

Hydraulic System - Hydraulic Flow - Standard - Loader Hydraulic Flow

61 l/min ( 16 gal/min )

Hydraulic System - Hydraulic Flow - Standard - Loader Hydraulic Pressure

23000 kPa ( 3335 psi )

Hydraulic System - Hydraulic Flow - Standard - Hydraulic Power (Calculated)

23.2 kW ( 31.1 HP )

Cab - ROPS

ISO 3471:2008

Cab - FOPS

ISO 3449:2005 Level I

Power Train - Travel Speed - Forward or Reverse

12.7 km/h ( 7.9 mile/h )

Service Refill Capacities - Chain Box - Each Side

6 l ( 1.6 gal (US) )

Service Refill Capacities - Cooling System

10 l ( 2.6 gal (US) )

Service Refill Capacities - Engine Crankcase

10 l ( 2.6 gal (US) )

Service Refill Capacities - Fuel Tank

58 l ( 15.4 gal (US) )

Service Refill Capacities - Hydraulic System

55 l ( 14.5 gal (US) )

Service Refill Capacities - Hydraulic Tank

35 l ( 9.2 gal (US) )

Dimensions - Wheel Base

986 mm ( 39 in )

Dimensions - Length - With Bucket on Ground

3233 mm ( 127 in )

Dimensions - Length - Without Bucket

2519 mm ( 99 in )

Dimensions - Height - Top of Cab

1950 mm ( 77 in )

Dimensions - Vehicle Width over Tires

1525 mm ( 60 in )

Dimensions - Maximum Overall Height

3709 mm ( 146 in )

Dimensions - Bucket Pin Height - Maximum Lift

2854 mm ( 112 in )

Dimensions - Bucket Pin Height - Carry Position

200 mm ( 8 in )

Dimensions - Reach - Maximum Lift/Dump

505 mm ( 20 in )

Dimensions - Clearance at Maximum Lift and Dump

2169 mm ( 85.4 in )

Dimensions - Ground Clearance

195 mm ( 8 in )

Dimensions - Departure Angle

26°

Dimensions - Maximum Dump Angle

40°

Dimensions - Turn Radius from Center - Coupler

1195 mm ( 47 in )

Dimensions - Turn Radius from Center - Bucket

1944 mm ( 77 in )

Dimensions - Rack Back Angle - Maximum Height

81°

Dimensions - Bumper Overhang - Behind Rear Axle

967 mm ( 38 in )

Dimensions - Maximum Reach with Arms Parallel to Ground

1291 mm ( 51 in )

Dimensions - Note

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1 speed, OROPS, dirt bucket, tires, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions - Turn Radius from Center - Machine Rear

1502 mm ( 59 in )
