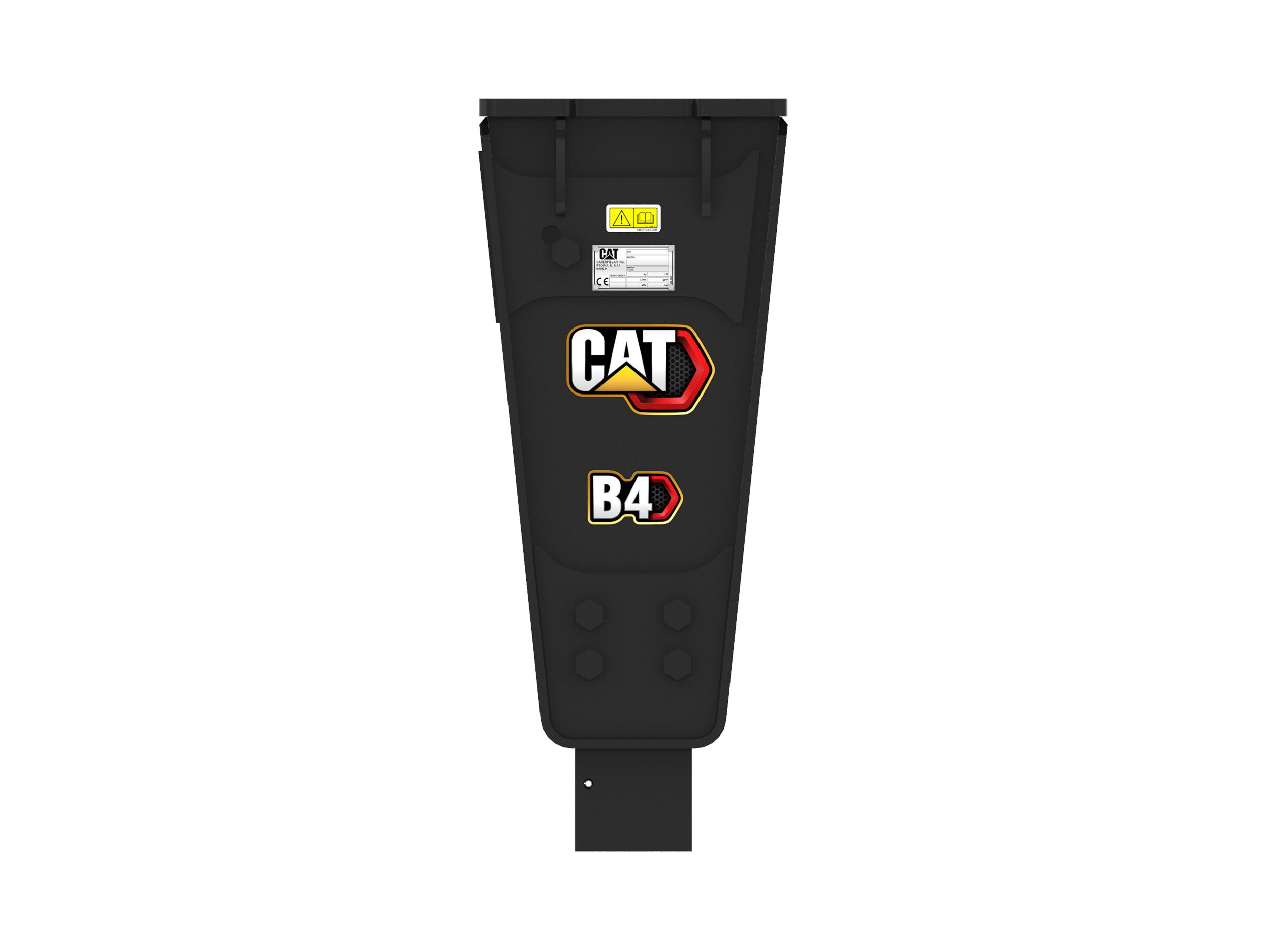

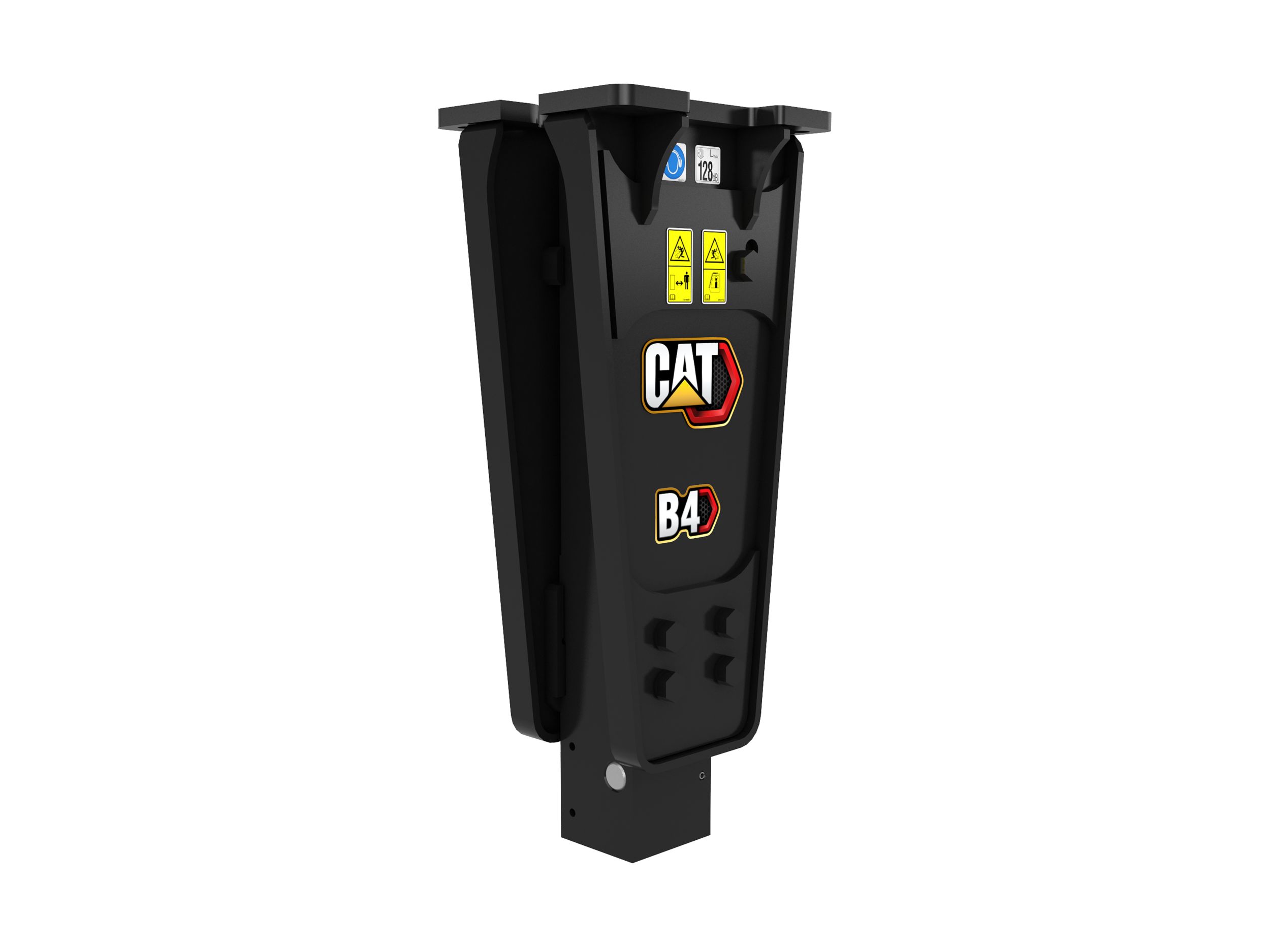

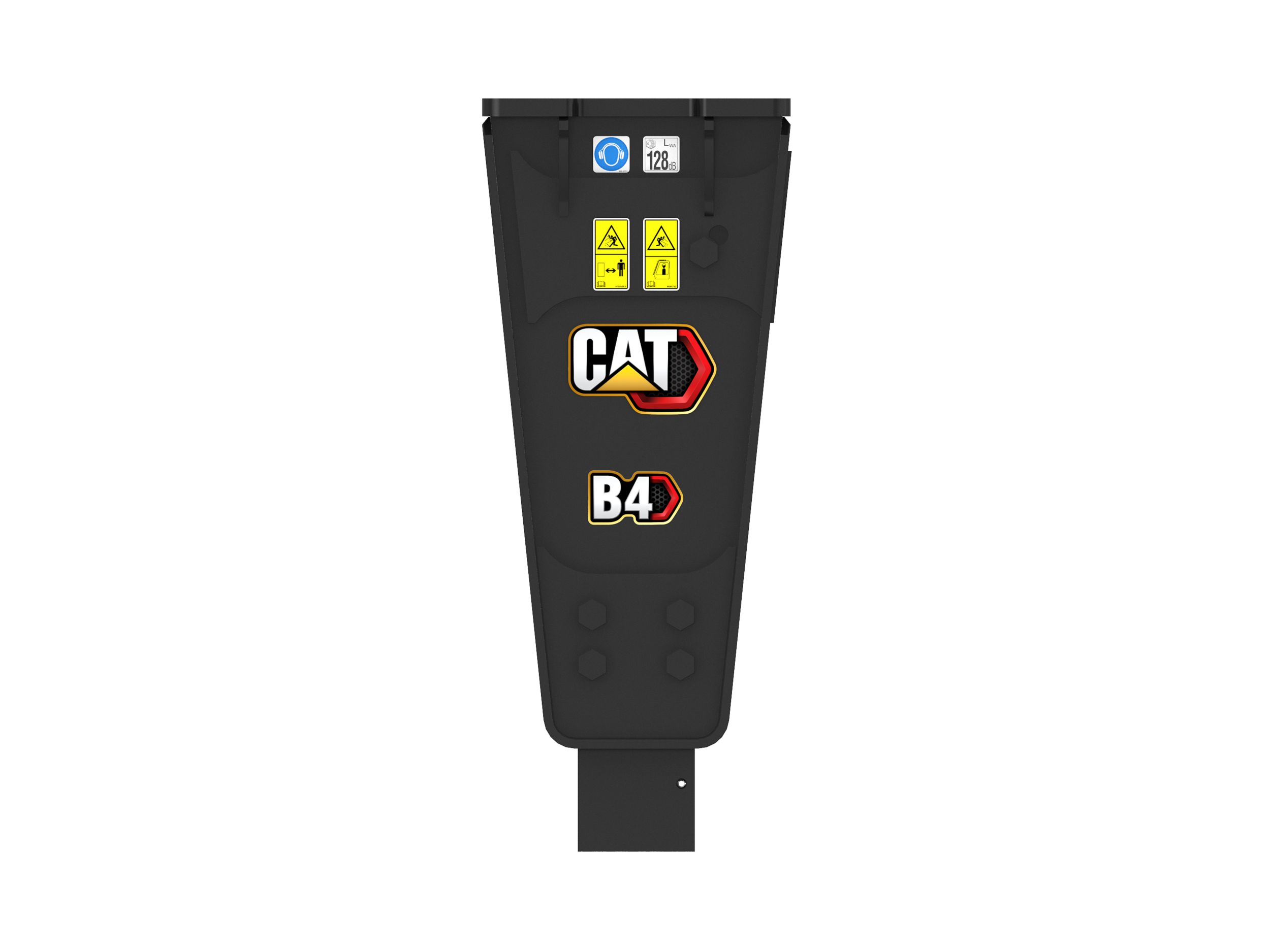

B4
Application
Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.
Ergonomically Positioned Hydraulic Lines
Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.
Gas Fired Design
Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

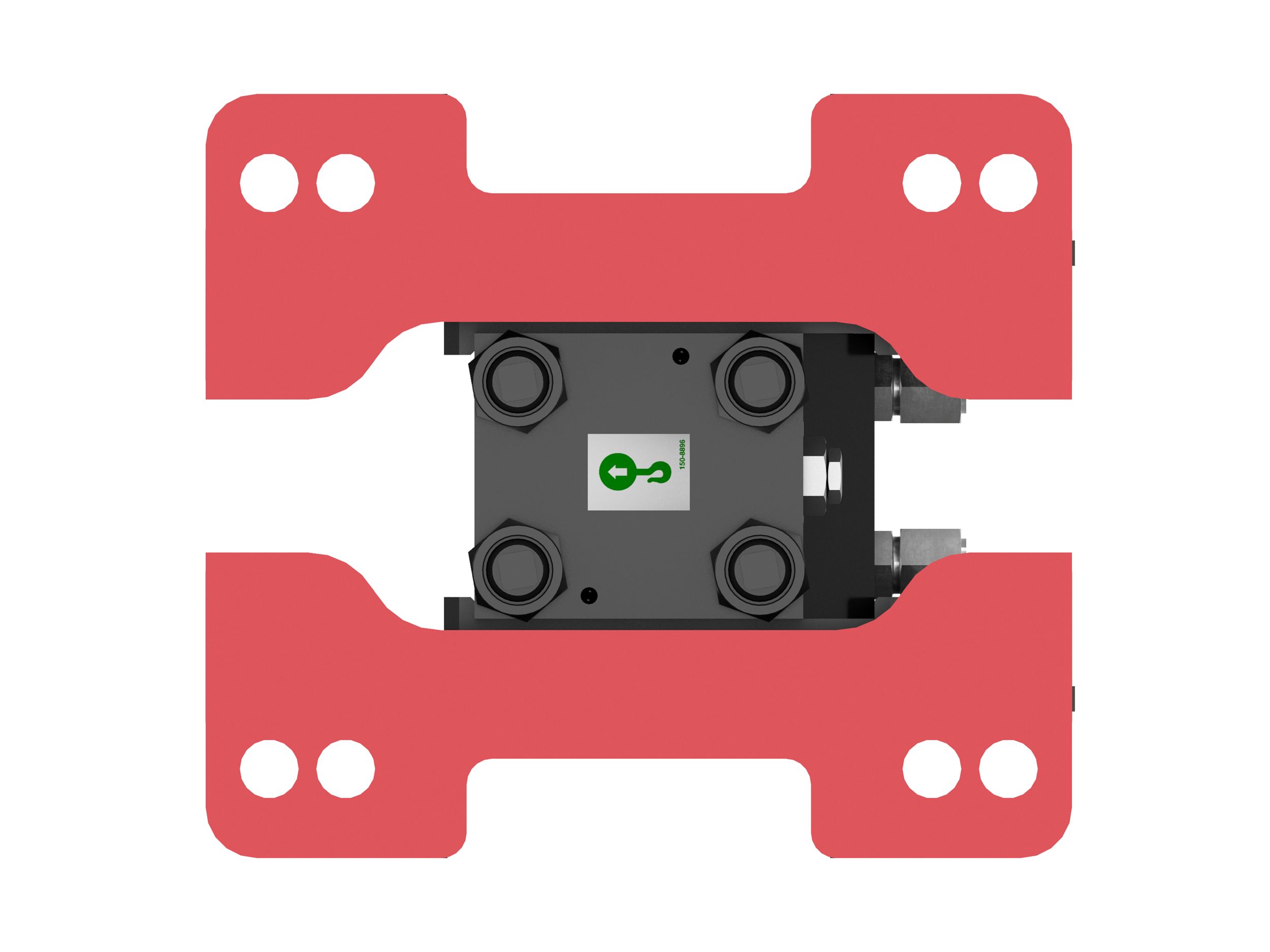

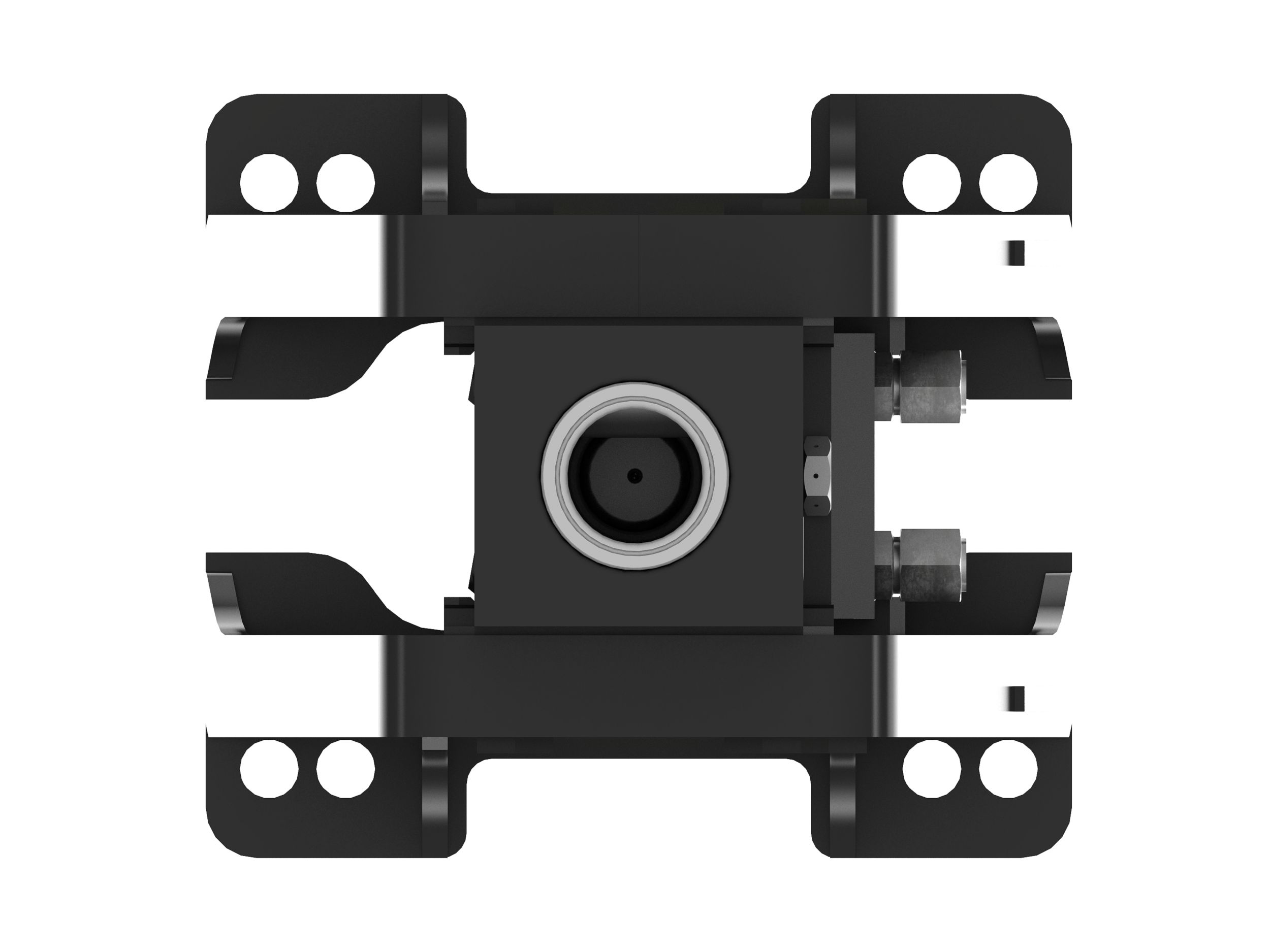

Flat Top/Top-Mount Style

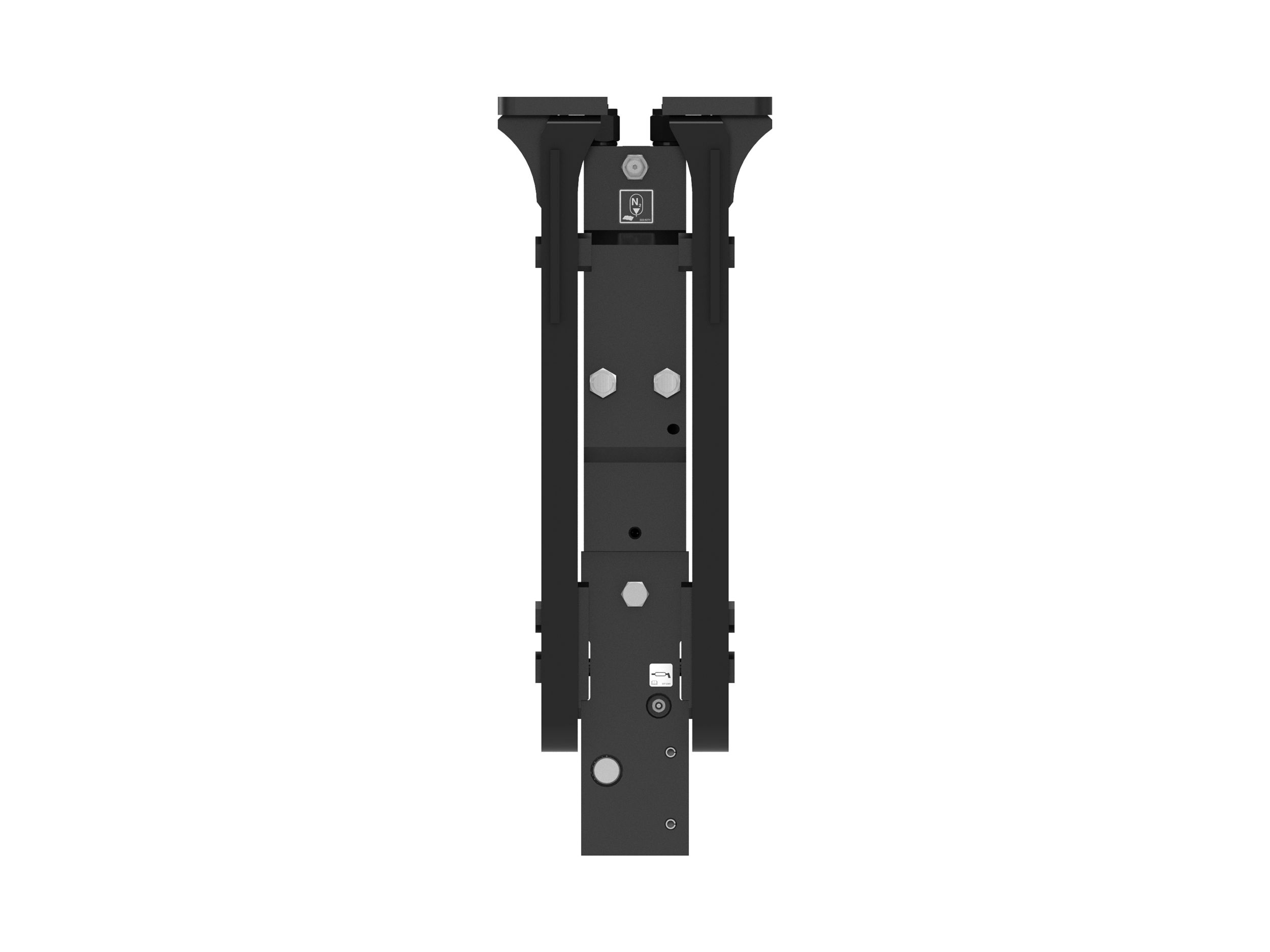

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.
Newly Designed Skid Steer Loader Mounting Bracket
Newly designed skid steer loader mounting bracket features enhanced hose routing and improved ingress/egress with new bolt-on step and updated central step. Brackets are compatible with H Model Hammers, E Series Hammers and the CVP16 and CVP40 Vibratory Plate Compactors.

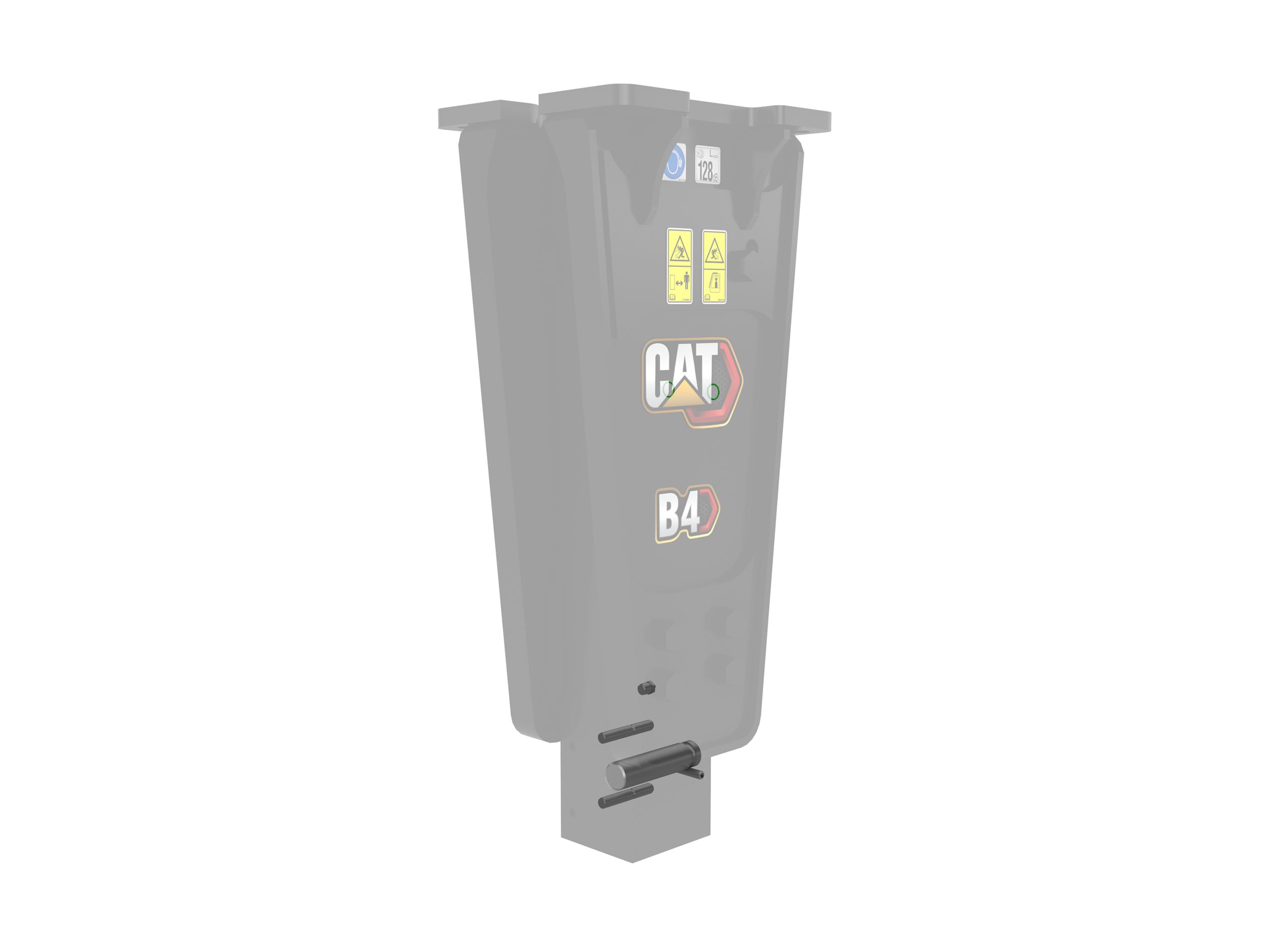

Slip Fit Bushings
Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Tool mounted OMM holder is sealed from the elements and includes all operation manuals and maintenance guides required for proper operation of the hammer (Skid Steer Loader bracket only).

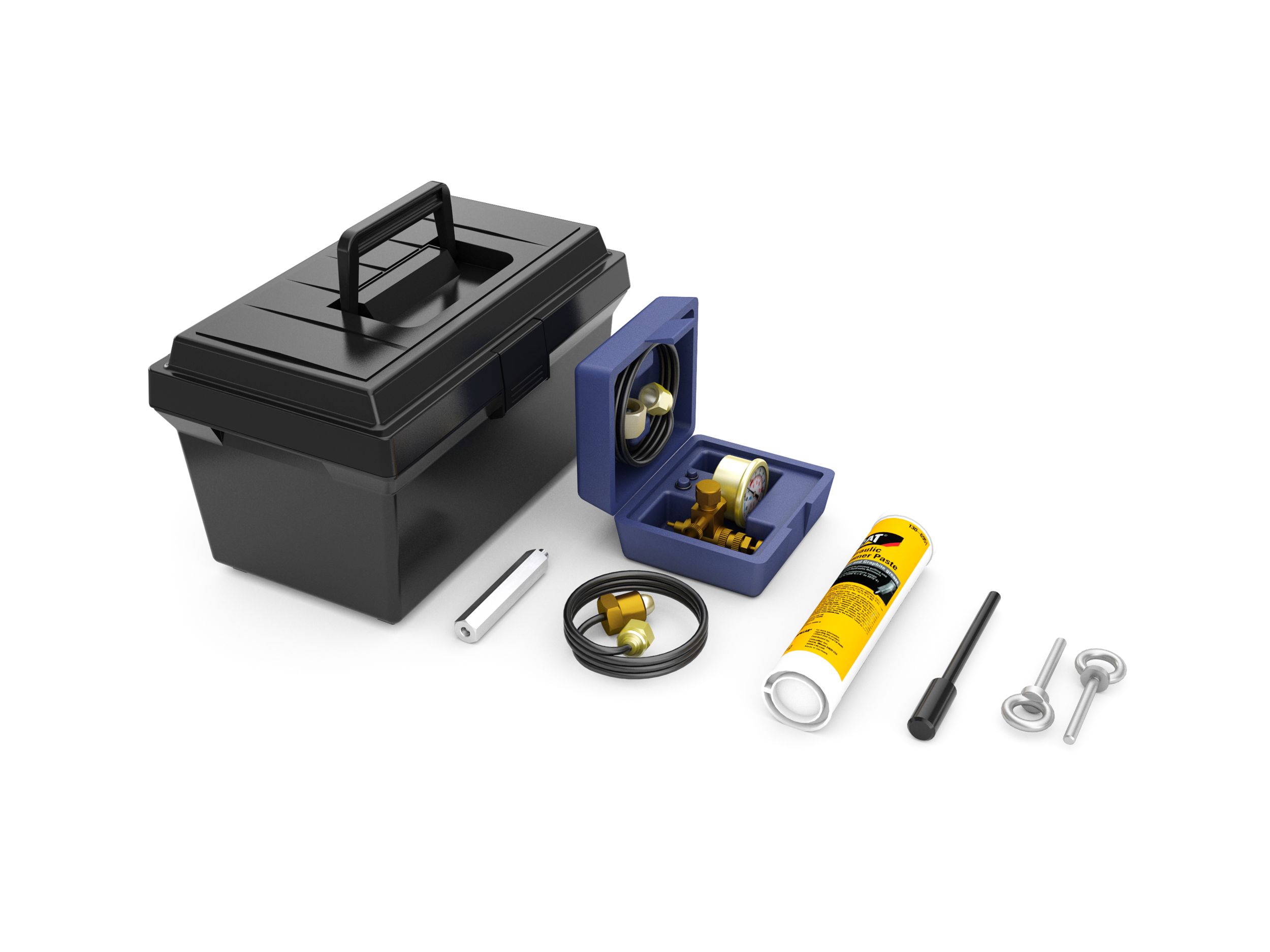

Included with Each B Series Hammer
Every B Series Hammer comes with:
- Tool Kit w/Storage Box

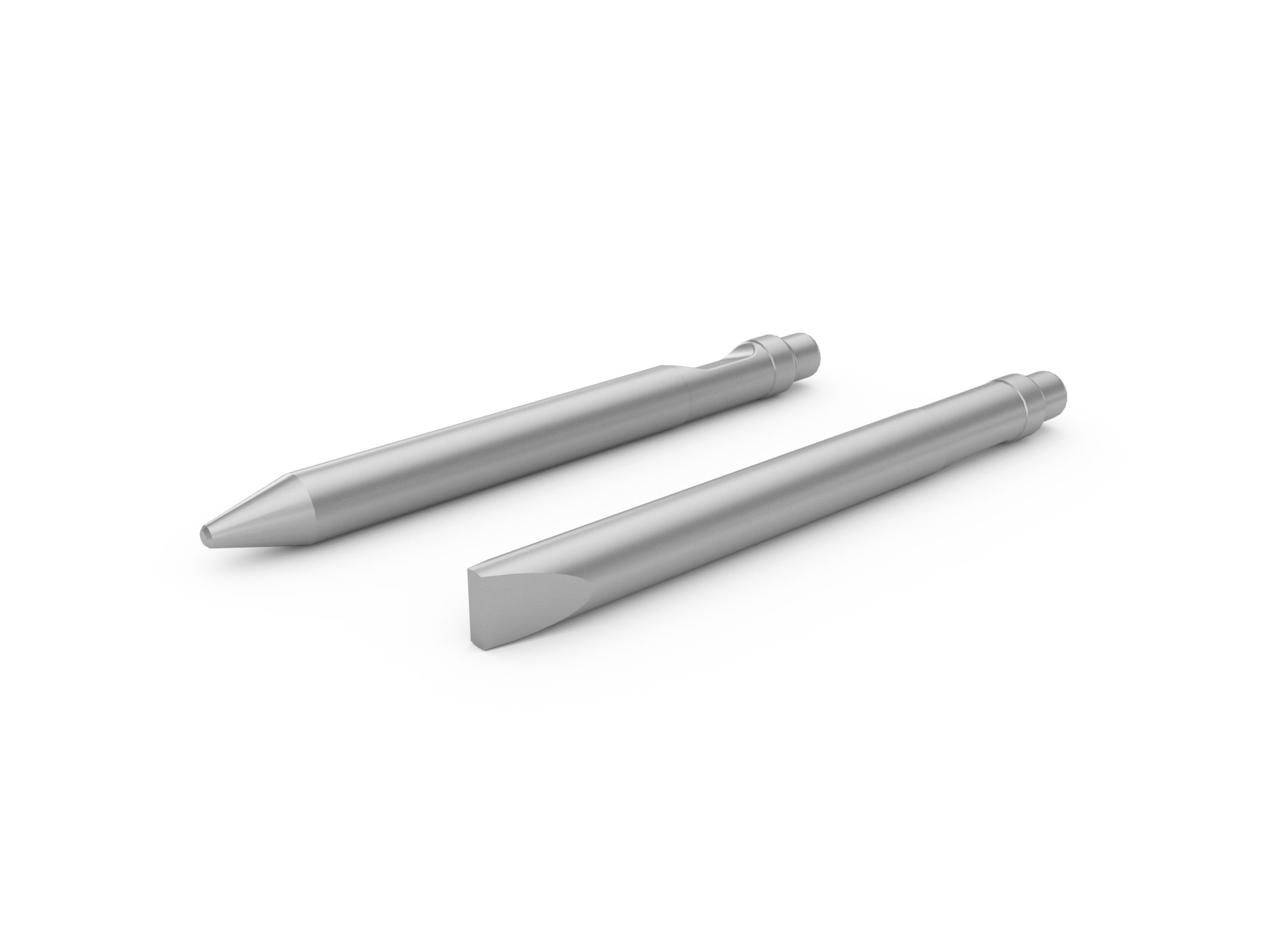

- 2 Tools (1 x Conical and 1 x Transverse Chisel)
- Maintenance Kit
Videos
Virtual Tours
Documents & Brochures
Additional information
الوزن أثناء التشغيل - مع الأداة | 159 كجم ( 350.5 رطل ) |
---|---|
فئة الطاقة | 370 J ( 272.9 ft·lbf ) |
فئة الماكينة | الحفارات الصغيرة 2-5 أطنان، اللوادر المزودة بسيور انزلاقية/المجنزرة الصغيرة 216-299 |
قطر عمود الأداة | 53 مم ( 2.1 بوصة ) |
تردد التصادم | 600-1100 ضربة في الدقيقة |
أدنى ضغط تشغيل | 10286 كيلو باسكال ( 1491.9 باوند لكل بوصة مربعة ) |
أدنى وزن للحامل | 2540 كجم ( 5599.7 رطل ) |
التدفق الهيدروليكي المثالي | 25-50 لترًا في الدقيقة (6,6-13,2 جالونًا في الدقيقة) |
العرض الإجمالي | 300 مم ( 11.8 بوصة ) |
الطول الإجمالي | 340 مم ( 13.4 بوصة ) |
الارتفاع الإجمالي | 1190 مم ( 46.9 بوصة ) |
الارتفاع - بدون أداة | 830 مم ( 32.7 بوصة ) |
مستوى الصوت | 128 dB |
مقاس كتيفة التركيب | صغير-متوسط |
