2134 mm (84 in)

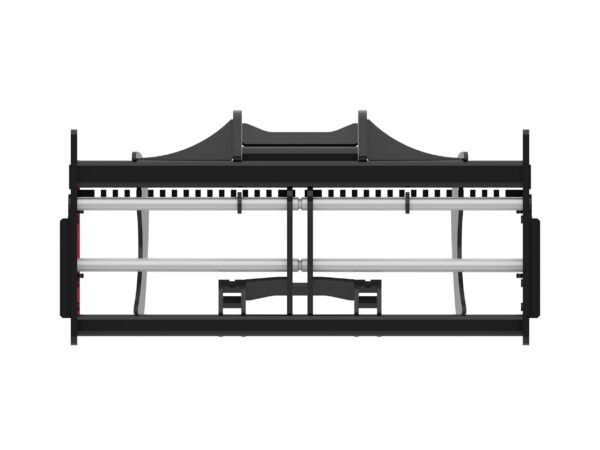

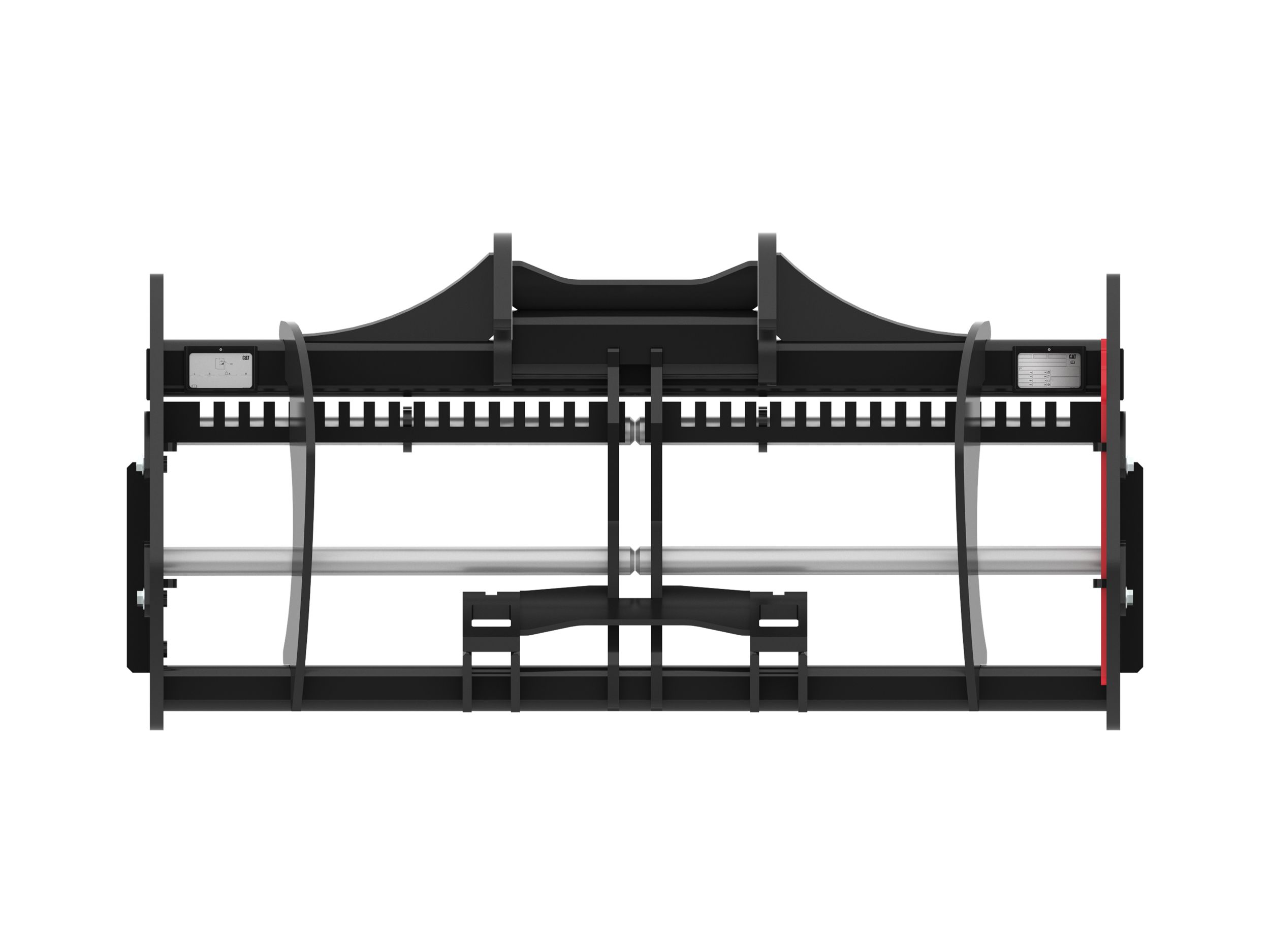

2134 mm (84 in) Construction Fork Carriage
For use in heavy duty applications where standard pallet fork carriages may not be suitable.
Heavy Duty Design and High Backs
This heavy duty carriage was specially designed to deliver performance at construction sites, moving palletized and large materials around. The high backs and good visibility through the frame make it happen.
Swinging Forks Capability
In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just removing the lower bar and placing at the special storage located at the bottom of the carriage.
Adjustable Fork Positions
Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.
Positioning Lever
Use the included red lever located at the right rear storage area to move your forks with safety and convenience.
Additional Information
| الارتفاع | 1095 مم ( 43.1 بوصة ) |
|---|---|
| العرض | 2134 مم ( 84 بوصة ) |
| الوزن | 521 كجم ( 1148.6 رطل ) |
| الطول | 366 مم ( 14.4 بوصة ) |
| نوع الوصلة البينية | قارنة التوصيل Fusion™ |
| Offering Type |
-
