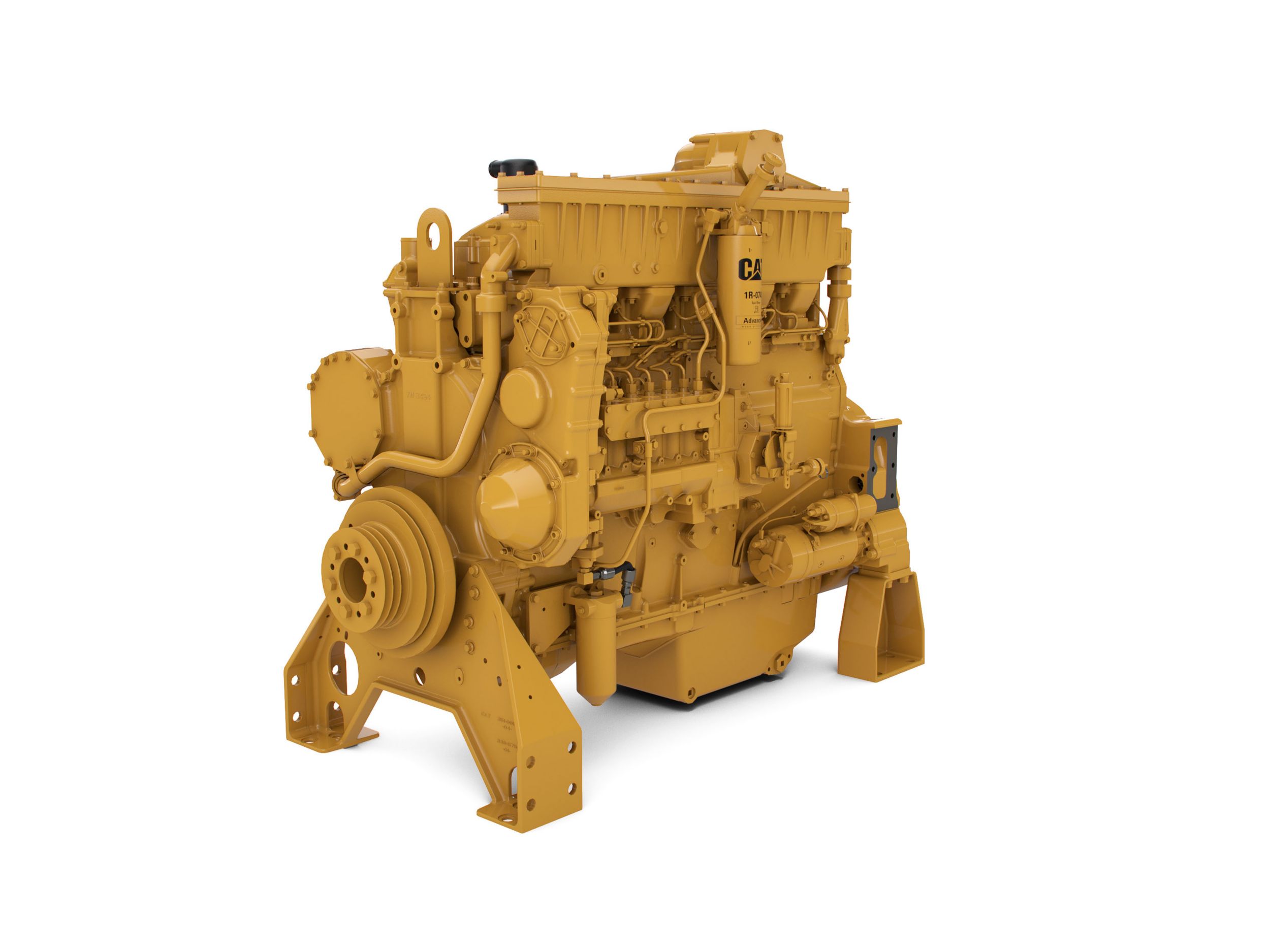

3406C

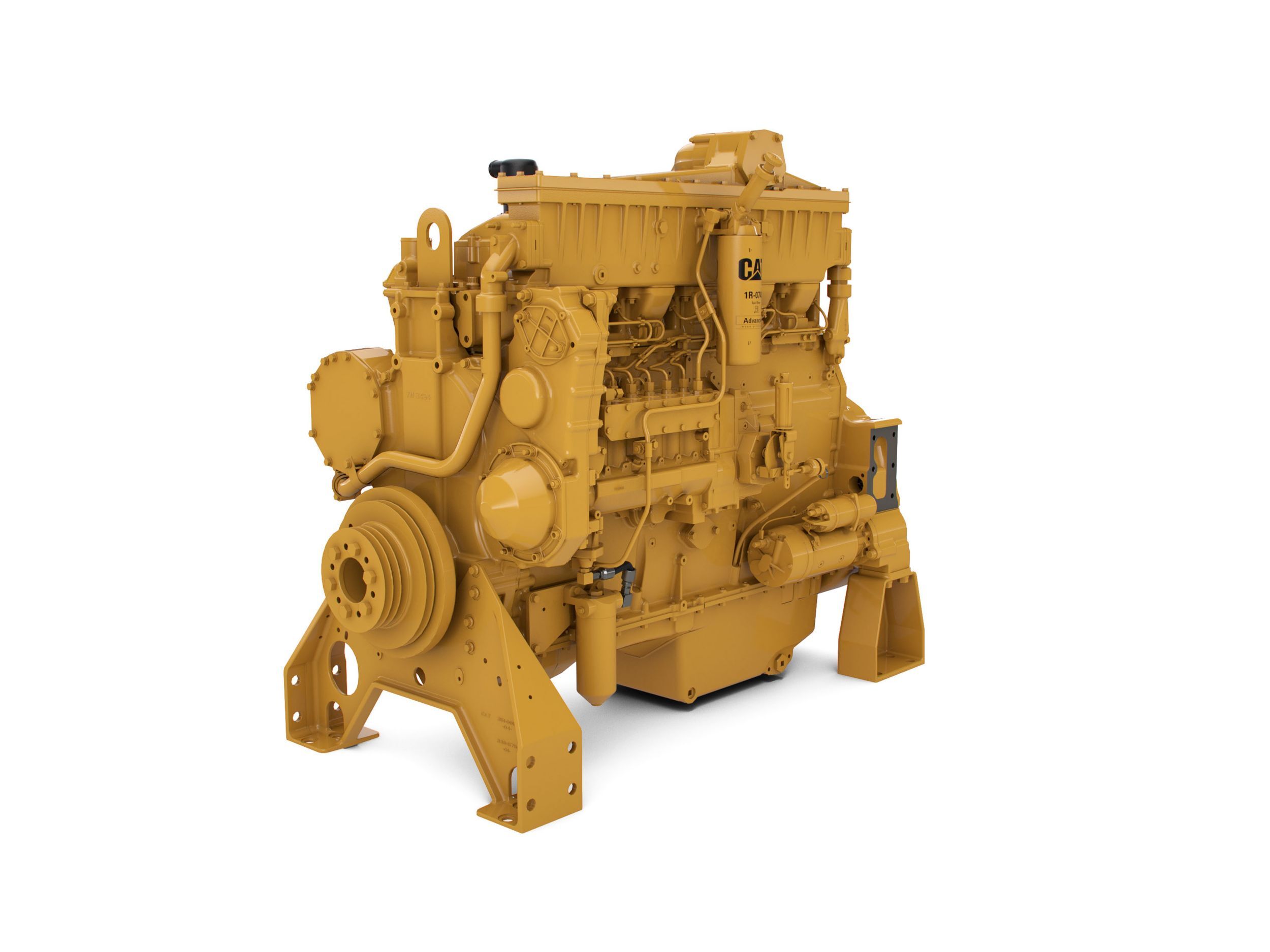

Cat® 3406C Diesel Engine
For your largest power needs in any environment, Cat® 3406C Industrial Diesel Engines offer the unsurpassed performance and durability your customers need to keep their industrial applications and operations running. They deliver high power output, proven reliability and excellent fuel efficiency. These engines maintain low operating costs to keep your customers profitable for years to come. Industries and applications powered by 3406C engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Specialty Ag Equipment, Surface Hauling Equipment, Trenchers and Underground Mining Equipment.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Virtual Tours
Standard Equipment
Air Inlet System
- Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
Control System
- Hydra-mechanical governor
Cooling System
- Thermostats and housing
- Jacket water pump, centrifugal
Exhaust System
- Exhaust manifold, dry
- Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange
Flywheels and Flywheel Housing
- SAE No. 1 flywheel
- SAE No. 1 flywheel housing
- SAE standard rotation
Fuel System
- Fuel filter, LH
- Fuel transfer pump
- Fuel priming pump
Instrumentation
- Instrument panel, LH
- Engine oil pressure gauge
- Fuel pressure gauge
- Water temperature gauge
- Service meter
Lube System
- Crankcase breather
- Oil cooler
- Lube oil filter
- Oil filler in valve cover and dipstick, both RH
- Rear sump oil pan
Mounting System
- Supports
General
- Vibration damper
- Lifting eyes
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| تقدير القدرة - القدرة القصوى | 347 كيلووات ( 465 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 2172 Nm @ 1350 rpm ( 1602 lb-ft @ 1350 rpm ) |
| تقدير القدرة - السرعة المقدرة | 1800-2100 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 280 كيلووات ( 375 حصان ) |
| معايير الانبعاثات - الانبعاثات | غير معتمد |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 137 مم ( 5.4 بوصة ) |
| عام - الشوط | 165 مم ( 6.5 بوصة ) |
| عام - الإزاحة | 14.6 l ( 893.4 بوصة³ ) |
| عام - نسبة الانضغاط | 14.5:1 |
| عام - السحب | مزوَّد بشاحن توربيني وتبريد لاحق |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 1660 مم ( 65.4 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 906 مم ( 35.7 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 1335 مم ( 52.6 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 1300 كجم ( 2866 رطل ) |
| Offering Type |
