3512C Tier 3

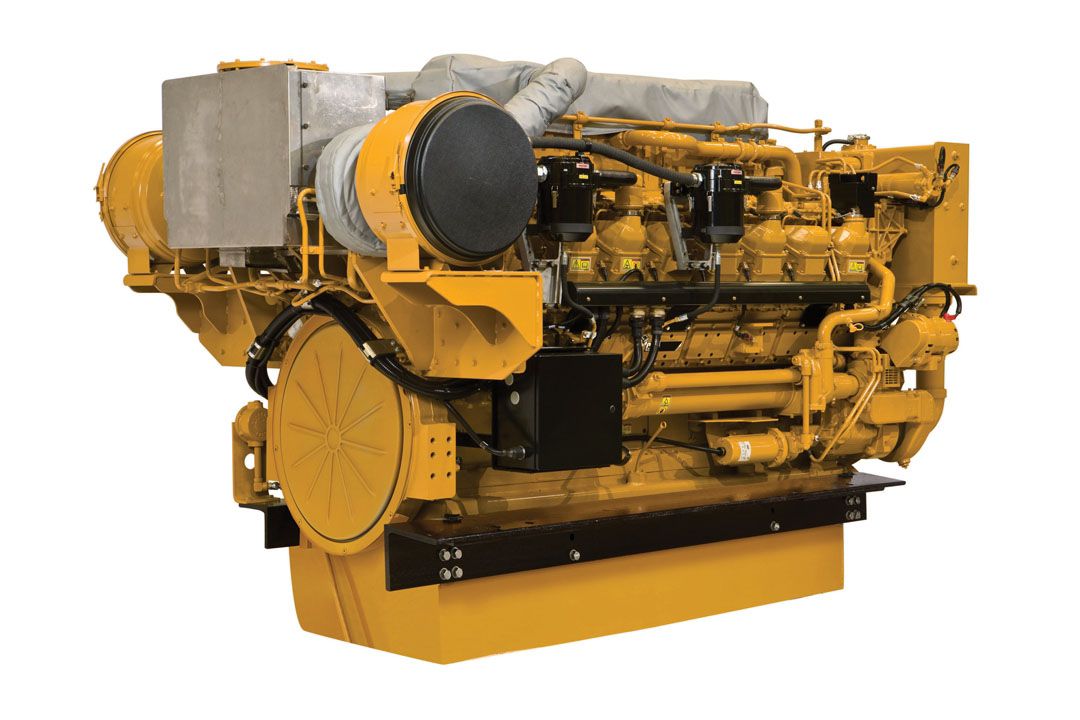

3512C Tier 3 Marine Propulsion Engine
The 3512C High Displacement marine engines are now available in a wide range of ratings that meet EPA Marine Tier 3 and IMO II regulations without any additional aftertreatment. These new propulsion, auxiliary, and DEP engines, designed and built from the current 3512C and 3516C platforms, have minimal dimensional and weight changes in comparison. Owning and operating costs are also very similar. For the specific fuel consumption of each rating please refer to the performance data. New features include stainless steel exhaust heat shields, closed crankcase ventilation system, and EPA Tier 3 compliance.
Making Your Investment Work Harder
Uses advanced predictive modeling software to select best nozzle configurations and combustion cylinder geometry, Stainless steel exhaust manifold and turbo heat shields, Closed crankcase ventilation system, Dual camshafts, Reduced aftercooler heat load for smaller heat exchanger requirements
DRIVING DOWN TOTAL COST OF OWNERSHIP
A wide range of power ratings available, No aftertreatment technology required, Fuel consumption nominal rated BSFC
COMMITTED TO SUSTAINABLE DEVELOPMENT
Modified piston bowl shape to improve combustion and reduce emissions, Uses K-factor injector to align with predictive model analysis, Better electronic injection control using crank timing vs. cam timing, EPA Marine Tier 3/IMO Tier II Emissions Compliant, Lower IMAT = Lower NOx
IMPROVING WORKFORCE EFFICIENCY
Electronic governing (A4 ECU), Instrument panel shipped loose with Color Marine Power Display (MPD), Cold mode start strategy, Programmable low idle, Optional marine alarm and protection system
FULLY INTEGRATED MARINE POWER SOLUTION
Single-source support, Caterpillar warranty for all factory packaged components, Industry-leading one-year warranty on parts
Documents & Brochures
Standard Equipment
Air Inlet System
- Separate circuit aftercooler core, corrosion resistant coated (air side)
- Powercore air cleaner
Control System
- Dual Caterpillar A4 Electronic Engine Control with Electronic Unit Injector Fuel System
- Rigid Wiring Harness (10 amp DC power required to drive Electronic Engine Control Module)
Exhaust System
- 3500C engines:
Fuel System
- Fuel transfer pump
- Electronically Controlled Unit Injectors
Lube System
- Crankcase breather groups, Top mounted
- Oil filler and dipstick, LH or RH
- Oil pump, gear type
- 250 or 1000 hour sump oil pan
Mounting System
- 3500C engines:
Power Takeoffs
- Accessory drives: Lower RH, lower LH
- Front housing, two-sided
Protection System
- A4 Electronic Monitoring System provides customer programmable engine derating strategies to protect against adverse operating conditions
- Emergency stop push button (located in Electronic Instrument Panel)
- Safety shutoff protection:
General
- Vibration damper and guard
- Lifting eyes
- NOTE: Engines for heat exchanger cooling do NOT include heat exchange
Flywheel and Flywheel Housing
- Flywheel, SAE No. 00, 183 teeth
- Flywheel housing, SAE No. 00
Cooling System
- Oil cooler
- Thermostats and housing, Full open temperature 92 C (198 F)
- Jacket water pump, gear driven, centrifugal
- Auxiliary fresh water pump
- Aftercooler system: If using glycol, up to maximum 20% glycol concentration is allowed
Instrumentation
- Electronic service meter, instrument panel (24V), start/stop switch, emergency stop button, maintenance due light, diagnostic light, warning light, maintenance clear switch, start motor magnetic switch, 15 and 3A breakers
- Graphical Unit (Color Marine Power Display) for analog or digital of:
Additional information
| Offering Type | |
|---|---|
| Power Rating - Power Range | 1340-2366 bhp (1000-1765 bkW) |
| Engine Specifications - Speed Range | 1600-1800 rpm |
| Engine Specifications - Emissions | EPA Tier 3, IMO II |
| Engine Specifications - Aspiration | TTA |
| Engine Specifications - Bore | 170.0 mm ( 6.69 in ) |
| Engine Specifications - Stroke | 215.0 mm ( 8.46 in ) |
| Engine Specifications - Displacement | 58.6 l ( 3574.0 in³ ) |
| Engine Specifications - Rotation from Flywheel End | Counterclockwise or Clockwise |
| Engine Specifications - Configuration | Vee 12, 4-Stroke-Cycle Diesel |
| Dimensions & Weights - Minimum Dry Weight | 7488.0 kg ( 16508.0 lb ) |
| Dimensions & Weights - Minimum Length | 2465.0 mm ( 104.2 in ) |
| Dimensions & Weights - Maximum Length | 2465.0 mm ( 104.2 in ) |
| Dimensions & Weights - Minimum Height | 2222.6 mm ( 87.5 in ) |
| Dimensions & Weights - Maximum Height | 2222.6 mm ( 87.5 in ) |
| Dimensions & Weights - Minimum Width | 2037.0 mm ( 80.2 in ) |
| Dimensions & Weights - Maximum Width | 2037.0 mm ( 80.2 in ) |
