6.8-22 kVA SA Enclosure
6.8-22 kVA SA Enclosure
The compact modular design of the 6.8 – 22 kVA SA Enclosure range ensures optimum performance in the harshest of environments. Designed on modular principles, they have interchangeable components permitting on-site repair. Lift off doors and access panels provide optimal service and maintenance access.
Durable and Robust Construction
- Galvanised steel protected by powder coat paint
- Single piece roof structure
- Baseframe extends beyond enclosure protecting against handling damage
- Black finish stainless steel locks and hinges
- Zinc plated / stainless steel fasteners
Excellent Access
- Side hinged doors on both sides of the enclosure opening to 180°
- Side hinged doors lift off at 90°
- Removable front and rear access panels
- Coolant drain piped to baseframe, exterior to the enclosure
Security And Safety
- Control panel viewing via large viewing window in lockable enclosure door
- Emergency stop push button mounted on enclosure exterior below control panel
- Cooling fan and battery charging alternator fully guarded
- Fuel fill and battery can only be reached via lockable access doors
- Exhaust silencing system totally enclosed for operator safety
Transportability
- Tested and certified single point lifting facility – Optional
- Drag points on baseframe facilitating handling from both sides
- Optional base feet to aid forklift handling
Documents & Brochures
Additional Information
| الأوزان والأبعاد - العرض | 876 mm |
|---|---|
| الأوزان والأبعاد - الطول | 1704 mm |
| الأوزان والأبعاد - الارتفاع | 1268 mm |
| الأوزان والأبعاد - الوزن | 575 – 719 kg |
| Offering Type |
-
Diesel Generator Sets
C1.1 (50 Hz)
View Details
-
Diesel Generator Sets

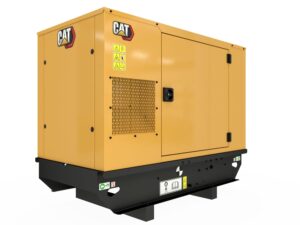

C1.1 (60 Hz)
View Details
-
Diesel Generator Sets
C1.5 (50 Hz)
View Details
-
Diesel Generator Sets
C1.5 (60 Hz)
View Details
-
Diesel Generator Sets
C2.2 (50 Hz)
View Details
-
Diesel Generator Sets
C2.2 (60 Hz)
View Details
Related products
-
Enclosures
6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)
View Details
-
Enclosures
C9 275-330 kVA ACERT
View Details
-
Enclosures

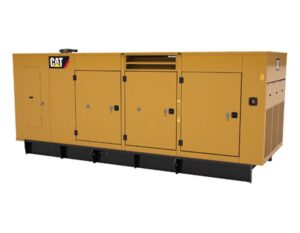

C13 Sound Attenuated Enclosure 50 and 60 Hz
View Details
-
Enclosures

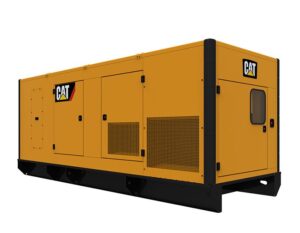

C18 Sound Attenuated Enclosure 50 and 60 Hz
