C1.5 (60 Hz)

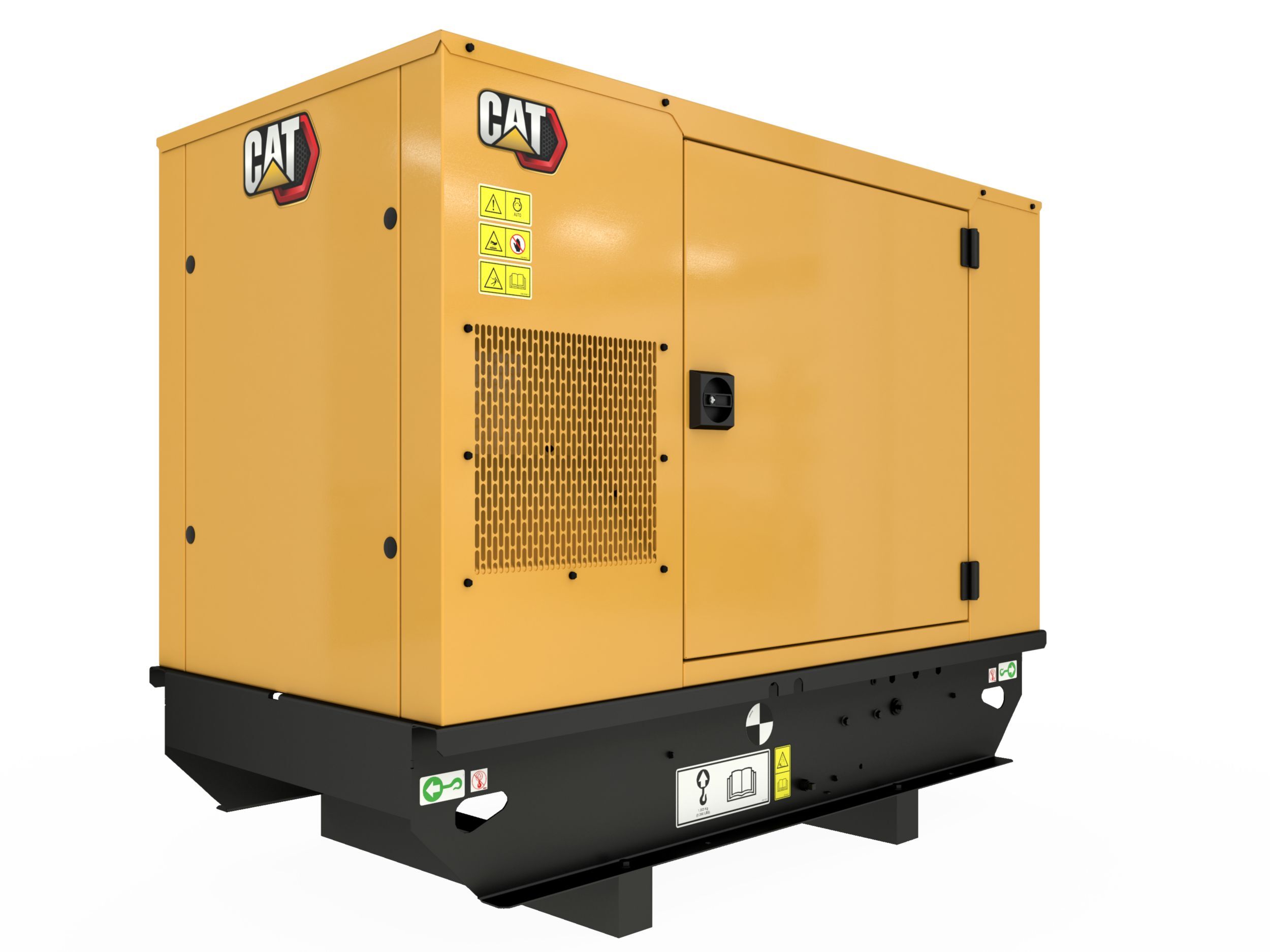

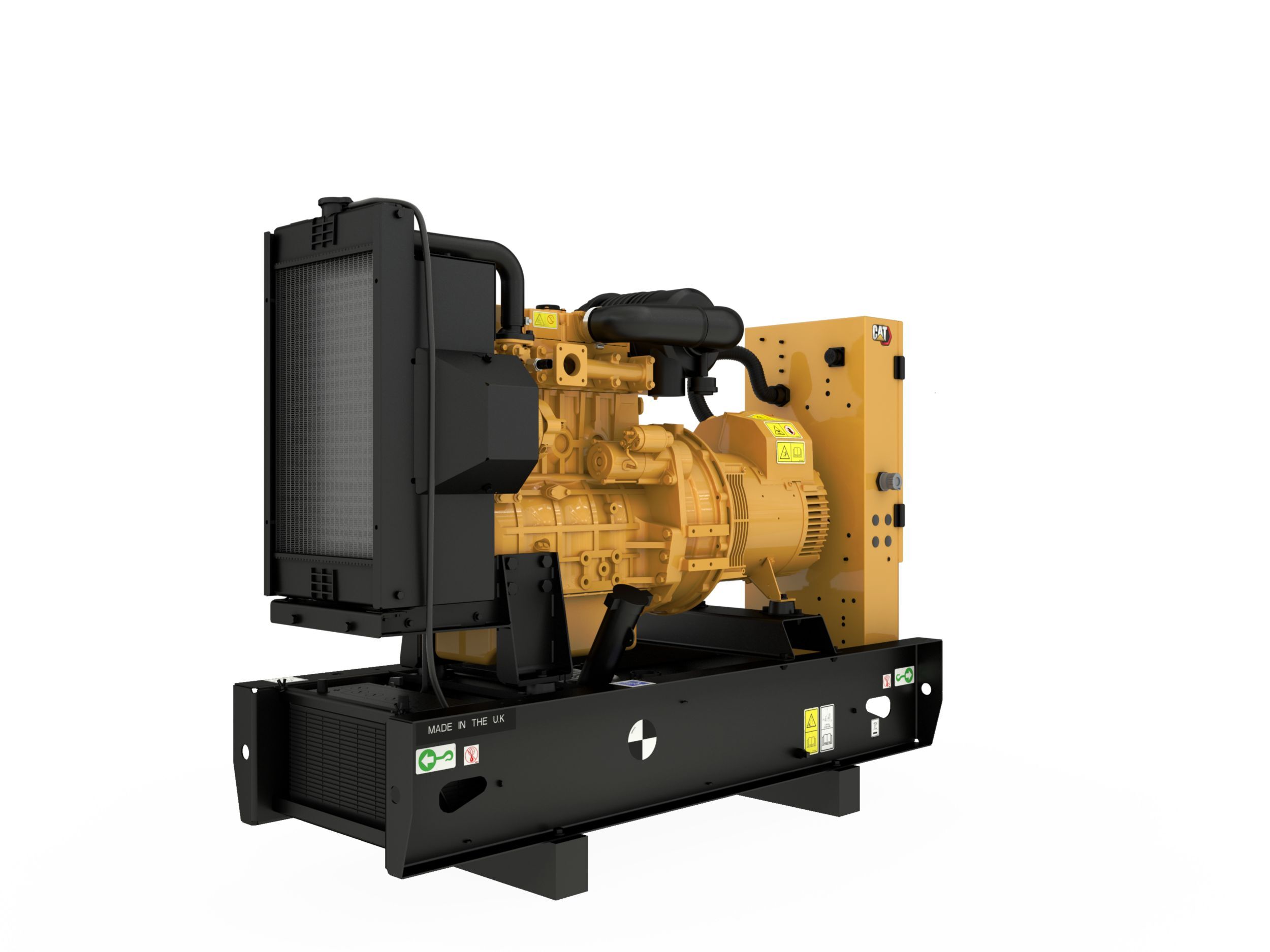

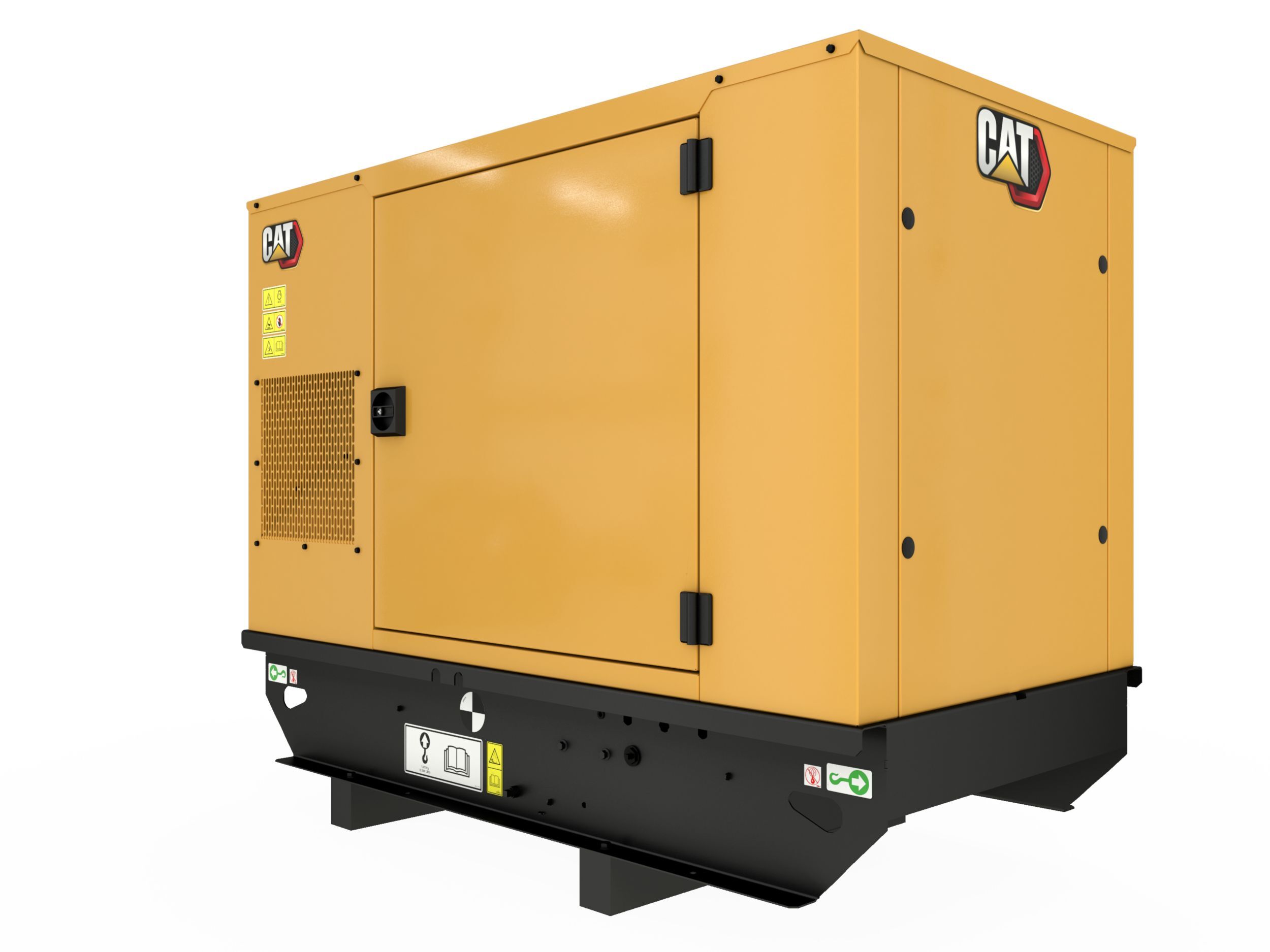

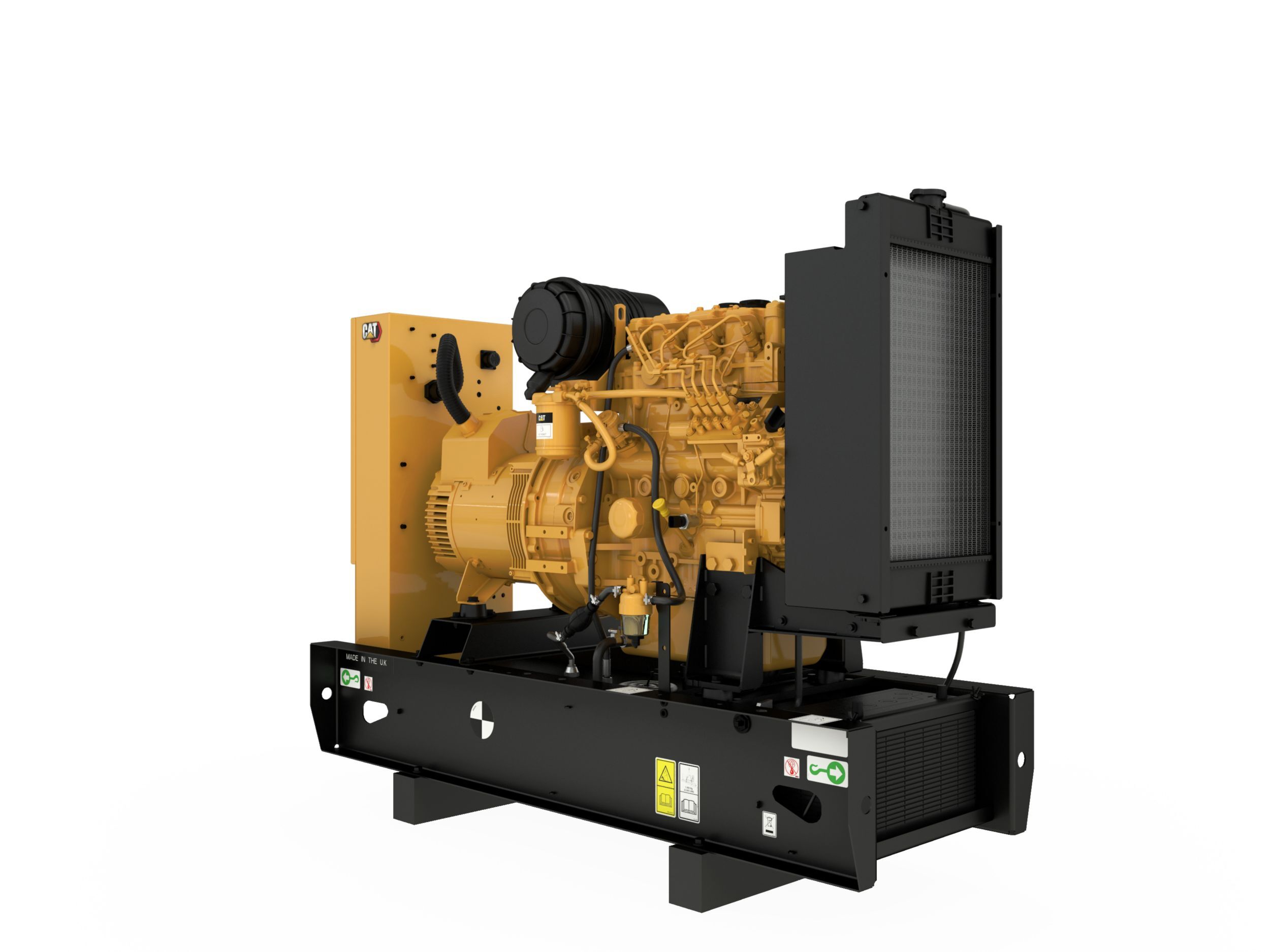

C1.5 Generator Set
Producing reliable power from 12 to 13.2 ekW at 60 Hz, our C1.5 diesel generator sets designed to ISO 8528-5 transient response requirements. All C1.5 generator sets are R96/EUIIIa equivalent emissions compliant.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation

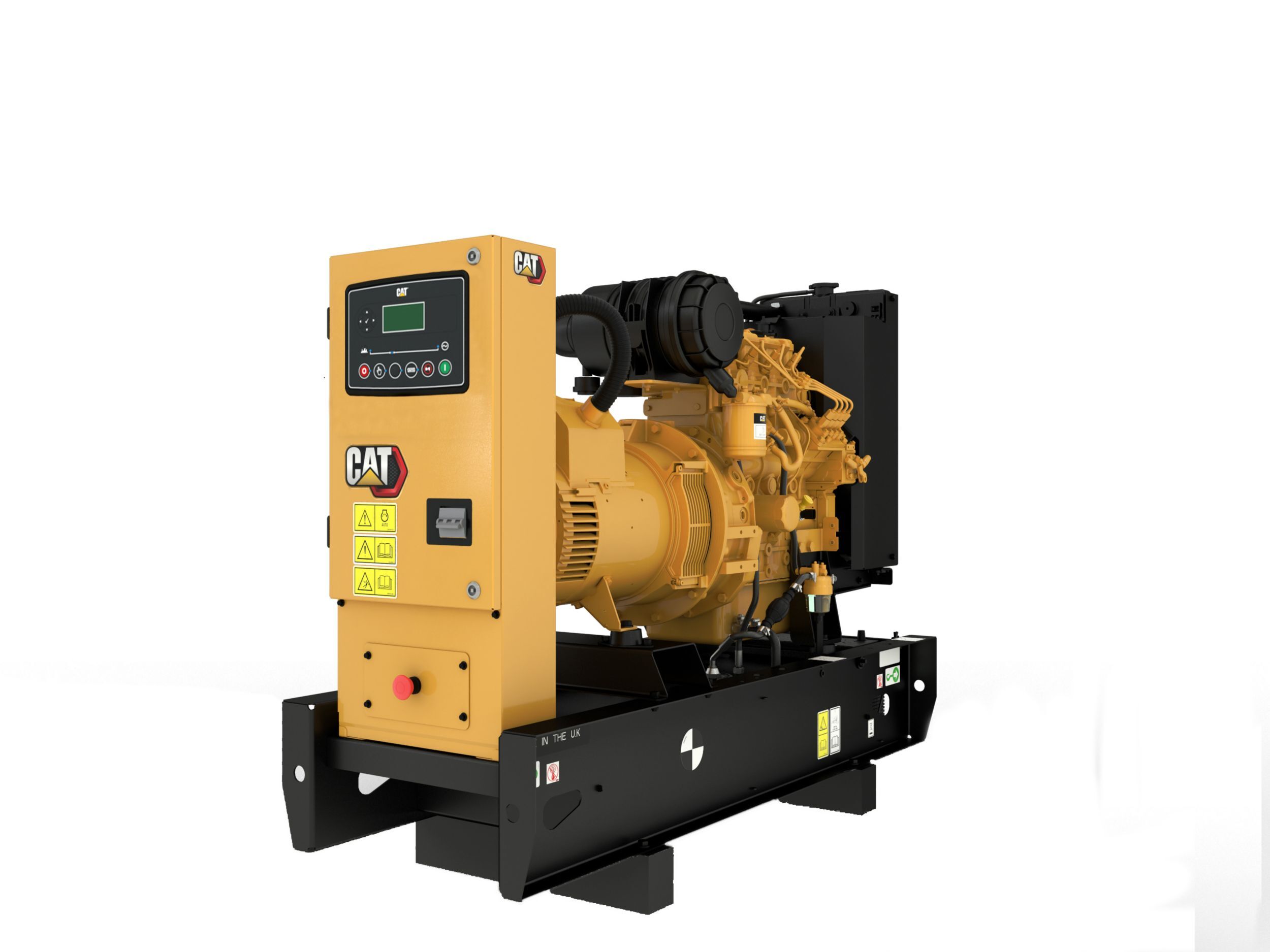

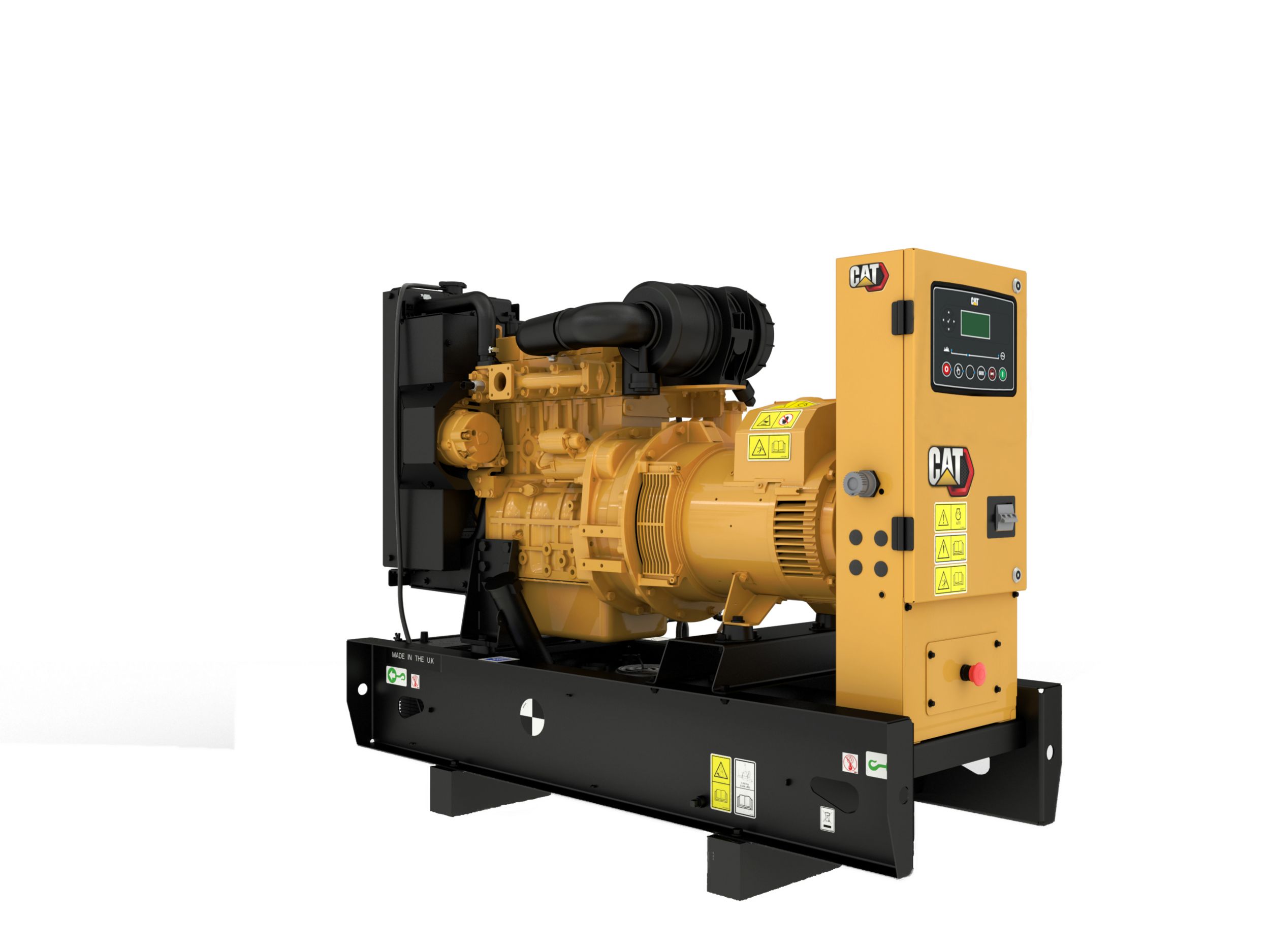

GCCP 1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Cat® SOSSM program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products.
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Virtual Tours
Documents & Brochures
- Electric Power Ratings Guide
- DE11E3S 50 Hz 11.0 kVA, 60 Hz 13.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE13.5E3 50 Hz 13,5 kVA, 60 Hz 16.5 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet
- DE11E3S 50 Hz 11.0 kVA, 60 Hz 13.0 kVA, LC Frame, EU IIIA Compliant Emissions Spec Sheet
- DE13.5E3 50 Hz 13.5 kVA, 60 Hz 16.5 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
- C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generators and Generator Attachments
- Voltage regulator (single phase sensing)
- IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
Governing System
- Mechanical governing system
Lube System
- Oil drain line with valve
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- includes lifting provisions and termination points for coolant
Starting / Charging System
- 12 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 13.2 ekW |
| Generator Set Specifications - Minimum Rating | 12.0 ekW |
| Generator Set Specifications - Emissions/Fuel Strategy | R96/EUIIIa Equivalent |
| Generator Set Specifications - Voltage | 110 to 415 Volts |
| Generator Set Specifications - Frequency | 60 Hz |
| Generator Set Specifications - Speed | 1800 rpm |
| Generator Set Specifications - Duty Cycle | Standby, Prime |
| Engine Specifications - Engine Model | Cat® C1.5 |
| Engine Specifications - Bore | 84 mm ( 3.3 in ) |
| Engine Specifications - Stroke | 90 mm ( 3.5 in ) |
| Engine Specifications - Displacement | 1.5 l ( 91.3 in³ ) |
| Engine Specifications - Compression Ratio | 22.5:1 |
| Engine Specifications - Aspiration | Naturally Aspirated |
| Engine Specifications - Fuel System | Indirect Injection |
| Engine Specifications - Governor Type | Mechanical |
| Generator Set Dimensions - Length - Maximum | 1400 mm ( 55.1 in ) |
| Generator Set Dimensions - Width - Maximum | 90 mm ( 24.4 in ) |
| Generator Set Dimensions - Height - Maximum | 1054 mm ( 41.5 in ) |
-
Enclosures
6.8-22 kVA SA Enclosure
View Details -
Enclosures
6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)
View Details
Related products
-
Diesel Generator Sets
C1.1 (50 Hz)
View Details -
Diesel Generator Sets
C3.3 (60 Hz)
View Details -
Diesel Generator Sets
C2.2 (60 Hz)
View Details -
Diesel Generator Sets

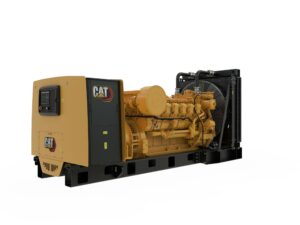

3512B (50 Hz) with Upgradeable Package 1360 – 1600 kVA
