762 mm (30 in), Pin On

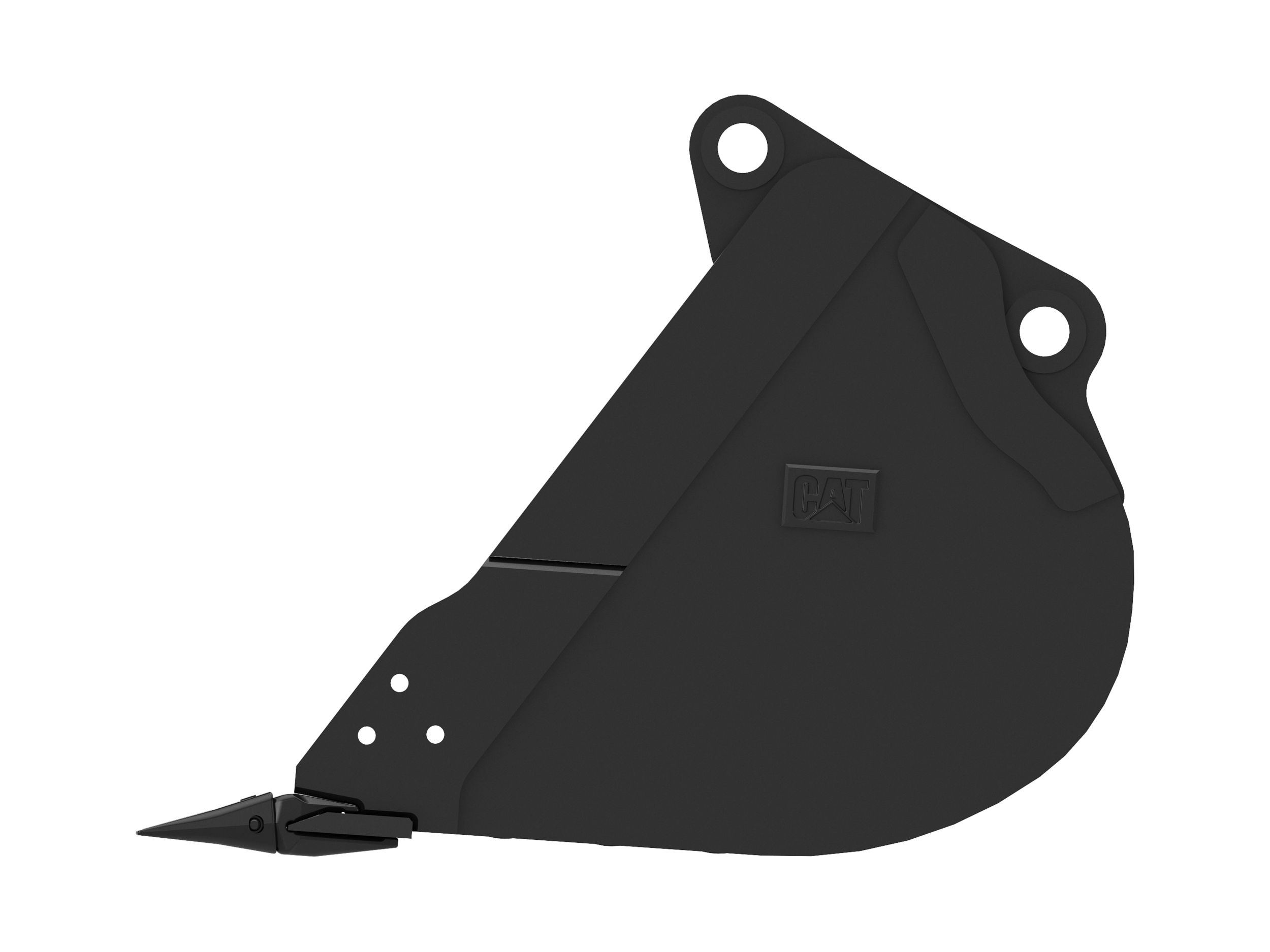

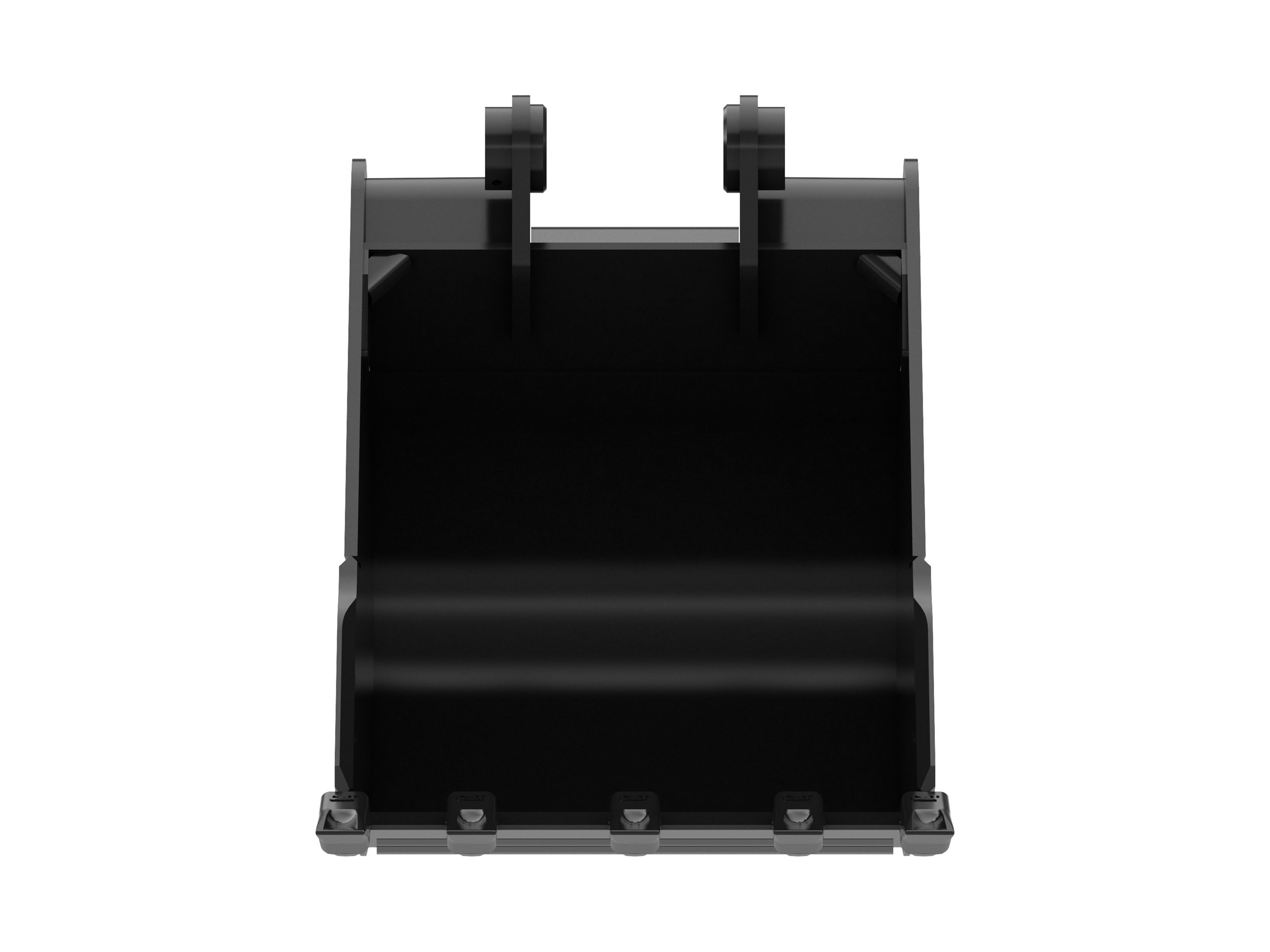

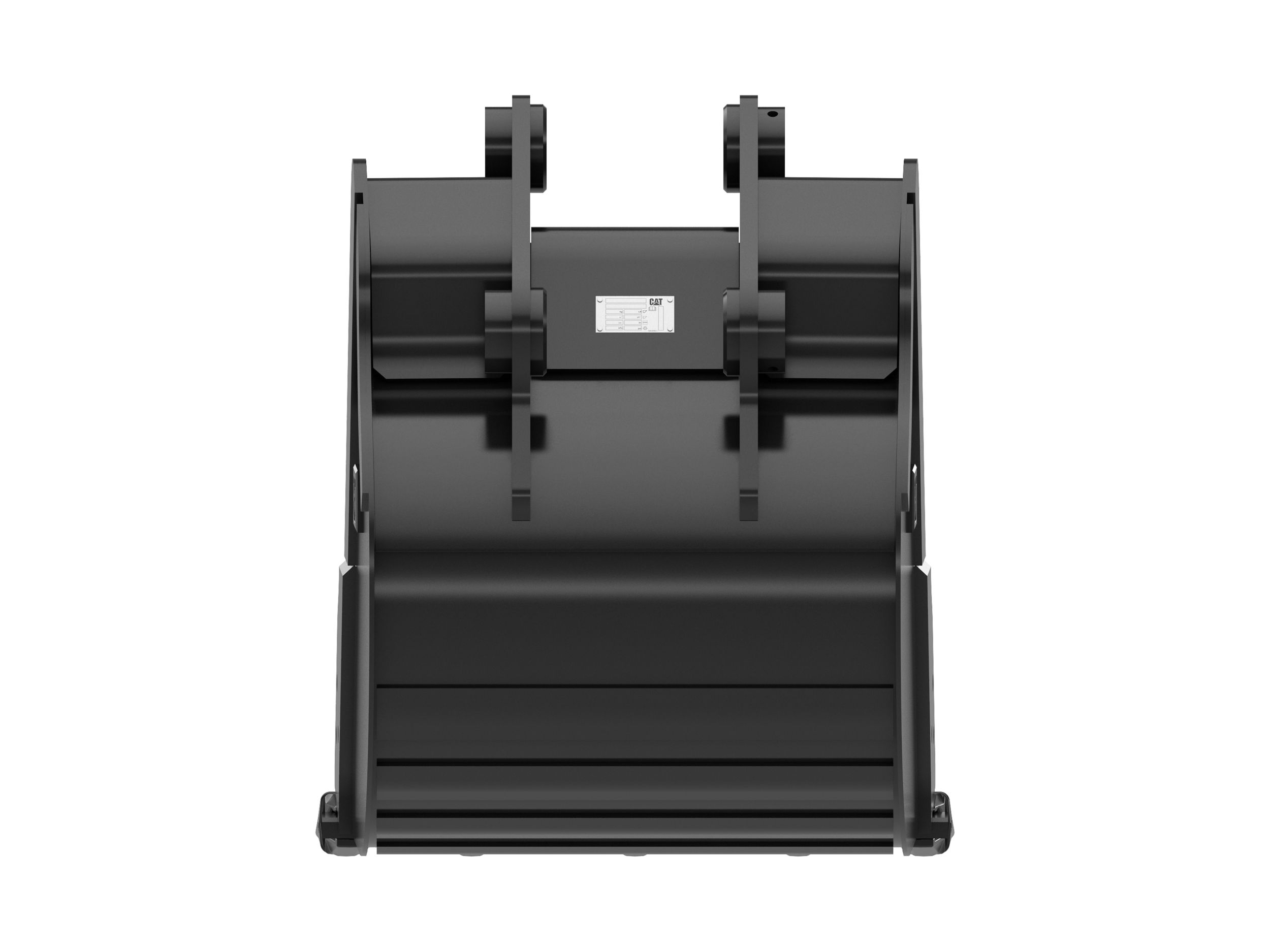

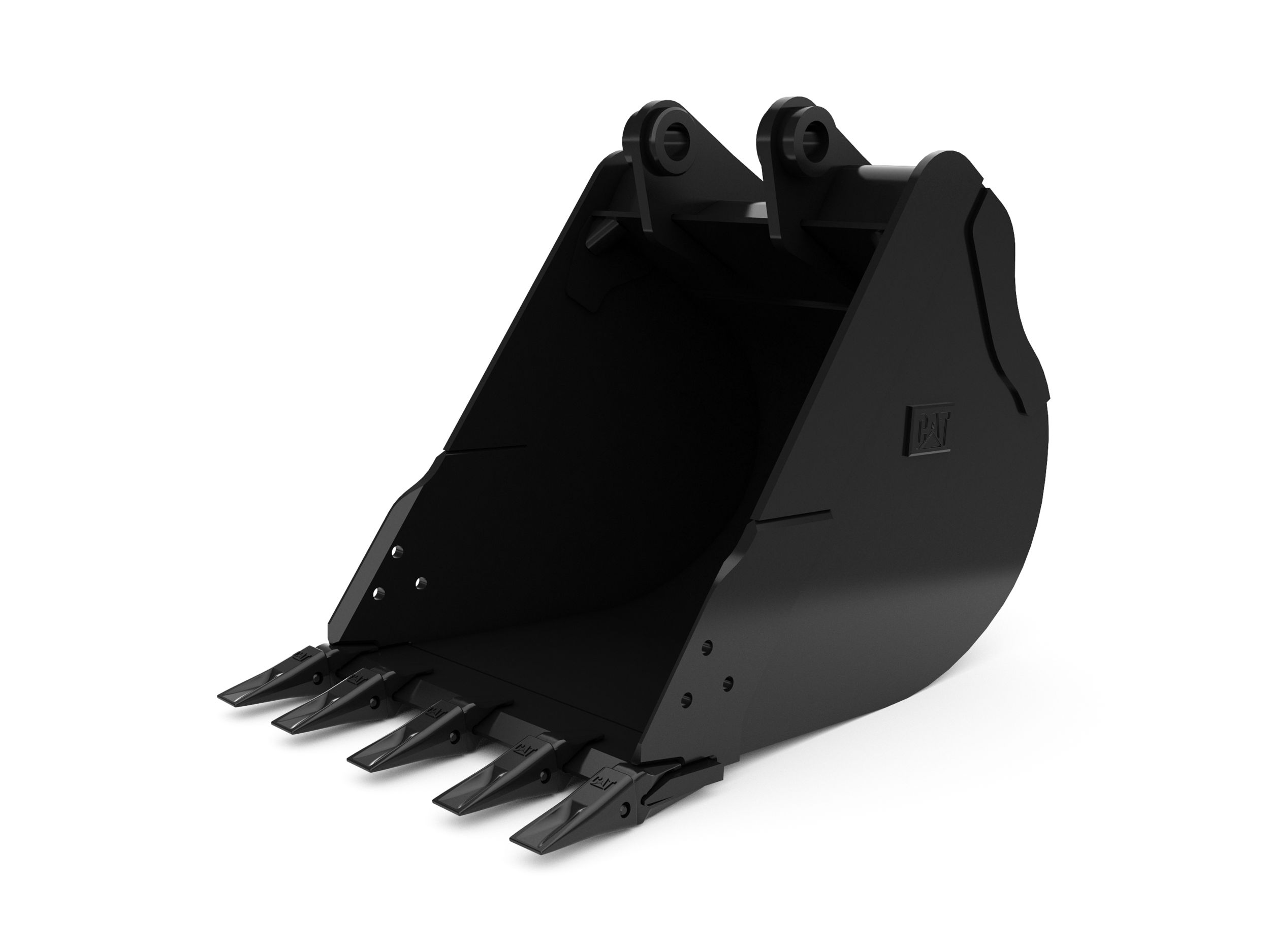

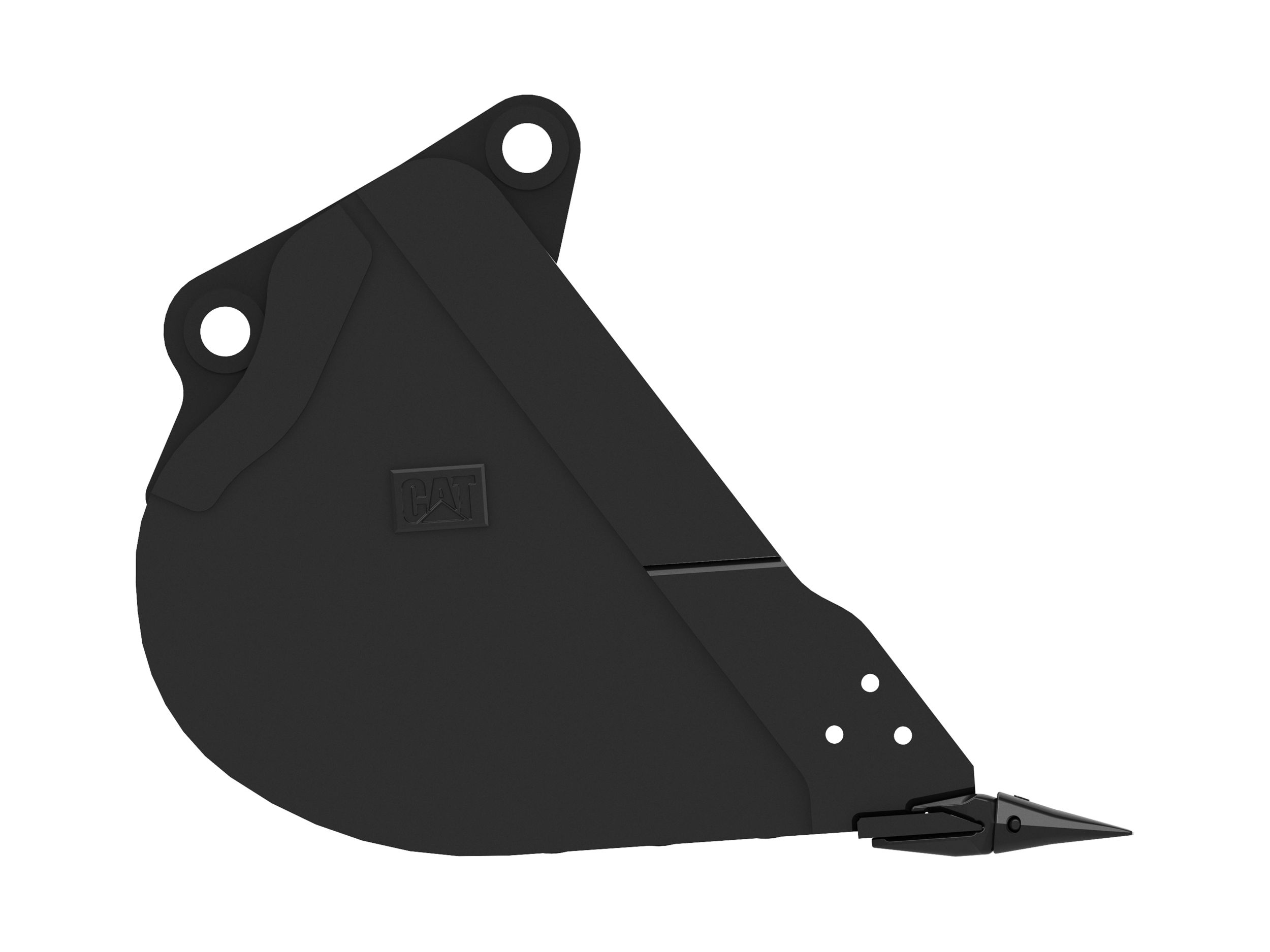

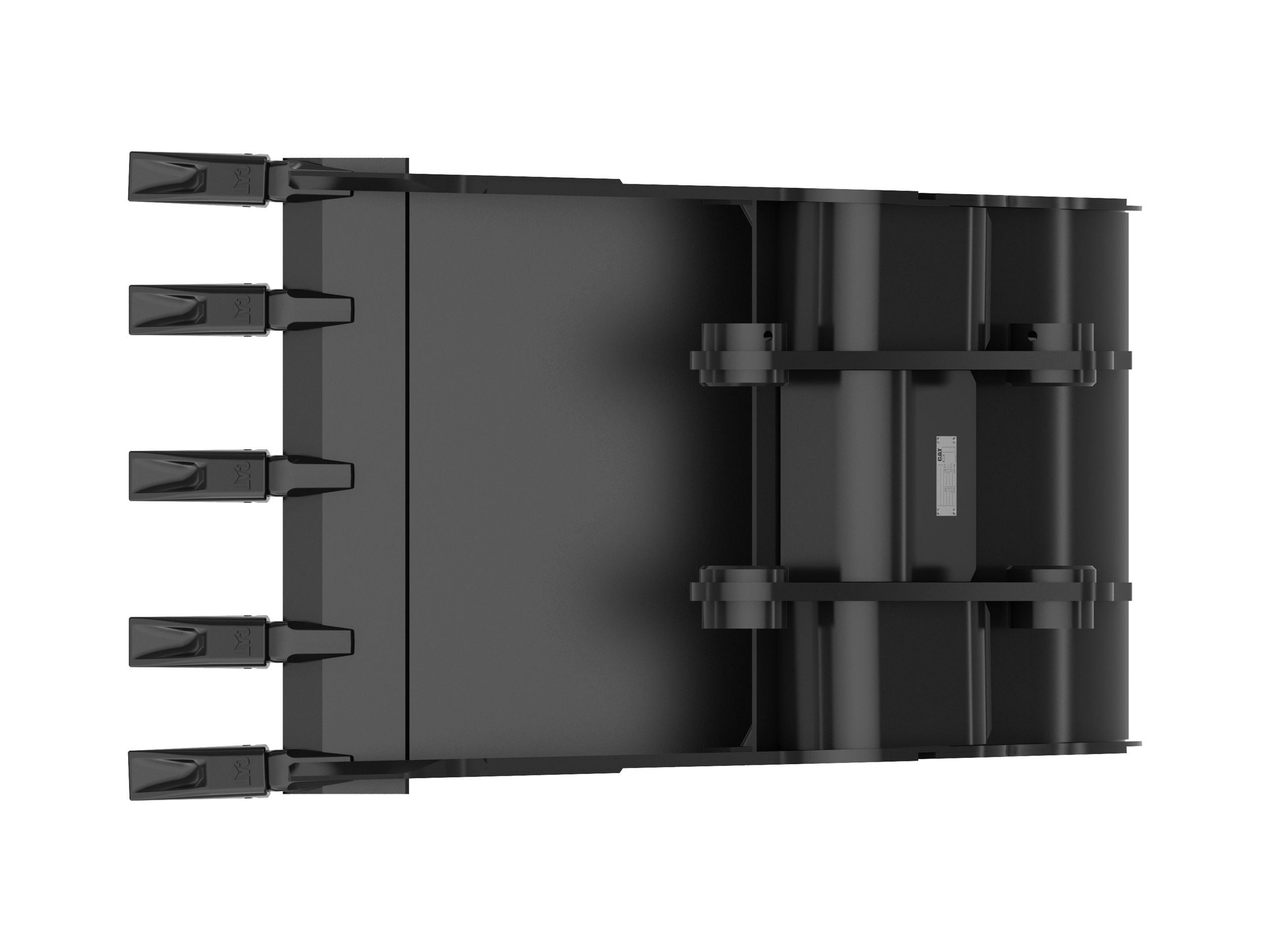

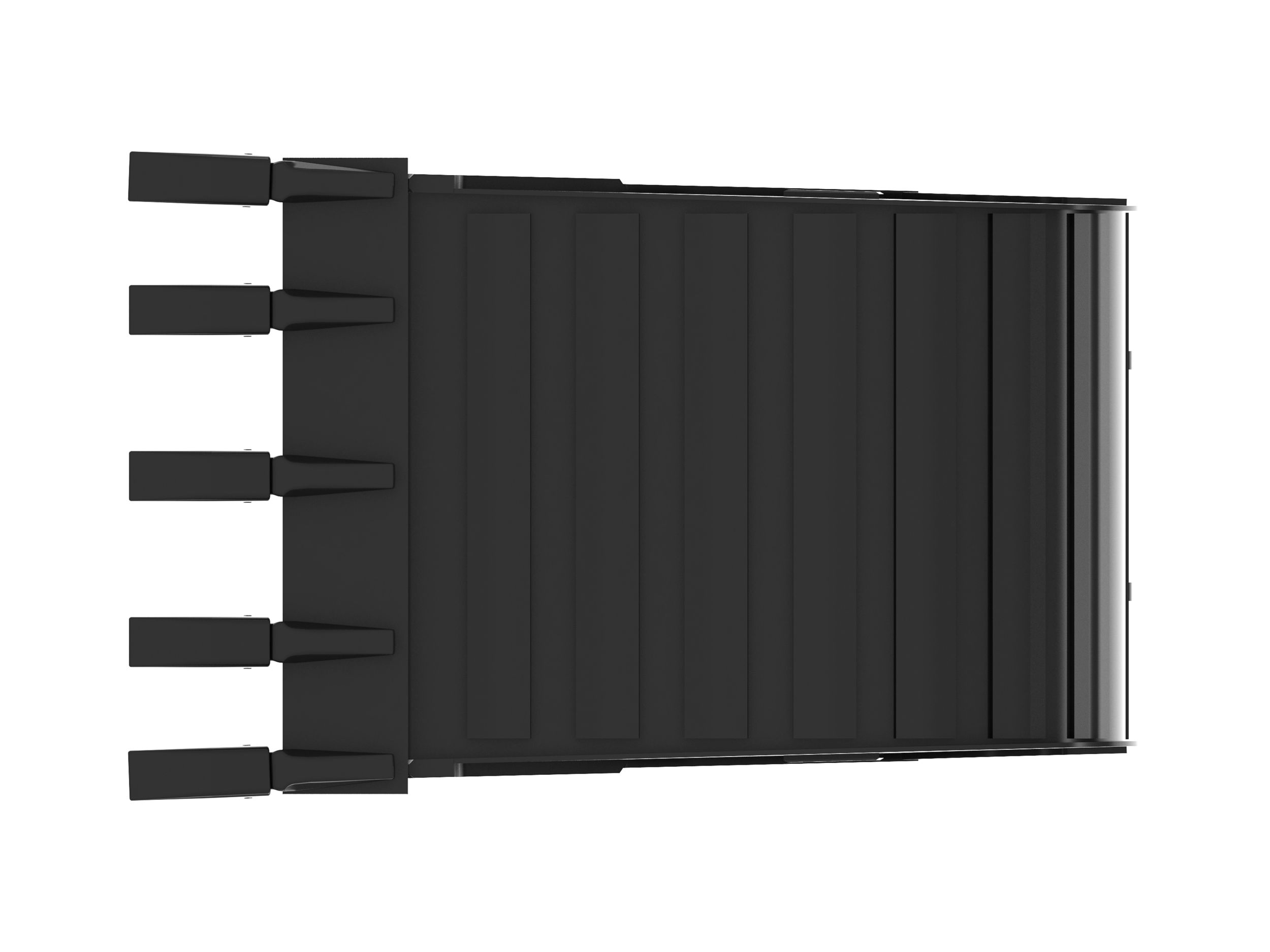

762 mm (30 in) Heavy Duty Bucket

High strength buckets designed for maximum performance and value over a broad range of applications.

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Additional information

Offering Type

Width

762 mm ( 30 in )

Capacity

350 l ( 12.4 ft³ )

Weight

257 kg ( 566.6 lb )

Base Edge Thickness

25 mm ( 1 in )

Tip Radius

1108 mm ( 43.6 in )

Interface Type

Pin On
