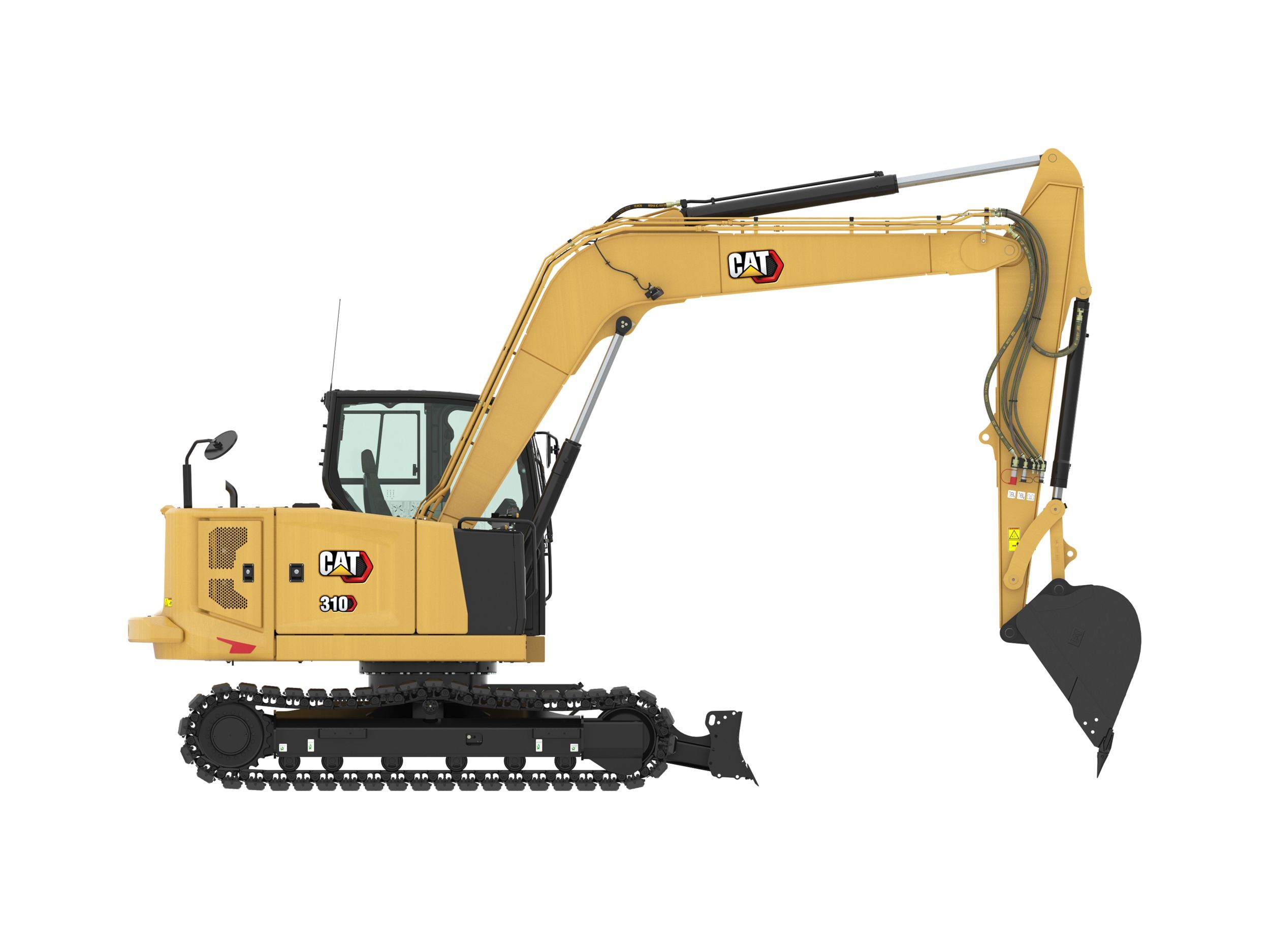

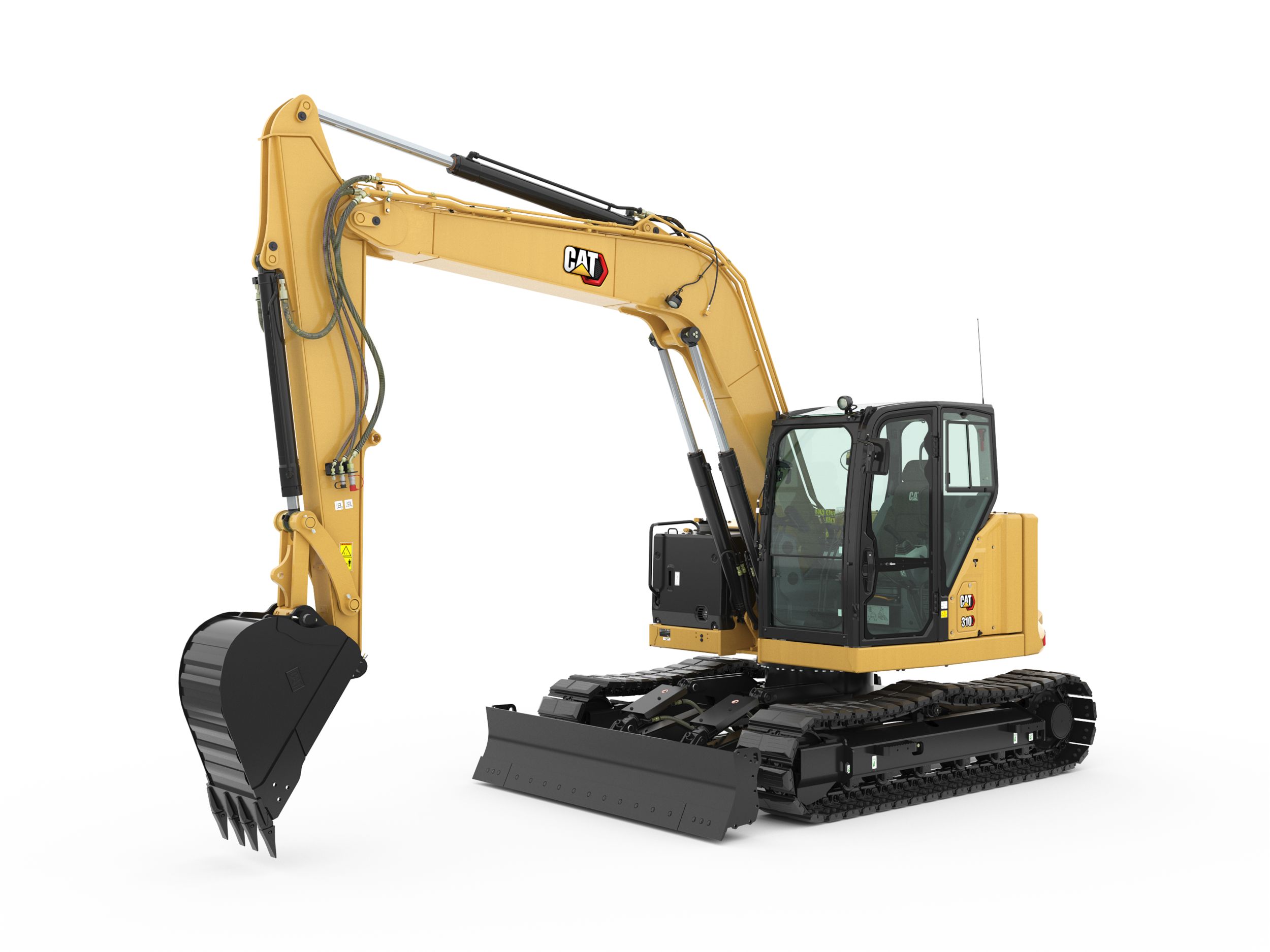

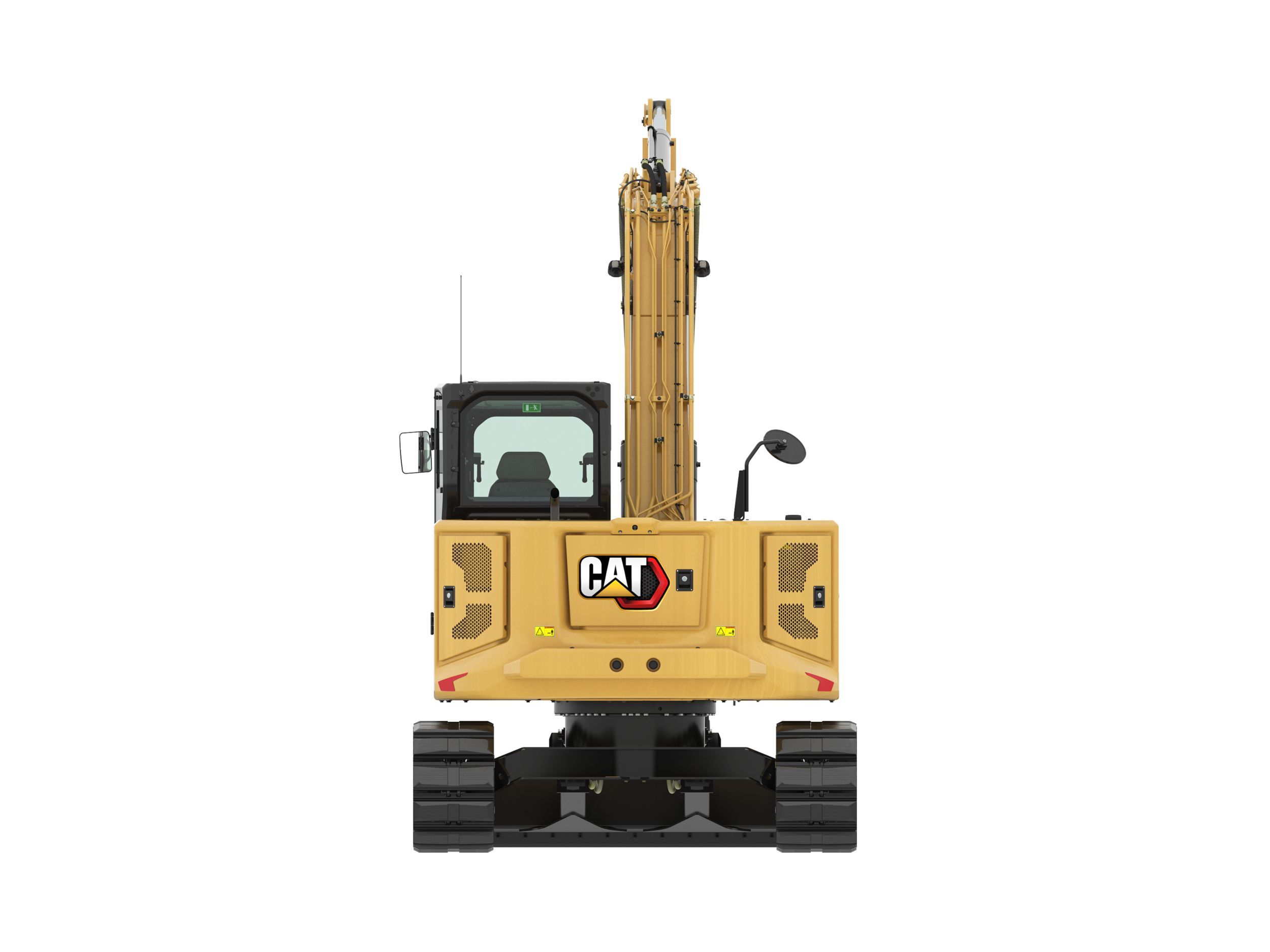

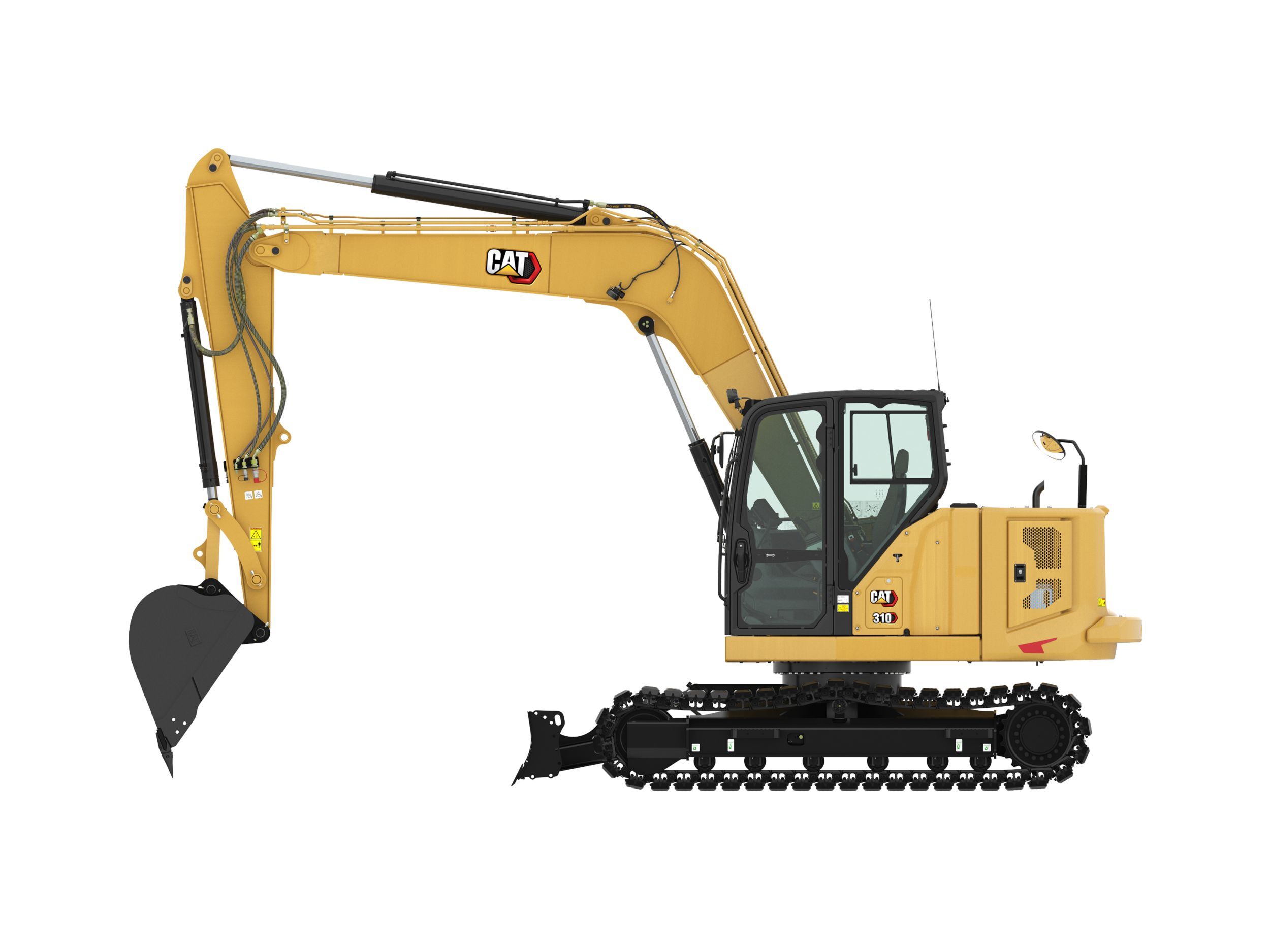

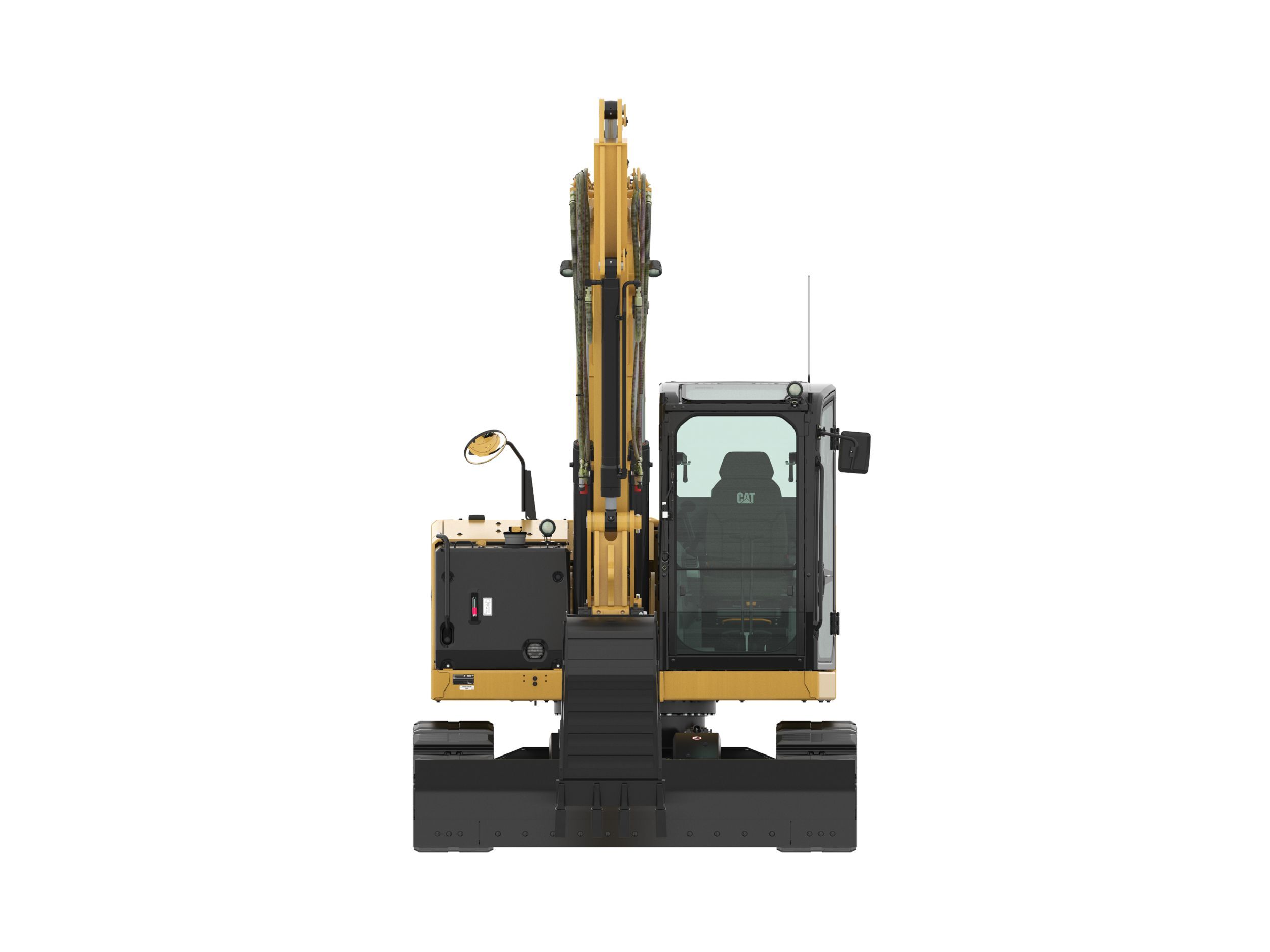

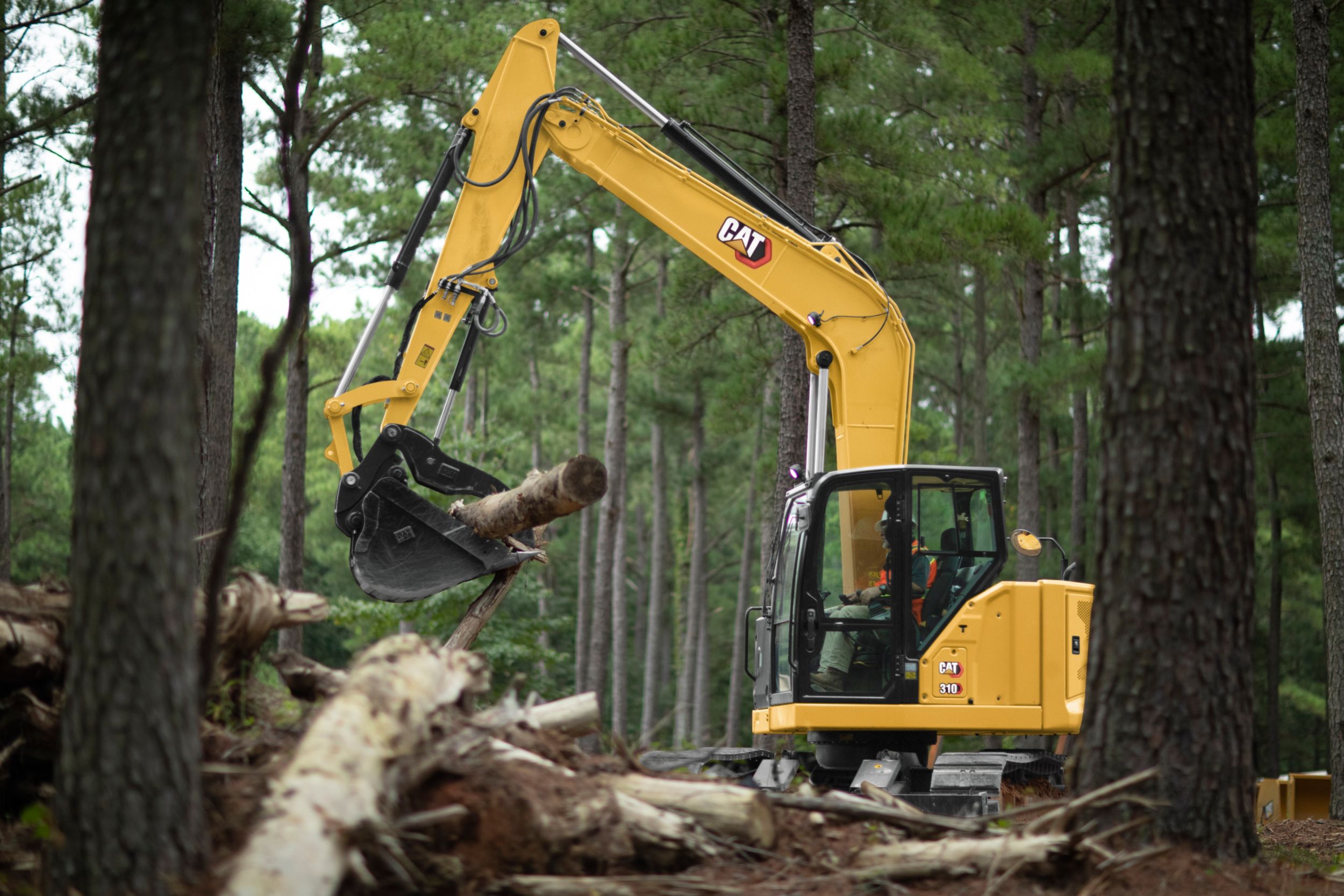

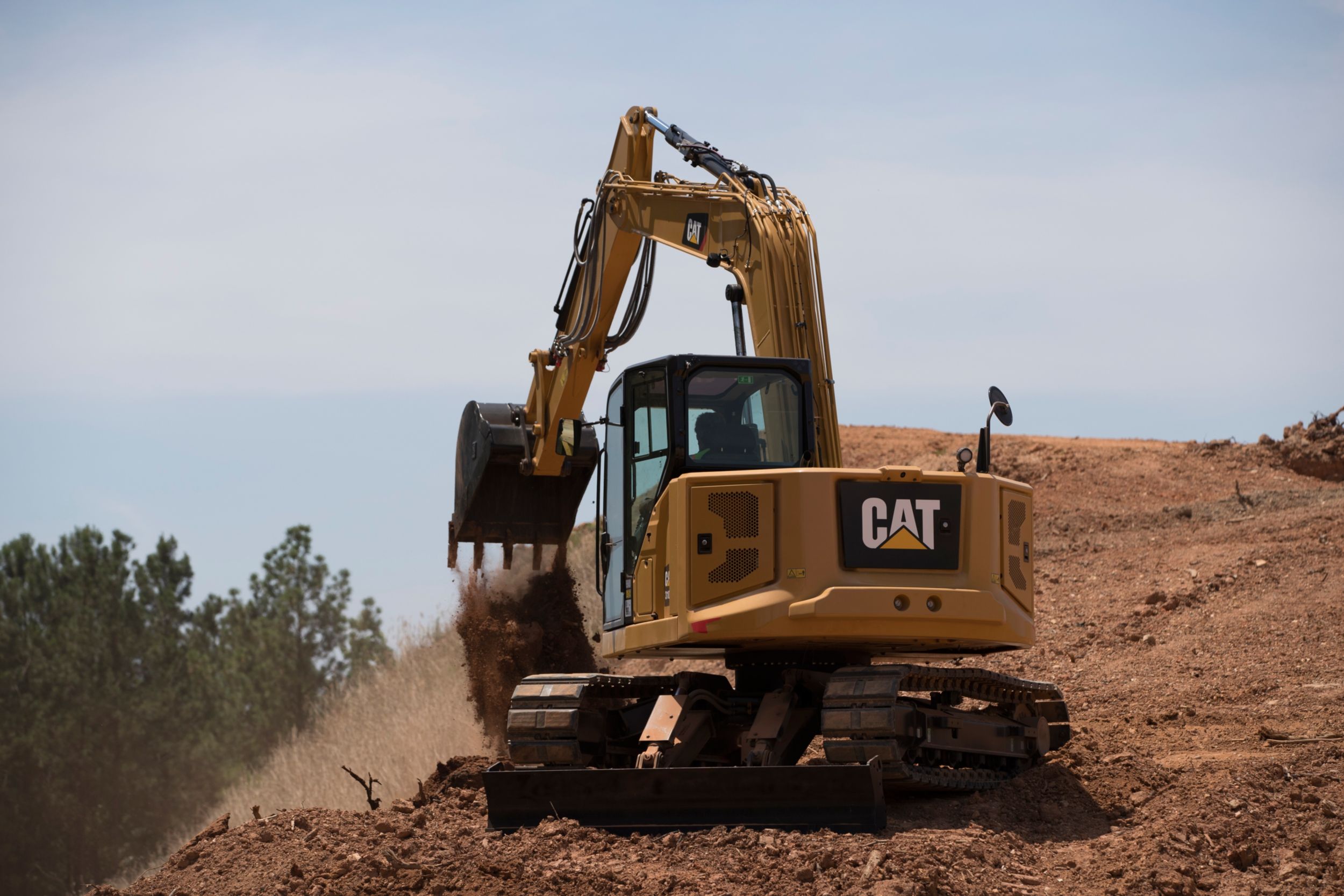

310 Mini Hydraulic Excavator

The Cat® 310 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Category:

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

  • The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Standard Equipment

GUARDING
  • Roll Over Protective Structure (ROPS) ISO 12117-2:2008
  • Top Guard ISO 10262:1998 (Level I)
ENGINE
  • Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
  • Automatic Engine Idle
  • Automatic Engine Shutdown
  • Automatic Swing Brake
  • Automatic Two Speed Travel
  • Fuel Water Separator with Indicator
  • Radial Seal – Double Element Air Filter
  • Extended Life Coolant, –37° C ( –37° F)
HYDRAULICS
  • Electronic Variable Displacement Piston Pump
  • Load Sensing/Flow Sharing Hydraulics
  • Power On Demand
  • Hydraulic Temperature Monitoring
  • Certified Accumulator
  • HYDO Advanced Hydraulic Oil
OPERATOR ENVIRONMENT
  • TOPS – ISO 12117:1997
  • ROPS ISO 12117-2:2008
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer
  • Adjustable Wrist Rests
  • Molded Footrests
  • Removable, Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Cat Key with Passcode Option
  • HVAC with Automatic Temperature Control
  • Hydraulic Lockout Controls
  • Integrated Lower Front Window
  • Assisted Front Window Overhead Storage
  • Rear Window Emergency Exit
  • Fabric, High Back, Suspension Seat
  • Retractable Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • LED Interior Light
  • Literature Holder
  • Mounting Bosses for Top and Front Guards
  • 12V Power Socket
  • Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
  • Skylight
  • Signaling/Warning Horn
  • Cab and (left side) Boom Work Lights
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Jog Dial Interface
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Camera Ready (IP68 & IP69K)
    – Hour Meter with Wake Up Switch
UNDERCARRIAGE
  • Greased and Lubricated Track
  • Tie Down Eyes on Track Frame
  • Dozer Straight Blade
  • Dozer Float
  • Bolt-on, Reversible Wear Edge
BOOM, STICK AND LINKAGES
  • One Piece Boom (4300 mm/169.3 in)
  • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools (not available in all regions)
  • Thumb Ready (not available in all regions)
ELECTRICAL
  • 12 Volt Electrical System
  • 90 Ampere Alternator
  • 900 CCA Maintenance Free Battery
  • Battery Disconnect
  • Ignition Key Stop Switch
  • Travel Alarm
OTHER
  • Locks on External Enclosure Doors
  • Lockable Fuel Cap
  • Beacon Socket
  • Rear Reflectors

Additional information

Offering Type

Engine - Net Power

51.8 kW ( 69.5 HP )

Engine - Stroke

120 mm ( 4.7 in )

Engine - Note

Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.

Engine - Bore

94 mm ( 3.7 in )

Engine - Displacement

3.33 l ( 203 in³ )

Engine - Gross Power - SAE J1995:2014

55.4 kW ( 74.3 HP )

Engine Model - U.S. EPA Tier 4 Final/EU Stage V

Cat® C3.3B

Engine - Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC

51.8 kW ( 69.5 HP )

Weights - Operating Weight

10182 kg ( 22451 lb )

Weights - Minimum Operating Weight with Cab*

9601 kg ( 21170 lb )

Weights - Maximum Operating Weight with Cab**

10182 kg ( 22451 lb )

Weights - Note (2)

**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.

Weights - Note (1)

*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.

Weight Increase from Minimum Configuration - Counterweight

250 kg ( 552 lb )

Weight Increase from Minimum Configuration - Steel Tracks with Pads

330 kg ( 728 lb )

Travel System - Maximum Traction Force - Low Speed

84.8 kN ( 19064 lb )

Travel System - Maximum Traction Force - High Speed

28.9 kN ( 6497 lb )

Travel System - Travel Speed - High

4.9 km/h ( 3.1 mile/h )

Travel System - Travel Speed - Low

2.6 km/h ( 1.6 mile/h )

Travel System - Ground Pressure - Maximum Weight

44.2 kPa ( 6.4 psi )

Travel System - Ground Pressure - Minimum Weight

41.68 kPa ( 6 psi )

Travel System - Gradeability - Maximum

30 degrees

Service Refill Capacities - Hydraulic Tank

53 l ( 14 gal (US) )

Service Refill Capacities - Cooling System

10 l ( 2.6 gal (US) )

Service Refill Capacities - Engine Oil

11.2 l ( 3 gal (US) )

Service Refill Capacities - Fuel Tank

145 l ( 38 gal (US) )

Service Refill Capacities - Hydraulic System

140 l ( 37 gal (US) )

Hydraulic System - Operating Pressure - Swing

230 bar ( 3336 psi )

Hydraulic System - Digging Force - Bucket

77.7 kN ( 17459 lb )

Hydraulic System - Operating Pressure - Travel

285 bar ( 4134 psi )

Hydraulic System - Operating Pressure - Equipment

285 bar ( 4134 psi )

Hydraulic System - Note

Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Hydraulic System - Digging Force - Stick

49.2 kN ( 11060 lb )

Hydraulic System - Type

Load Sensing Hydraulics with Variable Displacement Piston Pump

Hydraulic System - Pump Flow at 2,400 rpm

233 l/min ( 62 gal/min )

Hydraulic System - Maximum Auxiliary Circuit - Secondary - Flow at Pump

33 l/min ( 9 gal/min )

Hydraulic System - Maximum Auxiliary Circuit - Primary - Pressure at Pump

285 bar ( 4134 psi )

Hydraulic System - Maximum Auxiliary Circuit - Secondary - Pressure at Pump

285 bar ( 4134 psi )

Hydraulic System - Maximum Auxiliary Circuit - Primary - Flow at Pump

131 l/min ( 35 gal/min )

Swing System - Machine Swing Speed

10.6 r/min ( 10.6 r/min )

Blade - Height

431 mm ( 17 in )

Blade - Width - Standard

2470 mm ( 97.2 in )

Blade - Width - Wide

2640 mm ( 103.9 in )

Certification - Cab - Top Guard

ISO 10262:1998 (Level I)

Certification - Cab - Roll Over Protective Structure (ROPS)

ISO 12117-2:2008

Certification - Cab - Tip Over Protective Structure (TOPS)

ISO 12117:1997

Average Exterior Sound Pressure (ISO 6395:2008)

99 dB(A) ( 99 dB(A) )

Operator Sound Pressure (ISO 6396:2008)

72 dB(A) ( 72 dB(A) )

Sound - Note

European Union Directive "2000/14/EC"

Dimensions - Dig Depth

5211 mm ( 205.2 in )

Dimensions - Standard Stick - Tail Swing without Counterweight

1800 mm ( 70.9 in )

Dimensions - Standard Stick - Stick Length

2500 mm ( 98.4 in )

Dimensions - Standard Stick - Boom In Reach

2116 mm ( 83.3 in )

Dimensions - Standard Stick - Maximum Reach

7695 mm ( 303 in )

Dimensions - Standard Stick - Dig Depth

5211 mm ( 205.2 in )

Dimensions - Standard Stick - Ground Clearance - Frame

356 mm ( 14 in )

Dimensions - Standard Stick - O/A Track Width

2470 mm ( 97.2 in )

Dimensions - Standard Stick - Cab Height

2541 mm ( 100 in )

Dimensions - Standard Stick - Track Belt/Shoe Width

450 mm ( 17.7 in )

Dimensions - Standard Stick - Maximum Blade Depth

478 mm ( 18.8 in )

Dimensions - Standard Stick - Maximum Dump Clearance

5829 mm ( 229.5 in )

Dimensions - Standard Stick - Maximum Dig Height

7970 mm ( 313.8 in )

Dimensions - Standard Stick - Maximum Blade Height

421 mm ( 16.6 in )

Dimensions - Standard Stick - Tail Swing - Standard Counterweight

1933 mm ( 76.1 in )

Dimensions - Standard Stick - O/A Undercarriage Length

3200 mm ( 126 in )

Dimensions - Standard Stick - Vertical Wall

4385 mm ( 172.6 in )

Dimensions - Standard Stick - Swing Bearing - Height

735 mm ( 28.9 in )

Dimensions - Standard Stick - Maximum Reach - Ground Level

7570 mm ( 298 in )

Dimensions - Standard Stick - Overall Shipping Length - with Counterweight

6983 mm ( 274.9 in )

Dimensions - Standard Stick - Note (2)

**Boom Height when stick is pinned in working position with attachments.

Dimensions - Standard Stick - Note (1)

*Boom Height when stick is pinned in transport position (if available) with no attachments.

Dimensions - Standard Stick - Overall Shipping Length - without Counterweight

6850 mm ( 269.7 in )

Dimensions - Standard Stick - Height - Boom Transport - No Tools*

2550 mm ( 100.4 in )

Dimensions - Standard Stick - Height - Boom Working - With Tools**

2700 mm ( 106.3 in )

Air Conditioning System - Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Engine - Note 1

Advertised power is tested per the specified standard in effect at the time of manufacture.

Sustainability - Recyclability

96%

  • Dual Lock™ Pin Grabber Couplers - Mini Excavator

    10 Ton Mini Excavators Hydraulic

    View Details
  • Heavy Duty Buckets - Mini Excavator

    1067 mm (42 in), Pin On

    View Details
  • Heavy Duty Buckets - Mini Excavator

    1067 mm (42 in), Pin On

    PlaceholderView Details
  • Grading Buckets - Mini Excavator

    1200 mm (47 in), Pin On

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1200 mm (47 in), Pin On

    View Details
  • Nordic Grading Buckets

    1500 mm (59 in)

    View Details
  • Nordic Grading Buckets

    1500 mm (59 in)

    View Details
  • Nordic Grading Buckets

    1500 mm (59 in)

    View Details
  • Grading Buckets - Mini Excavator

    1500 mm (59 in), Pin On

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1500 mm (59 in), Pin On

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1600 mm (63 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1600 mm (63 in)

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1800 mm (71 in)

    View Details
  • Grading Buckets - Mini Excavator

    1800 mm (71 in), Pin On

    View Details
  • Ditch Cleaning Buckets - Mini Excavator

    1800 mm (71 in), Pin On

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Digging Buckets - Mini Excavator

    400 mm (16 in)

    View Details
  • Banana Buckets

    400 mm (16 in)

    View Details
  • Utility Thumbs

    457 mm (18 in) 6 Teeth/2 Tines

    View Details
  • Heavy Duty Buckets - Mini Excavator

    457 mm (18 in), Pin On

    PlaceholderView Details
  • Heavy Duty Buckets - Mini Excavator

    457 mm (18 in), Pin On

    View Details
  • Nordic Digging Buckets

    520 mm (20 in)

    View Details
  • Digging Buckets - Mini Excavator

    600 mm (24 in)

    View Details
  • Digging Buckets - Mini Excavator

    600 mm (24 in)

    View Details
  • Heavy Duty Buckets - Mini Excavator

    610 mm (24 in), Pin On

    PlaceholderView Details
  • Heavy Duty Buckets - Mini Excavator

    610 mm (24 in), Pin On

    View Details
  • Nordic Digging Buckets

    630 mm (25 in)

    View Details
  • Nordic Digging Buckets

    680 mm (27 in)

    View Details
  • Heavy Duty Buckets - Mini Excavator

    762 mm (30 in), Pin On

    PlaceholderView Details
  • Heavy Duty Buckets - Mini Excavator

    762 mm (30 in), Pin On

    View Details
  • Digging Buckets - Mini Excavator

    800 mm (32 in)

    View Details
  • Digging Buckets - Mini Excavator

    800 mm (32 in)

    View Details
  • Digging Buckets - Mini Excavator

    900 mm (35 in)

    View Details
  • Heavy Duty Buckets - Mini Excavator

    914 mm (36 in), Pin On

    PlaceholderView Details
  • Heavy Duty Buckets - Mini Excavator

    914 mm (36 in), Pin On

    View Details
  • Nordic Digging Buckets

    920 mm (36 in)

    View Details
  • Nordic Digging Buckets

    920 mm (36 in)

    View Details
  • Nordic Digging Buckets

    950 mm (37 in)

    View Details
  • Rippers

    950 mm (37 in)

    View Details
  • Hammers

    B9

    View Details
  • Hammers

    B9s

    View Details
  • Vibratory Plate Compactors

    CVP40

    View Details
  • Vibratory Plate Compactors

    CVP55

    View Details
  • CW Series Couplers

    CW-10 Hydraulic 10 Ton Mini Excavators

    View Details
  • Demolition and Sorting Grapples

    G308

    View Details
  • Hammers

    H95s

    View Details
  • Mulchers

    HM208

    View Details
  • Mulchers

    HM210

    View Details
  • Flail Mowers

    HMF210

    View Details
  • Cold Planers

    PC45

    View Details
  • S Type Couplers

    S-45 Pin Grabber LCS 10 Ton

    View Details
  • S Type Couplers

    S-50 Pin Grabber 10 Ton Mini Excavators

    View Details
  • S Type Couplers

    S-50 Pin Grabber LCS 10 Ton Mini Excavators

    View Details
  • Mobile Scrap & Demolition Shears

    S308

    View Details
  • Tiltrotators

    TRS8

    View Details
Select Up To 3 Models To Compare
