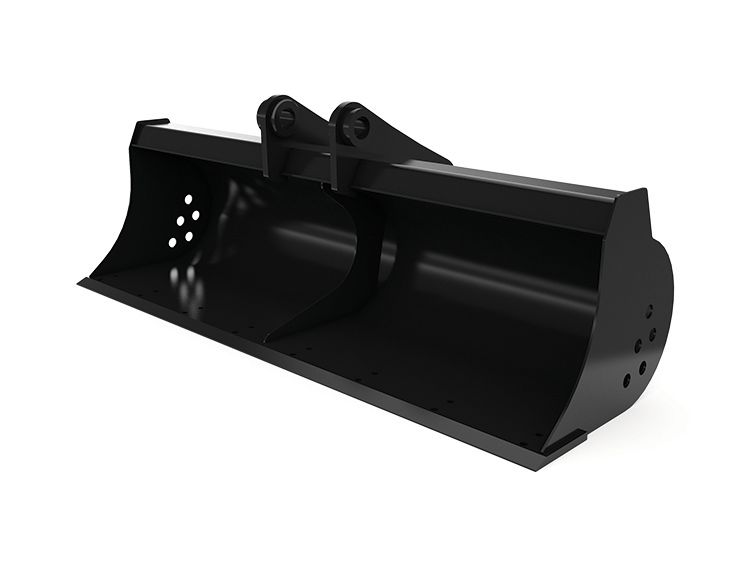

1800 mm (71 in), Pin On
Application
Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.
Bucket Design
Formed back wrapper design enhances bucket loading and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Videos
Documents & Brochures
Additional information
Offering Type | |
---|---|
Width | 1800 mm ( 70.9 in ) |
Capacity | 420 l ( 14.8 ft³ ) |
Weight | 216 kg ( 476.2 lb ) |
Base Edge Thickness | 20 mm ( 0.8 in ) |
Tip Radius | 661 mm ( 26 in ) |
Interface Type | Pin On |
-
