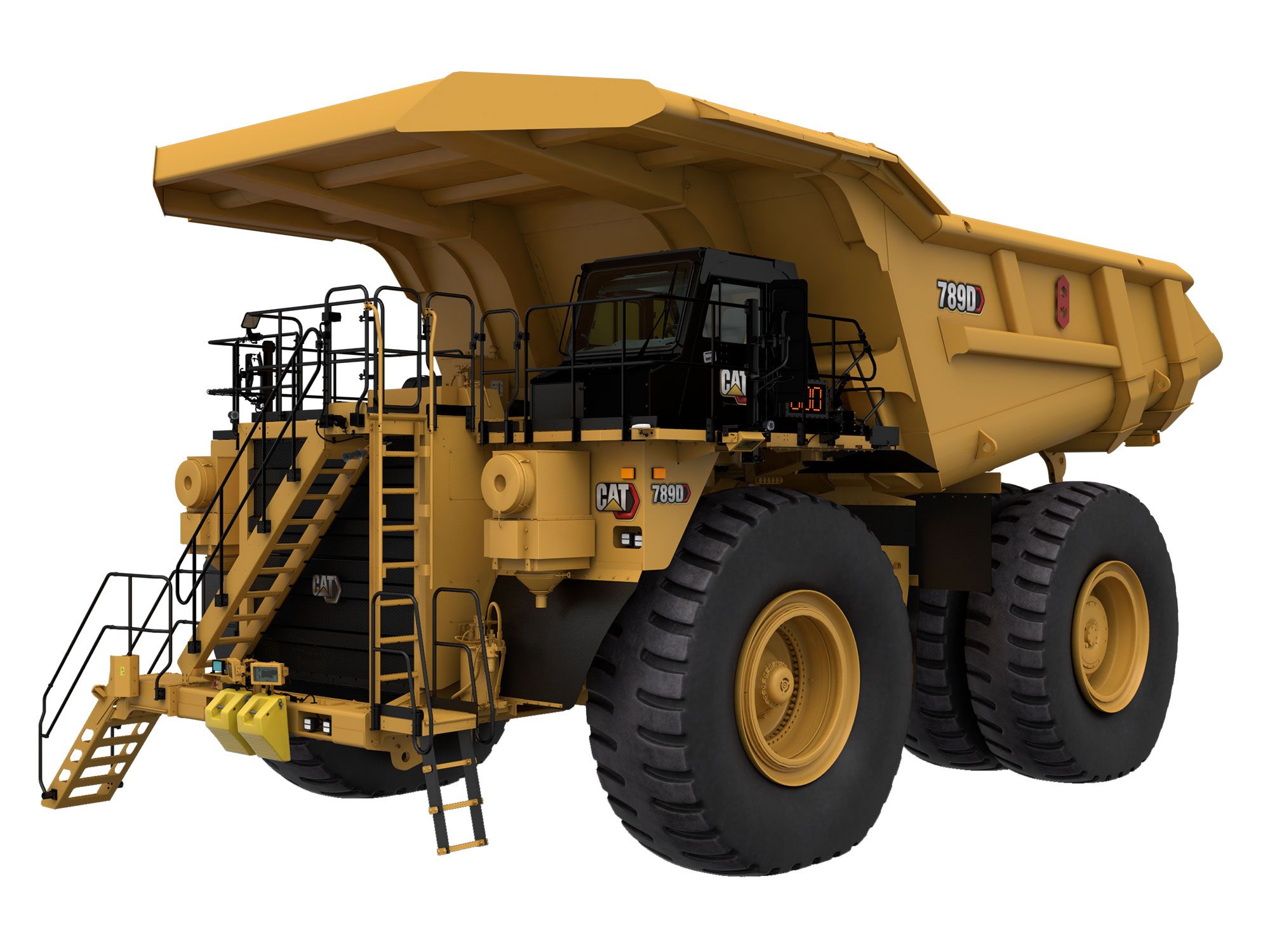

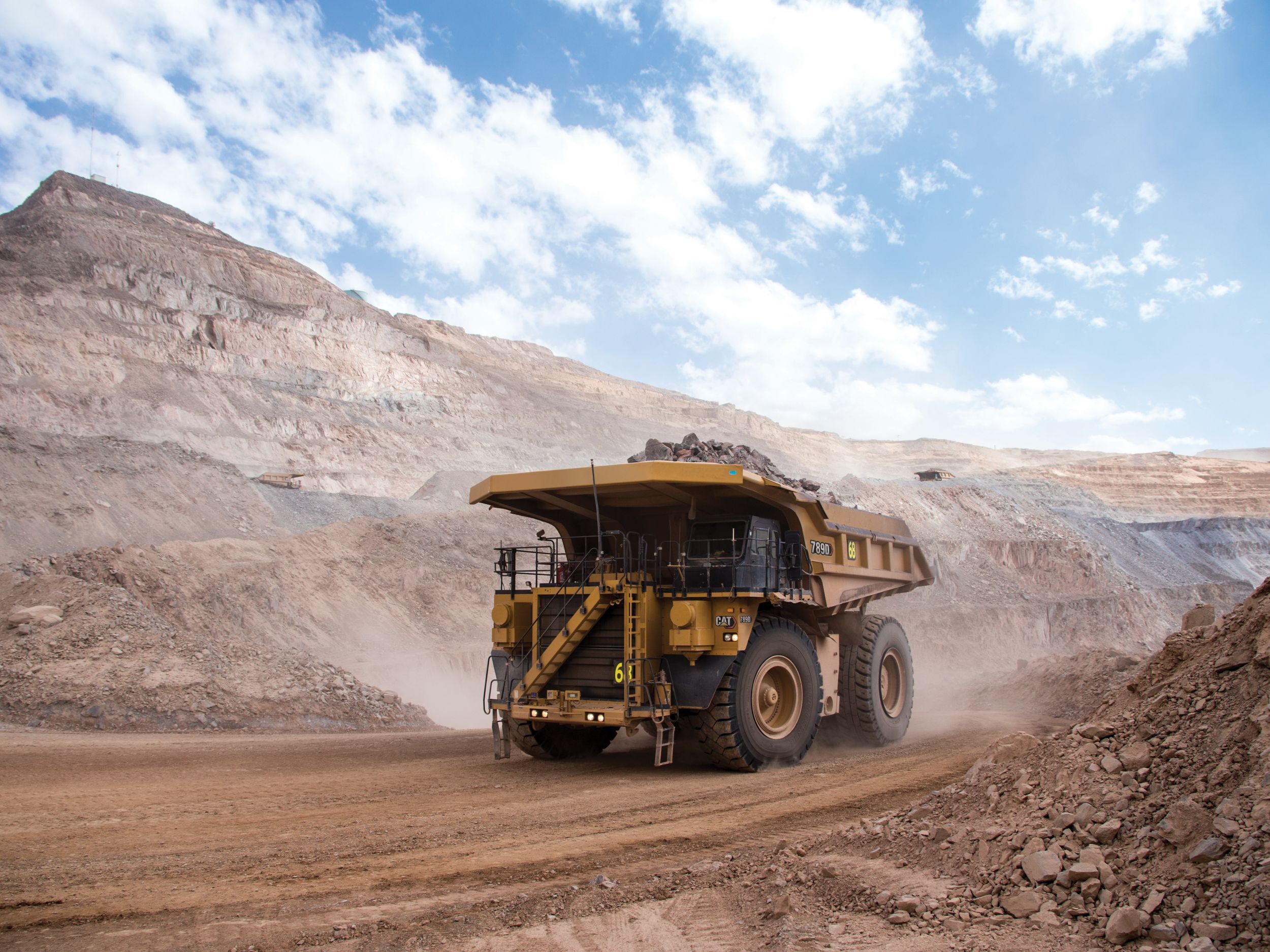

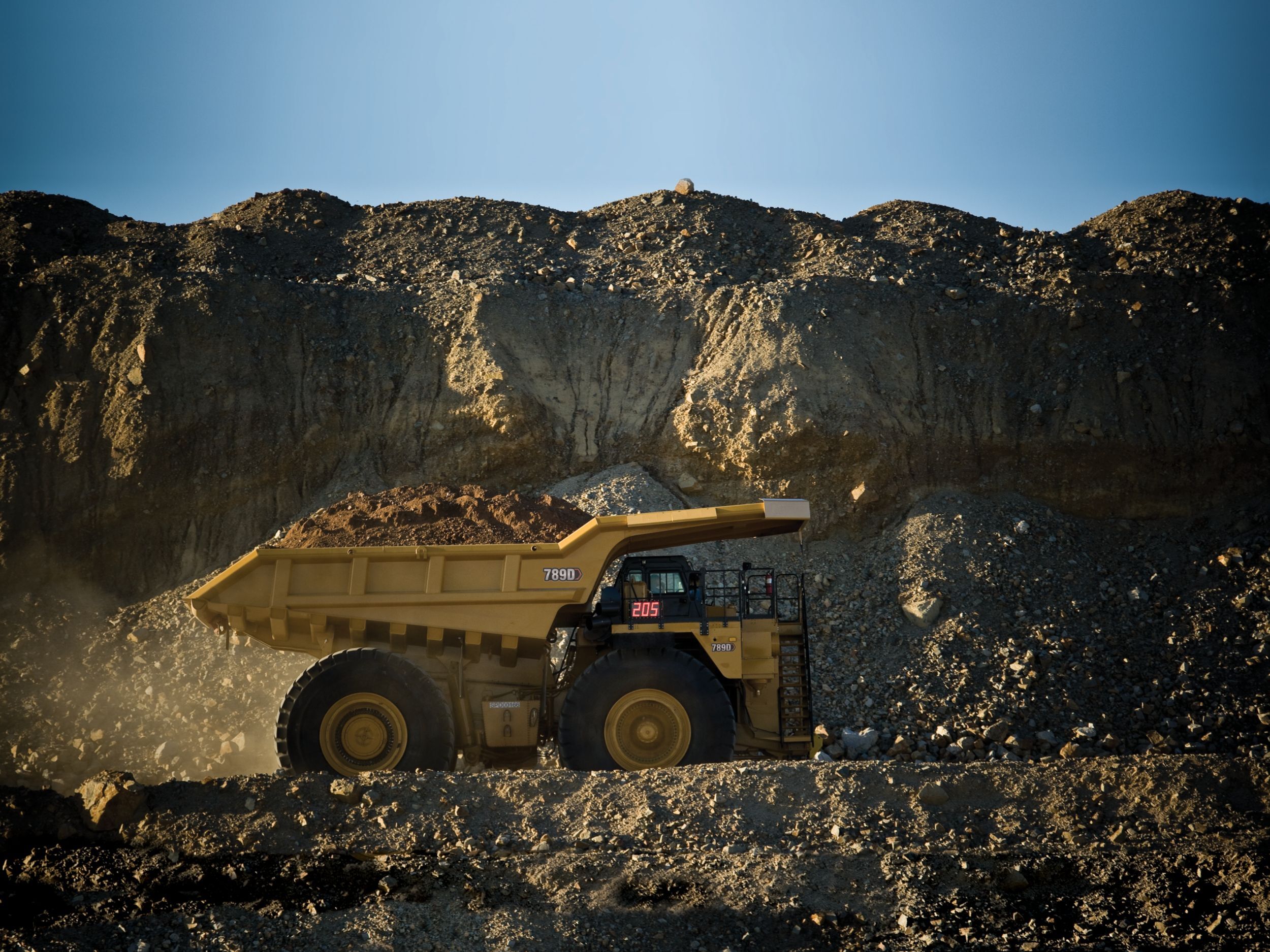

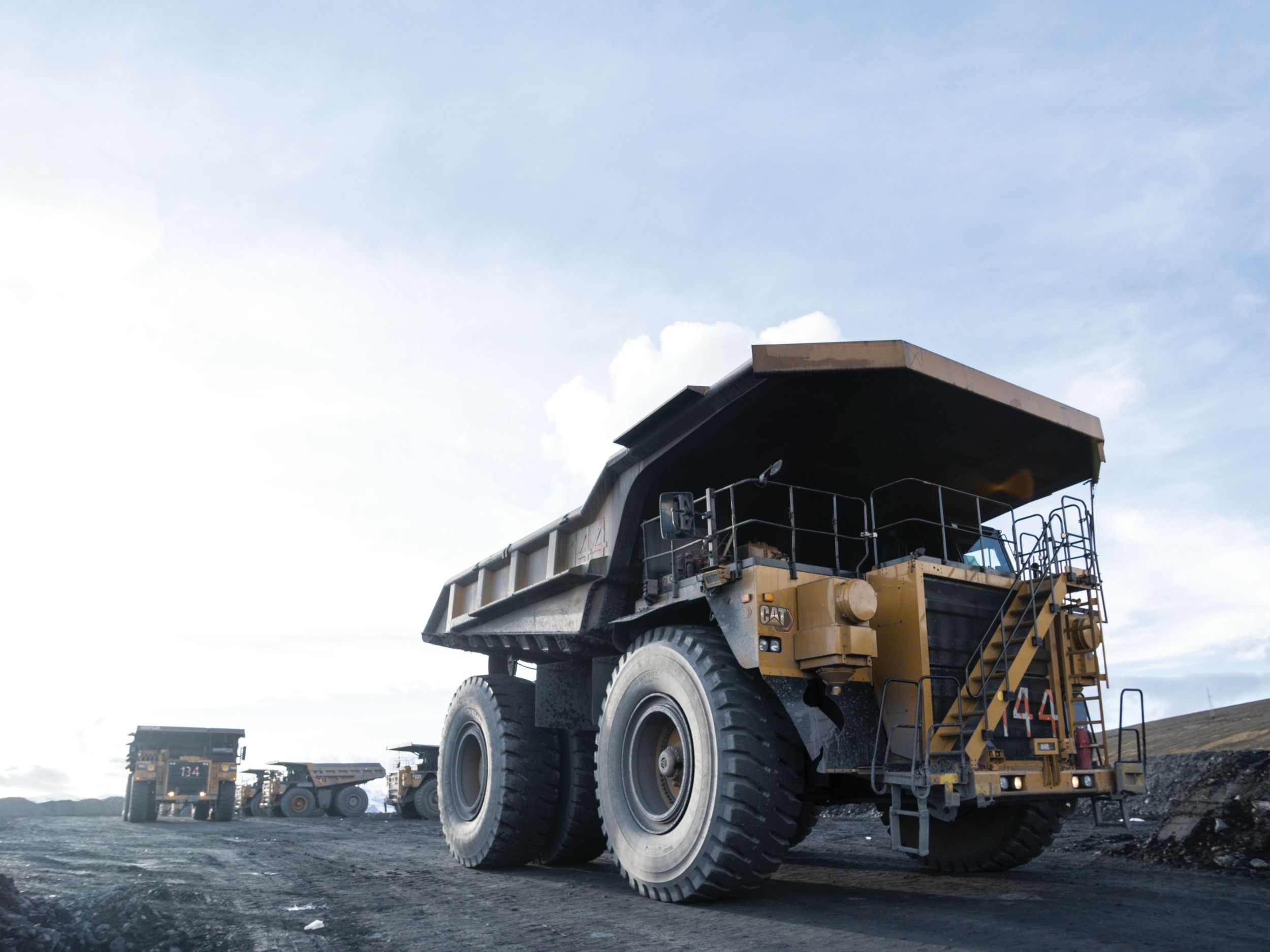

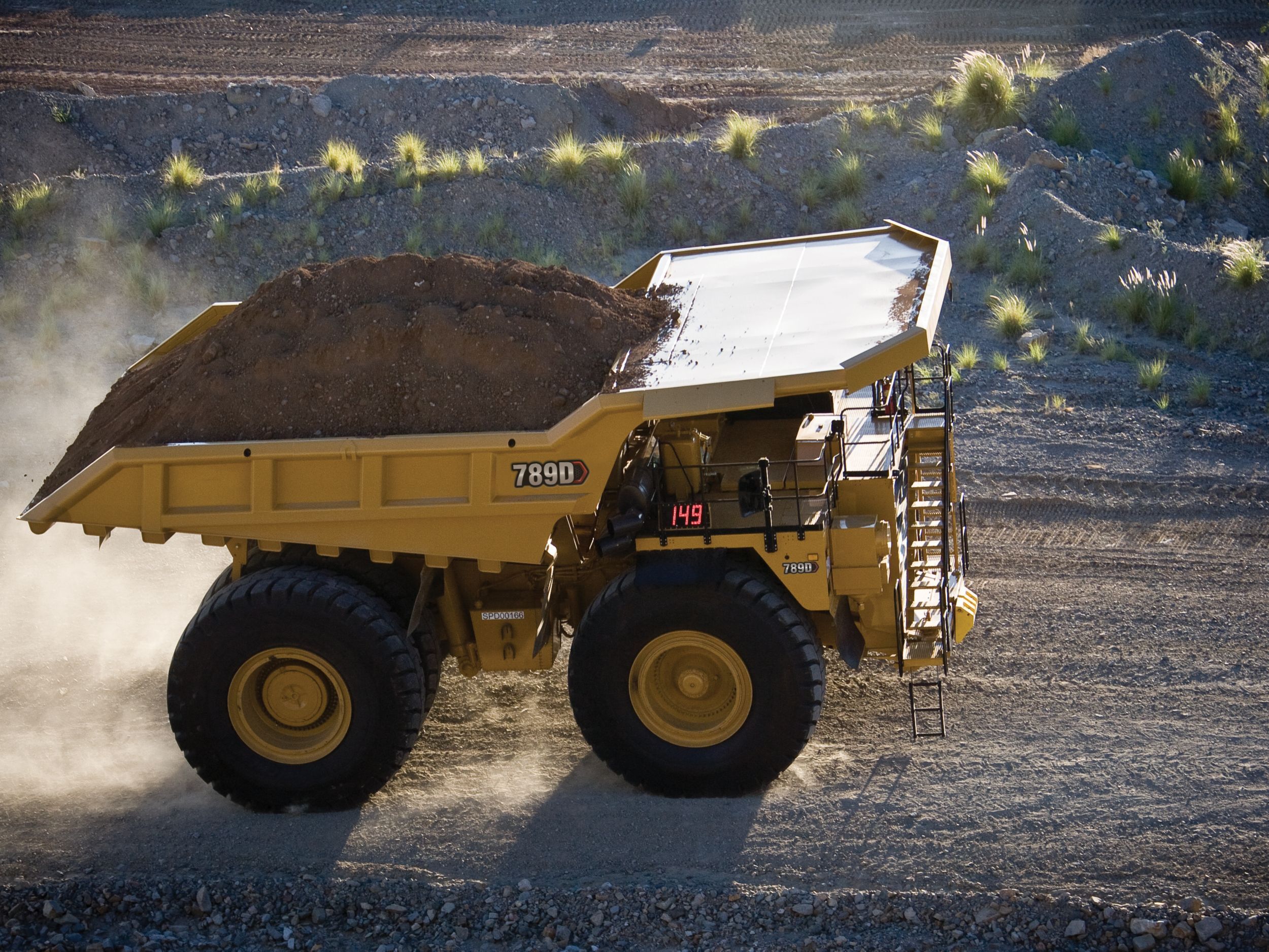

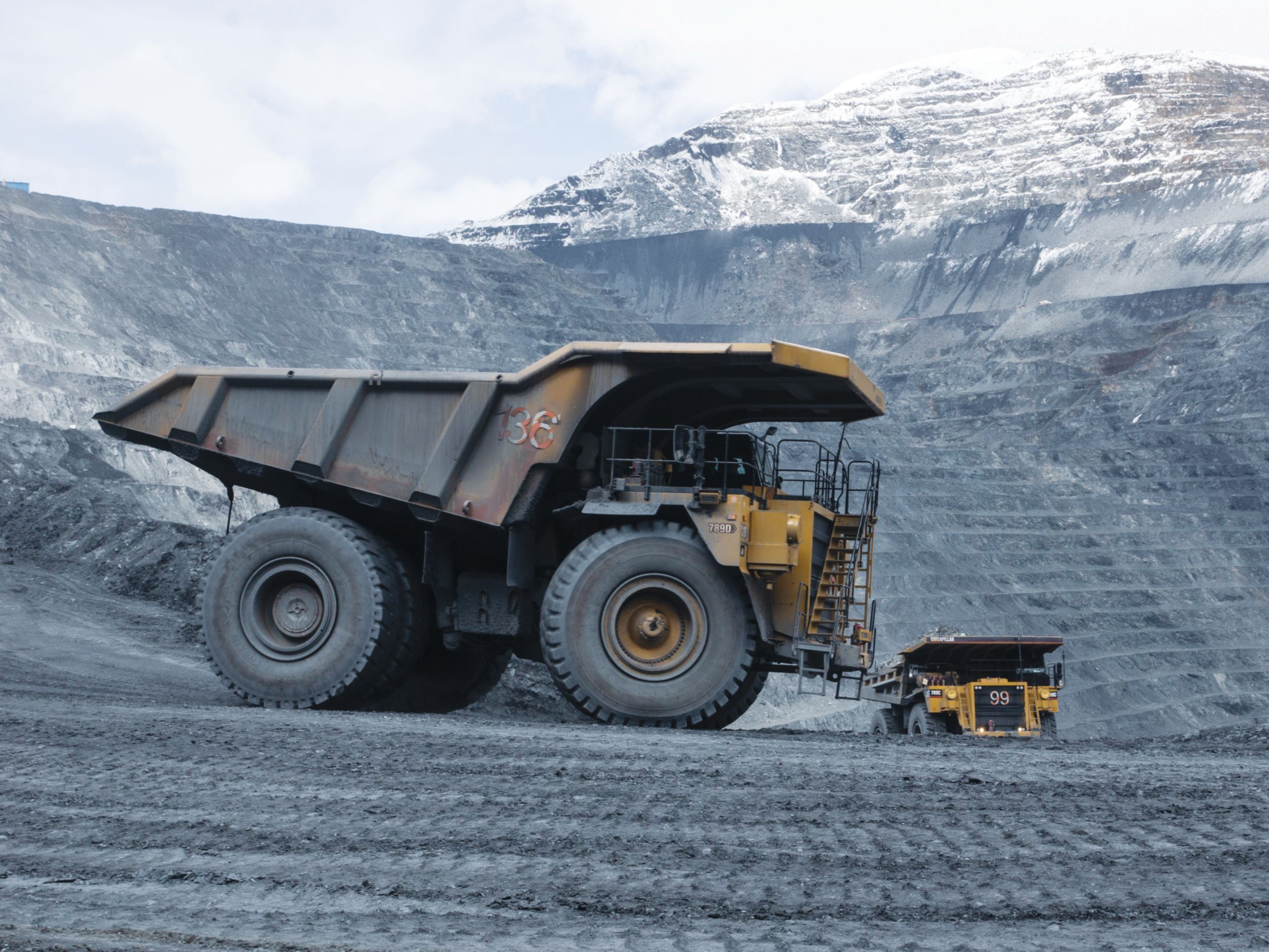

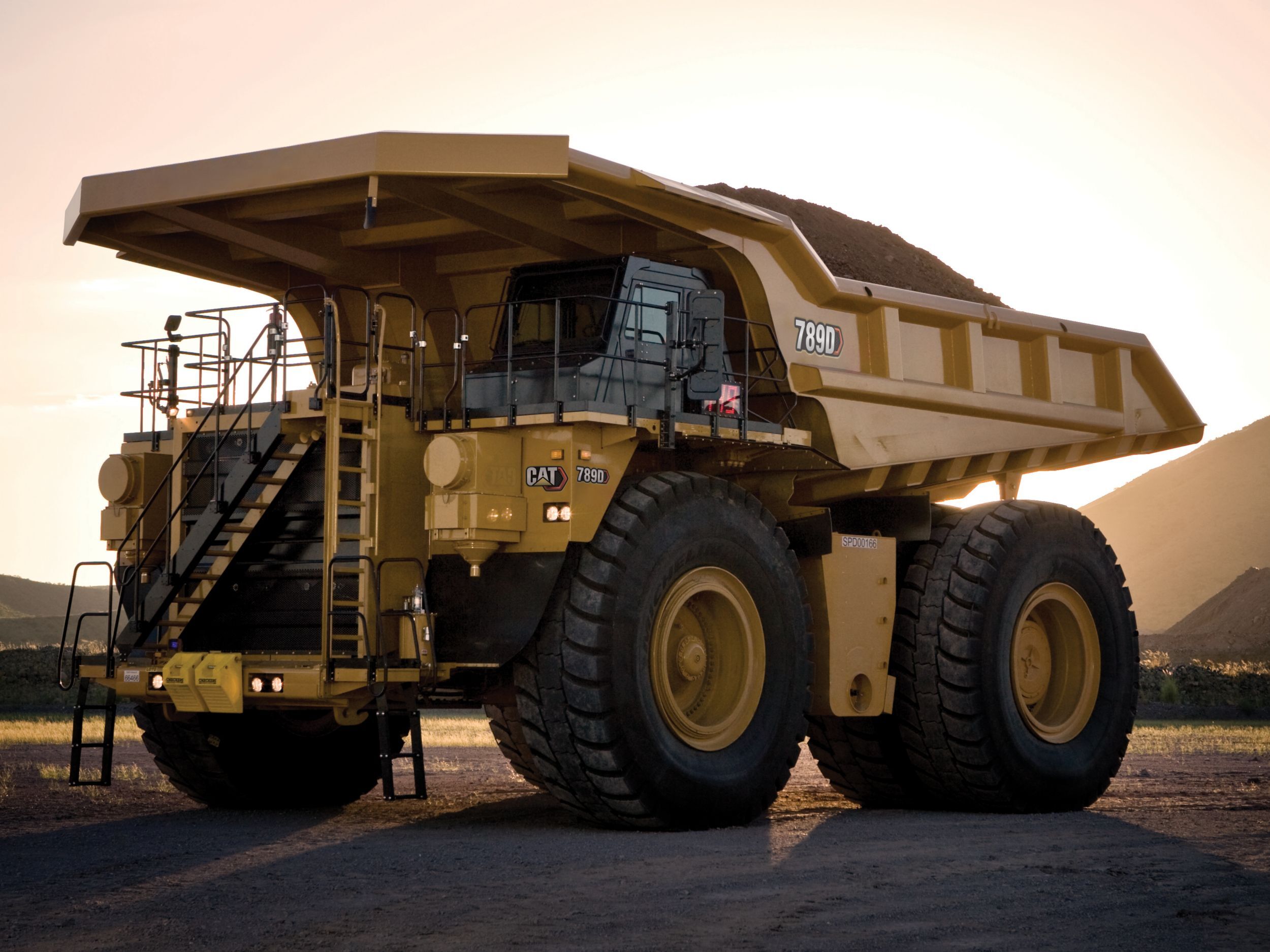

789D Mining Truck

The Cat® 789D Mining Truck has a history of proven performance in a wide variety of applications. It delivers the lowest cost per ton in its size class, for an overall reduction in your operating costs, along with the reliability and reduced costs that come with long life — from the engine and powertrain to the components, brakes and frame. It also delivers fast speed on grade and a high production capability thanks to a payload advantage over competitive machines. The versatile 789D offers engine options to meet regulatory standards or application-specific needs such as extreme temperatures, high altitude or areas that require sound reductions. And it features
safety enhancements like diagonal stairways, wide walkways and optional powered access to protect your most important asset: your people.

Category:

PRODUCTIVITY

  • The 789D delivers a faster speed on grade than competitive trucks thanks to the efficient 3500 series 16-cylinder engine and mechanical drivetrain.
  • The 23% net torque rise provides unequaled lugging force during acceleration, on steep grades and in rough underfoot conditions. Torque rise effectively matches transmission shift points for maximum efficiency and fast cycle times.
  • Expanded tire options allow mines to take advantage of higher speeds, particularly in flat, long-haul, high-speed applications.
  • The 789D has an empty machine weight advantage, allowing it to haul more with every load, delivering a 10-15% cost per ton advantage over competitive trucks depending on application.

SAFETY

  • Access and egress are safer thanks to the 600-mm-wide (24-in-wide) stairway and walkways, slip-resistant surfaces and hand rails, plus an optional powered access ladder.
  • Superior control is delivered by a patented braking system that provides immediate, fade-resistant braking and retarding.
  • The 789D is designed for excellent all-around visibility and clear sight lines, enhanced by wide-angle mirrors, a relocated air tank and grease reservoir, and Electric Start batteries stored.
  • The optional Cat MineStar™ Object Detection system combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
  • Dumping operations are safer thanks to a body raised indicator, body retaining cable and reverse neutralizer when dumping.

OPERATOR COMFORT

  • Three cab options — standard, deluxe and cold weather — allow you to select the best features for your application.
  • All options offer an ergonomic layout, excellent all-around visibility, and controls, levers, switches and gauges that are positioned for ease of use.
  • The cab has numerous features that enhance comfort and reduce fatigue, such as an air suspension seat, reduced vibration, automatic climate control and sound suppression.

SERVICEABILITY

  • Time spent on regular maintenance procedures is reduce with easy access to daily service points and major components; ground-level access to tanks, filters, drains and engine shutdown; a maintenance platform that provides access to the engine engine, steering hydraulic tank and battery compartment; and an optional fast-fill service center, which enables high-speed fuel and oil exchange.
  • Enhanced serviceability and 500-hour service intervals are designed to increase machine availability and productivity.
  • Electric connectors are sealed to lock out dust and moisture, harnesses are braided for protection, and wires are color- coded for easy diagnosis and repair.
  • Individual cylinder heads are interchangeable for easy removal and visual inspection of internal parts.
  • The VIMS onboard diagnostic systems continuously monitor all critical machine functions and components to help locate faults quickly for faster repair.

DURABILITY AND LONG LIFE

  • The 789D frame uses a box-section design, incorporating two forgings and 21 castings in high-stress areas with deep penetrating and continuous wrap-around welds to resist damage from twisting loads without adding extra weight. The mild steel frame provides flexibility, durability and resistance to impact loads.
  • Resiliently mounted to the main frame to reduce vibration and sound, the integral ROPS is designed as an extension of the truck frame.
  • Component life is enhanced thanks to the standard rear-axle continuous filtration feature. Cleaner oil helps promote lubrication that leads to longer life.
  • The frame, powertrain, engine and components are built to be rebuilt — delivering multiple lives of like-new performance at a fraction-of-new price.

CAT BODIES

  • Cat bodies are the best choice for the 789D. They’re designed to be an integral part of the entire vehicle system, ensuring you achieve maximum chassis life.
  • The High Performance (HP) body features a lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.
  • Available in several sizes, the MSD II body is ideal for mature mines with good operational and maintenance practices. It can be lined or unlined, with a site-specific body designed to maximize performance.
  • Intended for tough applications including greenfield sites and contracting mines, the Dual Slope body provides excellent load retention, maintains a low center of gravity with optimum load distribution and reduces shock loading.
  • The specialty combination body for coal and coal overburden accommodates light density material while maintaining payload potential.

SUSTAINABILITY

  • We’ve designed the 789D with a number of enhancements that lessen its impact on the environment. Features like oil renewal systems and continuous rear axle filtration decrease the amount of waste contributed to the environment.
  • We continue to research alternative energy sources such as biofuels and a liquefied natural gas-supplied Dynamic Gas Blending solution, and we’re implementing power options like electrification and trolley to find new ways to reduce emissions.
  • Cat engines are compatible with diesel fuel blended with lower-carbon intensity fuels such as biodiesel FAME (fatty acid methyl ester). They are also compatible with renewable fuels such as HVO (Hydrotreated Vegetable Oil) and GTL (Gasto-Liquid) alternative fuels that are drop-in replacements for diesel. HVO and GTL are acceptable for use in all Cat engines at any blend level and up to 100%.
  • By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions.

VERSATILITY

  • The 789D comes with two engine options to help you meet regulatory requirements or application-specific needs. Both the Cat 3516B and 3516C EUI options deliver high power and reliability in the world's most demanding mining applications.
  • The mechanical drive powertrain and power shift transmission provide unmatched efficiency and control on steep grades, in poor underfoot conditions and on haul roads with high rolling resistance.
  • Application-specific capabilities are available for extreme ambient conditions, high-altitude and extra quiet applications.
  • The 789D lets you select the tire offering that best matches your application, with a larger tire for flat, long, high-speed applications. Applicable hauling conditions will benefit from increased tire life or significant reduction in tire costs.

TECHNOLOGY SOLUTIONS

  • MineStar Fleet is a fleet monitoring system that can be used to measure, manage and maximize the overall hauling operation.
  • With MineStar Detect, you can equip your 789D with cameras to give your operators a better view of what's happening around their equipment—or combine cameras and radar into a system that automatically alerts operators to hazards.
  • The MineStar Detect in-cab Driver Safety System intervenes when it detects fatigue or distraction
  • Machine health and condition monitoring solutions enable a proactive approach to maintenance.
  • MineStar Command for hauling, an autonomous hauling solution proven to increase productivity up to 30%, is offered as a retrofit kit for the 789D.

Standard Equipment

POWER TRAIN
  • Diesel engine/turbocharged/aftercooled:
    –Ground level engine shutdown
    –Ether starting aid (automatic
    – Aftercooler (separate circuit or air to air)
    – Elevated low idle control
    – Automatic starter protection
    – Multi-point all pressure sensing
  • Braking system:
    –Brake release motor (towing)
    – Oil-cooled, multi-disc (front and rear)
    – (service retarding, parking, secondary)
    – Automatic Retarder Control
    – Engine overspeed protection
    – Extended life brake disc material
  • Transmission:
    – 6-speed, automatic powershift with electronic control (TCC)
    – Controlled throttle shifting; Individual clutch modulation
    – Body-up shift inhibitor
    – Directional shift management
    – Downshift/reverse shift inhibitor
    – Oil level sensor
    – Neutral start switch/coast inhibitor
    – Body-up reverse neutralizer
    – Programmable top gear
    – Lock-up torque converter
    – Rear axle continuous lubrication/filtration
ELECTRICAL
  • Alarm, backup
  • Alternator, 105 amp
  • Batteries, 12V (2), 93 amp-hour
  • Converter, 12V electrical
  • Electrical system, 24V, 15 amp
  • Lighting system:
    – Backup and hazard lights; Auxiliary work lights (2) rear, (1) RH side, (1) LH side; Directional signals (front and rear LED)
    – Engine compartment lights
    – External payload lights
    – Headlights with lo-hi beam selector
    – Ladder light and service deck lights
    – Left-hand ladder/service deck
    – Stop/tail lights (LED)
    – VIMS, blue light (LED)
OPERATOR ENVIRONMENT
  • STANDARD CAB:
    – Operator seat
    –Non-suspension trainer seat
    – Flip down front visor
    – Standard side of cab access
  • DELUXE CAB:
    – Heated and ventilated operator seat
    – Suspension trainer seat
    – Retractable front visor
    – Rear of cab access and standard side of cab access
    – Vacuum, cab clean-out
    – Operator Footrest
  • DELUXE COLD WEATHER CAB:
    – Heated and ventilated operator seat
    – Suspension trainer seat
    – Retractable front visor
    – Rear of cab access and standard side of cab access
    – Vacuum
    –cab clean-out
    –Operator Footrest
    – Deluxe Diffuser
  • Air conditioner
  • Auxiliary power connection/cigarette lighter
  • Diagnostic connection port
  • Dome courtesy light
  • Entertainment Radio Ready:

    5 amp converter, Speakers, Antenna wiring

  • Gauges/indicators:

    Air cleaner service indicator; Quad gauge panel: Air pressure, Brake oil temperature, Engine coolant temperature, Fuel level

  • Electric hour meter
  • Electric engine control fault indicator
  • Engine idle shutdown
  • Mirrors, right and left
  • Speedometer
  • Tachometer
  • Transmission gear indicator
  • VIMS message center with universal gauge
  • VIMS keypad
  • Heater/defroster (11 070 kCal/43,930 BTU)
  • Horn
  • Hoist, body control (electric)
  • Integrated object detection system
  • ROPS cab, insulated/sound suppressed
  • Seatbelt, operator, 75 mm/3" wide
  • Seatbelt, trainer, two points
  • Stairway and walkway access, 600 mm (24 in)
  • Steering wheel, tilt, padded, telescopic
  • Window, operator, electric powered
  • Windshield wiper, intermittent control and washer
FLUIDS
  • Extended Life Coolant to -35° C (-30° F)
OTHER STANDARD EQUIPMENT
  • Air line dryer
  • Auto lubrication system
  • Auxiliary “buddy” dumping quick connect
  • Auxiliary steering quick connect (towing)
  • Body mounting group
  • Driveline guard (fully enclosed)
  • Fast fill fuel system
  • Ground level VIMS data port
  • Ground level battery disconnect
  • Rock ejectors
  • Supplemental steering (automatic)
  • Tie off points
  • Tow hooks (front)
  • Tow pin (rear)
  • Traction Control System
  • Vital Information Management System

Additional information

Offering Type

Engine - Gross Power - SAE J1995

1566 kW ( 2100 HP )

Engine Model

Cat® 3516C HD

Engine - Rated Net Power - ISO 9249

1468 kW ( 1969 HP )

Engine - Bore

170 mm ( 6.7 in )

Engine - Stroke

215 mm ( 8.5 in )

Engine - Displacement

78.1 l ( 4766 in³ )

Engine - Net Power

1468 kW ( 1969 HP )

Engine - Gross Power

1566 kW ( 2100 HP )

Engine - Emissions Rating

Fuel Optimized or EPA Tier 2 equivalent

Engine - Rated Speed

1750 r/min ( 1750 r/min )

Optional Engine - Engine Model

Cat® 3516B EUI

Optional Engine - Gross Power

1417 kW ( 1900 HP )

Optional Engine - Rated Net Power - ISO 9249

1335 kW ( 1791 HP )

Optional Engine - Bore

170 mm ( 6.7 in )

Optional Engine - Stroke

190 mm ( 7.5 in )

Optional Engine - Displacement

69 l ( 4211 in³ )

Weights - Approximate - Rated Gross Machine Weight

324319 kg ( 715000 lb )

Body - Dual Slope - Body Weight

27365 kg ( 60331 lb )

Weights - Approximate - Chassis Weight (37R57 Tires)

102821 kg ( 226681 lb )

Weights - Approximate - Chassis Weight (40R57 Tires)

106010 kg ( 233713 lb )

Weights - Approximate - Nominal Rated Payload

194 t ( 214 ton (US) )

Operating Specifications - Standard MSD Body (SAE 2:1)

130 m³ ( 170 yd³ )

Operating Specifications - Standard X Body (SAE 2:1)

123 m³ ( 161 yd³ )

Operating Specifications - Standard Dual Slope Body (SAE 2:1)

108 m³ ( 141 yd³ )

Operating Specifications - Standard Combi Body (SAE 2:1)

153 m³ ( 200 yd³ )

Operating Specifications - Standard Gateless Coal Body (SAE 2:1)

191 m³ ( 250 yd³ )

Operating Specifications - Standard HP Body (SAE 2:1)

144 m³ ( 188 yd³ )

Transmission - Forward - 1

12.6 km/h ( 7.8 mile/h )

Transmission - Forward - 2

17.1 km/h ( 10.6 mile/h )

Transmission - Forward - 3

23.1 km/h ( 14.4 mile/h )

Transmission - Forward - 4

31.2 km/h ( 19.4 mile/h )

Transmission - Forward - 5

42.3 km/h ( 26.3 mile/h )

Transmission - Forward - 6

57.2 km/h ( 35.5 mile/h )

Transmission - Reverse

11.8 km/h ( 7.3 mile/h )

Transmission - Top Speed - Loaded

57.2 km/h ( 35.5 mile/h )

Final Drives - Differential Ratio

2.35:1

Final Drives - Planetary Ratio

10.83:1

Final Drives - Total Reduction Ratio

25.46:1

Suspension - Effective Cylinder Stroke - Front

105 mm ( 4 in )

Suspension - Effective Cylinder Stroke - Rear

93 mm ( 3.5 in )

Suspension - Rear axle - Oscillation

±5.6°

Brakes - Brake Surface - Front

81693 cm² ( 12662 in² )

Brakes - Brake Surface - Rear

134590 cm² ( 20862 in² )

Brakes - Standards

SAE J1473 OCT90 ISO 3450:2011 – Service Brakes: Four-Corner, Wet Multi-disc, Oil Cooled, Hydraulically Actuated. Parking Brake: Four-Corner, Wet Multi-disc, Spring Applied, Hydraulically Released.

Body Hoists - Pump Flow - High Idle

731 l/min ( 193 gal/min )

Body Hoists - Relief Valve Setting - Raise

17238 kPa ( 2500 psi )

Body Hoists - Body Raise Time - High Idle

18.9 s ( 18.9 s )

Body Hoists - High Idle Body Lower Time - Float

15.6 s ( 15.6 s )

Body Hoists - High Idle Body Lower Time - Power

15.6 s ( 15.6 s )

Body Hoists - Body Raise Time - High Idle Body

17.3 s ( 17.3 s )

Weight Distributions - Approximate - Front Axle - Empty

50 % ( 50 % )

Weight Distributions - Approximate - Rear Axle - Empty

50 % ( 50 % )

Weight Distributions - Approximate - Front Axle - Loaded

33 % ( 33 % )

Weight Distributions - Approximate - Rear Axle - Loaded

67 % ( 67 % )

Weight Distributions - Approximate - Note

Weight distributions optimized with Cat body.

Standard Tires

37.00-R57

Optional Tires

40.00-R57

Service Refill Capacities - Fuel Tank - Standard

2082 l ( 550 gal (US) )

Service Refill Capacities - Fuel Tank - Optional

3785 l ( 1000 gal (US) )

Service Refill Capacities - Cooling System

725 l ( 192 gal (US) )

Service Refill Capacities - Crankcase

291 l ( 77 gal (US) )

Service Refill Capacities - Differential - Final Drives

583 l ( 154 gal (US) )

Service Refill Capacities - Steering System

189 l ( 50 gal (US) )

Service Refill Capacities - Brake Hoist System

909 l ( 241 gal (US) )

Service Refill Capacities - Transmission Tank

76 l ( 20 gal (US) )

ROPS Standards

Standards

Sound Standards

Standards

Steering Standards

SAE J1511 OCT90 ISO 5010:2007

Steering Angle

36.07 ° ( 36.07 ° )

Steering - Turning Diameter - Front Wheel

27.53 m ( 90.32 ft )

Steering - Vehicle Clearance - Turn Circle

30.23 m ( 99.18 ft )

Steering - Turning Diameter - ISO 7457:1997 (33.00R51 tires)

27.53 m ( 90.32 ft )

Body - X - Body Weight

30107 kg ( 66376 lb )

Dimensions (Approximate) - Centerline Front Tire Width

5410 mm ( 17.75 ft )

Dimensions (Approximate) - Centerline of Rear Dual Tire Width

4695 mm ( 15.42 ft )

Dimensions (Approximate) - Dump Clearance

1585 mm ( 5.17 ft )

Dimensions (Approximate) - Engine Guard Clearance

1290 mm ( 4.25 ft )

Dimensions (Approximate) - Front Canopy Height

6739 mm ( 22.09 ft )

Dimensions (Approximate) - Ground Clearance

1304 mm ( 4.25 ft )

Dimensions (Approximate) - Height - Top of ROPS

5550 mm ( 18.25 ft )

Dimensions (Approximate) - Inside Body Width

6691 mm ( 21.92 ft )

Dimensions (Approximate) - Loading Height - Empty

6147 mm ( 20.17 ft )

Dimensions (Approximate) - Outside Body Width

7377 mm ( 24.17 ft )

Dimensions (Approximate) - Overall Canopy Width

7769 mm ( 25.5 ft )

Dimensions (Approximate) - Overall Height - Body Raised

13122 mm ( 43.09 ft )

Dimensions (Approximate) - Overall Length

12945 mm ( 42.5 ft )

Dimensions (Approximate) - Overall Tire Width

7120 mm ( 23.33 ft )

Dimensions (Approximate) - Rear Axle - Clearance

1263 mm ( 4.17 ft )

Dimensions (Approximate) - Rear Axle - Tail

3856 mm ( 12.67 ft )

Dimensions (Approximate) - Wheel Base

5700 mm ( 1867 ft )

Operating Specifications - Note

Refer to the Cat Mining Truck Optimized payload policy for maximum gross machine weight limitations.

Select Up To 3 Models To Compare
