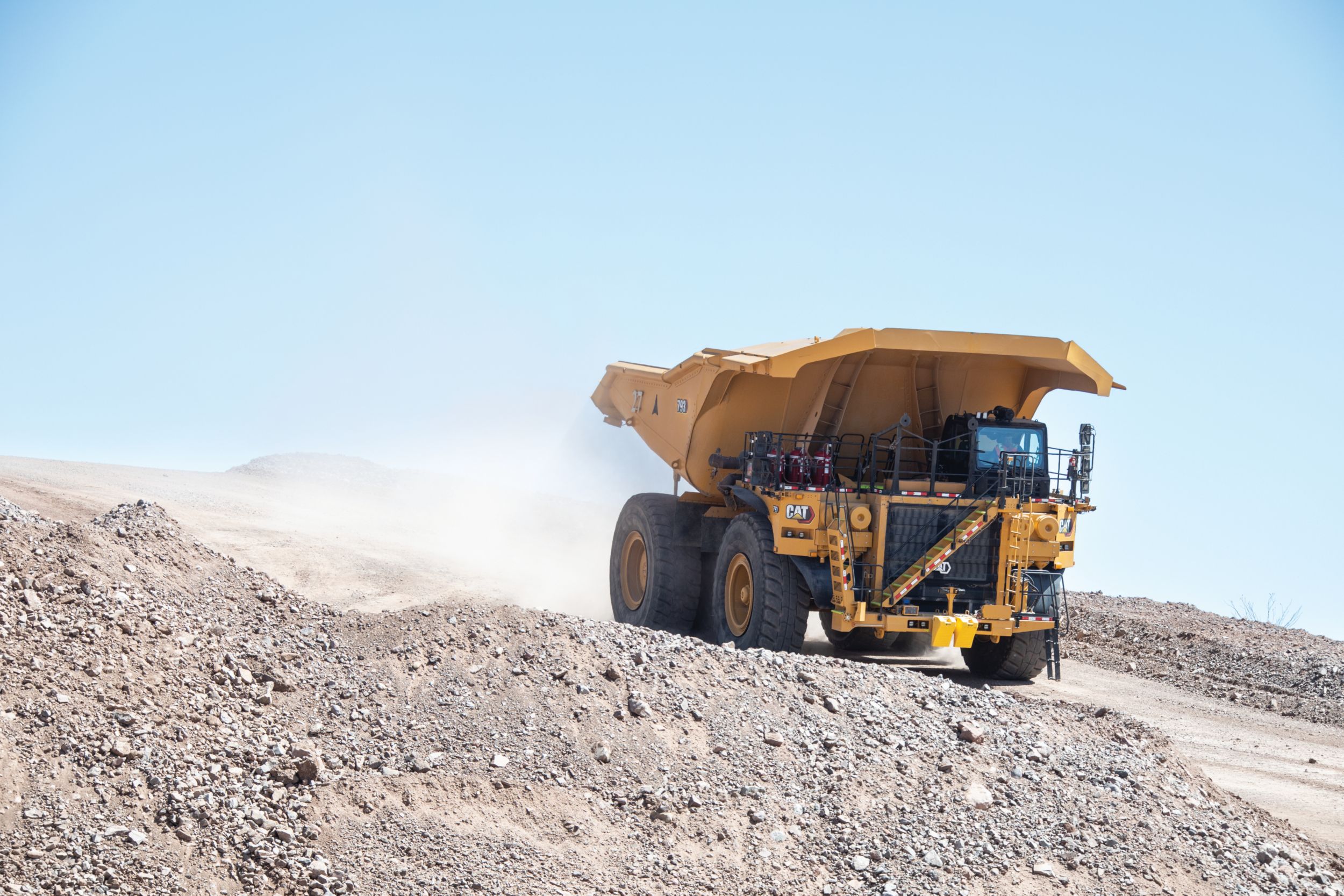

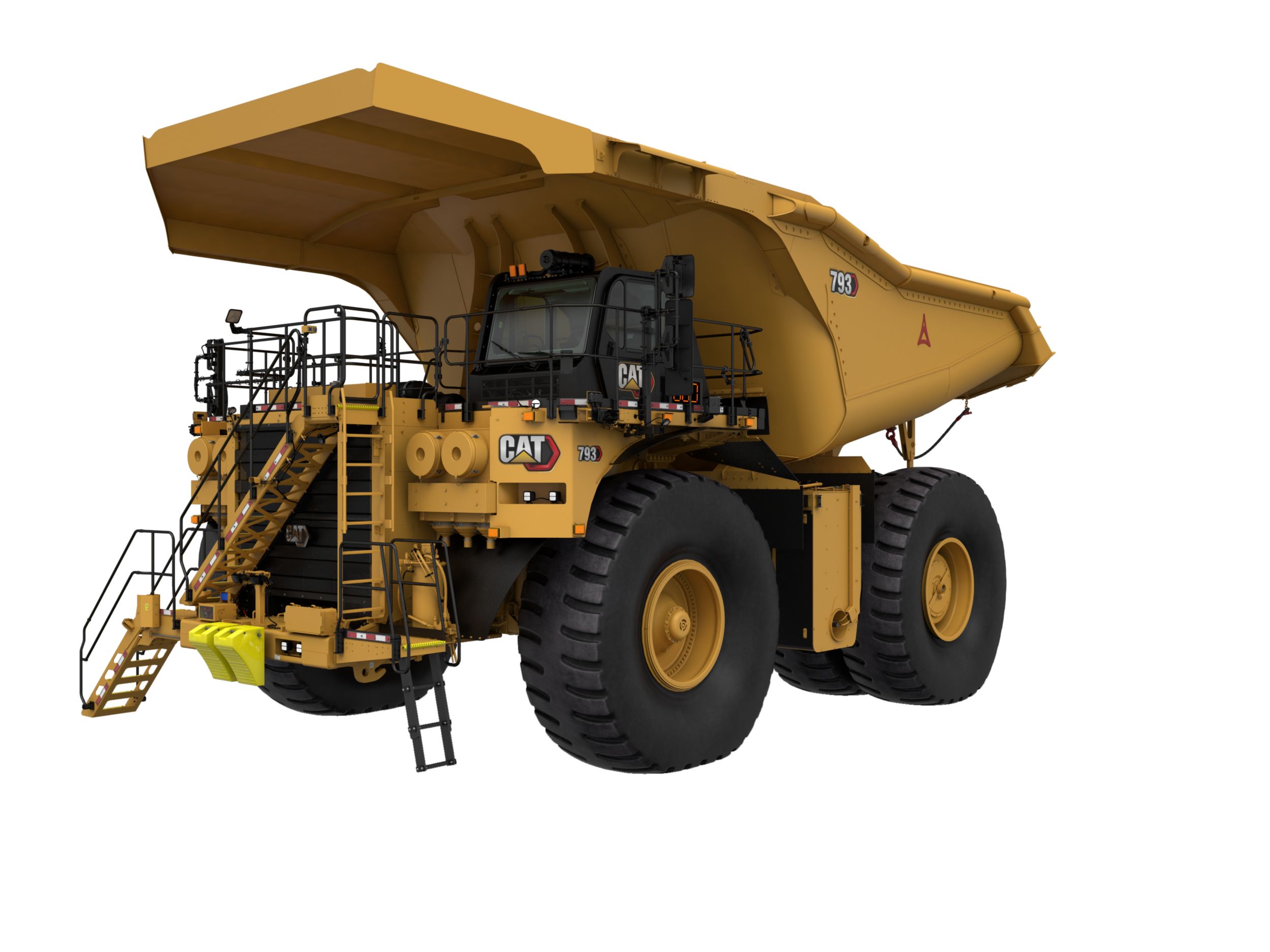

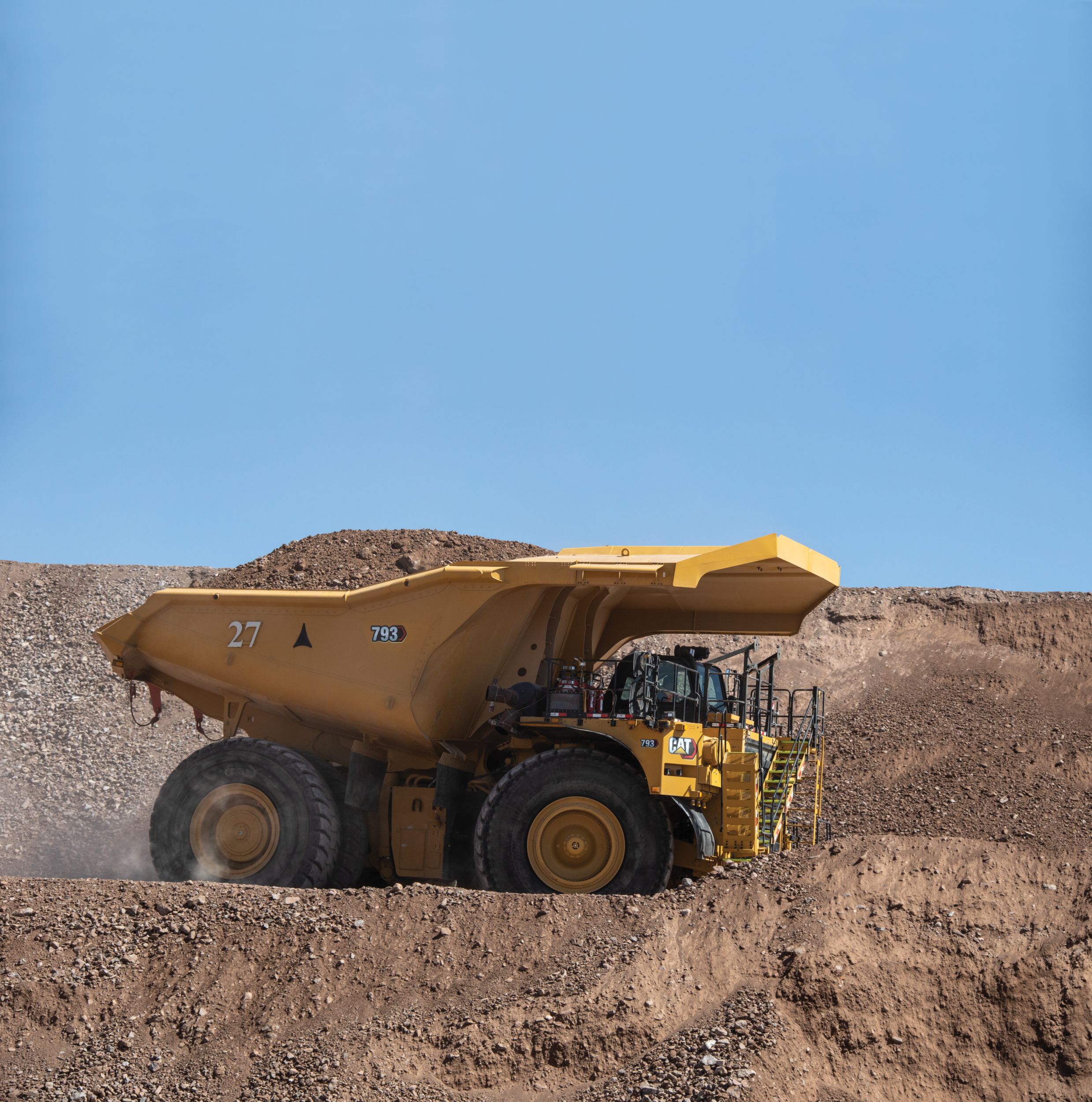

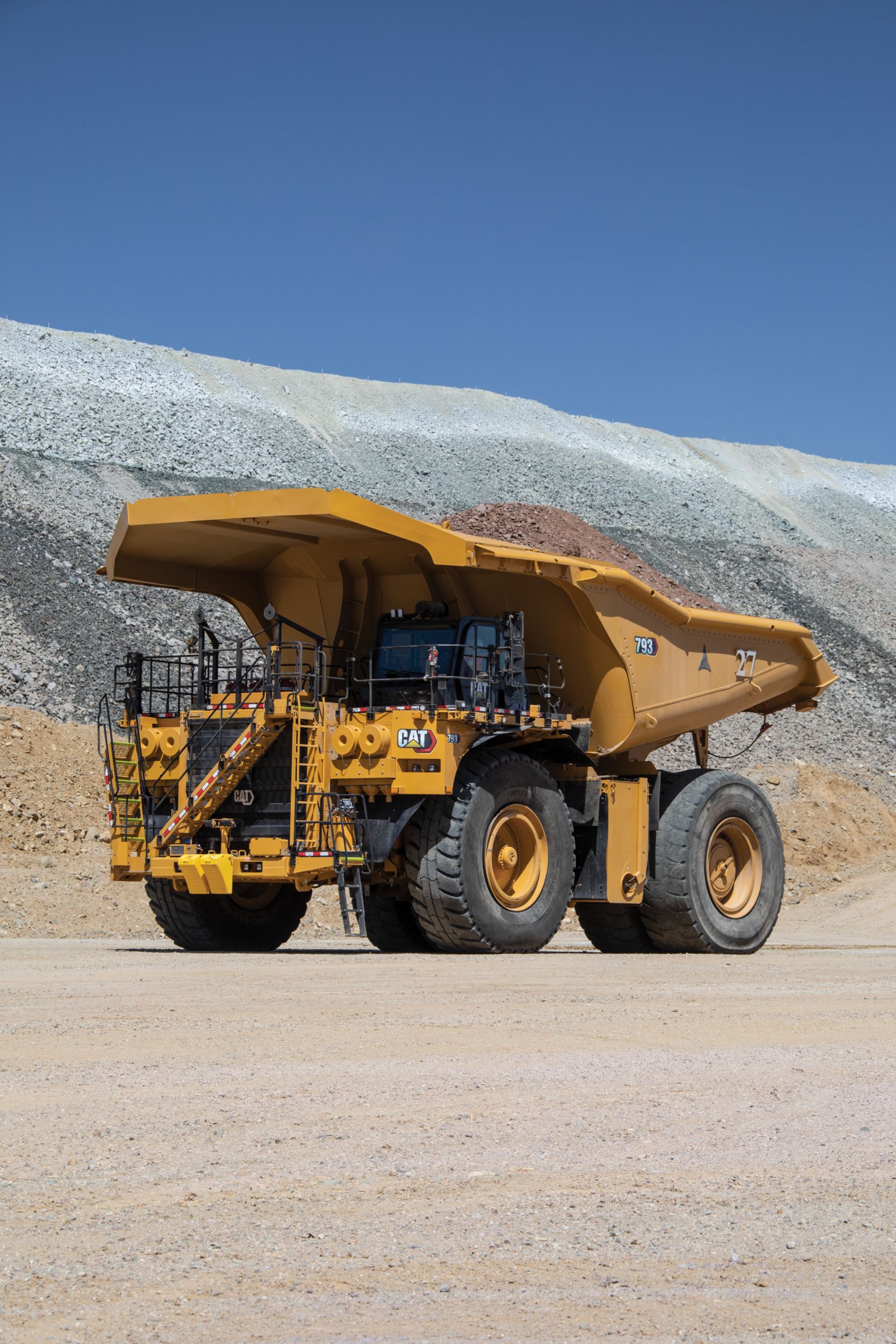

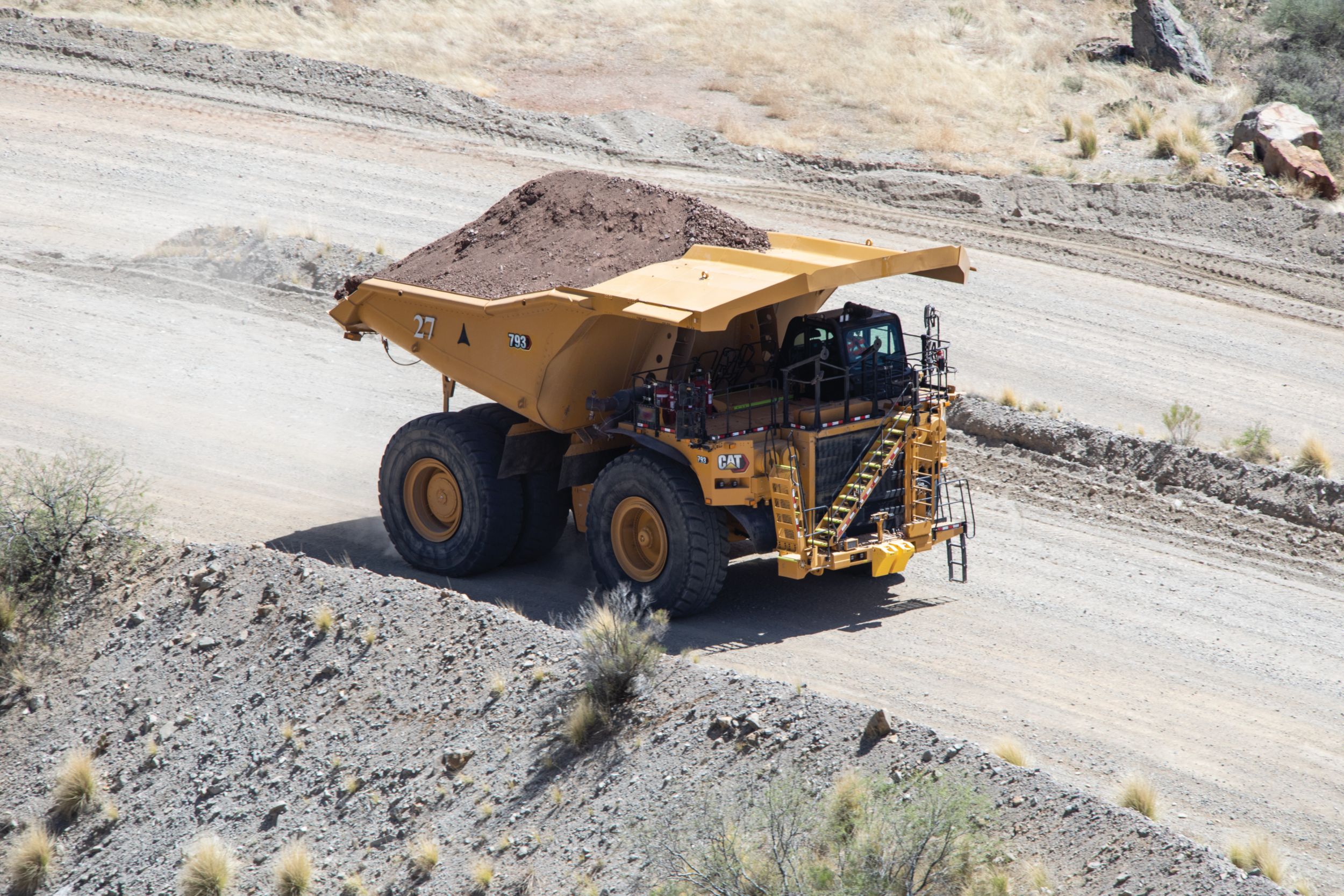

793 Mining Truck

The Cat® 793 Mining Truck is a popular industry workhorse that is the ideal choice for a wide variety of applications. It delivers high availability and hauls more every load, every cycle and every shift when compared to competitive trucks in its size class — burning less fuel in the process. Next generation features take the 793 to a new level. The operator sits in a state-of-the-art environment designed for efficiency and equipped with features that increase comfort, automate functions, provide real-time information and boost confidence. The 793 also delivers significant improvements in serviceability and reliability, enhanced connectivity and easier technology integration — including autonomous haulage. These improvements — and more — take an already proven truck to the next level of productivity.

Category:

PRODUCTIVITY

  • The 793 is faster than competitive trucks and delivers optimal speed on steep grades, poor underfoot conditions and haul roads with high rolling resistance. More continuous torque and rimpull delivers more power to the ground and makes it possible to use a higher gear on grade.
  • Forward momentum and torque are maintained through each shift, with optimum gear selection resulting in faster acceleration.
  • The Cat six-speed transmission, with the latest Advanced Power Electronic Control Strategy (APECS) controls, is paired with the C175-16 engine to deliver optimum power over a wide range of operating speeds.
  • An empty weight advantage of 13-19 tonnes (14-21 tons) over competitive electric drive trucks in its size class ensures you’re getting the full payload you expect.
  • Features such as Enhanced Traction Control, Dynamic Stability Control (DSC), Anti-lock Brake System (ABS), Machine Speed Limiting and Cruise Control improve machine responsiveness and controllability while improving cycle times.

SAFETY

  • Access and egress are improved by wide walkways, ladders, catwalks and service platforms; slip-resistant surfaces and guard rails; plus a wide secondary egress ladder and a rear service access ladder.
  • Superior control is delivered by a patented braking system that provides immediate, fade-resistant braking and retarding.
  • A 360 Surround View camera system gives the operator greater visibility to the ground around the truck. In addition, the standard Cat MineStar™ Detect Object Detection system combines radar and camera systems to warn operators about hazards within the immediate vicinity.
  • The optional Driver Safety System alerts the operator if fatigue or distraction are detected.
  • The cab can be equipped with High Efficiency Particulate Air (HEPA) filters to cut respirable dust penetration by 96% — reducing operator exposure to potentially hazardous substances.

OPERATOR COMFORT

  • The cab provides 34% more operator space than D-Series models. It’s 17% wider, offers 11% more legroom and 19% more shoulder room.
  • The cab is quieter and offers automated temperature control and cab filtration for a safer and more comfortable environment.
  • Controls, levers and switches are positioned for ease of use.
  • A walkthrough cab with fully adjustable center console, easy-to-adjust seat and increased leg room makes the cab ideal for operators of all sizes.
  • The next generation seat is four-point-restraint ready and incorporates features like thigh tilt and extensions, 30% recline, air adjustable side and lumbar bolsters, and heated and cooled cushions.

OPERATOR EFFICIENCY & PRODUCTIVITY

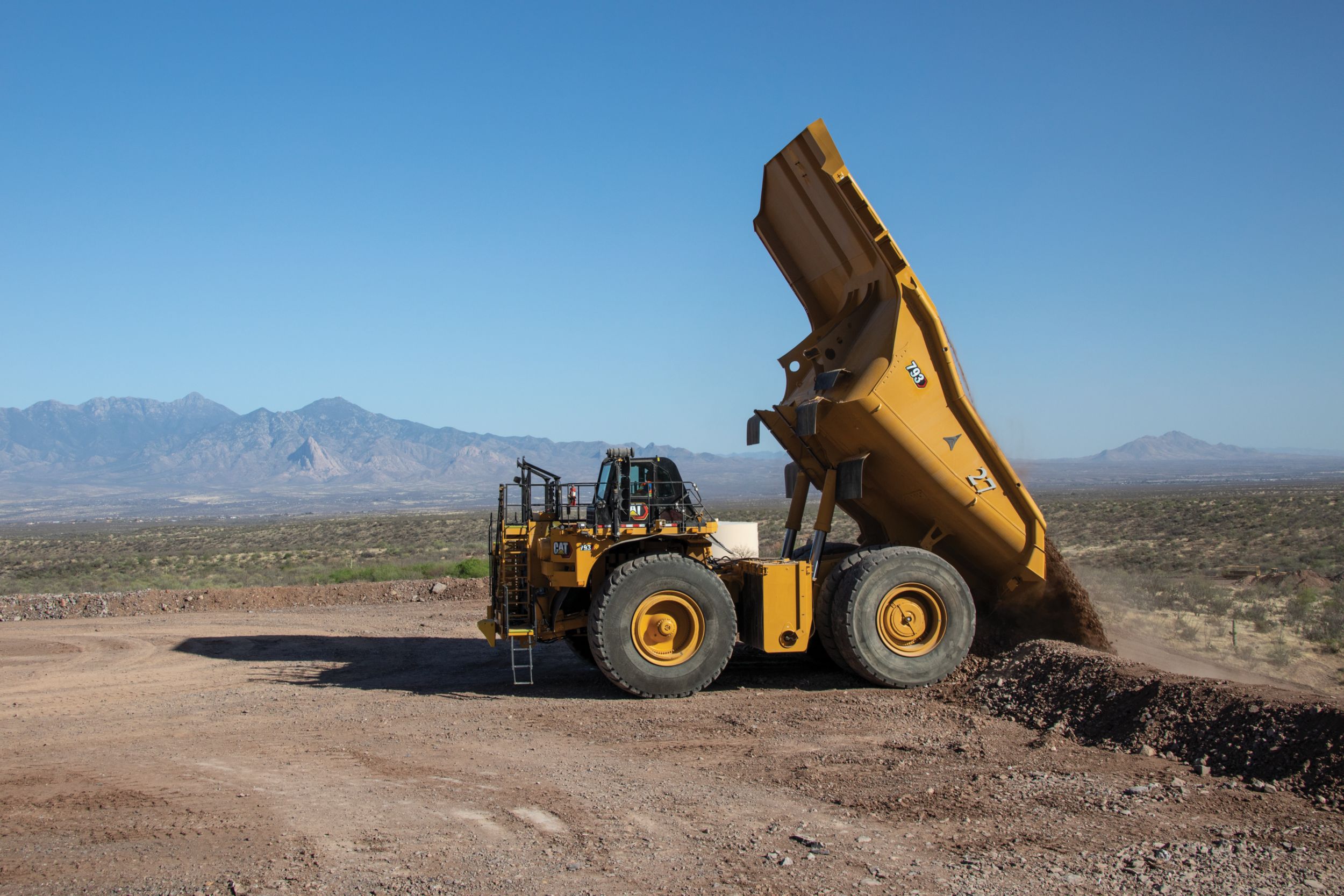

  • The optional Auto Hoist feature automatically raises the body and controls engine speed, minimizing cycle times.
  • Speed coaching gives operators real-time feedback on how to operate the truck to maximize its productivity, and advanced speed controls allow the operator to quickly and easily set a desired machine speed and control it on-the-fly.
  • The payload monitoring system comes with more accurate measurements, improved monitoring and an improved interface.
  • Operator identification provides seamless integration of operator preference, with custom settings stored and restored to the saved settings upon log-in.
  • Faster data transfers and higher resolution displays improve access to information. Machine data, controls and guidance information are consolidated onto two 10-inch screens.

SERVICEABILITY

  • The new modular HVAC system consolidates components so the entire system can be removed and replaced quickly.
  • A modular radiator reduces engine removal and installation time and enables rebuilds to be completed off the truck.
  • New remote flash and remote troubleshooting capabilities reduce machine downtime due to software up to 50%.
  • Time spent on regular maintenance procedures is reduced thanks to features such as extended service intervals; grouped ground-level maintenance and checkpoints; easy access to major components; the standard AutoLube system; and service platforms on the engine and transmission.
  • A 100% airless electric start option eliminates air system maintenance from the machine and improves uptime.

DURABILITY AND LONG LIFE

  • The 793 has been improved with longer-life components, extended service intervals and easier maintenance to deliver mechanical availability that is consistently greater than 90%.
  • The 793 is built on the durable 240-tonne (266-ton) frame, backed by unprecedented levels of virtual and in-iron validation.
  • A mild steel frame provides flexibility, durability and resistance to impact loads. Castings are used in high-stress areas and the integral 4-post ROPS cab provides increased strength.
  • Component life is enhanced thanks to the standard rear-axle continuous filtration feature. Cleaner oil helps promote longer lubrication that leads to longer life.
  • The frame, powertrain, engine and components are built to be rebuilt — delivering multiple lives of like-new performance at a fraction-of-new price.

CAT BODIES

  • Cat bodies are the best choice for the 793. They’re designed to be an integral part of the entire vehicle system, ensuring you achieve maximum chassis life.

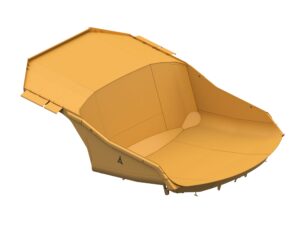

  • The Max Payload (MP) body is a lightweight, bolster-less design utilizing formed base plates in place of traditional structural members. It employs a convex canopy and a strong perimeter reinforcement in the top rail and rear rib.
  • The High Performance (HP) body features a lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.
  • The 793 can be configured with our traditional body options, which are also specifically designed to work with the Cat frame for superior structural performance.

SUSTAINABILITY

  • The 793 is designed to use less fuel, which reduces engine emissions, and there is zero fuel burn during retarding. The optional Tier 4 Final engine reduces NOx and particulate matter.
  • Features like rear axle filtration, extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
  • Features such as the Centrifugal Oil Filter (COF) and Self-Cleaning Filter (SCF), combined with S•O•S Services, maximize the life of engine oil and minimize environmental impact.
  • The 793 engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
  • By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions.

BETTER ACCESS TO DATA

  • Next generation connectivity delivers faster data transfers, better access to data, consistent data communication, more actionable data, improved data analytics and new diagnostic capabilities.
  • The backbone of the next generation machine is 100 Mbps two-wire ethernet communication across the machine controllers, sensors that are optimized for data analytics, and robust controls.
  • Every machine from the factory comes standard with Product Link™ cellular connectivity as well as an option to communicate through dual-mode cellular 4G/LTE and satellite, or local Wi-Fi networks.
  • Product Link Elite next generation hardware enables the truck to collect and transmit information into locally-hosted or cloud-hosted applications. The hardware delivers fast processing with enhanced onboard memory and storage capability.

TECHNOLOGY SOLUTIONS

  • Designed for future updates, the 793 features an expandable platform and architecture and leaves the factory ready for full integration of standard and optional technologies.
  • MineStar Fleet is a fleet monitoring system that can be used to measure, manage and maximize the overall hauling operation.
  • MineStar Command for hauling, an autonomous hauling solution proven to increase productivity up to 30%, is a fully integrated factory offering.
  • Machine health solutions such as Equipment Care Advisor, Health Equipment Insights and Health Office enable a proactive approach to maintenance.

Standard Equipment

ELECTRICAL
  • Alarm, Back-up
  • Brushless Alternator, 260 ampere
  • Batteries, 210-amp hour, low maintenance, 12-volt (4)
  • Converter, 12-volt electrical
  • Electrical System, 24-volt
  • Lighting System LED
    – Back-up and Hazard Lights
    – Directional Signals (front and rear LED)
    – Front Stair Access/Service Deck
    – Stop/Tail Lights
    – Engine Compartment
    – VIMS, Blue Light
    – Headlights, and fog lights
    – Brake and Retarder Light Status Ready
  • Emergency Engine Shutdown at front bumper and in-cab
  • Emergency Engine Shutdown at front bumper and in-cab
OPERATOR ENVIRONMENT
  • Modular hydraulic powered HVAC with automatic temperature control
  • Accessory mounting provisions
  • Coat Hook
  • Cup Holder
  • Diagnostic Connection and Service Port
  • Dome Courtesy Light and Map Lights
  • Entertainment Radio Ready
    Radio mounting provisions and 12V power supply and Wiring Harness, Speakers
  • Fire Suppression Ready
  • Gauge/Indicators
    – Gauge Panel: Transmission Fluid Temperature, Brake Oil Temperature, Critical oil and Coolant Temperature, Fuel Level (and DEF, if applicable), Operator selectable max. machine speed by rotary dial
    – Engine system, brake and transmission fault Indicator
    – Electric Hour Meter
    – Speedometer
    – Tachometer
    – Interactive touchscreen vehicle information display: � Day/night mode, � Action alarm, � Quad gauge display
  • Heater/Defroster
  • Heated Mirrors, Right and Left
  • Hoist, Body Control (electric)
  • Horn
  • Self-filling to windshield washer fluid from AC condensate
  • 12V auxiliary power connection 5V USB charging port
  • Cruise Control
  • Floor mat, multi-piece and replaceable
  • Delayed engine shutdown
  • ROPS Cab, Insulated/Sound Suppressed
  • Seat, Operator, Air Suspension
  • Seatbelt, Operator, Three Points, Retractable
  • Seatbelt, Trainer, Two Points, Retractable
  • Stairway and Walkway Access, 600 mm (24 in)
  • Steering Wheel, Tilt, Padded, Telescopic
  • Storage locations for operator gear
  • Tinted Glass
  • Transmission Gear Indicator
  • VIMS Message Center with Advisor
  • Window, Operator, Electric Powered
  • Windshield Wiper, Intermittent Control and Washer
POWER TRAIN
  • Cat C175-16 Engine
    – Air Cleaner with Precleaner (4)
    – Air-to-Air Aftercooler (ATAAC)
    – Automatic Starter Protection
    – Multi-Point Oil Pressure Sensing
    – Self cleaning oil filter
    – Turbocharging (4)/Aftercooled
    – Centrifugal oil filter
  • Braking System
    – Automatic Retarder Control, Adjustable
    – Brake Release Motor (towing)
    – Engine Overspeed Protection
    – Extended Life Brake Disc Material
    – Oil-cooled, Multi-disc (front and rear)
    – Service, Retarding, Parking, Secondary: Park Brake Integrated with Gear Selector, Secondary, Emergency, spring applied with pressure release
TRANSMISSION
  • – 6-speed, Automatic Powershift with APECS controls
    – Body-up Reverse Neutralizer
    – Body-up Shift Inhibitor
    – Controlled Throttle Shifting Directional Shift Management
    – Downshift/Reverse Shift Inhibitor
    – Lock-up Torque Converter
    – Neutral Coast Inhibitor
    – Neutral Start Switch
    – Programmable Top Speed
    – Pre-lubrication/Engine
    – Rear Axle Continuous Lubrication/Filtration
OTHER STANDARD EQUIPMENT
  • Auto Lubrication System, Auto Shutoff
  • Aux “Buddy” Dumping Quick Connect
  • Aux Steering Quick Connect (towing)
  • Driveline Guard
  • Fast Fill Fuel System
  • Fuel Filter with Water Separator
  • Ground Level Battery Lockout
  • Ground Level Engine Shut-down
  • Ground Level Engine Start Lockout
  • Ground Level lockouts for transmission, battery, and engine
  • Ground Level VIMS Data Port
  • Hi-speed Crankcase Oil Change
  • Hydraulic Filters, 1,000 hour
  • Battery box, rubber lined
  • Primary Access Anti-slip High Visibility Demarcations
  • Reservoirs (3 separate)
    – Brake/Hoist, Steering/Fan, Transmission/Converter
  • Electric Starting System
  • Rock Ejectors
  • Engine Delay Shutdown Timer
  • Service Points, Ground Level
  • Sight Level Gauges for Hydraulic/Engine Oil/ Torque Converter / Differential
  • SL-V Grease Injectors
  • S•O•S℠ sample ports
  • Supplemental Steering (automatic)
  • Tie Down Eyes
  • Tow Hooks (front)/Tow Pin (rear)
  • Traction Control System
  • Vandalism Protection Locks
ANTIFREEZE
  • Mesabi flexible core radiator
  • Extended Life Coolant to –35° C (–30° F)

Additional information

Offering Type

Engine - Gross Power - SAE J1995:2014

1976 kW ( 2650 HP )

Engine Model

Cat® C175-16

Engine - Net Power - SAE J1349:2011

1886 kW ( 2529 HP )

Engine - Rated Speed

1750 r/min ( 1750 r/min )

Engine - Emissions Rating

Fuel Optimized

Engine - Bore

175 mm ( 7 in )

Engine - Stroke

220 mm ( 9 in )

Engine - Displacement

85 l ( 5187 in³ )

Engine - Note (1)

Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system exhaust system and alternator.

Engine - Note (3)

U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.

Weights - Approximate - Nominal Rated Payload

240 t ( 265 ton (US) )

Weights - Approximate - Rated Gross Machine Weight

404000 kg ( 890668 lb )

Weights - Approximate - Chassis Weight

133854 kg ( 295098 lb )

Weights - Approximate - Body Weight

30151 kg ( 66471 lb )

Weights - Approximate - Note (1)

Consult your tire manufacturer for maximum tire load

Weights - Approximate - Note (2)

Chassis weight with full fuel and fluids standard and mandatory attachments hoist body mounting group rims and tires.

Weight Distributions - Approximate - Front Axle - Empty

51%

Weight Distributions - Approximate - Rear Axle - Empty

49%

Weight Distributions - Approximate - Front Axle - Loaded

33%

Weight Distributions - Approximate - Rear Axle - Loaded

67%

Final Drives - Note

Double reduction planetary with full floating axles.

Final Drives - Differential Ratio

1.8:1

Final Drives - Planetary Ratio

1

Final Drives - Total Reduction Ratio

29

Transmission - Forward - 1

12 km/h ( 8 mile/h )

Transmission - Forward - 2

16 km/h ( 10 mile/h )

Transmission - Forward - 3

22 km/h ( 14 mile/h )

Transmission - Forward - 4

30 km/h ( 19 mile/h )

Transmission - Forward - 5

41 km/h ( 26 mile/h )

Transmission - Forward - 6

60 km/h ( 37 mile/h )

Transmission - Reverse

11 km/h ( 7 mile/h )

Transmission - Top Speed - Loaded

60 km/h ( 37 mile/h )

Standard Tires

737 mm (29 in)

Optional Tires

813 mm (32 in)

Tires

40.00 R57 46/90 R57 50/80 R57

Tires - Note (1)

Quick Change Rims optional

Tires - Note

Extended life wheel stations optional.

Tires - Note (2)

Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.

Braking System - Service Brakes

Four-Corner Wet Disc Oil Cooled Hydraulically Actuated

Braking System - Front Wet Disc Brake Surface Area

89727 cm² ( 13907 in² )

Braking System - Rear - Wet Disc Brake Surface Area

134590 cm² ( 20861 in² )

Braking System - Standards

(Service and Secondary) ISO 3450:2011

Braking System - Parking Brake

Four-corner Multi-disc Spring applied Hydraulically Released

Capacity - HP Body - 100% Fill Factor - Struck

112.6-151 m3 (147-197.5 yd3)

Capacity - HP Body - 100% Fill Factor - Heaped (SAE 2:1)*

162-190 m3 (212-249 yd3)

Capacity - HP Body - 100% Fill Factor - Note (1)

Consult your local Cat dealer for body recommendations

Body Hoists - Type

Twin two-stage hydraulic cylinders with snubbing valve.

Body Hoists - Pump Flow - High Idle

819 l/min ( 216 gal/min )

Body Hoists - Relief Valve Setting - Raise

20370 kPa ( 2955 psi )

Body Hoists - Body Raise Time - High Idle

22 s ( 22 s )

Body Hoists - Body Lower Time - Float

23 s ( 23 s )

Body Hoists - Body Power Down - High Idle

21 s ( 21 s )

Suspension - Type

Self-contained nitrogen/oil cylinders pin-to-pin mounting top and bottom double shear clevis attachments

Suspension - Effective Cylinder Stroke - Front

317 mm ( 12 in )

Suspension - Effective Cylinder Stroke - Rear

165 mm ( 7 in )

Suspension - Rear axle - Oscillation

4.9 degrees

Service Refill Capacities - Fuel Tank - Optional

4922 l ( 1300 gal (US) )

Service Refill Capacities - Fuel Tank

2839 l ( 750 gal (US) )

Service Refill Capacities - Diesel Exhaust Fluid Tank

235 l ( 62 gal (US) )

Service Refill Capacities - Cooling System

1074 l ( 284 gal (US) )

Service Refill Capacities - Crankcase

312 l ( 82 gal (US) )

Service Refill Capacities - Front Wheels - Each

30 l ( 8 gal (US) )

Service Refill Capacities - Differential - Final Drives

984 l ( 260 gal (US) )

Service Refill Capacities - Steering System - Includes Tank

290 l ( 77 gal (US) )

Service Refill Capacities - Brake Hoist System - Includes Tank

1315 l ( 347 gal (US) )

Service Refill Capacities - Torque Converter/Transmission System - Including Sump

209 l ( 55 gal (US) )

Service Refill Capacities - Torque Converter Sump

102 l ( 27 gal (US) )

Cab - Air Conditioning

(HFC – 134A refrigerant) 9.3 kW 31733 BTU/hr

Cab - Heater / Defroster

11 kW ( 36510 Btu/h )

Sound Standards (1)

The operator sound pressure level 74 dB(A) complies with ISO 6394 and ISO 6396.

Cab - ROPS Standards (2)

ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer

Cab - FOPS Standards

FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer

Cab - Note

Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.

Steering - Steer Angle

36 ° ( 36 ° )

Steering - Turning Diameter - Front

28 m ( 93 ft )

Steering Standards

ISO 5010:2019

Select Up To 3 Models To Compare
