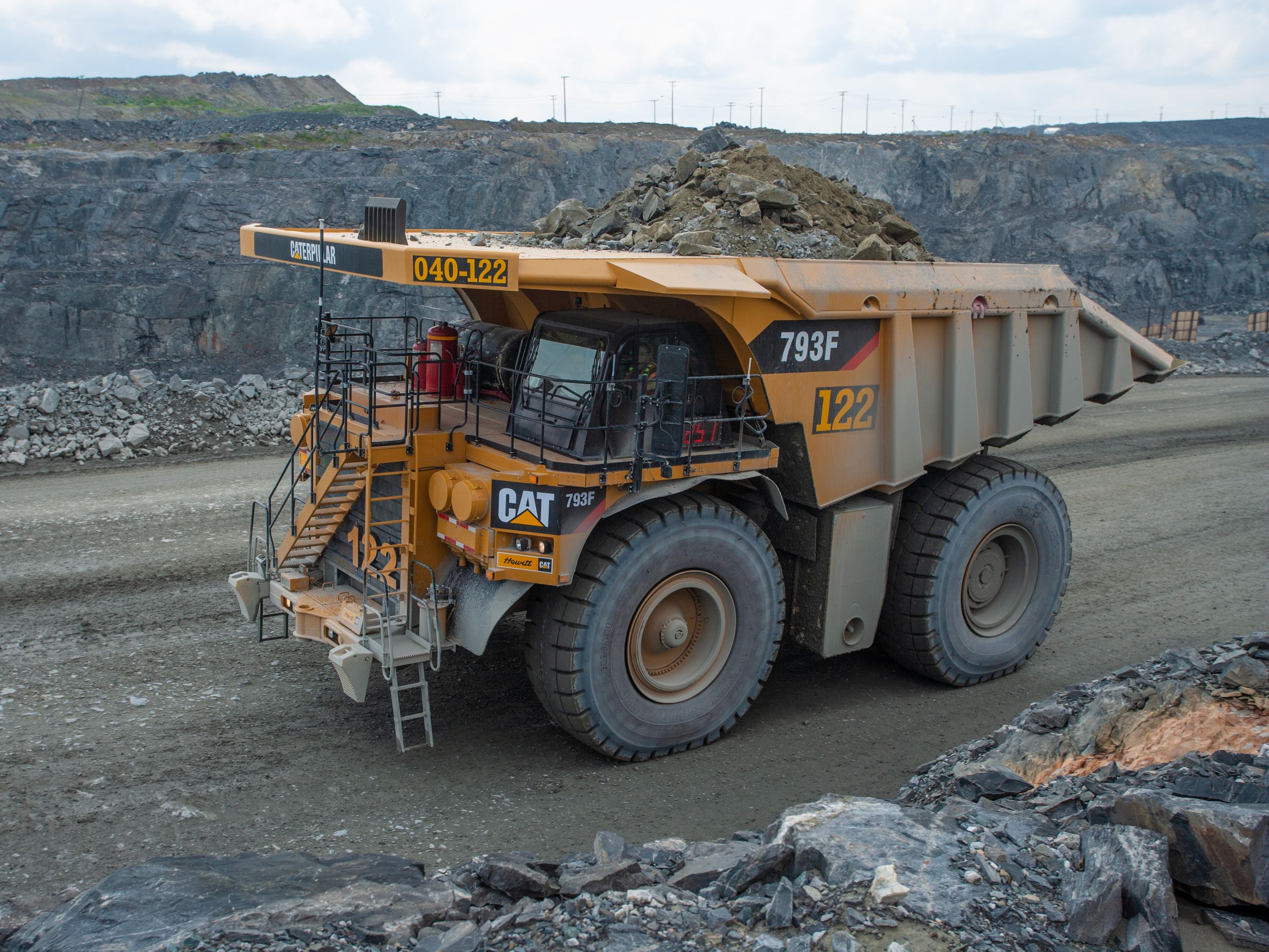

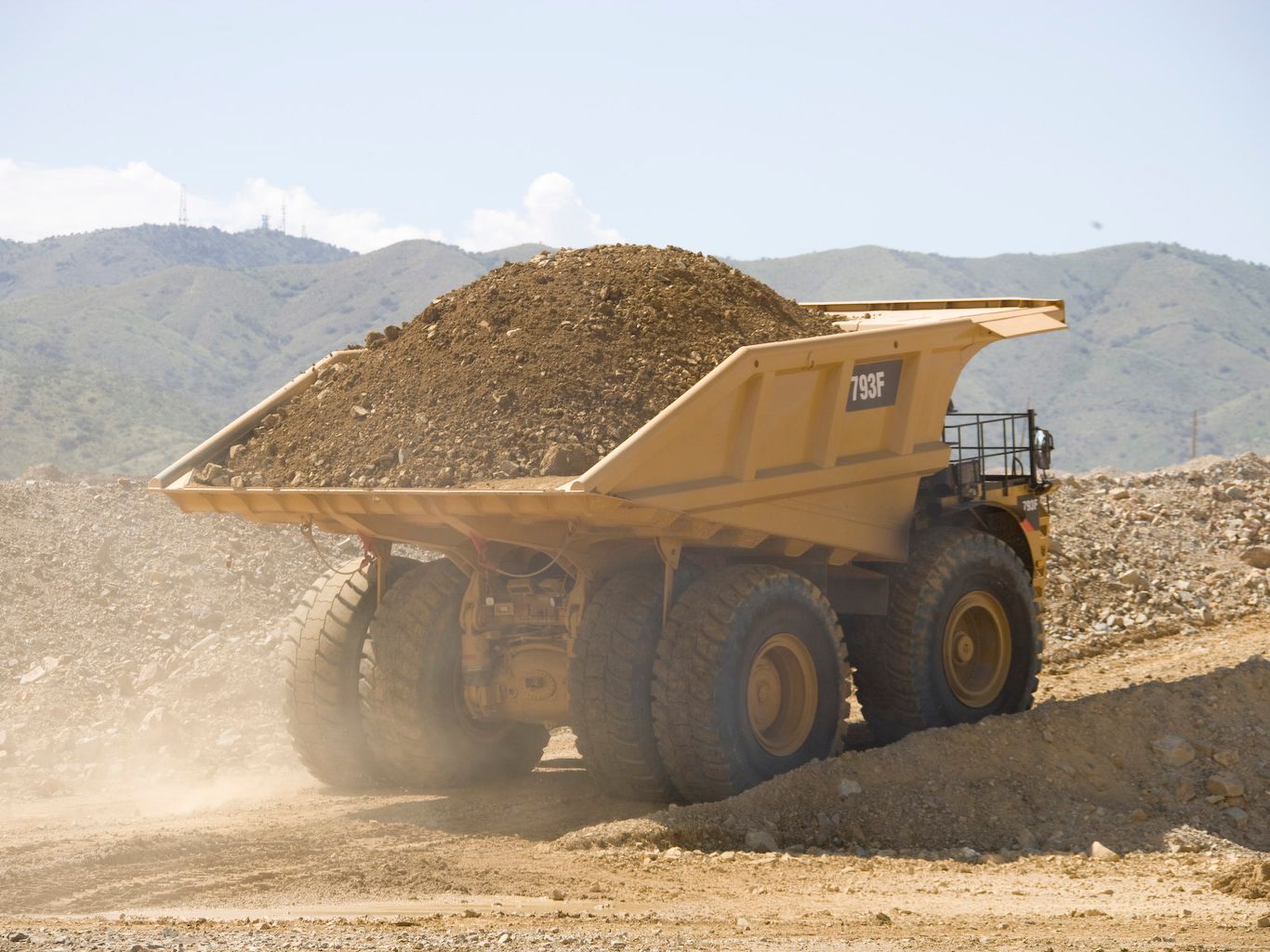

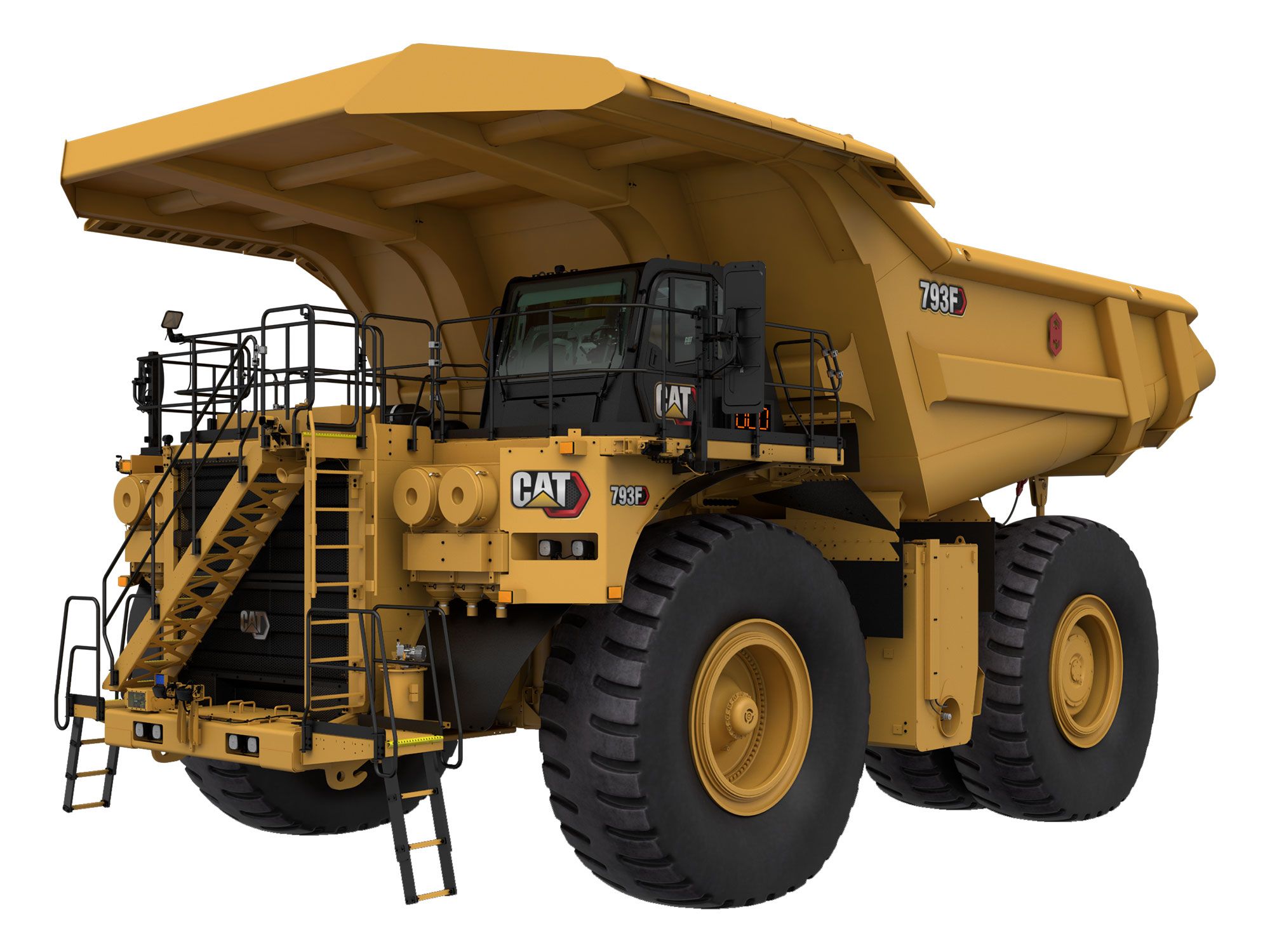

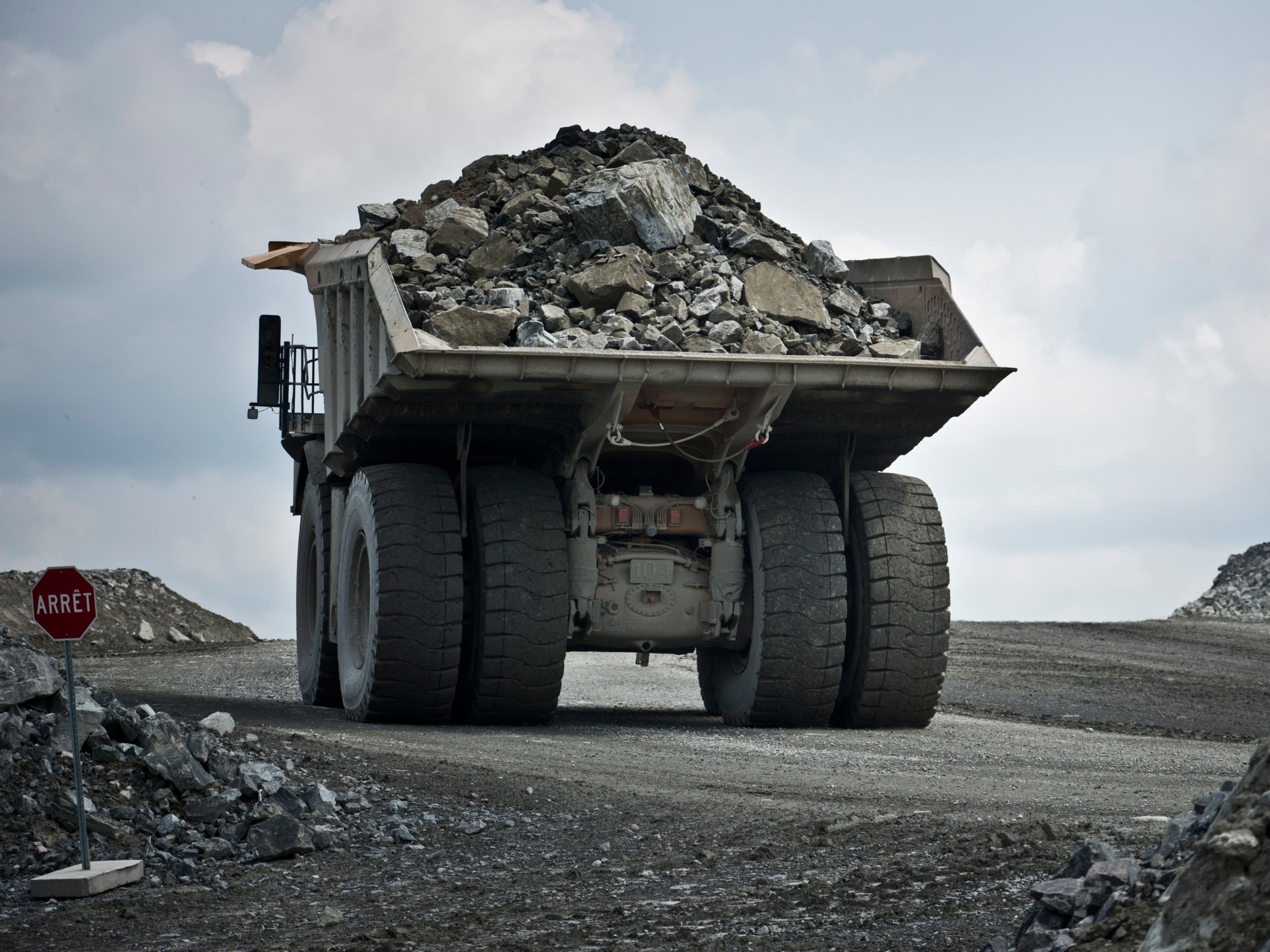

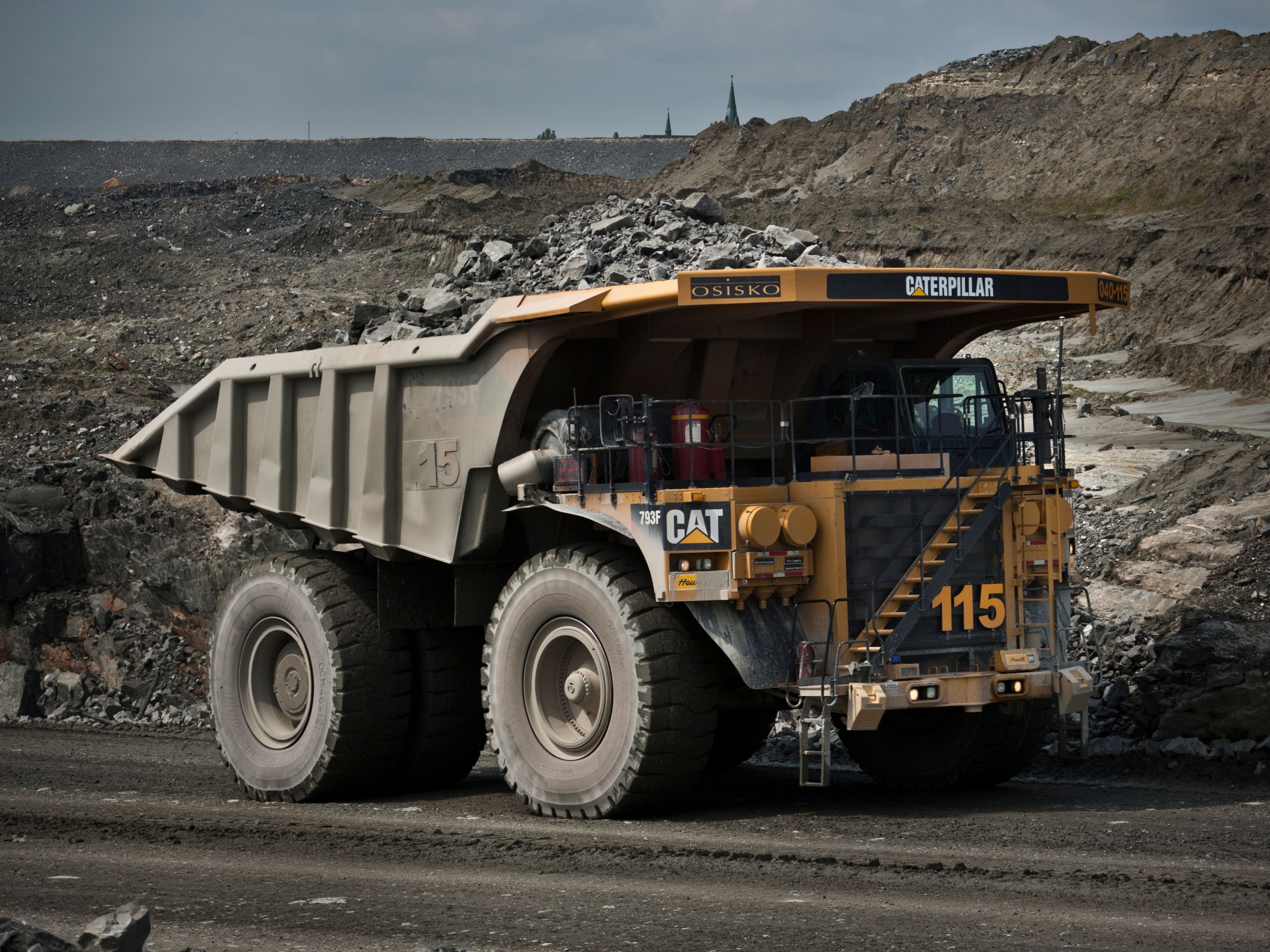

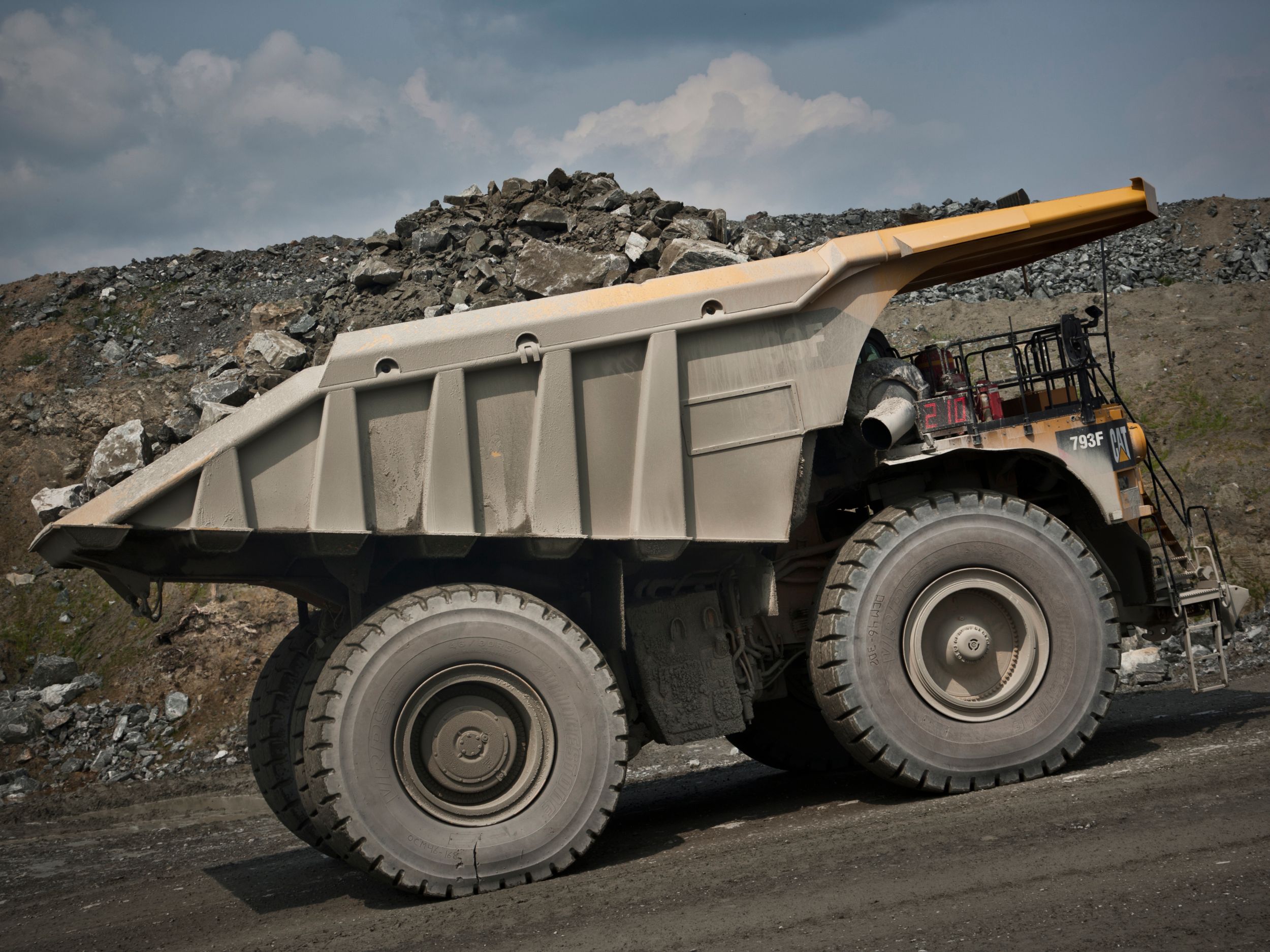

793F Mining Truck

What will it take to boost your bottom line? An engine that delivers more power and performance for an increase in productivity? A class-leading empty weight that leads to optimized payload? A longer life for high operating hours and reduced costs? The opportunity to reap the significant productivity and efficiency benefits from industry-leading automation? With the Cat® 793F Mining Truck, you get all this — and more. This popular industry workhorse is the ideal choice for a wide variety of applications. It hauls more every load, every cycle and every shift. And it delivers a better bottom line to the most important mine in the world: yours.

Category:

PRODUCTIVITY

  • The 793F is 6% faster than competitive trucks and delivers optimal speed on steep grades, poor underfoot conditions and haul roads with high rolling resistance.
  • The C175-16 diesel engine’s 16-cylinder, four-stroke design uses long, effective power strokes for optimum efficiency. The 20% net torque rise provides unequaled lugging force during acceleration. Torque rise effectively matches transmission shift points for maximum efficiency and fast cycle times.
  • An empty weight advantage of at least 9 tonnes (10 tons) over competitive electric-drive trucks in its size class ensures you’re getting the full payload you expect. And when you choose the High Performance (HP) body option, you’ll reduce weight an additional 2.0-5.0 tonnes (2.2-5.5 tons).
  • The Cat six-speed transmission, with the latest APECS controls, is paired with the C175-16 engine to deliver optimum power over a wide range of operating speeds.
  • The lock-up torque converter engages at approximately 8 km/h (5 mph), delivering unsurpassed stall torque for its size class. Cat final drives work as a system with the upper powertrain to deliver maximum power to the ground.

SAFETY

  • Machine-level access and egress is enhanced with slip-resistant surfaces, guard rails, and a standard 600 mm (24 m) diagonal stairway across the front of the machine. An optional powered access stairway is available.
  • Resiliently mounted to the main frame to reduce vibration and sound, the integral ROPS structure is an extension of the truck frame and exceeds SAE requirements.
  • A lockout/tagout box mounted on the front bumper includes engine shutdown switch, battery lockout, starter lockout and transmission lockout.
  • The standard Cat MineStar™ Detect Object Detection system combines radar and camera systems to warn operators about hazards within the immediate vicinity, while the optional Detect Driver Safety System alerts the operator if fatigue or distraction are detected.
  • The 793F features four-corner oil-cooled brakes and Automatic Retarding Control to improve handling and machine control so operators can work quickly and confidently. With retarding power applied to all four corners, the full weight of the truck can be applied for traction, resulting in better control, more operator confidence and typically higher speeds in poor underfoot conditions.

OPERATOR COMFORT

  • With multiple cab options, the 793F can be equipped with the desired features for your operation.
  • All options offer an ergonomic layout, excellent all-around visibility, and controls, levers and switches that are positioned for ease of use.
  • The cab includes dozens of features designed to enhance comfort, such as automatic climate control and sound suppression.
  • The next generation seat includes a height adjuster; adjustable shoulder stock to keep seatbelt from rubbing on the operator’s neck; and seat back, side and lumbar bolsters to increase stability.

SERVICEABILITY

  • Time spent on regular maintenance procedures is reduced thanks to features such as extended service intervals; grouped ground-level maintenance and checkpoints; easy access to major components; the standard AutoLube system; sealed electrical connectors; oil level sight gauges and front wheel sight glass; and service platforms on the engine and transmission.
  • An optional 100% airless electric start option eliminates air system maintenance from the machine and improves uptime.
  • The Cat Enhanced Engine Oil Filtration System increases engine life, eliminates cartridge filter changes and makes it possible to extend oil change intervals.
  • The 793F can be equipped with an optional fast-fill service center with Live S•O•S℠ Service Center and brake wear indicators.
  • New and updated machines have extended oil and filter change intervals across the majority of compartments.

DURABILITY AND LONG LIFE

  • The 793F has been improved with longer-life components, extended service intervals and easier maintenance to deliver mechanical availability that is consistently greater than 90%.
  • The 793F is built on our most durable 231-tonne (255-ton) frame ever built, backed by unprecedented levels of virtual and in-iron validation.
  • A mild steel frame provides flexibility, durability and resistance to impact loads. Castings are used in high-stress areas and the integral 4-post ROPS cab provides increased strength.
  • Component life is enhanced thanks to the standard rear-axle continuous filtration feature. Cleaner oil helps promote longer lubrication that leads to longer life.
  • The frame, powertrain, engine and components are built to be rebuilt — delivering multiple lives of like-new performance at a fraction-of-new price.

CAT BODIES

  • Cat bodies are the best choice for the 793F. They’re designed to be an integral part of the entire machine system, ensuring you achieve maximum chassis life.
  • The High Performance (HP) body features a lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.
  • The X Body uses the Cat Mine Specific Design process to create a body that is properly sized and configured to meet the specific requirements of heavy-duty applications.
  • Lightweight MSD II bodies are intended for established mines and are customized to suit your specific mining applications.
  • The Gateless Coal Body is intended for dedicated coal haulage applications. It can be loaded to achieve target payload across the full range of coal densities.

SUSTAINABILITY

  • The 793F is designed to use less fuel, which reduces engine emissions, and there is zero fuel burn during retarding. The optional Tier 4 Final engine reduces NOx and particulate matter.
  • Features like rear axle filtration, extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
  • The Cat Common Rail Fuel System provides optimal fuel delivery, which reduces both fuel consumption and emissions output.
  • The 793F engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
  • By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions.

TECHNOLOGY SOLUTIONS

  • MineStar Fleet is a fleet monitoring system that can be used to measure, manage and maximize the overall hauling operation.
  • MineStar Command for hauling, an autonomous hauling solution proven to increase productivity up to 30%, is a fully integrated factory offering.
  • Machine health solutions such as Equipment Care Advisor, Health Equipment Insights and Health Office enable a proactive approach to maintenance.
  • The MineStar Detect Object Detection system comes standard on the 793F. Additional safety solutions include seat-belt monitoring and in-cab systems that intervene when they detect fatigue or distraction.

Standard Equipment

ELECTRICAL
  • Alarm, Back-up
  • Brushless Alternator, 150 ampere
  • Batteries, 210-amp hour, low maintenance, 12-volt (2)
  • Converter, 12-volt electrical
  • Electrical System, 24-volt, 10, 15 and 20 amp
  • Jump Start Receptacle
  • Lighting System
    – Back-up and Hazard Lights
    – Directional Signals (front and rear LED)
    – Front Stair Access/Service Deck
    – Stop/Tail Lights (LED)
    – Engine Compartment
    – VIMS, Blue Light (LED)
    – Headlights, with Lo-Hi Beam Selector
    – Brake and Retarder Light Status Ready
OPERATOR ENVIRONMENT
  • Air Conditioner with Automatic Climate Control
  • 12-volt DC Power Supply (3)
  • Coat Hook
  • Cup Holder
  • Diagnostic Connection Port
  • Dome Courtesy Light
  • Entertainment Radio Ready
    – 5 amp Converter, Speakers and Wiring Harness
  • Fire Suppression Ready Cab
  • Gauge/Indicators
    – Gauge Panel: Transmission Fluid Temperature, Brake Oil Temperature, Engine Coolant Temperature, Fuel Level, Torque Converter Oil Temperature
    – Electric Engine Control Fault Indicator
    – Electric Hour Meter
    – Speedometer
    – Tachometer
    – Diesel Exhaust Fluid Level Indicator (Tier 4 option only)
  • Heater/Defroster, 11 070 kCal (45,930 Btu)
  • Heated Mirrors, Right and Left
  • Hoist, Body Control (electric)
  • Horn
  • Integrated Object Detection System
  • Plug and Play Radio 12V Unswitched Power Supply Outlets
  • ROPS Cab, Insulated/Sound Suppressed
  • Seat, Operator, Air Suspension
  • Seatbelt, Operator, Three Points, Retractable
  • Seatbelt, Trainer, Two Points, Retractable
  • Stairway and Walkway Access, 600 mm (23.6 in)
  • Steering Wheel, Tilt, Padded, Telescopic
  • Storage Compartments
  • Tinted Glass
  • Transmission Gear Indicator
  • VIMS Message Center with Advisor
  • Window, Operator, Electric Powered
  • Windshield Wiper, Intermittent Control and A/C Condenser Filled Washer Bottle
POWER TRAIN
  • Cat C175-16 Engine
    – Air Cleaner with Precleaner (4)
    – Air-to-Air Aftercooler (ATAAC)
    – Automatic Starter Protection
    – Multi-Point Oil Pressure Sensing
    – Turbocharging (4)/Aftercooled
  • Braking System
    – Automatic Retarder Control, Adjustable
    – Brake Release Motor (towing)
    – Engine Overspeed Protection
    – Extended Life Brake Disc Material
    – Oil-cooled, Multi-disc (front and rear)
    – Service, Retarding, Parking, Secondary: Park Brake Integrated with Gear Selector, Secondary, Emergency
  • Tier 4 option: Engine Aftertreatment System: Pump Electronic Tank Unit (PETU), Clean Emissions Module (CEM)
  • Transmission
    – 6-speed, Automatic Powershift with Electronic Control (ECPC)
    – Body-up Reverse Neutralizer
    – Body-up Shift Inhibitor
    – Controlled Throttle Shifting
    – Directional Shift Management
    – Downshift/Reverse Shift Inhibitor
    – Individual Clutch Modulation
    – Lock-up Torque Converter
    – Neutral Coast Inhibitor
    – Neutral Start Switch
    – Programmable Top Speed
  • Pre-lubrication/Engine
  • Rear Axle Continuous Lubrication/Filtration
  • Advanced Productivity Electronic Controls Strategy (APECS)
OTHER STANDARD EQUIPMENT
  • Auto Lubrication System with 41 kg (90 lb) Barrel, Auto Shutoff, and Grease Filter
  • Aux “Buddy” Dumping Quick Connect
  • Aux Steering Quick Connect (towing)
  • Driveline Guard
  • Fast Fill Fuel System, Fast Fill Diesel Exhaust Fluid System (Tier 4 option only)
  • Fuel Filter with Water Separator
  • Ground Level Battery Lockout
  • Ground Level Engine Shut-down
  • Ground Level Engine Start Lockout
  • Ground Level Transmission Lockout
  • Ground Level VIMS Data Port
  • Hi-speed Crankcase Oil Change
  • Hydraulic Filters, 1,000 hour
  • Portable Fire Extinguisher Mounting
  • Primary Access Anti-slip High Visibility Demarcations
  • Reservoirs (3 separate)
    – Brake/Hoist, Steering/Fan, Transmission/Converter
  • Road Analysis Control (RAC)
  • Rock Ejectors
  • Rubber-lined Battery Box Lid
  • Service Points, Ground Level
  • Sight Level Gauges for Hydraulic/Engine Oil
  • SL-V Grease Injectors
  • S•O•S℠ sample ports
  • Supplemental Steering (automatic)
  • Tie Down Eyes
  • Tie Off Points
  • Tow Hooks (front)/Tow Pin (rear)
  • Traction Control System
  • Vandalism Protection Locks
  • Vital Information Management System (VIMS)
    – Includes VIMS Payload Monitor with MAX Payload and Speed Manager
    – Recommend using download cable 127‑9797 and PC based software JERD2175. Supplemental software “VIMS Supervisor” YERA1403. Order separately. Computer not provided.
ANTIFREEZE
  • Extended Life Coolant to –35° C (–30° F)

Additional information

Offering Type

Engine - Gross Power - SAE J1995

1976 kW ( 2650 HP )

Engine - Net Power - SAE J1349

1848 kW ( 2478 HP )

Engine Model

Cat® C175-16

Engine - Rated Speed

1750 r/min ( 1750 r/min )

Engine - Emissions

Fuel Optimized

Engine - Bore

175 mm ( 6.9 in )

Engine - Stroke

220 mm ( 8.7 in )

Engine - Displacement

85 l ( 5187 in³ )

Engine - Note (1)

Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.

Engine - Note (2)

EPA Tier 4 Final / EU Stage V available for applicable markets.

Weights - Approximate - Rated Gross Machine Weight

386007 kg ( 851000 lb )

Weights - Approximate - Chassis Weight

123575 kg ( 265639 lb )

Weights - Approximate - Body Weight

30700 kg ( 67682 lb )

Weights - Approximate - Note (1)

Consult your tire manufacturer for maximum tire load

Weights - Approximate - Note (2)

Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.

Weights - Approximate - Note (3)

Refer to the Cat Mining Truck 10/10/20 Overload Policy for maximum gross machine weight limitations.

Weights - Approximate - Nominal Rated Payload

231 t ( 256 ton (US) )

Final Drives - Differential Ratio

1.8:1

Final Drives - Planetary Ratio

16:01

Final Drives - Total Reduction Ratio

26.8:1

Transmission - Forward - 1

12.9 km/h ( 8 mile/h )

Transmission - Forward - 2

17.4 km/h ( 10.8 mile/h )

Transmission - Forward - 3

23.8 km/h ( 14.8 mile/h )

Transmission - Forward - 4

32.1 km/h ( 19.9 mile/h )

Transmission - Forward - 5

43.6 km/h ( 27.1 mile/h )

Transmission - Forward - 6

60 km/h ( 37.3 mile/h )

Transmission - Reverse

11.8 km/h ( 7.3 mile/h )

Transmission - Top Speed - Loaded

60 km/h ( 37.3 mile/h )

Standard Tires

40.00 R57

Tires - Rims

29" or 32"

Tires - Note

Quick Change Rims optional.

Tires - Note (1)

Extended life wheel stations optional.

Tires - Note (2)

Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.

Suspension - Type

Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments

Braking System - Service Brakes

Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated

Braking System - Front Wet Disc Brake Surface Area

89 817 cm³ ( 13921 in³ )

Braking System - Rear - Wet Disc Brake Surface Area

34 500 cm³ ( 20,847 in³ )

Braking System - Standards

(Service and Secondary): ISO 3450:1996

Braking System - Parking Brakes

Four-corner, Multi-disc, Spring Applied, Hydraulically Released

Braking System - Load Brake

Rear service brakes

Suspension - Effective Cylinder Stroke - Front

130.5 mm ( 5.1 in )

Suspension - Effective Cylinder Stroke - Rear

105.5 mm ( 4.2 in )

Suspension - Rear axle - Oscillation

±4.9 degrees

Braking System - Note

Anti-Lock Brake System (ABS) optional with CMD package

Body Hoists - Type

Twin, two-stage hydraulic cylinders with snubbing valve

Body Hoists - Pump Flow - High Idle

846 l/min ( 224 gal/min )

Body Hoists - Relief Valve Setting - Raise

20370 kPa ( 2955 psi )

Body Hoists - Body Raise Time - High Idle

19 s ( 19 s )

Body Hoists - Body Lower Time - Float

20 s ( 20 s )

Body Hoists - Body Power Down - High Idle

17.5 s ( 17.5 s )

Brakes - Brake Surface - Front

89817 cm² ( 13921 in² )

Brakes - Brake Surface - Rear

34500 cm² ( 20847 in² )

Brakes - Standards

J-ISO 3450 JAN88, ISO 3450:1996

Cab - Air Conditioning

Air Conditioning (HFC – 134A refrigerant): 24,300 Btu/hr

Cab - Heater / Defroster

38900 Btu/h ( 38900 Btu/h )

Cab - Note

Ambient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.

Cab - ROPS Standards (1)

The operator sound pressure level, 76 dB(A), complies with ISO 6394 and ISO 6396.

Cab - ROPS Standards (2)

ROPS (Rollover Protective Structure) meets ISO 3471:1994 criteria.

Cab - FOPS Standards

FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II criteria.

Weight Distributions - Approximate - Front Axle - Empty

48 % ( 48 % )

Weight Distributions - Approximate - Rear Axle - Empty

52 % ( 52 % )

Weight Distributions - Approximate - Front Axle - Loaded

33 % ( 33 % )

Weight Distributions - Approximate - Rear Axle - Loaded

67 % ( 67 % )

Capacity - MSD II - 100% Fill Factor - Struck

112-142 m³ (146-186 yd³)

Capacity - MSD II - 100% Fill Factor - Heaped (SAE 2:1)

159-190 m3 (209-250 yd3)

Capacity - MSD II - 100% Fill Factor - Note

Contact your local Cat dealer for body recommendation.

Service Refill Capacities - Fuel Tank

2839 l ( 750 gal (US) )

Capacity - HP Body - 100% Fill Factor - Struck

112.6-151 m³ (147-197.5 yd³)

Service Refill Capacities - Fuel Tank - Optional

4922 l ( 1300 gal (US) )

Capacity - HP Body - 100% Fill Factor - Heaped (SAE 2:1)*

162-191 m³ (212-250 yd³)

Service Refill Capacities - Diesel Exhaust Fluid Tank

234.7 l ( 62 gal (US) )

Capacity - HP Body - 100% Fill Factor - Note (1)

Contact your local Cat dealer for body recommendation.

Capacity - HP Body - 100% Fill Factor - Note (2)

*ISO 6483:1980

Service Refill Capacities - Cooling System

1074 l ( 284 gal (US) )

Service Refill Capacities - Crankcase

312 l ( 82 gal (US) )

Service Refill Capacities - Rear Axle - Housing

984 l ( 260 gal (US) )

Service Refill Capacities - Steering System - Including Tank

290 l ( 77 gal (US) )

Service Refill Capacities - Brake Hoist System - Includes Tank

1315 l ( 347 gal (US) )

Service Refill Capacities - Torque Converter - Transmission Sump

102 l ( 27 gal (US) )

Service Refill Capacities - Torque Converter/Transmission System - Including Sump

209 l ( 55 gal (US) )

Steering - Steer Angle

36 ° ( 36 ° )

Service Refill Capacities - Note (1)

DEF Tank only available for EPA Tier 4 engine option.

Steering - Turning Diameter - Front

28.42 m ( 93.2 ft )

Steering Standards

SAE J15111 OCT90, ISO 5010:1992

ROPS Standards

ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:1994 ROPS criteria.

Sound Standards

The operator sound pressure level measured according to work cycle procedures specified in ISO 6394 and 6396 is 76 dB(A) for cab offered by Caterpillar, when properly installed and maintained and tested with doors and windows closed.

ROPS - FOPS Standards

FOPS (Falling Objects Protective Structure) meets ISO 3449:1992 Level II FOPS criteria.

Sound Standards (1)

Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.

Select Up To 3 Models To Compare
