798 AC

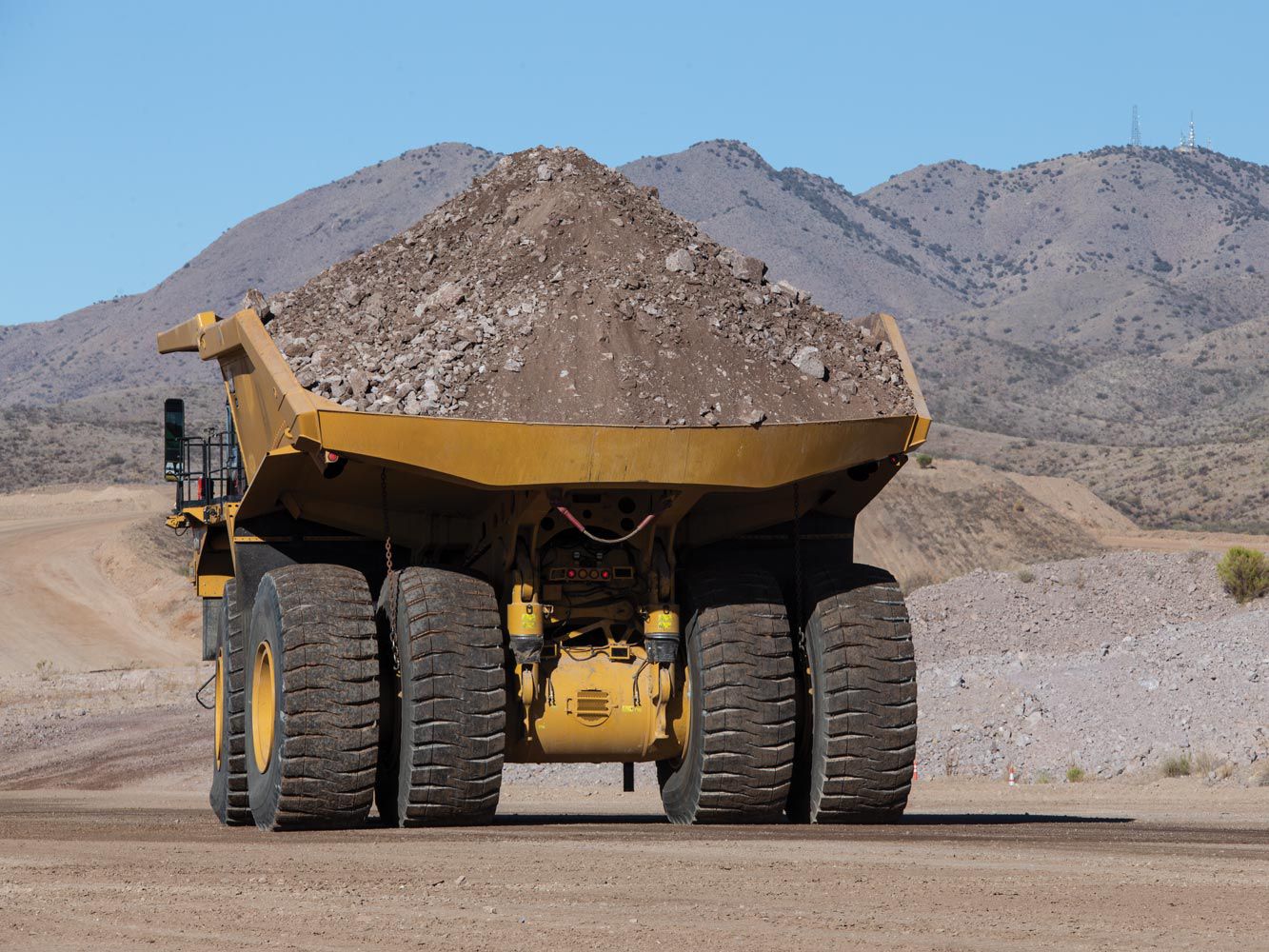

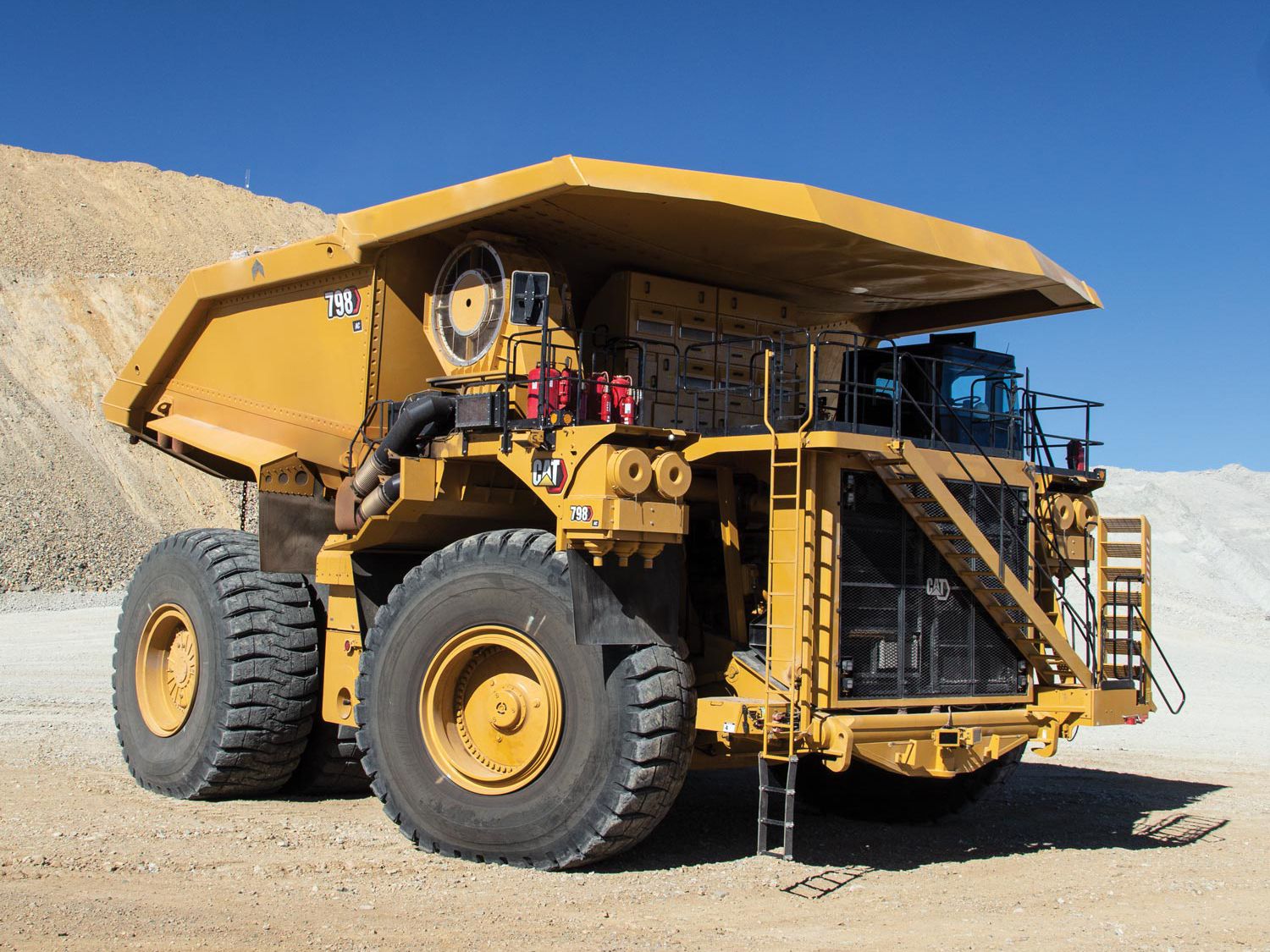

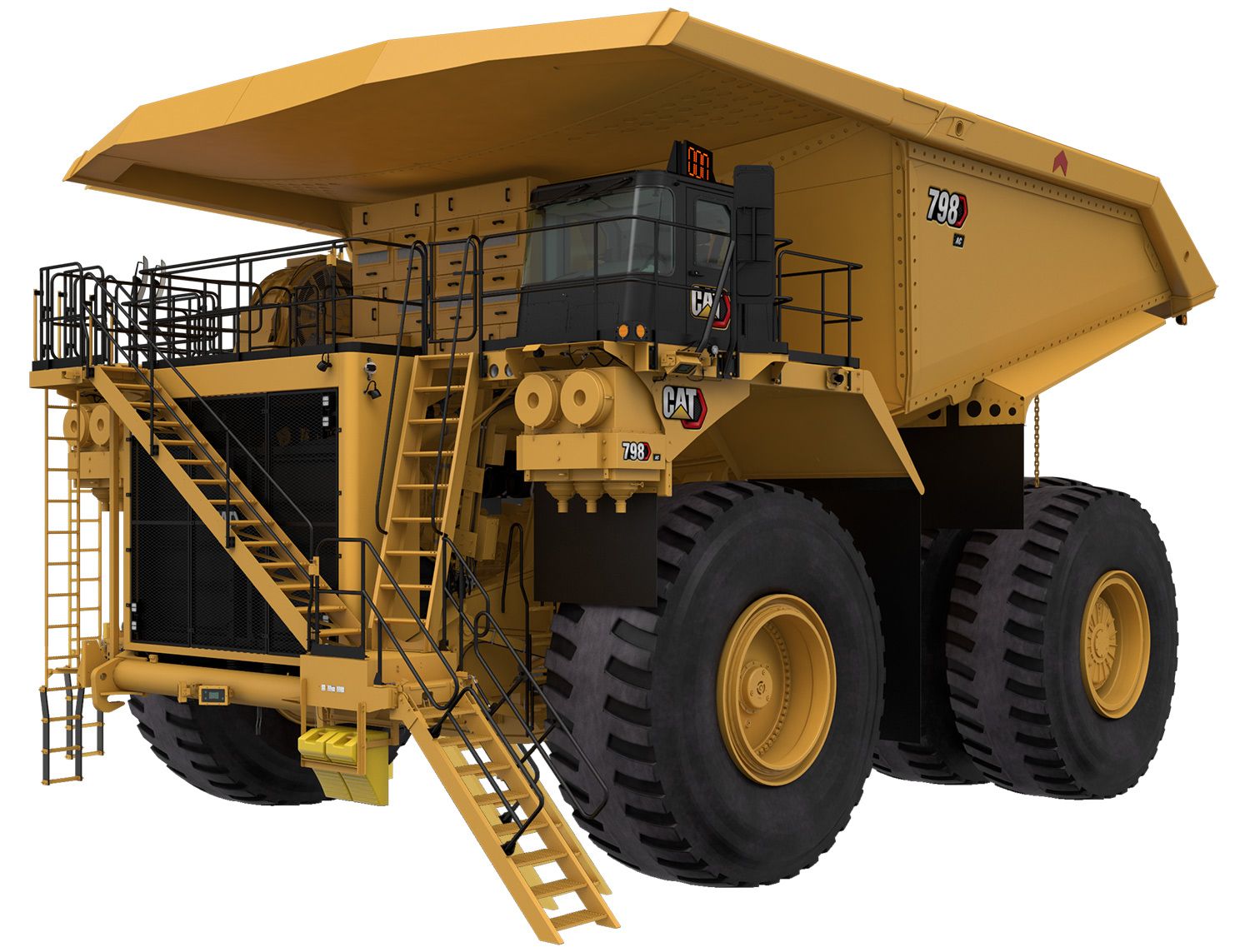

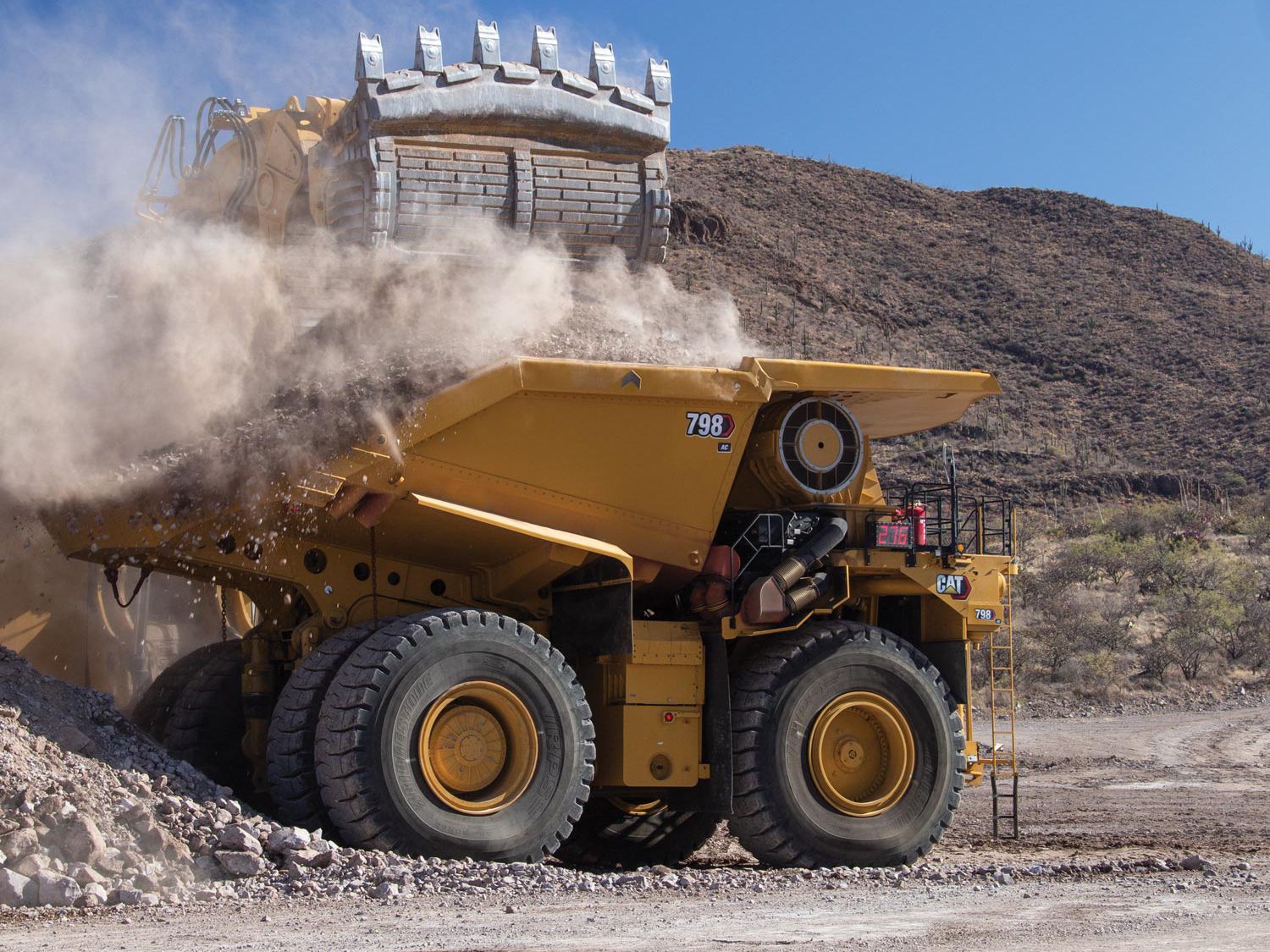

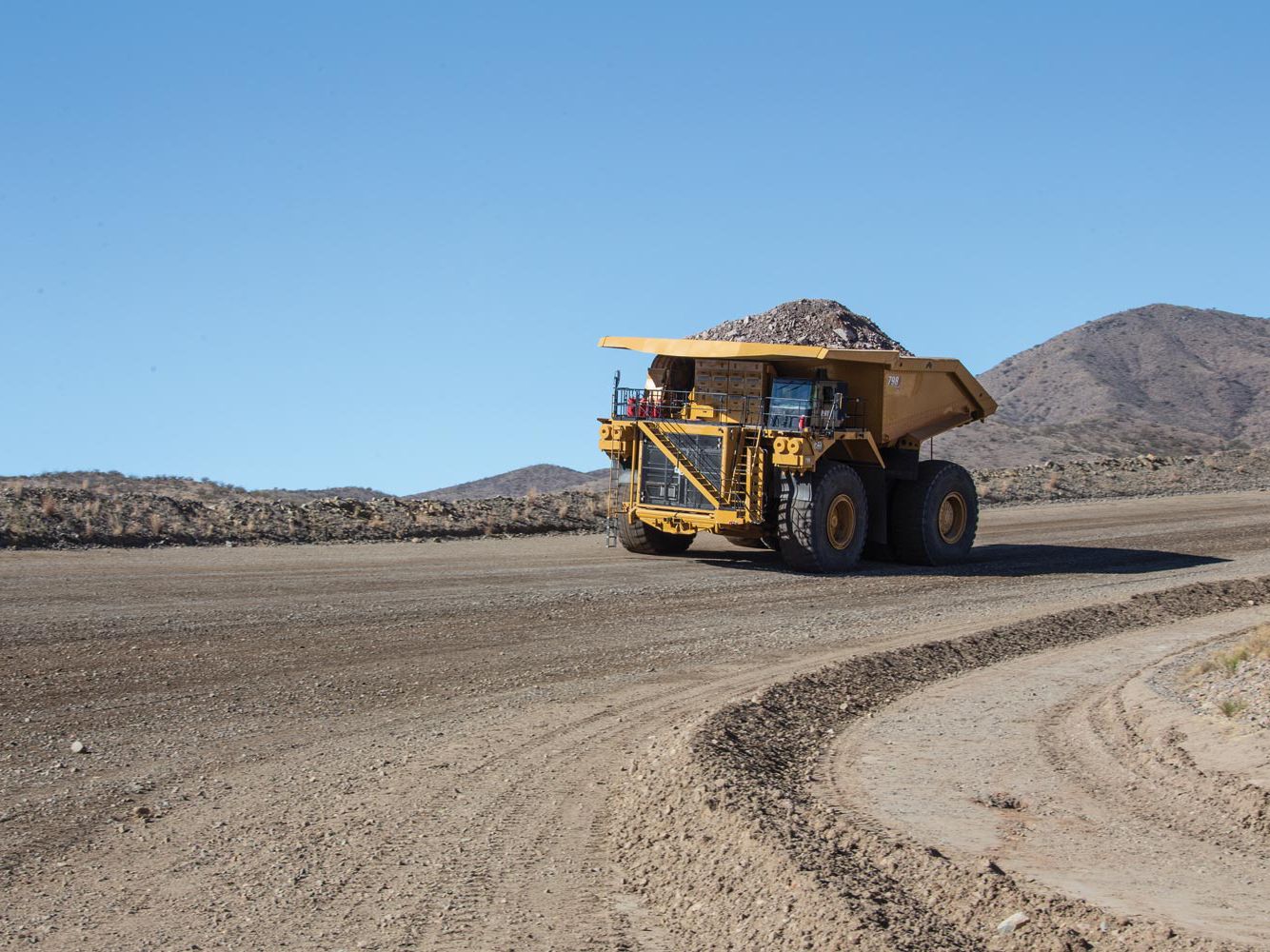

798 AC Electric Drive Mining Truck
The Cat® 798 AC electric drive truck is designed to haul more — with more efficiency, controllability, and reliability than any other electric drive truck in the marketplace. And while it may be a recent addition to the Cat ultra-class lineup, it delivers the same powerful, proven performance you expect from a Cat truck. The 798 AC delivers a payload up to 372 tonnes (410 tons), high speed on grade, easier maintenance, and excellent electric retarding and brake performance. The result? Improved productivity, high availability, and more confident operators. By hauling more every load, every cycle and every shift, it creates a low-cost-per-ton hauling operation that delivers a better bottom line.
SAFETY
- Greater visibility thanks to wide field of view from the cab and radial retard grid that improves right-hand view.

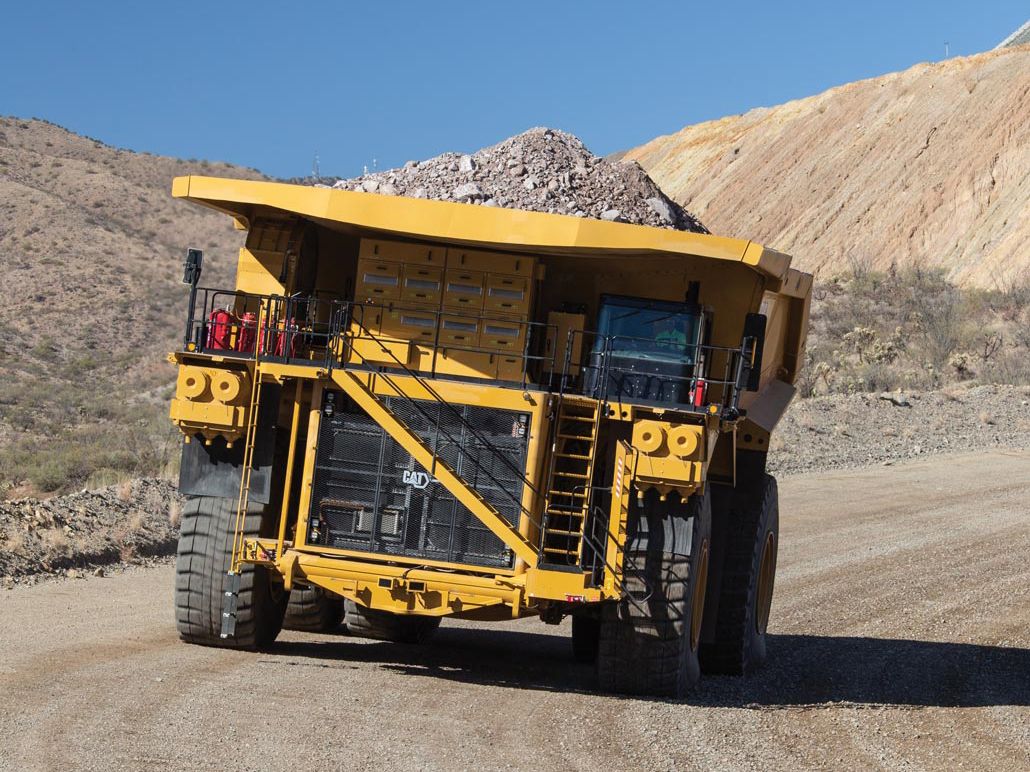

- Safer access and egress with 600-mm-wide (23.6-in-wide) ladders, flat deck, toe kicks, and optional power access stair attachment.
- Confidence-building features such as anti-rollback, traction controls, reverse shift inhibitor, Automatic Retarding Control, and door sensor warning for park brake application.
- Full dynamic retarding through a compact radial grid, backstopped by the proven design of Caterpillar four-corner oil-cooled brakes, for stable handling and confident stopping.
- Fully independent secondary brake system that provides emergency controllability with a hydraulically actuated secondary brake pedal that serves as a backup to electronic controls.
PRODUCTIVITY
- The most efficient electric drive truck in its size class — moving more tonnes per liter (tons per gallon) and hauling more material faster—so you can move more over the course of a shift, or haul the same amount of material with fewer trucks.
- Available with higher horsepower to boost productivity in deeper pits, plus electronically-selectable lower horsepower settings that allow the 798 to better align with mixed fleets.
- Ease of operation and reduced costs thanks to deep integration of Cat engine, AC drive system, hydraulics and controls.
- End-to-end visibility of all truck parameters for optimized fuel efficiency, speed on grade and parasitic loads across the operating range.

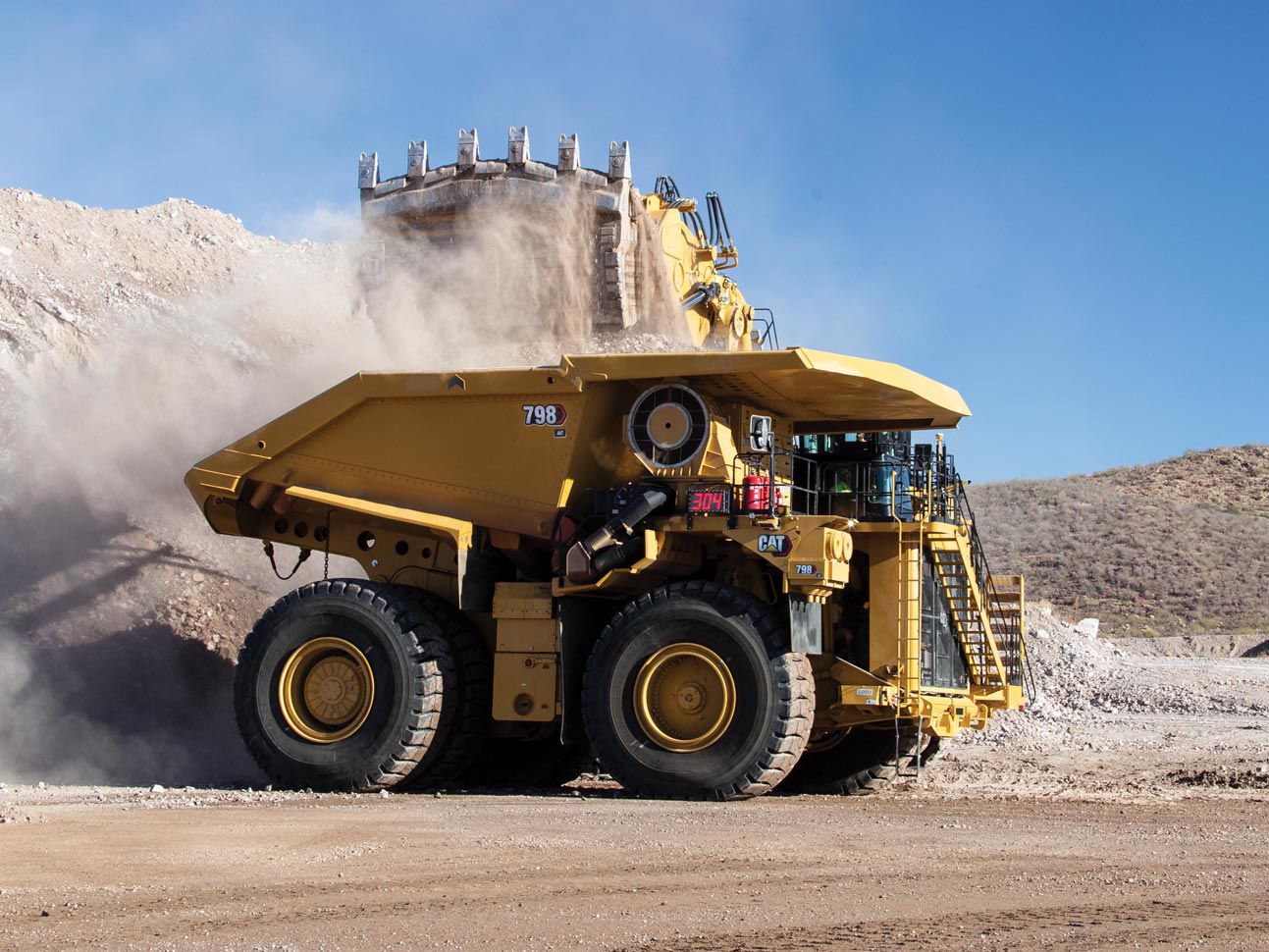

- Excellent slow speed control within service areas as well as superior motor torque and acceleration pulling away from the shovel.
OPERATOR COMFORT

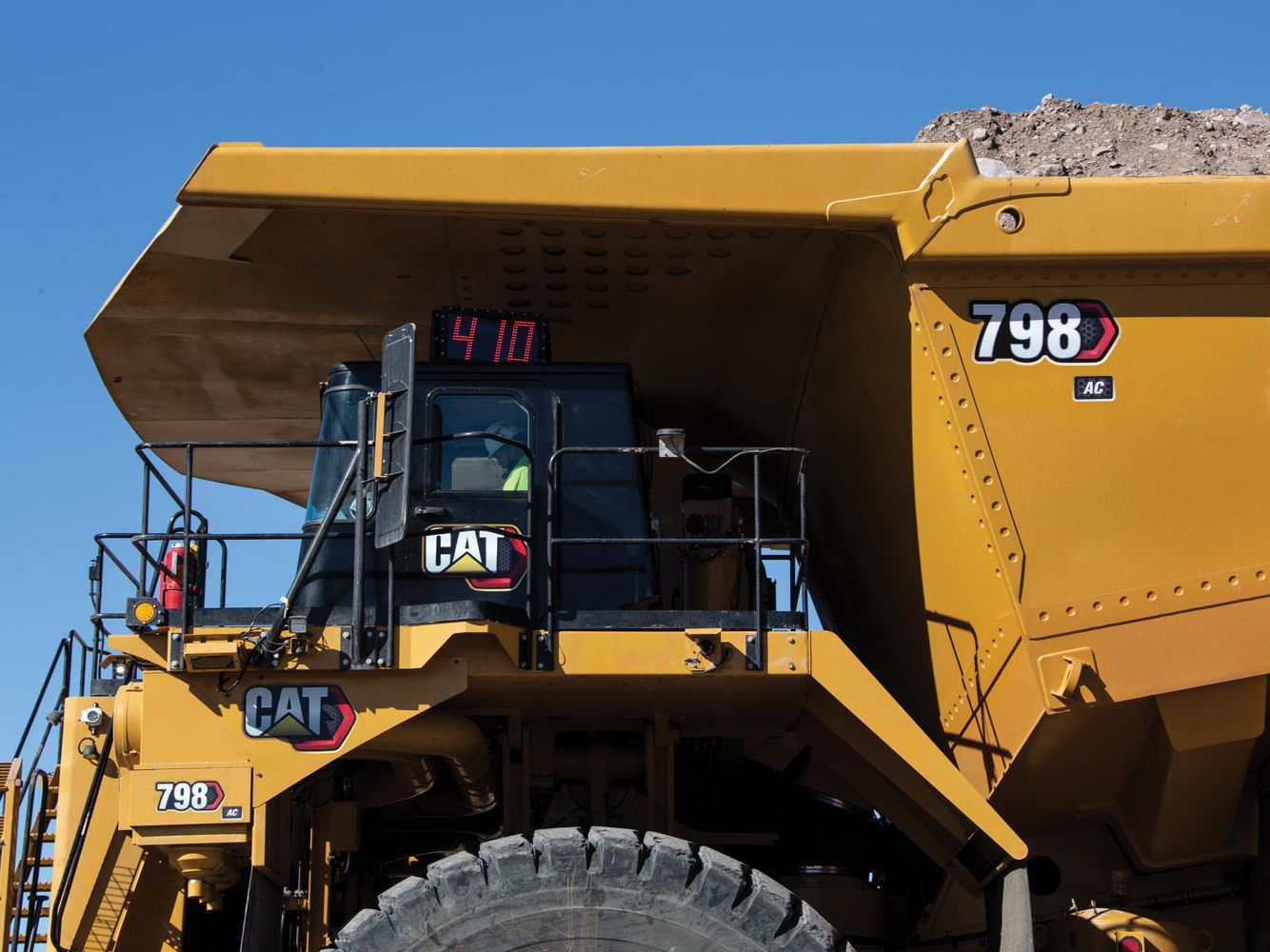

- Ergonomic cab layout, excellent all-around visibility, and controls, levers and switches that are positioned for ease of use.
- Automatic climate control and reduced vibration and sound.
- Next generation seat with height adjuster, adjustable shoulder stock to keep the seatbelt from rubbing, and seat back, side and lumbar bolsters to increase stability.
SERVICEABILITY
- High displacement, low rpm rating and conservative horsepower ratings, which mean more time on the haul road and less time in the shop.
- Inlet manifolds and turbochargers that are located outside of the engine's V, giving the service technicians more space to work on top of the engine and within the engine bay.
- Sealed and pressurized inverter cabinet that requires no cleaning, eliminating hundreds of hours of maintenance over the life of the truck/
- Engine walkways and service platforms, modular components, service-friendly layout and ground-level grouped service points.
- Extended oil change interval (up to three times) with standard engine equipment including Centrifugal Oil Filter (COF) and Self-Cleaning Filter (SCF).
DURABILITY AND LONG LIFE
- First overhaul life of 25,000 hours for lower cost of ownership, with proven C175 engine and electric drive system.
- Highly validated and proven straight frame rail design that eliminates the bends and breaks that can occur at stress concentrations.
- Outstanding durability delivered by box section construction that uses Caterpillar proprietary steel specification for excellent welding characteristics.
- Increased frame life thanks to deep section main rails in critical areas of the frame lower stress levels.
- Frame, powertrain, engine and components that are built to be rebuilt — delivering multiple lives of like-new performance at a fraction-of-new price.
PROVEN AC DRIVE & POWERTRAIN
- High voltage system that operates at lower current than most competitive trucks, contributing to higher efficiency, lower heat generation, smaller and lighter components, and longer component life.
- Radial style retarding grid with AC electric motor that requires no regular motor maintenance and is quieter and lighter than box grids.
- State-of-the-art high voltage IGBTs for maximum AC drive system efficiency, and a dual-bearing brushless alternator that delivers long life and less maintenance, with no shimming required.
- AC Drive dynamic retarding for continuous retarding power; AC electric motor that reduces maintenance; and state-of-the-art high voltage IGBTs for maximum AC drive system efficiency.
- Variable hydraulic blower fan, which provides optimized cooling even at idle for increased component performance and life.
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions and carbon footprint.
- Optional U.S. EPA Tier 4 Final / EU Stage V engine, which reduces NOx by 62% and particulates by 93% when compared to Tier 1 emissions.
- Reduced waste thanks to Centrifugal Oil Filter (COF), standard self-cleaning engine filter, extended oil change intervals and reduced oil usage.
- Engines compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels, plus power options like trolley.
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.
TECHNOLOGY SOLUTIONS
- Equipped with standard Product Link™ Elite monitoring system, which delivers health and payload information to keep performance high and enable proactive maintenance planning.
- Factory-ready for fully integrated Cat MineStar™ Command for hauling, an autonomous hauling solution proven to increase productivity up to 30%.
- Optional MineStar Fleet, a fleet monitoring system, to measure, manage and maximize the overall hauling operation.
- Optional MineStar Detect proximity detection system, which uses cameras to give operators a better view of what's happening around their equipment.
- Optional in-cab Cat Driver Safety System (DSS) intervenes when operator fatigue or distraction are detected.
CAT BODIES
- Bodies designed to fit with the chassis, sized to meet payload requirements and work as part of the truck system.

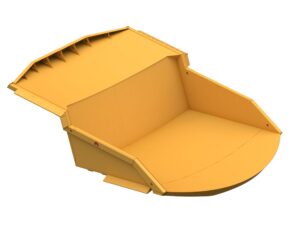

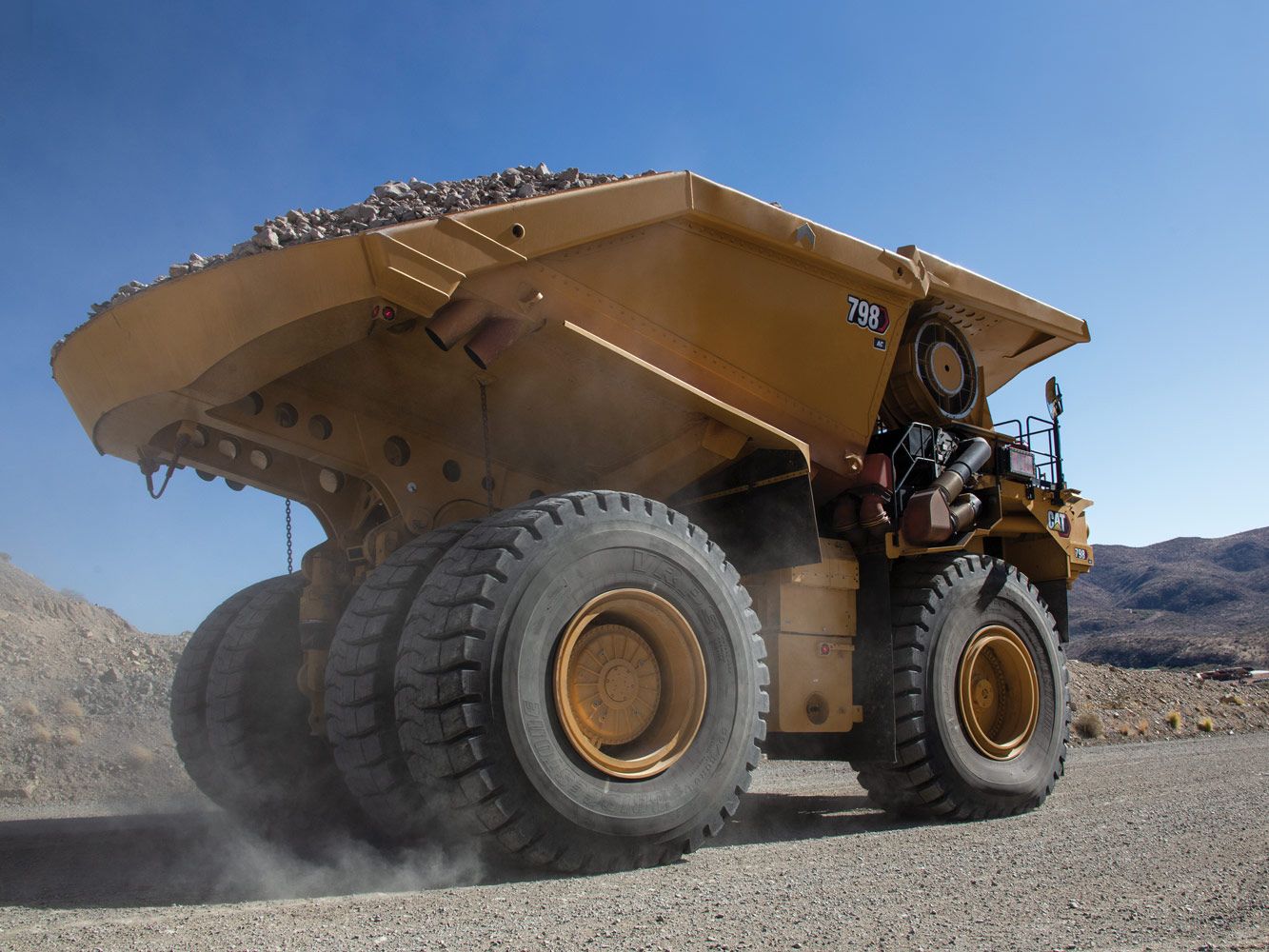

- High Efficiency (HE) dump body option that is lightweight, simplified and durable.
- With unique minimal structure design, HE body provides long life while minimizing weight for increased payload.
- HE body sized and configured to meet the specific needs of the mine, dictated by fragmentation, abrasion, cohesion and the loading tool.
Videos
Virtual Tours
Documents & Brochures
Standard Equipment
POWER TRAIN
- Cat® C175-16 Diesel Engine: 2610 kW (3,500 hp) Fuel Optimized , U.S. EPA Tier 2 equivalent (available for applicable markets)
- Cat® C175-16 Diesel Engine: 2610 kW (3,500 hp) U.S. EPA Tier 4 Final / EU Stage V (available for applicable markets)
- C175-16 Diesel Engine
– Turbocharging (4) / Aftercooled (ATAAC)
– Centrifugal oil filter
– Self-cleaning oil filter
– Charging Alternator (225 amp), brushless
– Pre-lubrication/engine
– Air cleaner with precleaner (4)
– Multi-point oil pressure sensing
– Exhaust - Muffler, Right Side Exit - Cat C175-20 Diesel Engine (High Altitude Only)
- 3095 kW (4,150 hp) Fuel Optimized (available for applicable markets)
- Centrifugal oil filter
- Self-cleaning oil filter
- Charging Alternator (225 amp), brushless
- Pre-lubrication/engine
- Air cleaner with precleaner (4)
- Multi-point oil pressure sensing
- Exhaust - Muffler, Right Side Exit - Braking system:
– Electric dynamic retarding with blended low speed
– Oil-cooled, Multi-disc (front and rear) - Service, Parking, Secondary
– Load Brake (rear axle only)
– Extended Life Brake Disc Material
– Automatic Retarder Control (ARC)
– Brake Release Motor (towing) - Cat® AC Drivetrain:
– AC generator
– AC induction motors (high-torque)
– IGBT motor control
– Radial retarding grid with AC motor control
– Programmable top speed
– TorqueBoost technology
– Traction control system - Directional Shift Management:
– Body-up reverse neutralizer
– Body-up shift inhibitor
– Reverse shift inhibitor
– Neutral coast inhibitor
– Neutral start inhibitor - Additional Features:
– Rear axle continuous lubrication and filtration
– Rear axle continuous oil cooling
OPERATION AND CONTROLS
- Integrated ROPS/FOPS cab, insulated/sound suppressed
- Seat, operator, air suspension, adjustable, heated/cooled
- Seatbelt, operator, three point
- Seat, trainer, air suspension, adjustable
- Seatbelt, trainer, two point
- Steering wheel, tilt, telescopic, horn
- Horn, electric
- Directional shift lever
- Single Pedal Retarding & oil-cooled brake control
- Automatic Retard Control (ARC) toggle switch
- Load brake switch
- Windshield with tinted/safety glass
- Window, electric powered, operator/passenger
- Windshield Wipers (2), intermittent control and washer
- Visor (2)
- Storage rear of seats
- Cup holder (2)
- Dome courtesy light
- Entertainment radio ready with speakers and wiring harnesses
- Converter, 12V
- 12V DC power supply (1)
- Mirrors, standard (Left-Flat, Right-Convex)
- Fixed access ladder, left hand ground access
- Fixed access ladder, right hand round access (High Altitude Only)
- HVAC:
– Pressurized, filtered environment
– Air conditioner
– Heater/defroster - Metric or English gauges:
– Speedometer
– Tachometer
– Electric hour meter
– Fuel level
– DEF level (U.S. EPA Tier 4 Final / EU Stage V engines only)
– Hydraulic oil temperature
– Engine coolant temperature - Service & Information:
– Diagnostic connection port
– Electric engine control fault indicator
– Alarm, Park brake / open operator door
– Third party telematics port
– VIMS message center advisor
ELECTRICAL
- Audible Alarm, backup
- Electrical system, 24V with fuses and breakers
- Batteries, 12V (8) 90 amp hour
- Ground level Battery charge receptacle
- Lighting, signals/service:
– Headlights (4 low beam, 4 high beam), LED
– Headlights (4 low beam, 2 high beam), LED (High Altitude only)
– Backup and marker/hazard, LED
– Directional signals (front and rear), LED
– Front stair access/service deck, LED
– Stop/tail lights, LED
– Engine compartment, LED
– Inverter energy warning lights, LED - Payload indicator, red/green
- Payload, digital display
ADDITIONAL FEATURES AND EQUIPMENT
- Accumulators (Steering & Brake) – Australian and Canadian certified
- Automatic lubrication system
- Rotating component guards
- Mud Flaps
- Tow hooks and pins (front)
- Tow pin (rear) (empty truck only)
- 44 x 63 rims, six position (6)
- Fueling:
– 4922 L (1,300 gal) fuel tank (Fuel optimized engines only)
– 4543 L (1,200 gal) fuel tank (U.S. EPA Tier 4 Final / EU Stage V engines only)
– 379 L (100 gallon) DEF tank (U.S. EPA Tier 4 Final / EU Stage V engines only)
– Fuel filter with water separator
– 210 GPM Fast fill fuel system (Left and Right) - Service:
– Engine service platforms (2)
– ANSI or ISO service instructions
– S•O•S℠ sample points (hydraulic oil, engine coolant, engine oil)
– Ground level machine lockout (battery)
– Ground level engine shut-down
– Drivetrain lockout
– Drivetrain lockout at ground level (High Altitude only)
– Engine start lockout
– Auxiliary "buddy" dumping quick connect
– Auxiliary steering quick connect (towing)
CAT® TECHNOLOGY PRODUCTS
- Cat® MineStar™ Detect (Radar and Camera) System
- Cat® Product Link™ Elite (Cellular)
DUMP BODY
- High Efficiency (HE) body, 218-276 m³ (285-361 yd³)
– HE Body Mounting Group
– Rock ejectors (chain)
ANTIFREEZE
- Cat Extended Life Coolant (ELC) protects to –35° C (–30° F)
Additional information

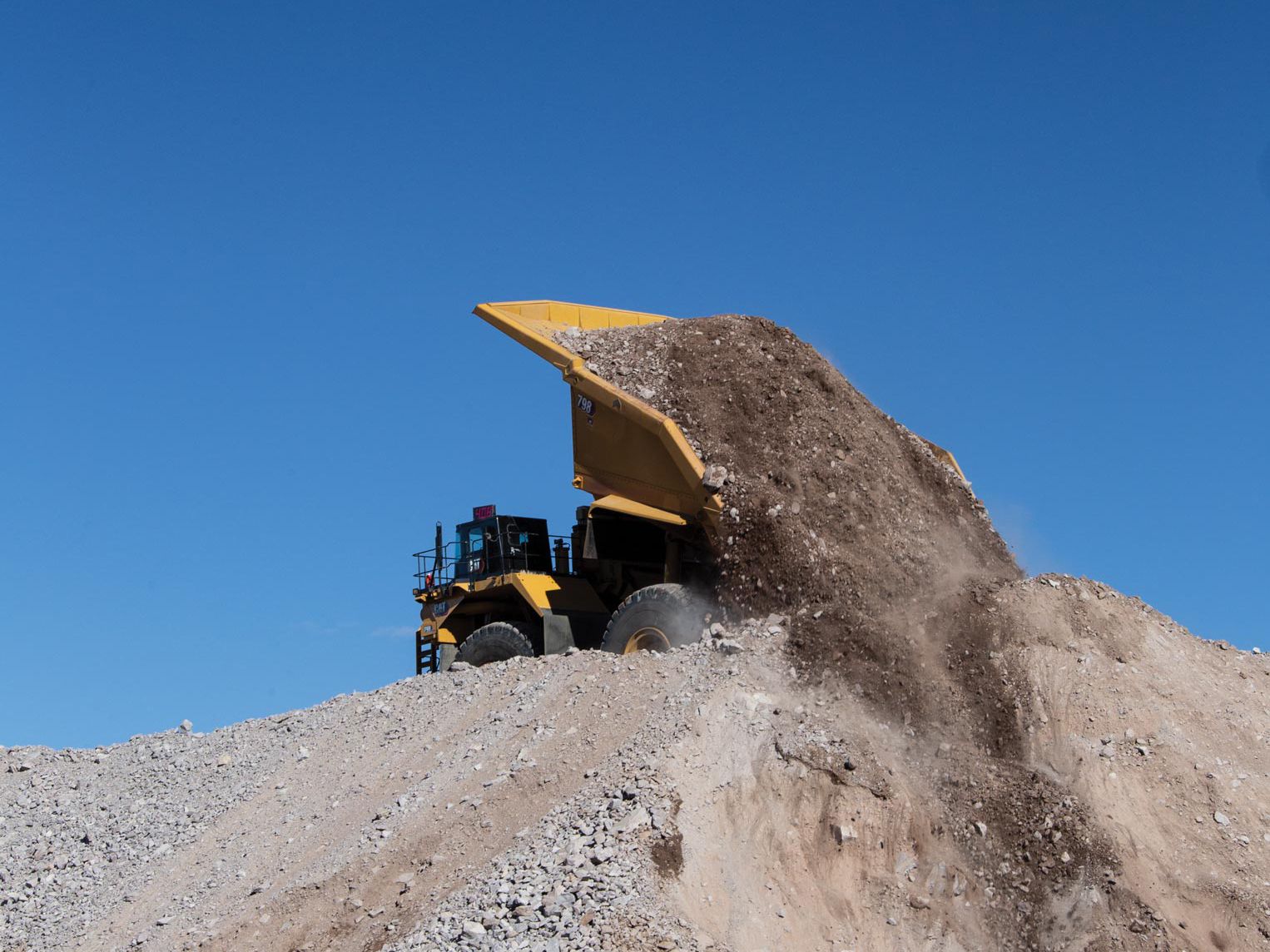

| Offering Type | |
|---|---|
| Engine - Gross Power - SAE J1995 | 2610 kW ( 3500 HP ) |
| Engine Model | Cat® C175-16 |
| Engine - Net Power - SAE J1349 | 2539 kW ( 3405 HP ) |
| Engine - Optional Gross Power - SAE J1995 | 2312 kW ( 3100 HP ) |
| Engine - Rated Speed | 1800 r/min ( 1800 r/min ) |
| Engine - Emissions Rating | Fuel Optimized |
| Engine - Bore | 175 mm ( 6.9 in ) |
| Engine - Stroke | 220 mm ( 8.7 in ) |
| Engine - Displacement | 85 l ( 5187 in³ ) |
| Engine - Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. |
| Engine - Note (2) | U.S. EPA Tier 4 Final / EU Stage V available for applicable markets. |
| Engine - Note (3) | Additional fuel optimized selectable power ratings: 2312 kW / 3,100 hp |
| Engine - High Altitude Only - Engine Model | Cat® C175-20 |
| Engine - High Altitude Only - Gross Power SAE J1995:2014 | 3095 kW ( 4150 HP ) |
| Engine - High Altitude Only - Net Power - SAE J1349:2011 | 2983 kW ( 4000 HP ) |
| Engine - High Altitude Only - Rated Speed | 1750 r/min ( 1750 r/min ) |
| Engine - High Altitude Only - Emissions Rating | Fuel Optimized |
| Engine - High Altitude Only - Bore | 175 mm ( 6.9 in ) |
| Engine - High Altitude Only - Stroke | 220 mm ( 8.7 in ) |
| Engine - High Altitude Only - Displacement | 106 l ( 6469 in³ ) |
| Engine - High Altitude Only - Note 1 | Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. |
| Engine - High Altitude Only - Note 2 | Additional fuel optimized selectable power rating: 2983 kW / 4,000 hp |
| Weights - Approximate - Rated Gross Machine Weight | 623690 kg ( 1375000 lb ) |
| Weights - Approximate - Chassis Weight | 205852 kg ( 453826 lb ) |
| Weights - Approximate - Body Weight Range | 38 833 – 43 275 kg (85,611 – 95,406 lb) |
| Weights - Approximate - Note (1) | Consult your tire manufacturer for maximum tire load. |
| Weights - Approximate - Note (2) | Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. |
| Weights - Approximate - Note (3) | Body weight varies depending on how body is equipped. |
| Weights - Approximate - Nominal Rated Payload | 372 t ( 410 ton (US) ) |
| Weight Distributions - Approximate - Front Axle - Empty | 47 % ( 47 % ) |
| Weight Distributions - Approximate - Rear Axle - Empty | 53 % ( 53 % ) |
| Weight Distributions - Approximate - Front Axle - Loaded | 33 % ( 33 % ) |
| Weight Distributions - Approximate - Rear Axle - Loaded | 67 % ( 67 % ) |
| Weight Distributions - Approximate - Note | Weight distributions optimized with Cat body. |
| AC Drive System - Total Reduction Ratio | 35:01:00 |
| AC Drive System - Top Speed - Loaded | 64 km/h ( 40 mile/h ) |
| AC Drive System - Generator/Alternator | Brushless, engine mounted, dual bearing |
| AC Drive System - Controls | IGBT Inverter Technology, air cooled, pressurized cabinet with filtration |
| AC Drive System - Wheel Motor | Cat high-torque AC induction, rear axle mounted |
| AC Drive System - Cooling System | Cat variable speed, hydraulically driven cooling system |
| Tires - Rims | 44" x 63" Rims |
| Standard Tires | 59/80 R63 |
| Tires - Note (1) | Quick Change Rims optional. |
| Tires - Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities. |
| Braking System - Service Brakes | Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated |
| Braking System - Front Wet Disc Brake Surface Area | 146081 cm² ( 22642 in² ) |
| Braking System - Rear - Wet Disc Brake Surface Area | 211163 cm² ( 32730 in² ) |
| Braking System - Standards | Service and Secondary: ISO 3450:2011 |
| Braking System - Electric Retarding | Radial Grid Design |
| Braking System - Dynamic Retarding Power - Continuous | 4086 kW ( 5480 HP ) |
| Braking System - Parking Brakes | Four-corner, Multi-disc, Spring Applied, Hydraulically Released |
| Braking System - Load Brake | Rear service brakes |
| Braking System - Note | Anti-Lock Brake System (ABS) optional with CMD package |
| Capacity - HE Body - 100% fill factor - Struck | 129-200 m³ (168-261 yd³) |
| Capacity - HE Body - 100% fill factor - Heaped (SAE 2:1) | 218-276 m³ (285-361 yd³) |
| Capacity - HE Body - 100% fill factor - Note | Contact your local Cat dealer for body recommendations. |
| Body Hoists - Type | Twin, two-stage hydraulic cylinders with snubbing valve. |
| Body Hoists - Pump Flow - High Idle | 964 l/min ( 257.3 gal/min ) |
| Body Hoists - Relief Valve Setting - Raise | 20884 kPa ( 3029 psi ) |
| Body Hoists - Body Raise Time - High Idle | 21 s ( 21 s ) |
| Body Hoists - Body Lower Time - Float | 22 s ( 22 s ) |
| Body Hoists - Body Power Down- High Idle | 17.5 s ( 17.5 s ) |
| Body Hoists - Note (1) | Twin, two-stage hydraulic cylinders mounted outside main frame; double-acting cylinders in both stages. |
| Body Hoists - Note (2) | Power raise in both stages; power down capability in both stages. |
| Body Hoists - Note (3) | Automatic body-lower modulation reduces impact on frame. |
| Suspension - Type | Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments |
| Suspension - Effective Cylinder Stroke - Front | 254 mm ( 10 in ) |
| Suspension - Effective Cylinder Stroke - Rear | 133.35 mm ( 5 in ) |
| Service Refill Capacities - Fuel Tank | 4922 l ( 1300 gal (US) ) |
| Service Refill Capacities - Fuel Tank (Tier 4) | 4542 l ( 1200 gal (US) ) |
| Service Refill Capacities - Diesel Exhaust Fluid Tank | 379 l ( 100 gal (US) ) |
| Service Refill Capacities - Cooling System | 799 l ( 211 gal (US) ) |
| Service Refill Capacities - Crankcase | 310 l ( 82 gal (US) ) |
| Service Refill Capacities - Final Drive - Each | 254 l ( 67 gal (US) ) |
| Service Refill Capacities - Hydraulic System - Including Tank | 1458 l ( 385 gal (US) ) |
| Service Refill Capacities - Hydraulic Tank | 1121 l ( 296 gal (US) ) |
| Service Refill Capacities - Grease Tank | 41 kg ( 90 lb ) |
| Service Refill Capacities - Note (1) | DEF Tank only available for U.S. EPA Tier 4 Final / EU Stage V engine option |
| Service Refill Capacities - High Altitude Only - Fuel Tank | 7571 l ( 2000 gal (US) ) |
| Service Refill Capacities - High Altitude Only - Cooling System | 1032 l ( 273 gal (US) ) |
| Service Refill Capacities - High Altitude Only - Crankcase | 471 l ( 124 gal (US) ) |
| Service Refill Capacities - High Altitude Only - Hydraulic Tank | 1032 l ( 273 gal (US) ) |
| Service Refill Capacities - High Altitude Only - Hydraulic System (includes tank) | 1296 l ( 342 gal (US) ) |
| Cab - Air Conditioning | HFC – 134A refrigerant: 21,600 Btu/h |
| Cab - Heater / Defroster | 24600 Btu/h ( 24600 Btu/h ) |
| Cab - Note | Ambient capabilities down to -15C (5F) for heater/defroster and up to 50C (122F) for air conditioning. |
| Cab - ROPS Standards (1) | ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer. |
| Cab - FOPS Standards | FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer. |
| Sound Standards | The operator sound pressure level, 75 dB(A), measured according to ISO 6394:2008 and ISO 6396:2008. |
| Steering - Steer Angle | 39 ° ( 39 ° ) |
| Steering - Turning Diameter - Front | 32.4 m ( 106.3 ft ) |
| Steering Standards | Steering Standards: ISO 5010:2007 |
| Steering - Note | Turning Diameter (ISO 7457:1997) |
| Dimensions (Approximate) - Height - Top of ROPS | 6720 mm ( 22.1 ft ) |
| Dimensions (Approximate) - Overall Length | 15679 mm ( 51.44 ft ) |
| Dimensions (Approximate) - Wheel Base | 6674 mm ( 21.9 ft ) |
| Dimensions (Approximate) - Rear Axle - Tail | 4898 mm ( 16.07 ft ) |
| Dimensions (Approximate) - Dump Clearance - Empty | 1744 mm ( 5.72 ft ) |
| Dimensions (Approximate) - Loading Height - Empty | 7784 mm ( 25.54 ft ) |
| Dimensions (Approximate) - Overall Height - Body Raised | 14890 mm ( 48.85 ft ) |
| Dimensions (Approximate) - Centerline Front Tire Width | 7028 mm ( 23.06 ft ) |
| Dimensions (Approximate) - Front Axle Clearance - Loaded | 855 mm ( 2.81 ft ) |
| Dimensions (Approximate) - Overall Canopy Width (with rock deflectors) | 10103 mm ( 33.15 ft ) |
| Dimensions (Approximate) - Outside Body/Canopy Width (without rock deflectors) | 9639 mm ( 31.62 ft ) |
| Dimensions (Approximate) - Inside Body Width | 8973 mm ( 29.44 ft ) |
| Dimensions (Approximate) - Front Canopy Height - Empty | 7928 mm ( 26.01 ft ) |
| Dimensions (Approximate) - Rear Axle Clearance - Loaded | 854 mm ( 2.8 ft ) |
| Dimensions (Approximate) - Centerline of Rear Dual Tire Width | 5943 mm ( 19.5 ft ) |
| Dimensions (Approximate) - Overall Tire Width - Empty | 9226 mm ( 30.27 ft ) |
| Dimensions (Approximate) - Overall Length (High Altitude only) | 15810 mm ( 51.87 ft ) |
| Dimensions (Approximate) - Note | Dimensions listed includes canopy deflectors |
-
HE Body
HE Body – 798 AC
View Details
Related products
-
Mining Trucks
797F
View Details -
Mining Trucks
789D
View Details -
Mining Trucks
796 AC
View Details -
Mining Trucks
794 AC
View Details
