816

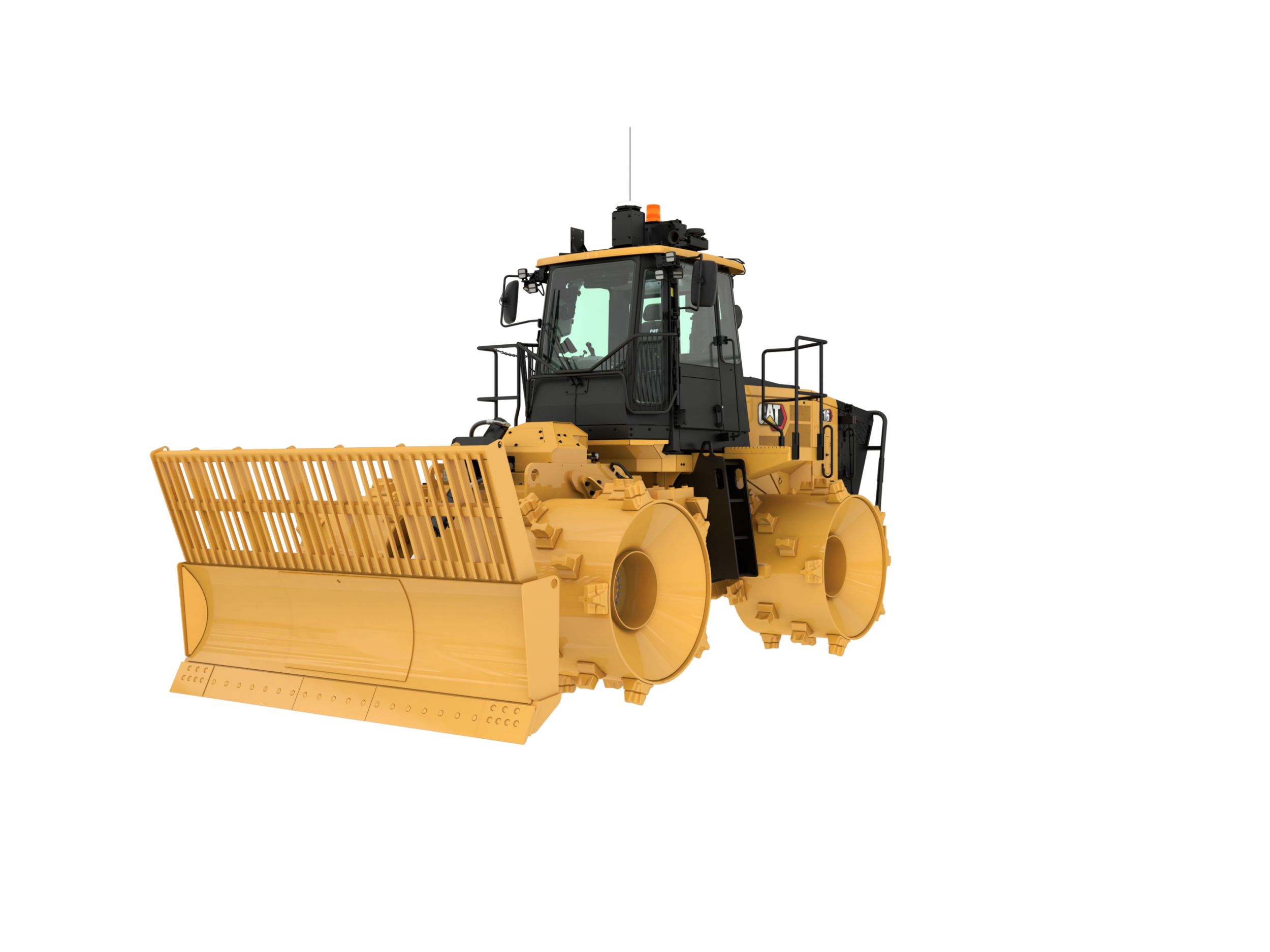

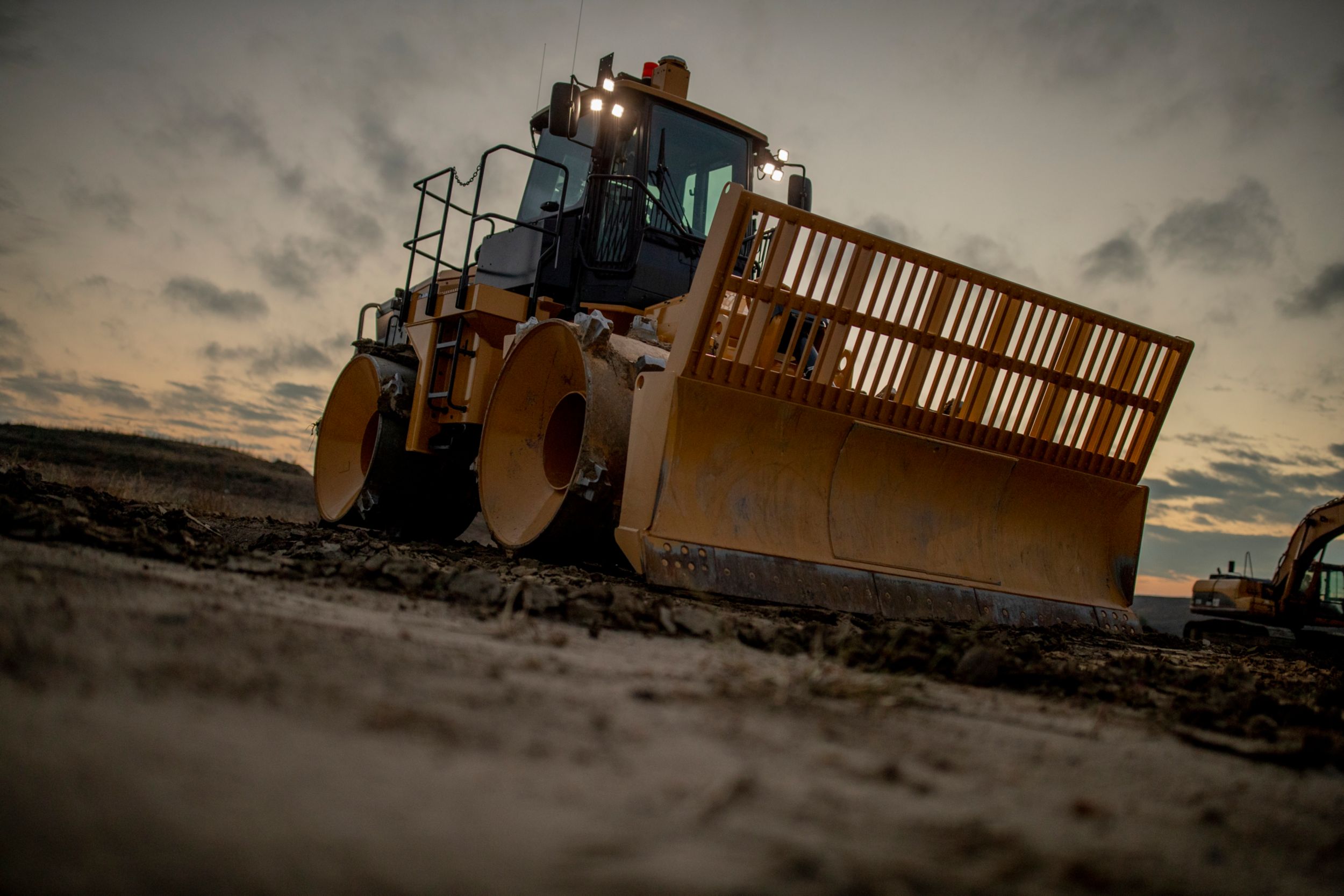

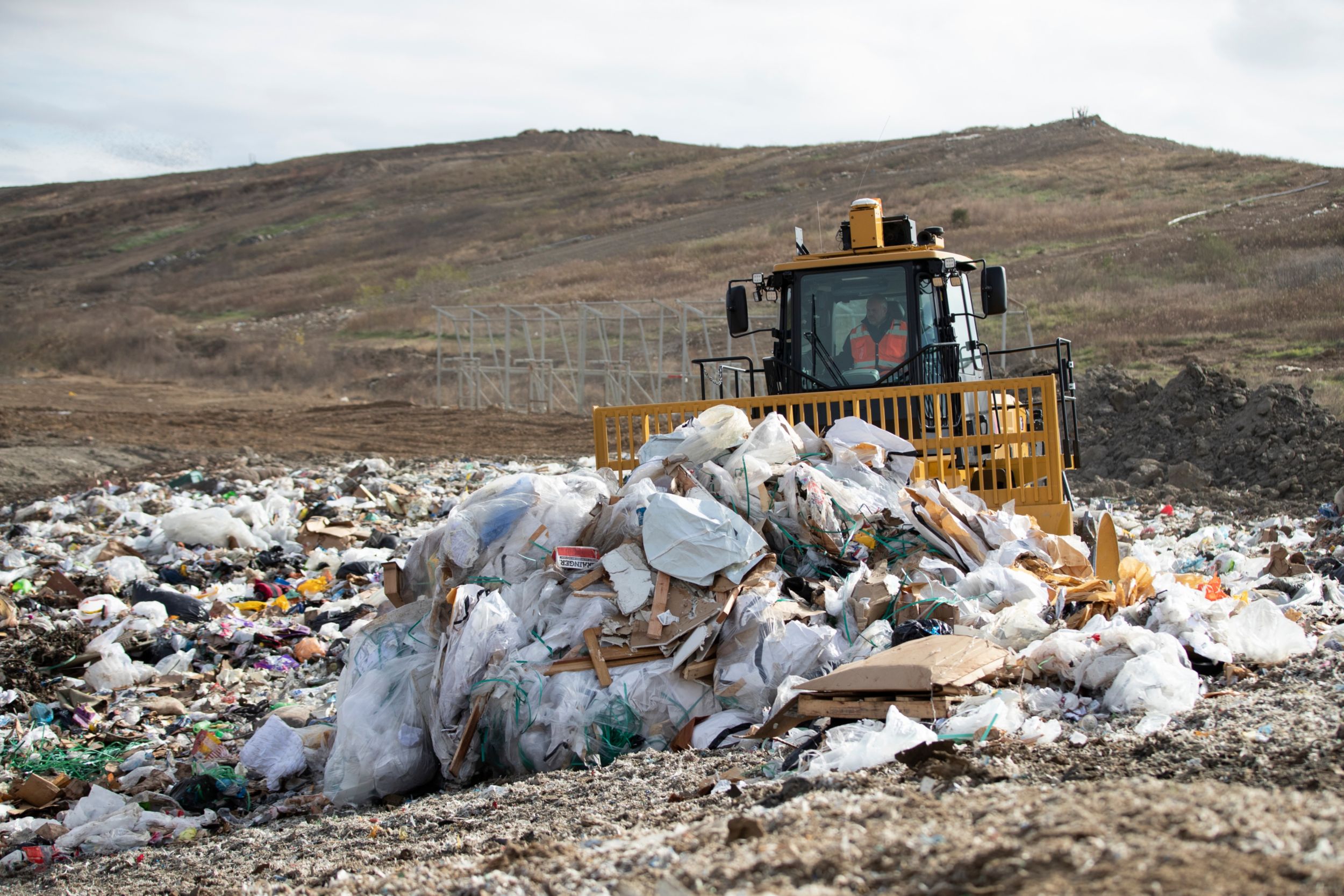

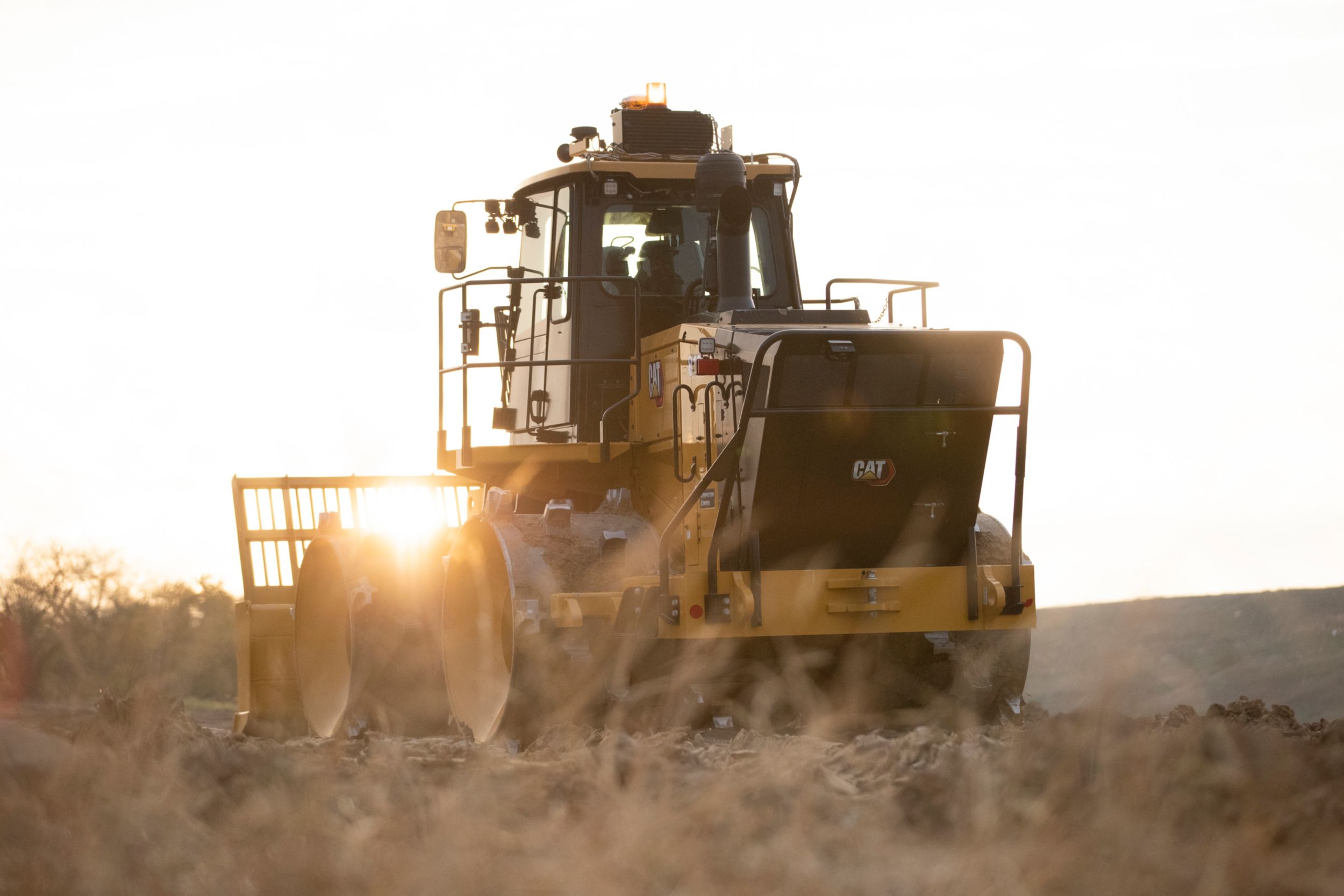

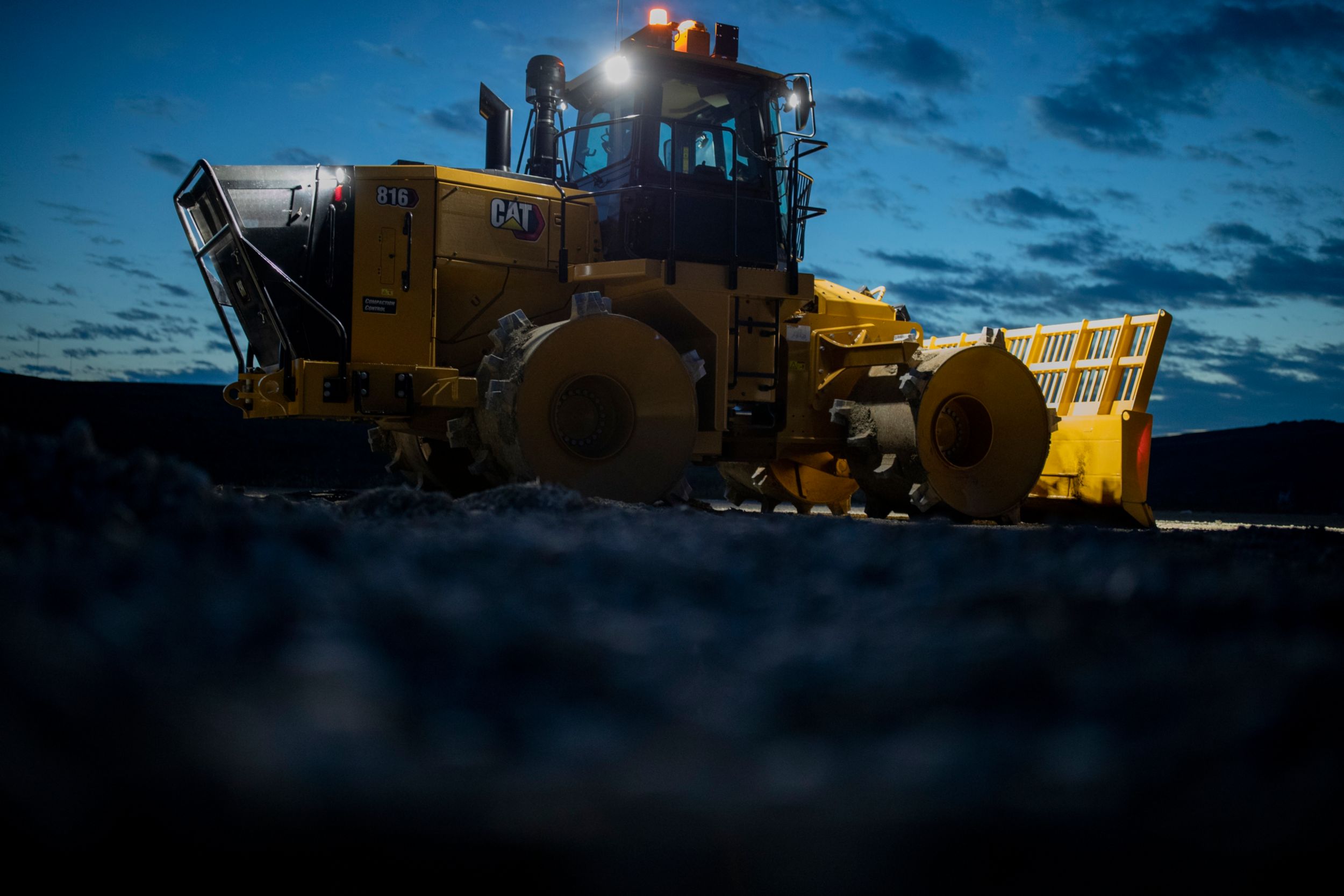

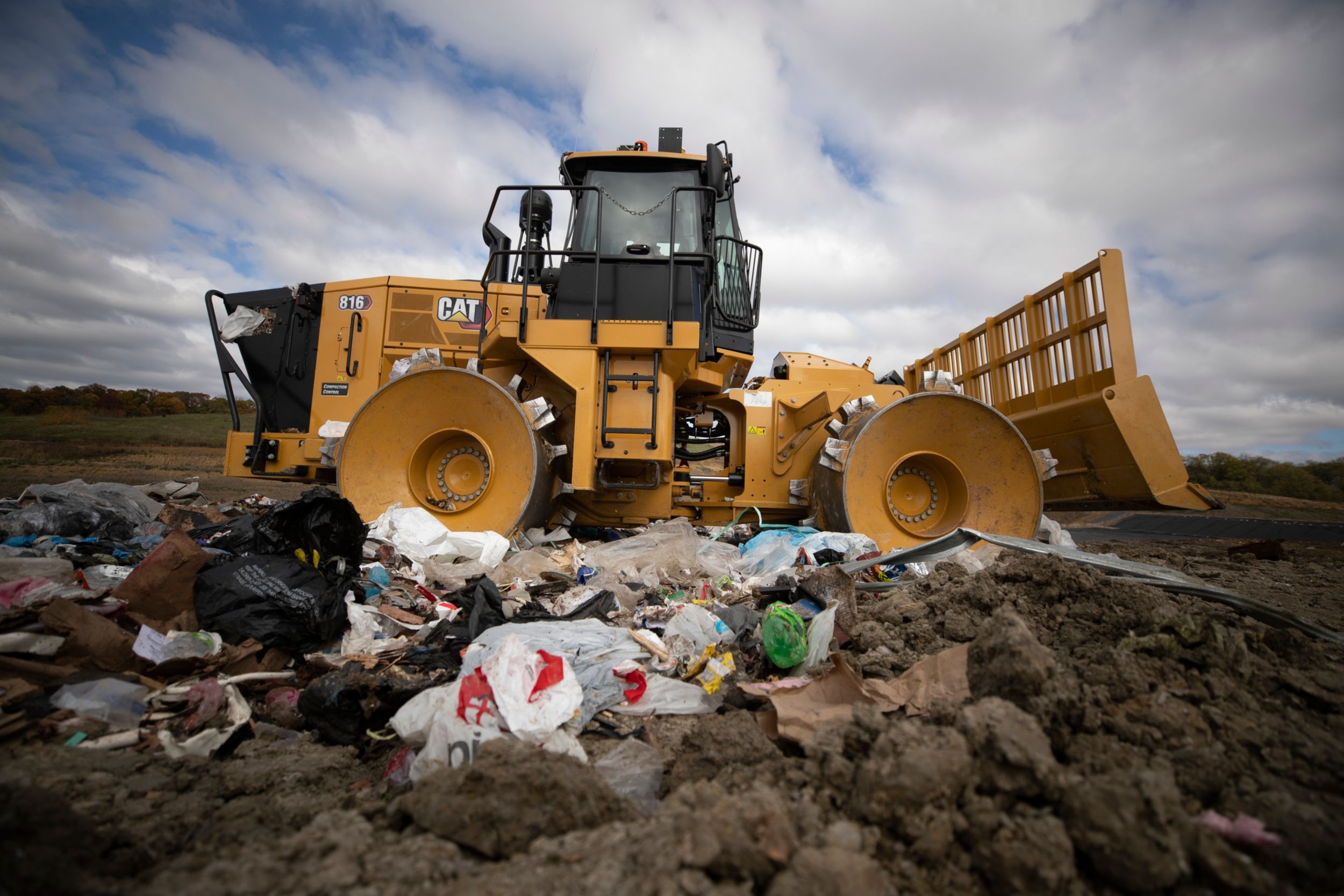

816 Landfill Compactor
Purpose-built for landfill operation, the Cat 816 delivers features, performance and efficiency that come from over 45-plus years of industry leadership. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.
OPERATOR COMFORT AND CONTROL
TOP-TIER SERVICE AND SUPPORT
POWERFUL EFFICIENCY
PRODUCTIVITY WITH TECHNOLOGY
WHEEL TIPS BUILT TO PERFORM
Videos
Documents & Brochures
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Advanced Productivity Electronic Control Shifting (APECS)
- Air to air aftercooler
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat clean emission module (Tier 4 Final/Stage V only)
- Electro-hydraulic parking brake
- Electronic Clutch Pressure Control (ECPC)
- Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/EU Stage IIIA equivalent
- Engine driven cooling fan (suction)
- Fuel priming pump (electric)
- Fuel to air cooler
- Ground level engine shutoff
- Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
- Radiator, unit core
- Starting aid (ether)
- Throttle lock
- Transmission, planetary with 2F/2R speed range control
- Torque converter
ELECTRICAL
- Alarm, back-up
- Alternator (150 amp)
- Batteries, maintenance free
- Electrical system (24 volt)
- Ground level lockable master disconnect switch
- Light, warning unswitched (LED strobe)
- Lighting system (front and rear)
- Starter, electric
- Starting receptacle for emergency start
OPERATOR ENVIRONMENT
- 12-volt power port for mobile phone or laptop connection
- AccuGrade™ mapping (ready)
- Air conditioner with roof mounted condenser
- Cab, sound-suppressed pressurized
- Camera, rear vision
- Coat and hard hat hooks
- Finger tip shifting controls
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Hydraulic controls – floor mounted
- Implement hydraulic lockout
- Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque convertor temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Internal four-post rollover protective structure (ROPS/FOPS)
- Light, (dome) cab
- Lunch box and beverage holders
- Mirror, internal (panoramic)
- Mirrors, heated rearview (externally mounted)
- Radio, CB ready
- Radio ready for entertainment: – Antenna – Speakers – Converter (12-volt 10-15 amp)
- Seat belt with minder, retractable, 76 mm (3") wide
- STIC control system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
- Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
- Seat, Cat Premium Plus (Leather)
GUARDS
- Guards, axle (front and rear)
- Guard, cab window
- Guards, crankcase and power train, hinged
- Guard, driveshaft
- Guard, radiator
- Striker bars
FLUIDS
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
- DEF tank fill gauge (Tier 4 Final/Stage V only)
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Emergency egress
- Fire suppression ready
- Fuel tank, 500 L (132 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, engine, and transmission oil coolers
- Oil change system, high speed
- Oil sampling valves
- Steering, load sensing
- Total hydraulic filtration system
- Vandalism protection caplocks
- Venturi stack
STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT
- Glass (window): – rubber-mounted glass
- Horn group (standard)
- Horn group (trumpet)
- Lights – cab: – Standard or LED
- Mirrors – cab: – Standard or heated
- Precleaner – cab: – Standard or powered
- Seat – cab: – Standard or heated and ventilated
STANDARD ATTACHMENTS – POWER TRAIN
- Axles: – Axle arrangement (no spin front) – Axle arrangement (no spin rear) – Axle arrangement (no spin front and rear)
STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS
- Engine precleaners: – Turbine or dual stage
STANDARD ATTACHMENTS – BLADES
- Dozer Arrangement – Standard (No Blade)
- Dozer Arrangement – Straight Blade
- Dozer Arrangement – Tilt (No Blade)
STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS
- Product Link: – GSM, satellite
STANDARD ATTACHMENTS – WHEELS AND CLEANER BARS
- Wheels and tips: – Wheel arrangement (6.25" plus tip) – Wheel arrangement (6.25" paddle tip) – Wheel arrangement (6.25" plus and paddle) – Wheels, chopper
- Bar group – cleaner (cleaner fingers and striker bar)
Additional information
| Offering Type | |
|---|---|
| Engine - Tier 4 Final/EU Stage V - Note | *Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Note | *Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
| Wheels - Paddle Tips - Weight (Group) | 5954 kg ( 13126 lb ) |
| Wheels - Chopper Tips (Weight Group) | 5733 kg ( 12639 lb ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Emissions | Brazil MAR-1 and China Nonroad Stage III, equivalent to Tier 3/EU Stage IIIA |
| Dimensions (Approximate) - Height to Top of Rear Compactor Guard | 2499 mm ( 8.2 ft ) |
| Wheels - Drum Diameter | 1400 mm ( 55.1 in ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Net Power (SAE J1349:2011) | 186 kW ( 249 HP ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Engine Model | Cat C7.1 |
| Wheels - Tip Height | 159 mm ( 6.25 in ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Rated Speed | 2200 r/min ( 2200 r/min ) |
| Dimensions (Approximate) - Centerline of Rear Axle to Bumper | 1990 mm ( 6.5 ft ) |
| Dimensions (Approximate) - Overall Machine Length with Straight Blade | 7806 mm ( 25.6 ft ) |
| Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard - Machine Sound Level (ISO 6395) | 112 dB(A) ( 112 dB(A) ) |
| Wheels - Width Over Drums | 3338 mm ( 131.4 in ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Bore | 105 mm ( 4.1 in ) |
| Wheels - Plus Tips - Weight (Group) | 6342 kg ( 13982 lb ) |
| Wheels - Outside Diameter | 1717 mm ( 67.6 in ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Stroke | 135 mm ( 5.3 in ) |
| Straight Blade - Turning Radius - Inside Corner of Blade | 2910 mm ( 9.5 ft ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Peak Torque - 1,400 rpm | 1016 N·m ( 749 ft-lb ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Torque Rise | 26% |
| Wheels - Combination Tips (Weight Group) | 6148 kg ( 13554 lb ) |
| Wheels - Drum Width | 1016 mm ( 40.0 in ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Displacement | 7.01 l ( 427.8 in³ ) |
| Engine - Tier 4 Final/EU Stage V - Peak Torque - 1,400 rpm | 1223 N·m ( 902 ft-lb ) |
| Wheels - Replaceable | Weld On |
| Operating Specifications - Tier 4 Final/EU Stage V - Operating Weight | 26052 kg ( 57345 lb ) |
| Wheels - Feet Per Wheel | 20 |
| Wheels - Feet Per Row | 5 |
| Engine - Tier 4 Final/EU Stage V - Gross Power (SAE J1995:2014) | 212 kW ( 284 HP ) |
| Engine - Tier 4 Final/EU Stage V - Net Power (SAE J1349:2011) | 186 kW ( 249 HP ) |
| Engine - Tier 4 Final/EU Stage V - Net Power (ISO 9249:2007) | 186 kW ( 249 HP ) |
| Engine - Tier 4 Final/EU Stage V - Engine Model | Cat C7.1 |
| Engine - Tier 4 Final/EU Stage V - Emissions | Meets U.S. EPA Tier 4 Final/ EU Stage V/Japan 2014/ Korea Tier 4 Final emission standards |
| Engine - Tier 4 Final/EU Stage V - Rated Speed | 2200 r/min ( 2200 r/min ) |
| Engine - Tier 4 Final/EU Stage V - Engine Power (ISO 14396:2002) | 205 kW ( 275 HP ) |
| Engine - Tier 4 Final/EU Stage V - Torque Rise | 52% |
| Engine - Tier 4 Final/EU Stage V - Bore | 105 mm ( 4.1 in ) |
| Engine - Tier 4 Final/EU Stage V - Stroke | 135 mm ( 5.3 in ) |
| Engine - Tier 4 Final/EU Stage V - Displacement | 7.01 l ( 427.8 in³ ) |
| Engine - Tier 4 Final/EU Stage V - High Idle Speed | 2270 r/min ( 2270 r/min ) |
| Engine - Tier 4 Final/EU Stage V - Low Idle Speed | 800 r/min ( 800 r/min ) |
| Engine - Tier 4 Final/EU Stage V - Maximum Altitude without Derating | 3000 m ( 9842.5 ft ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Gross Power (SAE J1995:2014) | 213 kW ( 286 HP ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Engine Power (ISO 14396:2002) | 205 kW ( 275 HP ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - High Idle Speed | 2270 r/min ( 2270 r/min ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Low Idle Speed | 800 r/min ( 800 r/min ) |
| Engine - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Maximum Altitude without Derating | 3000 m ( 9842.5 ft ) |
| Operating Specifications - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Operating Weight | 25760 kg ( 56793 lb ) |
| Transmission Type | Cat Planetary Power Shift |
| Transmission - Travel Speeds - Forward - First | 6.7 km/h ( 4.1 mile/h ) |
| Transmission - Travel Speeds - Forward - Second | 12.0 km/h ( 7.5 mile/h ) |
| Transmission - Travel Speeds - Reverse - First | 7.7 km/h ( 4.8 mile/h ) |
| Transmission - Travel Speeds - Reverse - Second | 12.0 km/h ( 8.5 mile/h ) |
| Hydraulic System - Lift/Tilt - Lift/Tilt System - Circuit | Pilot operated LS valve with EH |
| Hydraulic System - Lift/Tilt - Lift/Tilt System | Variable displacement piston |
| Hydraulic System - Lift/Tilt - Maximum Flow at 2,200 rpm | 89 l/min ( 23.5 gal/min ) |
| Hydraulic System - Lift/Tilt - Relief Valve Setting - Lift/Tilt | 22000 kPa ( 3190 psi ) |
| Hydraulic System - Lift/Tilt - Pilot System | Open center, fixed displacement gear |
| Hydraulic System - Lift/Tilt - Pilot Relief Valve Setting | 21000 kPa ( 3046 psi ) |
| Hydraulic System - Steering - Steering System - Circuit | Pilot, Load Sensing |
| Hydraulic System - Steering - Steering System - Pump | Piston – Variable Displacement |
| Hydraulic System - Steering - Maximum Flow at 2,200 rpm | 147 l/min ( 38.8 gal/min ) |
| Hydraulic System - Steering - Relief Valve Setting - Steering | 27600 kPa ( 4003 psi ) |
| Hydraulic System - Steering - Total Steering Angle | 84 |
| Hydraulic System - Steering - Steering Cycle Times - High Idle | 3.0 s ( 3.0 s ) |
| Hydraulic System - Steering - Steering Cycle Times - Low Idle | 8.2 s ( 8.2 s ) |
| Service Refill Capacities - Fuel Tank | 500 l ( 132.1 gal (US) ) |
| Service Refill Capacities - Diesel Exhaust Fluid Tank* | 16 l ( 4.2 gal (US) ) |
| Service Refill Capacities - Cooling Systems - Tier 4 Final/EU Stage V | 81 l ( 21.4 gal (US) ) |
| Service Refill Capacities - Cooling System - Tier 3/Stage IIIA Equivalent | 73 l ( 19.3 gal (US) ) |
| Service Refill Capacities - Engine Crankcase | 20 l ( 5.3 gal (US) ) |
| Service Refill Capacities - Transmission | 56 l ( 14.8 gal (US) ) |
| Service Refill Capacities - Differential - Final Drives - Front | 43 l ( 11.4 gal (US) ) |
| Service Refill Capacities - Differential - Final Drives - Rear | 43 l ( 11.4 gal (US) ) |
| Service Refill Capacities - Hydraulic System - Implement/Steering | 175 l ( 46.2 gal (US) ) |
| Service Refill Capacities - Hydraulic Tank Only | 75 l ( 19.8 gal (US) ) |
| Service Refill Capacities - Note | All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for the EPA, 10 ppm for the EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1. |
| Axles - Front | Planetary – Fixed |
| Axles - Rear | Planetary – Oscillating |
| Axles - Oscillation Angle | ±6° |
| Braking System - Service Brakes | Single Disc Wet (Enclosed) 2 WHL |
| Braking System - Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
| Sound Performance - Tier 4 Final/EU Stage V - Standard - Operator Sound Level (ISO 6396) | 70 dB(A) ( 70 dB(A) ) |
| Sound Performance - Tier 4 Final/EU Stage V - Standard - Machine Sound Level (ISO 6395) | 111 dB(A) ( 111 dB(A) ) |
| Sound Performance - Tier 4 Final/EU Stage V - Suppression - Operator Sound Level (ISO 6396) | 70 dB(A) ( 70 dB(A) ) |
| Sound Performance - Tier 4 Final/EU Stage V - Suppression - Machine Sound Level (ISO 6395) | 109 dB(A) ( 109 dB(A) ) |
| Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Standard - Operator Sound Level (ISO 6396) | 70 dB(A) ( 70 dB(A) ) |
| Sound Performance - Brazil Mar-1 and China Nonroad Stage III, Equivalent to Tier 3/EU Stage IIIA - Suppression - Operator Sound Level (ISO 6396) | 70 dB(A) ( 70 dB(A) ) |
| Dimensions (Approximate) - Height - Top of Beacon | 4368 mm ( 14.3 ft ) |
| Dimensions (Approximate) - Height to Top of Air Conditioning Condenser | 4161 mm ( 13.7 ft ) |
| Dimensions (Approximate) - Height - Cab Roof | 3878 mm ( 12.7 ft ) |
| Dimensions (Approximate) - Height - Top of Exhaust Pipe | 3547 mm ( 11.6 ft ) |
| Dimensions (Approximate) - Height - Top of Hood | 2770 mm ( 9.1 ft ) |
| Dimensions (Approximate) - Ground Clearance to Hitch | 519 mm ( 1.7 ft ) |
| Dimensions (Approximate) - Ground Clearance to Bottom of Bumper | 818 mm ( 2.7 ft ) |
| Dimensions (Approximate) - Centerline of Rear Axle to Rear Compactor Guard | 2614 mm ( 8.6 ft ) |
| Dimensions (Approximate) - Hitch to Centerline of Front Axle | 1675 mm ( 5.5 ft ) |
| Dimensions (Approximate) - Wheel Base | 3350 mm ( 11.0 ft ) |
| Dimensions (Approximate) - Width over Front Striker Bars | 3000 mm ( 9.8 ft ) |
| Dimensions (Approximate) - Width over Rear Striker Bars | 3036 mm ( 10.0 ft ) |
| Dimensions (Approximate) - Width over Platform | 3140 mm ( 10.3 ft ) |
| Dimensions (Approximate) - Width over Drums | 3338 mm ( 11.0 ft ) |
| Straight Blade - Capacity | 10.00 m³ ( 13.08 yd³ ) |
| Straight Blade - Height | 1961 mm ( 6.4 ft ) |
| Straight Blade - Height of Cutting Edge | 990 mm ( 3.2 ft ) |
-
Technology Kits
Cat® Detect with Smart Camera
View Details -
Technology Kits
Cat® Detect with Surround Cameras
View Details
Related products
-
Landfill Compactors
836
View Details -
Landfill Compactors
826K
View Details -
Landfill Compactors
826
View Details -
Landfill Compactors
836K
View Details
