836K

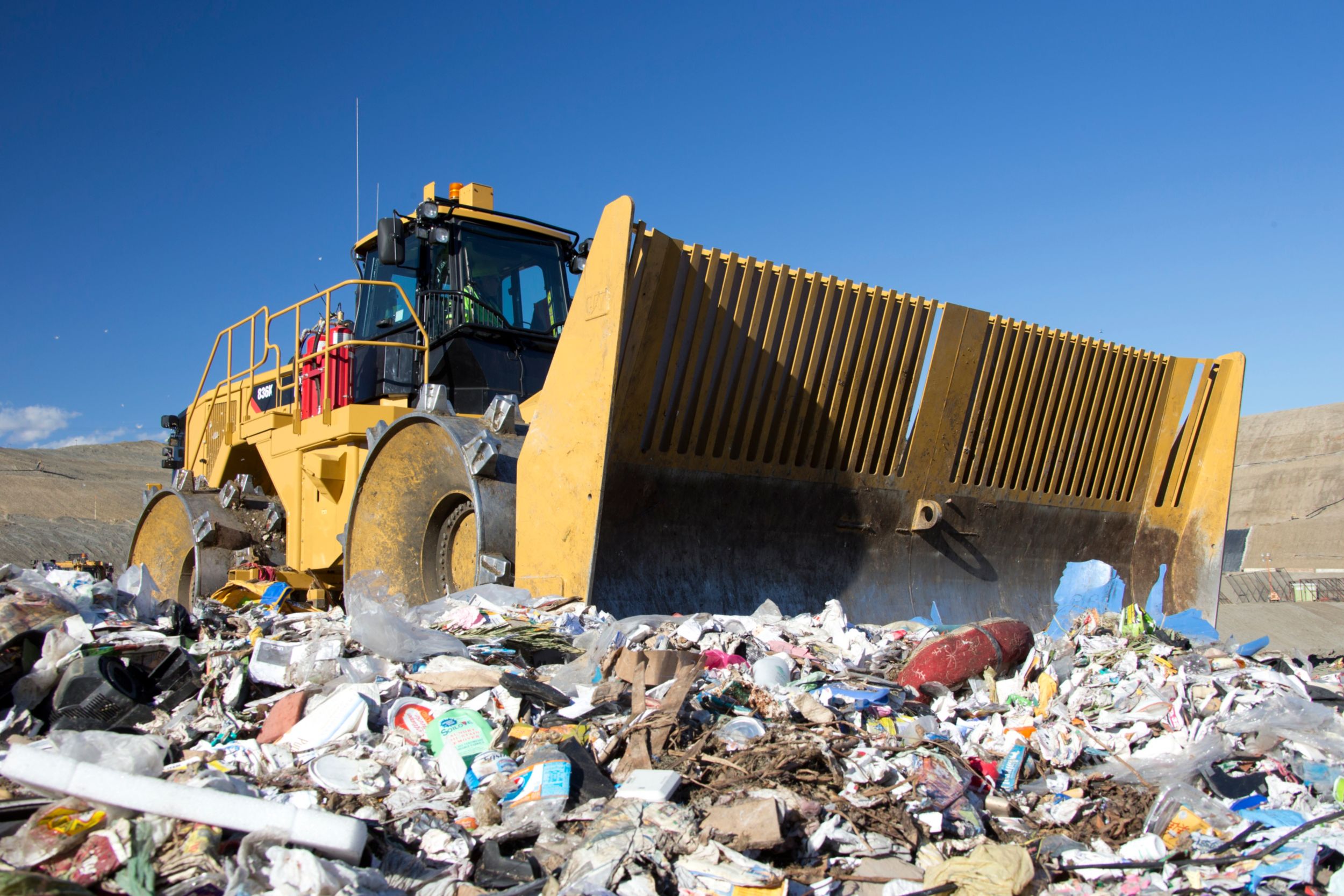

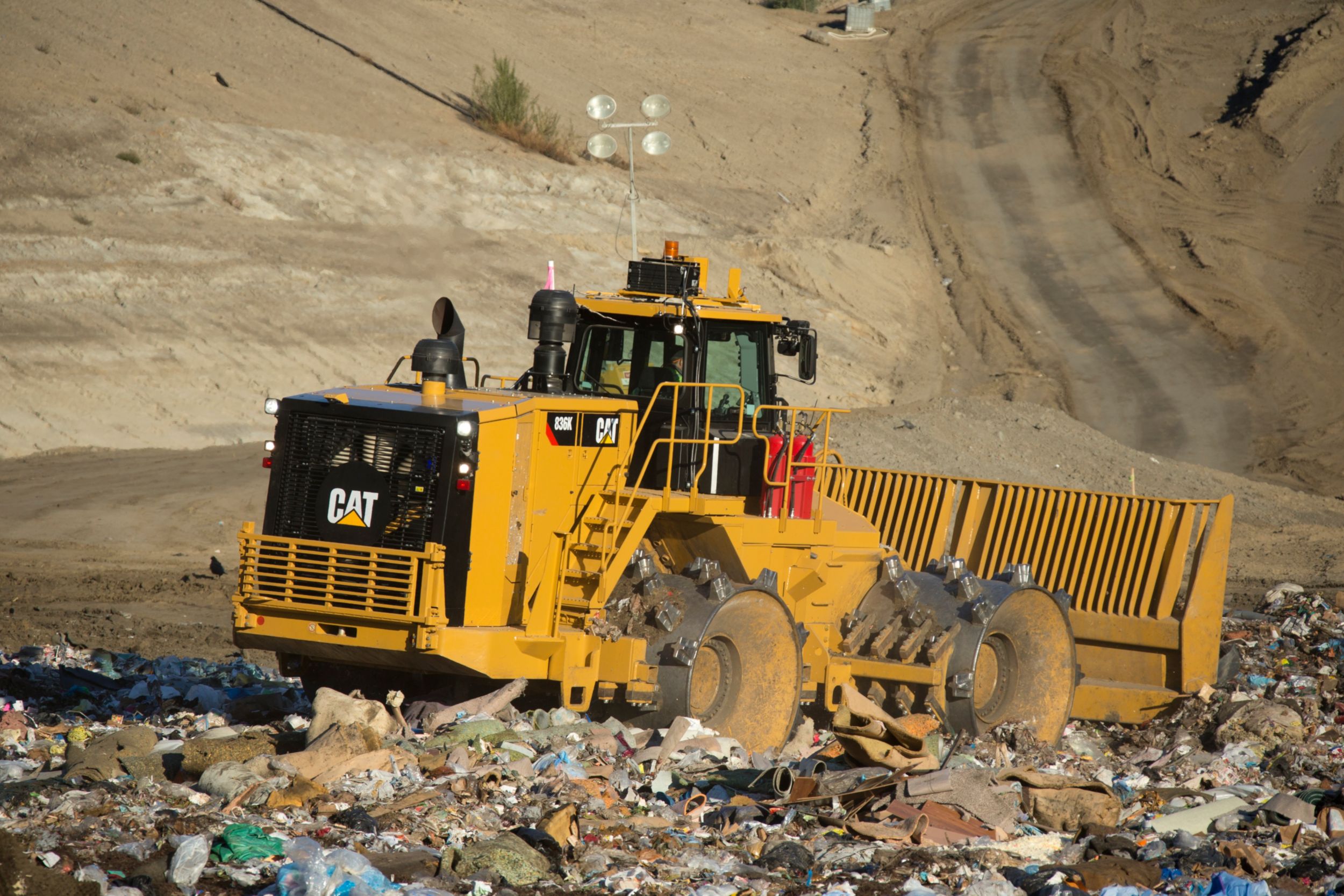

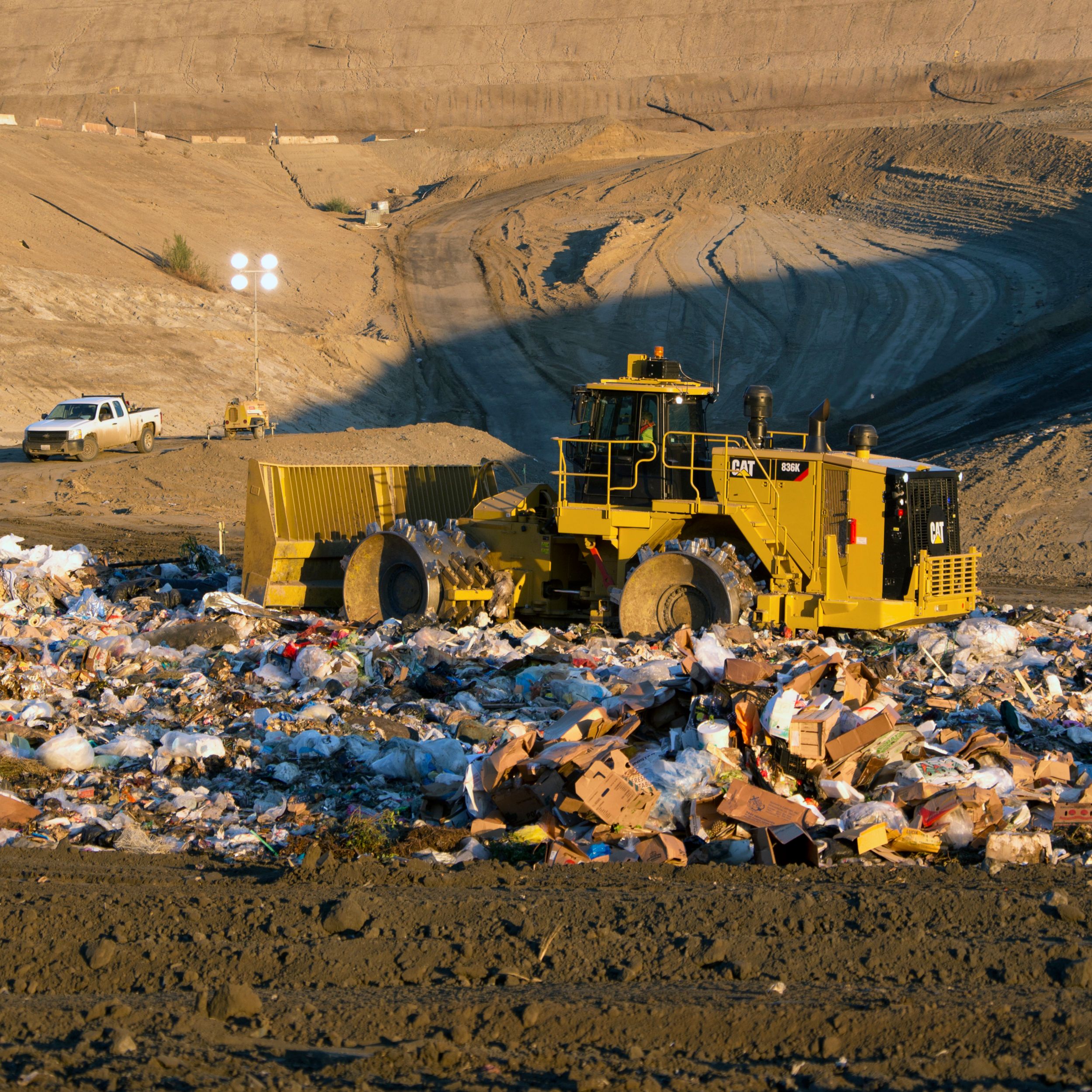

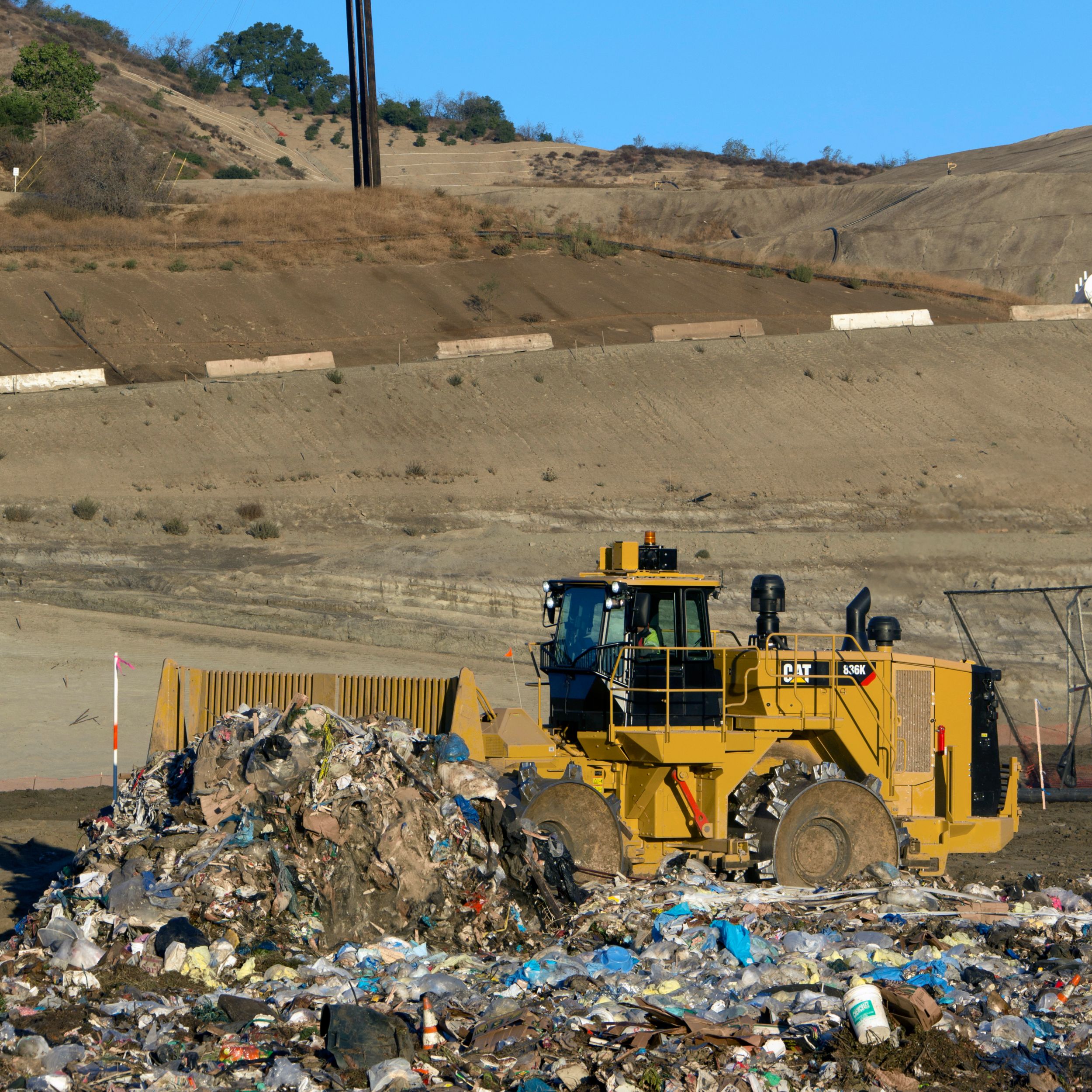

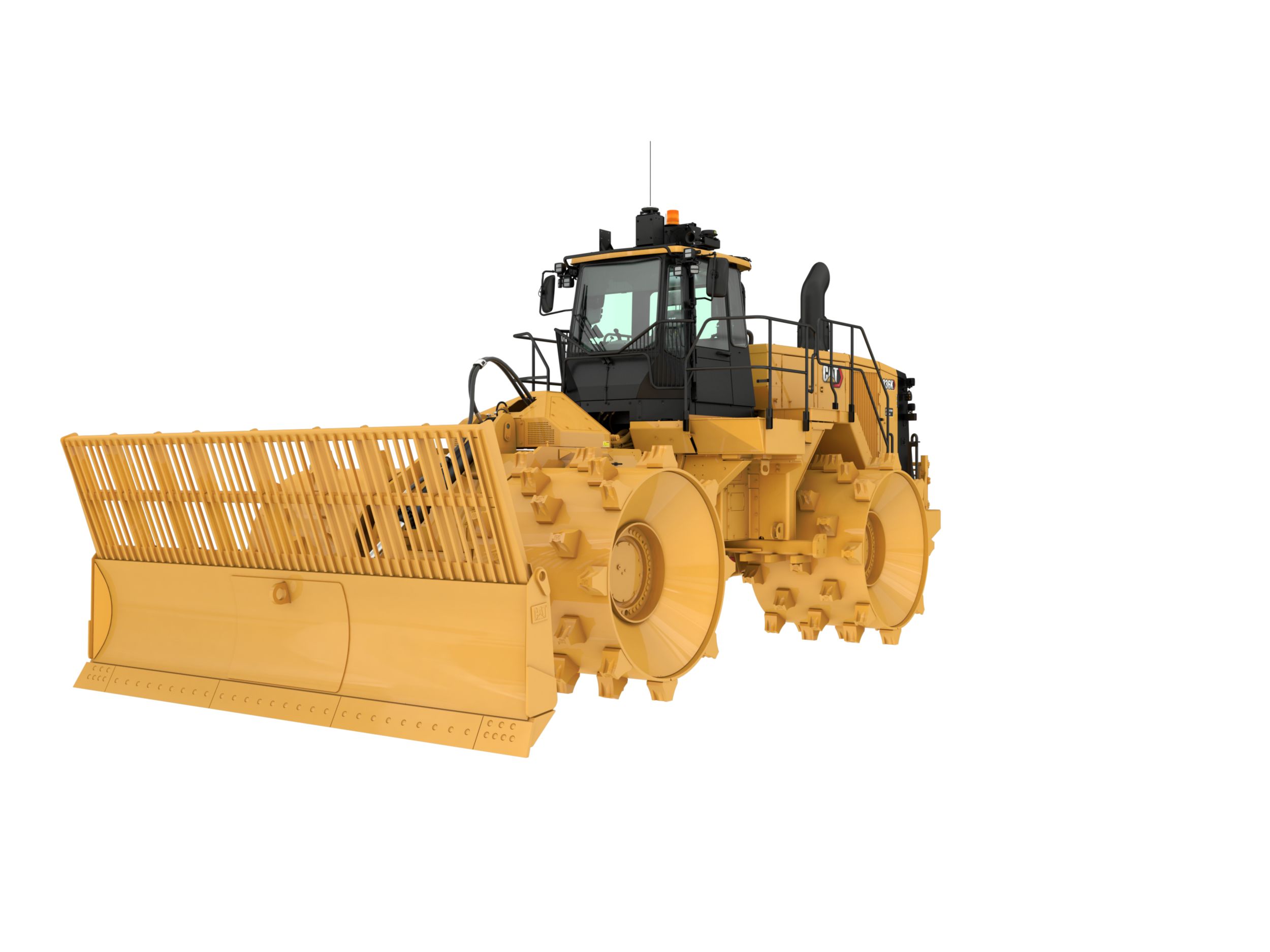

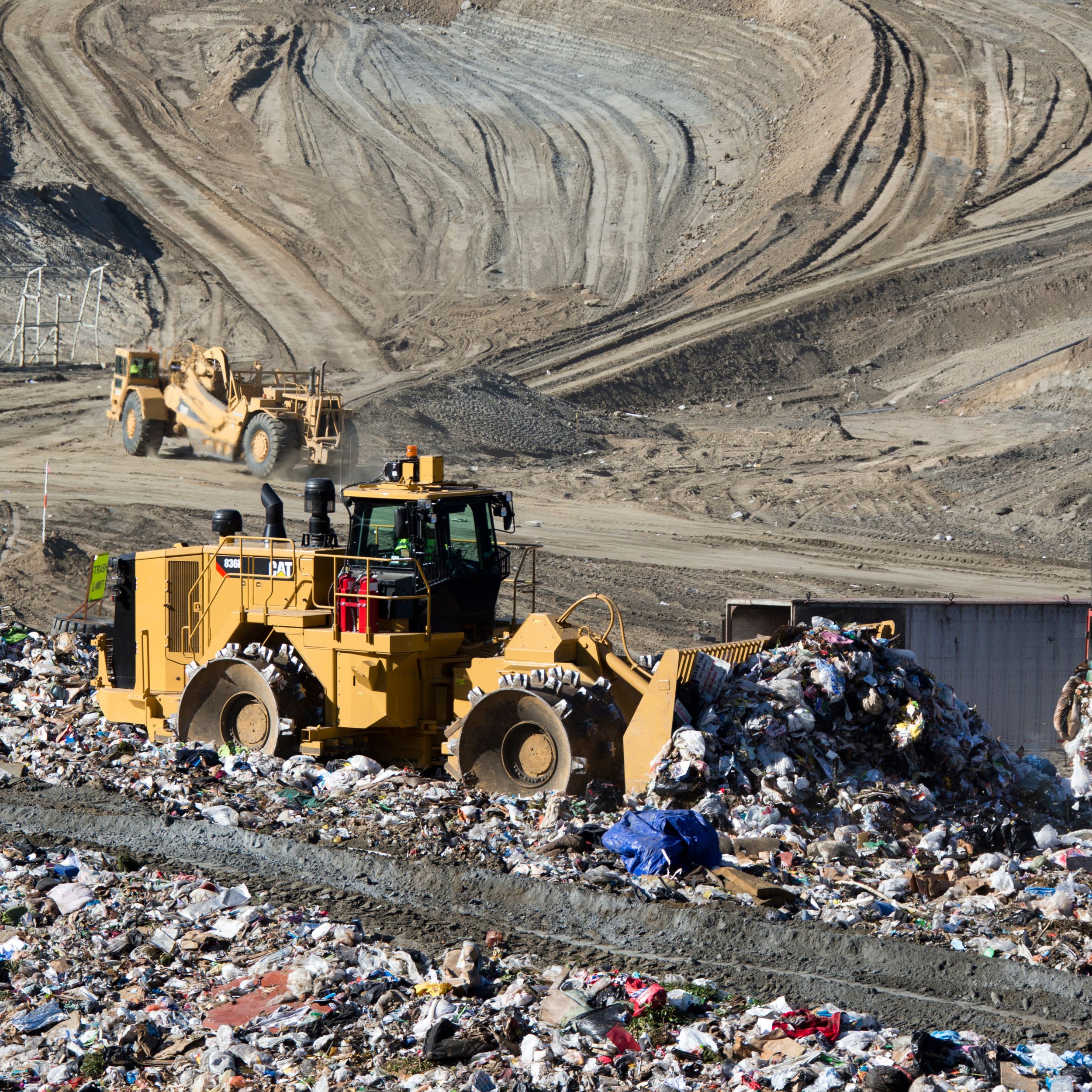

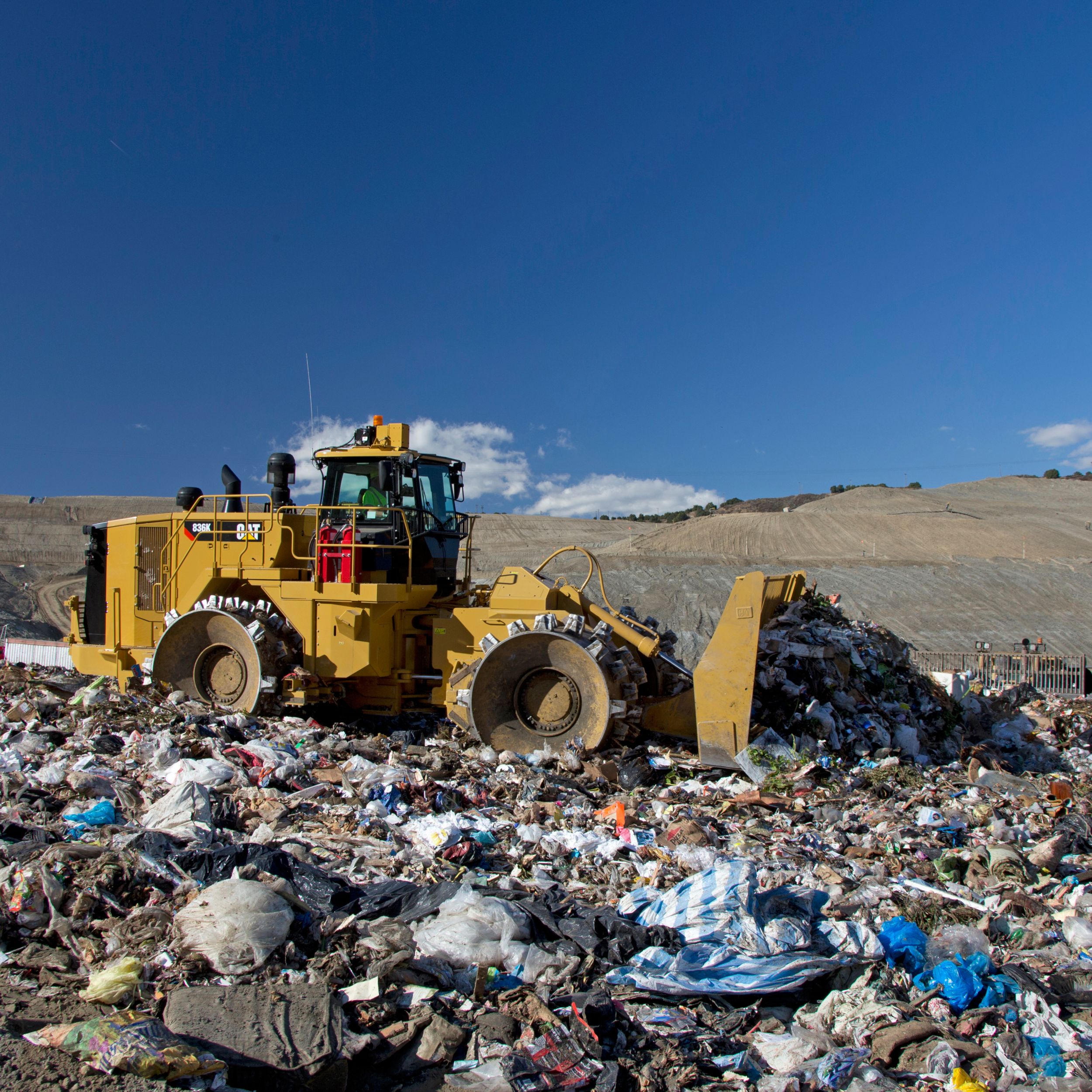

836K Landfill Compactor

At 535 HP and over 123,000 lb. operating weight, the 836K Landfill Compactor leads the class in reliability, performance, safety, operator comfort, serviceability, and efficiency. From a family of machines with over 20 years of landfill experience, the 836K is powered with field-proven technologies to keep operations running at their peak.

Category:
Add to Quote

POWERFUL EFFICIENCY

LONG TERM VALUE AND DURABILITY

PERFORMANCE WITH LESS FUEL

WHEEL TIPS BUILT TO PERFORM

OPERATOR COMFORT AND CONTROL

PRODUCTIVITY WITH TECHNOLOGY

BUILT-IN SAFETY FEATURES

REDUCE ENVIRONMENTAL IMPACT

TOP-TIER SERVICE AND SUPPORT

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
  • Advanced Productivity Electronic Control Shifting (APECS)
  • Air to air aftercooler
  • Brakes, fully hydraulic, enclosed, wet multiple disc brakes
  • Cat Clean Emission Module, insulated (Tier 4 Final/Stage IV/Korea Tier 4 Final)
  • Electro hydraulic parking brake
  • Engine, Cat C18: – Tier 4 Final/Stage IV/Korea Tier 4 Final – Tier 3/Stage IIIA equivalent
  • Fuel priming pump, electric
  • Fuel to air cooler
  • Ground level engine shutoff
  • Guard (3 piece) transmission
  • Heat shield, turbo and exhaust manifold
  • Hydraulically driven demand fan
  • Integrated braking
  • Radiator, Aluminum Modular Radiator (AMR)
  • Separated cooling system
  • Starting aid (ether) automatic
  • Throttle lock
  • Torque converter with lockup clutch (LUC)
  • Turbine precleaner, engine air intake
  • Transmission, planetary, with 2F/2R speed range control
  • Underhood ventilation system
ELECTRICAL
  • Alarm, back-up
  • Alternator, 150 amp
  • Batteries, maintenance-free (4-1,000 CCA)
  • Converter, 10-15 amp, 24V to 12V
  • Lighting system, halogen (front and rear)
  • Lighting, access stairway
  • Starter, electric (heavy duty)
  • Starter lockout (ground level)
  • Starting receptacle for emergency start
  • Transmission lockout (ground level)
OPERATOR ENVIRONMENT
  • Air conditioner
  • Cab, sound-suppressed and pressurized
  • Internal four-post rollover protective structure (ROPS/FOPS)
  • Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
  • Camera, rear vision
  • Coat and hard hat hooks
  • Flip-up armrest
  • Heater and defroster
  • Horn, electric
  • Hydraulic controls (floor mounted)
  • Implement hydraulic lockout
  • Laminated glass
  • Light, (dome) cab
  • Lunchbox and beverage holders
  • Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
  • Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
  • Mirrors, rearview (externally mounted)
  • Parking brake status
  • Radio, CB (ready)
  • Seat, Cat Comfort, (cloth) air suspension
  • Seat belt, retractable, 76 mm (3") wide
  • STIC Control System with steering lock
  • Sun visor, front
  • Tinted glass
  • Transmission gear (indicator)
  • Vital Information Management System (VIMS) with graphical information display: external data port, customizable operator profiles
  • Wet-arm wipers/washers (front and rear)
  • Intermittent wipers (front and rear)
WHEELS
  • Wheels, paddle, plus, combination, and diamond wheel configurations
GUARDS
  • Guards, axle (front and rear)
  • Guards, cab window
  • Guards, crankcase and power train, hydraulically powered
  • Guards, rear fan and grill
BLADES
  • Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
FLUIDS
  • Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
OTHER STANDARD EQUIPMENT
  • Auto Blade Positioner (ABP)
  • Demand fan/swing out (hydraulic reversible)
  • Doors, service access locking
  • Ecology drains for engine, radiator, hydraulic tank
  • Electronic clutch pressure control and remote mounted pressure taps
  • Emergency platform egress
  • Engine, crankcase, 250 hour interval with CJ-4 oil
  • Fuel tank, 793 L (210 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Hydraulic oil cooler
  • Hydraulic, steering and brake filtration/screening system
  • Oil sampling valves
  • Product Link
  • Stairways, fixed-L/R (rear access)
  • Steering, load sensing
  • Vandalism protection caplocks
  • Venturi stack

Additional information

Offering Type

pa_sp18494628
Engine - Rated Power (Net ISO 14396)

412.0 kW ( 553.0 HP )
Transmission - Travel Speed - Reverse - Lockup 2nd

12.3 km/h ( 7.6 mile/h )
Hydraulic System - Vehicle Articulation Angle

86°
Engine - Maximum Gross Torque - 1,300 rpm

3085.0 N·m ( 2275.0 ft·lbf )
Wheels and Tips - Drum Diameter

1770.0 mm ( 5.81 ft )
Hydraulic System - Steering - Maximum Flow at × rpm

52 L/min @ 2,006 rpm
Operating Specifications - Operating Weight - With Full Tank Capacities and U-Blade (Tier 4 Final/Stage IV/Korea Tier 4 Final)

55927 kg ( 123319 lb )
Transmission - Travel Speed - Forward - Converter 1st

6.2 km/h ( 3.9 mile/h )
Transmission - Travel Speed - Reverse - Converter 2nd

10.4 km/h ( 6.5 mile/h )
Transmission - Travel Speed - Reverse - Lockup 1st

6.9 km/h ( 4.3 mile/h )
Cab - Interior Sound Level - Standard

72.0 dB(A) ( 72.0 dB(A) )
Operating Specifications - Maximum Operating Weight (Tier 3/Stage IIIA equivalent) - Multiple Blade and Wheel Offerings

55617 kg ( 122615 lb )
Wheels and Tips - Tips per Wheel

40
Transmission - Travel Speed - Forward - Lockup 2nd

11.7 km/h ( 7.3 mile/h )
Engine - Net Power - SAE J1349 - Converter Drive - Torque Rise

52.0 % ( 52.0 % )
Hydraulic System - Bore (2)

137.9 mm ( 5.5 in )
Wheels and Tips - Drum Width

1400.0 mm ( 4.59 ft )
Operating Specifications - Operating Weight - With Full Tank Capacities and U-Blade (Tier 3/Stage IIIA Equivalent)

55617 kg ( 122615 lb )
Operating Specifications - Maximum Operating Weight (Tier 4 Final/Stage IV/Korea Tier 4 Final) - Multiple Blade and Wheel Offerings

55927 kg ( 123319 lb )
Engine - Maximum Altitude - Without Derating

2286.0 m ( 7500.0 ft )
Engine - Net Power - SAE J1349 - Direct Drive - Torque Rise

52.0 % ( 52.0 % )
Transmission - Travel Speed - Forward - Lockup 1st

6.5 km/h ( 4.0 mile/h )
Engine - Net Power - SAE J1349 - Converter Drive - Gross Power

370.0 kW ( 496.0 HP )
Engine - Rated Power (Lab)

414.0 kW ( 555.0 HP )
Transmission - Travel Speed - Reverse - Converter 1st

6.5 km/h ( 4.0 mile/h )
Hydraulic System - Pump Flow at 2,006 rpm

250.0 l/min ( 66.0 gal/min )
Brakes - Control System

Full Hydraulic Split Circuit
Cab - Interior Sound Level - Suppression

71.0 dB(A) ( 71.0 dB(A) )
Engine - Net Power - SAE J1349 - Direct Drive - Gross Power

370.0 kW ( 496.0 HP )
Hydraulic System

Flow Sharing Implement
Transmission - Travel Speed - Forward - Converter 2nd

10.9 km/h ( 6.8 mile/h )
Engine - Gross - SAE J1349

419.0 kW ( 562.0 HP )
Service Refill Capacities - Diesel Engine Fluid Tank (Tier 4 Final/Stage IV/Korea Tier 4 Final)

32.8 l ( 9.0 gal (US) )
Hydraulic System - Stroke (2)

1021.0 mm ( 40.2 in )
Hydraulic System - Stroke (1)

740.0 mm ( 29.1 in )
Cab - Exterior Sound Level - Suppression

109.0 dB(A) ( 109.0 dB(A) )
Wheels and Tips - Diameter - With Tips

2125.0 mm ( 7.0 ft )
Cab - Exterior Sound Level - Standard

111.0 dB(A) ( 111.0 dB(A) )
Dimensions (Approximate) - Length - With Blade on Ground - Straight Blade

10182.0 mm ( 33.41 ft )
Hydraulic System - Bore (1)

127.0 mm ( 5.0 in )
Engine - Gross Power

419.0 kW ( 562.0 HP )
Engine - Net Power

370.0 kW ( 496.0 HP )
Engine Model

C18 Cat®
Engine - Bore

145.0 mm ( 5.71 in )
Engine - Stroke

183.0 mm ( 7.2 in )
Engine - Displacement

18.1 l ( 1104.5 in³ )
Engine - Low Idle Speed

750.0 r/min ( 750.0 r/min )
Engine - High Idle Speed

2120.0 r/min ( 2120.0 r/min )
Engine - Emissions

Tier 4 Final/Stage IV/Korea Tier 4 Final or Tier 3/Stage IIIA equivalent
Transmission Type

Cat Planetary Powershift
Hydraulic System - Steering System

Double Acting – End Mounted
Hydraulic System - Maximum Supply Pressure

32000.0 kPa ( 4640.0 psi )
Hydraulic System - Main Relief Pressure

24100.0 kPa ( 3495.0 psi )
Hydraulic System - Lift System

Double Acting Cylinder
Axles - Front

Planetary – Fixed
Axles - Rear

Planetary – Oscillating
Axles - Oscillation Angle

13°
Braking System - Parking Brake

Spring Applied, Hydraulic Released
Service Refill Capacities - Fuel Tank

793.0 l ( 209.0 gal (US) )
Service Refill Capacities - Cooling System

107.0 l ( 28.0 gal (US) )
Service Refill Capacities - Crankcase

60.0 l ( 16.0 gal (US) )
Service Refill Capacities - Transmission

120.0 l ( 32.0 gal (US) )
Service Refill Capacities - Differential - Final Drives - Rear

190.0 l ( 50.0 gal (US) )
Service Refill Capacities - Differential - Final Drives - Front

186.0 l ( 49.0 gal (US) )
Service Refill Capacities - Hydraulic System - Tank Only

240.0 l ( 63.0 gal (US) )
Weights - Operating Weight

55927.0 kg ( 123319.0 lb )
Dimensions (Approximate) - Height - Top of Cab with A/C

4655.0 mm ( 15.27 ft )
Dimensions (Approximate) - Height - Top of Exhaust Pipe

4608.0 mm ( 15.12 ft )
Dimensions (Approximate) - Height - Top of Hood

3421.0 mm ( 11.22 ft )
Dimensions (Approximate) - Ground Clearance - Bumper

1029.0 mm ( 3.38 ft )
Dimensions (Approximate) - Centerline of Rear Axle to Edge of Counterweight

3187.0 mm ( 10.46 ft )
Dimensions (Approximate) - Hitch to Centerline of Front Axle

2275.0 mm ( 7.46 ft )
Dimensions (Approximate) - Wheel Base

4550.0 mm ( 14.93 ft )
Dimensions (Approximate) - Width - Over Wheels

4280.0 mm ( 14.04 ft )
Dimensions (Approximate) - Height - ROPS/Canopy

4284.0 mm ( 14.06 ft )
Dimensions (Approximate) - Height - Top of Cab with Strobe

4845.0 mm ( 15.9 ft )
Dimensions (Approximate) - Turning Radius - Inside of Wheels

3635.0 mm ( 11.93 ft )
Dimensions (Approximate) - Ground Clearance

632.0 mm ( 2.07 ft )
Hydraulic System - Steering - Total Steering Angle

86 degrees
Hydraulic System - Steering - Steering Pressure Limited

24100 kPa ( 3495 psi )
Hydraulic System - Steering - Steering System - Circuit

Steering Double Acting – End Mounted
Hydraulic System - Steering - Steering System - Pump

Piston – Variable Displacement
