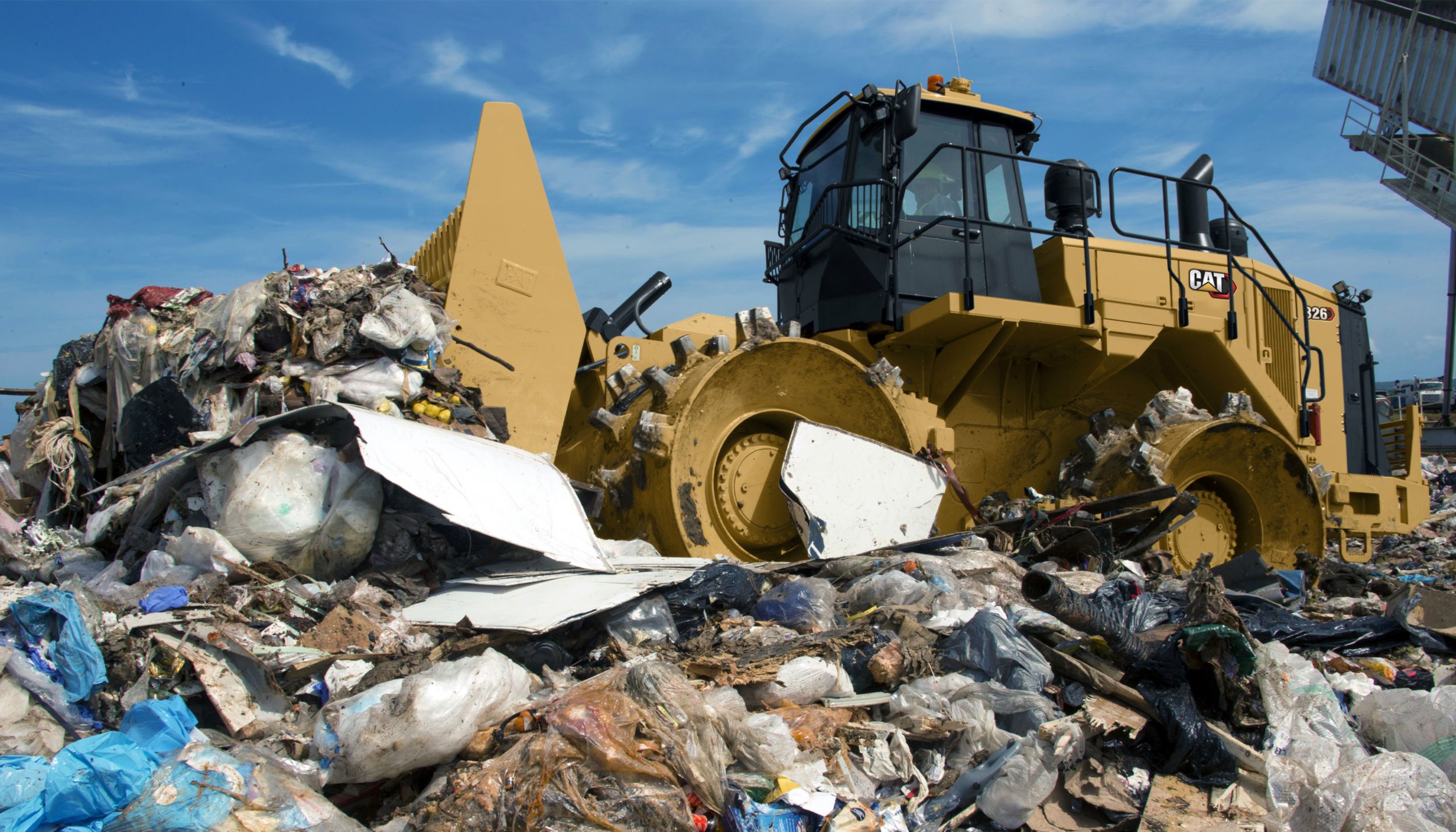

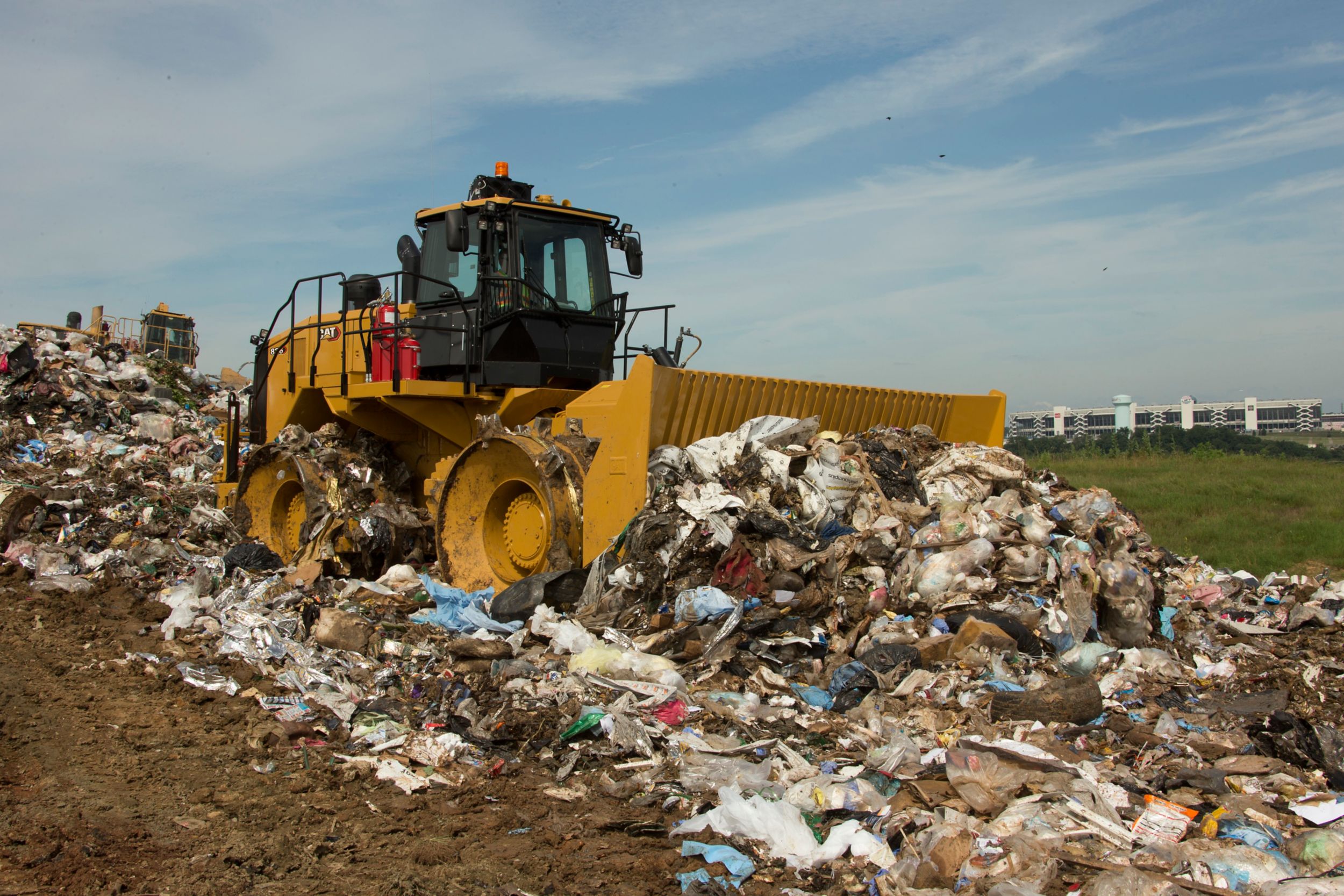

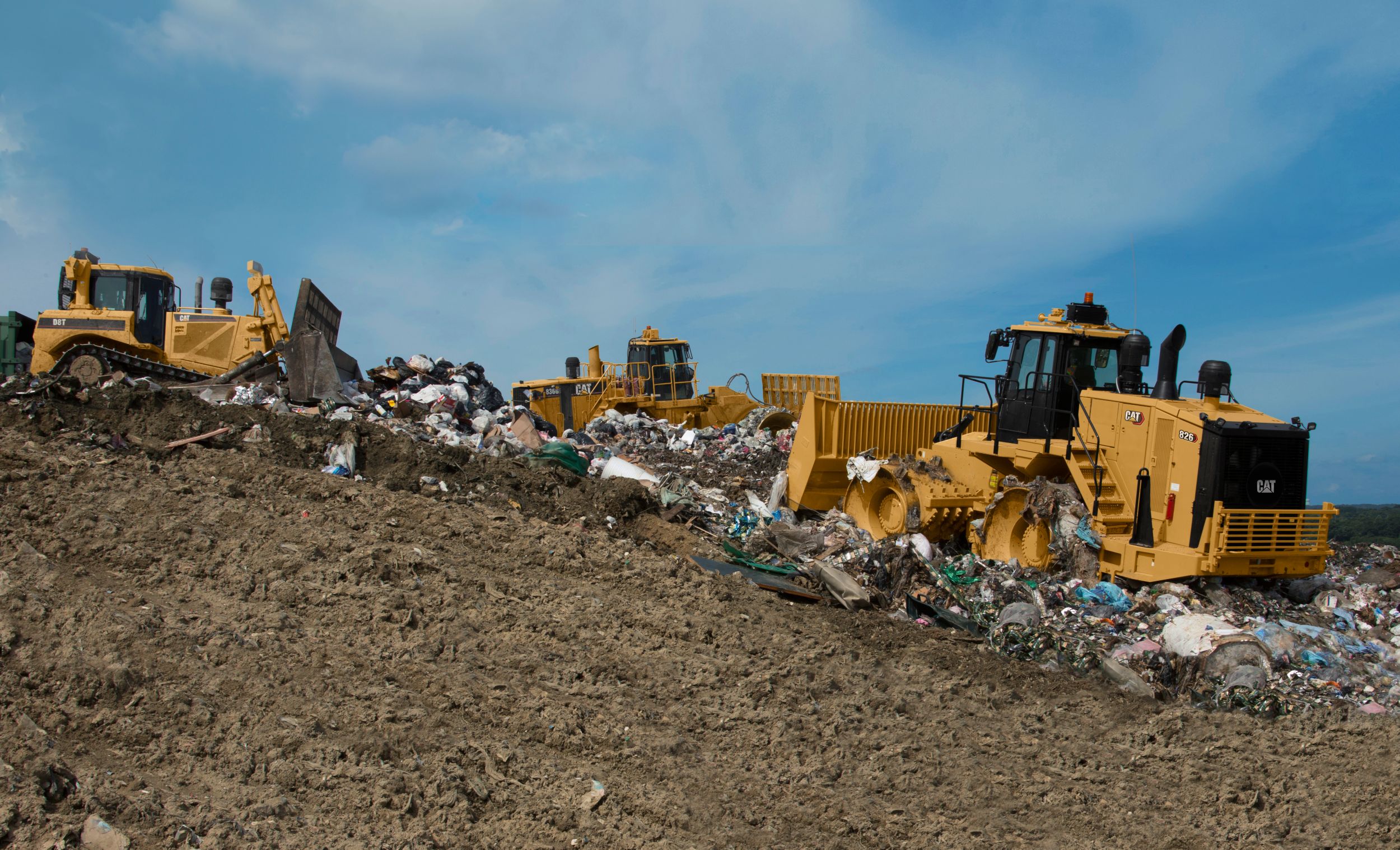

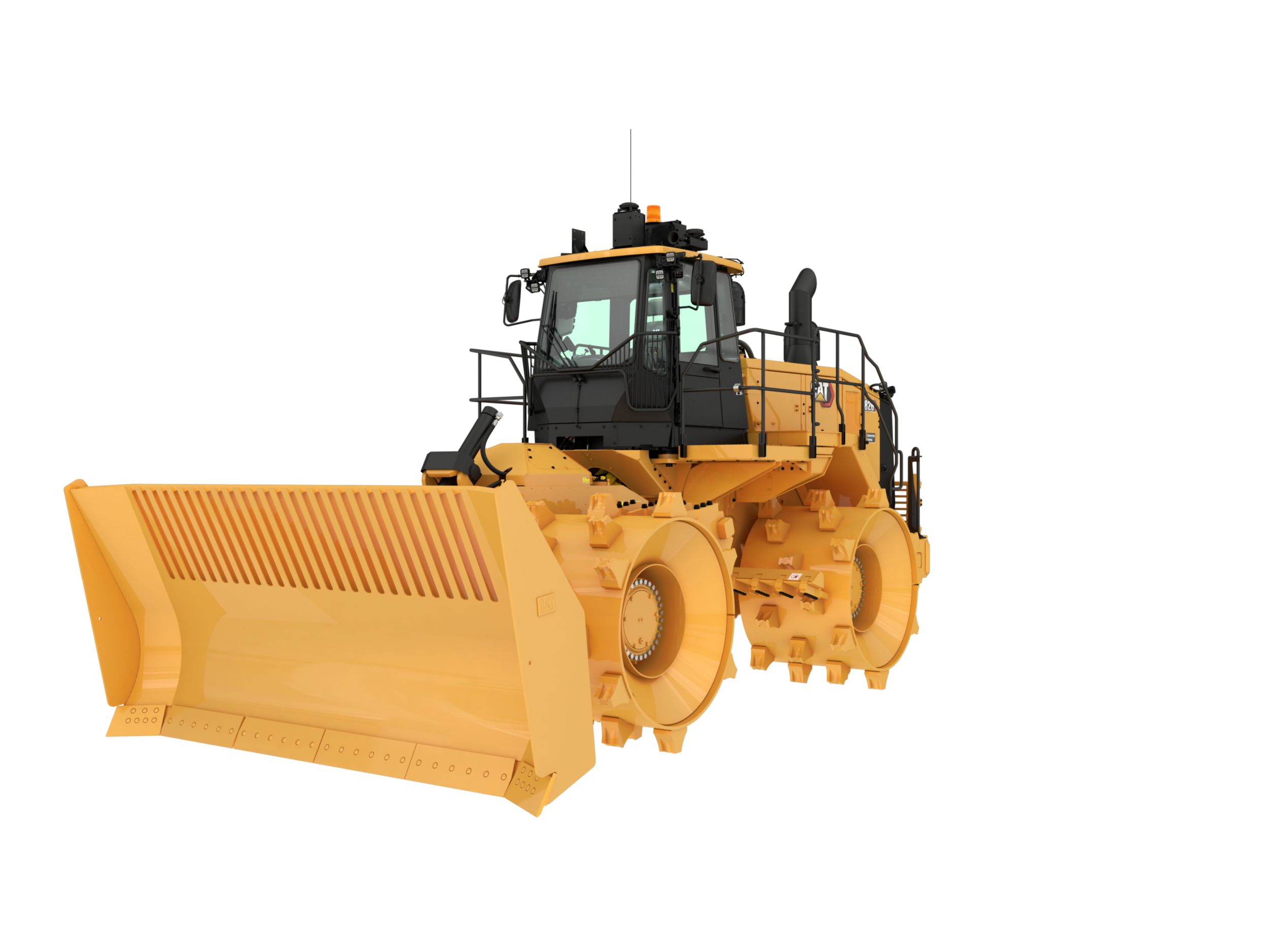

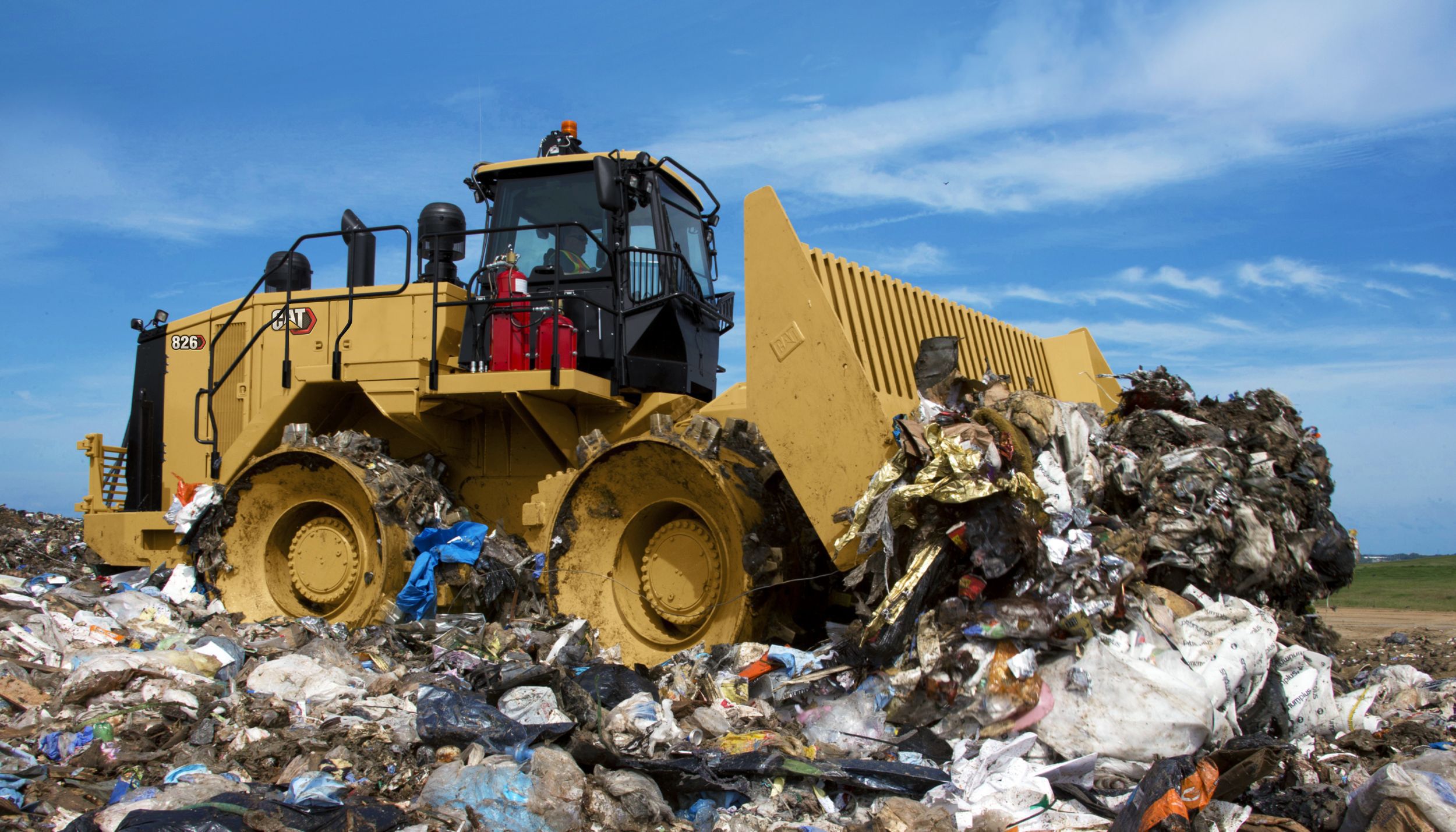

826 Landfill Compactor

Purpose-built for landfill operation, the Cat 826 delivers a level of reliability, performance, safety, operator comfort, serviceability, and efficiency that can only come from 45-plus years as an industry leader. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.

OPERATOR COMFORT AND CONTROL

TOP-TIER SERVICE AND SUPPORT

EFFICIENCY AND PRODUCTIVITY

PRODUCTIVITY WITH TECHNOLOGY

LONG TERM VALUE AND DURABILITY

WHEEL TIPS BUILT TO PERFORM

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
  • Single Clutch Speed Shifting (SCSS)
  • Electronic Clutch Pressure Control (ECPC)
  • Air to air aftercooler
  • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
  • Cat clean emission module (U.S. EPA Tier 4 Final/ EU Stage V only)
  • Muffler (under hood) (U.S. EPA Tier 3/EU Stage IIIA equivalent)
  • Electro-hydraulic parking brake
  • Engine, Cat C15 configured for two emissions options: Tier 4 Final/Stage V, or emitting equivalent to Tier 3/Stage IIIA
  • Fuel priming pump (electric)
  • Fuel to air cooler
  • Ground level engine shutoff
  • Heat shield, turbo and exhaust manifold
  • Hydraulically driven demand fan
  • Integrated braking system
  • Radiator, Aluminum Modular (AMR)
  • Separated cooling system
  • Starting aid (ether)
  • Throttle lock
  • Torque converter with Lock Up Clutch (LUC)
  • Eco Mode
  • Transmission, planetary, with 2F/2R speed range control
  • Under hood ventilation system
ELECTRICAL
  • Alarm, back-up
  • Alternator, 150 amp
  • Batteries, maintenance-free (4 - 1,000 CCA)
  • Electrical system, 24V
  • Light, warning unswitched (LED strobe)
  • Lighting system, halogen (front and rear)
  • Lighting, access stairway
  • Lighting, underhood
  • Starter, electric (heavy duty)
  • Ground level lockable master disconnect switch
  • Auxiliary start receptacle
OPERATOR ENVIRONMENT
  • Camera, rear vision
  • Air conditioner with roof mounted condenser
  • Cab, sound-suppressed pressurized
  • Internal four-post rollover protective structure (ROPS/FOPS)
  • Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
  • 12V power port for mobile phone or laptop connection
  • Radio, CB ready
  • Coat and hard hat hooks
  • Finger tip shifting controls
  • Flip-up armrest
  • Heater and defroster
  • Implement hydraulic lockout
  • Glass (window) - rubber mounted glass
  • Light, (dome) cab
  • Lunch box and beverage holders
  • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
  • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
  • Mirror, internal (panoramic)
  • Mirrors, heated, rearview (externally mounted)
  • Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
  • Seat belt with minder, retractable, 76 mm (3 in) wide
  • STIC control system with lockout
  • Sun visor, front
  • Tinted glass
  • Transmission gear (indicator)
  • Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles
  • Wet-arm wipers/washers (front and rear)
  • Intermittent wipers (front and rear)
  • Precleaner, cab powered
  • Horn group (trumpet)
GUARDS
  • Guards, axle (front and rear)
  • Guard, cab window
  • Guard, driveshaft
  • Guards, crankcase and power train, hydraulically powered
  • Guard, differential (front and rear)
FLUIDS
  • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
OTHER STANDARD EQUIPMENT
  • Demand fan/swing out (hydraulic reversible)
  • Doors, service access (locking)
  • Ecology drains for engine, radiator, transmission, hydraulic tank
  • Emergency platform egress
  • Engine, crankcase, 500 hour interval with CJ-4 oil
  • Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown
  • Fire suppression ready
  • Fuel tank, 782 L (207 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT
  • Hydraulic, engine, and transmission oil coolers
  • Total hydraulic filtration system
  • Oil sampling valves
  • Oil change system, high speed
  • Steering, load sensing
  • Stairway, left and right rear access
  • Vandalism protection caplocks
  • Venturi stack
  • Fold down exhaust stack for shipping
TECHNOLOGY PRODUCTS
  • Product Link™ – Cellular, Satellite
SPECIAL ARRANGEMENTS
  • Engine: – Sound suppression
  • Engine precleaners - single stage
BLADES
  • Dozer arrangement (no blade)
WHEELS AND CLEANER BARS
  • Striker bars
  • Wheels and tips: wheel arrangements – 7" combination tips

Additional information

Offering Type

Engine Model

C15 Cat®

Engine - Emissions

U.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA

Engine - Net Power - ISO 9249

302 kW ( 405 HP )

Engine - Gross Power - SAE J1995

324 kW ( 435 HP )

Engine - Torque Rise

33%

Engine - Bore

137.2 mm ( 5.4 in )

Engine - Stroke

171.4 mm ( 6.7 in )

Engine - Displacement

15.2 l ( 927.6 in³ )

Engine - High Idle Speed

2300.0 r/min ( 2300.0 r/min )

Engine - Low Idle Speed

800.0 r/min ( 800.0 r/min )

Engine - Maximum Altitude - Without Derating (Tier 3/Stage IIIA)

2773 m ( 9098 ft )

Operating Specifications - Maximum Operating Weight (Tier 3/Stage IIIA equivalent)

41526 kg ( 91549 lb )

Transmission Type

Planetary – Powershift – ECPC

Transmission - Direct Drive - Forward 1

6.8 km/h ( 4.2 mile/h )

Transmission - Direct Drive - Forward 2

12.1 km/h ( 7.5 mile/h )

Transmission - Direct Drive - Reverse 1

7.8 km/h ( 4.3 mile/h )

Transmission - Direct Drive - Reverse 2

13.8 km/h ( 8.6 mile/h )

Hydraulic System - Main Relief Pressure

26000 kPa ( 3771 psi )

Hydraulic System - Maximum Supply Pressure

24100.0 kPa ( 3495.0 psi )

Hydraulic System - Lift System

Double Acting Cylinder

Hydraulic System - Bore

120.0 mm ( 4.7 in )

Hydraulic System - Stroke

1070.0 mm ( 42.1 in )

Service Refill Capacities - Cooling System

116.0 l ( 30.6 gal (US) )

Service Refill Capacities - Engine Crankcase

34.0 l ( 9.0 gal (US) )

Service Refill Capacities - Transmission

66.0 l ( 17.4 gal (US) )

Service Refill Capacities - Fuel Tank

782.0 l ( 206.6 gal (US) )

Service Refill Capacities - Differential - Final Drives - Front

100.0 l ( 26.4 gal (US) )

Service Refill Capacities - Differential - Final Drives - Rear

110.0 l ( 29.1 gal (US) )

Service Refill Capacities - Hydraulic Tank Only

134.0 l ( 35.4 gal (US) )

Axles - Front

Planetary – Fixed

Axles - Rear

Planetary – Oscillating

Axles - Oscillation Angle

±5°

Braking System - Service Brakes

Multi Disc Wet (Enclosed) 2 WHL

Braking System - Parking Brake

Drum and Shoe, Spring Applied, Hydraulic Released

Sound Performance - Tier 4 Final/EU Stage V - Standard - Operator Sound Level (ISO 6396)

73 dB(A) ( 73 dB(A) )

Sound Performance - Tier 4 Final/EU Stage V - Standard - Machine Sound Level (ISO 6395)

113 dB(A) ( 113 dB(A) )

Sound Performance - Tier 4 Final/EU Stage V - Suppression - Operator Sound Level (ISO 6396

72 dB(A) ( 72 dB(A) )

Sound Performance - Tier 4 Final/EU Stage V - Suppression - Machine Sound Level (ISO 6395)

110 dB(A) ( 110 dB(A) )

Hydraulic System - Steering - Steering System - Circuit

Double Acting – End Mounted

Hydraulic System - Steering - Bore

114.3 mm ( 4.5 in )

Hydraulic System - Steering - Stroke

576.0 mm ( 22.7 in )

Hydraulic System - Steering - Steering System - Pump

Piston – Variable Displacement

Hydraulic System - Steering - Maximum System Flow

170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm)

Hydraulic System - Steering - Steering Pressure Limited

24000.0 kPa ( 3481.0 psi )

Hydraulic System - Steering - Vehicle Articulation Angle

86.0 ° ( 86.0 ° )

Dimensions (Approximate) - Height to Top of Air Conditioning Condenser

4568 mm ( 14.99 ft )

Dimensions (Approximate) - Height - Cab Roof

4193 mm ( 13.75 ft )

Dimensions (Approximate) - Height - Top of Beacon

4765 mm ( 15.63 ft )

Dimensions (Approximate) - Height - Top of Exhaust Pipe

4439.0 mm ( 14.56 ft )

Dimensions (Approximate) - Height - Top of Hood

3312.0 mm ( 10.87 ft )

Dimensions (Approximate) - Ground Clearance - Bumper

960.0 mm ( 3.15 ft )

Dimensions (Approximate) - Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard

2860.0 mm ( 9.38 ft )

Dimensions (Approximate) - Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard

3096.0 mm ( 10.16 ft )

Dimensions (Approximate) - Hitch to Centerline of Front Axle

1850.0 mm ( 6.07 ft )

Dimensions (Approximate) - Wheel Base

3700.0 mm ( 12.14 ft )

Dimensions (Approximate) - Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard

8715.0 mm ( 28.59 ft )

Dimensions (Approximate) - Ground Clearance

642.0 mm ( 2.11 ft )

Dimensions (Approximate) - Width - Over Wheels

3800.0 mm ( 12.47 ft )

Dimensions (Approximate) - Turning Radius - Inside of Wheels

2797.0 mm ( 9.18 ft )

Wheels - Combination Tips (Weight Group)

9582 kg ( 21,125 lb )

Wheels - Plus Tips - Weight (Group)

9980 kg ( 22,002 lb )

Wheels - Paddle Tips - Weight (Group)

10, 885 kg ( 20,540 lb )

Wheels - Outside Diameter

1971 mm ( 77.6 in )

Wheels - Drum Diameter

1610 mm ( 63.4 in )

Wheels - Drum Width

1200 mm ( 47.2 in )

Wheels - Feet Per Row

6

Wheels - Feet Per Wheel

30

Wheels - Replaceable

Weld On

Wheels - Width Over Drums

3800 mm ( 149.6 in )

Wheels - Tip Height

179 mm ( 7.0 in )
