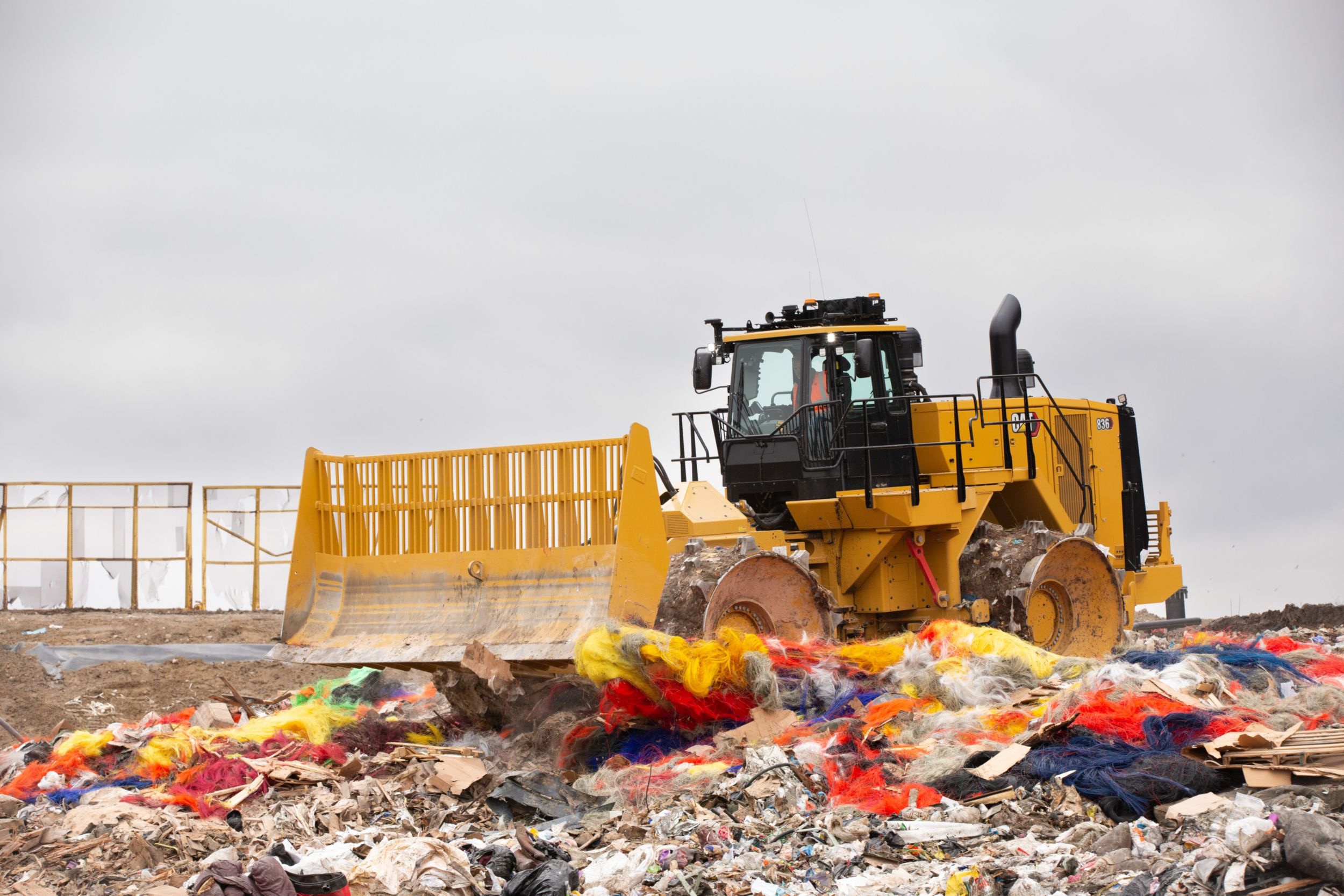

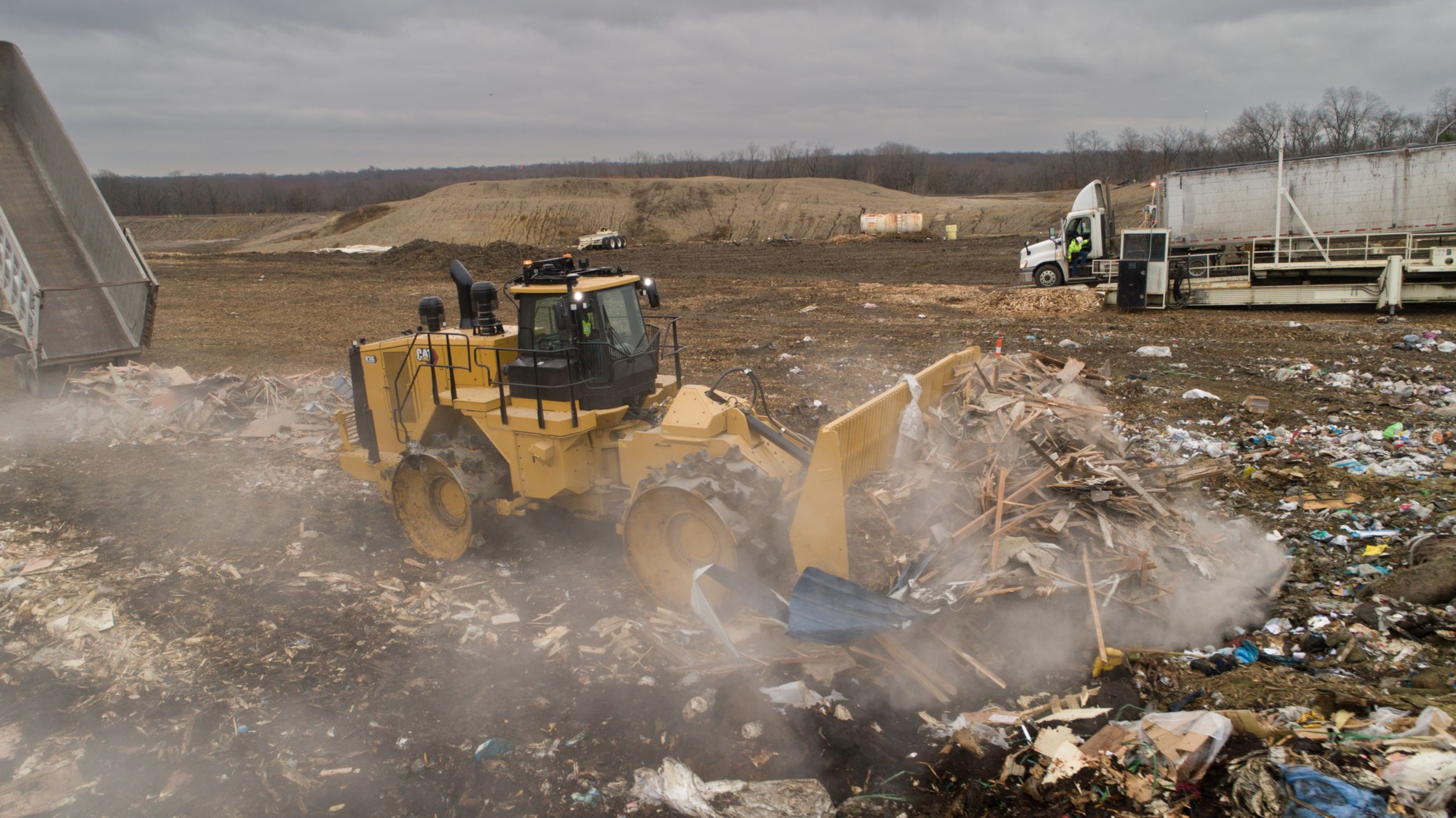

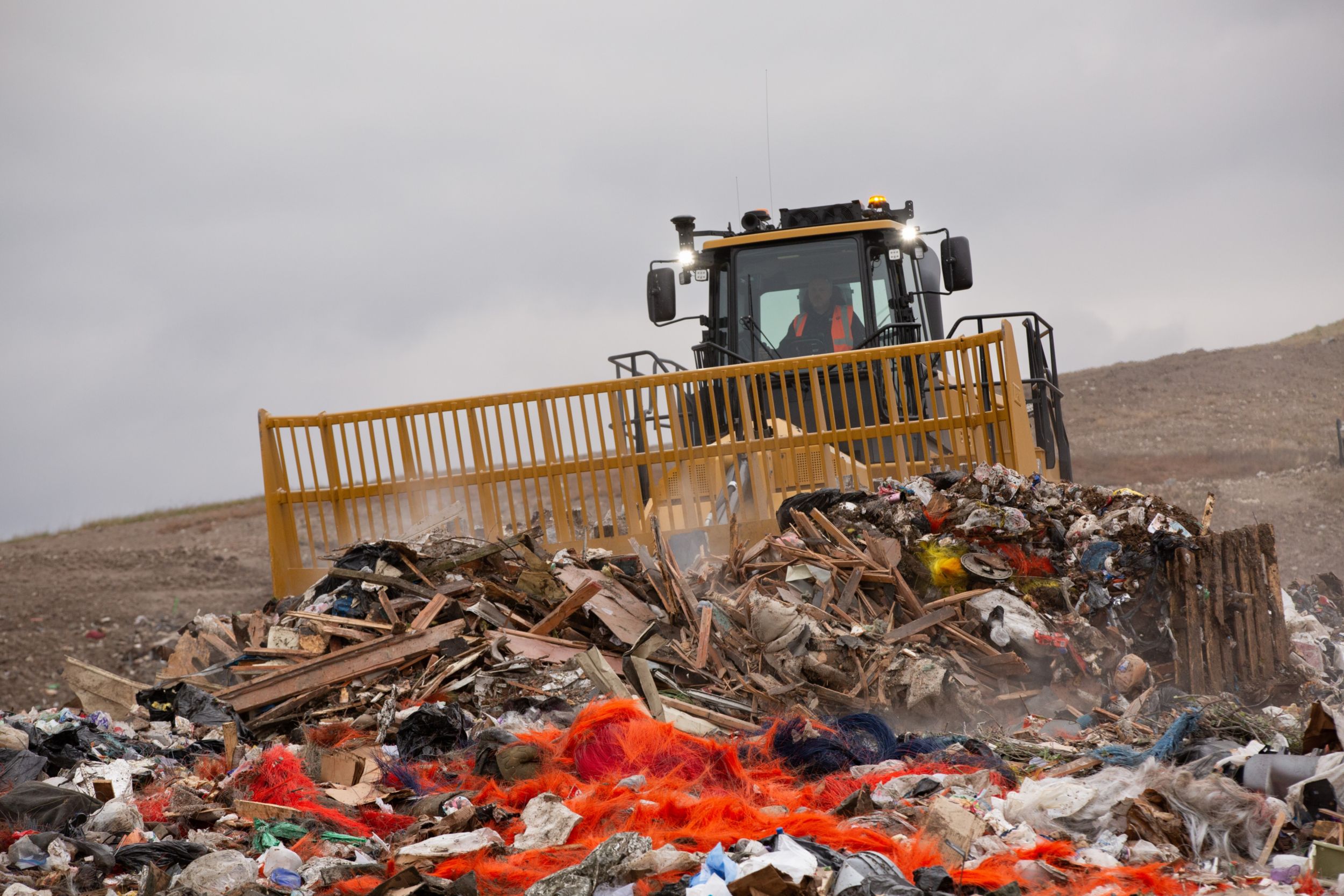

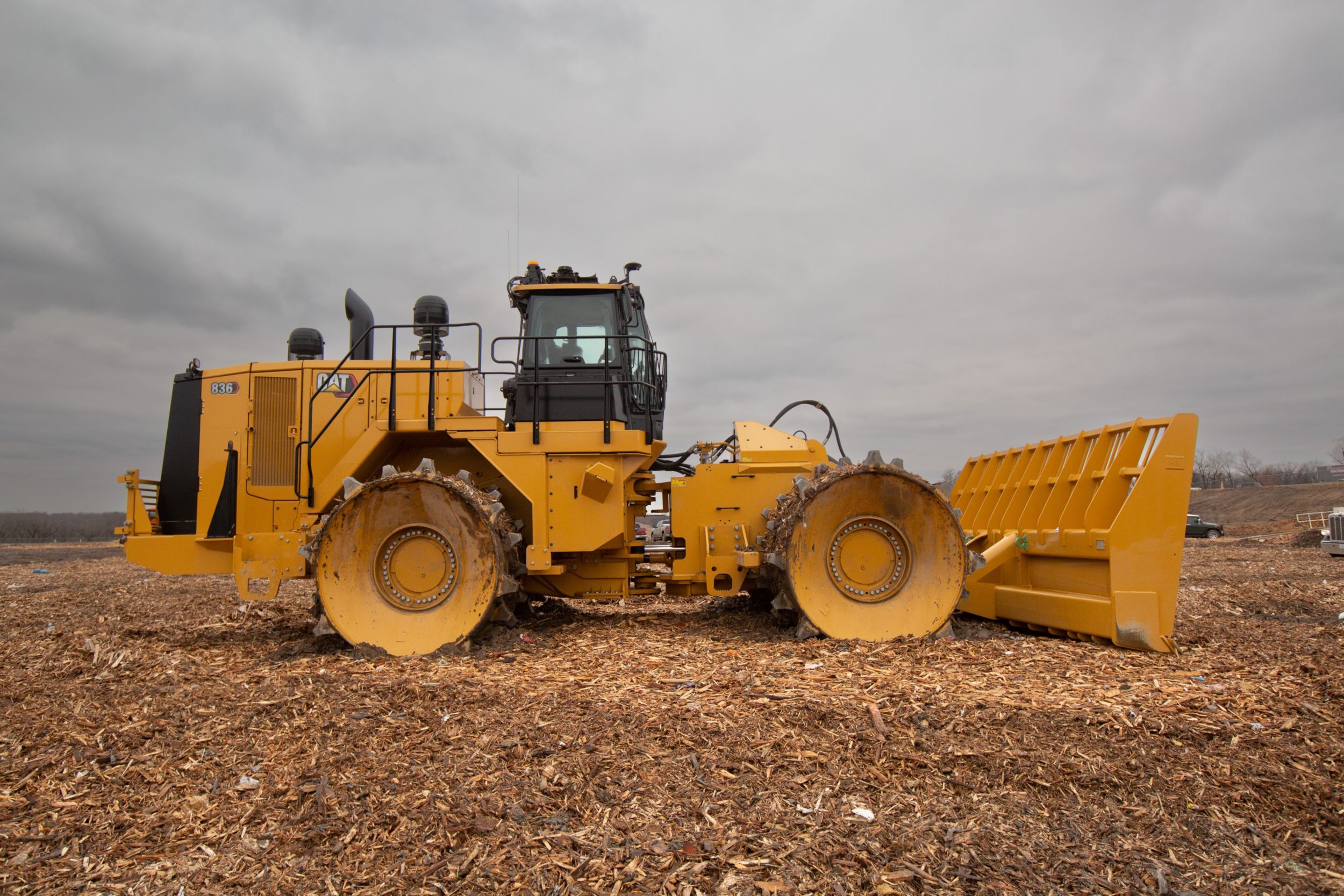

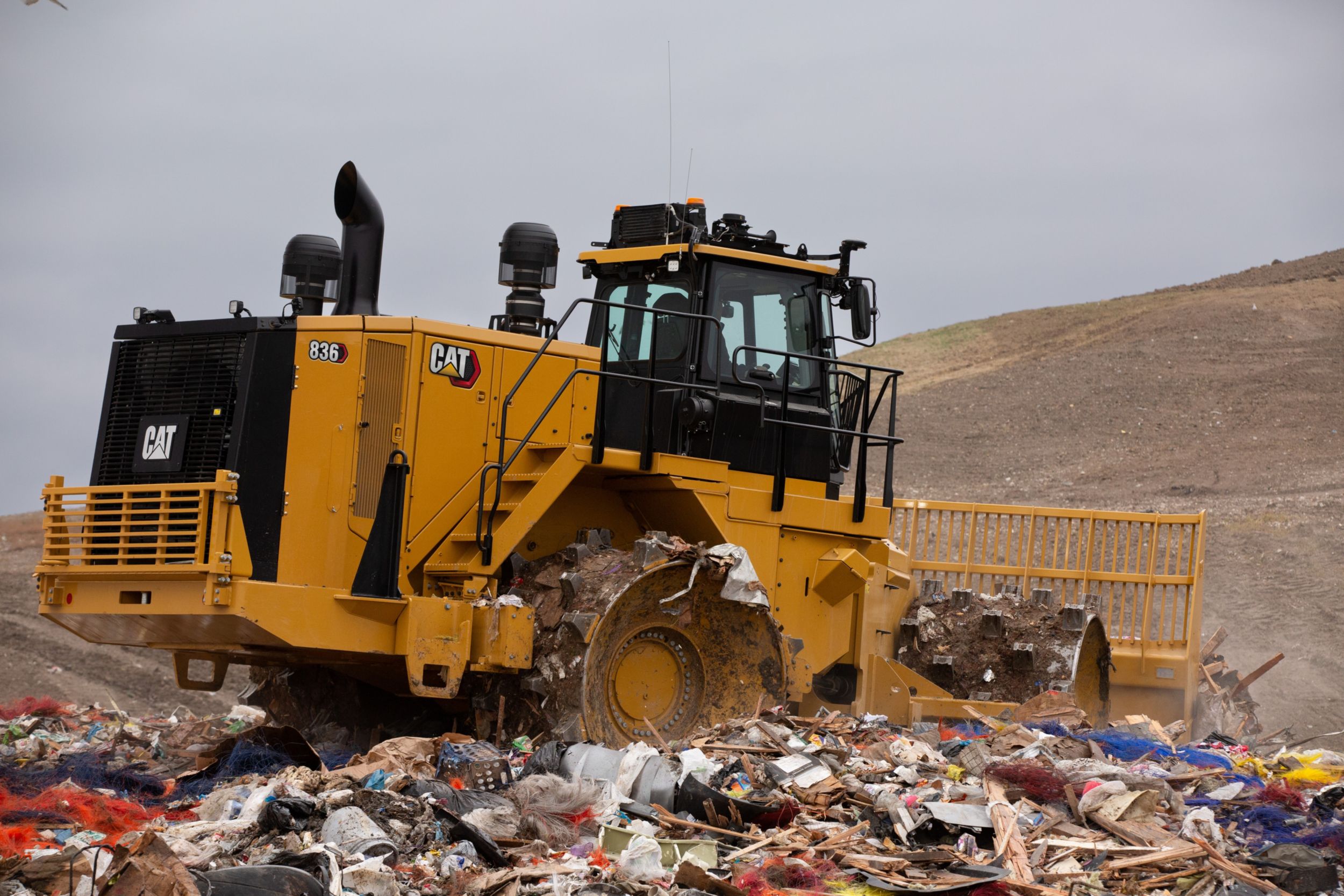

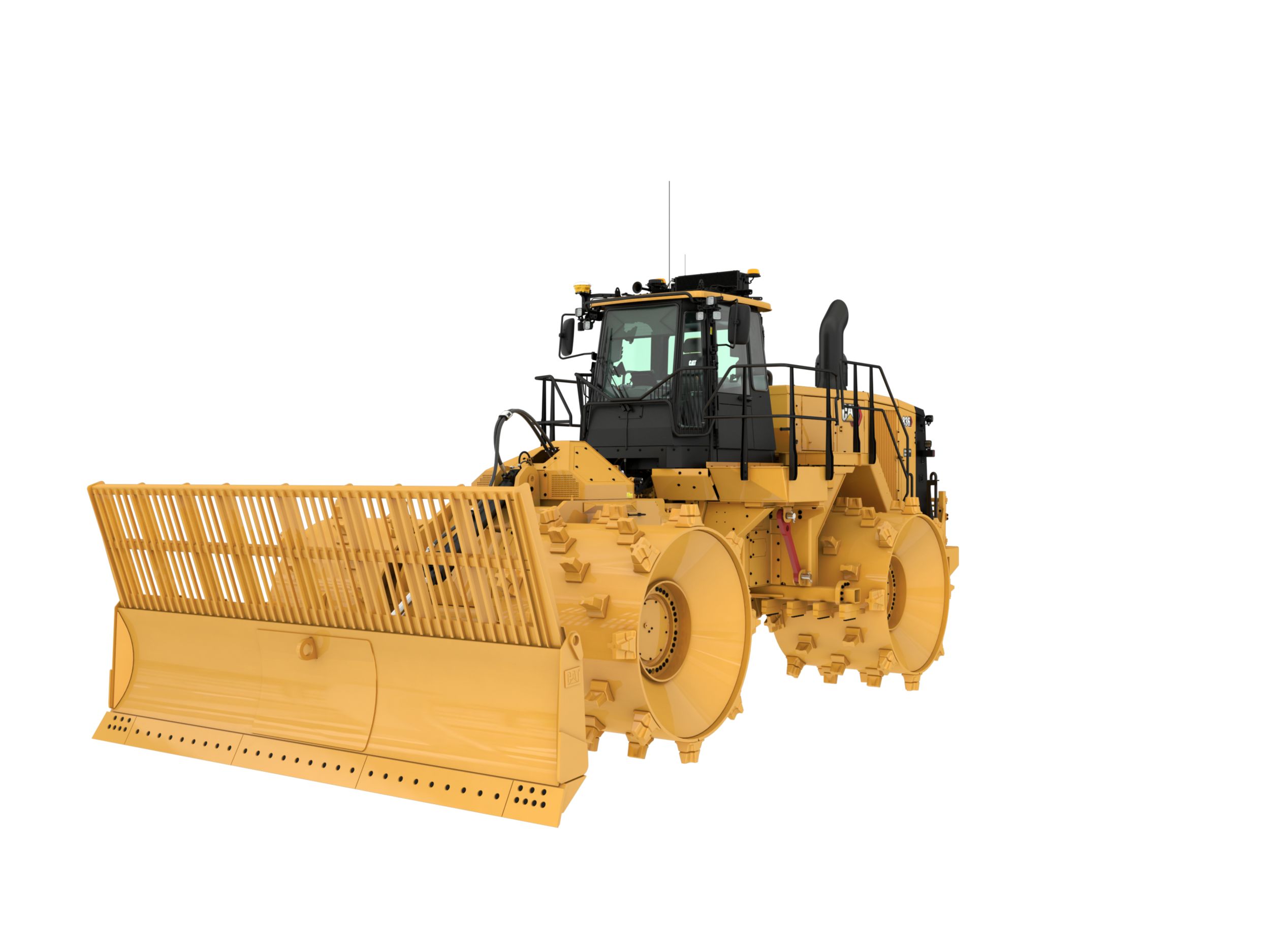

836 Landfill Compactor

The Cat® 836 Landfill Compactor is designed with heavy-duty main structures that support multiple life cycles. It features a Cat C18 engine, single-lever steering, pressurized cab, and wheel/tip options that provide extended service life. Available Cat Compact Technologies, such as Compaction Control, further enhance compaction performance and consistency by providing accurate compaction values and 3D mapping.

Category:
Add to Quote

OPERATOR COMFORT AND CONTROL

BECAUSE UPTIME COUNTS

POWERFUL EFFICIENCY

PRODUCTIVITY WITH TECHNOLOGY

LONG TERM VALUE AND DURABILITY

WHEEL TIPS BUILT TO PERFORM

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
  • Advanced Productivity Electronic Control Shifting (APECS)
  • Air to air aftercooler
  • Brakes, fully hydraulic, enclosed, wet multiple disc brakes
  • Cat Clean Emission Module, insulated (Tier 4 Final/Stage V/Korea Stage V and Japan 2014)
  • Electro hydraulic parking brake
  • Engine, Cat C18: – Tier 4 Final/Stage V/Korea Stage V and Japan 2014 – Tier 3/Stage IIIA equivalent
  • Fuel priming pump, electric
  • Fuel to air cooler
  • Ground level engine shutoff
  • Guard (3 piece) transmission
  • Heat shield, turbo and exhaust manifold
  • Hydraulically driven demand fan
  • Integrated braking
  • Radiator, Aluminum Modular Radiator (AMR)
  • Separated cooling system
  • Starting aid (ether) automatic
  • Throttle lock
  • Torque converter with lockup clutch (LUC)
  • Turbine precleaner, engine air intake
  • Transmission, planetary, with 2F/2R speed range control
  • Underhood ventilation system
ELECTRICAL
  • Alarm, back-up
  • Alternator, 150 amp
  • Batteries, maintenance-free (4-1,000 CCA)
  • Converter, 10-15 amp, 24V to 12V
  • Lighting system, halogen (front and rear)
  • Lighting, access stairway
  • Starter, electric (heavy duty)
  • Starter lockout (ground level)
  • Starting receptacle for emergency start
  • Transmission lockout (ground level)
OPERATOR ENVIRONMENT
  • Air conditioner w/roof-mounted condenser
  • Cab, sound-suppressed and pressurized
  • Internal four-post rollover protective structure (ROPS/FOPS)
  • Radio ready for (entertainment) includes antenna, speakers and converter (12V, 10-15 amp) 12V power port for mobile phone or laptop connection
  • Camera, rear vision
  • Coat and hard hat hooks
  • Flip-up armrest
  • Heater and defroster
  • Horn, electric
  • Hydraulic controls (floor mounted)
  • Implement hydraulic lockout
  • Laminated glass
  • Light, (dome) cab
  • Lunchbox and beverage holders
  • Instrumentation, Gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
  • Instrumentation, Warning Indicators: – Action alert system, three category – Axle/brake oil temp, front – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp
  • Mirrors, rearview (externally mounted)
  • Parking brake status
  • Radio, CB (ready)
  • Seat, Cat Comfort, (cloth) air suspension
  • Seat belt, retractable, 76 mm (3") wide
  • STIC Control System with steering lock
  • Sun visor, front
  • Glass (window) - rubber mounted glass
  • Transmission gear (indicator)
  • Vital Information Management System (VIMS) with graphical information display: external data port, customizable operator profiles
  • Wet-arm wipers/washers (front and rear)
  • Intermittent wipers (front and rear)
WHEELS
  • Wheels, paddle, plus, combination, and diamond wheel configurations
GUARDS
  • Guards, axle (front and rear)
  • Guards, cab window
  • Guards, crankcase and power train, hydraulically powered
  • Guards, rear fan and grill
BLADES
  • Bulldozer arrangement is included in the standard equipment. Bulldozer blades are optional.
FLUIDS
  • Antifreeze, premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
OTHER STANDARD EQUIPMENT
  • Auto Blade Positioner (ABP)
  • Demand fan/swing out (hydraulic reversible)
  • Doors, service access locking
  • Ecology drains for engine, radiator, hydraulic tank
  • Electronic clutch pressure control and remote mounted pressure taps
  • Emergency platform egress
  • Engine, crankcase, 500 hour interval with CJ-4 oil
  • Fuel tank, 793 L (210 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Hydraulic oil cooler
  • Hydraulic, steering and brake filtration/screening system
  • Oil sampling valves
  • Product Link™ - Cellular
  • Stairways, fixed-L/R (rear access)
  • Steering, load sensing
  • Vandalism protection caplocks
  • Venturi stack

Additional information

Engine - Gross Power - SAE J1995:2014

419 kW ( 562 hp )
Engine - Net Power - SAE J1349:2011

370 kW ( 496 hp )
Engine - Net Power – ISO 9249:2007

374 kW ( 502 hp )
Engine Power - ISO 14396:2002

412 kW ( 553 hp )
Engine - Emissions

U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 or Brazil MAR-1, equivalent to China Nonroad Stage III/U.S. EPA Tier 3/ EU Stage IIIA
Engine Model

C18
Engine - Rated Speed

1900 rpm
Engine - Peak Torque ( 1,400 rpm )

3085 N·m ( 2275 lbf·ft )
Engine - Torque Rise

52%
Engine - Bore

145 mm ( 5.71 in )
Engine - Stroke

183 mm ( 7.2 in )
Engine - Displacement

18.1 l ( 1104.5 in³ )
Engine - High Idle Speed

2120 r/min ( 2120 r/min )
Engine - Low Idle Speed

750 r/min ( 750 r/min )
Engine - Maximum Altitude - Without Derating

2286 m ( 7500 ft )
Engine - Note

Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Operating Specifications - Operating Weight (Tier 4 Final/Stage V)

56275 kg ( 124063 lb )
Operating Specifications - Operating Weight (Tier 3/Stage IIIA equivalent)

55939 kg ( 123321 lb )
Operating Specifications - Maximum Operating Weight (Tier 4 Final/Stage V)

57318 kg ( 126364 lb )
Operating Specifications - Maximum Operating Weight (Tier 3/Stage IIIA equivalent)

56982 kg ( 125622 lb )
Transmission Type

Planetary – Powershift – ECPC
Transmission - Direct Drive - Forward 1

7.0 km/h ( 4.3 mile/h )
Transmission - Direct Drive - Forward 2

12.6 km/h ( 7.8 mile/h )
Transmission - Direct Drive - Reverse 1

7.4 km/h ( 4.6 mile/h )
Transmission - Direct Drive - Reverse 2

13.2 km/h ( 8.2 mile/h )
Hydraulic System - Lift - Lift System - Circuit

Flow Sharing Implement; Pilot Operated LS Valve w/EH
Hydraulic System - Lift - Lift System - Pump

Variable displacement piston
Hydraulic System - Lift - Max Flow @ 2000 rpm

300 l/min ( 79 gal/min )
Hydraulic System - Lift - Relief Valve Setting - Lift

29000 kPa ( 4206 psi )
Hydraulic System - Lift - Cylinders, Double Acting: Lift, Bore, Stroke

137.9 mm x 1021 mm (5.5 in x 40.2 in)
Hydraulic System - Lift - Pilot System

Variable displacement piston
Hydraulic System - Lift - Pilot Relief Valve Setting

3800 kPa ( 551 psi )
Hydraulic System - Steering - Steering System - Circuit

Flow Sharing Implement; Pilot, load sensing
Hydraulic System - Steering - Steering System - Pump

Piston – Variable Displacement
Hydraulic System - Steering - Max Flow @ 2000 rpm

300 l/min ( 79 gal/min )
Hydraulic System - Steering - Relief Valve Setting - Steering

24100 kPa ( 3495 lb/in² )
Hydraulic System - Steering - Total Steering Angle

86
Hydraulic System - Steering - Steering Cycle Times - High Idle

3.9 s ( 3.9 s )
Hydraulic System - Steering - Steering Cycle Times - Low Idle

6.4 s ( 6.4 s )
Service Refill Capacities - Fuel Tank

793.0 l ( 209.0 gal (US) )
Service Refill Capacities - Diesel Exhaust Fluid Tank

32.8 l ( 9 gal (US) )
Service Refill Capacities - Cooling Systems - Tier 4 Final/EU Stage V

151.5 l ( 40 gal (US) )
Service Refill Capacities - Cooling System - Tier 3/Stage IIIA Equivalent

141.1 l ( 37.2 gal (US) )
Service Refill Capacities - Engine Crankcase

60 l ( 16 gal (US) )
Service Refill Capacities - Transmission

83 l ( 21.9 gal (US) )
Service Refill Capacities - Differential - Final Drives - Front

186.0 l ( 49.0 gal (US) )
Service Refill Capacities - Differential - Final Drives - Rear

190.0 l ( 50.0 gal (US) )
Service Refill Capacities - Hydraulic System - Implement/Steering

175 l ( 46.2 gal (US) )
Service Refill Capacities - Hydraulic Tank Only

103 l ( 27.2 gal (US) )
Service Refill Capacities - Note

– All nonroad Tier 4 Final/Stage V diesel engines are required to use: – Ultra low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) for EPA and 10 ppm (mg/kg) for EU sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specificiations. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.
Air Conditioning System - Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.4 kg of refrigerant which has a CO2 equivalent of 2.002 metric tonnes.
Axles - Front

Planetary – Fixed
Axles - Rear

Planetary – Oscillating
Axles - Oscillation Angle

±6°
Braking System - Service Brakes

Multi Disc Wet (Enclosed) 2 WHL
Braking System - Parking Brake

Spring Applied, Hydraulic Released
Sound Performance - Tier 4 Final/EU Stage V - Operator Sound Level (ISO 6396:2008) - Standard

72 dB(A) ( 72 dB(A) )
Sound Performance - Tier 4 Final/EU Stage V - Machine Sound Level (ISO 6395:2008) - Standard

111 dB(A) ( 111 dB(A) )
Sound Performance - Tier 4 Final/EU Stage V - Operator Sound Level (ISO 6396:2008) - Suppression

72 dB(A) ( 72 dB(A) )
Sound Performance - Tier 4 Final/EU Stage V - Machine Sound Level (ISO 6395:2008) - Suppression

109 dB(A) ( 109 dB(A) )
Sound Performance - Tier 4 Final/EU Stage V - Note (1)

The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Sound Performance - Tier 4 Final/EU Stage V - Note (2)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 4 Final/EU Stage V - Note (3)

The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Sound Performance - Tier 3 / Stage IIIA - Operator Sound Level (ISO 6396:2008) - Standard

72 dB(A) ( 72 dB(A) )
Sound Performance - Tier 3 / Stage IIIA - Machine Sound Level (ISO 6395:2008) - Standard

112 dB(A) ( 112 dB(A) )
Sound Performance - Tier 3 / Stage IIIA - Operator Sound Level (ISO 6396:2008) - Suppression

72 dB(A) ( 72 dB(A) )
Sound Performance - Tier 3 / Stage IIIA - Machine Sound Level (ISO 6395:2008) - Suppression

110 dB(A) ( 110 dB(A) )
Sound Performance - Tier 3 / Stage IIIA - Note (1)

The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Sound Performance - Tier 3 / Stage IIIA - Note (2)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 3 / Stage IIIA - Note (3)

The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurements are conducted at 70% of the maximum engine cooling fan speed.
Dimensions (Approximate) - Height to Top of Beacon

4634 mm ( 15.2 ft )
Dimensions (Approximate) - Height to Top of Air Conditioning Condenser

4626 mm ( 15.2 ft )
Dimensions (Approximate) - Height - Cab Roof

4285 mm ( 14.1 ft )
Dimensions (Approximate) - Height - Top of Exhaust Pipe

4606 mm ( 15.1 ft )
Dimensions (Approximate) - Height - Top of Hood

3430 mm ( 11.3 ft )
Dimensions (Approximate) - Ground Clearance to Hitch

639 mm ( 2.1 ft )
Dimensions (Approximate) - Ground Clearance to Transmission Guard

634 mm ( 2.1 ft )
Dimensions (Approximate) - Ground Clearance to Bottom of Bumper

965 mm ( 3.2 ft )
Dimensions (Approximate) - Centerline of Rear Axle to Rear Compactor Guard

3454 mm ( 11.3 ft )
Dimensions (Approximate) - Hitch to Centerline of Front Axle

2275.0 mm ( 7.5 ft )
Dimensions (Approximate) - Wheel Base

4550.0 mm ( 14.9 ft )
Dimensions (Approximate) - Width over Front Striker Bars

3930 mm ( 12.9 ft )
Dimensions (Approximate) - Width over Rear Striker Bars

3933 mm ( 12.9 ft )
Dimensions (Approximate) - Width over Platform

3196 mm ( 10.5 ft )
Dimensions (Approximate) - Width over Drums

4280 mm ( 14.0 ft )
Dimensions (Approximate) - Overall Machine Length with Semi U-Blade

10914 mm ( 35.8 ft )
Straight Blade - Capacity

19.8 m³ ( 25.9 yd³ )
Straight Blade - Overall Width

5193 mm ( 17.0 ft )
Straight Blade - Height

2260 mm ( 7.4 ft )
Straight Blade - Height of Cutting Edge

1125 mm ( 3.7 ft )
Straight Blade - Digging Depth

364 mm ( 1.2 ft )
Straight Blade - Ground Clearance

1730 mm ( 5.7 ft )
Straight Blade - Turning Radius – Outside Corner of Blade

8737 mm ( 28.7 ft )
Straight Blade - Turning Radius - Inside of Wheels

3635 mm ( 11.9 ft )
Straight Blade - Weight

3127 kg ( 6894 lb )
Straight Blade - Total Operating Weight

55792 kg ( 123000 lb )
Semi U-Blade - Capacity

22.4 m³ ( 29.3 yd³ )
Semi U-Blade - Overall Width

5313 mm ( 17.4 ft )
Semi U-Blade - Height

2294 mm ( 7.5 ft )
Semi U-Blade - Height of Cutting Edge

1255 mm ( 4.1 ft )
Semi U-Blade - Digging Depth

362 mm ( 1.2 ft )
Semi U-Blade - Ground Clearance

1735 mm ( 5.7 ft )
Semi U-Blade - Turning Radius – Outside Corner of Blade

8823 mm ( 28.9 ft )
Semi U-Blade - Turning Radius – Inside of Wheels

3635 mm ( 11.9 ft )
Semi U-Blade - Weight

3612 kg ( 7963 lb )
Semi U-Blade - Total Operating Weight

56275 kg ( 124063 lb )
U-Blade - Capacity

25.7 m³ ( 33.6 yd³ )
U-Blade - Overall Width

5290 mm ( 17.4 ft )
U-Blade - Height

2204 mm ( 7.2 ft )
U-Blade - Height of Cutting Edge

1255 mm ( 4.1 ft )
U-Blade - Digging Depth

934 mm ( 3.1 ft )
U-Blade - Ground Clearance

1198 mm ( 3.9 ft )
U-Blade - Turning Radius – Outside Corner of Blade

8795 mm ( 28.8 ft )
U-Blade - Turning Radius – Inside of Wheels

3635 mm ( 11.9 ft )
U-Blade - Weight

3491 kg ( 7696 lb )
U-Blade - Total Operating Weight

56149 kg ( 123785 lb )
Wheels - Combination Tips (Weight Group)

12814 kg ( 28250 lb )
Wheels - Plus Tips - Weight (Group)

13510 kg ( 29784 lb )
Wheels - Paddle Tips - Weight (Group)

12350 kg ( 272227 lb )
Wheels - Chopper Tips (Weight Group)

12884 kg ( 28404 lb )
Wheels - Diamond Tips Weight (Group)

14814 kg ( 32659 lb )
Wheels - Outside Diameter

2128 mm ( 83.8 in )
Wheels - Outside Diameter - Diamond

2140 mm ( 84.3 in )
Wheels - Drum Diameter

1770 mm ( 69.7 in )
Wheels - Drum Width

1400 mm ( 55.1 in )
Wheels - Feet Per Row

8
Wheels - Feet Per Wheel

40
Wheels - Replaceable

Weld on
Wheels - Width Over Drums

168.5 in ( 4280 mm )
Wheels - Tip Height

7.0 in ( 179 mm )
Wheels - Tip Height - Diamond

184 mm ( 7.25 in )
Offering Type

Related products

  • Equipment
  • Power Systems
  • Attachments
  • Material Handling
Select Up To 3 Models To Compare
Compare
