980

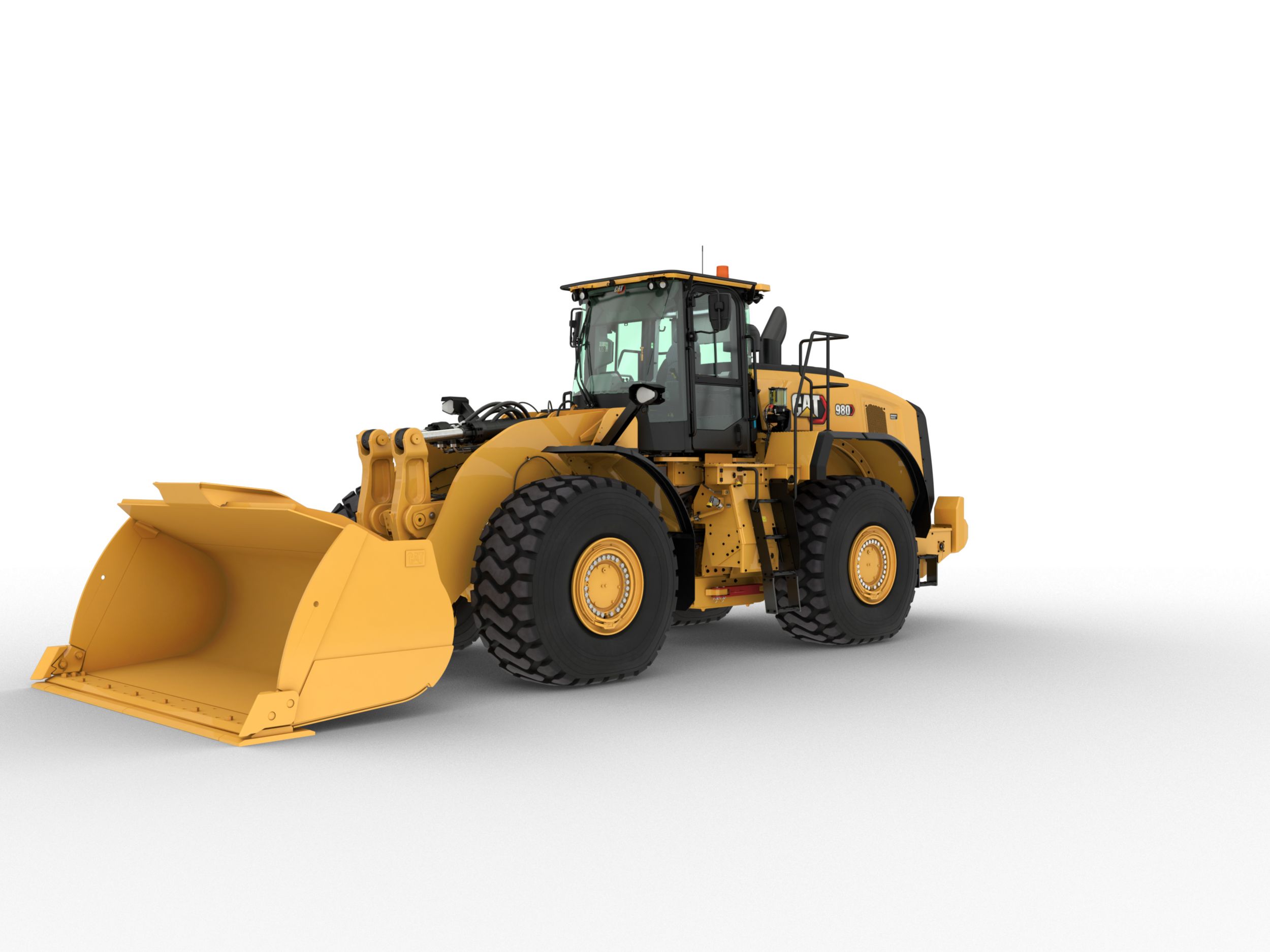

The Cat® 980 Wheel Loader brings premium performance with simple to-use technologies as a standard offering, boosting operator efficiencies and delivering increased productivity. Improved performance, reliability, durability, and versatility result in a machine that is better built to meet your

Proven Reliability

  • Cat C13 engine offers high power density with a combination of proven electronics, fuel, and air systems.
  • Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
  • Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
  • Thorough component design and machine validation processes result in unmatched reliability and uptime.

Durability

  • Heavy-duty transmission and axles designed to handle extreme applications.
  • Automatic planetary powershift (4F/4R) transmission features durable, long-lasting components.
  • Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.

Superior Fuel Efficiency & Productivity

  • New Autodig with Auto Set Tires for consistent high bucket fill factors deliver up to 10% more productivity compared to previous Cat model.
  • Powershift transmission with lock-up clutch increases fuel efficiency while delivering optimal performance.
  • Single clutch and lock-to-lock shifting for faster acceleration and speed on grades.
  • Application Profiles optimize machine settings for different applications at one push of a button.
  • Job Aids help operators improve and optimize their operating skills.
  • Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
  • Automatic engine idle shutdown system significantly reduces idle time, overall operating hours, and fuel consumption.
  • Optional limited slip differentials increase traction and reduce tire slip, lowering operating costs.
  • Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
  • Deeply integrated engine, power train, and hydraulic systems deliver unmatched productivity and fuel efficiency.

** Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

Smart Machine for Efficient Operation

  • Standard Cat technologies to monitor, manage, and enhance your jobsite operations.

– Cat Payload with Assist provides accurate weighing*** of the bucket payloads. Data is displayed in real time to improve productivity and loading accuracy with manual tip-off.
– Product Link™ wirelessly connects the machine to the office, giving you access to production and essential health information needed to make timely, fact-based decisions to help you better run your business.
– New Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
– Onboard Job Aids and Operator Controls Help to ease operation.

  • Optional Cat Advanced Payload with Assist:

– Tip Off Assist automatizes load of the final bucket to match hauling unit target.
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.

  • Optional Cat Productivity subscription provides detailed and comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

***Not legal for trade.

Safety Features

  • Rear-vision camera enhances visibility behind the machine, helping you work safely and confidently.
  • Optional 360˚ vision system helps the operator monitor the surroundings of the machine at all times.
  • Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
  • Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
  • Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
  • Computerized monitoring system includes several warning indicators.
  • Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
  • Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.

Reduced Maintenance Time & Costs

  • Extended fluid and filter change intervals reduce maintenance costs by up to 12%.*
  • Convenient access to hydraulic and electrical service centers for easy and safe servicing.
  • Remote Troubleshoot can connect the machine to the dealer service department to help diagnose problems quickly so you can get back to work.
  • Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
  • The Cat App helps you manage fleet location, hours, and maintenance schedules; it also alerts you for required maintenance and allows you to request service from your local Cat dealer.
  • Integrated Autolube extends component and service life.
  • One-piece tilting hood makes engine compartment access fast and easy.
  • With Fusion™ Quick Coupler, buckets can be changed without leaving the cab, allowing the machine to quickly move from task to task.

*Parts and fluids only

Work in Comfort in the All New Cab

  • Next-generation, easily adjustable seat and suspension for improved operator comfort. It comes in three trim levels and can be equipped with a 4-point harness.
  • Increased legroom and adjustable seat controls for increased comfort and efficiency.
  • Automatic air conditioning system keeps the cab cool as desired.
  • New in-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
  • Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
  • The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy. An HMU steering wheel is also available.
  • The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
  • Inclined steps and convenient grab handles ease accessibility to the operating space.
  • Extended windows enhance visibility, while convex and spot mirrors extend the driver’s view on the sides and rear.

Purpose-built Specialty Configurations

  • Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:

– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.
– Steel mill model is designed for the challenging work environment of steel mills and slag handling applications, incorporating an added level of safety.
– Block handler model is built with the strength and stability to get the work done in block quarries.

Standard Equipment

Operator Environment
  • Cab, pressurized, sound suppression
  • EH implement controls, parking brake
  • Steering, joystick
  • Seat, cloth, air suspension
  • Touchscreen display
  • Visibility: mirrors, rear-vision camera
  • Air conditioner, heater, defroster (auto temp, fan)
  • Sun visor, front, retractable
  • Sun visor, rear, retractable
  • Window cleaning platform, front
  • Windows, front, safety laminated rounded glass
ON-BOARD TECHNOLOGIES
  • Cat Payload scale
  • Autodig with Auto Set Tires
  • Operator ID & machine security
  • Application Profiles
  • Job Aids
  • Controls Help and eOMM
POWER TRAIN
  • Cat C13 engine
  • Electric fuel priming pump
  • Fuel-water separator and secondary fuel filter
  • Engine, air precleaner
  • Axles, open differentials
  • Transmission, planetary, automatic powershift
  • Torque converter with lock-up
  • Service brakes, hydraulic, fully enclosed wet disc, wear indicators
  • Integrated Braking System (IBS)
  • Park brake, caliper on front axles, spring applied-pressure released
HYDRAULICS
  • Implement system, load sensing with variable displacement piston pump
  • Steering system, load sensing with dedicated variable displacement piston pump
  • Ride control, dual accumulators
  • Oil sampling valves, Cat XT™ hoses
ELECTRICAL
  • Starting and charging system, 24V
  • Starter, electric, heavy duty
  • Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearvision lights
MONITORING SYSTEM
  • Front dash with analog gauges, LCD display, and warning lights
  • Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
LINKAGE
  • Standard lift, Z-bar
  • Kickouts: lift and tilt

Additional information

Engine Model

Cat C13

Engine - Note (1)

Cat engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3, EU Stage IIIA, and China Nonroad Stage III.

Engine - Note (2)

The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.

Weights - Operating Weight

30344 kg ( 66877 lb )

Transmission - Forward - 1

6.9 km/h ( 4.3 mile/h )

Transmission - Forward - 2

13.3 km/h ( 8.3 mile/h )

Transmission - Forward - 3

23.5 km/h ( 14.6 mile/h )

Transmission - Forward - 4

39.5 km/h ( 24.5 mile/h )

Transmission - Note

Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.

Transmission - Reverse - 1

7.8 km/h ( 4.8 mile/h )

Transmission - Reverse - 2

15.2 km/h ( 9.4 mile/h )

Transmission - Reverse - 3

26.9 km/h ( 16.7 mile/h )

Transmission - Reverse - 4

39.5 km/h ( 24.5 mile/h )

Sound - Note (1)

** For machines in European Union countries and in countries that adopt the ?EU Directives.?

Sound - Note (2)

***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?

With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level*

109

With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)

72 dB(A) ( 72 dB(A) )

With Cooling Fan Speed at Maximum Speed - Exterior Sound Power Level (ISO 6395:2008)

112 dB(A) ( 112 dB(A) )

With Cooling Fan Speed at Maximum Speed - Exterior Sound Pressure Level (SAE J88:2013)

78

With Cooling Fan Speed at Maximum Speed - Operator Sound Pressure Level (ISO 6396:2008)

72 dB(A) ( 72 dB(A) )

Operating Specifications - Breakout Force

227 kN ( 51008 lb )

Operating Specifications - Note (1)

For a machine configuration as defined under ?Weight.?

Operating Specifications - Note (2)

Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Operating Specifications - Static Tipping Load - Full 40° Turn - No Tire Deflection

46208 lb ( 20965 kg )

Operating Specifications - Static Tipping Load - Full 40° Turn - With Tire Deflection

19706 kg ( 43432 lb )

Service Refill Capacities - Cooling System

52 l ( 13.7 gal (US) )

Service Refill Capacities - Crankcase

37 l ( 9.8 gal (US) )

Service Refill Capacities - Differential - Final Drives - Front

84 l ( 22.2 gal (US) )

Service Refill Capacities - Differential - Final Drives - Rear

84 l ( 22.4 gal (US) )

Service Refill Capacities - Fuel Tank

426 l ( 112.5 gal (US) )

Service Refill Capacities - Hydraulic Tank

153 l ( 40.4 gal (US) )

Service Refill Capacities - Transmission

77 l ( 20.3 gal (US) )

Hydraulic System - Implement System - Maximum Operating Pressure

34300 kPa ( 4975 psi )

Hydraulic System - Implement System - Maximum Pump Output at 2,250 rpm

449 l/min ( 119 gal/min )

Dimensions - Note

All dimensions are approximate and based on machine equipped with 5.4 m3 (7.1 yd3) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.

Dimensions - High Lift - Centerline of Rear Axle to Edge of Counterweight

2661 mm ( 8.9 ft )

Dimensions - High Lift - Centerline of Rear Axle to Hitch

1900 mm ( 6.3 ft )

Dimensions - High Lift - Ground Clearance

456 mm ( 1.5 ft )

Dimensions - High Lift - Height - Top of Exhaust Pipe

3764 mm ( 12.5 ft )

Dimensions - High Lift - Height - Top of Hood

3064 mm ( 10.1 ft )

Dimensions - High Lift - Height - Top of ROPS

3829 mm ( 12.7 ft )

Dimensions - High Lift - Hinge Pin Height at Carry

682 mm ( 2.2 ft )

Dimensions - High Lift - Hinge Pin Height at Maximum Lift

4775 mm ( 15.7 ft )

Dimensions - High Lift - Lift Arm Clearance at Maximum Lift

4125 mm ( 13.6 ft )

Dimensions - High Lift - Overall Length - Without Bucket

8355 mm ( 27.5 ft )

Dimensions - High Lift - Tread Width

2440 mm ( 8 ft )

Dimensions - High Lift - Wheel Base

3800 mm ( 12.6 ft )

Dimensions - Standard Lift - Centerline of Rear Axle to Edge of Counterweight

2661 mm ( 2661 mm )

Dimensions - Standard Lift - Centerline of Rear Axle to Hitch

1900 mm ( 6.3 ft )

Dimensions - Standard Lift - Ground Clearance

1.5 ft ( 456 mm )

Dimensions - Standard Lift - Height - Top of Exhaust Pipe

12.5 ft ( 3764 mm )

Dimensions - Standard Lift - Height - Top of Hood

10.1 ft ( 3064 mm )

Dimensions - Standard Lift - Height - Top of ROPS

12.7 ft ( 3829 mm )

Dimensions - Standard Lift - Hinge Pin Height at Carry

682 mm ( 2.2 ft )

Dimensions - Standard Lift - Hinge Pin Height at Maximum Lift

14.11 ft ( 4554 mm )

Dimensions - Standard Lift - Lift Arm Clearance at Maximum Lift

12.8 ft ( 3881 mm )

Dimensions - Standard Lift - Overall Length - Without Bucket

26.1 ft ( 8155 mm )

Dimensions - Standard Lift - Tread Width

2440 mm ( 8 ft )

Dimensions - Standard Lift - Wheel Base

12.6 ft ( 3800 mm )

Bucket Capacities - Bucket Range

4.0-14.5 m³ 5.25-19 yd³

Dimensions - High Lift - Rack Back at Ground

40 degrees

Dimensions - High Lift - Width over Tires (Loaded)

3260 mm ( 10.9 ft )

Dimensions - Standard Lift - Rack Back - Carry Height

50 degrees

Dimensions - High Lift - Rack Back - Carry Height

50 degrees

Dimensions - Standard Lift - Width over Tires (Loaded)

3260 mm ( 10.9 ft )

Dimensions - Standard Lift - Rack Back at Ground

40 degrees

Engine - Displacement

12.5 L

Dimensions - Standard Lift - Rack Back - Maximum Lift

61 degrees

Dimensions - High Lift - Rack Back - Maximum Lift

61 degrees
