988

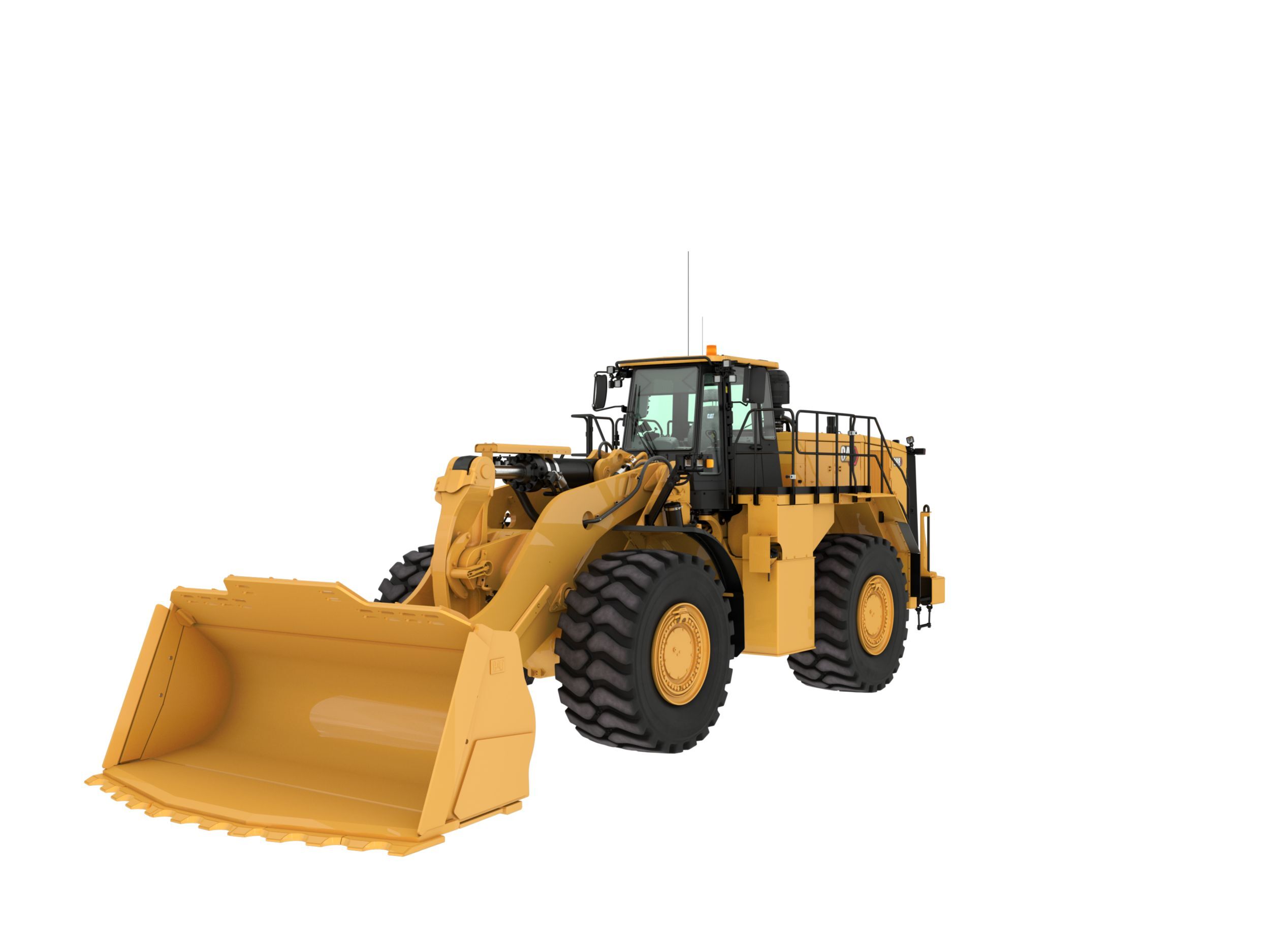

988 Wheel Loader

The Cat® 988 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings with durability to achieve multiple lifecycles.

Category:
Add to Quote

PROVEN RELIABILITY

LONG TERM VALUE AND DURABILITY

PERFORMANCE AND PRODUCTIVITY

PERFORMANCE WITH LESS FUEL

PRODUCTIVITY WITH TECHNOLOGY

SAFETY FIRST

SAVE ON SERVICE AND MAINTENANCE

OPERATOR COMFORT AND CONTROL

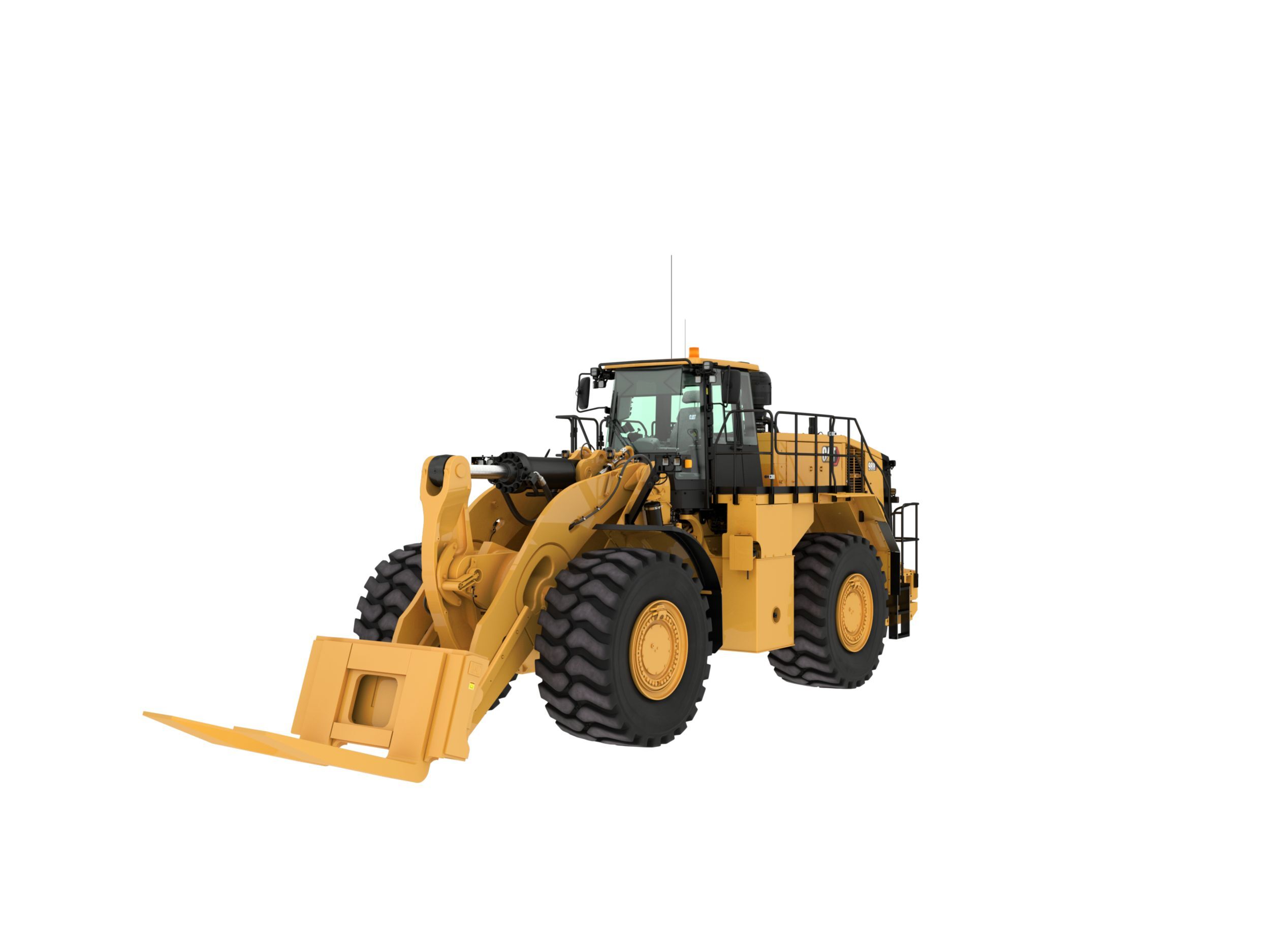

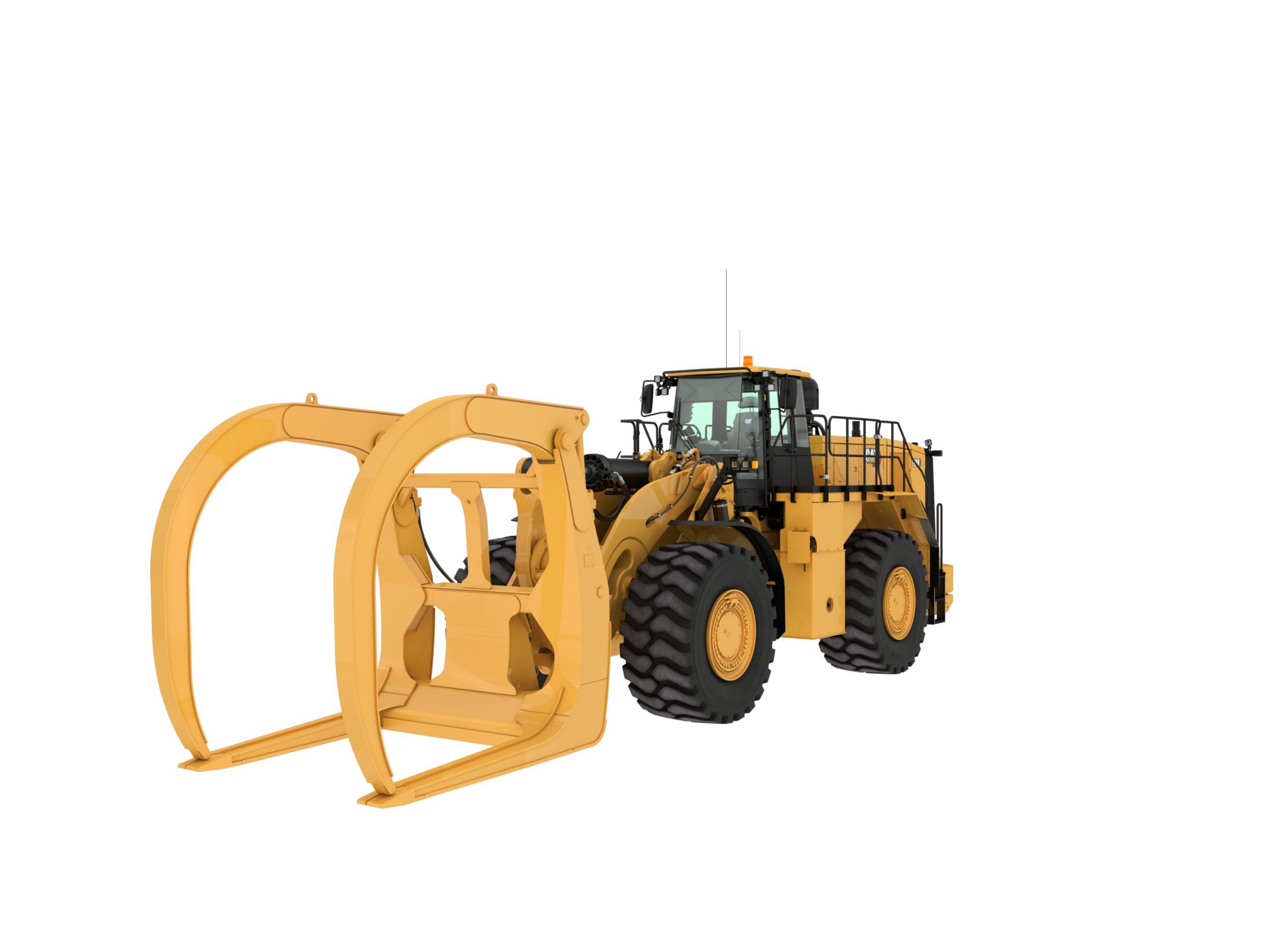

PURPOSE-BUILT SPECIALTY MODELS - BLOCK HANDLER

PURPOSE-BUILT SPECIALTY MODELS - MILLYARD

PURPOSE-BUILT SPECIALTY MODELS - STEEL MILL

Videos

Virtual Tours

Documents & Brochures

Standard Equipment

NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
  • Alarm, back-up
  • Alternator, single 150 amp
  • Batteries, dry
  • Converter, 10/15 amp, 24V to 12V
  • Lighting system (halogen, work lights, access and service platform lighting)
  • Starting and charging system, 24V
  • Jump start receptacle
  • Starter lockout in bumper
  • Transmission lockout in bumper
OPERATOR ENVIRONMENT
  • Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
  • Air conditioner
  • Cat Vision, rear vision camera system
  • Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
  • Controls, lift and tilt function
  • Heater, defroster
  • Horn, electric
  • Instrumentation, gauges: – Coolant temperature – Engine hour meter – Hydraulic oil temperature – Power train oil temperature
  • Light, cab, dome
  • Lunchbox, beverage holders
  • Mirrors, rearview (externally mounted)
  • Rimpull Control System
  • Seat, deluxe
  • Seat belt minder
  • Seat belt, retractable, 76 mm (3 in) wide
  • STIC Control System
  • UV glass
  • Transmission gear indicator
  • Vital Information Management System (VIMS) with Graphical Information Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System
  • Wet-Arm wipers/washers (front and rear): – Intermittent front and rear wipers
  • Lights, directional
POWER TRAIN
  • Brakes, oil-cooled, multi-disc, service/secondary
  • Case drain screens
  • Crankcase guard
  • Electro hydraulic parking brake
  • Engine, C18 MEUI diesel, turbocharged/aftercooled
  • Ground level engine shutoff
  • Turbine precleaner, engine air intake
  • Radiator, Aluminum Modular Radiator (AMR)
  • Starting aid, ether, automatic
  • Throttle lock, electronic
  • Torque converter, Impeller Clutch (ICTC) with Lock up clutch (LUC), Rimpull Control System
  • Transmission, planetary powershift, 4F/3R electronic control
  • Manual switch and automatic fuel priming
  • Cat Production Measurement ready
OTHER
  • Automatic bucket lift kickout/positioner
  • Base machine price includes a rim allowance
  • Hydraulically driven demand fan
  • Couplings, Cat O-ring face seals
  • Doors, service access (locking)
  • Ecology drains for engine, radiator, hydraulic tank
  • Fuel tank, 712 L (188 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Hydraulic, steering and brake filtration/screening system
  • Cat Clean Emission Module
  • Oil sampling valves
  • Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
  • Rear access to cab and service platform
  • Steering, load sensing
  • Toe kicks
  • Vandalism protection caplocks

Additional information

Engine - Net Power - SAE J1349:2011

401 kW ( 538 HP )
Engine Power - ISO 14396:2002

432 kW ( 580 HP )
Engine - Gross Power - SAE J1995:2014

439 kW ( 588 HP )
Engine Model

Cat® C18 ™
Engine - Peak Power Speed

1500/rpm
Engine - Rated Speed

1700/min
Engine - Emissions

U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards, Brazil MAR-1 and China Nonroad Stage IV emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA, and U.S. EPA Tier 2 and EU Stage II
Engine - Bore

145.0 mm ( 5.7 in )
Engine - Stroke

183.0 mm ( 7.2 in )
Engine - Displacement

18.1 l ( 1105.0 in³ )
Engine - Peak Torque - 1,200 rpm

3023 N·m ( 2230 lb/ft )
Engine - Torque Rise

58.0 % ( 58.0 % )
Operating Specifications - Operating Weight

51062.0 kg ( 112574 lb )
Operating Specifications - Rated Payload - Quarry Face

11.3 t ( 12.5 t )
Operating Specifications - Rated Payload - Loose Material

14.5 t ( 16 t )
Operating Specifications - Bucket Capacity Range

4.7-13 m3 (6.2-17 yd3)
Operating Specifications - Cat Truck Match - Standard

770～772
Operating Specifications - Cat Truck Match - High Lift

773～775
Transmission Type

Cat planetary powershift
Transmission - Forward - 1

6.5 km/h ( 4.0 mile/h )
Transmission - Forward - 2

11.6 km/h ( 7.2 mile/h )
Transmission - Forward - 3

20.4 km/h ( 12.7 mile/h )
Transmission - Forward - 4

34.7 km/h ( 21.6 mile/h )
Transmission - Reverse - 1

7.5 km/h ( 4.7 mile/h )
Transmission - Reverse - 2

13.3 km/h ( 8.3 mile/h )
Transmission - Reverse - 3

23.2 km/h ( 14.4 mile/h )
Transmission - Direct Drive - Forward 1

Lock-up disabled
Transmission - Direct Drive - Forward 2

12.5 km/h ( 7.8 mile/h )
Transmission - Direct Drive - Forward 3

22.3 km/h ( 13.9 mile/h )
Transmission - Direct Drive - Forward 4

39.3 km/h ( 24.4 mile/h )
Transmission - Direct Drive - Reverse 1

8.0 km/h ( 5.0 mile/h )
Transmission - Direct Drive - Reverse 2

14.3 km/h ( 8.9 mile/h )
Transmission - Direct Drive - Reverse 3

25.5 km/h ( 15.8 mile/h )
Hydraulic System - Lift/Tilt - Lift/Tilt System - Circuit

EH- Positive Flow Control, Flow Sharing
Hydraulic System - Lift/Tilt - Lift/Tilt System

Variable displacement piston
Hydraulic System - Lift/Tilt - Maximum Flow at 1,400-1,860 rpm

580.0 l/min ( 153.0 gal/min )
Hydraulic System - Lift/Tilt - Relief Valve Setting - Lift/Tilt

32800 kPa ( 4757 psi )
Hydraulic System - Lift/Tilt - Cylinders, Double Acting - Lift, Bore and Stroke

210 mm × 1050 mm (8.7 in × 41.3 in)
Hydraulic System - Lift/Tilt - Cylinders, Double Acting - Tilt, Bore and Stroke

269 mm × 685 mm (8.7 in × 27 in)
Hydraulic System - Lift/Tilt - Pilot System

Variable displacement piston
Hydraulic System - Lift/Tilt - Relief Valve Setting - Main

3800 kPa ( 551 psi )
Hydraulic Cycle Time (1,400-1,860 rpm) - Rack Back

4.5 s ( 4.5 s )
Hydraulic Cycle Time (1,400-1,860 rpm) - Raise

8.0 s ( 8.0 s )
Hydraulic Cycle Time (1,400-1,860 rpm) - Dump

2.2 s ( 2.2 s )
Hydraulic Cycle Time (1,400-1,860 rpm) - Lower Float Down

3.5 s ( 3.5 s )
Hydraulic Cycle Time (1,400-1,860 rpm) - Total Hydraulic Cycle Time - Empty Bucket

18.2 s ( 18.2 s )
Hydraulic System - Steering - Steering System - Circuit

Pilot, load sensing
Hydraulic System - Steering - Steering System - Pump

Piston, variable displacement
Hydraulic System - Steering - Maximum Flow

270.0 l/min ( 71.3 gal/min )
Hydraulic System - Steering - Relief Valve Setting - Steering

30000.0 kPa ( 4351.0 psi )
Hydraulic System - Steering - Total Steering Angle

86 °
Hydraulic System - Steering - Steering Cycle Times - High Idle

3.4 s ( 3.4 s )
Hydraulic System - Steering - Steering Cycle Times - Low Idle

5.6 s ( 5.6 s )
Air Conditioning System - Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Axles - Front

Fixed
Axles - Rear

Trunnion
Axles - Oscillation Angle

13 °
Brakes

ISO 3450:2011
Operator's Cab - ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Service Refill Capacities - Fuel Tank

712.0 l ( 188.0 gal (US) )
Service Refill Capacities - Cooling System

120.0 l ( 31.7 gal (US) )
Service Refill Capacities - Coolant (Validated by Test Cell Fill Quantities)

125 l ( 33 gal (US) )
Service Refill Capacities - Crankcase

60.0 l ( 15.9 gal (US) )
Service Refill Capacities - Diesel Exhaust Fluid Tank

33 l ( 8.7 gal (US) )
Service Refill Capacities - Transmission

120.0 l ( 31.7 gal (US) )
Service Refill Capacities - Transmission - Validated by Test Cell Fill Quantities

110 l ( 29 gal (US) )
Service Refill Capacities - Differential - Final Drives - Front

186.0 l ( 49.1 gal (US) )
Service Refill Capacities - Differential - Final Drives - Rear

186.0 l ( 49.1 gal (US) )
Service Refill Capacities - Hydraulic System Factory Fill

475.0 l ( 125.5 gal (US) )
Service Refill Capacities - Hydraulic System - Tank Only

240.0 l ( 63.4 gal (US) )
Sound Performance - Tier 4 Final / Stage V - Standard - Operator Sound Pressure Level (ISO 6396:2008)

73 dB(A) ( 73 dB(A) )
Sound Performance - Tier 4 Final / Stage V - Standard - Machine Sound Power Level (ISO 6395:2008)

111 dB(A) ( 111 dB(A) )
Sound Performance - Tier 3 / Stage III - Standard - Operator Sound Pressure Level (ISO 6396:2008)

73 dB(A) ( 73 dB(A) )
Sound Performance - Tier 3 / Stage III - Standard - Machine Sound Power Level (ISO 6395:2008)

112 dB(A) ( 112 dB(A) )
Dimensions (Approximate) - Standard Lift Linkage - Ground to Top of ROPS

4202 mm ( 13.8 ft )
Dimensions (Approximate) - Standard Lift Linkage - Ground to Top of Exhaust Stacks

4521 mm ( 14.8 ft )
Dimensions (Approximate) - Standard Lift Linkage - Ground to Top of Hood

3334 mm ( 10.9 ft )
Dimensions (Approximate) - Standard Lift Linkage - Rear Axle - Centerline to Bumper

3187 mm ( 10.5 ft )
Dimensions (Approximate) - Standard Lift Linkage - Front Axle Centerline to Bucket Tip

4254 mm ( 14.0 ft )
Dimensions (Approximate) - Standard Lift Linkage - Wheel Base

4550 mm ( 14.9 ft )
Dimensions (Approximate) - Standard Lift Linkage - Maximum Overall Length

11991 mm ( 39.3 ft )
Dimensions (Approximate) - Standard Lift Linkage - Ground to Lower Hitch Clearance

568 mm ( 1.9 ft )
Dimensions (Approximate) - Standard Lift Linkage - Clearance at Maximum Lift

3641 mm ( 11.9 ft )
Dimensions (Approximate) - Standard Lift Linkage - B-Pin Height - Maximum Lift

5491 mm ( 18.0 ft )
Dimensions (Approximate) - Standard Lift Linkage - Maximum Overall Height - Bucket Raised

7455 mm ( 24.5 ft )
Dimensions (Approximate) - Standard Lift Linkage - Reach - Maximum Lift

1981 mm ( 6.5 ft )
Dimensions (Approximate) - High Lift Linkage - Ground to Top of ROPS

4202 mm ( 13.8 ft )
Dimensions (Approximate) - High Lift Linkage - Ground to Top of Exhaust Stacks

4521 mm ( 14.8 ft )
Dimensions (Approximate) - High Lift Linkage - Ground to Top of Hood

3334 mm ( 10.9 ft )
Dimensions (Approximate) - High Lift Linkage - Rear Axle - Centerline to Bumper

3187 mm ( 10.5 ft )
Dimensions (Approximate) - High Lift Linkage - Front Axle Centerline to Bucket Tip

4661 mm ( 15.3 ft )
Dimensions (Approximate) - High Lift Linkage - Wheel Base

4550 mm ( 14.9 ft )
Dimensions (Approximate) - High Lift Linkage - Maximum Overall Length

12398 mm ( 40.7 ft )
Dimensions (Approximate) - High Lift Linkage - Ground to Lower Hitch Clearance

568 mm ( 1.9 ft )
Dimensions (Approximate) - High Lift Linkage - Clearance at Maximum Lift

4043 mm ( 13.3 ft )
Dimensions (Approximate) - High Lift Linkage - B-Pin Height - Maximum Lift

5887 mm ( 19.3 ft )
Dimensions (Approximate) - High Lift Linkage - Maximum Overall Height - Bucket Raised

7849 mm ( 25.8 ft )
Dimensions (Approximate) - High Lift Linkage - Reach - Maximum Lift

2062 mm ( 6.8 ft )
Buckets - Bucket Capacities

4.7-13 m3 (6.2-17 yd3)
