C18 ACERT Tier 2

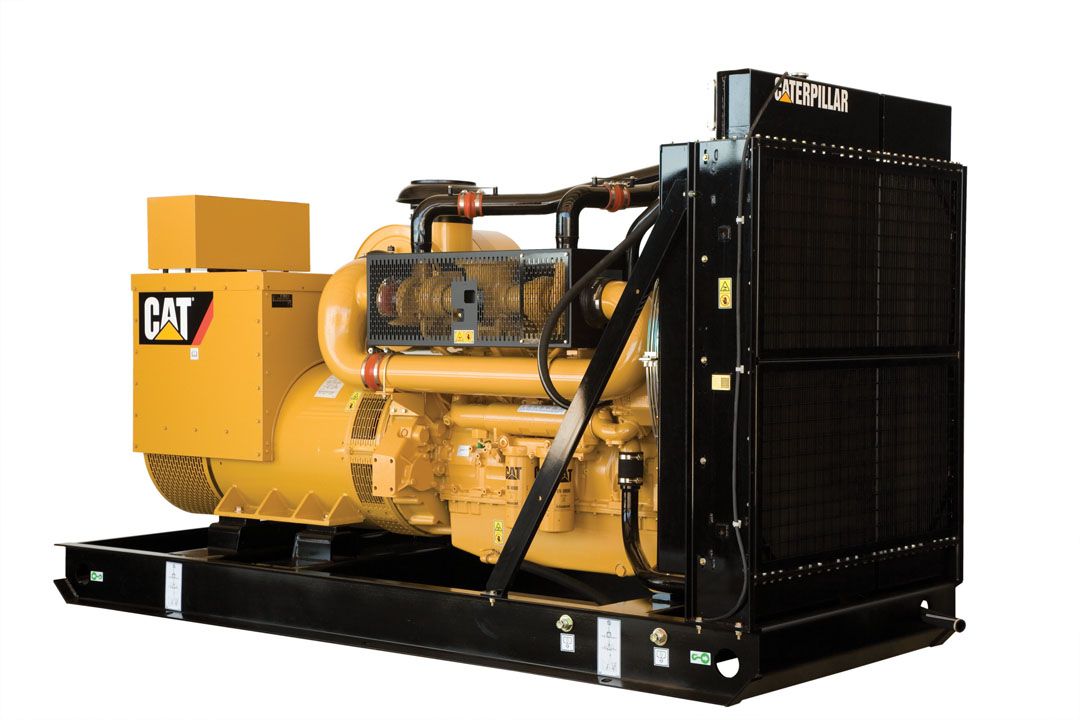

C18 ACERT Tier 2 Oilfield Diesel Generator Set
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C18 ACERT oilfield diesel generator set. Ratings: 440 – 545 ekW (550 – 680 kVA) @ 50 and 60 Hz (1500 and 1800 rpm) meet U.S. EPA Tier 2 equivalent, EU Stage II equivalent emission standards.
Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets - Cat factory-trained dealer technicians service every aspect of your Cat petroleum product - Worldwide parts availability, service, and warranty - Preventive maintenance agreements available for repairbefore- failure opti
Over 80 Years of Engine Manufacturing Experience
Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
For all your petroleum power requirements, visit www.catoilandgasinfo.com.
Standard Equipment
Air Inlet System
- Dual element air cleaner
- Service indicator
Cooling System
- Radiator package mounted (50° C)
- Coolant drain line with valve at edge of base
- Coolant level sensor
- Fan and belt guards
- Coolant level sight gauge
- Cat Extended Life Coolant
Exhaust System
- Dry exhaust manifold
- Turbo outlet elbow
Fuel System
- Primary fuel filter with integral water separator
- Secondary fuel filters
- Fuel priming pump
- Flex fuel lines
- Fuel pressure gauge
Generator
- SR4B brushless, single-bearing, self-excited
- Class H insulation
- Random wound
- IP23 protection
- Cat DVR 3-phase sensing with selectable volts/Hz
- 3 sensing CTs and one droop CT
- Power center
Generator Attachments
- RH extended cable access box
Controls
- ADEM A4 ECU
- EMCP 3 Control Panel
Lube System
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
Mounting System
- Steel base frame (skidable)
Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
- Battery rack
- Battery disconnect switch
General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 1
Additional information
| مواصفات المحرك - أقصى معدل | 545 كيلووات كهربائي (680 كيلوفولت أمبير) |
|---|---|
| مواصفات المحرك - أدنى معدل | 440 كيلووات كهربائي (550 كيلوفولت أمبير) |
| مواصفات المحرك - الانبعاثات/إستراتيجية الوقود | معايير وكالة حماية البيئة (EPA) الأمريكية من المستوى 2، معايير الاتحاد الأوروبي من المرحلة II |
| مواصفات المحرك - السحب | مزوَّد بشاحن توربيني، ومبرد لاحق هواء إلى هواء |
| مواصفات المحرك - نوع المجمع | جاف |
| مواصفات المحرك - التجويف | 145.0 مم ( 5.7 بوصة ) |
| مواصفات المحرك - الشوط | 183.0 مم ( 7.2 بوصة ) |
| مواصفات المحرك - الإزاحة | 18.1 l ( 1106.0 بوصة³ ) |
| مواصفات المحرك - التحكم في المحرك والحماية | ADEM A4 |
| مواصفات المحرك - التحكم في مجموعة المولد | EMCP 3.1 |
| مواصفات المحرك - المولد | SR4B |
| مواصفات المحرك - نظام الوقود | MEUI |
| مواصفات المحرك - التردد - السرعة | 50/60 هرتز (1500/1800 دورة في الدقيقة) |
| سعة السوائل - لاستهلاك | ديزل |
| الأبعاد - الطول | 3632.0 مم ( 143.0 بوصة ) |
| الأبعاد - العرض | 1524.0 مم ( 60.0 بوصة ) |
| الأبعاد - الارتفاع | 2115.0 مم ( 83.3 بوصة ) |
| الأبعاد - الوزن | 5033.0 كجم ( 11095.0 رطل ) |
| Offering Type |
