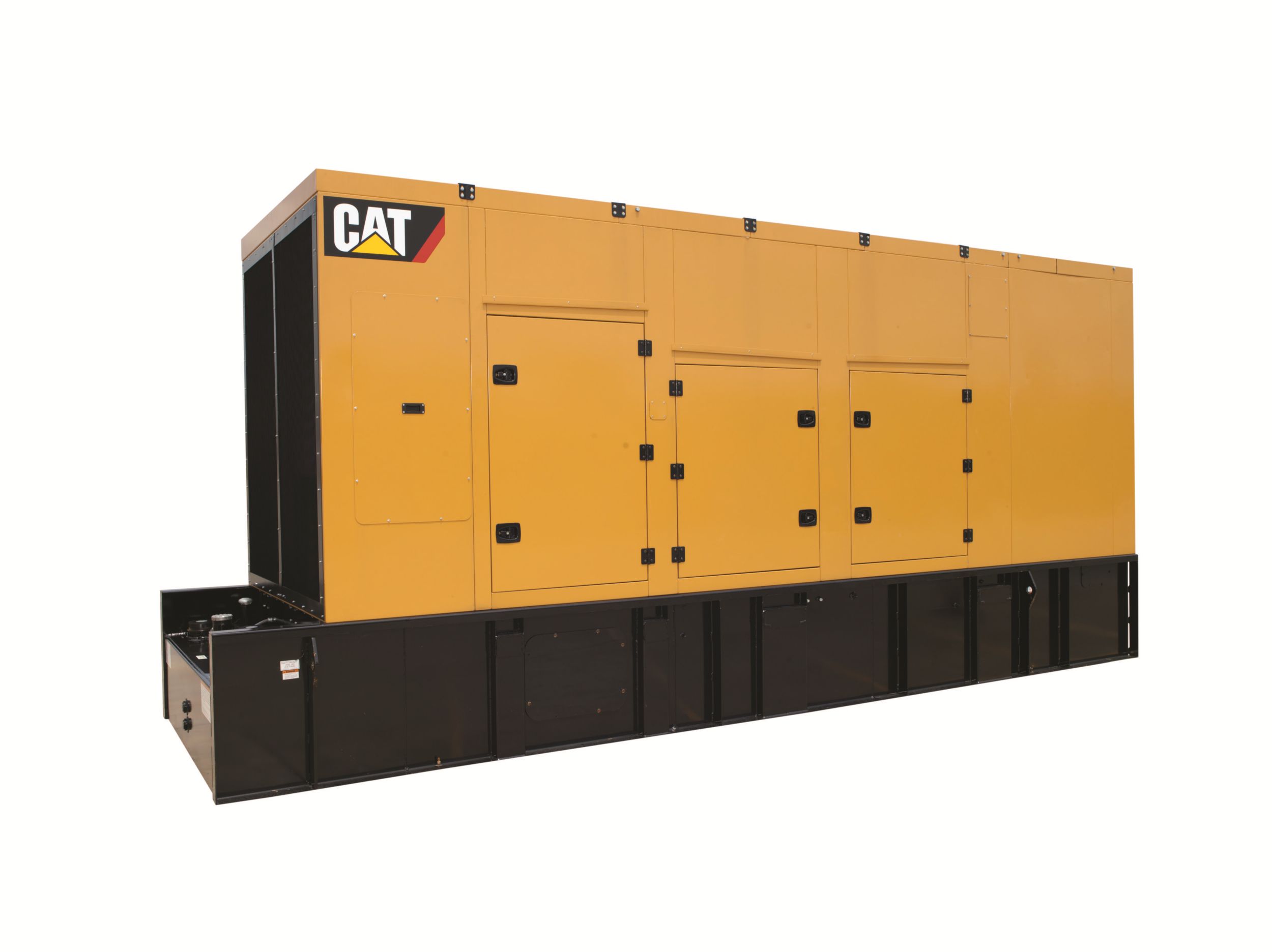

C27 and C32 Sound Attenuated Enclosure
C27 and C32 Sound Attenuated Enclosure
C27 and C32 Sound Attenuated Enclosure
Robust/Highly Corrosion Resistant Construction
- Environmentally friendly, polyester powder-baked paint in Caterpillar Yellow
- Zinc plated or stainless-steel fasteners
- Pitched roof for improved rain ingress protection
- Critical grade internally mounted muffler/ exhaust system
- Vibration spring isolators
- 75 dBA at 7 m
Excellent Access
- Control panel mounted on left side or right side of package
- Large cable entry area for ease of installation
- Left-hand or right-hand bottom entry access to power cable bus or circuit breaker
- Double doors on both sides
- Lube oil and coolant drains piped to exterior of enclosure and terminated drain valves
Security And Safety
- Lockable access doors with standard key use
- Cooling fan and battery charging alternator fully guarded
- Oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop button
- Designed for spreader-bar lifting to ensure safety
Options
- Cat® yellow or white paint
- Interior AC lighting system and AC receptacles (interior and exterior)
- Cold-weather bundle, including motorized louvers (powered closed), backdraft dampers, and enclosure space heater
Documents & Brochures
Additional information
| الأوزان والأبعاد - الارتفاع | 3759 mm |
|---|---|
| الأوزان والأبعاد - العرض | 2554 mm |
| الأوزان والأبعاد - الوزن | 5952 kg |
| الأوزان والأبعاد - الطول | 9750 mm |
