C9.3B

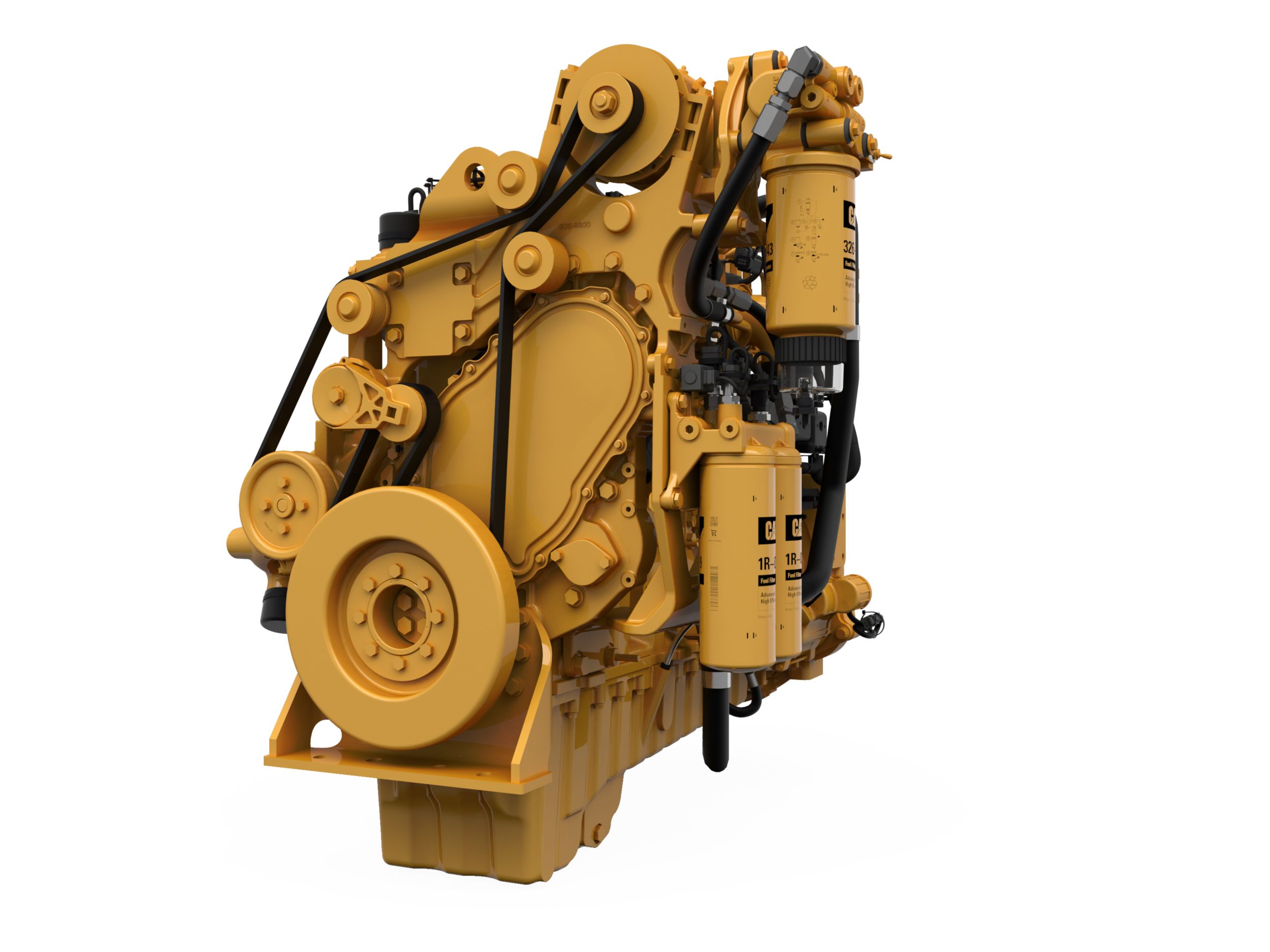

Cat® C9.3B Industrial Diesel Engine
The Cat® C9.3B industrial diesel engine is offered in ratings rangingfrom 280-330 kW (375-443 hp). These ratings have been fuel optimized
for use in countries without any regulatory requirements for emissionstandards.
High Performance
The C9.3B delivers expanded capability with 19% more power and 16% more torque than the previous 8.8 liter platform for less regulated countries (comparison for IND-C rating).
Reliable, Quiet and Durable Power
The C9.3B engine leverages a core engine with over 200 million off-highway hours in the field and is manufactured in a world-class facility; assuring reliability, quiet operation and many hours of productive life.
Optimized Installation
- The C9.3B for LRC offers platform commonality with the C9.3B for highly regulated countries to reduce cost of installation and support a global customer base by sharing a common core engine, offering similar machine interfaces and controls architecture.
- High power density, up to 33.3 kW/L (44.7 hp/L) gives original equipment manufacturers (OEMs)
the ability to downsize their engine installation without sacrificing performance. - Fully configurable engine options and industrial power unit (IPU) available from factory to avoid
significant design, validation, and manufacturing costs.
Low Cost Maintenance
- Worldwide service delivers ease of maintenance and simplifies the servicing routine.
- Standard service intervals of 500 hours under normal operating conditions.
- The S•O•SSM program is available from your Cat dealer to optimize oil change intervals.
- Ideal for high-hour applications over 10,000 hours.
- Remote mount options for serviceable items such as oil and fuel filters.
Low Operating Costs
C9.3B development and calibration strategies have yielded significant improvements in fuel
consumption, minimizing the total cost of ownership.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Virtual Tours
Documents & Brochures
Standard Equipment
Air Inlet System
- Turbocharged: system with front and rear exhaust configurations
- Air-to-Air Aftercooled
Control System
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Electronic control system with single on-engine ECM
- Over-foam wiring harness
- Automatic altitude compensation
Cooling System
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Available SAE No. 1 and No. 2 flywheel/housings
Fuel System
- Electronic high pressure common rail
- Primary fuel filter
- Secondary and tertiary fuel filters
- Fuel transfer pump
- Electronic fuel priming
Lube System
- Open crankcase ventilation system (OCV) with fumes disposal (optional OCV filter system)
- Oil cooler
- Oil filler
- Lube oil filter
- Choice of front, rear or center sumps
- Oil dipstick
- Gear driven oil pump
General
- Vibration damper
- Lifting eyes
- Paint: Caterpillar yellow, with optional colors available at request
Additional information
| تقدير القدرة - القدرة القصوى | 310 كيلووات ( 416 حصان ) |
|---|---|
| تقدير القدرة - أقصى عزم دوران | 1810 Nm @ 1400 rpm ( 1335 رطل-قدم عند 1400 دورة/دقيقة ) |
| تقدير القدرة - السرعة المقدرة | 1800-2200 دورة في الدقيقة |
| تقدير القدرة - القدرة الدنيا | 230 كيلووات ( 308 حصان ) |
| معايير الانبعاثات - الانبعاثات | المعايير الصينية لمحركات البيئات الوعرة من المرحلة III، والمعايير البرازيلية MAR-1، ومعايير الأمم المتحدة ECE R96 من المرحلة IIIA |
| عام - تكوين المحرك | ديزل بدورة من 4 أشواط، ذو 6 أسطوانات في خط مستقيم |
| عام - التجويف | 115 مم ( 4.5 بوصة ) |
| عام - الشوط | 149 مم ( 5.9 بوصة ) |
| عام - الإزاحة | 9.3 l ( 567.5 بوصة³ ) |
| عام - نسبة الانضغاط | 16.5:1 |
| عام - السحب | مزوَّد بشاحن توربيني ومبرد لاحق (TA) |
| عام - نظام الاحتراق | حقن مباشر |
| عام - الدوران من طرف الحدافة | عكس اتجاه حركة عقارب الساعة |
| عام - المعالجة اللاحقة | – |
| أبعاد المحرك - بالتقريب - الطول | 1125 مم ( 44 بوصة ) |
| أبعاد المحرك - بالتقريب - العرض | 791 مم ( 31 بوصة ) |
| أبعاد المحرك - بالتقريب - الارتفاع | 1068 مم ( 42 بوصة ) |
| أبعاد المحرك - بالتقريب - الوزن - الصافي الجاف - محرك التشغيل الأساسي من دون الملحقات الاختيارية | 865 كجم ( 1907 رطل ) |
| Offering Type |
