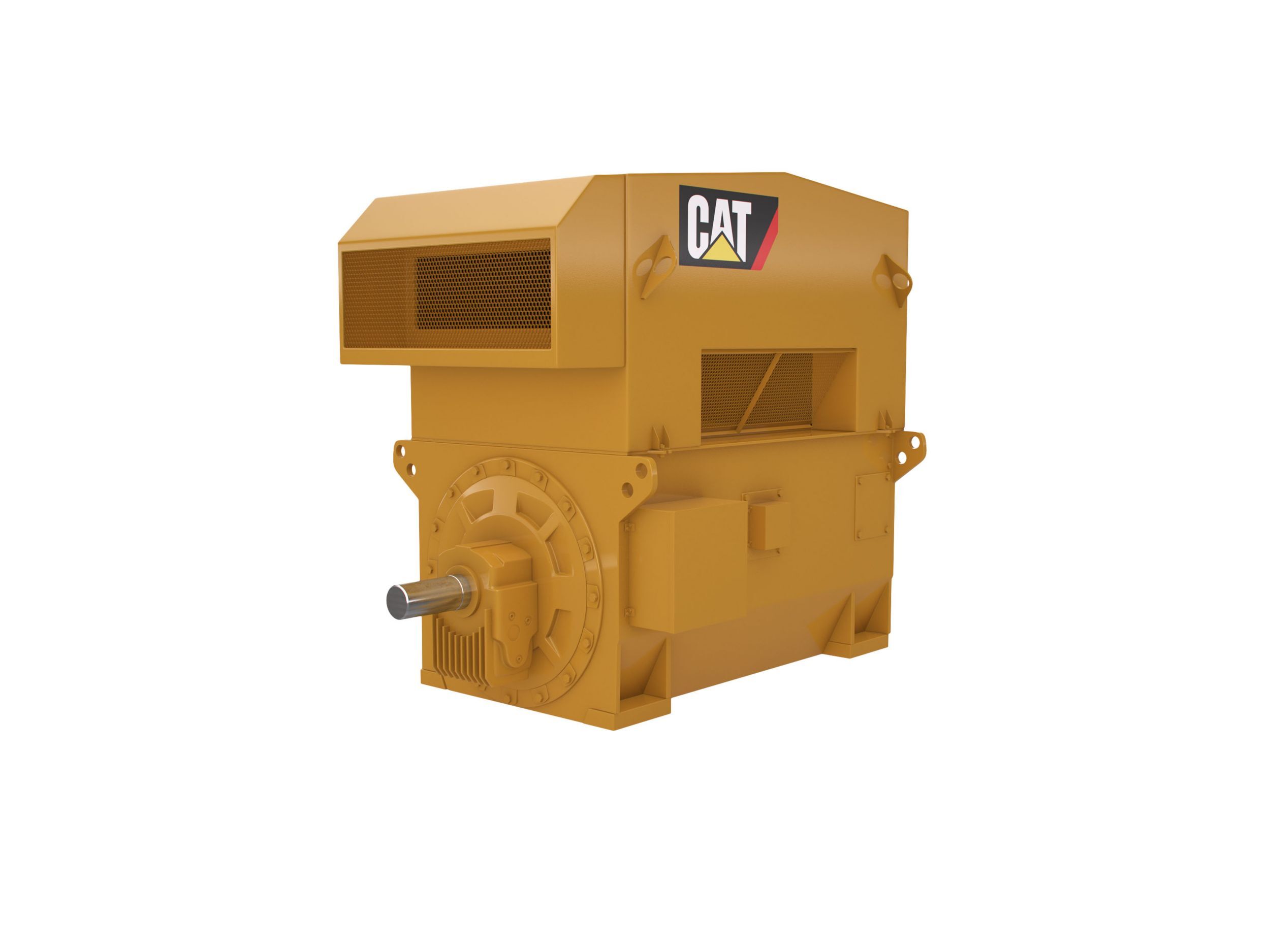

CN1566 Electric Motor

CN1566 Electric Motor

Get power built for your most demanding gas compression applications. Every Cat® electric motor is tested at each stage of production to make sure it performs reliably under load and according to your process requirements. High operating efficiency and low operating costs come with low noise levels and no emissions. Cat electric motors for gas compression are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.

Standard Equipment

Bearings
  • Bearing RTDs for temperature monitoring
  • Insulated non-drive end bearings to reduce bearing currents
  • Anti-friction on 1500 hp (optional)
Rotors
  • Designed for minimal vibration
  • Dynamic balancing at full operational speed
  • Fabricated copper squirrel cages
  • Oversized, forged, keyless shaft
  • AISI 4140/DIN42CrMo4 shaft
Stators
  • Radial air ducts ensure uniform and efficient cooling
  • Vacuum pressure impregnated with specially formulated epoxy resin
  • 2X RTDS per Phase
  • Space heater
  • Welded and machined stator core retains its rigidity throughout motor life to ensure a sealed and homogeneous insulation system that results in high dielectric strength, excellent heat transfer and the elimination of hazardous internal partial discharges

Additional information

Offering Type

Electric Motor Specifications - Voltage/Frequency

4000V ± 10%/60 Hz

Electric Motor Specifications - Type of EX-Protection

Class 1 Division 2 Group A,B,C,D T3 (NEC or CEC)

Electric Motor Specifications - Mounting Designation

F1 or F2

Electric Motor Specifications - Number of Poles

6 poles ( 6 poles )

Electric Motor Specifications - Electric Motor Type

Squirrel Cage Induction Motor

Electric Motor Specifications - Full Load Speed

1189 r/min ( 1189 r/min )

Electric Motor Specifications - Shaft

130 mm ( 5.1 in )

Electric Motor Specifications - Standards

NEMA MG1

Electric Motor Specifications - Connection of Stator Winding

Star

Electric Motor Specifications - Locked Rotor Torque

60%

Electric Motor Specifications - No Load Current

67 Amps

Electric Motor Specifications - Locked Rotor Amps

500% Code E

Electric Motor Specifications - Service Factor

1.15 SF (1.0 VFD)

Electric Motor Specifications - Enclosure Type/Method of Cooling

WP-II

Electric Motor Specifications - Duty

Continuous

Electric Motor Specifications - Temperature Rise

Class B at rated load

Electric Motor Specifications - Maximum Ambient Temperature

40 °C ( 104 °F )

Electric Motor Specifications - Maximum Altitude - Before Derate

1000 m ( 3000 ft )

Electric Motor Specifications - Rated Torque

8982 N·m ( 6625 lb/ft )

Electric Motor Specifications - Full Load Current

202 Amps

Electric Motor Specifications - Insulation

Class F
