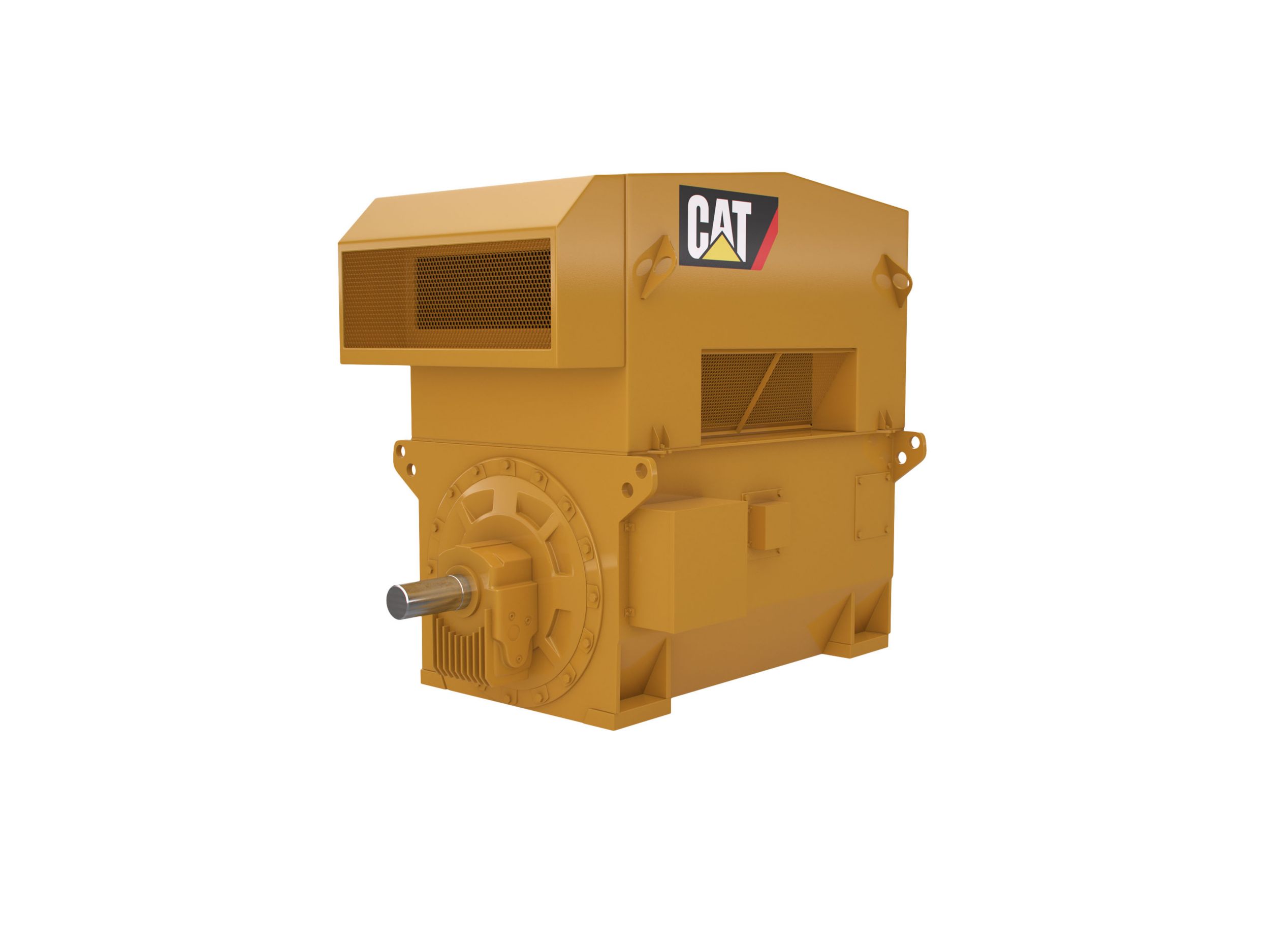

CN3586 Electric Motor for Gas Compression

CN3586 Electric Motor for Gas Compression

Get power built for your most demanding gas compression applications. Every Cat® electric motor is tested at each stage of production to make sure it performs reliably under load and according to your process requirements. High operating efficiency and low operating costs come with low noise levels and no emissions. Cat electric motors for gas compression are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.

Standard Equipment

Bearings
  • Bearing RTDs for temperature monitoring
  • Insulated non-drive end bearings to reduce bearing currents
  • Anti-friction on 1500 hp (optional)
Rotors
  • Designed for minimal vibration
  • Dynamic balancing at full operational speed
  • Fabricated copper squirrel cages
  • Forged, keyless shaft
  • AISI 4140/DIN42CrMo4 shaft
Stators
  • Radial air ducts ensure uniform and efficient cooling
  • Vacuum pressure impregnated with specially formulated epoxy resin
  • 2X RTDS per Phase
  • Space heater
  • Welded and machined stator core retains its rigidity throughout motor life to ensure a sealed and homogeneous insulation system that results in high dielectric strength, excellent heat transfer and the elimination of hazardous internal partial discharges

Additional information

Offering Type

Electric Motor Specifications - Type of EX-Protection

Class 1 Division 2 Group A,B,C,D T3 (NEC or CEC)

Electric Motor Specifications - Mounting Designation

F1 or F2

Electric Motor Specifications - Voltage/Frequency

4000V & 4160V ± 10%/60 Hz

Electric Motor Specifications - Full Load Speed

894 rpm

Electric Motor Specifications - Electric Motor Type

Squirrel Cage Induction Motor

Electric Motor Specifications - Number of Poles

8

Electric Motor Specifications - Maximum Ambient Temperature

40 °C ( 104 °F )

Electric Motor Specifications - Full Load Current

458 Amps

Electric Motor Specifications - Shaft

216 mm ( 8.5 in )

Electric Motor Specifications - Rated Torque

27869 N·m ( 20555 lb/ft )

Electric Motor Specifications - Maximum Altitude - Before Derate

1000 m ( 3300 ft )

Electric Motor Specifications - Locked Rotor Amps

540% Code E

Electric Motor Specifications - Connection of Stator Winding

Star

Electric Motor Specifications - Standards

NEMA MG1

Electric Motor Specifications - Duty

Continuous

Electric Motor Specifications - Enclosure Type/Method of Cooling

WP-II

Electric Motor Specifications - Locked Rotor Torque

60%

Electric Motor Specifications - Service Factor

1.15 SF (1.0 VFD)

Electric Motor Specifications - No Load Current

137 Amps

Electric Motor Specifications - Insulation

Class F

Electric Motor Specifications - Temperature Rise

Class B at rated load
