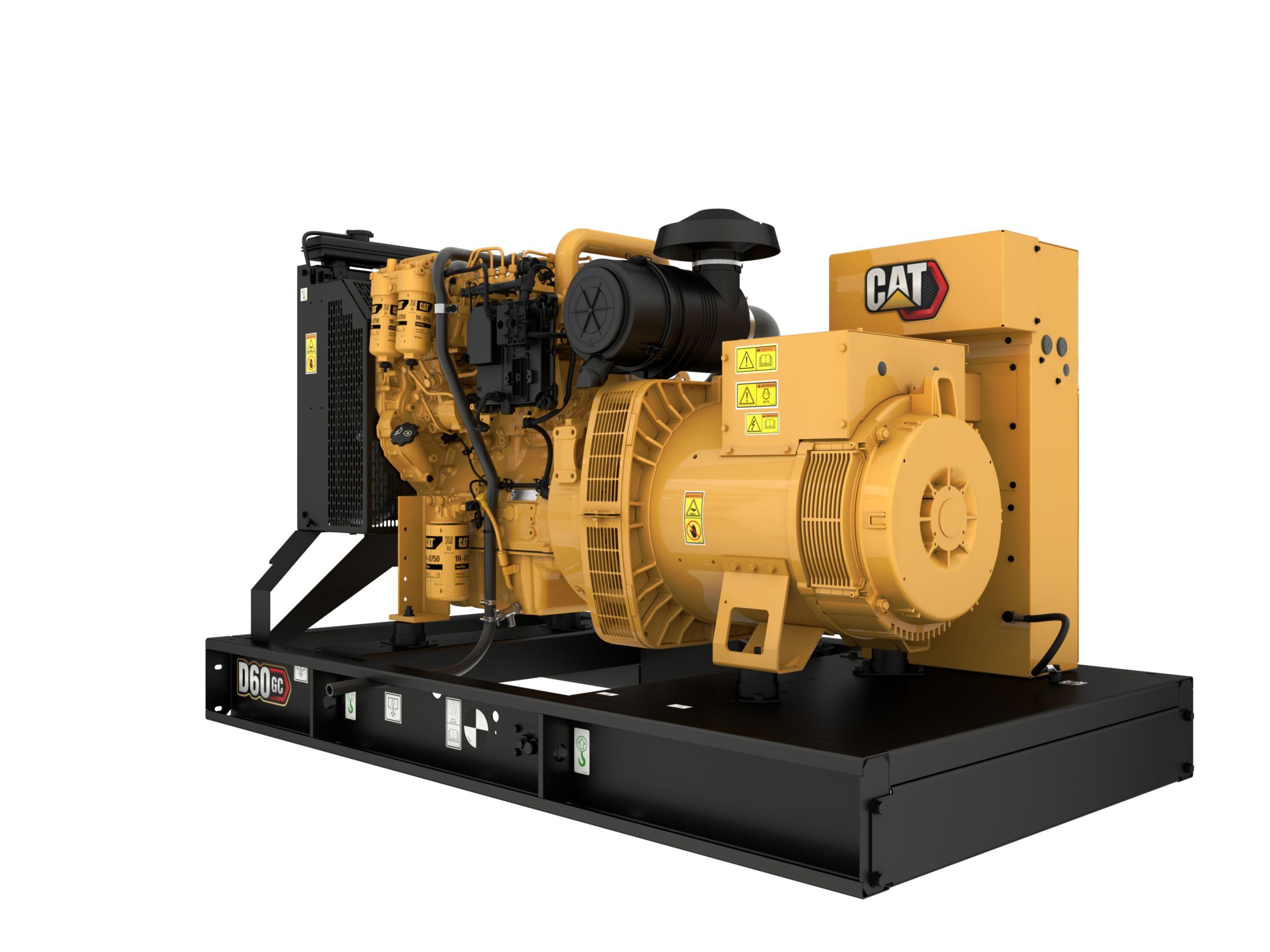

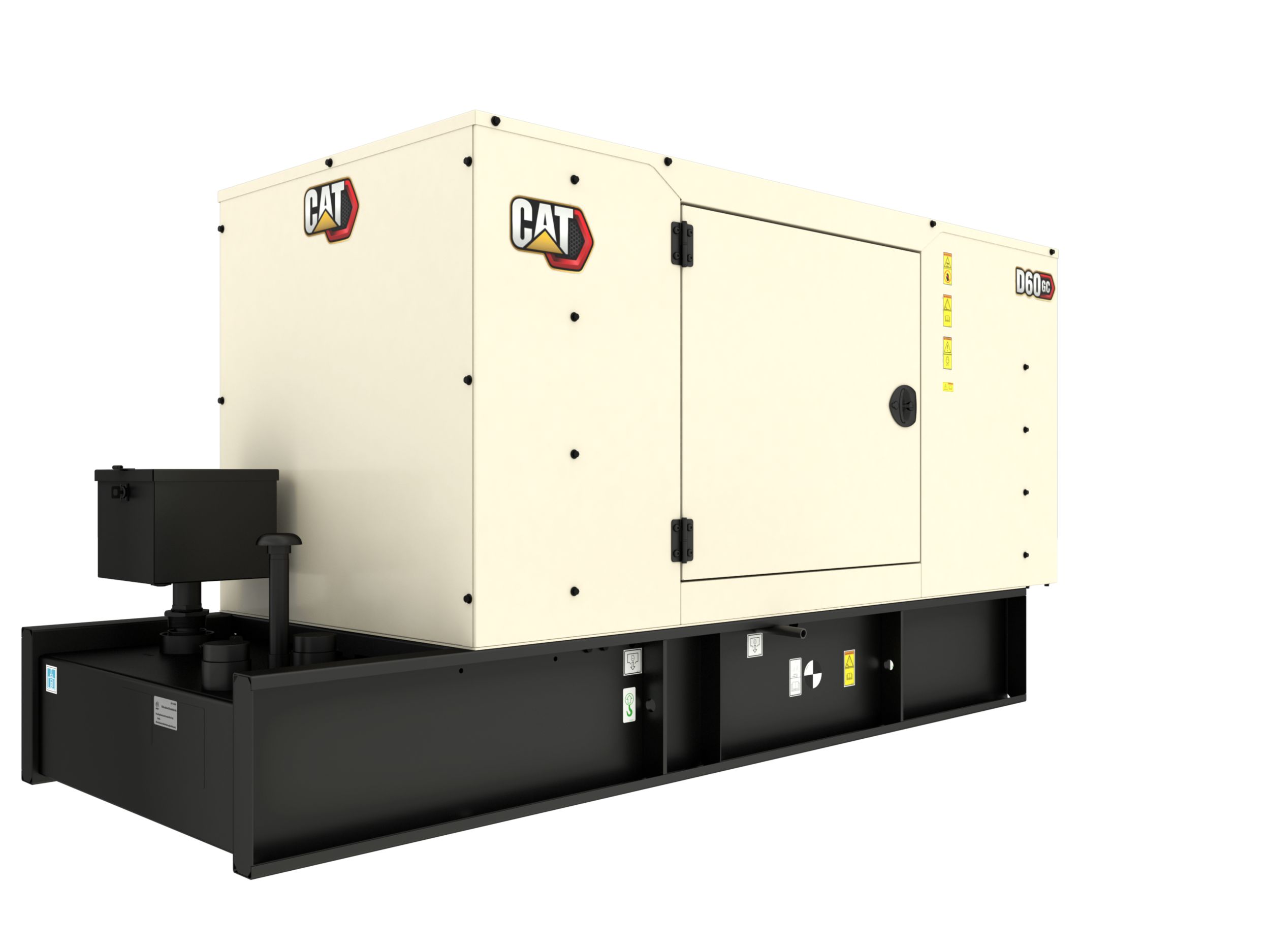

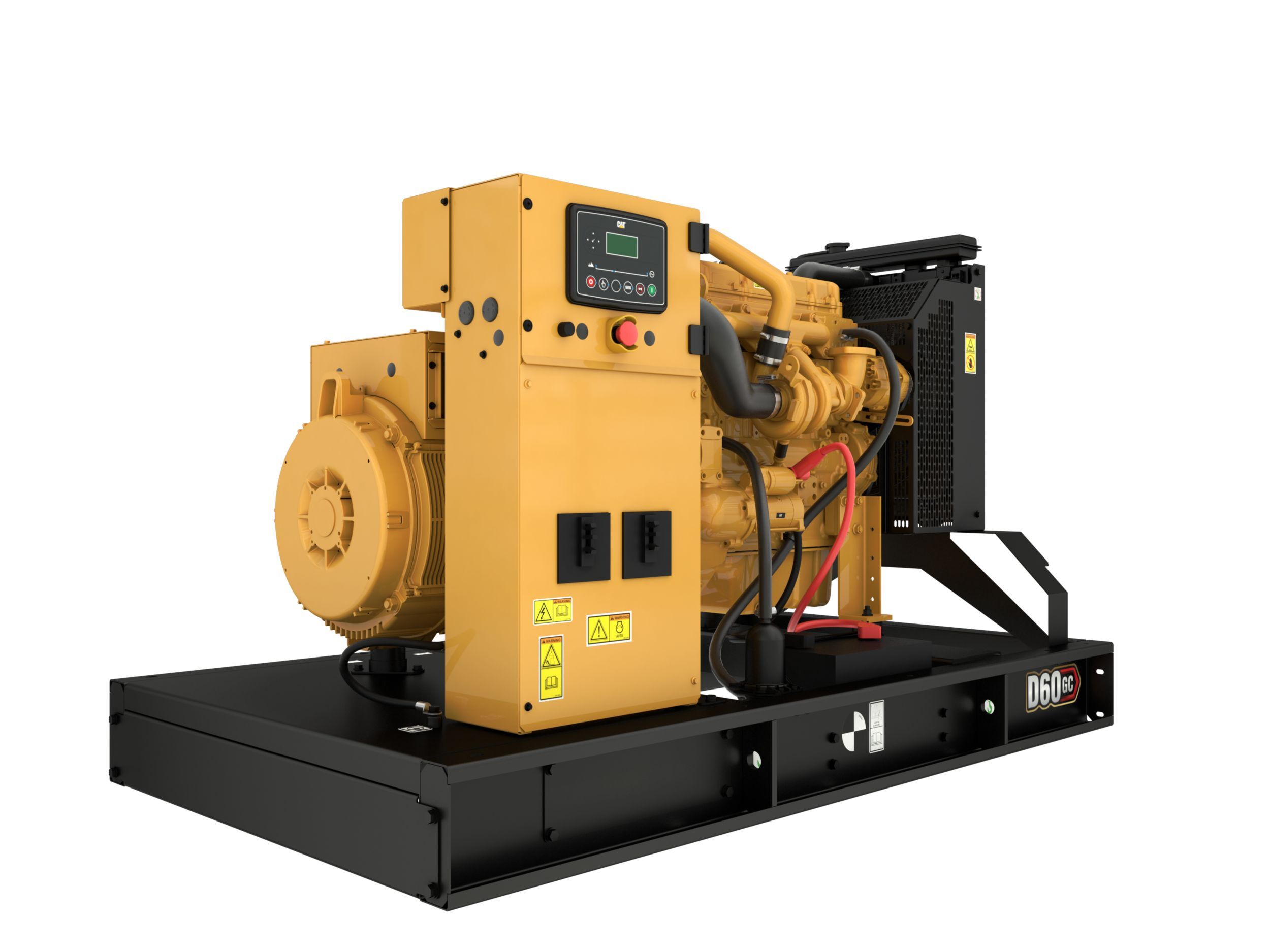

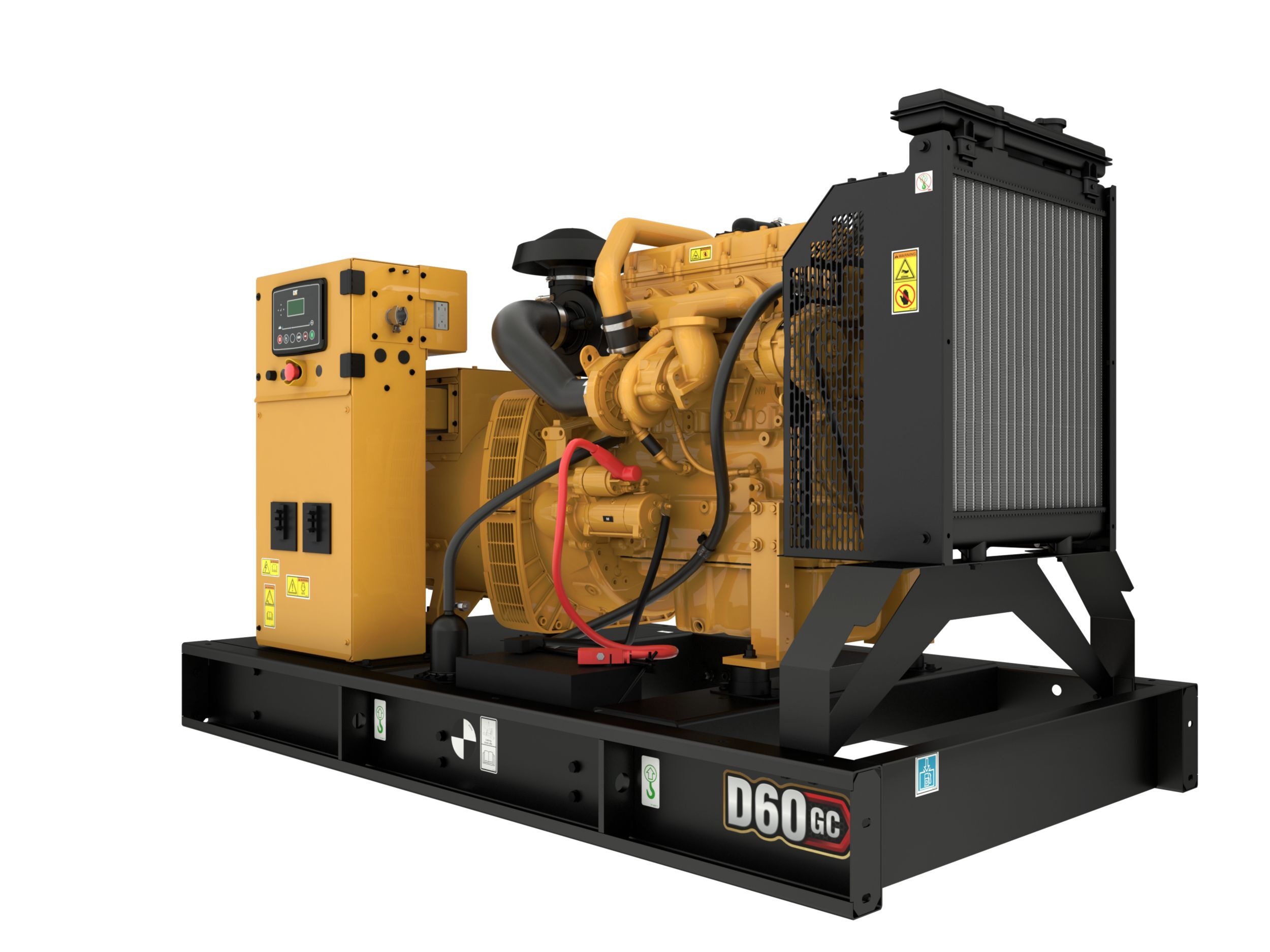

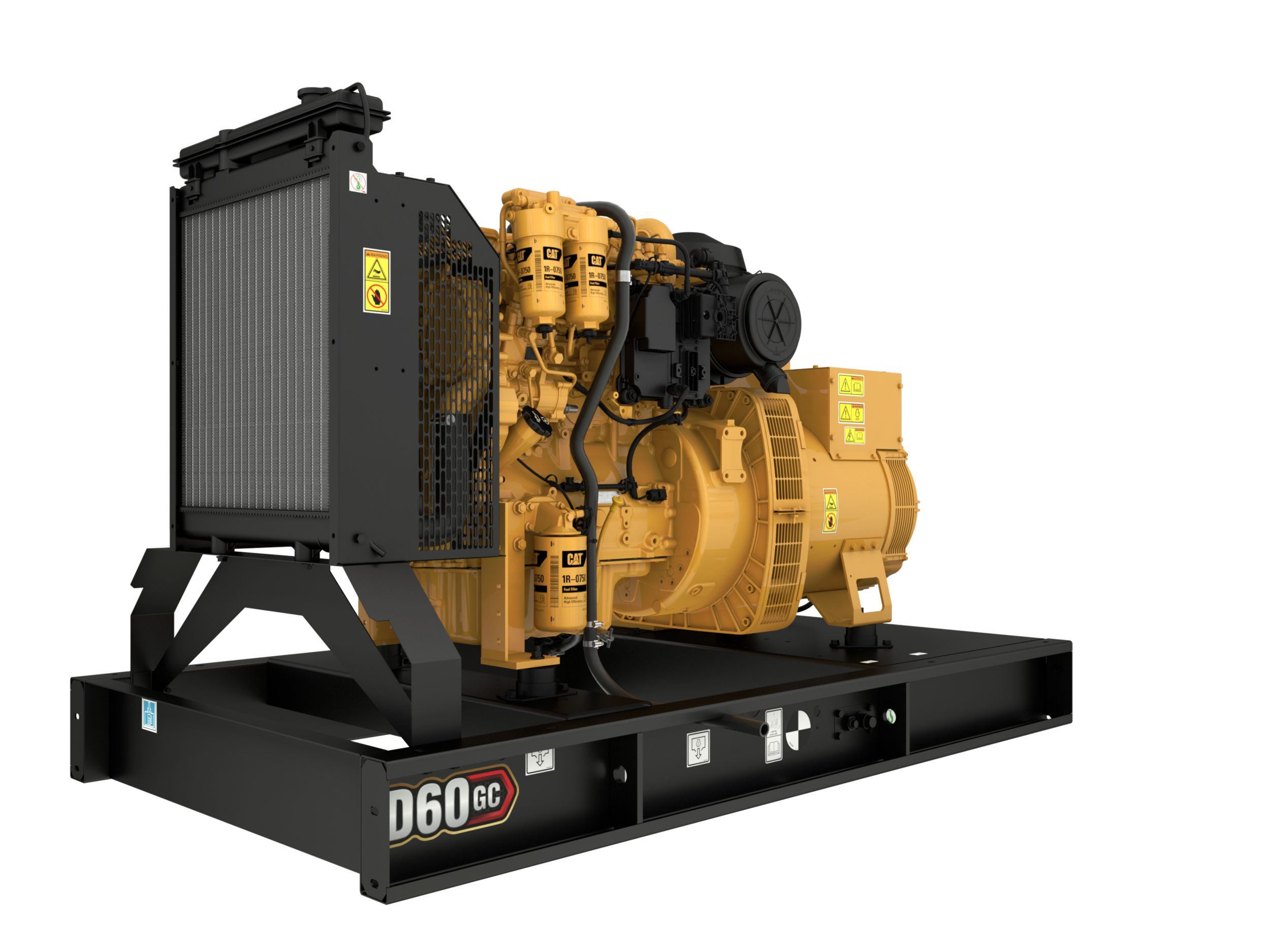

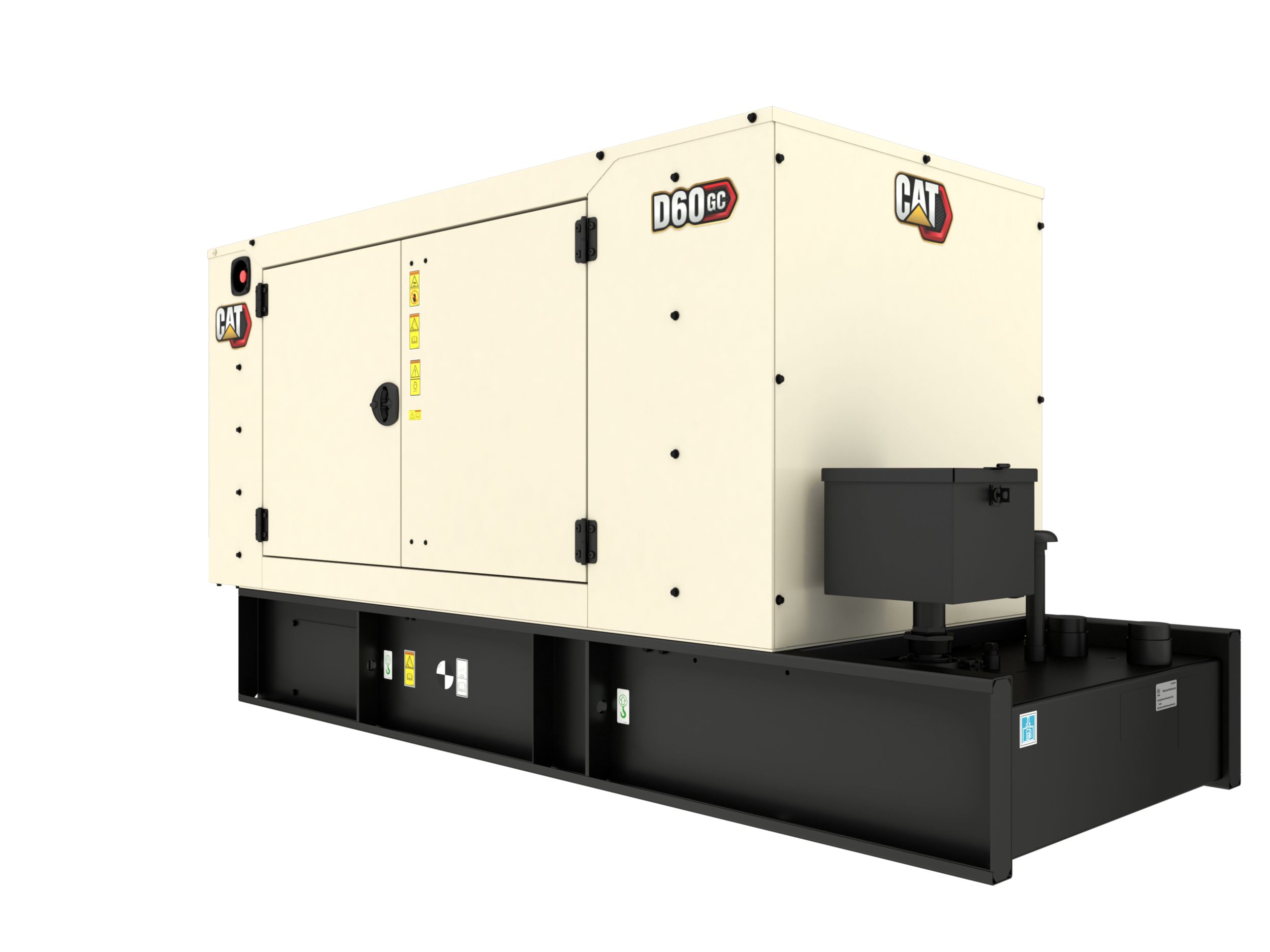

D60 GC
D60 GC Generator Set
Producing reliable power of 60 ekW at 60 Hz, our D60 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D60 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- UL 2200 Listed
- ULC Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Documents & Brochures
Standard Equipment
Certificates
- IBC seismic and wind Certifications
Air Inlet System
- Air cleaner
- Cartridge type air filter
Circuit breakers
- Breakers (100% UL rated)
- 3-Pole 100% rated
- Second circuit breaker box
- Power terminal strip
Charging System
- NFPA battery charger UL10A 120VAC
Control Panel
- GCCP 1.2 Control panel
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank
Control Panels
- WSS1 Low coolant level shut down
- FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
- NFPA110 bundle includes:
- WCA1 Low coolant temperature alarm
- A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
- PBC10NU NFPA battery charger
- Oil temperature gauge and sender
- PAA1 Panel mounted audible alarm
- Ground fault relay
- Remote E-stop button
- Remote annunciator module
- Audible alarm
- Volt free contacts genset run and common alarm
- Discrete I/O module
- Overload shutdown via breaker
- Low coolant temperature alarm
- Protective devices:
- Fuel level reading
- Low coolant level shutdown
Cooling System
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
- Radiator stone guard
Generator
- 12 Leads
Governing System
- Mechanical and electrical governing system - model dependent
Lube System
- Oil drain line with valve
- Lubricating oil
General
- Engine and alternator pre-paint, Caterpillar yellow
Starting/Charging System
- Batteries
- 24V battery with rack and cables
Additional information
| Offering Type | |
|---|---|
| Generator Set Specifications - Maximum Rating | 60 ekW |
| Generator Set Specifications - Minimum Rating | 60 ekW |
| Generator Set Specifications - Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 |
| Generator Set Specifications - Voltage | 208 to 600 Volts |
| Generator Set Specifications - Frequency | 60 Hz |
| Generator Set Specifications - Speed | 1800 rpm |
| Generator Set Specifications - Duty Cycle | Standby |
| Engine Specifications - Engine Model | C4.4, In-line 4, 4-cycle diesel |
| Engine Specifications - Bore | 105 mm ( 4.1 in ) |
| Engine Specifications - Stroke | 127 mm ( 5 in ) |
| Engine Specifications - Displacement | 4.4 l ( 269 in ) |
| Engine Specifications - Compression Ratio | 16.7:1 |
| Engine Specifications - Aspiration | Turbocharged |
| Engine Specifications - Fuel System | Electronic (adjustable) |
| Engine Specifications - Governor Type | Mechanical, ADEM™A4 |
| Generator Set Dimensions - Length - Maximum | 1962 mm ( 77.2 in ) |
| Generator Set Dimensions - Width - Maximum | 1100 mm ( 43.3 in ) |
| Generator Set Dimensions - Height - Maximum | 1220 mm ( 48 in ) |
| Generator Set Dimensions - Dry Weight - Genset (maximum) | 932 kg ( 2054 lb ) |
